infrared absorption spectroscopyIR infrared spectroscopy and molecular structure

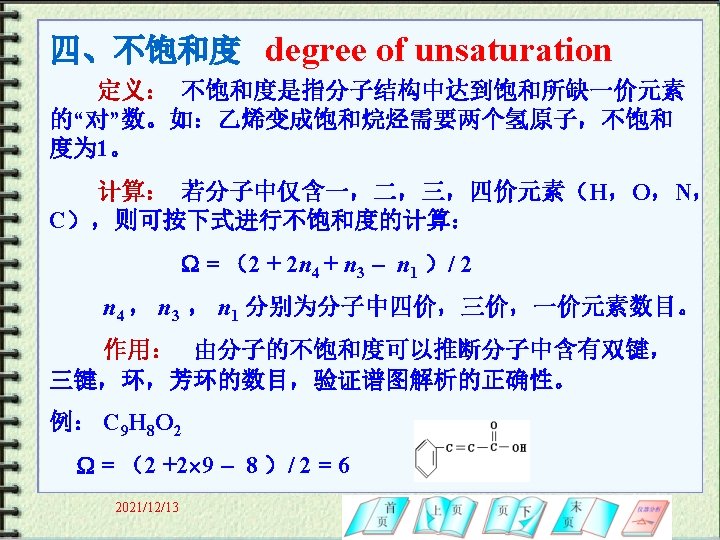

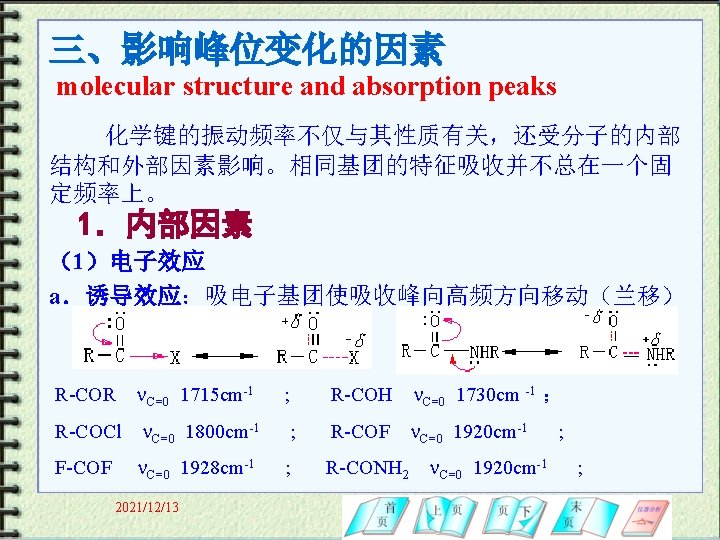

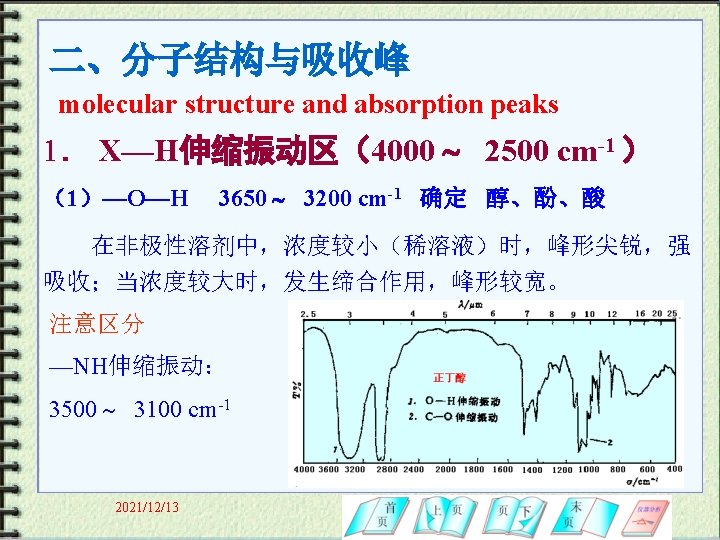

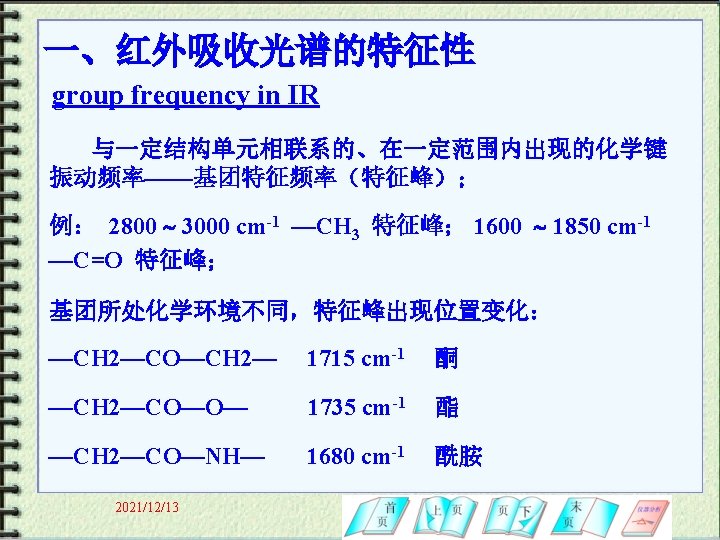

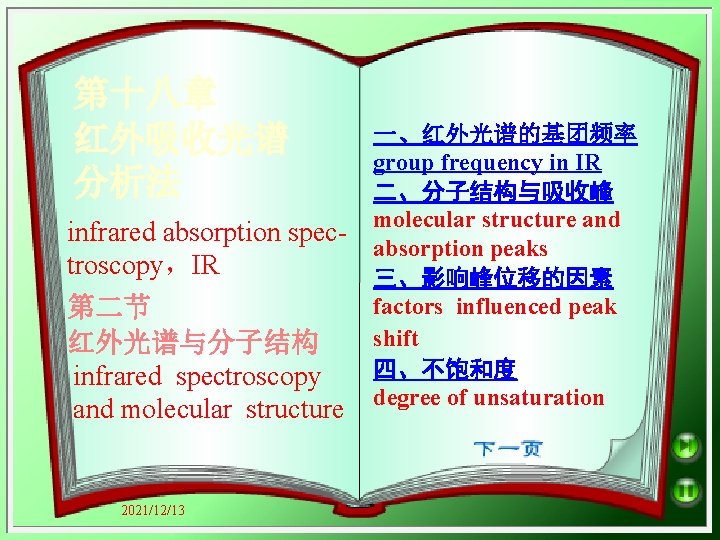

第十八章 红外吸收光谱 分析法 infrared absorption spectroscopy,IR 第二节 红外光谱与分子结构 infrared spectroscopy and molecular structure 2021/12/13 一、红外光谱的基团频率 group frequency in IR 二、分子结构与吸收峰 molecular structure and absorption peaks 三、影响峰位移的因素 factors influenced peak shift 四、不饱和度 degree of unsaturation

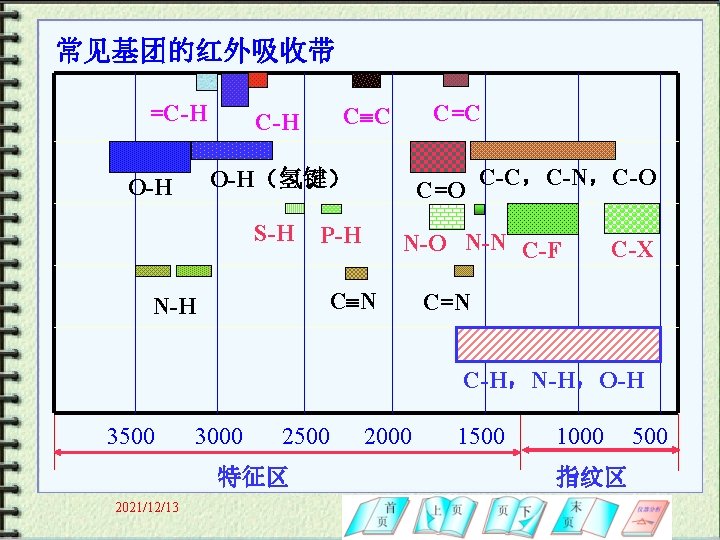

常见基团的红外吸收带 =C-H C=C C C C-H O-H(氢键) O-H S-H C=O P-H N-O N-N C-F C N N-H C-C,C-N,C-O C-X C=N C-H,N-H,O-H 3500 3000 2500 特征区 2021/12/13 2000 1500 1000 指纹区 500

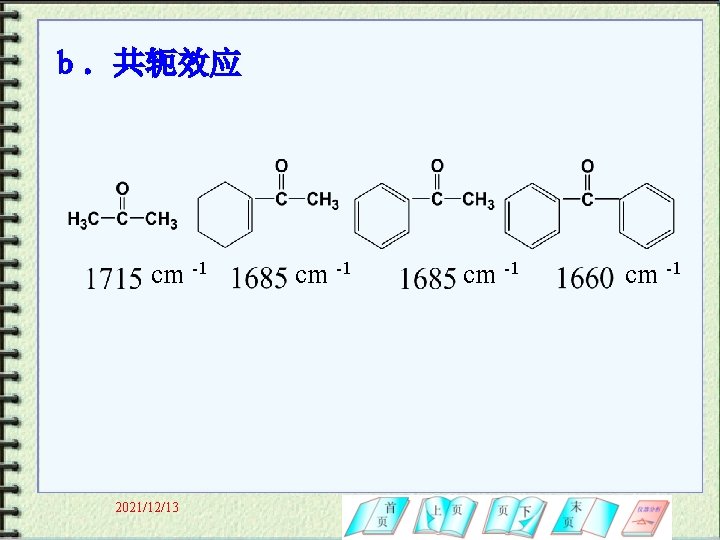

b.共轭效应 cm -1 2021/12/13 cm -1

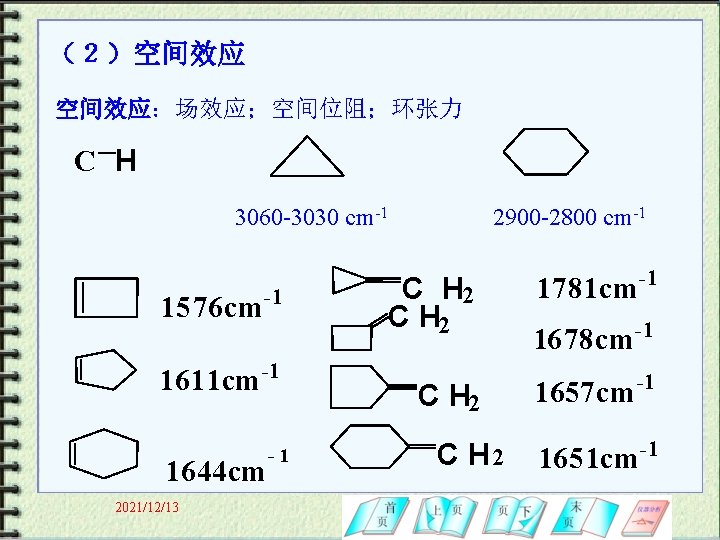

(2)空间效应:场效应;空间位阻;环张力 C H 3060 -3030 cm-1 1576 cm-1 1611 cm -1 1644 cm 2021/12/13 -1 2900 -2800 cm-1 C H 2 1781 cm -1 1678 cm -1 1657 cm -1 1651 cm -1
内容选择: 第一节 红外基本原理 basic principle of Infrared absorption spectroscopy 第二节 红外光谱与分子结构 infrared spectroscopy and molecular structure 第三节 红外光谱仪器 infrared absorption spectrophotometer 第四节 红外谱图解析 analysis of Infrared spectrograph 第五节 激光拉曼光谱 laser Raman spectrometr 结束 2021/12/13
- Slides: 19
