INFRA-GLOTTIC INVASIVE AIRWAYS Dr. S. A. Rajkumar, Intensivist, Tirunelveli.
INTRODUCTION Airway access can be � Supra-Glottic � Infra-Glottic Routine ET intubation is by supra-glottic Alternative access to airway includes supra-glottic and infra-glottic access
DEFINITION Supra-Glottic airway access Access to the airway by any means from the upper part of glottis into the trachea for ventilation or maintenance of airway. Non-invasive & Invasive Infra-Glottic airway access Access to the airway by means of opening the trachea below the glottis for ventilation or maintenance of airway. Invasive
INFRA-GLOTTIC AIRWAY ACCESS Broad classification: Cricothyrotomy Access Tracheostomy to them by: Percutaneously Surgically
INFRA-GLOTTIC AIRWAY ACCESS Done usually for: Emergency situations CNV / CNI Conditions when the airway access becomes an emergency procedure ICU patients For airway access or maintenance of airway

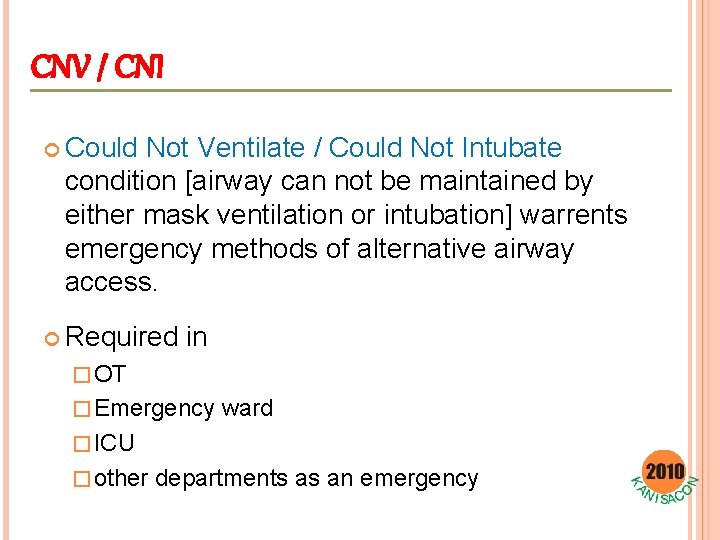

CNV / CNI Could Not Ventilate / Could Not Intubate condition [airway can not be maintained by either mask ventilation or intubation] warrents emergency methods of alternative airway access. Required in � OT � Emergency ward � ICU � other departments as an emergency
HISTORY 3000 years ago – India and Egypt 1300 years ago – Spanish person Vesalius Upto 1970 – Chavelier Jackson advised against Percutaneous procedures. After 1970 invent of Ciaglia dilatational techniques and Cooks dilational set, these were popularised. Fiberoptic bronchoscopy - safety
TECHNIQUES Percutaneous jet ventilation (through needle) [and needle ventilation] Retrograde intubation Percutaneous cricothyrotomy Percutaneous tracheostomy Surgical cricothyrotomy Surgical tracheostomy
ANATOMY
ANATOMY –LATERAL VIEW
VASCULAR ANATOMY
CRICOTHYROID MEMBRANE (CTM) Between thyroid cartilage above and cricoid cartilage below. 1 cm in height and 2 cm in width. Central part – thick and triangular shape with apex below. (Conus elasticus) Does not calcify with age. Upper part of membrane – vascular anastamosis.
TRACHEAL RINGS Usual entry between 2 nd and 3 rd ring or 3 rd and 4 th ring. Tracheal rings are cartilagenous in front and membraneous behind. Space between the rings is 1 -2 mm. (but expandable) Thyroid gland comes in front. Innominate artery arches below.

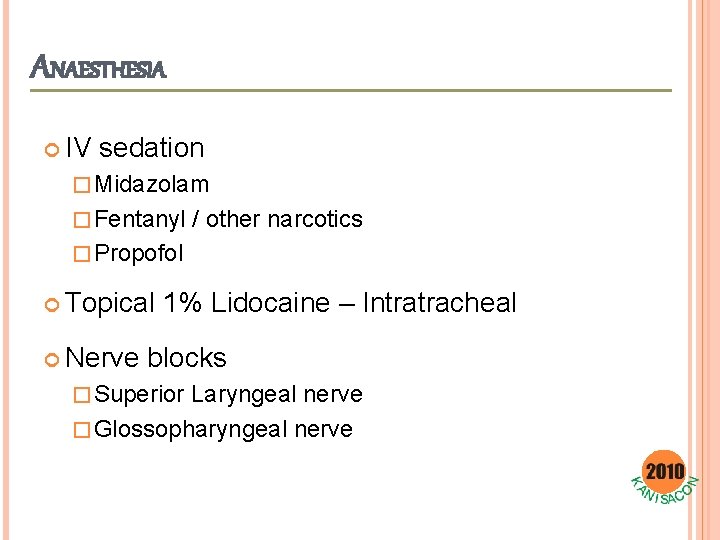

ANAESTHESIA IV sedation � Midazolam � Fentanyl / other narcotics � Propofol Topical Nerve 1% Lidocaine – Intratracheal blocks � Superior Laryngeal nerve � Glossopharyngeal nerve
PERCUTANEOUS JET VENTILATION
PERCUTANEOUS JET VENTILATION Transtracheal Used Jet ventilation (TTJV) in � CNV / CNI situations � Surgeries of upper airways � Interim procedure till ET is placed 12 – 16 G needle High pressure O 2 source [0. 8 – 4 bar] O 2 concentration 30 – 100 % I: E ratio = 1: 1 Ventilation frequency = 150 cycles per second Venturi principle involves
TTJV
TTJV
RETROGRADE INTUBATION
RETROGRADE INTUBATION Translaryngeal guided intubation Popularised by Waters in 1963. Indications: CNV / CNI condition upper airway trauma bleeding and secretions – unable to see glottis Relative Contraindications: unfavourable anatomy (obesity, enlarged thyroid) laryngotracheal diseases coagulopathy infection
RETROGRADE INTUBATION - ROUTINE TECHNIQUE Procedure Through CTM epidural needle is pierced.
RETROGRADE INTUBATION ROUTINE TECHNIQUE Epidural catheter is inserted into oral cavity. Catheter tip is taken out of mouth.

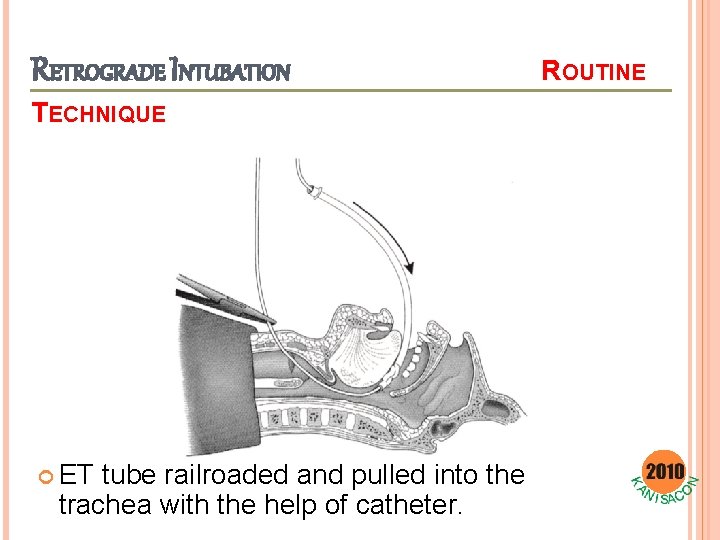

RETROGRADE INTUBATION TECHNIQUE ET tube railroaded and pulled into the trachea with the help of catheter. ROUTINE

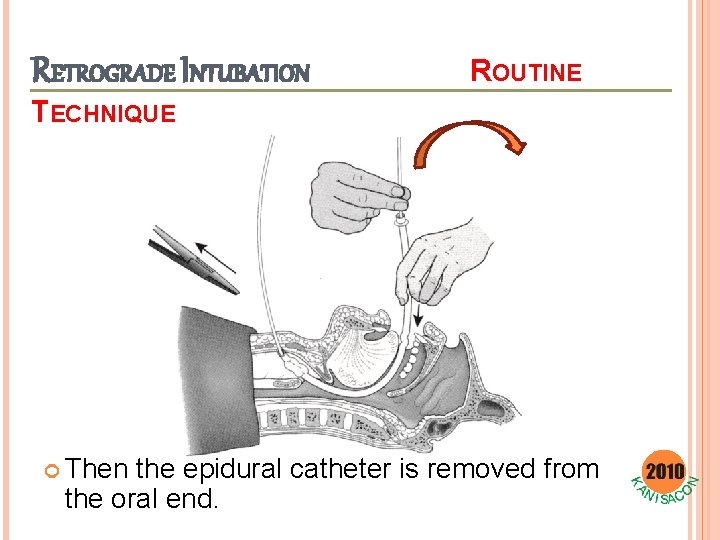

RETROGRADE INTUBATION ROUTINE TECHNIQUE Then the epidural catheter is removed from the oral end.
RETROGRADE INTUBATION TECHNIQUE Now the ET tube is kept in situ. ROUTINE

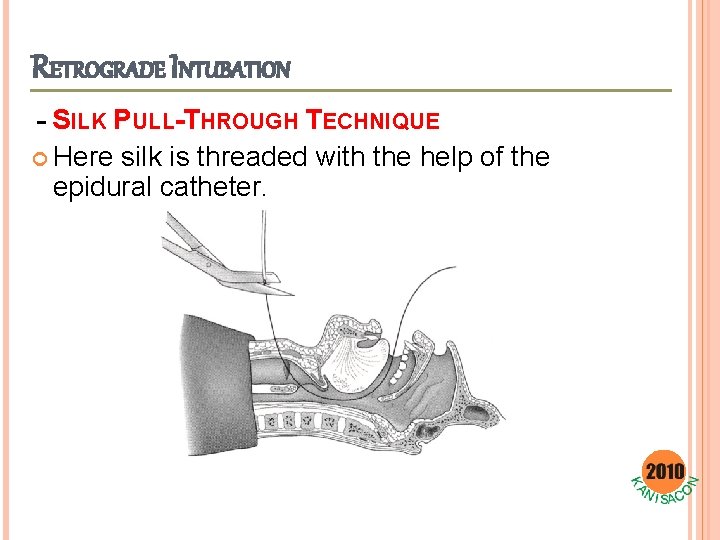

RETROGRADE INTUBATION - SILK PULL-THROUGH TECHNIQUE Here silk is threaded with the help of the epidural catheter.
RETROGRADE INTUBATION THROUGH TECHNIQUE Silk is tied at Murphy’s eye of ET tube SILK PULL-
RETROGRADE INTUBATION SILK PULL-THROUGH TECHNIQUE ET tube is placed into the trachea with the help of pulling of silk
RETROGRADE INTUBATION THROUGH TECHNIQUE Advantage: Reintubation is easy SILK PULL-

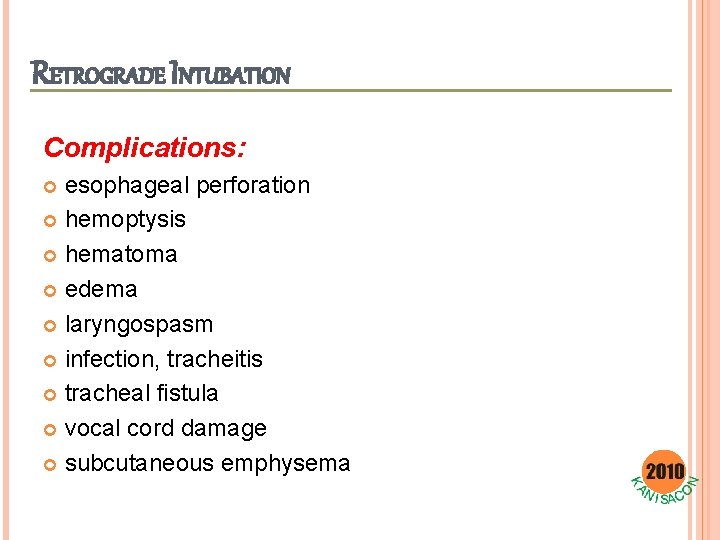

RETROGRADE INTUBATION Complications: esophageal perforation hemoptysis hematoma edema laryngospasm infection, tracheitis tracheal fistula vocal cord damage subcutaneous emphysema
PERCUTANEOUS CRICOTHYROTOMY
PERCUTANEOUS CRICOTHYROTOMY Definition: Cricothyrotomy can be defined as a technique for providing an opening in the space between the anterior inferior border of the thyroid cartilage and the anterior superior border of the cricoid cartilage for the purpose of gaining access to the airway. Other names: s coniotomy, s cricothyroidotomy, s cricothyrostomy, s intercricothyrotomy, s minitracheostomy and s percutaneous dilatational tracheostomy.
PERCUTANEOUS CRICOTHYROTOMY Indications: failed intubation head and neck trauma acute respiratory obstruction alternative to tracheostomy It is done as an emergency procedure during transport of patients in the prehospital scenario in the emergency department in ICU in OT

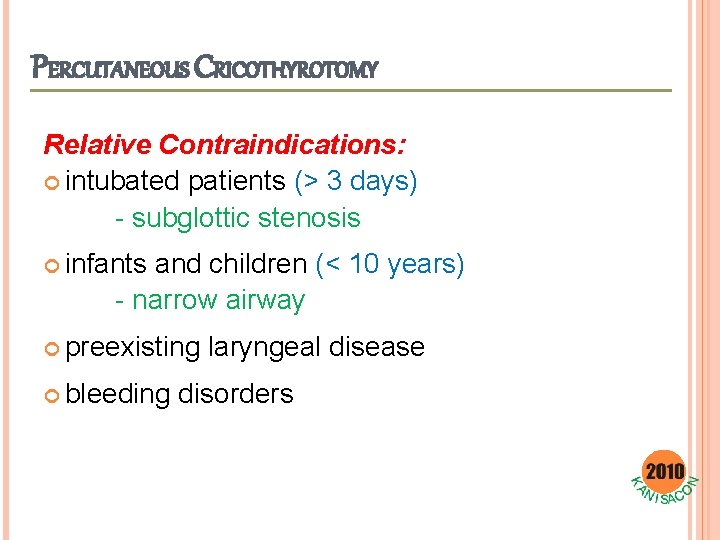

PERCUTANEOUS CRICOTHYROTOMY Relative Contraindications: intubated patients (> 3 days) - subglottic stenosis infants and children (< 10 years) - narrow airway preexisting bleeding laryngeal disease disorders
PERCUTANEOUS CRICOTHYROTOMY Techniques Melker percutaneous dilational cricothyrotomy device Pertrach percutaneous dilational cricothyrotomy device (guidewire and dilator are in a single unit) Nutrake percutaneous dilational cricothyrotomy device Portex and Melker Military (without guidewire) device [Used in emergencies In expert hands – 90 seconds (Ref: Benumof)]
PERCUTANEOUS CRICOTHYROTOMY entry through the CTM. - TECHNIQUE
PERCUTANEOUS CRICOTHYROTOMY usually - TECHNIQUE horizontal incision of skin.
PERCUTANEOUS CRICOTHYROTOMY - TECHNIQUE entry by 14 Fr. introducer and 17 G needle. the position is confirmed by air aspiration.
PERCUTANEOUS CRICOTHYROTOMY then - TECHNIQUE guidewire is inserted into trachea.

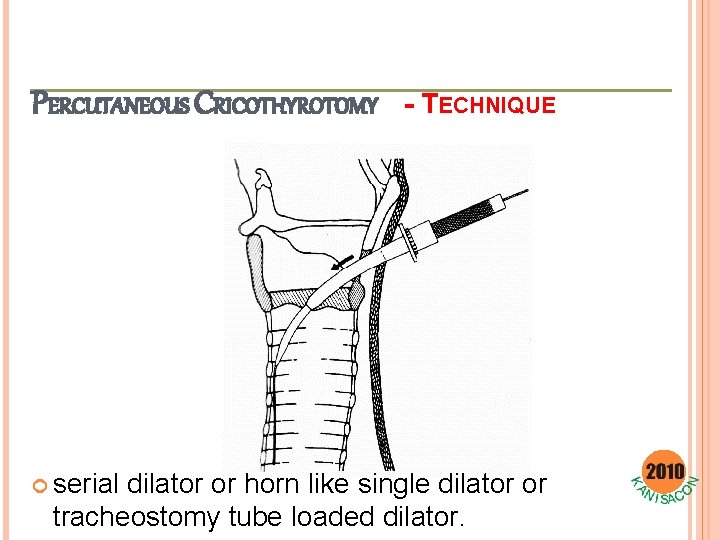

PERCUTANEOUS CRICOTHYROTOMY serial - TECHNIQUE dilator or horn like single dilator or tracheostomy tube loaded dilator.
PERCUTANEOUS CRICOTHYROTOMY now - TECHNIQUE the tracheostomy tube is kept in situ.
PERCUTANEOUS CRICOTHYROTOMY Complications Early: � asphyxia � hemorrhage � improper or unsuccessful tube placement � subcutaneous emphysema � pneumothorax � esophageal / mediastinal perforation � vocal cord injury Late: � tracheal / subglottic stenosis � TE fistula � infection � tracheomalacia
PERCUTANEOUS TRACHEOSTOMY
PERCUTANEOUS TRACHEOSTOMY Definition: Tracheostomy can be defined as a technique for providing an opening in the space between any two tracheal rings (usually between 2 nd and 3 rd or 3 rd and 4 th rings) for the purpose of gaining access to the airway. Except the entry point it is same like crico thyrotomy. Yet because of entry point there are some basic differences between two.
CRICOTHYROTOMY &TRACHEOSTOMY Sl. No. Cricothyrotomy Tracheostomy 1. Used in emergencies 2. As a temporary airway access Long term maintenance of airway 3. Fiberoptic view not necessary Recommended 4. LA / Sedation less required Adequate analgesia is needed 5. Done only in adults In adults and children 6. 7. 8. Less bleeding & complications Ideal in obese patients, huge thyroid, innominate artery Speed and simplicity Slightly more time consuming Needs more expertise Ideal for upper airway masses For ICU patients
PERCUTANEOUS TRACHEOSTOMY Indications: usually done in ICU patients for � continuation of airway maintenance � weaning from ventilator � obstruction in airway � tracheal toileting in children � in emergency situations � also in elective conditions (as Cricothyrotomy is not given preference in children)

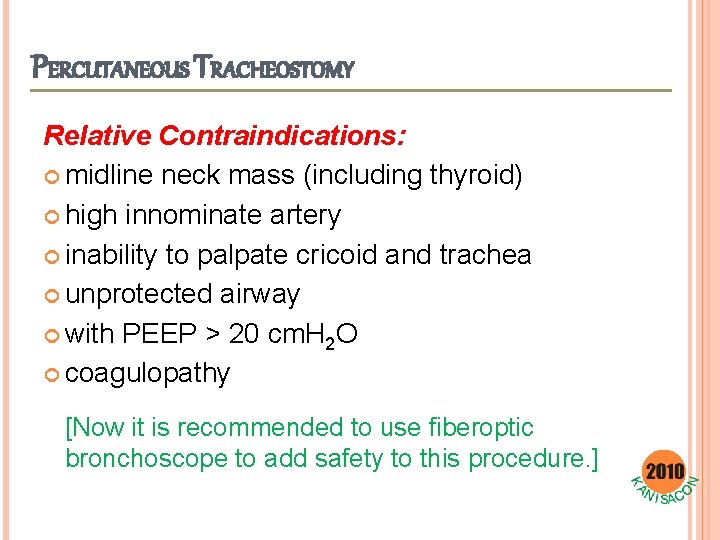

PERCUTANEOUS TRACHEOSTOMY Relative Contraindications: midline neck mass (including thyroid) high innominate artery inability to palpate cricoid and trachea unprotected airway with PEEP > 20 cm. H 2 O coagulopathy [Now it is recommended to use fiberoptic bronchoscope to add safety to this procedure. ]
PERCUTANEOUS TRACHEOSTOMY after - TECHNIQUE adequate analgesia incision of skin over trachea is made at the access site.
PERCUTANEOUS TRACHEOSTOMY needle - TECHNIQUE position is confirmed by aspiration of air as well as fiberoptic viewing of trachea.

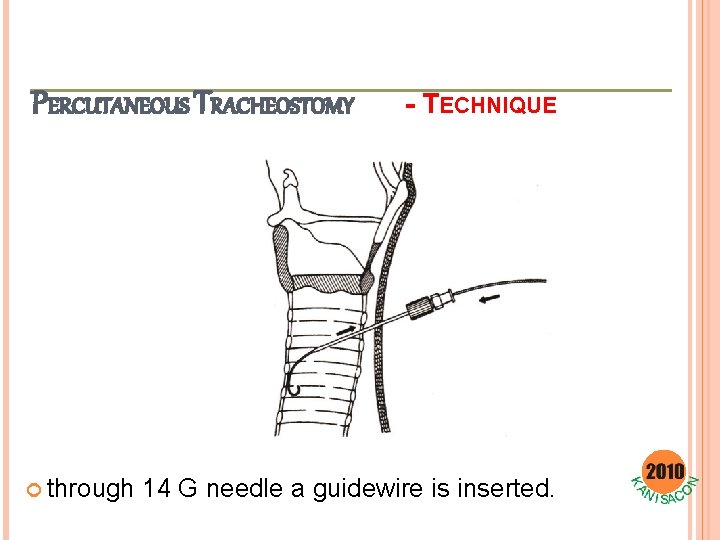

PERCUTANEOUS TRACHEOSTOMY through - TECHNIQUE 14 G needle a guidewire is inserted.
PERCUTANEOUS TRACHEOSTOMY through - TECHNIQUE guidewire with a horn like gradational dilator, trachea is dilated upto the required size.
PERCUTANEOUS TRACHEOSTOMY then - TECHNIQUE the tracheostomy tube is kept in situ.
COOKS DILATOR SET (CIAGLIA TECHNIQUE)
PERCUTANEOUS TRACHEOSTOMY http: //www. youtube. com/watch? v=Xk. GHpzr. EI 0 Y
PERCUTANEOUS TRACHEOSTOMY Complications Early: � hemorrhage � subcutaneous emphysema � pneumothorax � recurrent laryngeal nerve injury Late: � infection � TE fistula � granuloma � laryngotracheal stenosis
SURGICAL INVASIVE AIRWAYS

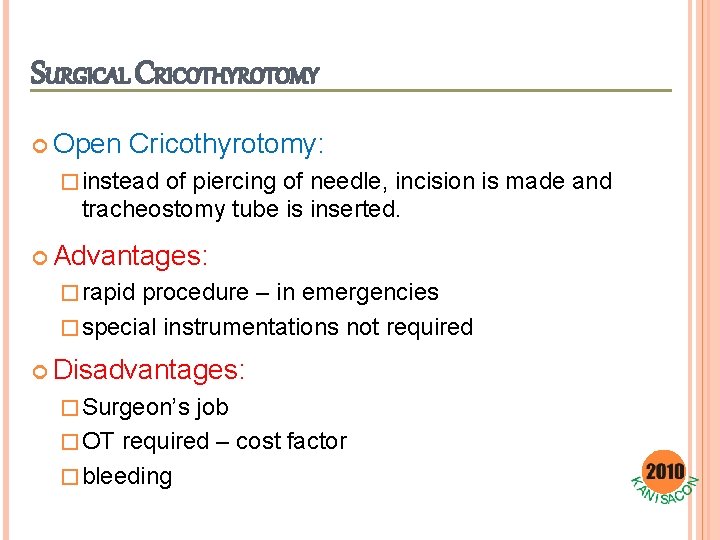

SURGICAL CRICOTHYROTOMY Open Cricothyrotomy: � instead of piercing of needle, incision is made and tracheostomy tube is inserted. Advantages: � rapid procedure – in emergencies � special instrumentations not required Disadvantages: � Surgeon’s job � OT required – cost factor � bleeding
SURGICAL CRICOTHYROTOMY Indications: � trauma patients – to secure airway faster � airway obstruction due to trauma FB stenosis mass Relative � in Contraindications: children � laryngeal fracture
SURGICAL TRACHEOSTOMY Faster Safer Definite The } Gold standard limitations are: it needs a surgeon to perform, it requires an operating room (becomes expensive) it requires an anesthesiologist to be with the patient
TAKE HOME MESSAGE Infra-glottic invasive airway access techniques are easy to perform – only need is mindset Cricothyrotomy for emergencies Tracheostomy for ICU patients and paediatric patients. Our goal is to be a safe anaesthesiologist. To be safe at times you have to be bold.
