INFORMATION SECURITY MANAGEMENT PROTECTION MECHANISMS CRYPTOGRAPHY Cryptography Encryption
- Slides: 26
INFORMATION SECURITY MANAGEMENT PROTECTION MECHANISMS - CRYPTOGRAPHY
Cryptography • Encryption • Cryptology

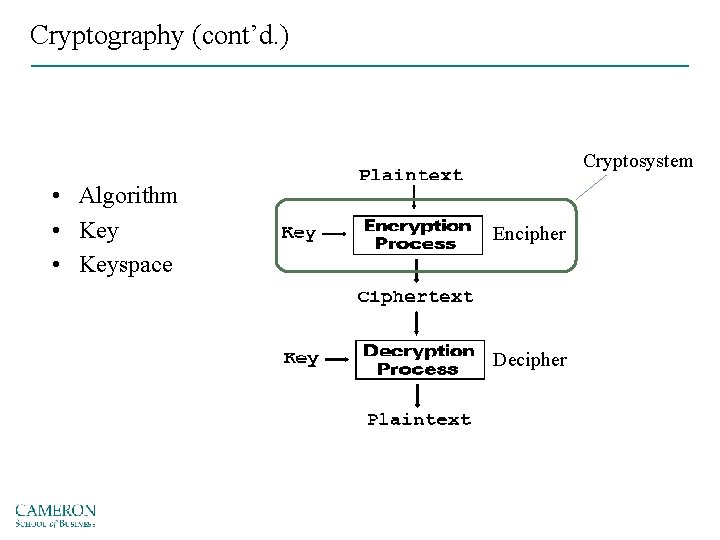

Cryptography (cont’d. ) Cryptosystem • Algorithm • Keyspace Encipher Decipher

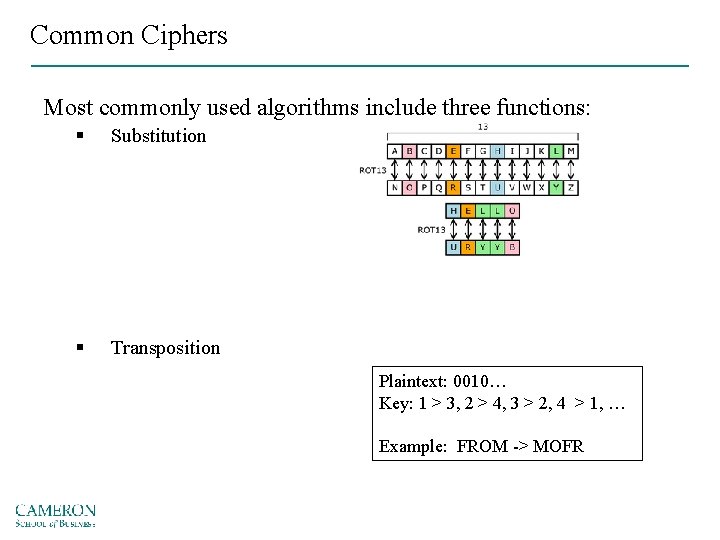

Common Ciphers Most commonly used algorithms include three functions: § Substitution § Transposition Plaintext: 0010… Key: 1 > 3, 2 > 4, 3 > 2, 4 > 1, … Example: FROM -> MOFR

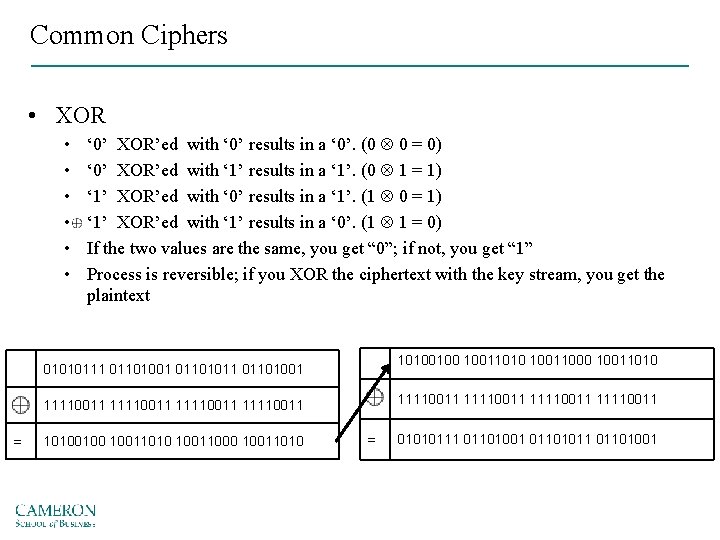

Common Ciphers • XOR • • • ‘ 0’ XOR’ed with ‘ 0’ results in a ‘ 0’. (0 0 = 0) ‘ 0’ XOR’ed with ‘ 1’ results in a ‘ 1’. (0 1 = 1) ‘ 1’ XOR’ed with ‘ 0’ results in a ‘ 1’. (1 0 = 1) ‘ 1’ XOR’ed with ‘ 1’ results in a ‘ 0’. (1 1 = 0) If the two values are the same, you get “ 0”; if not, you get “ 1” Process is reversible; if you XOR the ciphertext with the key stream, you get the plaintext 10100100 10011010 10011000 10011010 01010111 01101001 01101011 01101001 11110011 11110011 = 10100100 10011010 10011000 10011010 = 01010111 01101001 01101011 01101001
Common Ciphers • Book or running key cipher – Uses text in a book as the algorithm to decrypt a message – The key relies on two components: • Knowing which book to use • A list of codes representing the page number, line number, and word number of the plaintext word
Symmetric Encryption – Known as private key encryption – Same key used to encrypt/decrypt the message

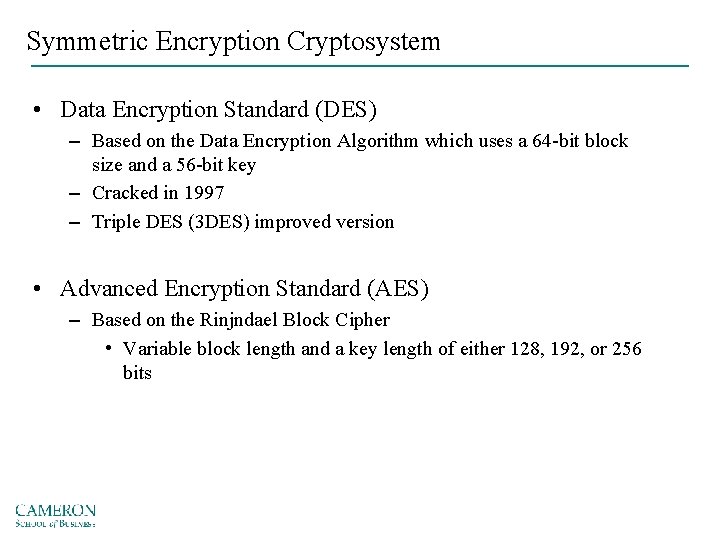

Symmetric Encryption Cryptosystem • Data Encryption Standard (DES) – Based on the Data Encryption Algorithm which uses a 64 -bit block size and a 56 -bit key – Cracked in 1997 – Triple DES (3 DES) improved version • Advanced Encryption Standard (AES) – Based on the Rinjndael Block Cipher • Variable block length and a key length of either 128, 192, or 256 bits
Asymmetric encryption Uses two different, but related keys § Either key used to encrypt/decrypt message § However, if Key A is used to encrypt the message, then only Key B can decrypt it; conversely, if Key B is used to encrypt a message, then only Key A can decrypt it Most valuable when one of the keys is private and the other is public
Asymmetric encryption Figure 10 -12 Public key encryption Source: Course Technology/Cengage Learning
Digital Signatures – Asymmetric process is reversed § The fact that the message was sent by the organization that owns the private key cannot be refuted § This nonrepudiation is the foundation of digital signatures • Based on: • Digital certificate • A certificate authority (CA)
Public key infrastructure (PKI) • The entire set of hardware, software, and cryptosystems necessary to implement public key encryption • PKI systems are based on public key cryptosystems and include digital certificates and certificate authorities
Encryption Operations (cont’d. ) • PKI provides the following services – – – Authentication Integrity Confidentiality Authorization Nonrepudiation

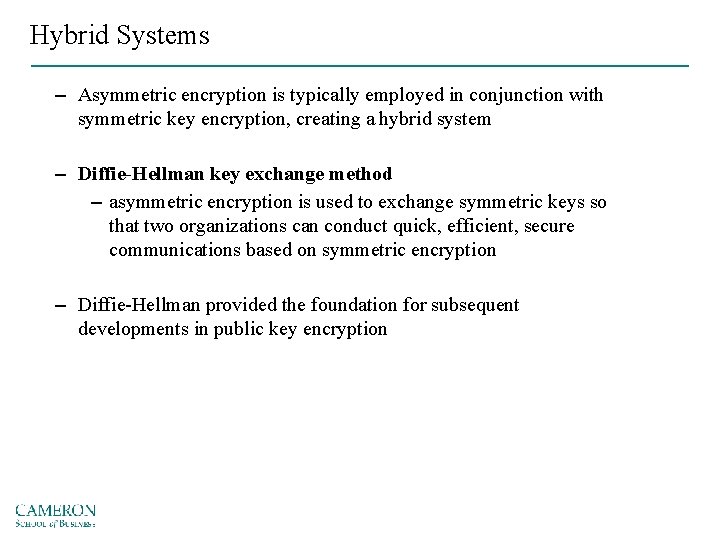

Hybrid Systems – Asymmetric encryption is typically employed in conjunction with symmetric key encryption, creating a hybrid system – Diffie-Hellman key exchange method – asymmetric encryption is used to exchange symmetric keys so that two organizations can conduct quick, efficient, secure communications based on symmetric encryption – Diffie-Hellman provided the foundation for subsequent developments in public key encryption
Encryption Operations (cont’d. ) Figure 10 -14 Hybrid encryption Source: Course Technology/Cengage Learning

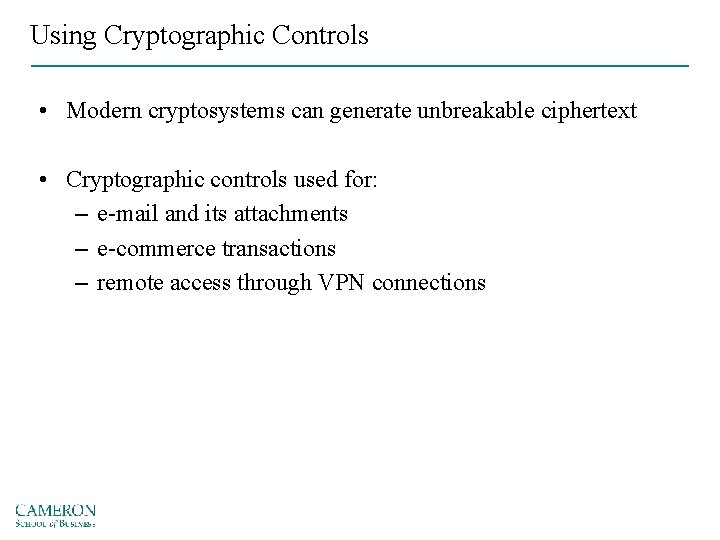

Using Cryptographic Controls • Modern cryptosystems can generate unbreakable ciphertext • Cryptographic controls used for: – e-mail and its attachments – e-commerce transactions – remote access through VPN connections

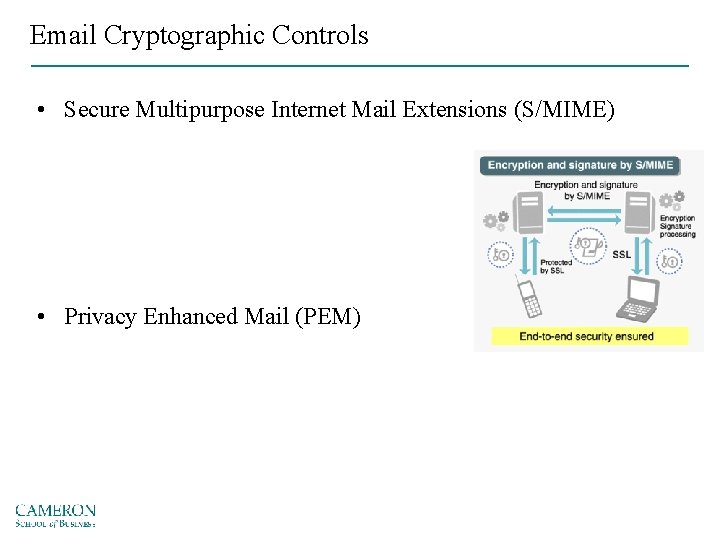

Email Cryptographic Controls • Secure Multipurpose Internet Mail Extensions (S/MIME) • Privacy Enhanced Mail (PEM)
Email Cryptographic Controls • Pretty Good Privacy (PGP) – Uses the IDEA Cipher • A 128 -bit symmetric key block encryption algorithm with 64 -bit blocks for message encoding – Like PEM, it uses RSA for symmetric key exchange and to support digital signatures

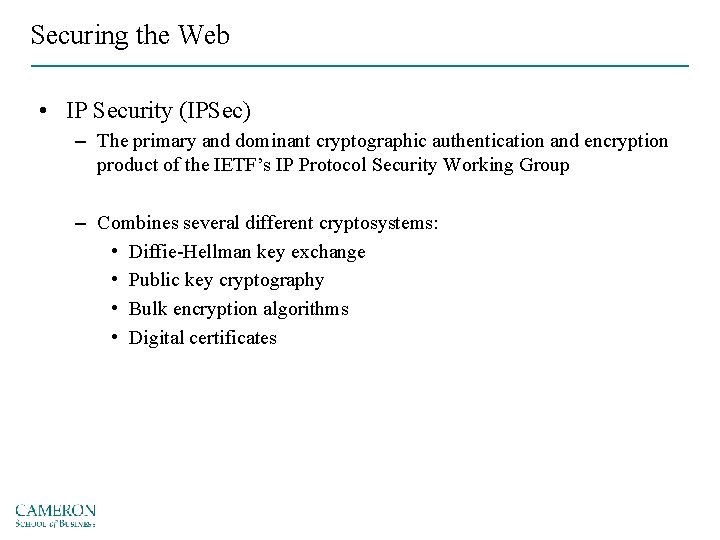

Securing the Web • IP Security (IPSec) – The primary and dominant cryptographic authentication and encryption product of the IETF’s IP Protocol Security Working Group – Combines several different cryptosystems: • Diffie-Hellman key exchange • Public key cryptography • Bulk encryption algorithms • Digital certificates

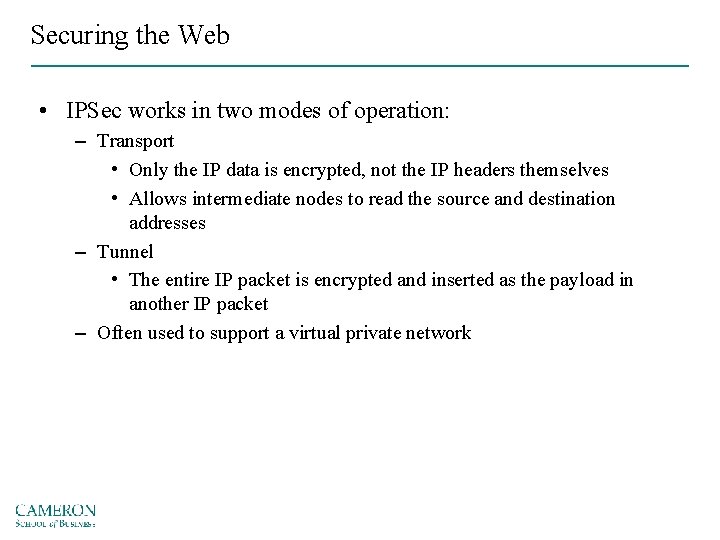

Securing the Web • IPSec works in two modes of operation: – Transport • Only the IP data is encrypted, not the IP headers themselves • Allows intermediate nodes to read the source and destination addresses – Tunnel • The entire IP packet is encrypted and inserted as the payload in another IP packet – Often used to support a virtual private network

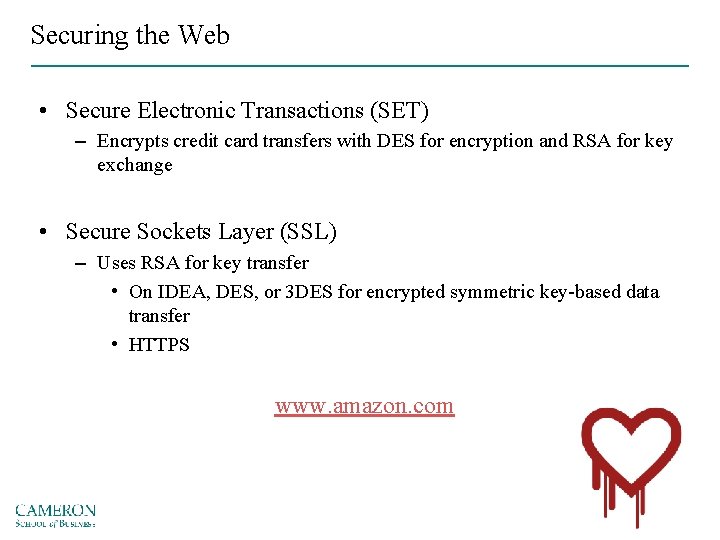

Securing the Web • Secure Electronic Transactions (SET) – Encrypts credit card transfers with DES for encryption and RSA for key exchange • Secure Sockets Layer (SSL) – Uses RSA for key transfer • On IDEA, DES, or 3 DES for encrypted symmetric key-based data transfer • HTTPS www. amazon. com
Securing the Web - SSL
Securing the Web • Secure Shell (SSH) – Provides security for remote access connections over public networks by using tunneling, authentication services between a client and a server – Used to secure replacement tools for terminal emulation, remote management, and file transfer applications

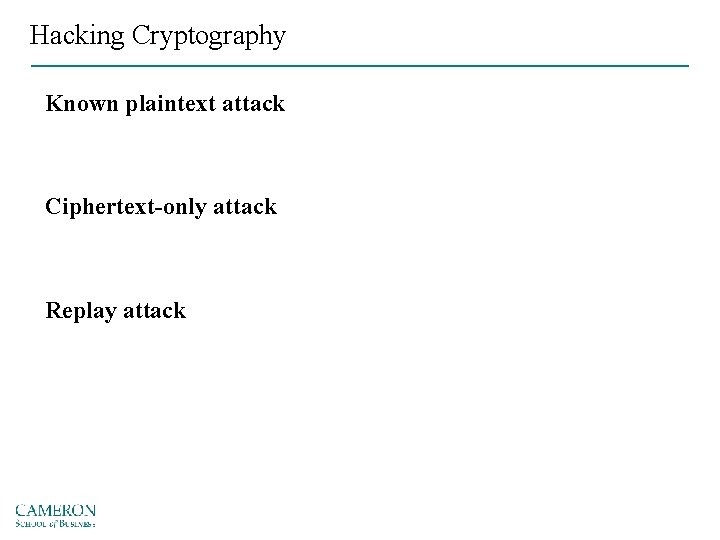

Hacking Cryptography Known plaintext attack Ciphertext-only attack Replay attack

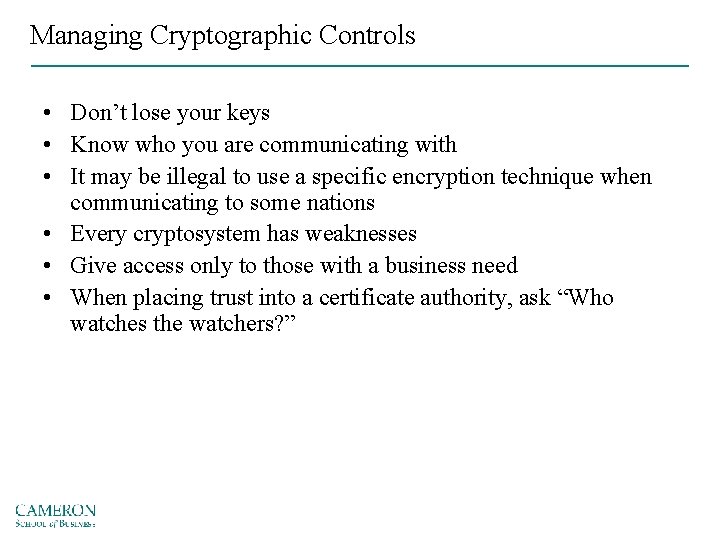

Managing Cryptographic Controls • Don’t lose your keys • Know who you are communicating with • It may be illegal to use a specific encryption technique when communicating to some nations • Every cryptosystem has weaknesses • Give access only to those with a business need • When placing trust into a certificate authority, ask “Who watches the watchers? ”

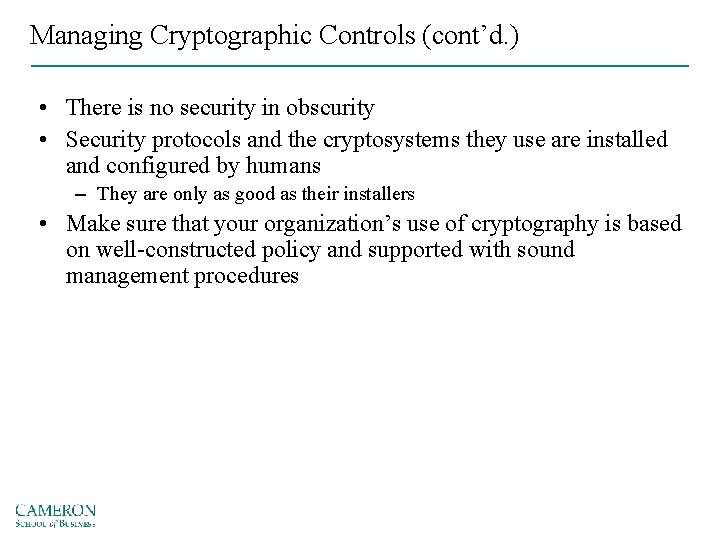

Managing Cryptographic Controls (cont’d. ) • There is no security in obscurity • Security protocols and the cryptosystems they use are installed and configured by humans – They are only as good as their installers • Make sure that your organization’s use of cryptography is based on well-constructed policy and supported with sound management procedures
