Storage: A New Paradigm for Databases Ari Kaplan President, IOUG & Datalink Database Practice akaplan@datalink. com 312 -399 -0079

Oracle: 30 years! IPOs: Sun: March 4, 1986 Oracle: March 12, 1986 Microsoft: March 13, 1986

30 years of IT paradigms: - Mainframe - Client-Server - Internet - Mobile - Web 2. 0 Storage paradigms: - Direct-attached disk - Tape backups - NAS - Disk-to-disk - Virtualization - Replication

Agenda • Introduction • Oracle-based Methods: Hot backup, RMAN, Data Guard, Export / Import, Data Pump, Flashback • Snapshots: Enterprise Backup and Recovery • Snapshots: Development and testing for cloning • Enterprise Backup and Recovery: – Disk-to-disk, enhanced data recovery, and VTL • • • Disaster Recovery: storage-based replication Cost savings: tiered architecture / ILM Performance and high-availability: RAID-DP and aggregates Storage security / encryption De-duplication Pros and Cons: Oracle and non-Oracle enterprise solutions

A Silo Approach? “I’ve always focused on the Oracle side due to implementing RAC. Every company I’ve worked with has had their storage team take care of that side of the house. ” – One of America’s top Oracle RAC specialists

Databases Growing at Staggering Rate • The Winter. Corp survey found that the world’s largest databases have posted an annual compounded growth rate of approximately 75% since 1995. Size of the Largest Data Warehouse in the Winter. Corp Top. Ten™ Survey

Storage Solutions for DBA Challenges Backup issues • • Scalability: it can take a long time to physically copy 2 TB of data to tape or disk • Performance: keeping large databases in hot backup mode negatively affects the performance of high-transaction systems (inserts, updates, deletes) • • Complexity of systems: multiple databases, interlinked systems, different database versions, RMAN/non-RMAN, RAC, ASM, etc. Cost: it costs a lot to purchase 200 TB of storage so you can perform physical image backups of 200 TB databases. It is costly to even purchase hardware to test backups. Manageability: it is often difficult to setup, manage, and test backups Recovery issues • Manageability: human errors, lost data, inconsistent data, physical failures, corruption can require restores. It can be a manual and scary process to recover to a consistent point-in-time • Performance: how in the world do you recover a 2 TB database in 15 minutes? Disaster Recovery / Replication • How do you architect your database and surrounding environment for DR? With no data loss? With a 15 -minute failover timeframe? Data growth • • • Cost: DBAs tend to put storage on single class of storage without archiving or tiering considerations Performance: system response time is 5 seconds now. What happens when my data triples in size? Manageability: it is often a political process to get additional storage from non-DBA groups Development and testing • • • Cost: it costs a lot to purchase 20 TB of storage to get several image copies of production to test and development! Scalability: it is too much to provide 5, 10, 15 or more copies to development and testing teams Manageability: it can take 25% or more of a DBA’s time to manage the cloning process

RPO and RTO Tape Backup Hot backup RMAN Data Guard Copy-on-Write Snapshots WAFL Snapshots Synchronous replication, Data Guard Async replication RMAN Tape Backup Hot backup Recovery Point – Database-only is typically days or hours of lost data in disaster, or too costly. Combined with storage can be faster, heterogeneous, and with less cost Recovery Time – Database-only can be days or hours. Combined with storage can be minutes. Backup Window – Database-only is typically days for terabyte-sizes. Combined with storage can be seconds

Snapshots: Enterprise Backup and Recovery

Oracle Tablespace Architecture TABLESPACE Segment 112 K (Table, Index, etc. ) Extent 28 K Extent 84 K Database Blocks datafile 1 datafile 2 datafile 4 datafile 3 datafile 5

Oracle Database Architecture Image from Oracle Corp

Oracle Backup Methods: Hot Backups What: • Online backup of the database PROS: • Can be used with other backup methods CONS: • Can be prohibitively lengthy • Only backs up some of the Oracle files – not customized code or non-Oracle systems such as Exchange, applications, and SQL • Performance degradation • Need an automated script that looks at Oracle’s configuration on the fly

Oracle Backup Methods: RMAN RECOVERY MANAGER What: • Block-level backups - datafile compression • Parallel streams • Many companies see a 10 x + performance depending on the amount of updates that were made between backups • Use of a recovery catalog for multiple databases

Oracle Backup Methods: RMAN PROS: • Significantly reduces RTO • Significantly less storage space for incremental backups (only changed blocks) • Parallel streams/channels • Works well with snapshots, Snap. Mirror, SMO, Decru, future de-duplication CONS: • RMAN only backs up the database, not code or non-Oracle systems

Oracle Backup Methods: Data Guard What: • Replicates Oracle databases from one data center to another • Performs backups from the standby database instead of the production database • Both physical and logical versions

Oracle Backup Methods: Data Guard PROS: • Synchronous mode • Logical mode CONS: • Not supported by earlier versions of Oracle • Only supports Oracle databases, not source code or non. Oracle systems • Disables NOLOGGING mode • Extra Oracle license • Standby database must be online

Oracle Backup Methods: Export/Import What: • Logical backups of tables (rather than copying the physical blocks of data, it copies the series of commands used to recreate the tables) PROS: • Can recover on a table-by-table basis instead of the entire database • Good for complementing other backup methods CONS: • Can take a LONG time versus snapshot methods • All data since the export was made is lost • A database must be running to perform either an export or import • Export files shouldn’t be edited and can only be used by Oracle

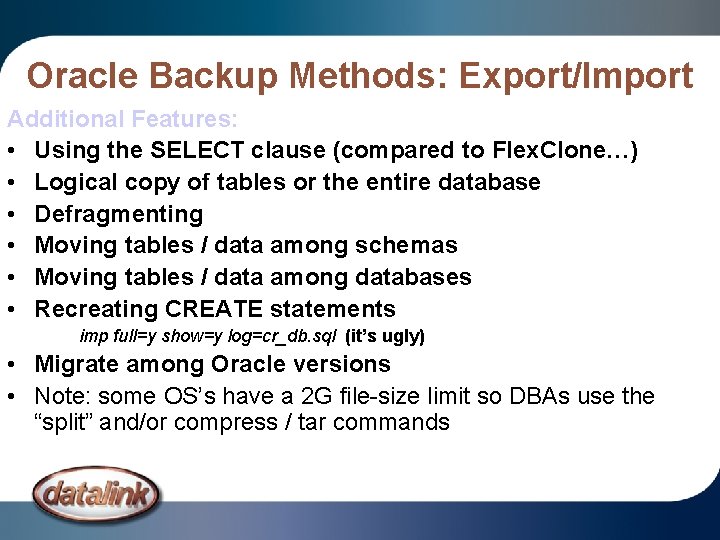

Oracle Backup Methods: Export/Import Additional Features: • Using the SELECT clause (compared to Flex. Clone…) • Logical copy of tables or the entire database • Defragmenting • Moving tables / data among schemas • Moving tables / data among databases • Recreating CREATE statements imp full=y show=y log=cr_db. sql (it’s ugly) • Migrate among Oracle versions • Note: some OS’s have a 2 G file-size limit so DBAs use the “split” and/or compress / tar commands

Oracle Backup Methods: Data Pump What: • Export/Import’s replacement with significant improvements PROS: • 15 -45 times faster than Export/Import • Parallel streams • Suspend and restart data transfers • Self-tuning

Oracle Backup Methods: Data Pump CONS: • Like the Export/Import utilities – – – All data since the Data Pump started is lost Still can take a long time to back up and recover versus methods such as snapshots A database must be running to perform either an export or import • Data Pump does NOT yet work with XML schemas and XML schema-based tables • When you are importing data into an existing table using either APPEND or TRUNCATE, if any row violates an active constraint, the load is discontinued and no data is loaded • Situations where external tables is used and Direct Path Load is not – – – there is an active trigger a unique index exists the table is partitioned a referential integrity constraint exists fine-grained access control is enabled in insert mode the table has encrypted columns, table is in a cluster a global index on multi-partition tables exists during a single-partition load a domain index exists for an LOB column a table contains BFILE columns or columns of opaque types a table contains VARRAY columns with an embedded opaque type supplemental logging is enabled and the table has an LOB column

Oracle Backup Methods: Oracle Flashback What: • Oracle’s flashback area allows for recovering a table (or database) to any point-in-time in the past by storing images of data online Flashback Database: • Recover to point-in-time from Flash Recovery Area Flashback Table: • FLASHBACK TABLE LAOUG_audience, free_gift_list TO TIMESTAMP (06 -FEB-2007, 13: 25: 00);

Oracle Backup Methods: Oracle Flashback Drop • DROP command puts object into a “recycle bin” for quick recovery

Oracle Backup Methods: Oracle Flashback PROS: • This method provides online backup and recovery, eliminating the need to recover from tape and saving valuable recovery time and management effort • Extremely fast recovery of tables with simple commands CONS: • Requires a significant amount of flashback area online, taking up lots of storage • Can’t recover from media failure • Can’t undo operations such as shrink datafile • Can only flashback to the oldest SCN in the FRA • Only works with newer releases of Oracle

Storage Backup Methods Non-Oracle Storage Backup Solutions • Non-Oracle solutions are sometimes “undiscovered” in the world of DBAs • Can solve issues that simply cannot be done with Oracle-only technology • May already be deployed in a company to support Oracle/non-Oracle applications but the database staff is unaware of its HUGE benefits to database environments

Storage Backup Methods: Triple-Mirroring What: • Copies the data in real time to three sets of redundant disks PROS: • It’s possible to slice the mirror instantaneously and back up from the slices, thereby eliminating performance hits of being in hot backup mode for extended periods of time CONS: • Expensive: 50% more storage costs to keep a set of productionsized disks • Companies still may not be able to meet backup windows, especially if backing up from the mirror takes more than 24 hours

Storage Backup Methods: Array-Based Replication What: • Replication between two storage arrays that sends storage layer blocks to a standby site whenever there is a storage change at the primary site PROS: • Fills the gaps of Data Guard by replicating non-Oracle systems and source code as well as tables in NOLOGGING mode • Works best in conjunction with Data Guard by jointly reducing replication traffic and reducing or eliminating single points of failure • Significantly improves RTO and RPO CONS: • Source and target may need to be the same vendor, unless using heterogeneous replication such as Topio • There is a cost associated with purchasing and maintaining a third-party arraybased replication solution. An ROI analysis will demonstrate that this cost can be justified. The point at which it is recouped will depend on the value of the data

Oracle Physical Files All of these should be backed up! • Datafiles – data, index, temporary, rollback, system • Online and archived redo logs • Control files • Oracle executables and patches • Export, Data Pump dump, RMAN files • Auditing files • Parameter files (init. ora, sqlnet. ora, listener. ora, tnsnames. ora) • SPfiles • Alert logs, bdumps, cdumps, udumps • Password files • Single sign-on files • LOB or BFILE or library storage structures • External tables • Home-grown scripts

Simpler Backup and Recovery Redo Logs All Archive Logs Oracle Ctl Files Datafiles 11 AM 10 AM 9 AM 8 AM 7 AM Active File System (CURRENT)

Storage Backup Methods: Snapshots Instant backup and recovery of large data sets using a sophisticated, scalable, and fail-safe pointer system of storage blocks. Snapshots represent a frozen view of data taken at a specific point-in-time. Data and entire environments can be restored to a known stable point prior to the event that caused the disruption or corruption. Snapshot. 0 Active File System File: ORACLE. DBF Snapshot. 1 File: ORACLE. DBF A B C C’ (Changed blocks between snapshots are tracked) Snapshot. 0 file system version of ORACLE. DBF is still composed of blocks A, B & C Snapshot. 1 file system version of ORACLE. DBF is composed of blocks A, B & C’

Technology Integration Snapshot for Backup/DR validated by Oracle • Snapshots – – – Point-in-time copy Created in a few seconds No performance penalty • TPC-C Published with 5 active snapshots Snapshot taken

Real World Snapshot Performance "In our test configurations, we found that conducting a single snapshot copy on the FAS 3070 over the course of the test had no sustained impact on the overall performance. On the CX 3 -80, creating a single snapshot caused the overall performance level to drop to approximately 50 percent of the baseline performance. Additionally, the results show that the post snapshot performance did not recover to levels observed before the snapshot was taken. ” Veri. Test Report, Net. App FAS 3070 vs. EMC CX 3 -80: Nov. 2006

Storage Backup Methods: Snap. Manager for Oracle What: • GUI that uses Snapshots for database backups, recoveries, and cloning. Easy to install and integrates with Oracle RMAN, Oracle RAC, Oracle ASM. Oracle 9 i and 10 g PROS: • Greatly improves DBA efficiency in setting up test and dev environments • Automates DBA tasks and reduces risks for: – Error-free backups and recoveries – Restores – Clones • Initiate and manage backups • Minimize the risk of data loss and corruption with increased backup frequency • Near instantaneous restores of data when it’s most critically needed CONS: • There is a cost associated with purchasing non-Oracle solutions. As with the other storagebased methods, an ROI analysis will demonstrate that this cost can be quickly justified. The point at which it is recouped will depend on the value of the data and the value of the speed of backup or recovery, improvements in manageability, etc.

Snapshots: Development and testing for Cloning

Using Snapshot Cloning to Accelerate Application Development and Upgrade Cycle Test and Development Lab Test Database Oracle Server Clustered Filers Testing Baseline Only Takes Seconds Restore Base Environment Run Test Database Testing Cycle Evaluate Results • Quickly reconfigure multiple test, development, QA, DW, auditing, staging environments • Rapid restore from online Snapshot copies • Allows multiple test environments • Accelerates test cycles • Helps deliver new Oracle applications quickly • Use Oracle cloning procedures to clone application environments

Before: Large E-Business Suite Production Challenges • Copies consume lots of disk Mirrored Copy – < 10% data differences for each instance • Copies take a lot of time … Dev 1 Dev 2 Dev N … Test 1 Test 2 Test N – Slower time to market

After, with Snapshot Clones Production Mirrored Copy Solution – Instantaneous copies – Low storage overhead Develop 1 Develop 2 • Faster TTM • Higher quality Test 1 Test 2 QA • Lower cost

Oracle University and Cloning • Refresh about 100 classes with 11 databases each weekend • Entire operation now complete in 45 minutes!

Storage Backup Methods: Snap. Shots for Cloning (SMO and Flex. Clone) Scalability by Metric: To avoid surprise, require proof of scalability at your requirement levels Known Performance and Cost Test and dev with subset full sizeof database) database Unpredictable Performance and Cost Test and dev with full size database Demo (05: 04)

Storage Backup Methods: Snap. Manager for Oracle What: • GUI that uses snapshots for database backups, recoveries, and cloning • Easy to install and integrates with Oracle RMAN, Oracle RAC, Oracle ASM, Oracle 9 i and 10 g PROS: • Greatly improves DBA efficiency in setting up test and dev environments • Automates DBA tasks and enables error-free backups and recoveries, restores and clones • Initiates and manages backups • Minimizes the risk of data loss and corruption with increased backup frequency • Provides near instantaneous restores CONS: • Cost associated with purchasing non-Oracle products – ROI analysis will demonstrate that this cost can be justified

Disk-to-disk, enhanced data recovery and VTL

Disk-to-Disk: Enhanced Data Recovery is the Solution Why? • Rising downtime costs • Pressure to reduce recovery time (RTO) • Pressure to minimize data loss (RPO) • Increasing data sizes / shrinking backup window • Tape backup & restore is unreliable • Media costs & media management complexity getting out of control

Disk-to-Disk: Enhanced Data Recovery is the Solution • A backup and restore architecture that adds a disk based storage array to a traditional tape only solution. • Enables concept of “Backup to disk, Archive to tape” • Enabled by falling disk prices (ATA & SATA) • Leverages random access capability of disk • Augments tape capabilities

VTL: Efficient Backup and Restore • VTL emulates industry standard tape libraries • Time to restore is improved with online and near-line backups • Consolidated backups: integrates as appliance! • Replace tape backups with VTL backups • Faster than tape • Non-sequential recovery • Rapid failover supported—when a server fails you can remount the database volumes to another server Storage Backup Server Near. Store VTL Decru Data. Fort UNIX Servers Windows Servers Tape Library for backup

Disaster Recovery: Storage-based Replication

Replication Based Backup Solution ROI/TCO What: • Replication between two storage arrays that sends storage layer blocks to a standby site whenever there is a storage change at the primary site • • Reduces the number of copies of data backed up Reduces IP network traffic for backup data More frequent backups with more copies kept online Reduces tape media and automation resources Fast file & full restores Shortest RPO & RTO Centralization of remote backup Replication to off-site location lowers tape media management costs for off-site tape rotation

Oracle Backup Methods: Data Guard What: • Replicates Oracle databases from one data center to another • Performs backups from the standby database instead of the production database • Both physical and logical versions

Oracle Backup Methods: Data Guard PROS: • Synchronous mode • Logical mode CONS: • Not supported by earlier versions of Oracle • Only supports Oracle databases, not source code or non. Oracle systems • Disables NOLOGGING mode • Extra Oracle license • Standby database must be online

Storage-based Replication for Oracle NYC Chicago Primary Site NAS/SAN Storage Appliance Gig. E / FCP /vol/Oracle Standby Site remote disk mirroring solutions Asynchronous replication over TCP/IP LAN or WAN. No distance limitation. Changed blocks are shipped to the target mirrored volume Data, Log & Cntrl files NAS/SAN Storage Appliance Gig. E / FCP /vol/Oracle Mirrored Data, Log and Cntrl files 4 Oracle DB volumes on primary and standby site are Snap. Mirrored 4 Remote site’s Oracle DB is kept in recovery mode 4 When disaster strikes primary site, it’s a matter of breaking the Snap. Mirror and bringing up the remote standby site’s Oracle DB in query/update mode

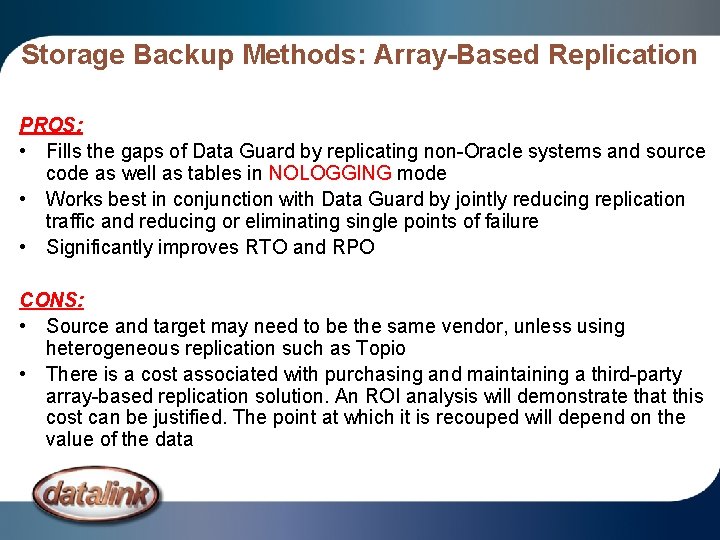

Storage Backup Methods: Array-Based Replication PROS: • Fills the gaps of Data Guard by replicating non-Oracle systems and source code as well as tables in NOLOGGING mode • Works best in conjunction with Data Guard by jointly reducing replication traffic and reducing or eliminating single points of failure • Significantly improves RTO and RPO CONS: • Source and target may need to be the same vendor, unless using heterogeneous replication such as Topio • There is a cost associated with purchasing and maintaining a third-party array-based replication solution. An ROI analysis will demonstrate that this cost can be justified. The point at which it is recouped will depend on the value of the data

Cost savings: tiered architecture / ILM

Oracle and Virtualization: Enterprise Grid CPUs OS and Load Sharing Software Global Name Space and Unified Management Network High Access Data on Primary Storage Single Virtual Machine Pooled Storage with Transparent Reconfiguration: Compliance Database Backup Data Secure Data Single Virtual Storage Pool Scalable everything: performance, availability, capacity, etc. 4 Single view; single point of control 4

Tiered Architecture / ILM Oracle options for tiering data • • Tablespaces on specific tiers of disks Table and index partitioning – tiers of disk relate to specific partitions Triggers, procedures, packages for migrating data ILM solutions from Oracle or third-parties – Oracle ILM Assistant • Define the Data Classes • Create Storage Tiers for the Data Classes • Create Data Access and Migration Policies • Define and Enforce Compliance Policies – Third-party solution integration with Oracle

Cost savings example: 94% reduction in storage costs! Oracle options for tiering data • Tablespaces on specific tiers of disks • Table and index partitioning – tiers of disk relate to specific partitions • Triggers, procedures, packages for migrating data • ILM solutions from Oracle or third-parties – Oracle ILM Assistant • • Define the Data Classes Create Storage Tiers for the Data Classes Create Data Access and Migration Policies Define and Enforce Compliance Policies

Performance and high-availability: RAID-DP

RAID-DP • • RAID-DP is an advanced, cost-effective disk failure/error protection solution protecting information in the event of a double disk or media failure within a single RAID group RAID-DP is based on RAID 4 adding a diagonal parity calculation to enhance overall performance versus competitive double parity adaptations based on RAID 6 { D D P DP 3 1 2 1 1 1 3 1 2 2 1 3 3 1 2 2 9 5 8 7 7 12 12 11

Why is RAID-DP Needed? Protection • ‘Traditional’ single-parity-drive RAID group no longer provides enough protection – Reasonably-sized RAID groups (e. g. 8 drives) are exposed to data loss during reconstruction • RAID-DP’s double disk-failure protection does what RAID 5 and RAID 1/0 cannot: – Reduces RISK: limits exposure to same RAID group second disk failure or non-recoverable media error Cost • RAID 1 is too costly for widespread use – Mirroring doubles the cost of storage – Not affordable for all data • RAID-DP exceeds RAID 1/0 protection levels without the associated doubling of capacity and cost • RAID-DP has a comparable operational cost to RAID 4 Performance • • Optimized for Performance Reduces RAID group rebuild time

RAID-DP vs other RAIDs RAID • >10, 000 times more secure than single-parity RAID Protects against single disk failure P • More reliable than mirroring for double-disk failure • 13% Parity Overhead vs 50% Overhead w/ Mirror(*) RAID DP Protects against any P two-disk failure DP • 75% more usable capacity than competitive offerings(*) * Comparing 14 d + 2 p vs. 8+8 mirror

The Cost of Data Availability & Protection Compare RAID-DP™ to RAID 10 Count the drives needed for 2 TB useable storage using 144 GB disk drives RAID 10 30 RAID-DP™ 17 RAID-DP protects as well as RAID 10 with less storage overhead

A Simpler Database Architecture Redo Logs All Archive Logs Oracle Ctl Files Datafiles

Aggregates: a Simpler Database Design Database Multi-Disk Aggregate RAID-DP

Aggregates: Improved Performance Test OLTP Database - 2 Test OLTP Database - 1 8 Disk Aggregate Transaction log Archive log Flashback 24 Disk Aggregate Data files 32 Disk Aggregate All files

Aggregates: Improved Performance Test OLTP Database - 2 Test OLTP Database - 1 8 Disk Aggregate Transaction log Archive log Flashback 24 Disk Aggregate Data files 32 Disk Aggregate All files

De-duplication

Other Backup Methods: De-duplication What: • De-duplication works with VTLs by detecting redundant data streams during the backup process and sending pointers to that data (versus actual streams of blocks of data) when duplicate streams are detected De-dupe device

Other Backup Methods: De-duplication PROS: • Can dramatically reduce the backup stream size—typically 1020 times—and bandwidth required for backup • 10 -40% lower acquisition cost than tape • When set up properly, de-duplication can work well with multiple Oracle RMAN channels CONS: • Initial costs

Storage security

Encryption by Storage Vendors What: • Unencrypted data opens up the company to several vulnerabilities—whether it’s a disgruntled employee or consultant stealing the tape or the tape being lost in the warehouse or while being transported off-site.

Encryption by Oracle 1) Oracle solutions Database Encryption: – Store data encrypted within database tables and, thus, also encrypted on tape – Data may be unencrypted in indexes, temp tablespace, flashback, audit, and elsewhere Oracle Secure Backup: – – Encrypt Oracle’s RMAN backups before they are written to tape By encrypting at the database level, an organization reduces much of its exposure. This method is also free (for one direct-attached storage device) – Typically, the DBA is solely responsible for retaining the key and there are weaknesses with this strategy inherent 2) Storage vendor encryption • Encryption at the storage level • Multi-master key management that prevents single points-of-failure for key loss • No auto-destruct capabilities • By using a hardware and software appliance, backup streams can be encrypted with negligible impact on performance

Recovery Methodologies An untested or undocumented backup and recovery plan is no plan at all
