Infokommunikációs rendszerek 12. előadás Rádiós adathálózatok Radio based data networks Bluetooth, Zig. Bee, Wi. Fi, 4 G, HSPA, Wi. MAX, Takács György Infokom. 12. ea. 2015. dec. 5. 1
Pótzárthelyi Written test No 2. • ? ? • Topics: • 1 -12 Lessons • 1 -12. előadások anyaga Infokom. 12. ea. 2015. dec. 5. 2
NEPTUN vizsgaidőpontok • • • dec. 21. szerda 10: 00 és 14: 00 jan. 4. szerda 10: 00 és 14: 00 jan. 11. szerda 10: 00 és 14: 00 jan. 18. szerda 10: 00 és 14: 00 jan. 25. szerda 10: 00 és 14: 00 jan. 31. kedd 10: 00 • alkalmanként max. 7 fő délelőtt, 6 fő délután • szóbeli vizsga, angol nyelven • 408. szoba Infokom. 12. ea. 2015. dec. 5. 3
Közös ismétlés • Az átviteli közeg (levegő is) analóg jelek átvitelére alkalmas • A digitális jeleket modulációs technikákkal kell az átviteli közegre illeszteni • Amplitúdó billentyűzés / ASK • Frekvencia billentyűzés /FSK • Fázis moduláció / PSK / BPSK / QPSK • Kombinált moduláció / QAM / 16 QAM /64 QAM Infokom. 12. ea. 2015. dec. 5. 4

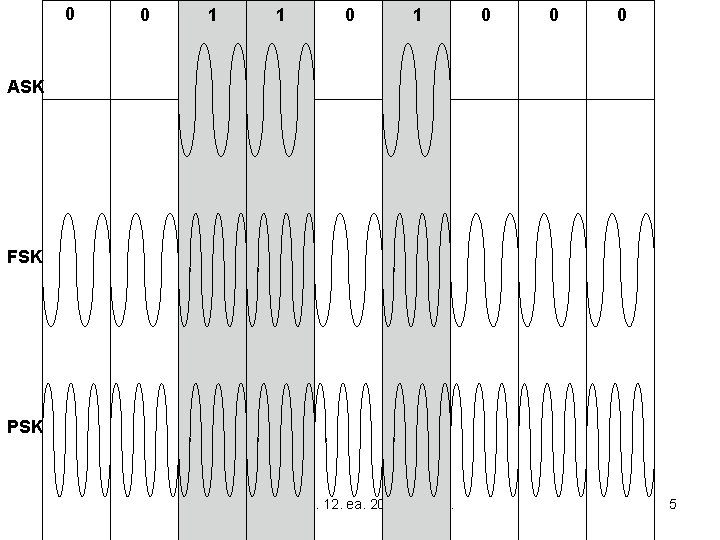

0 0 1 1 0 0 0 ASK FSK PSK Infokom. 12. ea. 2015. dec. 5. 5

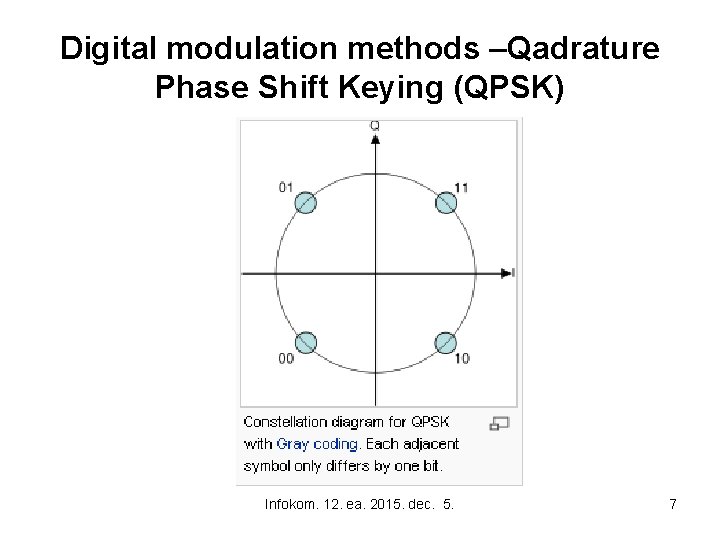

Digital modulation methods –Qadrature Phase Shift Keying (QPSK) Infokom. 12. ea. 2015. dec. 5. 6
Digital modulation methods –Qadrature Phase Shift Keying (QPSK) Infokom. 12. ea. 2015. dec. 5. 7
Digital modulation methods –Qadrature Amplitude Modulation (QAM) • Two carriers: sine wave (Q) and cosine wave (I) • The modulated signal is the sum of the two components • Different amplitude and differnt phase values for one symbol • 16 QAM means: one symbol is four bits Infokom. 12. ea. 2015. dec. 5. 8
Digital modulation methods –Qadrature Amplitude Modulation (16 QAM) Infokom. 12. ea. 2015. dec. 5. 9
Digital modulation methods –Qadrature Amplitude Modulation with channel noise Infokom. 12. ea. 2015. dec. 5. 10
The Spread Spectrum Concept Infokom. 12. ea. 2015. dec. 5. 11
General Model of Spread Spectrum Digital Communication System Infokom. 12. ea. 2015. dec. 5. 12
Frequency-Hopping Spread Spectrum FHSS Infokom. 12. ea. 2015. dec. 5. 13

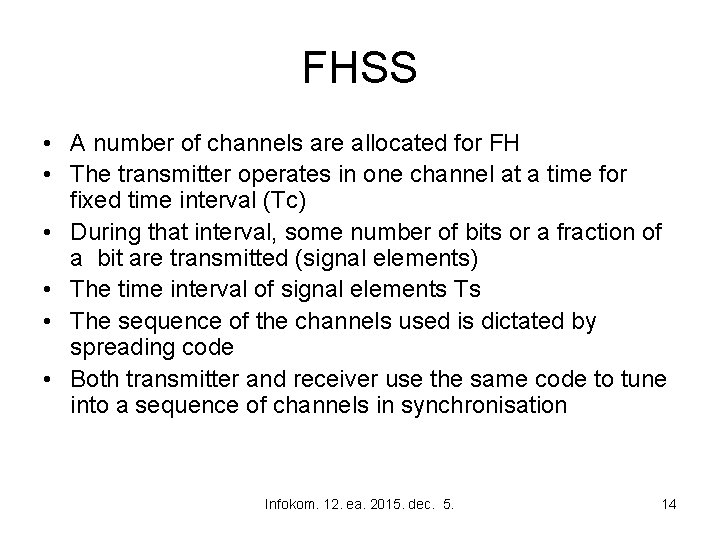

FHSS • A number of channels are allocated for FH • The transmitter operates in one channel at a time for fixed time interval (Tc) • During that interval, some number of bits or a fraction of a bit are transmitted (signal elements) • The time interval of signal elements Ts • The sequence of the channels used is dictated by spreading code • Both transmitter and receiver use the same code to tune into a sequence of channels in synchronisation Infokom. 12. ea. 2015. dec. 5. 14
Slow FHSS using Multi Frequency Shift Keying Tc>Ts (in this case 4 subfrequencies for 2 bits) Infokom. 12. ea. 2015. dec. 5. 15
Fast FHSS using Multi Frequency Shift Keying Tc<Ts (in this case 4 subfrequencies for 2 bits) Infokom. 12. ea. 2015. dec. 5. 16
Ki találta fel a leglényegesebb elemeket? Who was the inventor of the most important elements? Infokom. 12. ea. 2015. dec. 5. 17
Infokom. 12. ea. 2015. dec. 5. 18
Example of Direct Sequence Spread Spectrum DSSS Infokom. 12. ea. 2015. dec. 5. 19
WPAN – Wireless Personal Access Networks < 10 m WLAN – Wireless Local Area Networks < 150 m WMAN -- Wireless Metropolitan Network < 50 km WAN -- Wireless Access Network – Large, nationwide Infokom. 12. ea. 2015. dec. 5. 20

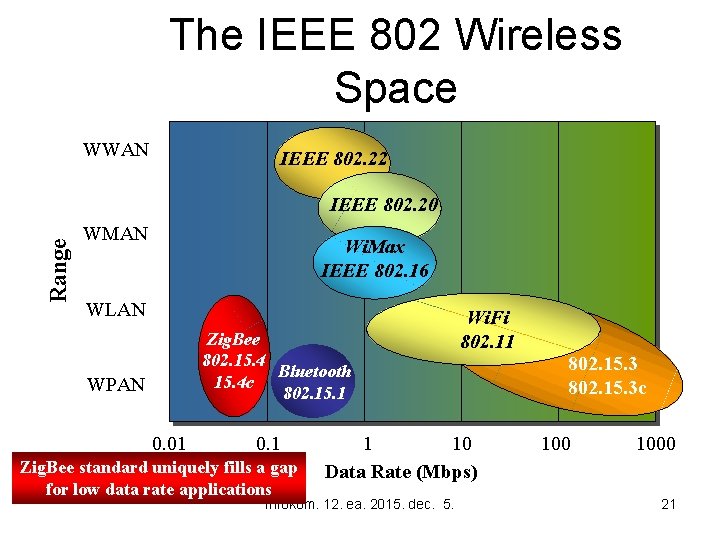

The IEEE 802 Wireless Space WWAN IEEE 802. 22 Range IEEE 802. 20 WMAN Wi. Max IEEE 802. 16 WLAN Zig. Bee 802. 15. 4 Bluetooth 15. 4 c 802. 15. 1 WPAN 0. 01 0. 1 Zig. Bee standard uniquely fills a gap for low data rate applications Wi. Fi 802. 11 1 10 Data Rate (Mbps) Infokom. 12. ea. 2015. dec. 5. 802. 15. 3 c 1000 21
Basic Radio Characteristics Zig. Bee technology relies upon IEEE 802. 15. 4, which has excellent performance in low SNR environments Infokom. 12. ea. 2015. dec. 5. 22
WPAN (Wireless Personal Access Network, Rádiós személyi hozzáférési hálózat) • Short distance radio communication among devices • Distance is less then 10 m. • Typical standard: IEEE 802. 15. • Typical solution: Bluetooth, Zig. Bee Infokom. 12. ea. 2015. dec. 5. 23

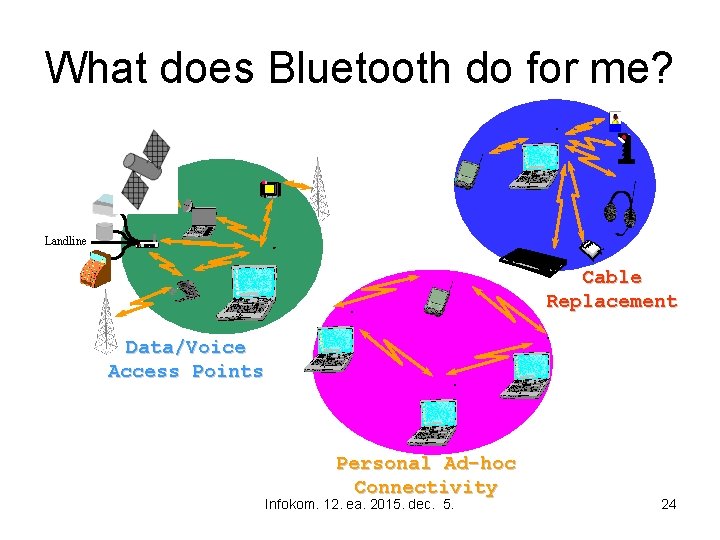

What does Bluetooth do for me? Landline Cable Replacement Data/Voice Access Points Personal Ad-hoc Connectivity Infokom. 12. ea. 2015. dec. 5. 24
Usage scenarios: Headset User benefits • Multiple device access • Cordless phone benefits • Hand’s free operation Wireless Freedom… Infokom. 12. ea. 2015. dec. 5. 25

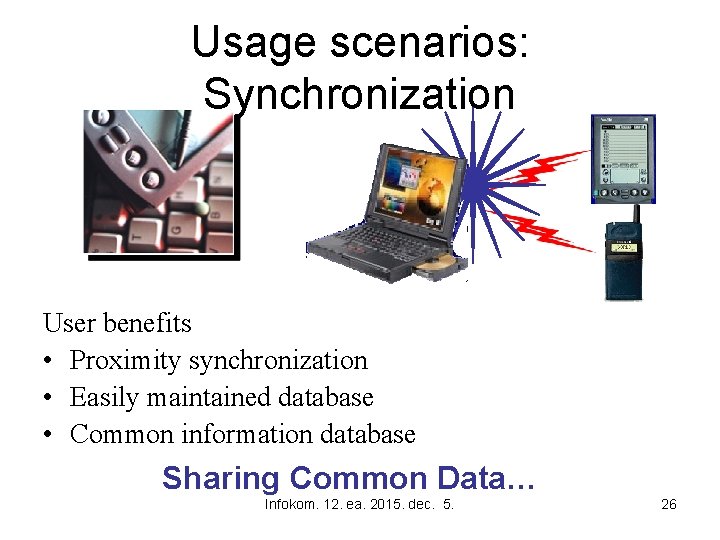

Usage scenarios: Synchronization User benefits • Proximity synchronization • Easily maintained database • Common information database Sharing Common Data… Infokom. 12. ea. 2015. dec. 5. 26

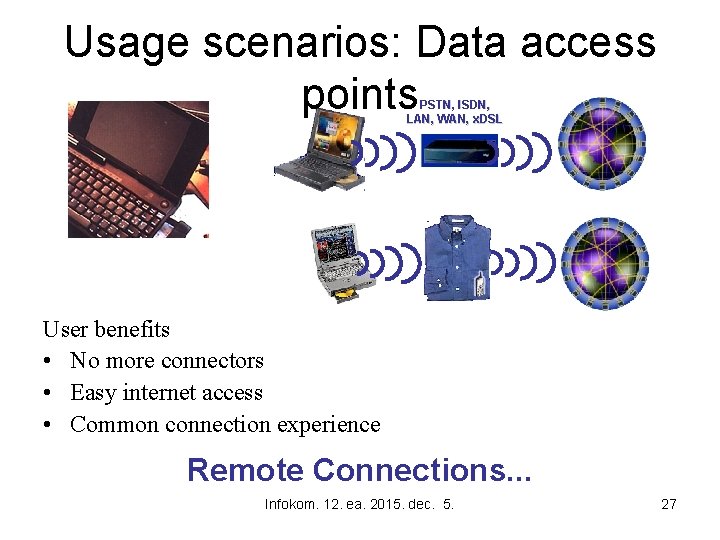

Usage scenarios: Data access points PSTN, ISDN, LAN, WAN, x. DSL User benefits • No more connectors • Easy internet access • Common connection experience Remote Connections. . . Infokom. 12. ea. 2015. dec. 5. 27
Bluetooth characteristics • Operates in the 2. 4 GHz band at a data rate of 720 Kb/s. • Uses Frequency Hopping (FH) spread spectrum, which divides the frequency band into a number of channels (2. 402 2. 480 GHz yielding 79 channels). • Radio transceivers hop from one channel to another in a pseudorandom fashion, determined by the master. • Supports up to 8 devices in a piconet (1 master and 7 slaves). • Piconets can combine to form scatternets. Infokom. 12. ea. 2015. dec. 5. 28

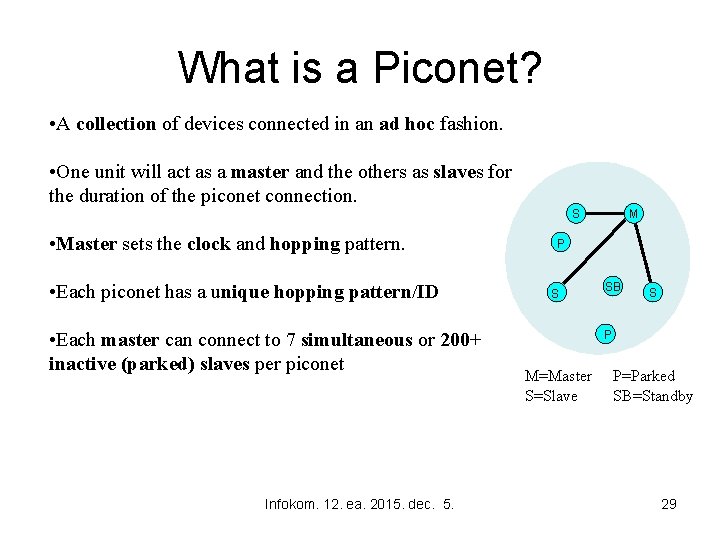

What is a Piconet? • A collection of devices connected in an ad hoc fashion. • One unit will act as a master and the others as slaves for the duration of the piconet connection. S • Master sets the clock and hopping pattern. • Each piconet has a unique hopping pattern/ID • Each master can connect to 7 simultaneous or 200+ inactive (parked) slaves per piconet Infokom. 12. ea. 2015. dec. 5. M P S SB S P M=Master S=Slave P=Parked SB=Standby 29
What is a Scatternet? • A Scatternet is the linking of multiple co-located piconets through the sharing of common master or slave devices. • A device can be both a master and a slave. S M P SB S • Radios are symmetric (same radio can be master or slave) S P P SB • High capacity system, each piconet has maximum capacity (720 Kbps) M S M=Master S=Slave Infokom. 12. ea. 2015. dec. 5. P=Parked SB=Standby 30
Bluetooth Architecture Applications TCS RFCOMM SDP Audio rol Data L 2 CAP Link Manager Baseband Application Framework and Support Co nt Other Host Controller Interface Link Manager and L 2 CAP Radio & Baseband RF Infokom. 12. ea. 2015. dec. 5. 31
Baseband link types • Polling-based (TDD) packet transmissions – 1 slot: 0. 625 msec (max 1600 slots/sec) – master/slave slots (even-/odd-numbered slots) M S • Synchronous connection-oriented (SCO) link – “circuit-switched”, periodic single-slot packet assignment – symmetric 64 Kbps full-duplex M S • Asynchronous connection-less (ACL) link – packet switching – asymmetric bandwidth, variable packet size (1, 3, or 5 slots) – max. 721 kbps (57. 6 kbps return channel) – 108. 8 - 432. 6 kbps (symmetric) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Infokom. 12. ea. 2015. dec. 5. 15 16 17 18 19 20 21 22 32
Security: Key generation and usage PIN E 2 User Input (Initialization) Authentication Link Key E 3 Encryption Key Infokom. 12. ea. 2015. dec. 5. (possibly) Permanent Storage Temporary Storage 33
The IEEE 802 Wireless Space WWAN IEEE 802. 22 Range IEEE 802. 20 WMAN Wi. Max IEEE 802. 16 WLAN Zig. Bee 802. 15. 4 Bluetooth 15. 4 c 802. 15. 1 WPAN 0. 01 0. 1 Zig. Bee standard uniquely fills a gap for low data rate applications Wi. Fi 802. 11 1 10 Data Rate (Mbps) Infokom. 12. ea. 2015. dec. 5. 802. 15. 3 c 1000 34
Zig. Bee Alliance Owerview • Organized as an independent, neutral, nonprofit corporation in 2002 • Open and global • Anyone can join and participate • Membership is global • Activity includes • Specification creation • Certification and compliance programs • Branding, market development, and user Infokom. 12. ea. 2015. dec. 5. education 35
Zig. Bee Applications security HVAC AMR lighting control access control patient monitoring fitness monitoring BUILDING AUTOMATION Zig. Bee Wireless Control that Simply Works PC & PERIPHERALS PERSONAL HEALTH CARE asset mgt process control environmental energy mgt CONSUMER ELECTRONICS TELECOM SERVICES INDUSTRIAL CONTROL TV VCR DVD/CD remote m-commerce info services object interaction (Internet of Things) Infokom. 12. ea. 2015. dec. 5. HOME CONTROL mouse keyboard joystick security HVAC lighting control access control irrigation 36
Basic Network Characteristics • 65, 536 network (client) nodes • 27 channels over 2 bands • 250 Kbps data rate • Optimized for timing-critical applications and power management Network coordinator Full Function node Reduced Function node • Full Mesh Networking Support Communications flow Virtual links Infokom. 12. ea. 2015. dec. 5. 37
Basic Radio Characteristics Zig. Bee technology relies upon IEEE 802. 15. 4, which has excellent performance in low SNR environments Infokom. 12. ea. 2015. dec. 5. 38
Zig. Bee Mesh Networking Slide Courtesy of Infokom. 12. ea. 2015. dec. 5. 39
Zig. Bee Mesh Networking Slide Courtesy of Infokom. 12. ea. 2015. dec. 5. 40
Zig. Bee Mesh Networking Slide Courtesy of Infokom. 12. ea. 2015. dec. 5. 41
Zig. Bee Mesh Networking Slide Courtesy of Infokom. 12. ea. 2015. dec. 5. 42

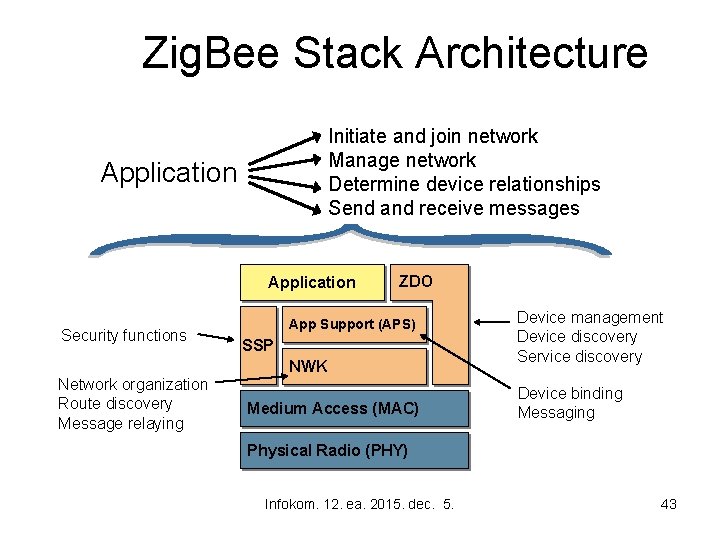

Zig. Bee Stack Architecture Initiate and join network Manage network Determine device relationships Send and receive messages Application Security functions ZDO App Support (APS) SSP NWK Network organization Route discovery Message relaying Medium Access (MAC) Device management Device discovery Service discovery Device binding Messaging Physical Radio (PHY) Infokom. 12. ea. 2015. dec. 5. 43
Zig. Bee Device Types • Zig. Bee Coordinator (ZC) – One required for each ZB network. – Initiates network formation. • Zig. Bee Router (ZR) – Participates in multihop routing of messages. • Zig. Bee End Device (ZED) – Does not allow association or routing. – Enables very low cost solutions Infokom. 12. ea. 2015. dec. 5. 44

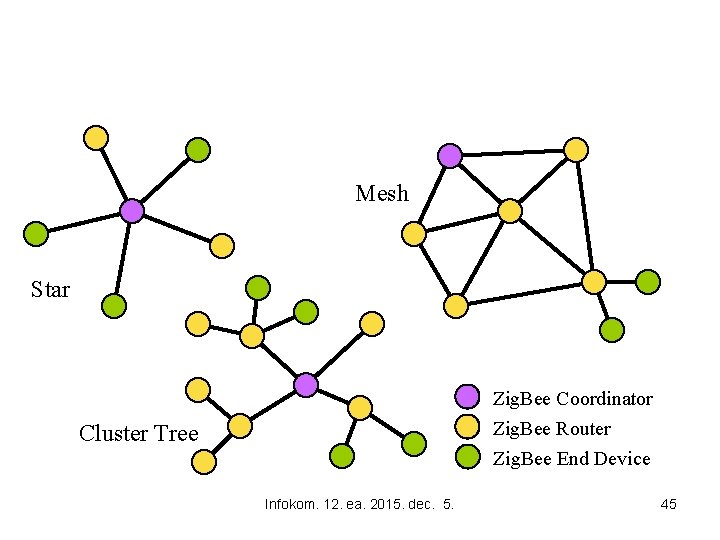

Zig. Bee Network Topologies Mesh Star Zig. Bee Coordinator Zig. Bee Router Zig. Bee End Device Cluster Tree Infokom. 12. ea. 2015. dec. 5. 45

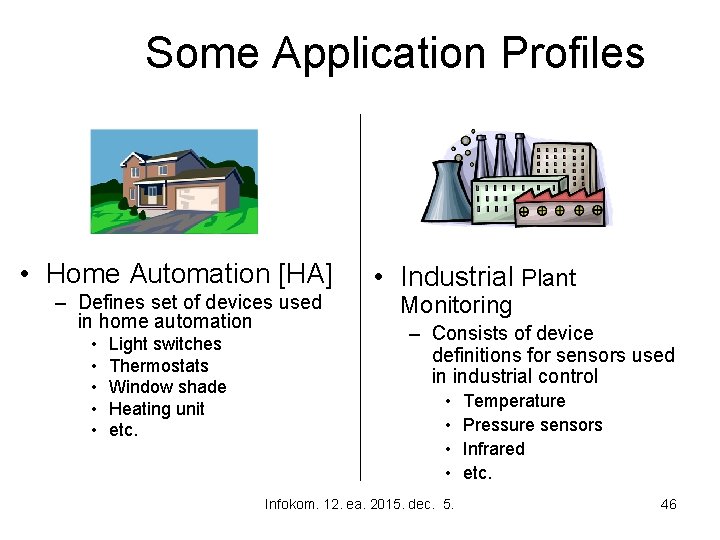

Some Application Profiles • Home Automation [HA] – Defines set of devices used in home automation • • • Light switches Thermostats Window shade Heating unit etc. • Industrial Plant Monitoring – Consists of device definitions for sensors used in industrial control • • Infokom. 12. ea. 2015. dec. 5. Temperature Pressure sensors Infrared etc. 46
Interoperability Summary Interop capable starting point Zig. Bee Compliant Platform [ZCP] Network interop Manufacturer Specific application interop Zig. Bee Manufacturer Specific Application Profiles Public application interop Zig. Bee Public Application Profiles • Devices built on Zig. Bee interoperate on different levels • Wide spectrum of interoperability choices • It’s a designer choice on level of vendor interoperability to support Infokom. 12. ea. 2015. dec. 5. 47
RLAN (Radio LAN, Rádiós helyi hálózat más néven WLAN) • In-door communication • Distance: 150 m or less • LAN (Local Area Network, Helyi hálózat) – Communication of near computers or devices by radio • Wi. Fi (Wireless Fidelity) – Commercial name of RLAN fit to IEEE 802. 11 standard operating in frequency band 2, 4 GHz (2400 – 2483, 5 MHz) or in band 5, 6 GHz Infokom. 12. ea. 2015. dec. 5. 48
Infokom. 12. ea. 2015. dec. 5. 49
Infokom. 12. ea. 2015. dec. 5. 50

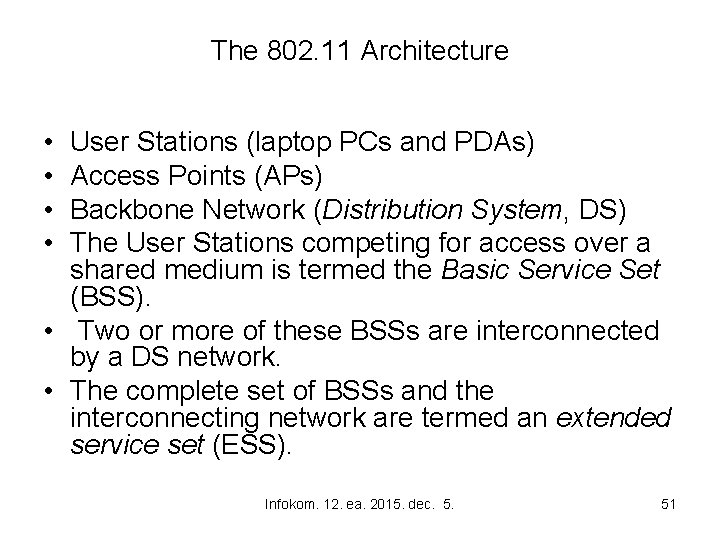

The 802. 11 Architecture • • User Stations (laptop PCs and PDAs) Access Points (APs) Backbone Network (Distribution System, DS) The User Stations competing for access over a shared medium is termed the Basic Service Set (BSS). • Two or more of these BSSs are interconnected by a DS network. • The complete set of BSSs and the interconnecting network are termed an extended service set (ESS). Infokom. 12. ea. 2015. dec. 5. 51
Extended Service Set Architecture Server Distribution Network Access Point 1 Access Point 2 RF Access Station 1 RF Access Station 2 Station 3 Station 4 Basic Service Set 2 Basic Service Set 1 Infokom. 12. ea. 2015. dec. 5. 52
Traditional Wi. Fi structure - Cellular network – BSS - Controlled by AP (Access Point) - Interconnected by wires 802. 11. s Wi. Fi structure - meshed radio interconnection - traffic dependent routing Infokom. 12. ea. 2015. dec. 5. 53
Infokom. 12. ea. 2015. dec. 5. 54
4 x 2 and 4 x 1 MU-MIMO application Several users can be served simultaneously in the same frequency band. Infokom. 12. ea. 2015. dec. 5. 55

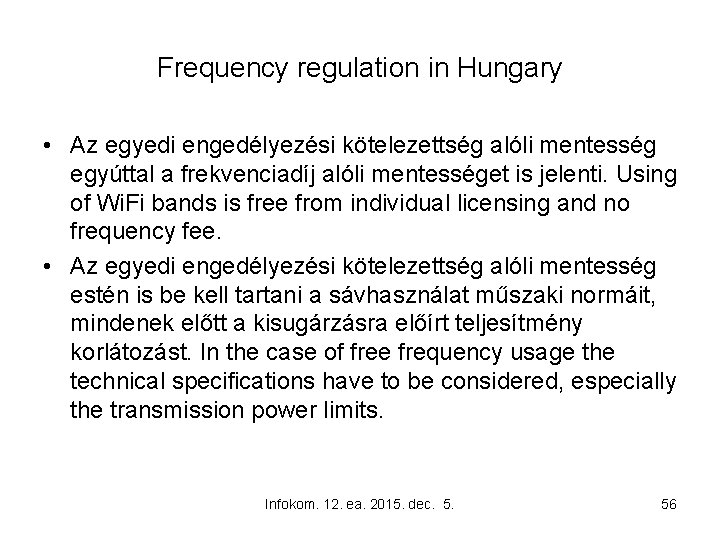

Frequency regulation in Hungary • Az egyedi engedélyezési kötelezettség alóli mentesség egyúttal a frekvenciadíj alóli mentességet is jelenti. Using of Wi. Fi bands is free from individual licensing and no frequency fee. • Az egyedi engedélyezési kötelezettség alóli mentesség estén is be kell tartani a sávhasználat műszaki normáit, mindenek előtt a kisugárzásra előírt teljesítmény korlátozást. In the case of free frequency usage the technical specifications have to be considered, especially the transmission power limits. Infokom. 12. ea. 2015. dec. 5. 56
A frekvenciahasználat szabályozása Magyarországon Infokom. 12. ea. 2015. dec. 5. 57

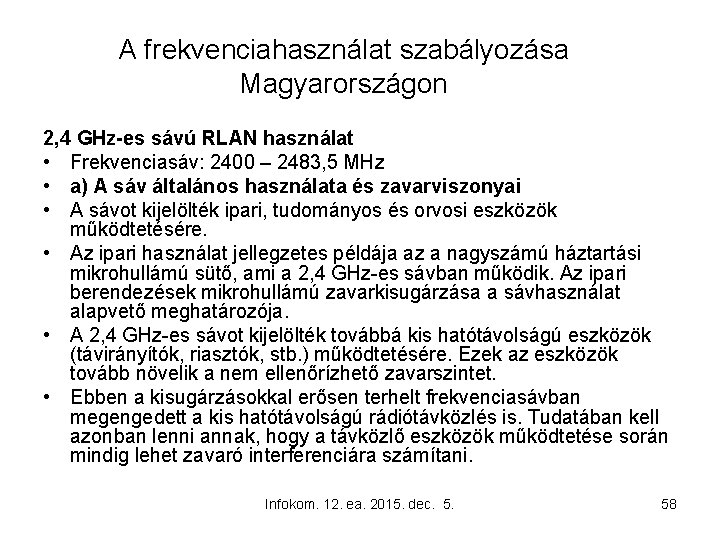

A frekvenciahasználat szabályozása Magyarországon 2, 4 GHz-es sávú RLAN használat • Frekvenciasáv: 2400 – 2483, 5 MHz • a) A sáv általános használata és zavarviszonyai • A sávot kijelölték ipari, tudományos és orvosi eszközök működtetésére. • Az ipari használat jellegzetes példája az a nagyszámú háztartási mikrohullámú sütő, ami a 2, 4 GHz-es sávban működik. Az ipari berendezések mikrohullámú zavarkisugárzása a sávhasználat alapvető meghatározója. • A 2, 4 GHz-es sávot kijelölték továbbá kis hatótávolságú eszközök (távirányítók, riasztók, stb. ) működtetésére. Ezek az eszközök tovább növelik a nem ellenőrízhető zavarszintet. • Ebben a kisugárzásokkal erősen terhelt frekvenciasávban megengedett a kis hatótávolságú rádiótávközlés is. Tudatában kell azonban lenni annak, hogy a távközlő eszközök működtetése során mindig lehet zavaró interferenciára számítani. Infokom. 12. ea. 2015. dec. 5. 58
A frekvenciahasználat szabályozása Magyarországon • A távközlési sávhasználat prioritási foka harmadlagos. Ez azt jelenti, hogy a berendezések nem tarthatnak igényt interferenciavédelemre más eszközök zavarásával szemben. • A 2, 4 GHz-es távközlés az egyszerűség és könnyű megvalósíthatóság miatt népszerű. Az elterjedt használat és az állomások nagy száma következtében mostanra már a 2, 4 GHz-es távközlési összeköttetések kölcsönös egymásra hatása vált a zavarok elsődleges okozójává. Infokom. 12. ea. 2015. dec. 5. 59
A frekvenciahasználat szabályozása Magyarországon • 2, 4 GHz-es sáv távközlési használata • A sávhasználatot meghatározó műszaki szabályozás csak a kötelezően betartandó teljesítményszinteket limitálja, az alkalmazott technológiára nem tesz megkötést, tehát technológia-semleges. Az előírások betartása mellett bármilyen rádiótávközlési átviteli alkalmazás megvalósítható. • A teljesítmény-korlátozási előírásból adódóan a 2, 4 GHzes távközlési alkalmazások általában 150 m-nél kisebb távolságú átvitelre használhatók előnyösen. Jellegzetes alkalmazások: Infokom. 12. ea. 2015. dec. 5. 60
IEEE 802. 11 szabvány előírásai 2. 4 GHz Infokom. 12. ea. 2015. dec. 5. 61
Infokom. 12. ea. 2015. dec. 5. 62
Infokom. 12. ea. 2015. dec. 5. 63
The 802. 11 Architecture • • User Stations (laptop PCs and PDAs) Access Points (APs) Backbone Network (Distribution System, DS) The User Stations competing for access over a shared medium is termed the Basic Service Set (BSS). • Two or more of these BSSs are interconnected by a DS network. • The complete set of BSSs and the interconnecting network are termed an extended service set (ESS). Infokom. 12. ea. 2015. dec. 5. 64
Extended Service Set Architecture Server Distribution Network Access Point 1 Access Point 2 RF Access Station 1 RF Access Station 2 Station 3 Station 4 Basic Service Set 2 Basic Service Set 1 Infokom. 12. ea. 2015. dec. 5. 65
Media Access Control (MAC) • MAC is mandatory for all stations • MAC is to assemble data into a frame including local address and error detection field • MAC checks the frame address, perform error correction on the frame, disassemble the frame and passes it to the Logical Link Control. • The LLC identifies higher layer programs to handle the data and provides and interface to these higher-layer programs while perform flow and error control. Infokom. 12. ea. 2015. dec. 5. 66
Collision Avoidance Approach • The access method differs from the wired Ethernet’s CSMA/CD (Carrier Sensing Media Access and Collision Detection) operation. • 802. 11 networks use a collision avoidance approach (CSMA/CA) • Collisions are avoided rather than detected. • This avoidance approach requires each station to listen for transmission from the others. • If the channel is idle, this indicates that no one else is currently transmitting and thus the station can now transmit. Infokom. 12. ea. 2015. dec. 5. 67
Timing and Power • All station clocks within a BSS are synchronized by means of the periodic transmission of a time stamped beacon signal received from the APs. • Stations employ two power-saving modes: the awake and doze modes. • In the awake mode, stations are fully powered and can receive packets at any time. • Stations must inform the AP before entering the doze mode. • In the doze mode, stations cannot receive packets. • Each stations wake up periodically to listen for bacon signals to indicate whether the AP have messages for it. Infokom. 12. ea. 2015. dec. 5. 68

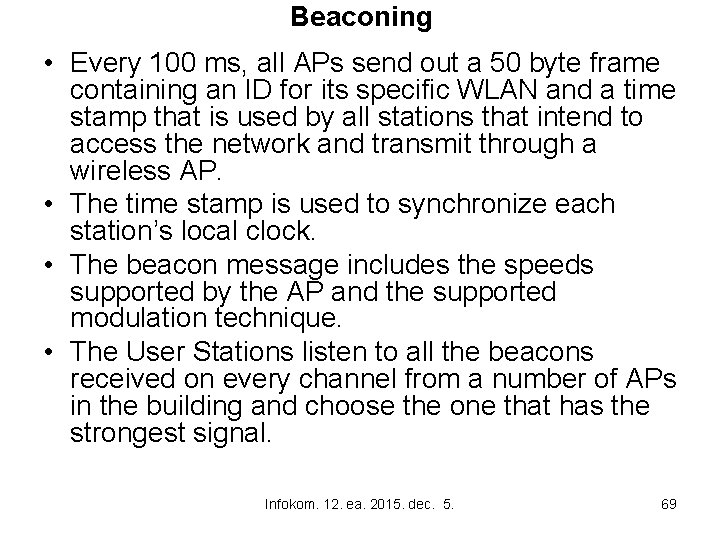

Beaconing • Every 100 ms, all APs send out a 50 byte frame containing an ID for its specific WLAN and a time stamp that is used by all stations that intend to access the network and transmit through a wireless AP. • The time stamp is used to synchronize each station’s local clock. • The beacon message includes the speeds supported by the AP and the supported modulation technique. • The User Stations listen to all the beacons received on every channel from a number of APs in the building and choose the one that has the strongest signal. Infokom. 12. ea. 2015. dec. 5. 69
Two Way Access and Transmission Sequence (It is not uncommon for transmitted frames not to be successfully received due to the errors in the over-the-air transmission and competing signals. ) Data Transfer Acknowledgement of Transfer Sending Station Infokom. 12. ea. 2015. dec. 5. Receiving Access Point 70
Four Way Access and Transmission Sequence (used to further ensure transmission reliability) Request to Send Clear to Send Data Transfer Acknowledgement of Transfer Sending Station Receiving Access Point Request to send message containing a source address, destination address, duration of the transaction Clear to send message containing the same information or a denial message Infokom. 12. ea. 2015. dec. 5. 71
Media Access Methods for Control of Access to the Network 1. The distributed access control where each mobile unit makes access decision independently 2. The centralised decision making (polling) approach where a central access protocol controls which stations can access the network by means of a centralized polling mechanism Infokom. 12. ea. 2015. dec. 5. 72
Kell-e Wi. Fi berendezést tervezni? Infokom. 12. ea. 2015. dec. 5. 73
• The chipset includes: • AR 2112 Radio-on-a-Chip for 2. 4 GHz WLAN • Support for IEEE 802. 11 b, 802. 11 g • Operates from 2. 300 - 2. 500 GHz • Advanced wideband receiver with best path sequencer for better range and multipath resistance than conventional equalizer-based designs • Integrated third-generation power amplifier (PA) and lownoise amplifier (LNA) • External PA and/or LNA can be used for special applications • Eliminates all IF filters and most RF filters; no external voltage-controlled oscillators (VCOs) or surface acoustic wave (SAW) filters needed • Enhanced transmit and receive chains Infokom. 12. ea. 2015. dec. 5. 74
AR 5212 Multiprotocol MAC/baseband processor Supports both 2. 4 GHz and 5 GHz Ro. Cs Super AG® mode includes dynamic 108 Mbps capability, real-time hardware data compression, dynamic transmit optimization and standardscompliant bursting No external FLASH or RAM memory needed PCI 2. 3 and PC Card 7. 1 host interfaces with DMA support Integrated analog-to-digital and digital-to-analog converters Serial EEPROM, LEDs, GPIOs peripheral interfaces Low power operational and sleep modes Infokom. 12. ea. 2015. dec. 5. 75
Wi. Fi certification labels Infokom. 12. ea. 2015. dec. 5. 76
Commercially available Wi-Fi AP with MIMO Infokom. 12. ea. 2015. dec. 5. 77
T-Mobile 3 G hálózatán biztosított internetszolgáltatása esetén az esetek 80%-ában a 3 G-technológiával elérhető minimum sebesség letöltés esetén 0, 15 Mbit/s, feltöltés esetén 0, 15 Mbit/s. Infokom. 12. ea. 2015. dec. 5. 78

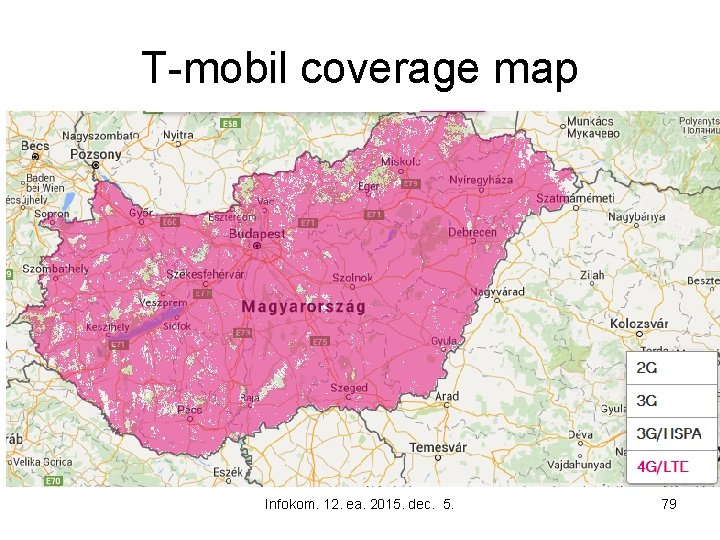

T-mobil coverage map Infokom. 12. ea. 2015. dec. 5. 79
Infokom. 12. ea. 2015. dec. 5. 80
Infokom. 12. ea. 2015. dec. 5. 81

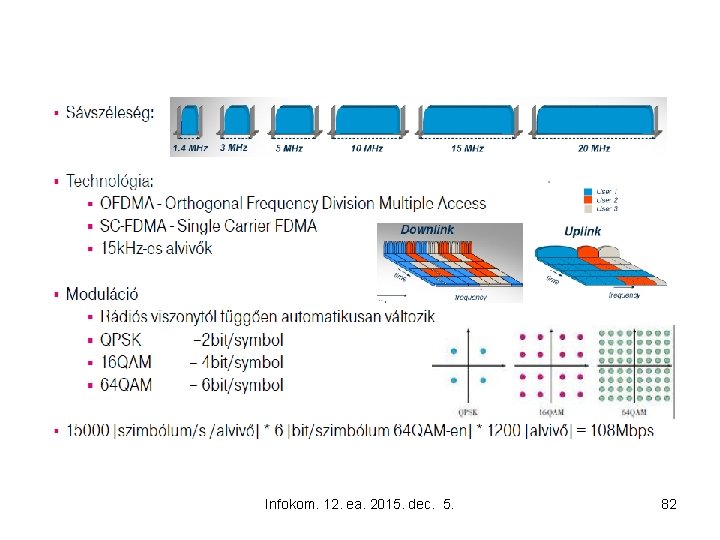

Infokom. 12. ea. 2015. dec. 5. 82

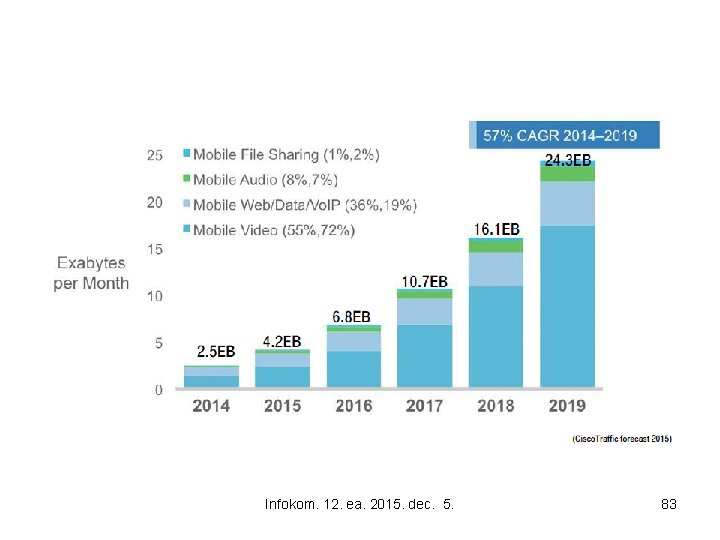

Infokom. 12. ea. 2015. dec. 5. 83
Dynamic Control of HS-DSCH Transmission Parameters I. • HSDPA handsets take measurements of the downlink physical channel quality, and transmit the channel quality indicator (CQI) in the uplink control channel to the WCDMA basestation (called Node B in UMTS). • dynamically varies the number of physical channels, the modulation scheme and the code rate. • The Node B calculates these parameters based on the CQI (channel Quality Indicator) values it receives from the mobile device. • When channel conditions deteriorate, the modulation scheme drops from 16 QAM to QPSK, the number of physical channels used can be decreased and the effective code rate can be reduced through lower puncturing rates. Infokom. 12. ea. 2015. dec. 5. 84
Dynamic Control of HS-DSCH Transmission Parameters II. • to vary the data rate sent to the mobile device in response to changes in the channel quality removes the need for the HS-PDSCHs channels to be power controlled. • The CQIs also enable the Node B to optimize the transmission to every user. An opportunistic scheduling algorithm can use the CQIs to transmit at the highest data rate to the users with the best channel quality. Infokom. 12. ea. 2015. dec. 5. 85
WMAN (Wireless MAN, Rádiós MAN) • MAN rendszer rádiós megoldása. • MAN (Metropolitan Area Network, Városi hálózat): Olyan számítógépes hálózat, amelynek lefedési területe egy nagyváros méretével összevethető. • WMAN-t megvalósító szabványok: • – IEEE 802. 16, valamint • – ETSI Hiper. MAN • Mindkét szabványnak van olyan alesete, ami nem elégíti ki a Wi. MAX követelményeket (pl. IEEE 802. 16 a) és van olyan alesete, ami teljesíti a Wi. MAX-profil előírásait • Jellegzetes átviteli távolság: 50 km vagy nagyob Infokom. 12. ea. 2015. dec. 5. 86

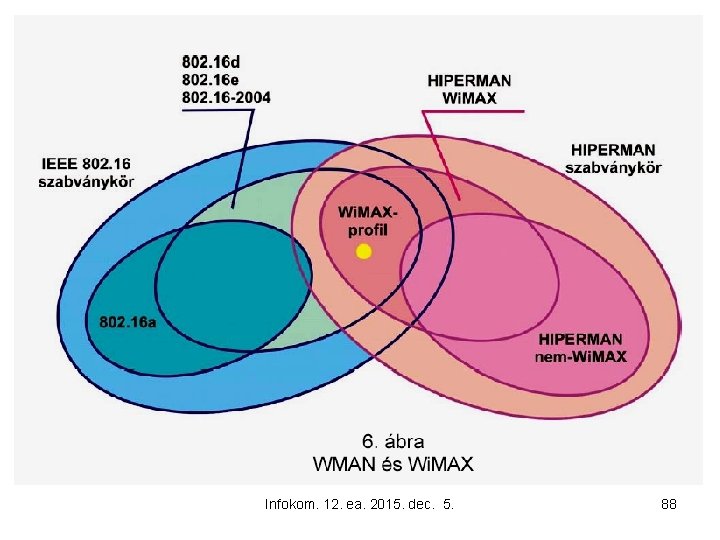

Wi. MAX (Worldwide Interoperability for Microwave Access Világméretben csereszabatos mikrohullámú hozzáférés) • • Olyan WMAN, amire a csereszabatosságot biztosító u. n. Wi. MAXprofil teljesül, és a kijelölt laboratórium tanúsítványt ad. Az IEEE 801. 16 d, IEEE 801. 16 -2004 és IEEE 802. 18 e szabványoknak megfelelő berendezéseknél megvan annak a lehetősége, hogy teljesítsék a Wi. MAX-profil előírásokat Az ETSI Hiper. MAN szabványnak is van olyan opciója, ami lehetővé teszi a Wi. MAX követelmények teljesítését. Wi. MAX-profil -- Azon járulékos tulajdonságok együttese, amelyekkel valamely WMAN rendszernek rendelkeznie kell, hogy teljesítse a Wi. MAX minősítéshez szükséges műszaki feltételeket. A Wi. MAX-profil paramétereit a Wi. MAX Fórum nemzetközi szervezet határozza meg. Infokom. 12. ea. 2015. dec. 5. 87
Infokom. 12. ea. 2015. dec. 5. 88

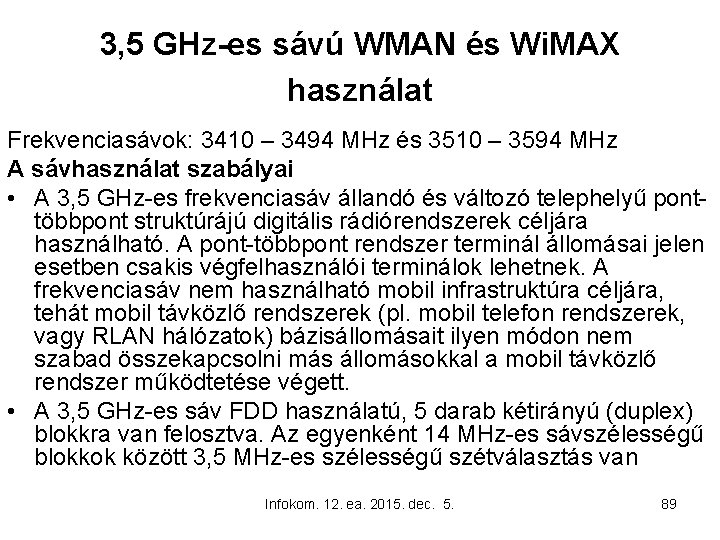

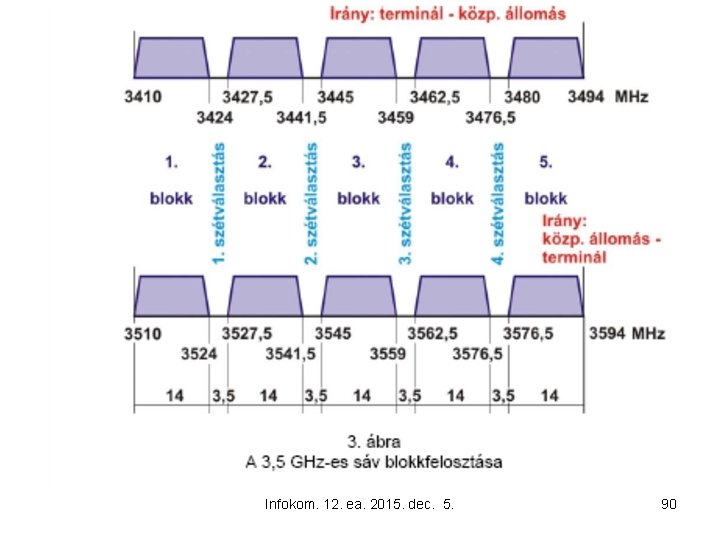

3, 5 GHz-es sávú WMAN és Wi. MAX használat Frekvenciasávok: 3410 – 3494 MHz és 3510 – 3594 MHz A sávhasználat szabályai • A 3, 5 GHz-es frekvenciasáv állandó és változó telephelyű ponttöbbpont struktúrájú digitális rádiórendszerek céljára használható. A pont-többpont rendszer terminál állomásai jelen esetben csakis végfelhasználói terminálok lehetnek. A frekvenciasáv nem használható mobil infrastruktúra céljára, tehát mobil távközlő rendszerek (pl. mobil telefon rendszerek, vagy RLAN hálózatok) bázisállomásait ilyen módon nem szabad összekapcsolni más állomásokkal a mobil távközlő rendszer működtetése végett. • A 3, 5 GHz-es sáv FDD használatú, 5 darab kétirányú (duplex) blokkra van felosztva. Az egyenként 14 MHz-es sávszélességű blokkok között 3, 5 MHz-es szélességű szétválasztás van Infokom. 12. ea. 2015. dec. 5. 89
Infokom. 12. ea. 2015. dec. 5. 90
A sáv szabályozási státusza • A pont-többpont rendszerek központi állomásai egyedi engedélyeztetésre kötelezettek. A frekvenciahasználati jogosultsággal rendelkezők a központi állomásokat egyedi rádióengedély birtokában üzemeltethetik. Ugyancsak egyedi engedélyre kötelezett az átjátszó állomások üzemeltetése. A pmp rendszerek terminál állomásai nem engedély-kötelezettek és bejelentésre, nyilvántartásba vételre sincsenek kötelezve. • (2) A 3, 5 GHz-es sávú pont-többpont állomások az állandóhelyű rádiószolgálat keretében működnek, a rádióalkalmazási prioritás elsődleges. Ez nem csak fix telepítésű, hanem hordozható (portabilis) terminálokra is érvényes, amelyekre azért állandó helyűek, mert működés közben nem mozognak. Hordozható terminálokkal u. n. ’nomadikus’ hozzáférés valósítható meg. Infokom. 12. ea. 2015. dec. 5. 91
Infokom. 12. ea. 2015. dec. 5. 92

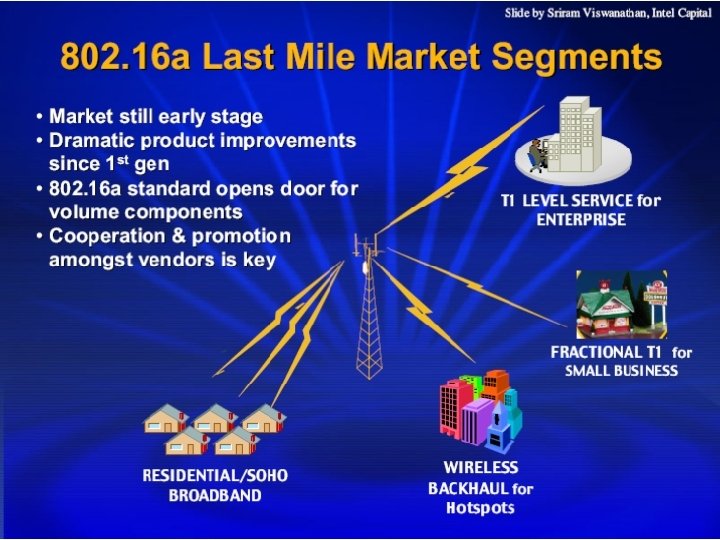

WMAN és Wi. MAX a 3, 5 GHz-es sávban • A 3, 5 GHz-es pont-többpont rádióstruktúra használata technológia-független. Így lehetőség van arra is, hogy a p-mp hálózatok az IEEE 802. 16 szabvány, illetve az ETSI Hiper. MAN szabvány szerint valósuljanak meg. Ilyen módon a 3, 5 GHz-es sávban a jogosultak WMAN hálózatokat is létrehozhatnak. • A 3, 5 GHz-es sáv Wi. MAX-sávként van deklarálva. A profilkövetelmények teljesülése esetén Wi. MAX is létrehozható. • A 3, 5 GHz-es WMAN és Wi. MAX működés csakis FDD duplexitású lehet. • Minthogy a 3, 5 GHz-es sáv engedélyköteles, ezért az itt megvalósított WMAN és Wi. MAX hálózatok is engedély kötelesek. Éppen ebben rejlik a 3, 5 GHz-es Wi. MAX használat nagy jelentősége. Minőségi garancia ugyanis szabad hozzáférésű sávra nem biztosítható, ehhez engedélyköteles frekvenciasávra van szükség. • A 3, 5 GHz-es Wi. MAX rendszerek egyaránt lehetnek fixen Infokom. 12. ea. 2015. dec. 5. 93 telepítettek, vagy nomadikusak
Infokom. 12. ea. 2015. dec. 5. 94
Infokom. 12. ea. 2015. dec. 5. 95
Infokom. 12. ea. 2015. dec. 5. 96

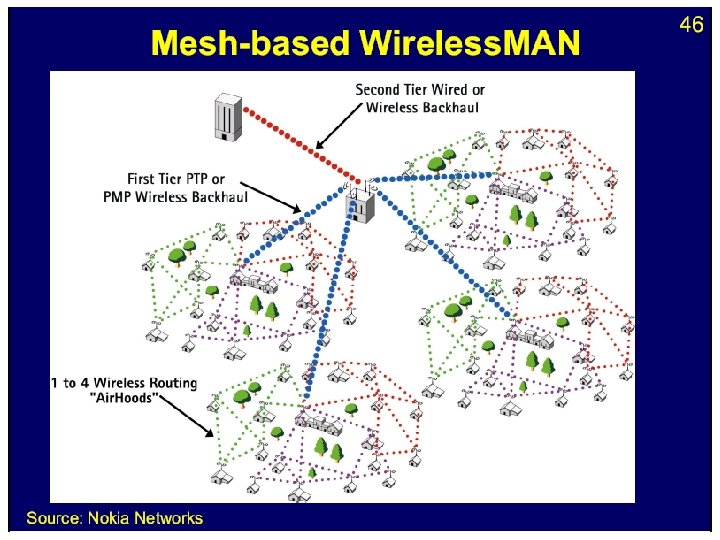

Infokom. 12. ea. 2015. dec. 5. 97
Infokom. 12. ea. 2015. dec. 5. 98
Infokom. 12. ea. 2015. dec. 5. 99
Hasznos linkek • http: //www. ieee 802. org/16/docs/02/C 8021602_05. pdf • http: //www. ieee 802. org/16/tutorial/ • http: //802. 11 -security. com/general/links http: //www. oreillynet. com/lpt/a/5863 • http: //digitus. itk. ppke. hu/~takacsgy/winternet. pdf • http: //digitus. itk. ppke. hu/~takacsgy/umts. pdf • http: //digitus. itk. ppke. hu/~takacsgy/802. 11 b-1999. pdf • http: //digitus. itk. ppke. hu/~takacsgy/802. 11 g-2003. pdf Infokom. 12. ea. 2015. dec. 5. 100
