Info Deployment and Flow www gdttolerancestack com Customer

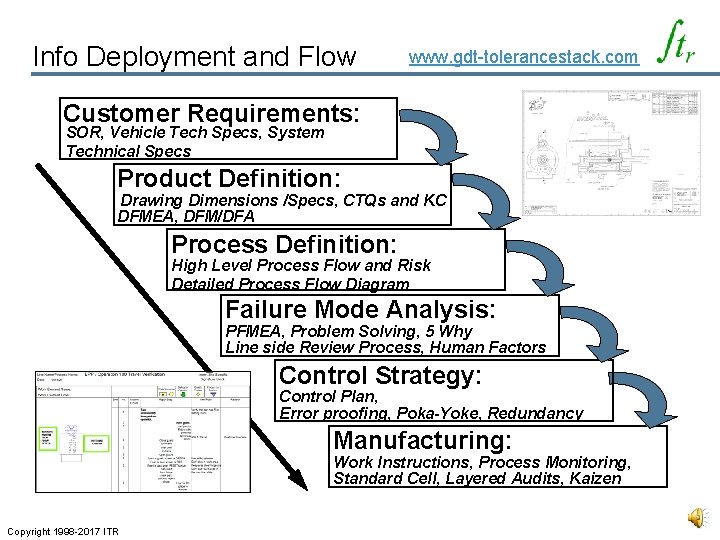

Info Deployment and Flow www. gdt-tolerancestack. com Customer Requirements: SOR, Vehicle Tech Specs, System Technical Specs Product Definition: Drawing Dimensions /Specs, CTQs and KC DFMEA, DFM/DFA Process Definition: High Level Process Flow and Risk Detailed Process Flow Diagram Failure Mode Analysis: PFMEA, Problem Solving, 5 Why Line side Review Process, Human Factors Control Strategy: Control Plan, Error proofing, Poka-Yoke, Redundancy Manufacturing: Work Instructions, Process Monitoring, Standard Cell, Layered Audits, Kaizen Copyright 1998 -2017 ITR

Document Linkage www. gdt-tolerancestack. com Copyright 1998 -2017 ITR

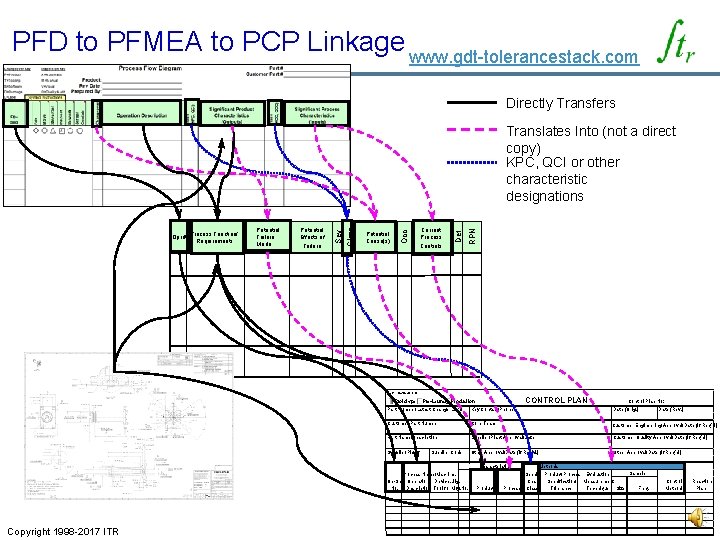

PFD to PFMEA to PCP Linkage www. gdt-tolerancestack. com Directly Transfers Potential Effects of Failure Potential Cause(s) Current Process Controls Det Potential Failure Mode RPN Process Function/ Requirements Occ Opr # Sev Class Translates Into (not a direct copy) KPC, QCI or other characteristic designations 817 F 1 Revised 9 -9 -02 Prototype CONTROL PLAN Pre-Launch Production Control Plan No: Part Number/Latest Change Level Key Contact/Phone Date (Orig. ) Customer Part Number Core Team Customer Engineering Approval/Date (If Req'd. ) Part Name/Description Supplier/Plant Approval/Date Customer Quality Approval/Date (If Req'd. ) Supplier/Plant Other Approval/Date (If Req'd. ) Supplier Code Date (Rev. ) Characteristics Process Name/Machine, Op-Seq Operation Device, Jig, No. Description Tool for Mfg. No. Copyright 1998 -2017 ITR Product Methods Sample Special Product/Process Evaluation Char. Specification/ Measurement Process Class Tolerance Technique Size Freq. Control Method Reaction Plan
