Infecciones por subtipos noB del VIH Vicente Soriano
Infecciones por subtipos no-B del VIH Vicente Soriano Servicio de Enfermedades Infecciosas Hospital Carlos III, Madrid
Subtipos del VIH-1 GRUPO O VIH-1 GRUPO N SIV Subtipo G Subtipo F Subtipo K U 88825 U 88826 AJ 249239 AF 005494 L 22085 L 03698 U 54771 Subtipo E U 46016 M 22639 M 27323 Subtipo D U 52953 L 41177 U 63632 Subtipo J AF 005496 K 03455 U 51190 Subtipo B Subtipo C VIH-2 Subtipo H M 62320 Subtipo A VIH-1 GRUPO M 0. 1
Formas recombinantes VIH-1 “A” VIH-1 “B” Linfocito T CD 4+ 43 CRFs VIH-1 con RNA del virus “A” y del virus “B” Virus recombinantes www. hiv. lanl. gov
HIV-1 subtypes worldwide
Origin of the AIDS pandemic in Congo 1. All the earliest AIDS cases from 1959 to the epidemic in 1979 are found in that area. Nearly all have been confirmed by serum testing. 2. The earliest pre-epidemic and epidemic of HIV-1 group M took place around that region. In 1978 the HIV-1 rate per 100, 000 was 15 in Kinshasa; 20 in Burundi; and 16 in Rwanda. 3. All subtypes of HIV-1 group M are found in Congo and also the highest number of recombinants. Worobey et al. Nature 2008; 455: 661
Inmigración y VIH en España De 1736 nuevos diagnósticos del VIH realizados en el Hospital Carlos III (2000 -2008) 17, 8% fueron por subtipos no-B del VIH-1. Españoles S. Americanos Africanos 100 90 80 70 60 50 40 30 20 10 0 2000 -2002 2003 -2005 2006 -2008 Subtipos no-B del VIH-1 A. Treviño. CROI 2009, Abstract 456.
Implicaciones clínicas de los subtipos del VIH • • • Diagnóstico Monitorización Interpretación de resistencias Tropismo viral Respuesta al tratamiento antirretroviral Vacunas

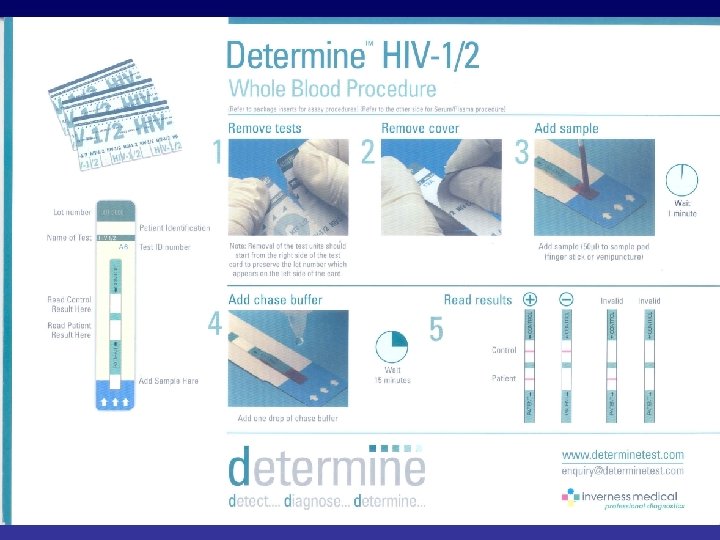

Diagnóstico serológico • Elevada sensibilidad y especificidad. • Los métodos de enzimoinmunoanálisis (EIA) de 4ª generación, Ag + Ac, facilitan y mejoran el diagnóstico. • El WB permite realizar un diagnóstico correcto de la infección por VIH en la gran mayoría casos
Diagnóstico serológico y subtipos
Monitorización de la CV Nucli. Sens Easy. Q® HIV-1 COBAS Taq. Man HIV-1 Abbott Real Time™ Versant® HIV-1 RNA b. DNA Laboratorio Biomerieux Roche Diagnostics Abbott Molecular Diagnostics Siemens Medical Solutions Método Real Time NASBA Real Time RT-PCR Real Time PCR Bdna Secuencia diana gag pol ( integrasa) pol Tipo de muestra Plasma, DBS, tejidos Plasma, DBS Plasma, LCR Volumen muestra 0, 01 -2 ml 0, 5 -1 ml 0, 2 -1 ml Método de detección Molecular beacons Sondas Taq. Man Sondas fluorescentes Quimioluminiscencia Rango detección (copias/ml) 30 -3. 000 30 -10. 000 40 -10. 000 50 -500. 000 Tiempo de procesamiento 4 h 6 h 6 h 20 h Extracción automática Easy. MAG COBAS Ampli. Prep M 2000 sp – Cuantificación válida VIH-1 grupo M y VIH-2 subtipo A VIH-1 grupo M VIH-1 grupos M, N y O VIH-1 grupo M
Resistencias y su interpretación • Los mutaciones y los patrones de resistencia en los diferentes subtipos del VIH siguen mayoritariamente los principios del subtipo B. • Sin embargo, la variabilidad genética determina que algunas mutaciones sean más frecuentes en función del subtipo y/o que la barrera genética difiera de un subtipo a otro.
Resistencias a NRTIs: K 65 R Subtipo B Subtipo C La secuencia de nucleótidos determina el desarrollo de algunas mutaciones de resistencia de forma preferencial, incluso cuando la variabilidad basal no condiciona cambios de aminoácidos Invernizzi et al. Abstract 628. CROI 2009

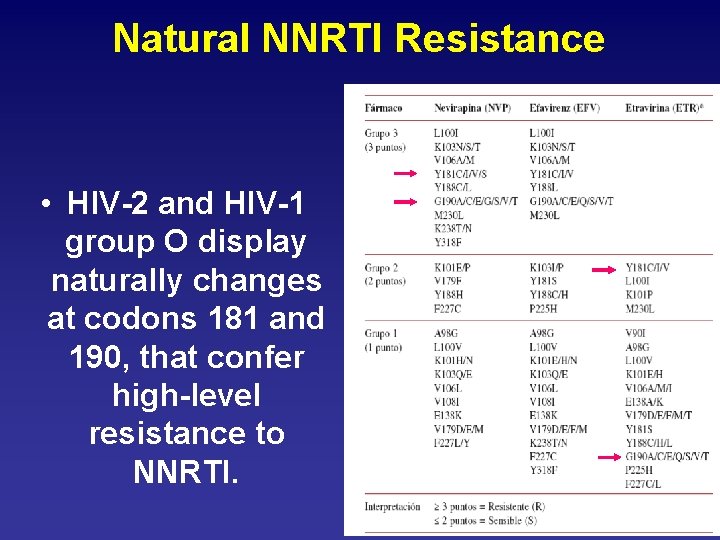

Natural NNRTI Resistance • HIV-2 and HIV-1 group O display naturally changes at codons 181 and 190, that confer high-level resistance to NNRTI.
Resistencias a IP Clavel et al. NEJM 2004: 350; 1023
Prevalence of TPV and DRV resistance mutations in patients infected with B and non-B subtypes 1. 364 genotipes: Non-B subtypes (n=186): 137 drug-naive and 49 PI-experienced Distribution as follows: 4 A, 11 C, 12 CRF 01_AE, 72 CRF 02_AG, 1 CRF 06, 1 CRF 07_BC, 5 CRF 11, 17 CRF 12_BF, 5 CRF 14_BG, 12 D, 10 F, 34 G, 2 H. Subtype B (n= 1178): 285 drug-naive and 893 PI-experienced Poveda et al. AIDS 2008
Frequency of TPV resistance mutations (%) Higher rate of specific TPV-resistance mutations in drug-naive patients infected with non-B clades Subtype B 100 Non-B subtypes 90 80 70 60 50 40 30 20 10 0 L 10 I 13 K 20 V V MRV L 33 F E 35 M 36 I 54 DGKN ILV MAV H 69 DEGHN K G 61 H 69 L 89 IKNGR IMRTV Poveda et al. AIDS 2008
Susceptibility to TPV and DRV in 29 drug-naive individuals infected with non-B subtypes
Reduced TPV-susceptibility in some F subtypes FC to TPV T 12 N, K 14 R, I 15 V, L 19 I/M, K 20 R, E 35 D, M 36 I, R 41 K, R 57 K, L 63 T, E 65 D, I 72 T, G 73 G/D, T 74 S, L 89 M I 15 V, G 17 D, K 20 R, E 35 D, M 36 I, R 41 K, R 57 K, Q 61 N, E 65 D, I 72 T 2. 7 2. 1 Poveda et al. AIDS 2008 Prevalence of TPV mutations in subtype F, PI-naive specimens from the Stanford Database: K 20 R: 34% E 35 D: 94% M 36 I: 95% L 89 M: 69% “Subtype F viruses appear less susceptible to TPV than subtypes C, CRF 02_AG, and G” Abecasis et al. Antivir Ther 2006
G/A P G R G I H I S K R T N N N P R T C A F Y A T G E Q A H C Tip I I R Stem I G D I

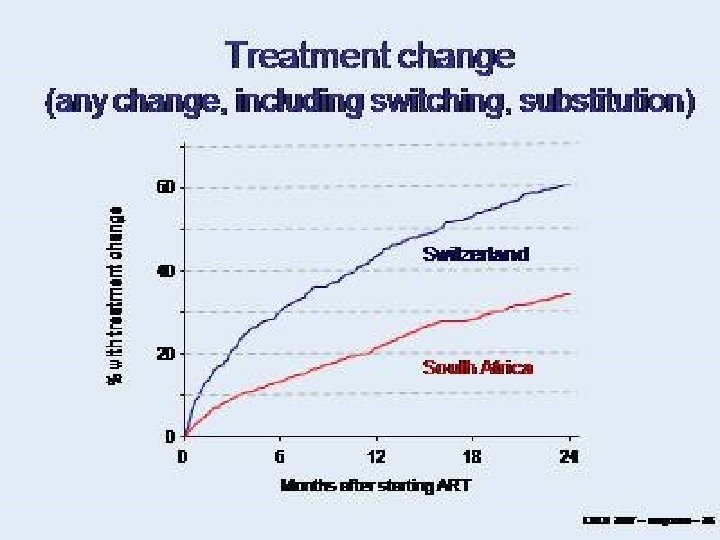

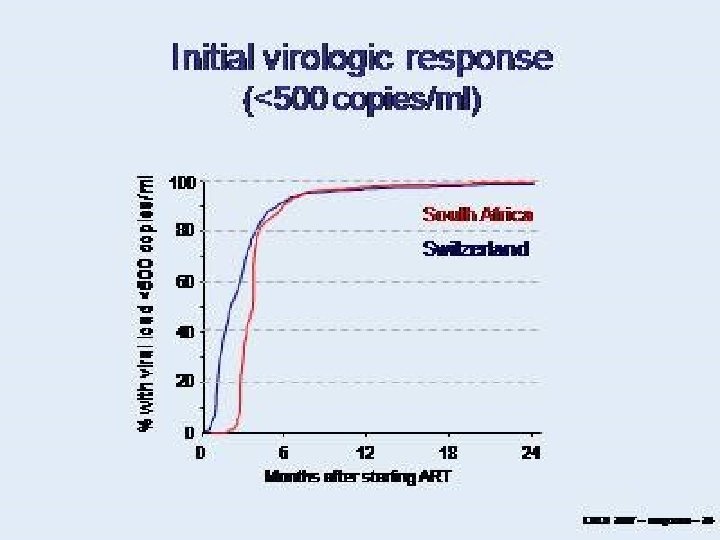

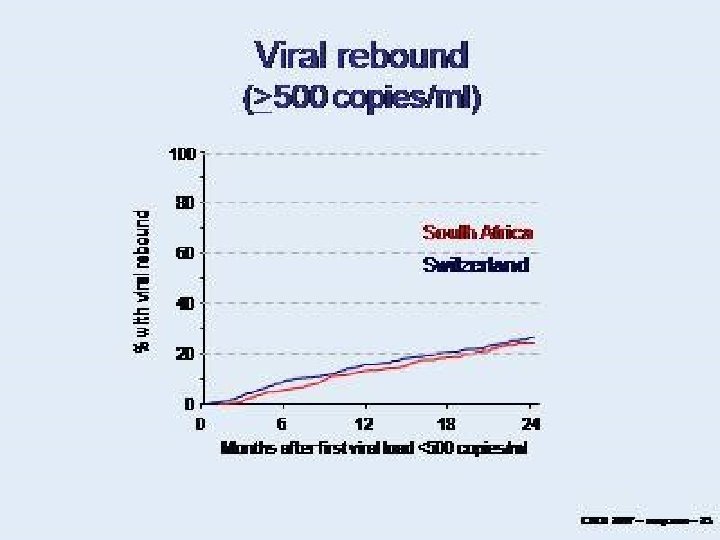

2009 Outcomes on ART in Resource. Limited and Industrilized Countries Mathias Egger Posters 94 -97, 142, 143.
North America Western Europe South America Asia West, Central & East Africa South Africa
Vacunas y Subtipos • El control real de la pandemia del SIDA es dependiente del desarrollo de una vacuna preventiva efectiva. • La diversidad genética del VIH-1 representa una de las mayores dificultades para alcanzar este objetivo. • Aunque existe reactividad cruzada en la respuesta inmune frente a diferentes subtipos, la amplitud de esa respuesta es limitada. • Uno de los desafíos mayores en el desarrollo de vacunas frente al VIH depende de la capacidad para incorporar la diversidad genética del virus, elicitar una amplia gama de anticuerpos neutralizantes y generar una respuesta efectiva CD 4/CD 8.
VIH-2
VIH-2 en España (n=206) Edad media: 41 años (2 - 84 años) Sexo: 136 varones Origen: 38 (18%) nativos 152 (80%) sub-saharianos Ruta de infección: 141 (88%) heterosexual; 12 homosexual 4 ADVP; 1 vertical Coinfecciones: 22 (10%) VIH-1; 1 HTLV-1 M; 1 HTLV-2 Subtipos: 45 A 5 B
VIH-2 - Distribución geográfica San Sebastián 8 Galicia 12 Oviedo 1 Vitoria 1 Navarra 3 Gerona 5 Rioja 1 Lérida 4 Barcelona 56 Burgos 1 León 3 Zaragoza 3 Tarragona 2 Valladolid 4 Madrid 40 Guadalajara 2 Cáceres 2 Toledo 1 Valencia 6 Alicante 5 Málaga 2 Canarias 9 Almería 12 Baleares 5
HIV-2 summary • HIV-2 infection in Spain remains mainly confined to immigrants from endemic regions. • Overall, lower virological efficacy and poorer CD 4 restoration in HIV-2 vs HIV-1. • Lack of activity of NNRTI and entry inhibitors. • PI susceptibility: SQV > ATV > DRV > LPV Only residual for f. APV and TPV. • Good activity of raltegravir. • Viral load reliable only for HIV-2 clade A. • Drug resistance mutations in HIV-2 are selected at the same positions than in HIV-1 but at different frequencies. • Caution in dually infected HIV-1 & HIV-2 patients.
Agradecimientos Laboratorio • Carmen de Mendoza • Ana Treviño • Lourdes Anta • Eva Poveda • Carolina Garrido • Miguel Arredondo FIPSE RIS Fundación IES ACHIEV 2 E Clinica • Pablo Rivas • Dolores Herrero • Eugenia Vispo • Pablo Barreiro • Pablo Labarga
