INF 245 Mobile applications Mobile and wireless message

INF 245 Mobile applications Mobile and wireless message exchange MM chapter 5 also builds upon Michael Juntao Yuan(2004) Enterprise J 2 ME: kap 8, 9, 10 Hi. M Fall 2007 Molde University College INF 245 Fall 2007 OBø 1

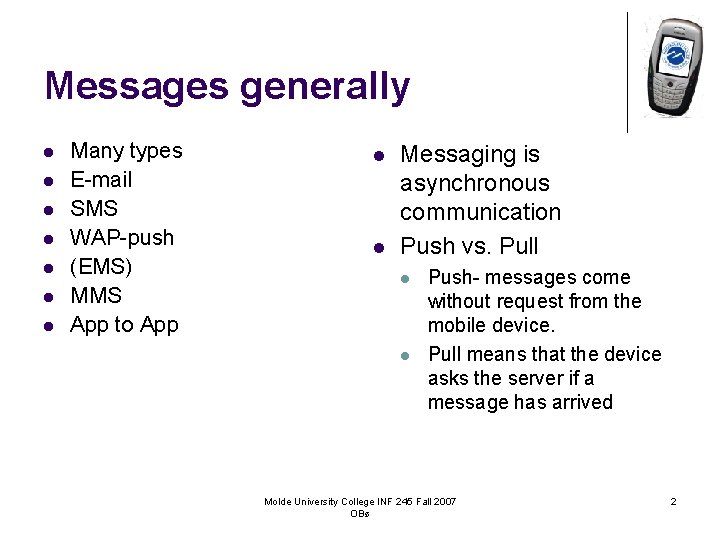

Messages generally l l l l Many types E-mail SMS WAP-push (EMS) MMS App to App l l Messaging is asynchronous communication Push vs. Pull l l Push- messages come without request from the mobile device. Pull means that the device asks the server if a message has arrived Molde University College INF 245 Fall 2007 OBø 2

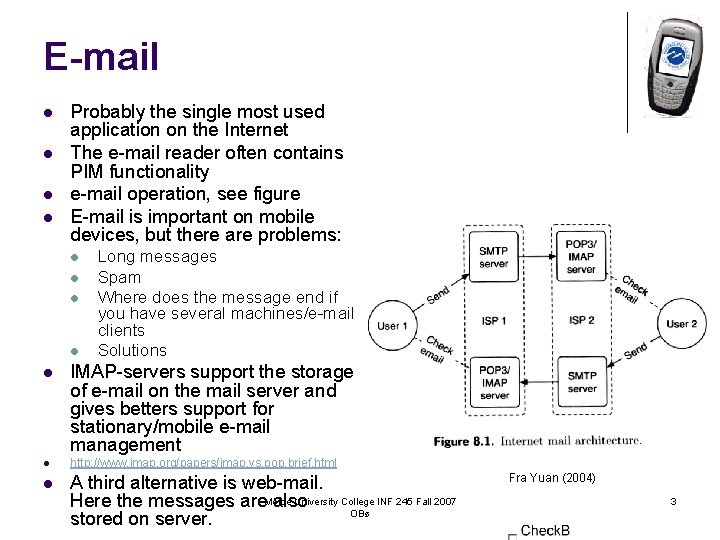

E-mail l l Probably the single most used application on the Internet The e-mail reader often contains PIM functionality e-mail operation, see figure E-mail is important on mobile devices, but there are problems: l l l l Long messages Spam Where does the message end if you have several machines/e-mail clients Solutions l. MJY fig. 8. 1 IMAP-servers support the storage of e-mail on the mail server and gives betters support for stationary/mobile e-mail management http: //www. imap. org/papers/imap. vs. pop. brief. html A third alternative is web-mail. University College INF 245 Fall 2007 Here the messages are. Molde also OBø stored on server. Fra Yuan (2004) 3

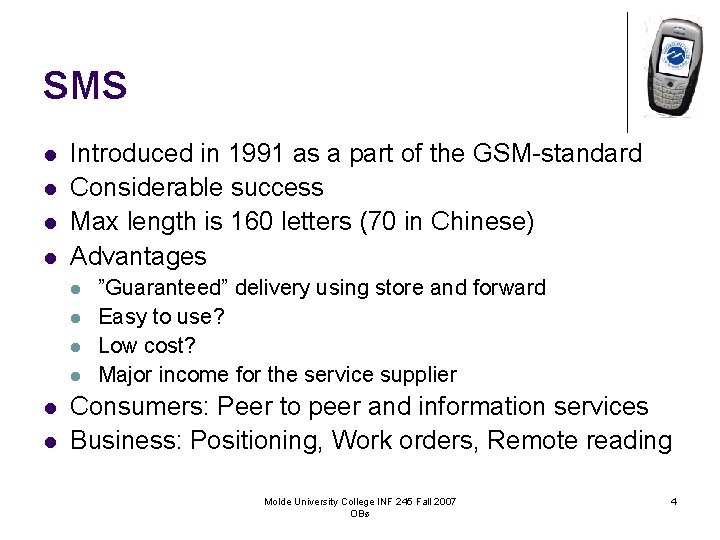

SMS l l Introduced in 1991 as a part of the GSM-standard Considerable success Max length is 160 letters (70 in Chinese) Advantages l l l ”Guaranteed” delivery using store and forward Easy to use? Low cost? Major income for the service supplier Consumers: Peer to peer and information services Business: Positioning, Work orders, Remote reading Molde University College INF 245 Fall 2007 OBø 4

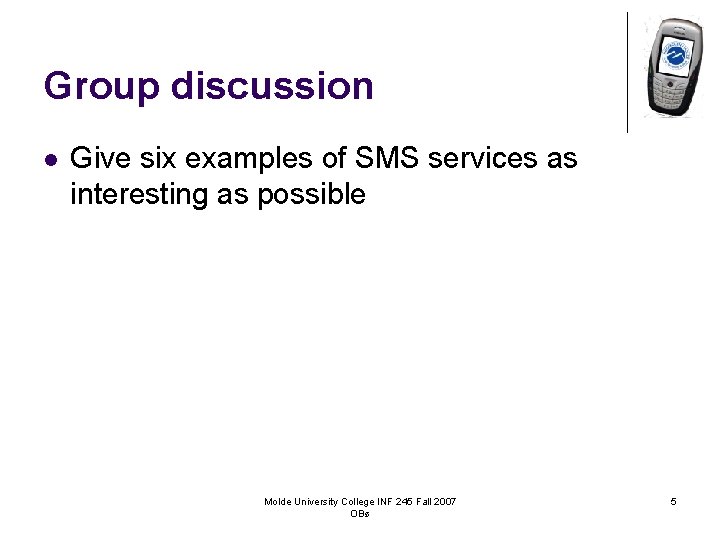

Group discussion l Give six examples of SMS services as interesting as possible Molde University College INF 245 Fall 2007 OBø 5

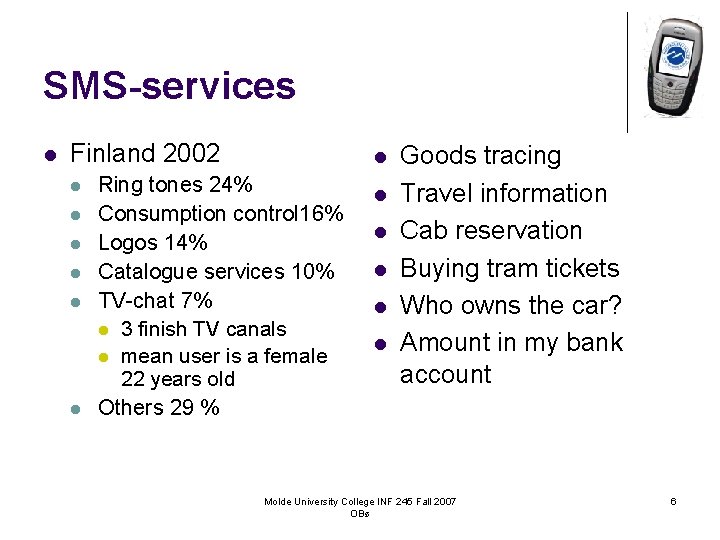

SMS-services l Finland 2002 l l l l Ring tones 24% Consumption control 16% Logos 14% Catalogue services 10% TV-chat 7% l 3 finish TV canals l mean user is a female 22 years old Others 29 % l l l Goods tracing Travel information Cab reservation Buying tram tickets Who owns the car? Amount in my bank account Molde University College INF 245 Fall 2007 OBø 6

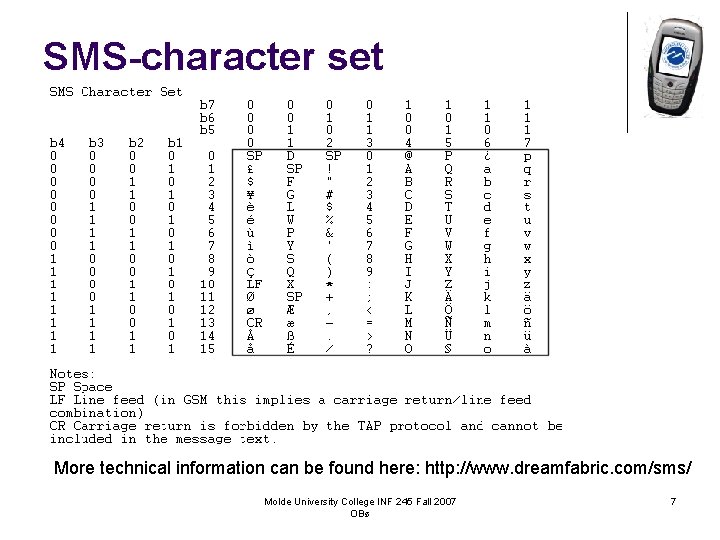

SMS-character set More technical information can be found here: http: //www. dreamfabric. com/sms/ Molde University College INF 245 Fall 2007 OBø 7

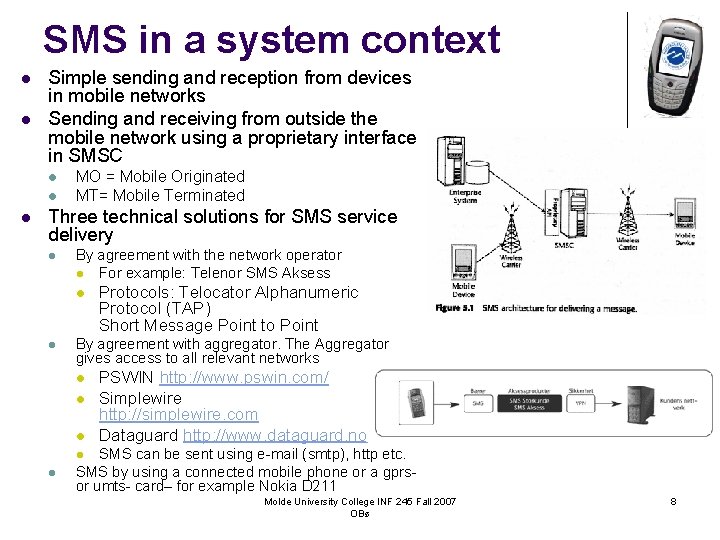

SMS in a system context l l Simple sending and reception from devices in mobile networks Sending and receiving from outside the mobile network using a proprietary interface in SMSC l l l MO = Mobile Originated MT= Mobile Terminated Three technical solutions for SMS service delivery l By agreement with the network operator l For example: Telenor SMS Aksess l l Protocols: Telocator Alphanumeric Protocol (TAP) Short Message Point to Point By agreement with aggregator. The Aggregator gives access to all relevant networks l l l PSWIN http: //www. pswin. com/ Simplewire http: //simplewire. com Dataguard http: //www. dataguard. no SMS can be sent using e-mail (smtp), http etc. SMS by using a connected mobile phone or a gprsor umts- card– for example Nokia D 211 l l Molde University College INF 245 Fall 2007 OBø 8

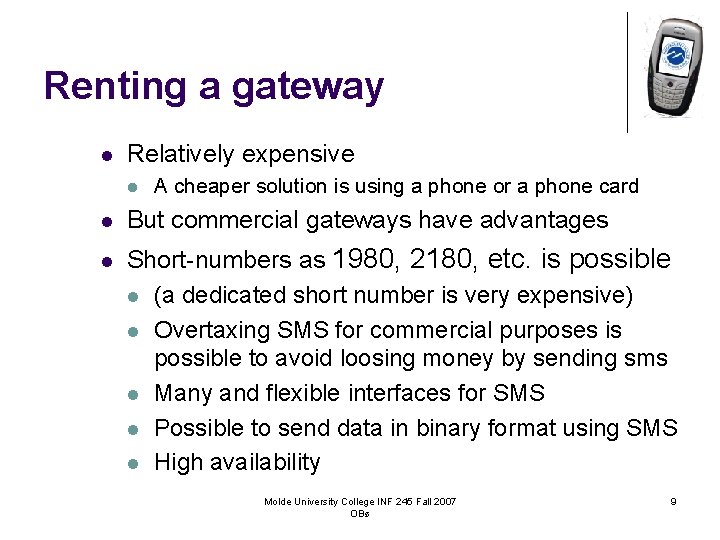

Renting a gateway l Relatively expensive l l l A cheaper solution is using a phone or a phone card But commercial gateways have advantages Short-numbers as 1980, 2180, etc. is possible l (a dedicated short number is very expensive) l Overtaxing SMS for commercial purposes is possible to avoid loosing money by sending sms l Many and flexible interfaces for SMS l Possible to send data in binary format using SMS l High availability Molde University College INF 245 Fall 2007 OBø 9

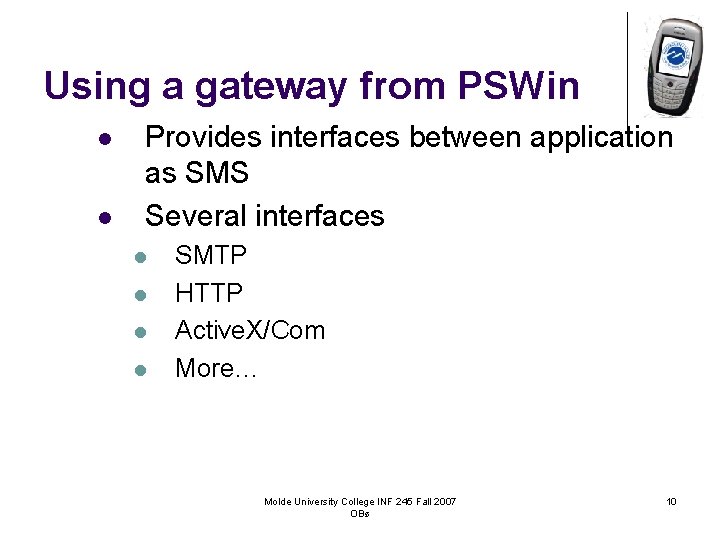

Using a gateway from PSWin l l Provides interfaces between application as SMS Several interfaces l l SMTP HTTP Active. X/Com More… Molde University College INF 245 Fall 2007 OBø 10

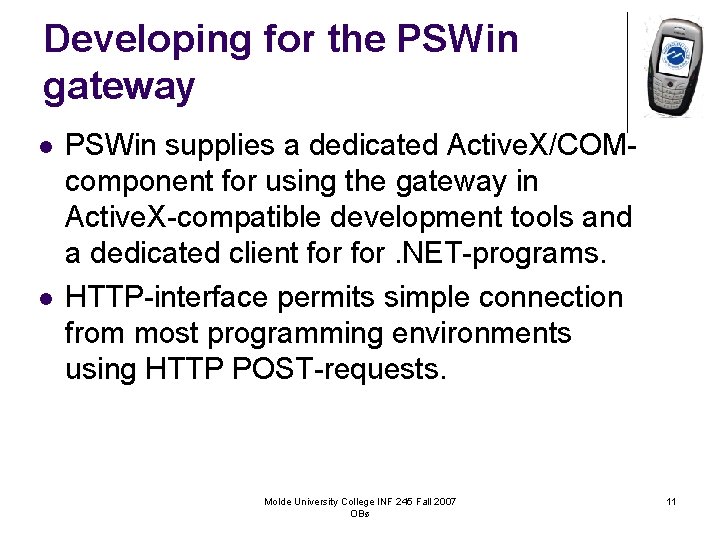

Developing for the PSWin gateway l l PSWin supplies a dedicated Active. X/COMcomponent for using the gateway in Active. X-compatible development tools and a dedicated client for. NET-programs. HTTP-interface permits simple connection from most programming environments using HTTP POST-requests. Molde University College INF 245 Fall 2007 OBø 11

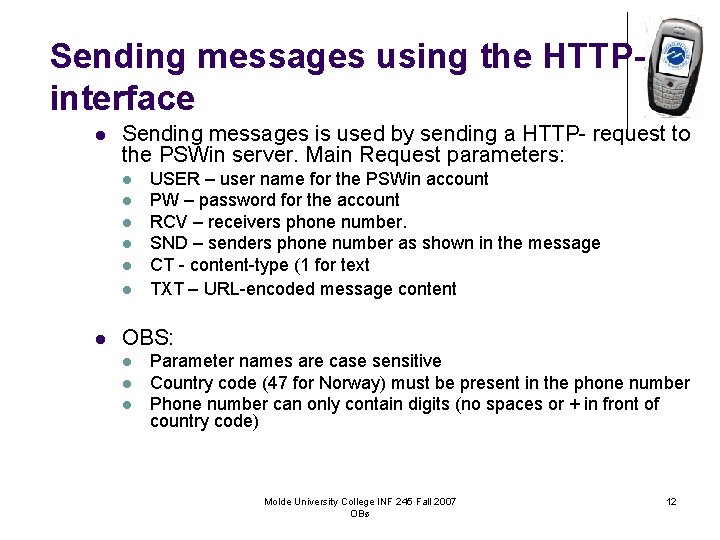

Sending messages using the HTTPinterface l Sending messages is used by sending a HTTP- request to the PSWin server. Main Request parameters: l l l l USER – user name for the PSWin account PW – password for the account RCV – receivers phone number. SND – senders phone number as shown in the message CT - content-type (1 for text TXT – URL-encoded message content OBS: l l l Parameter names are case sensitive Country code (47 for Norway) must be present in the phone number Phone number can only contain digits (no spaces or + in front of country code) Molde University College INF 245 Fall 2007 OBø 12

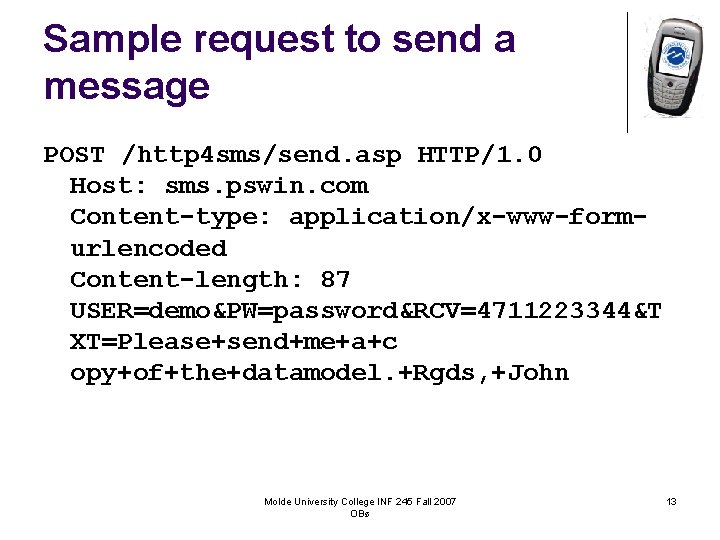

Sample request to send a message POST /http 4 sms/send. asp HTTP/1. 0 Host: sms. pswin. com Content-type: application/x-www-formurlencoded Content-length: 87 USER=demo&PW=password&RCV=4711223344&T XT=Please+send+me+a+c opy+of+the+datamodel. +Rgds, +John Molde University College INF 245 Fall 2007 OBø 13

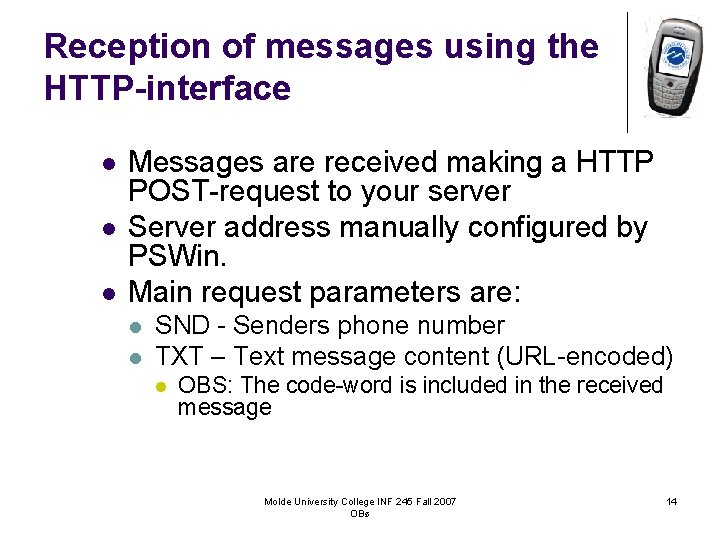

Reception of messages using the HTTP-interface l l l Messages are received making a HTTP POST-request to your server Server address manually configured by PSWin. Main request parameters are: l l SND - Senders phone number TXT – Text message content (URL-encoded) l OBS: The code-word is included in the received message Molde University College INF 245 Fall 2007 OBø 14

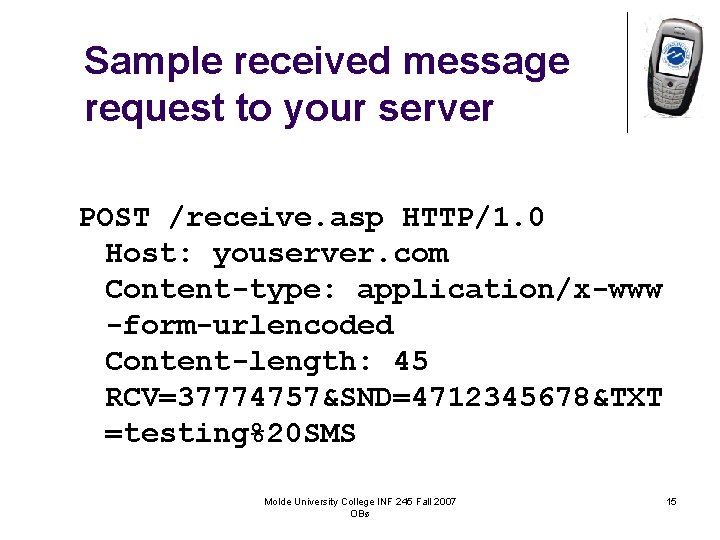

Sample received message request to your server POST /receive. asp HTTP/1. 0 Host: youserver. com Content-type: application/x-www -form-urlencoded Content-length: 45 RCV=37774757&SND=4712345678&TXT =testing%20 SMS Molde University College INF 245 Fall 2007 OBø 15

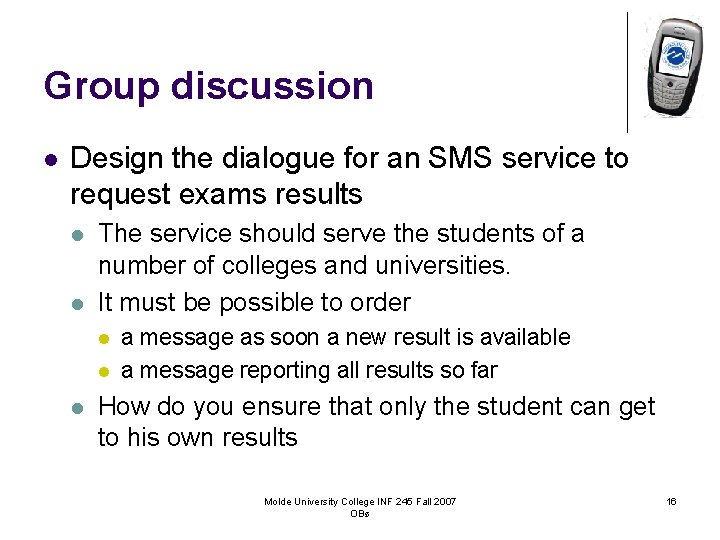

Group discussion l Design the dialogue for an SMS service to request exams results l l The service should serve the students of a number of colleges and universities. It must be possible to order l l l a message as soon a new result is available a message reporting all results so far How do you ensure that only the student can get to his own results Molde University College INF 245 Fall 2007 OBø 16

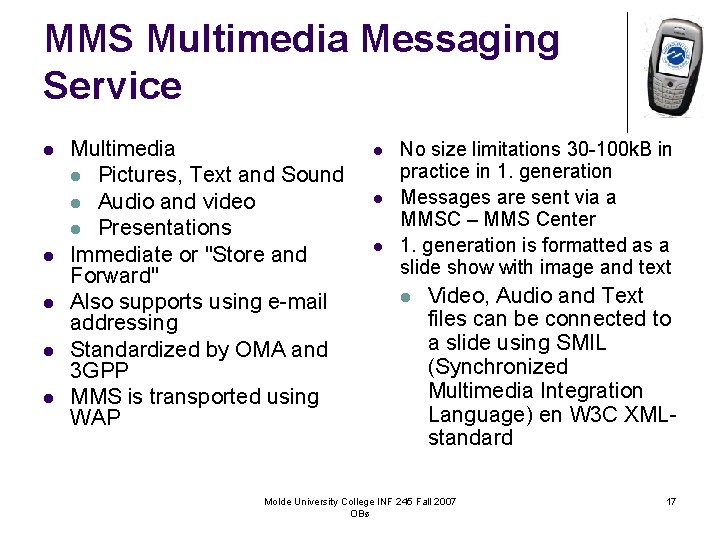

MMS Multimedia Messaging Service l l l Multimedia l Pictures, Text and Sound l Audio and video l Presentations Immediate or "Store and Forward" Also supports using e-mail addressing Standardized by OMA and 3 GPP MMS is transported using WAP l l l No size limitations 30 -100 k. B in practice in 1. generation Messages are sent via a MMSC – MMS Center 1. generation is formatted as a slide show with image and text l Video, Audio and Text files can be connected to a slide using SMIL (Synchronized Multimedia Integration Language) en W 3 C XMLstandard Molde University College INF 245 Fall 2007 OBø 17

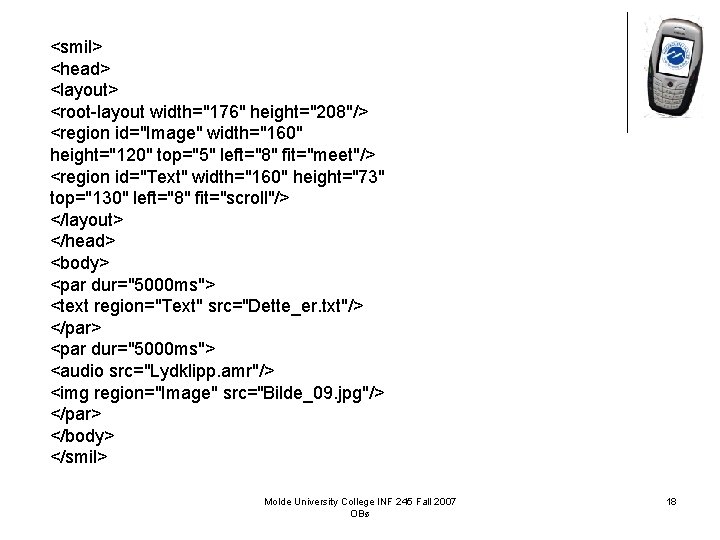

<smil> <head> <layout> <root-layout width="176" height="208"/> <region id="Image" width="160" height="120" top="5" left="8" fit="meet"/> <region id="Text" width="160" height="73" top="130" left="8" fit="scroll"/> </layout> </head> <body> <par dur="5000 ms"> <text region="Text" src="Dette_er. txt"/> </par> <par dur="5000 ms"> <audio src="Lydklipp. amr"/> <img region="Image" src="Bilde_09. jpg"/> </par> </body> </smil> Molde University College INF 245 Fall 2007 OBø 18

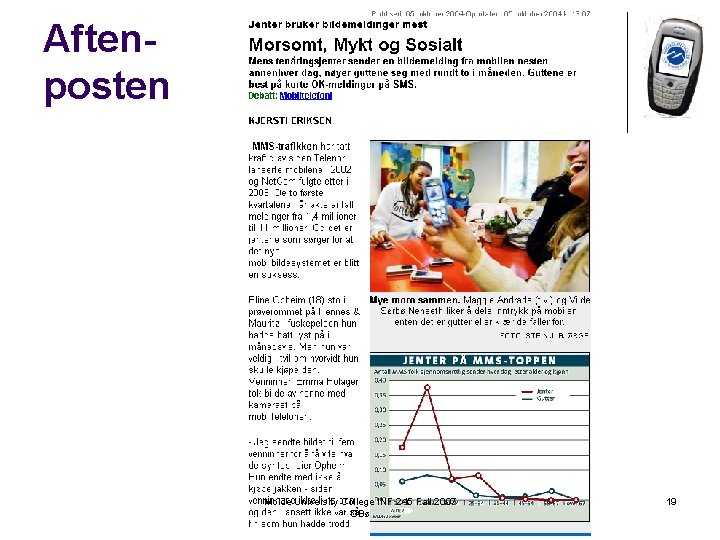

Aftenposten Molde University College INF 245 Fall 2007 OBø 19

l l l l Abonnenter: Det er 5, 2 millioner mobilabonnementer i Norge, en økning på syv prosent fra i fjor. Mobiltrafikk: Mobiltrafikken første halvår 2007 økte med 21 prosent fra samme periode i fjor. Prating: Vi snakket i gjennomsnitt 2, 4 timer i måneden fra januar til juli. Det er en økning på 18 minutter i måneden fra i fjor. Totalt snakket vi 76 millioner timer i mobiltelefon på årets seks første måneder. Det tilsvarer 3, 2 millioner døgn. Tekstmeldinger: Vi sendte over tre milliarder meldinger på mobilen første halvår i år (inkl. MMS og innholdsmeldinger), det er en økning på 12 prosent. I gjennomsnitt sendte norske mobilkunder 99 meldinger pr. måned. Det er fem meldinger flere enn på samme tidspunkt i fjor. MMS-meldinger: Vi sendte 51 millioner MMSmeldinger fra januar til juli. Det er to prosent av det totale antall meldinger og har ikke økt siden i fjor. Mobilen overtar: Mobiltrafikk sto for 46 prosent av samlet trafikkvolum (fastnett og mobilnett) fra januar til juli 2007. I fjor var tallet 38 prosent og bare 28 prosent for to år siden. Nedgang : Til tross for økning i mobilbruk, er nedgangen i bruk av fasttelefon så merkbar at totaltrafikken gikk ned med fem prosent fra første halvår i fjor. Kilde: Det norske telekommarkedet 1. halvår 2007. Post- og teletilsynet. Aftenposten l l l Slik er det ellers i Norden Sverige: Hadde ved utgangen av 2006 9, 6 millioner mobilabonnement. Snakker 1, 8 timer i mobil i måneden og sender 25 meldinger i måneden i snitt. Danmark: Hadde ved utgangen av 2006 5, 8 millioner mobilabonnement. Snakker 1, 8 timer i mobil i måneden og sender hele 150 meldinger i måneden i snitt. Finland: Er mobilvinneren. Hadde 5, 6 millioner mobilabonnement ved utgangen av 2006. Snakker 3, 1 timer i måneden i mobil og sender 47 meldinger i måneden i snitt PS! Tall fra desember 2006. Molde University College INF 245 Fall 2007 OBø 20

Group discussion l l l Why has the use of MMS not augmented? How can the operators influence this? What applications can you see for MMS? Molde University College INF 245 Fall 2007 OBø 21

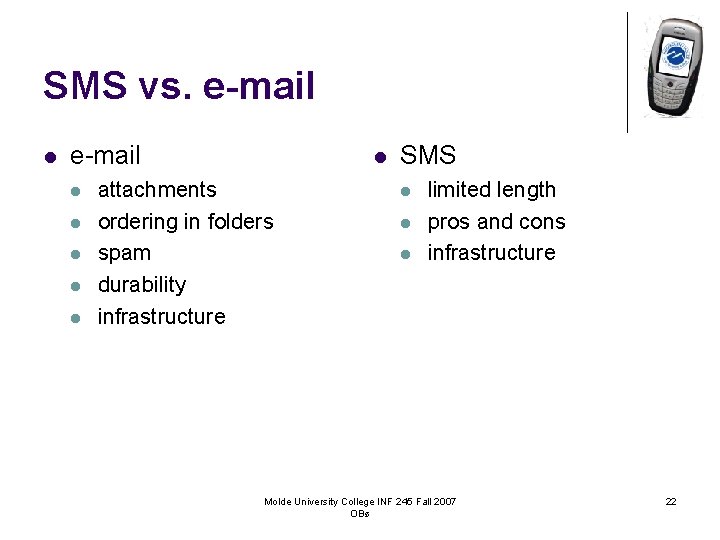

SMS vs. e-mail l l l l attachments ordering in folders spam durability infrastructure SMS l limited length pros and cons infrastructure Molde University College INF 245 Fall 2007 OBø 22

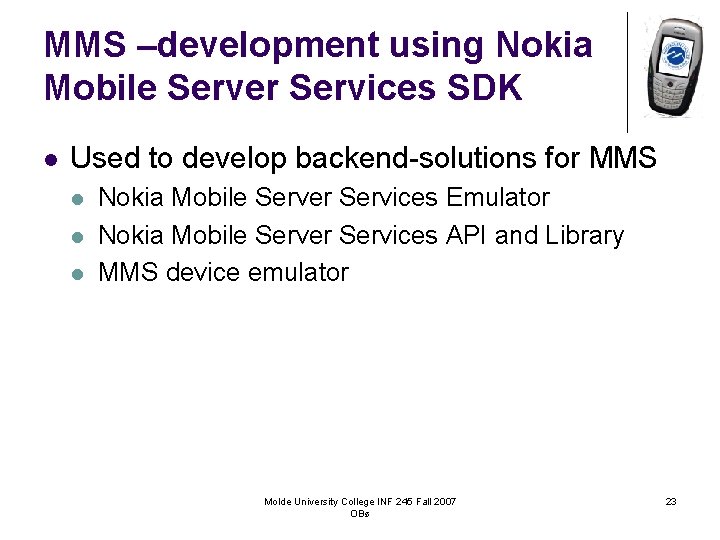

MMS –development using Nokia Mobile Server Services SDK l Used to develop backend-solutions for MMS l l l Nokia Mobile Server Services Emulator Nokia Mobile Server Services API and Library MMS device emulator Molde University College INF 245 Fall 2007 OBø 23

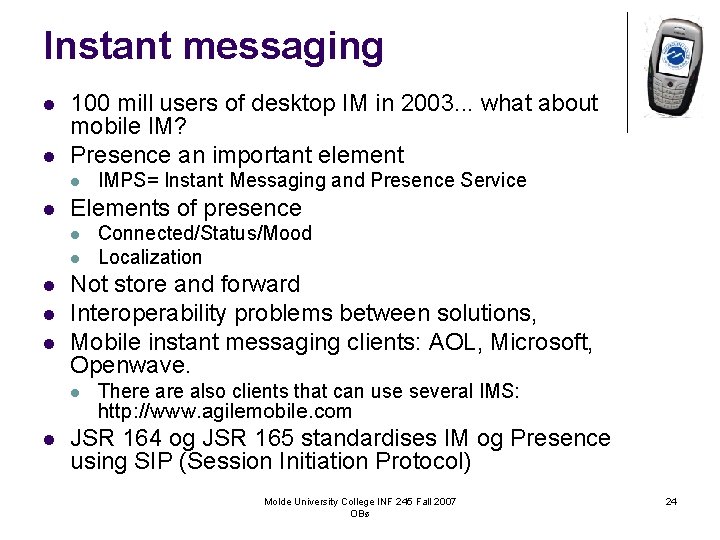

Instant messaging l l 100 mill users of desktop IM in 2003. . . what about mobile IM? Presence an important element l l Elements of presence l l l Connected/Status/Mood Localization Not store and forward Interoperability problems between solutions, Mobile instant messaging clients: AOL, Microsoft, Openwave. l l IMPS= Instant Messaging and Presence Service There also clients that can use several IMS: http: //www. agilemobile. com JSR 164 og JSR 165 standardises IM og Presence using SIP (Session Initiation Protocol) Molde University College INF 245 Fall 2007 OBø 24

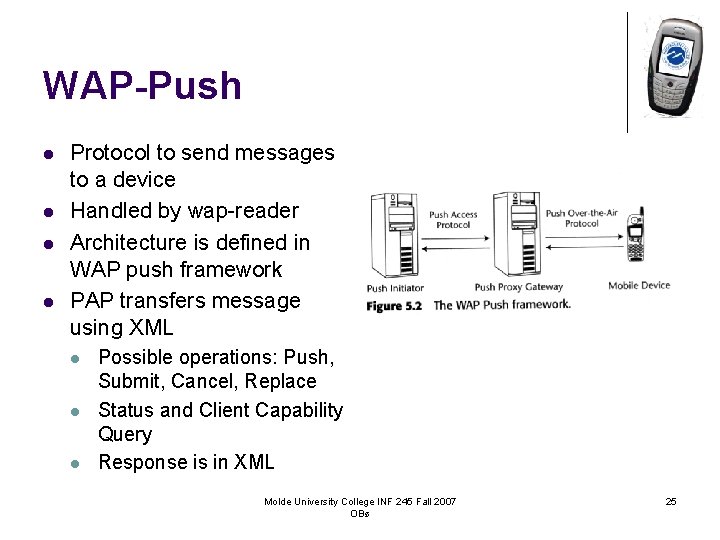

WAP-Push l l Protocol to send messages to a device Handled by wap-reader Architecture is defined in WAP push framework PAP transfers message using XML l l l figur 5. 2 Possible operations: Push, Submit, Cancel, Replace Status and Client Capability Query Response is in XML Molde University College INF 245 Fall 2007 OBø 25

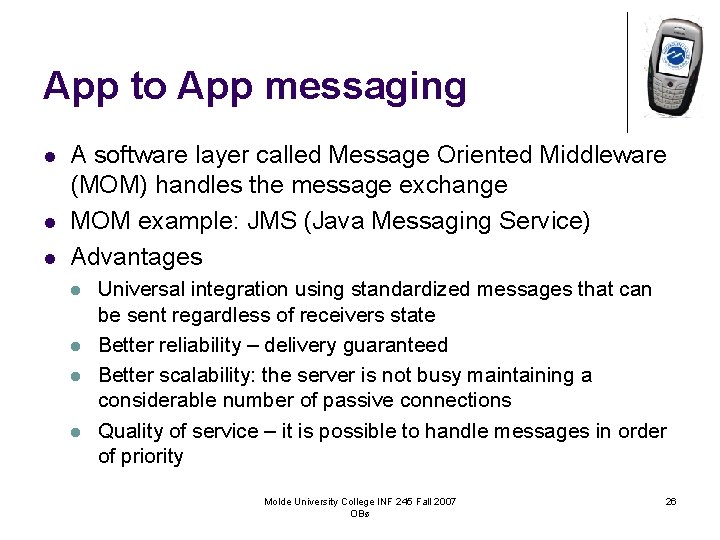

App to App messaging l l l A software layer called Message Oriented Middleware (MOM) handles the message exchange MOM example: JMS (Java Messaging Service) Advantages l l Universal integration using standardized messages that can be sent regardless of receivers state Better reliability – delivery guaranteed Better scalability: the server is not busy maintaining a considerable number of passive connections Quality of service – it is possible to handle messages in order of priority Molde University College INF 245 Fall 2007 OBø 26

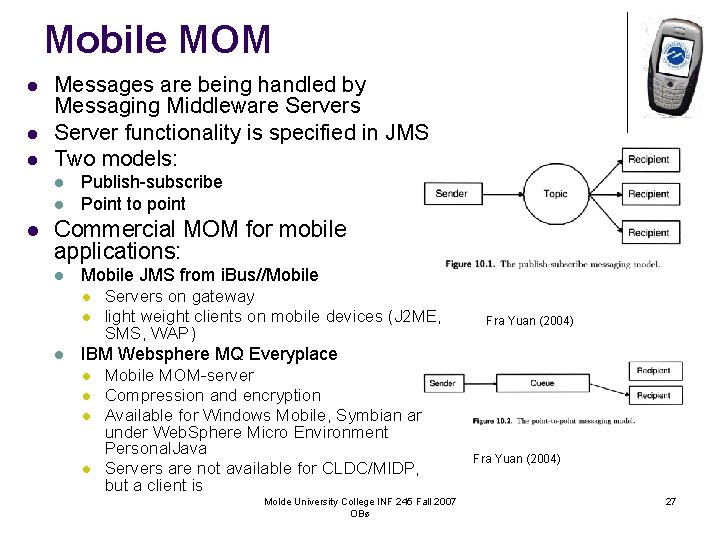

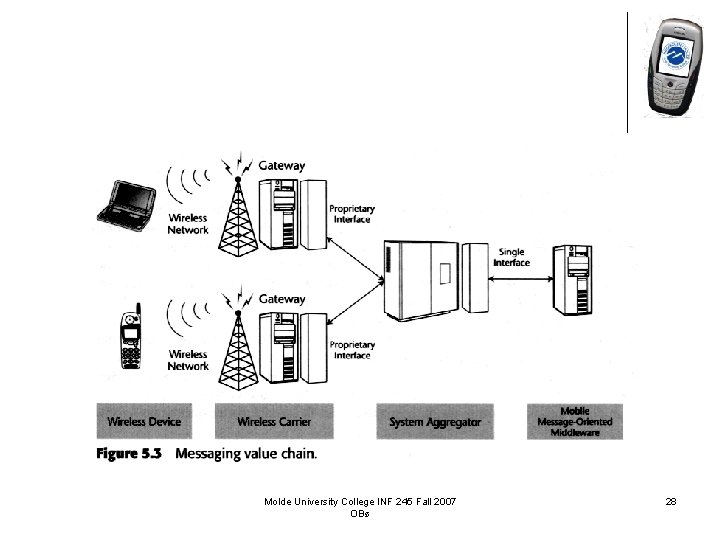

Mobile MOM l l l Messages are being handled by Messaging Middleware Servers Server functionality is specified in JMS Two models: l l l Publish-subscribe Point to point Commercial MOM for mobile applications: l Mobile JMS from i. Bus//Mobile l l l Servers on gateway light weight clients on mobile devices (J 2 ME, SMS, WAP) Fra Yuan (2004) IBM Websphere MQ Everyplace l l Mobile MOM-server Compression and encryption Available for Windows Mobile, Symbian and under Web. Sphere Micro Environment Personal. Java Servers are not available for CLDC/MIDP, but a client is Molde University College INF 245 Fall 2007 OBø Fra Yuan (2004) 27
