Industry Perspectives on Optical Networking Progress in optical control plane interoperability Joe Berthold May 3, 2005

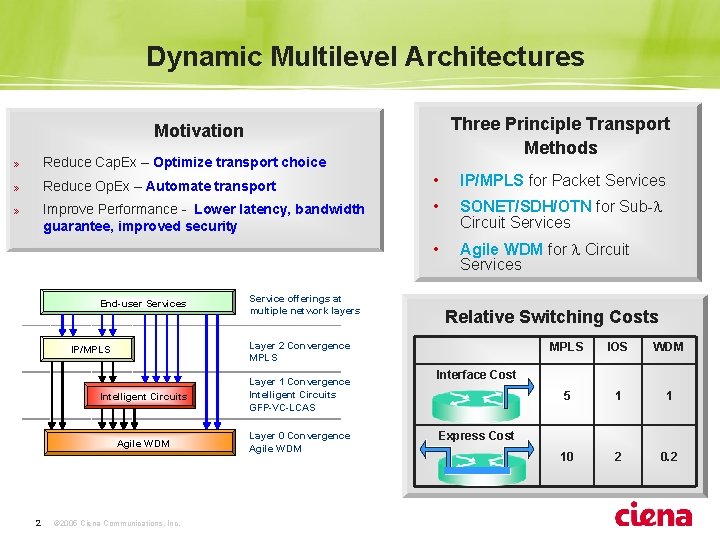

Dynamic Multilevel Architectures Three Principle Transport Methods Motivation » Reduce Cap. Ex – Optimize transport choice » Reduce Op. Ex – Automate transport » Improve Performance - Lower latency, bandwidth guarantee, improved security 2 Revenue Generating Services End-user Services Service offerings at multiple network layers IP/MPLS Layer 2 Convergence MPLS Intelligent Circuits Layer 1 Convergence Intelligent Circuits GFP-VC-LCAS Agile WDM Layer 0 Convergence Agile WDM © 2005 Ciena Communications, Inc. • IP/MPLS for Packet Services • SONET/SDH/OTN for Sub-l Circuit Services • Agile WDM for l Circuit Services Relative Switching Costs MPLS IOS WDM 5 1 1 10 2 0. 2 Interface Cost Express Cost
Optical Control Plane Benefits Optical control plane enables» Dynamic bandwidth services » Multivendor service activation » Improved manageability Multivendor Service Activation Dynamic Bandwidth Services Application Servers Modify bandwidth based on application needs Improved Manageability Control plane standards accelerate interoperability and simplify management system development 3 © 2005 Ciena Communications, Inc. • Auto-discovery • Auto-provisioning • Network is the database • End-to-end service management

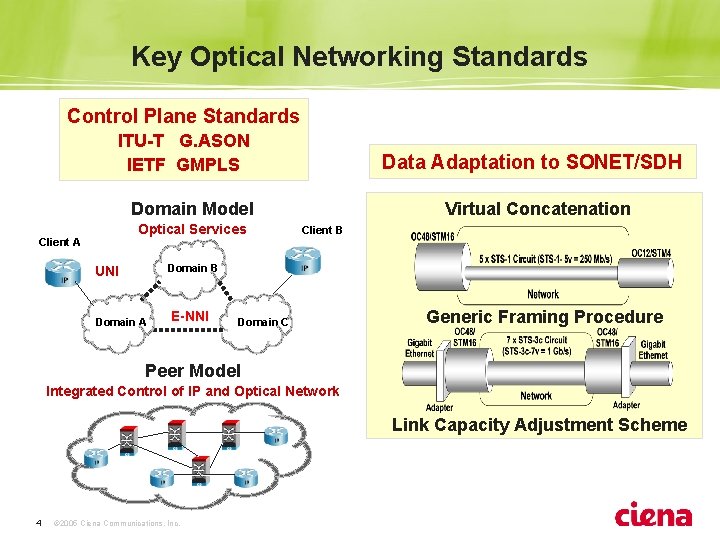

Key Optical Networking Standards Control Plane Standards ITU-T G. ASON IETF GMPLS Data Adaptation to SONET/SDH Domain Model Optical Services Client A UNI Domain B Domain A E-NNI Virtual Concatenation Client B Domain C Generic Framing Procedure Peer Model Integrated Control of IP and Optical Network Link Capacity Adjustment Scheme 4 © 2005 Ciena Communications, Inc.
5 © 2005 Ciena Communications, Inc.

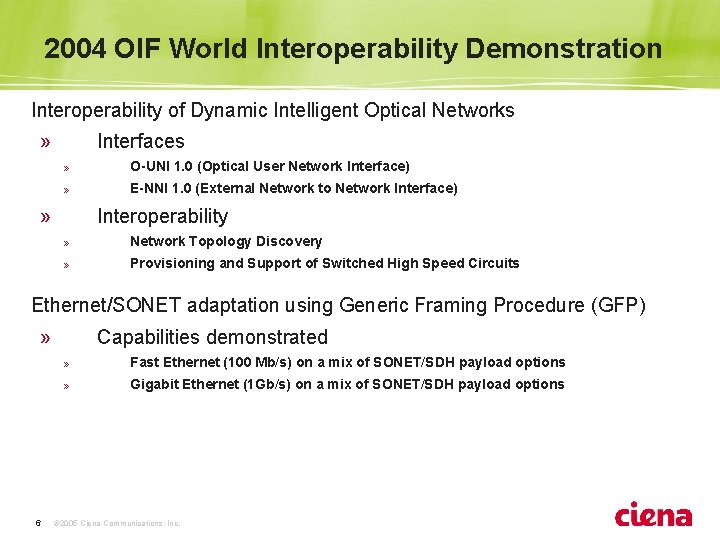

2004 OIF World Interoperability Demonstration Interoperability of Dynamic Intelligent Optical Networks Interfaces » » O-UNI 1. 0 (Optical User Network Interface) » E-NNI 1. 0 (External Network to Network Interface) Interoperability » » Network Topology Discovery » Provisioning and Support of Switched High Speed Circuits Ethernet/SONET adaptation using Generic Framing Procedure (GFP) Capabilities demonstrated » » Fast Ethernet (100 Mb/s) on a mix of SONET/SDH payload options » Gigabit Ethernet (1 Gb/s) on a mix of SONET/SDH payload options 6 © 2005 Ciena Communications, Inc.

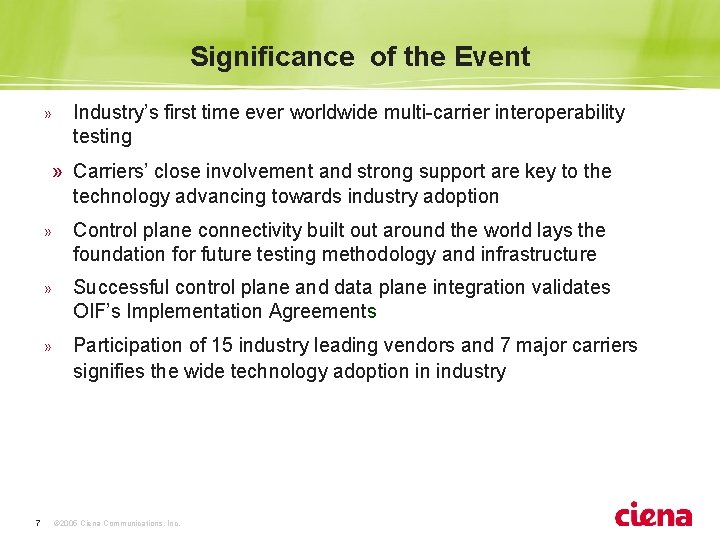

Significance of the Event » Industry’s first time ever worldwide multi-carrier interoperability testing » Carriers’ close involvement and strong support are key to the technology advancing towards industry adoption 7 » Control plane connectivity built out around the world lays the foundation for future testing methodology and infrastructure » Successful control plane and data plane integration validates OIF’s Implementation Agreements » Participation of 15 industry leading vendors and 7 major carriers signifies the wide technology adoption in industry © 2005 Ciena Communications, Inc.
OIF World Interoperability Event Super. Com – June 2004 Testing -OIF UNI 1. 0 – optical service interface -OIF ENNI – inter-domain optical interface -Ethernet over wide area transport Testing carried out in 7 interconnected carrier labs over several months » China Telecom » KDDI Labs » NTT » Deutsche Telekom 8 15 Participating Vendors » ADVA » Alcatel » Avici Systems » CIENA Corp. » Cisco Systems » Fujitsu » Lucent Technologies » Mahi Networks » Marconi » NEC » Nortel Networks » Telecom Italia » Siemens » AT&T » Sycamore Networks » Verizon » Tellabs © 2005 Ciena Communications, Inc. » Turin Networks

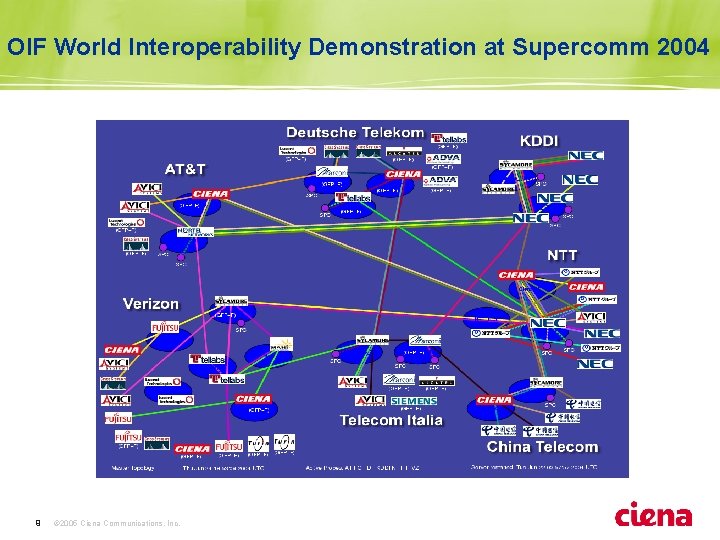

OIF World Interoperability Demonstration at Supercomm 2004 9 © 2005 Ciena Communications, Inc.

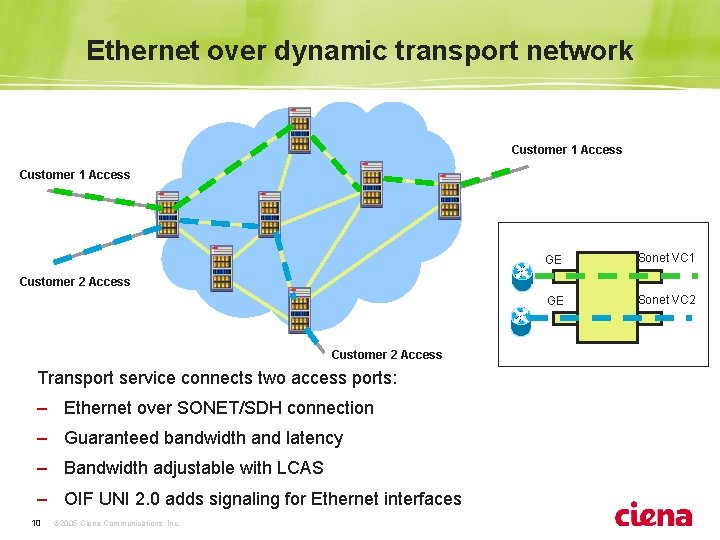

Ethernet over dynamic transport network Customer 1 Access GE Sonet VC 1 GE Sonet VC 2 Customer 2 Access Transport service connects two access ports: – Ethernet over SONET/SDH connection – Guaranteed bandwidth and latency – Bandwidth adjustable with LCAS – OIF UNI 2. 0 adds signaling for Ethernet interfaces 10 © 2005 Ciena Communications, Inc.
Multiple Ethernet services on transport network Customer Access GE VCG GE Customer Access VCG Transport service connects multiple access ports – TDM: Channelized STS’s – VLAN: Flows switched based on VLAN tag 11 © 2005 Ciena Communications, Inc. GE VCG

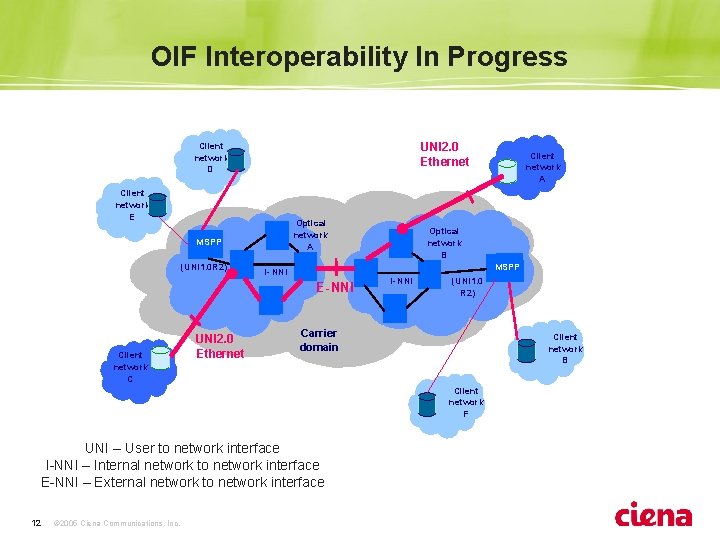

OIF Interoperability In Progress UNI 2. 0 Ethernet Client network D Client network E Optical network A MSPP (UNI 1. 0 R 2) Client network C Optical network B MSPP I- NNI E- NNI UNI 2. 0 Ethernet Carrier domain I- NNI (UNI 1. 0 R 2) UN I Client network B Client network F UNI – User to network interface I-NNI – Internal network to network interface E-NNI – External network to network interface 12 © 2005 Ciena Communications, Inc. Client network A

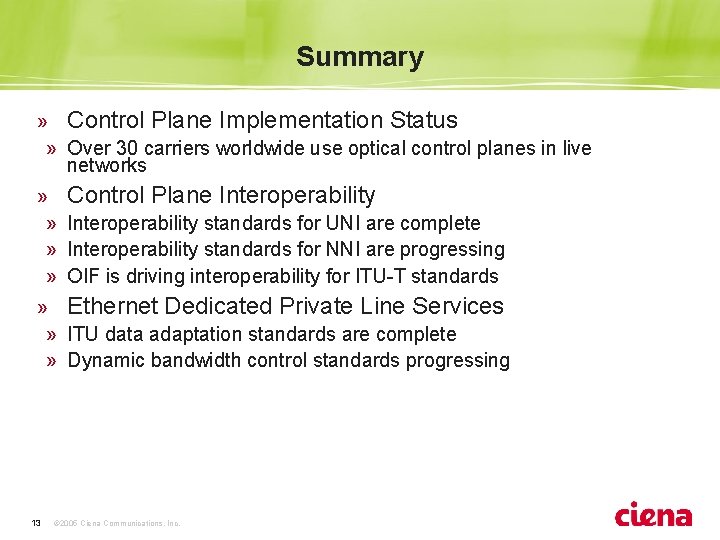

Summary » Control Plane Implementation Status » Over 30 carriers worldwide use optical control planes in live networks » Control Plane Interoperability » Interoperability standards for UNI are complete » Interoperability standards for NNI are progressing » OIF is driving interoperability for ITU-T standards » Ethernet Dedicated Private Line Services » ITU data adaptation standards are complete » Dynamic bandwidth control standards progressing 13 © 2005 Ciena Communications, Inc.
Thank You
