Industrial Mobile Computer Cipher Lab 9400 Series Marketing
Industrial Mobile Computer Cipher. Lab 9400 Series Marketing Division
Introducing the 9400 Series

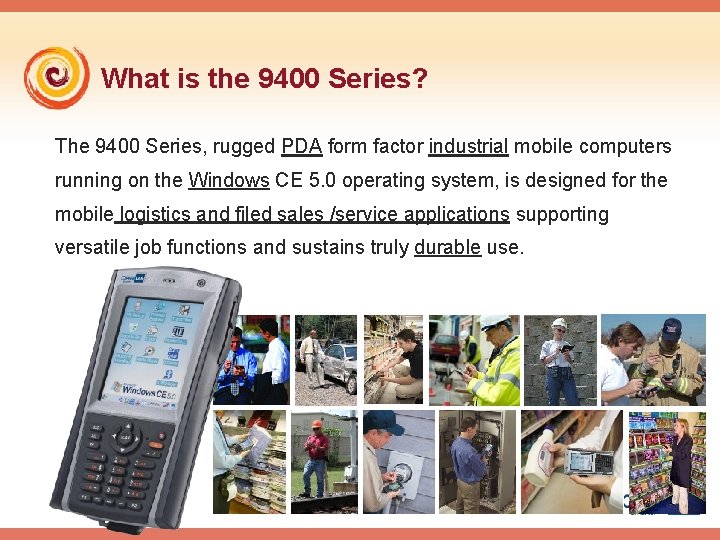

What is the 9400 Series? The 9400 Series, rugged PDA form factor industrial mobile computers running on the Windows CE 5. 0 operating system, is designed for the mobile logistics and filed sales /service applications supporting versatile job functions and sustains truly durable use.

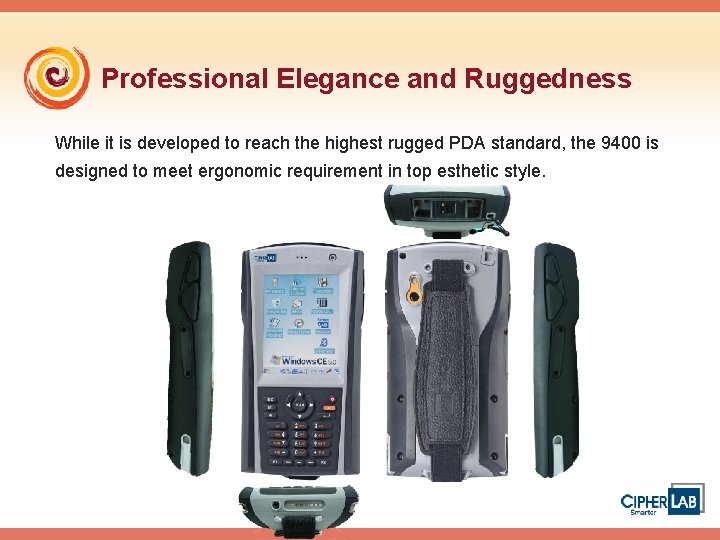

Professional Elegance and Ruggedness While it is developed to reach the highest rugged PDA standard, the 9400 is designed to meet ergonomic requirement in top esthetic style.
Key Features of the 9400 Series

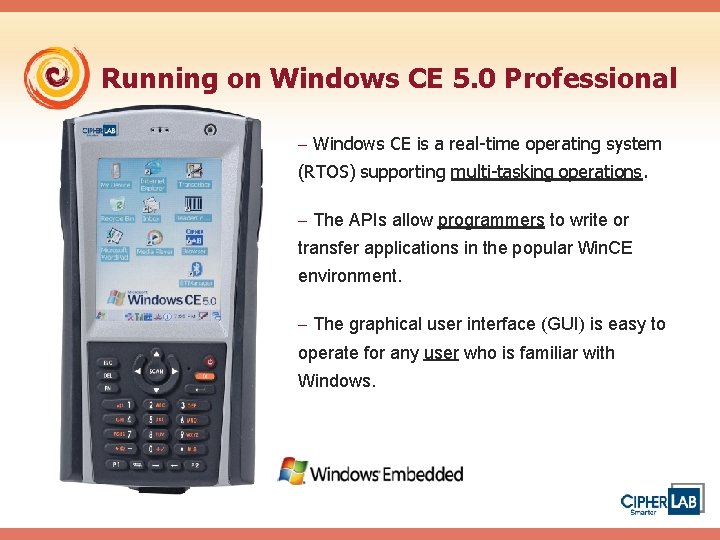

Running on Windows CE 5. 0 Professional - Windows CE is a real-time operating system (RTOS) supporting multi-tasking operations. - The APIs allow programmers to write or transfer applications in the popular Win. CE environment. - The graphical user interface (GUI) is easy to operate for any user who is familiar with Windows.

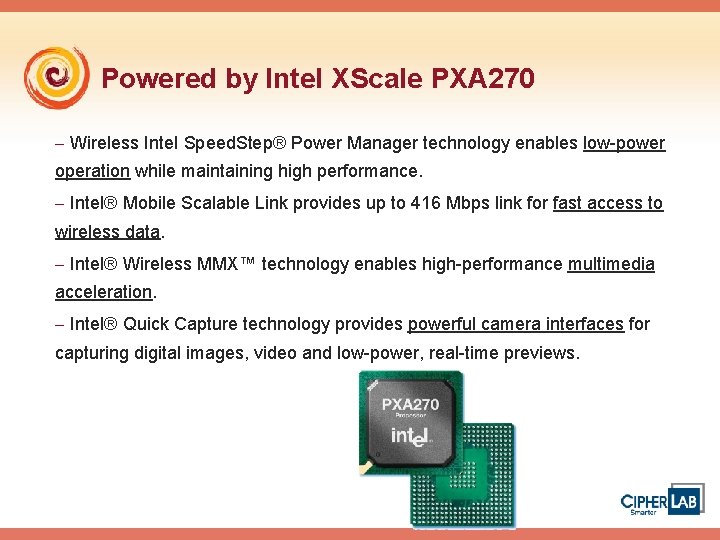

Powered by Intel XScale PXA 270 - Wireless Intel Speed. Step® Power Manager technology enables low-power operation while maintaining high performance. - Intel® Mobile Scalable Link provides up to 416 Mbps link for fast access to wireless data. - Intel® Wireless MMX™ technology enables high-performance multimedia acceleration. - Intel® Quick Capture technology provides powerful camera interfaces for capturing digital images, video and low-power, real-time previews.
Built with large memory - 128 MB Flash ROM System Memory Ø It is used to store the operating system and applications. Ø It is electronically reprogrammable and does not need power to maintain the information stored in the memory. Ø The default Disk. On. Chip has more than 80 MB of free memory. - 128 MB SDRAM Data Memory Ø It is used by the system to store data for processing by the processor (CPU).

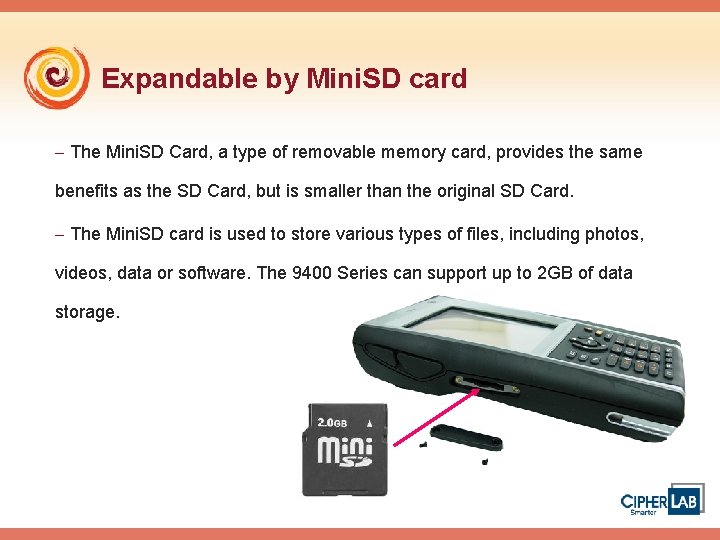

Expandable by Mini. SD card - The Mini. SD Card, a type of removable memory card, provides the same benefits as the SD Card, but is smaller than the original SD Card. - The Mini. SD card is used to store various types of files, including photos, videos, data or software. The 9400 Series can support up to 2 GB of data storage.

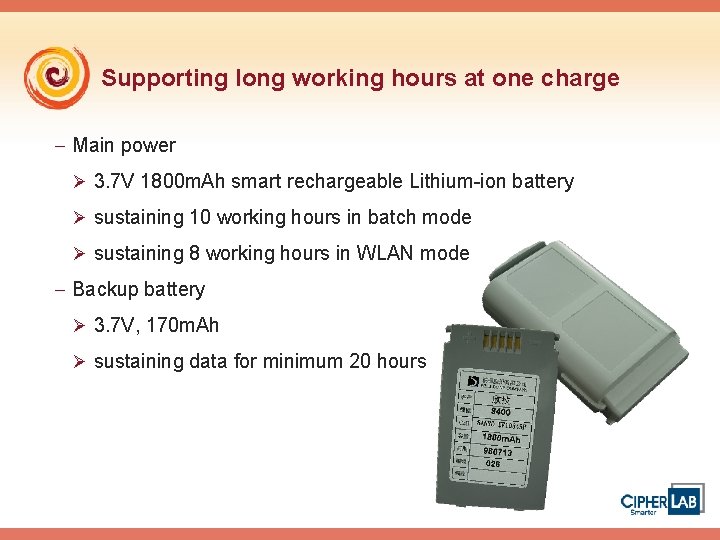

Supporting long working hours at one charge - Main power Ø 3. 7 V 1800 m. Ah smart rechargeable Lithium-ion battery Ø sustaining 10 working hours in batch mode Ø sustaining 8 working hours in WLAN mode - Backup battery Ø 3. 7 V, 170 m. Ah Ø sustaining data for minimum 20 hours

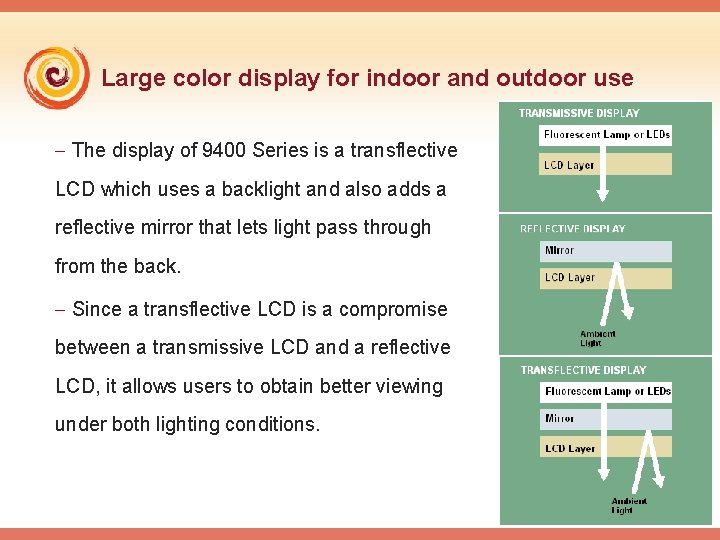

Large color display for indoor and outdoor use - The display of 9400 Series is a transflective LCD which uses a backlight and also adds a reflective mirror that lets light pass through from the back. - Since a transflective LCD is a compromise between a transmissive LCD and a reflective LCD, it allows users to obtain better viewing under both lighting conditions.

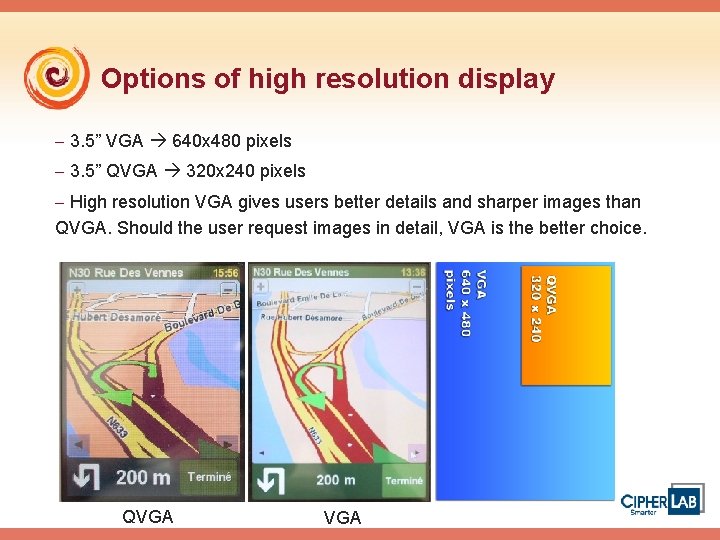

Options of high resolution display - 3. 5” VGA 640 x 480 pixels - 3. 5” QVGA 320 x 240 pixels - High resolution VGA gives users better details and sharper images than QVGA. Should the user request images in detail, VGA is the better choice. QVGA

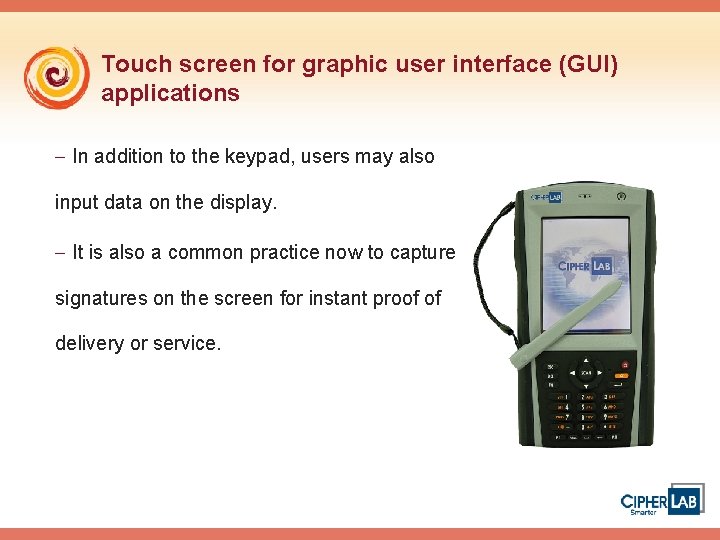

Touch screen for graphic user interface (GUI) applications - In addition to the keypad, users may also input data on the display. - It is also a common practice now to capture signatures on the screen for instant proof of delivery or service.

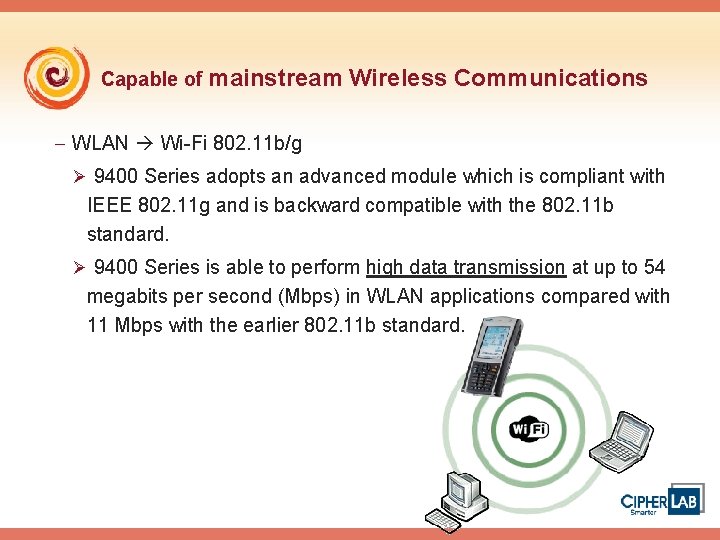

Capable of mainstream Wireless Communications - WLAN Wi-Fi 802. 11 b/g Ø 9400 Series adopts an advanced module which is compliant with IEEE 802. 11 g and is backward compatible with the 802. 11 b standard. Ø 9400 Series is able to perform high data transmission at up to 54 megabits per second (Mbps) in WLAN applications compared with 11 Mbps with the earlier 802. 11 b standard.
Capable of mainstream Wireless Communications - WPAN Bluetooth Class 2 Ø This radio technology makes it possible to transmit signals or data over short distances between 9400 Series mobile computers and other hand-held devices without the use of wires.
Capable of mainstream Wireless Communications - WWAN GSM/GPRS/EDGE (Quad-band) Ø 9400 Series supports four major GSM frequency bands, making it compatible with major GSM networks worldwide. The four bands include the 850 / 1900 MHz (used in the Americas), and 900 / 1800 MHz (in most other parts of the world). Ø 9400 Series supports much higher data rates for bandwidth- hungry applications such as video-conferencing and full Internet access.

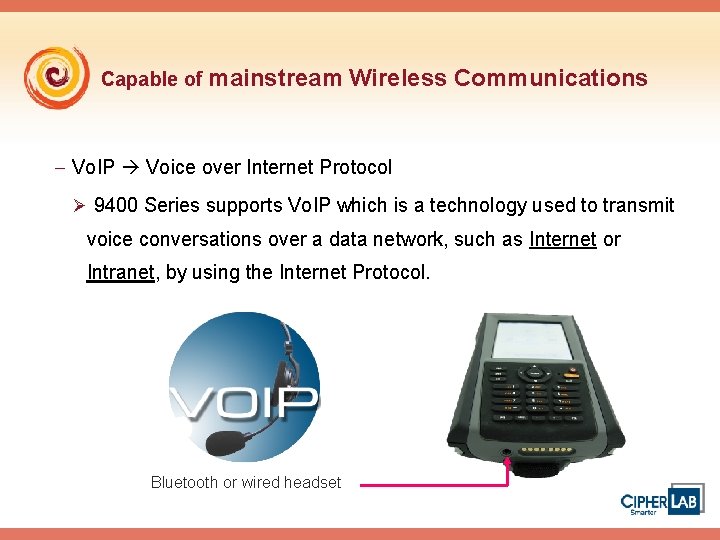

Capable of mainstream Wireless Communications - Vo. IP Voice over Internet Protocol Ø 9400 Series supports Vo. IP which is a technology used to transmit voice conversations over a data network, such as Internet or Intranet, by using the Internet Protocol. Bluetooth or wired headset

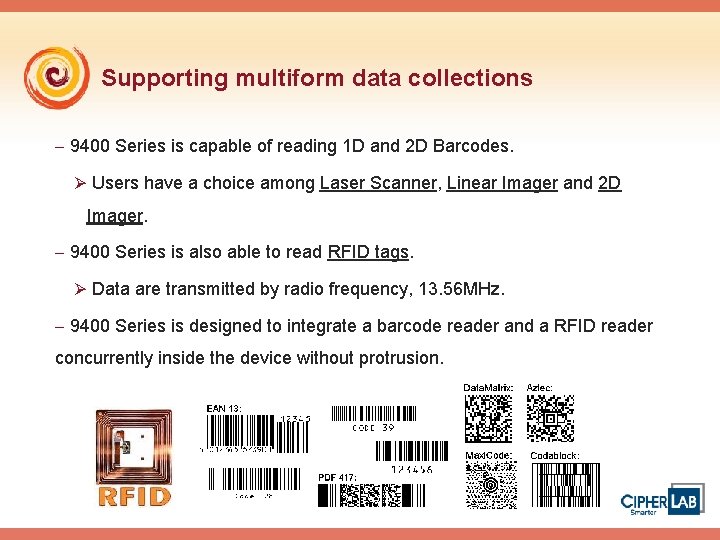

Supporting multiform data collections - 9400 Series is capable of reading 1 D and 2 D Barcodes. Ø Users have a choice among Laser Scanner, Linear Imager and 2 D Imager. - 9400 Series is also able to read RFID tags. Ø Data are transmitted by radio frequency, 13. 56 MHz. - 9400 Series is designed to integrate a barcode reader and a RFID reader concurrently inside the device without protrusion.

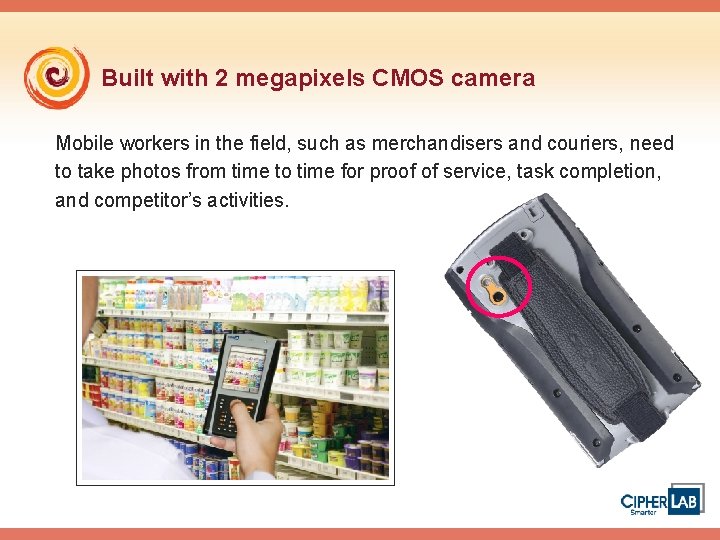

Built with 2 megapixels CMOS camera Mobile workers in the field, such as merchandisers and couriers, need to take photos from time to time for proof of service, task completion, and competitor’s activities.

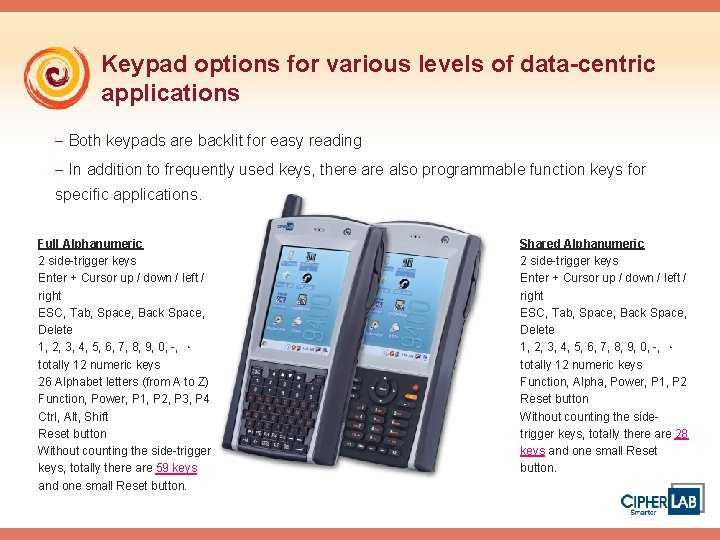

Keypad options for various levels of data-centric applications - Both keypads are backlit for easy reading - In addition to frequently used keys, there also programmable function keys for specific applications. Full Alphanumeric 2 side-trigger keys Enter + Cursor up / down / left / right ESC, Tab, Space, Back Space, Delete 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, -, . totally 12 numeric keys 26 Alphabet letters (from A to Z) Function, Power, P 1, P 2, P 3, P 4 Ctrl, Alt, Shift Reset button Without counting the side-trigger keys, totally there are 59 keys and one small Reset button. Shared Alphanumeric 2 side-trigger keys Enter + Cursor up / down / left / right ESC, Tab, Space, Back Space, Delete 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, -, . totally 12 numeric keys Function, Alpha, Power, P 1, P 2 Reset button Without counting the sidetrigger keys, totally there are 28 keys and one small Reset button.

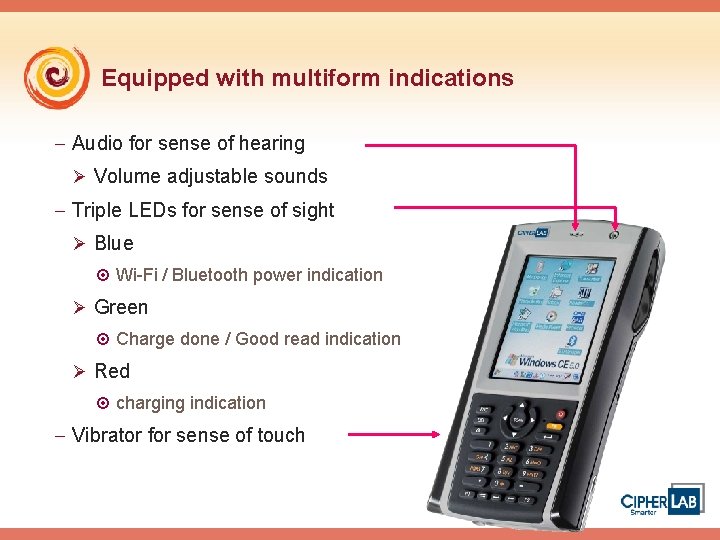

Equipped with multiform indications - Audio for sense of hearing Ø Volume adjustable sounds - Triple LEDs for sense of sight Ø Blue ¤ Wi-Fi / Bluetooth power indication Ø Green ¤ Charge done / Good read indication Ø Red ¤ charging indication - Vibrator for sense of touch
Ruggedized for robust impact protection - Dust and water resistance Ø 9400 Series meets the standard of ingress protection at the level of IP 64. - Impact resistance Ø 9400 Series can sustain multiple 1. 5 m drops onto concrete, and 5 drops on each side. - Tumble resistance Ø 9400 Series is designed to survive from 2, 000 times of 50 cm tumbles to simulate daily wear and tear.

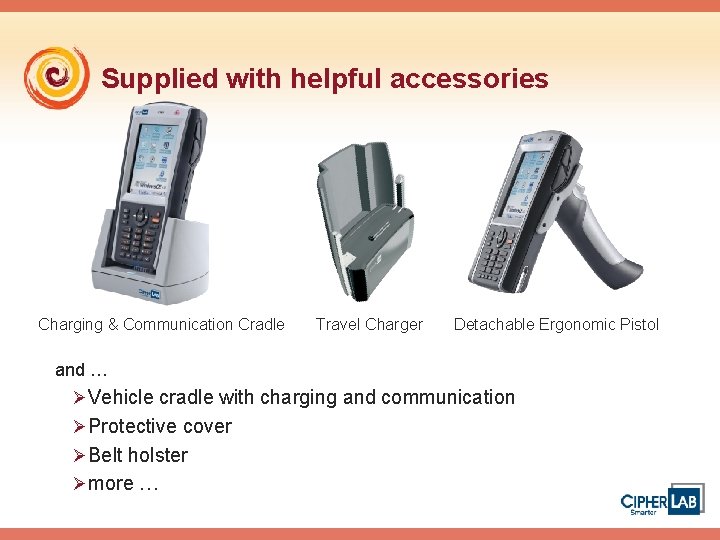

Supplied with helpful accessories Charging & Communication Cradle Travel Charger Detachable Ergonomic Pistol and … ØVehicle cradle with charging and communication ØProtective cover ØBelt holster Ømore …

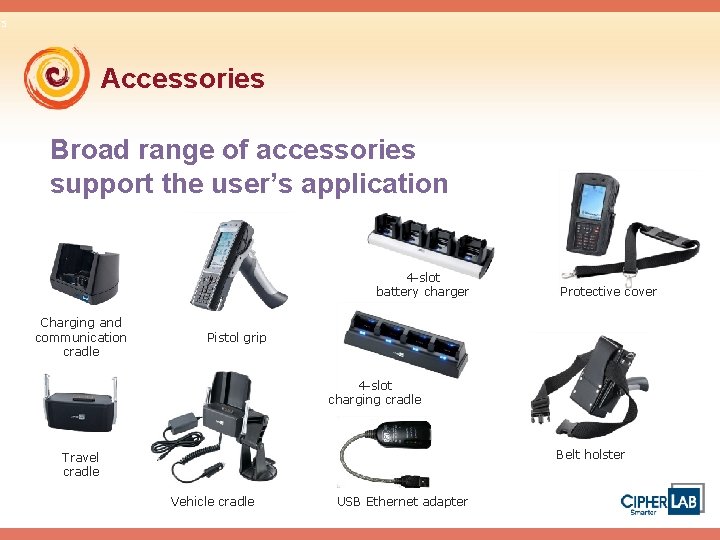

25 Accessories Broad range of accessories support the user’s application 4 -slot battery charger Charging and communication cradle Protective cover Pistol grip 4 -slot charging cradle Belt holster Travel cradle Vehicle cradle USB Ethernet adapter
Programming & Development Tools

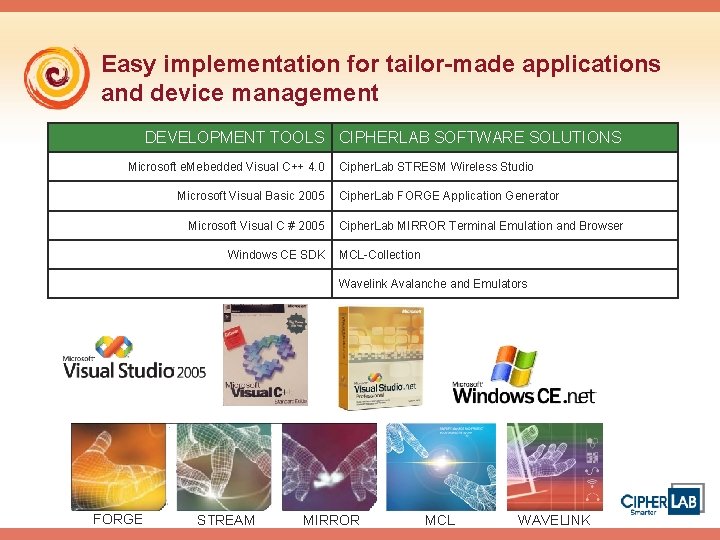

Easy implementation for tailor-made applications and device management DEVELOPMENT TOOLS CIPHERLAB SOFTWARE SOLUTIONS Microsoft e. Mebedded Visual C++ 4. 0 Microsoft Visual Basic 2005 Microsoft Visual C # 2005 Windows CE SDK Cipher. Lab STRESM Wireless Studio Cipher. Lab FORGE Application Generator Cipher. Lab MIRROR Terminal Emulation and Browser MCL-Collection Wavelink Avalanche and Emulators FORGE STREAM MIRROR MCL WAVELINK
