Industrial Internet An Eco System Approach Io T

Industrial Internet – An Eco. System Approach Io. T Slam Dec 9, 2015 Imagination at work

Io. T Remains at Peak of Hype Curve Gartner releases a Hype Curve in Aug each year

Why Industrial Internet / Io. T is Technically Feasible Now? In past 10 years: • The cost of Sensor has gone down from $1. 30 to $0. 60 • The cost of Bandwidth has gone down by 40 X • The cost of processing has gone down by 60 X Smartphones act like personal gateway to Io. T Big Data Analytics allows processing all kinds of data IPv 6 has enabled 3. 4 x 1038 addresses / “things”

GE – Guiding Principle Industrial Internet Makes Machines Better!

How to Monitor Asset (Things) Performance? High Level View

Today - Jet Engine Sensors Pressure sensors Temperature Sensors Exhaust Gas Temperature (EGT) sensors Temperature Sensors Speed Sensor * Simplified view of some of the sensors

Aviation Business productivity © General Electric Company, 2014. All Rights Reserved.

Role of the Eco. System - IIC

Industrial Internet Consortium – Io. T Reference Architecture

Landing Gear and Sensors Graphic Provided by Infosys

Nose and Wing - Landing Gear System Wing Landing Gear RH Nose Landing Gear Wing Landing Gear LH 11 Graphic Provided by Infosys

Graphic Provided by Infosys

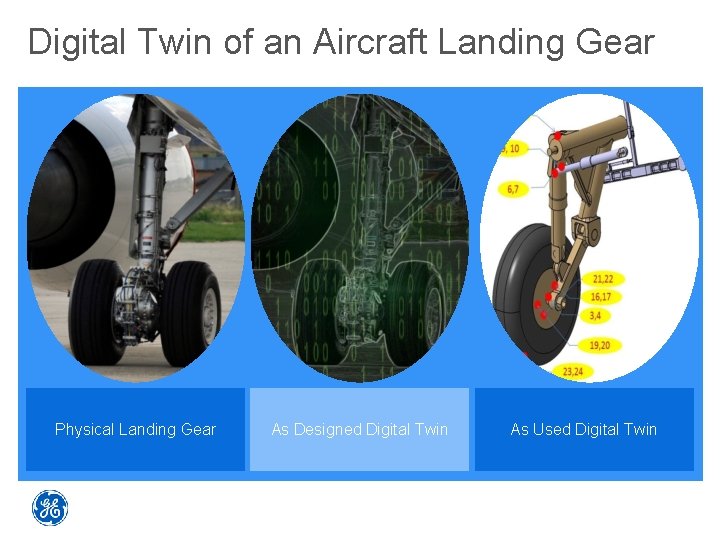

Digital Twin of an Aircraft Landing Gear Physical Landing Gear As Designed Digital Twin As Used Digital Twin

High Level Solution Architecture - Interoperability Time series & analytics data JSON based integration

… d ea H e r A e W r e h

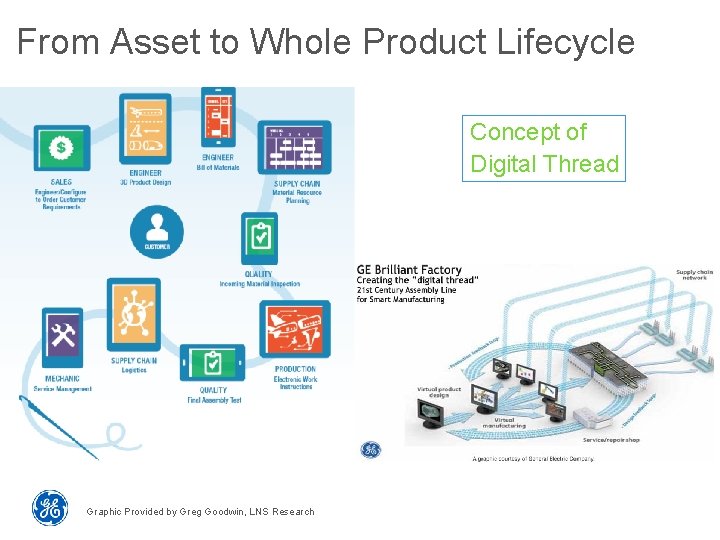

From Asset to Whole Product Lifecycle Concept of Digital Thread Graphic Provided by Greg Goodwin, LNS Research

ONE Platform to Bridge the “OT / IT Gap” PLC GATEWA Y OT SCADA GE Public ERP Predix ™ IT CRM SUPPLY CHAIN

Q&A Shyam V Nath Shyam. Nath@GE. com (925) 549 7135 @Shyam. Varan Thank You!

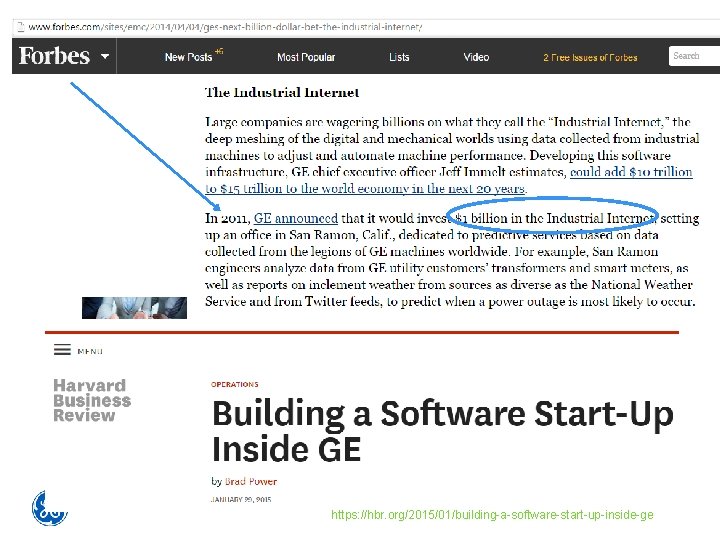

https: //hbr. org/2015/01/building-a-software-start-up-inside-ge
