Inductance Resistance offered by an inductor in an

Inductance Resistance offered by an inductor in an circuit is called inductance. l The unit of inductance is Henry. l It is denoted by L. l

Inductance in Series l If we connect n inductances in series the combined effect of all these inductances is equal to the sum of individual inductance. Leq= L 1+L 2+L 3+…. . +Ln

Inductance in Parallel l If we connect n inductances in parallel, the reciprocal of combined effect of all these inductances is equal to the sum of reciprocals of individual inductances. 1/Leq= 1/L 1+1/L 2+1/L 3+…. . +1/Ln

1 m. H and 1 m. H are in series so their combined effect =1 +1=2 m. H

1 m. H is in series with 4 m. H and with 3 m. H, therefore, their effect=1 + 4+ 3=8 m. H

8 m. H is in parallel with 8 m. H so LAB= (8 x 8)/(8+8) =64/16=4 m. H

Example: 6 m. H is in parallel with 3 m. H so 6 m. H||3 m. H=(6 x 3)/(6+3)=18/9=2 m. H

2 m. H is in parallel with 4 m. H, therefore, 2 m. H||4 m. H=(2 x 4)/(2+4)=8/6=1. 33 m. H

Example: 3 m. H is in parallel with 6 m. H so 3 m. H||6 m. H=(3 x 6)/(3+6)=18/9 =2 m. H

2 m. H is in series with 2 m. H, therefore, The combined effect of these two=2+2 =4 m. H

4 m. H is in parallel with 4 m. H So 4 m. H||4 m. H=(4 x 4)/(4 +4)=16/8 =2 m. H

1 m. H is in series with 2 m. H so LAB=1+2=3 m. H

Capacitance Resistance offered by a capacitor in an circuit is called capacitance. l The unit of capacitance is Farad. l It is denoted by C. l

Capacitance in parallel l If we connect n capacitances in parallel the combined effect of all these capacitance is equal to the sum of individual capacitances. Ceq= C 1+C 2+C 3+…. . +Cn

Capacitance in Series l If we connect n capacitances in series, the reciprocal of combined effect of all these capacitances is equal to the sum of reciprocals of individual capacitances. 1/Ceq= 1/C 1+1/C 2+1/C 3+…. . +1/Cn

2 F capacitor is in series with other 2 F capacitor their combined effect will be= (2 x 2)/(2+2)=4/4=1 F

12 F is in series with 4 F. So their combined effect will be= 48/16 =3 F

2 F is in series with 3 F so CAB=(2 x 3)/(2+3)=1. 2 F.

4 F is in parallel with 12 F so 12||4=12+4=16 F. And 16 F is in series with 3 F So = (3 x 16)/(3+16)=48/19=2. 5 F.

12 F is in parallel with 2. 5 F so their combined effect will be = 12 +2. 5=14. 5 F.

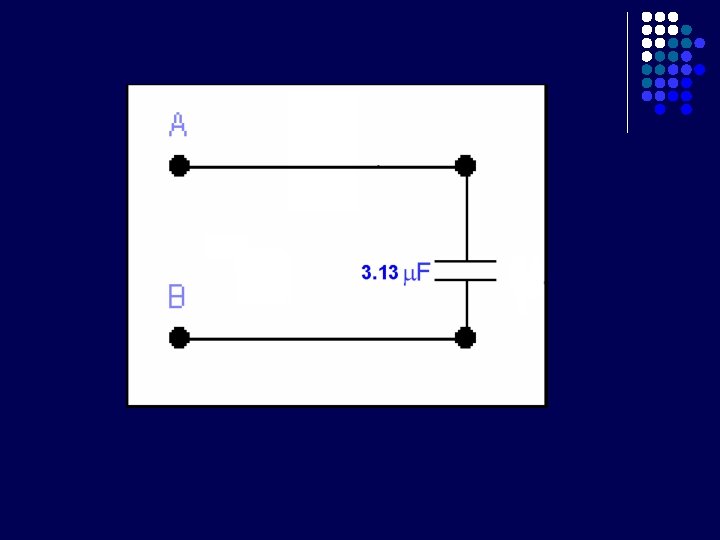

The capacitors are in series so CAB = (4 x 14. 5)/18. 5=3. 13 F

OHM’S LAW (1) l l If a voltage across a conductor is applied, the ‘current’ passing through the conductor is directly proportional to the ‘voltage’ i. e. VαI V=IR Where ‘R’ is the resistance of the conductor.

OHM’S LAW (2) l Resistance (‘R’) depends upon the material of the conductor as we studied in the last lecture.

The Current “I=V/R” (1) If we keep the same resistance in a circuit but vary the voltage, the current will vary. l For general case, for any values of ‘V’ & ‘R’ OHM’S Law is “I=V/R”. l Where ‘I’ is the amount of current through resistance ‘R’, which is connected across a Potential difference ‘V’. l

The Current “I=V/R” (2) Volt (V) is the practical unit of potential difference & Ohm (Ω) for Resistance, therefore, l Ampere=Volts/Ohms l This Formula tells us, to calculate the Amperes of Current through ‘R’, simply divide the voltage across ‘R’ by the Ohms of Resistance. l

High Voltage but Low Current (1) It is important to realize that with high voltage the Current can have a Low value when there is a very high Resistance in the circuit. l For example 1000 (1 k) volts applied across 1000000 (1 M) Ω results in a Current of only 0. 001 (1 m)A. l

High Voltage but Low Current (2) l The practical fact is that high voltage circuits usually do have a small value of current in electronic equipment otherwise tremendous amount of power would be necessary for operation.

Low Voltage but High Current (1) At the opposite extreme a low value of voltage in a very low resistance circuit can cause a very high current to flow. l For example a 6 volt battery connected across a Resistance of. 001Ω causes 600 A of Current to flow. l

Low Voltage but High Current (2) I=V/R =6 v/. 01Ω =600 A Similarly more ‘R’ will result in less ‘I’.

Example 1 l A heater with a Resistance of 8Ω is connected across the 220 volt power line. How much is the current ‘I’ flowing through the heater coil?

Answer I=V/R =220/8 =27. 5 A

Example 2 l A small light bulb with a resistance of 2400Ω is connected across the same 220 volt power line. How much is the current ‘I’ through the bulb filament?

Answer I=V/R =220/2400 =. 09 A =90 m A

The Voltage V=IR (1) It is the other Form of the same formula. l Besides the numerical calculations possible with the ‘IR’ formula, it is useful to consider that the ‘IR’ product means voltage. l

The Voltage V=IR (2) Whenever, there is current through a resistance, it must have a potential difference across its two terminals equal to the product ‘IR’. l As we studied in the last lecture if there was no potential difference, no electrons could flow to produce the current. l

The Resistance R=V/I (1) As a third and final version of Ohm’s Law, three factors V, I, and R are related by the formula R=V/I. l As we studied in the last lecture physically, a resistance can be considered as some material with elements having an atomic structure that allows free electrons to drift through it. l

The Resistance R=V/I (2) l Electrically, a more practical & general way of considering Resistance is simply as a V/I ratio.

Example l A conductor allows 1 A of current with 10 volts applied at its ends. How much will be the Resistance of the conductor?

Answer R=V/I =10/1 =10 ohm

The Linear Proportion Between V&I l The Ohm’s law formula V=IR states that V and I are directly proportional for any one value of R. This relation is true for constant values of R.

Volt-Ampere Characteristics l The graph in figure is called the voltampere characteristic of R. It shows how much current the resistor allows for different voltages.

Power Dissipation Resistance (1) in When current flows through a resistance, heat is produced due to friction between the moving free electrons and the atoms which obstruct the path of electron flow. l The heat is evidence that power is used in producing current. l

Power Dissipation Resistance (2) l l in The electric energy converted to heat is considered to be dissipated or used up because the calories of work can not be returned to the circuit as electric energy. Since power is dissipated in the resistance of a circuit, it is convenient to express the power in terms of resistance R.

Power Dissipation Resistance (3) l l in The formula P=V x I can be arranged as follows. Substituting IR for V, P =V x I =IR x I =I 2 R This is the common form of the formula because of heat produced in a resistance due to current R.

Power Dissipation Resistance (4) l in For another form, substitute, V/R for I P= V x I = V x V/R = V 2/R In all the formulae, V is the voltage across R in ohms producing the current I in amperes for power in Watts.
