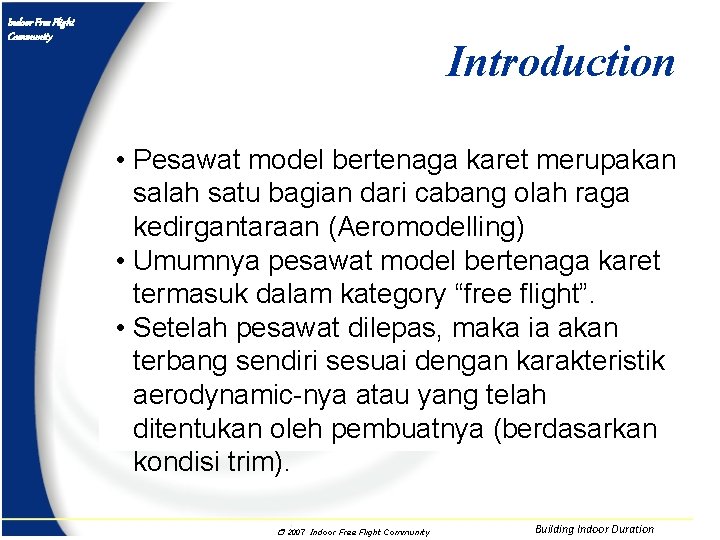

Indoor Free Flight Community Introduction • Pesawat model bertenaga karet merupakan salah satu bagian dari cabang olah raga kedirgantaraan (Aeromodelling) • Umumnya pesawat model bertenaga karet termasuk dalam kategory “free flight”. • Setelah pesawat dilepas, maka ia akan terbang sendiri sesuai dengan karakteristik aerodynamic-nya atau yang telah ditentukan oleh pembuatnya (berdasarkan kondisi trim). r 2007 Indoor Free Flight Community Building Indoor Duration

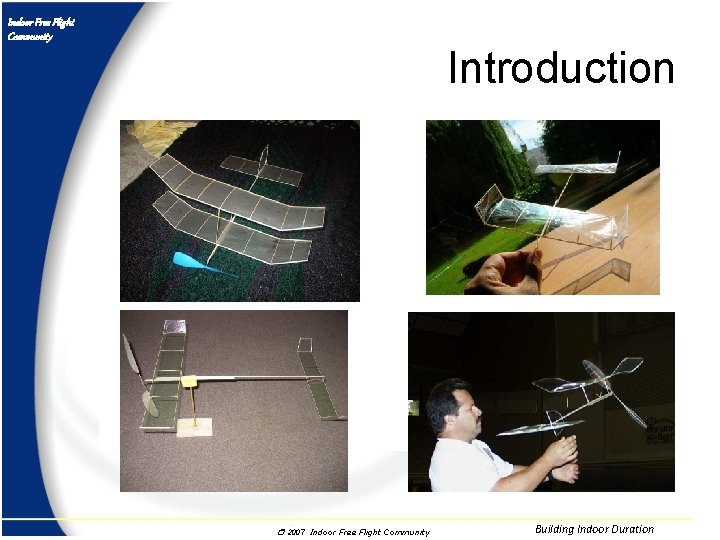

Indoor Free Flight Community Introduction Type: Scale/Sport • Open (indoor/outdoor) • Dime scale (16” span) • Peanut (13” span) • Pistachio (8” span) r 2007 Indoor Free Flight Community Building Indoor Duration

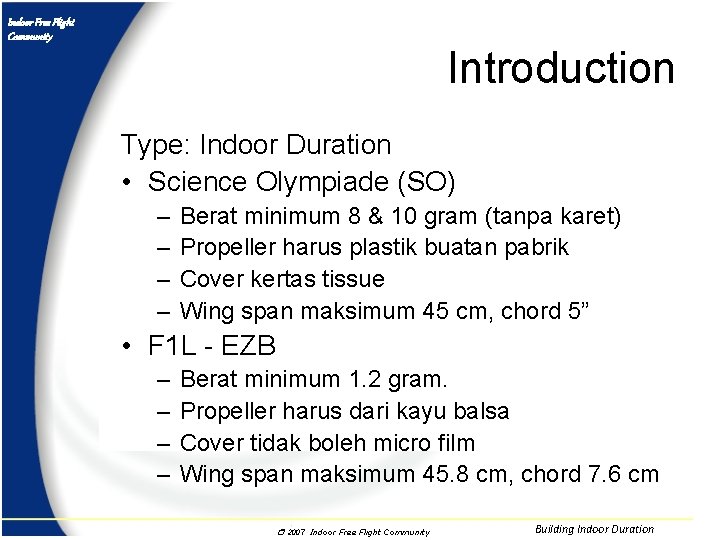

Indoor Free Flight Community Introduction Type: Indoor Duration • Science Olympiade (SO) – – Berat minimum 8 & 10 gram (tanpa karet) Propeller harus plastik buatan pabrik Cover kertas tissue Wing span maksimum 45 cm, chord 5” • F 1 L - EZB – – Berat minimum 1. 2 gram. Propeller harus dari kayu balsa Cover tidak boleh micro film Wing span maksimum 45. 8 cm, chord 7. 6 cm r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Introduction Type: Indoor Duration • F 1 M – Berat minimum 3 gram (tanpa karet) – Cover tidak boleh micro film – Wing span maksimum 46 cm • F 1 D – – – Berat minimum 1. 2 gram (tanpa karet) Berat karet maximum 0. 6 gram Propeller boleh rangka balsa Cover boleh micro film Wing span maksimum 55 cm, chord 7” r 2007 Indoor Free Flight Community Building Indoor Duration

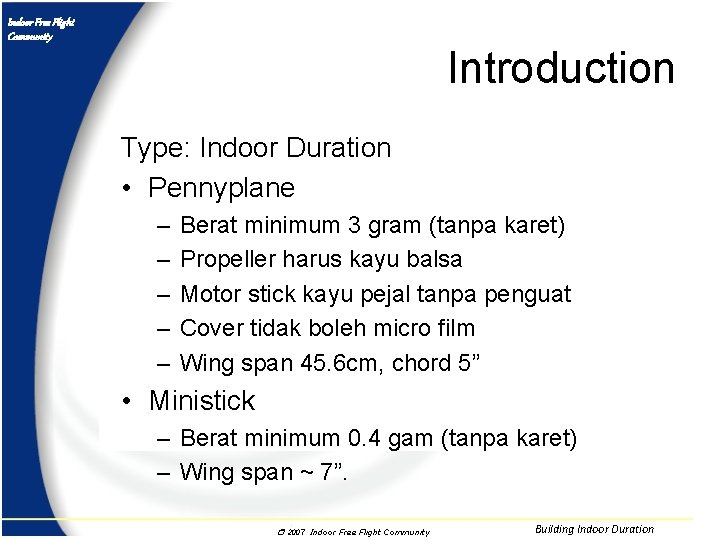

Indoor Free Flight Community Introduction Type: Indoor Duration • Pennyplane – – – Berat minimum 3 gram (tanpa karet) Propeller harus kayu balsa Motor stick kayu pejal tanpa penguat Cover tidak boleh micro film Wing span 45. 6 cm, chord 5” • Ministick – Berat minimum 0. 4 gam (tanpa karet) – Wing span ~ 7”. r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Introduction r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Introduction r 2007 Indoor Free Flight Community Building Indoor Duration

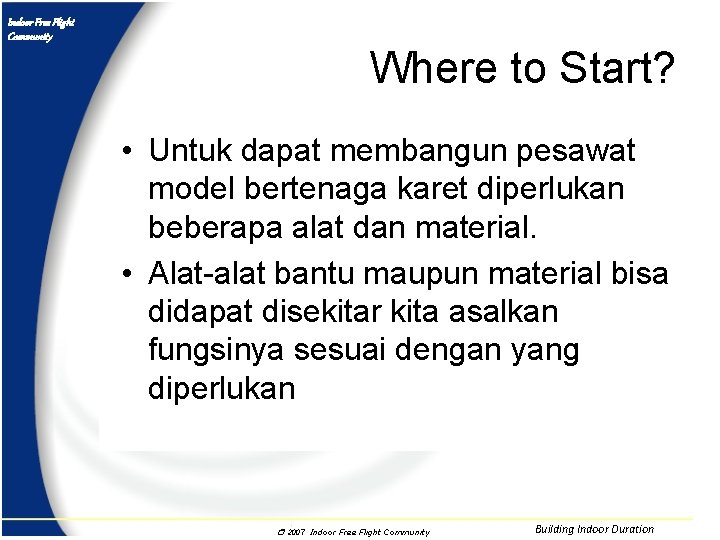

Indoor Free Flight Community Where to Start? • Untuk dapat membangun pesawat model bertenaga karet diperlukan beberapa alat dan material. • Alat-alat bantu maupun material bisa didapat disekitar kita asalkan fungsinya sesuai dengan yang diperlukan r 2007 Indoor Free Flight Community Building Indoor Duration

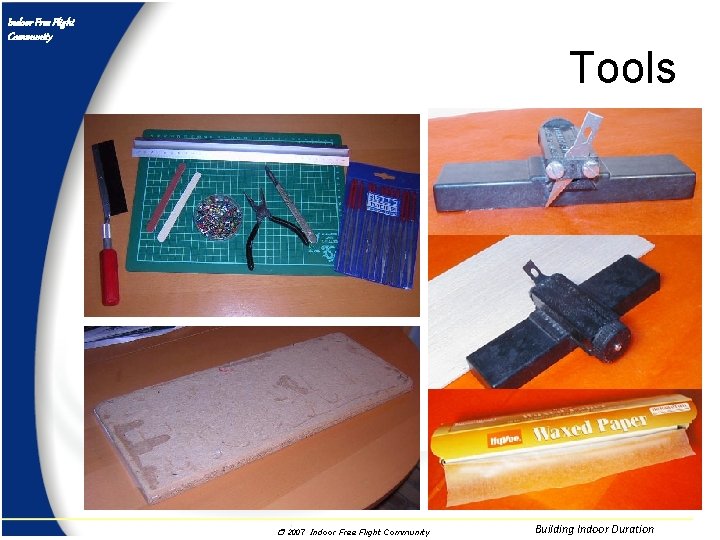

Indoor Free Flight Community Tools • • Building Board: soft board, plafon, dll Alat potong: cutter, silet, hobby knife Jarum pentul Kertas lilin, plastik Kertas tebal untuk pola (template) Tang Penggaris r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Tools r 2007 Indoor Free Flight Community Building Indoor Duration

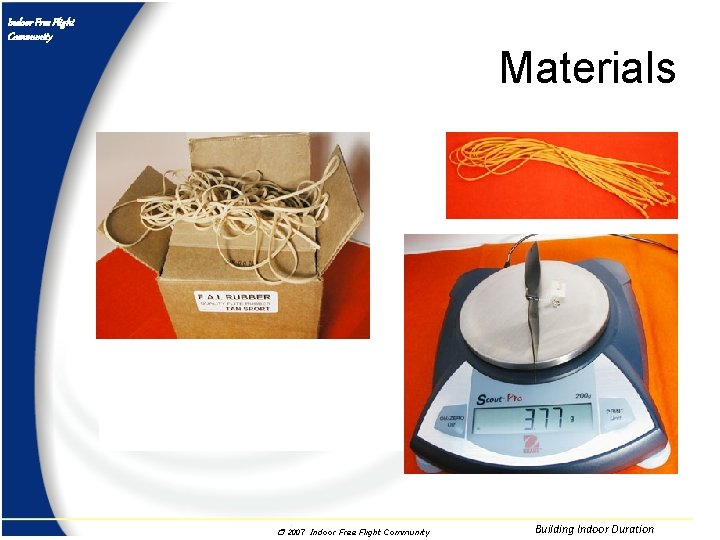

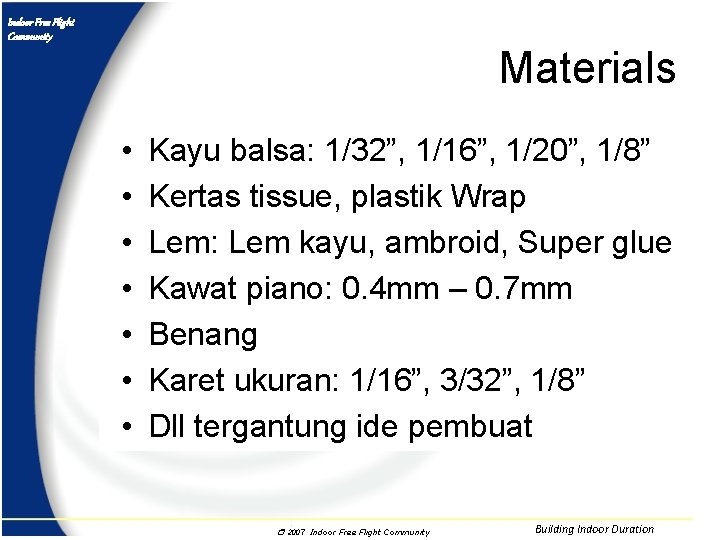

Indoor Free Flight Community Materials • • Kayu balsa: 1/32”, 1/16”, 1/20”, 1/8” Kertas tissue, plastik Wrap Lem: Lem kayu, ambroid, Super glue Kawat piano: 0. 4 mm – 0. 7 mm Benang Karet ukuran: 1/16”, 3/32”, 1/8” Dll tergantung ide pembuat r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Materials r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Materials r 2007 Indoor Free Flight Community Building Indoor Duration

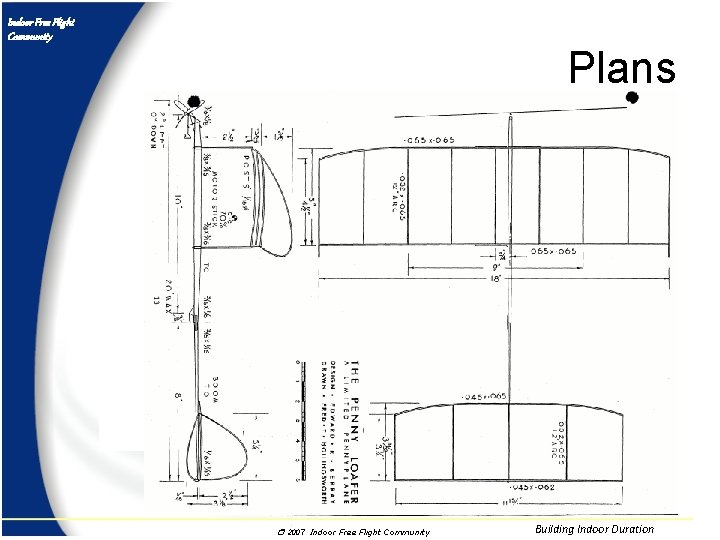

Indoor Free Flight Community Plans r 2007 Indoor Free Flight Community Building Indoor Duration

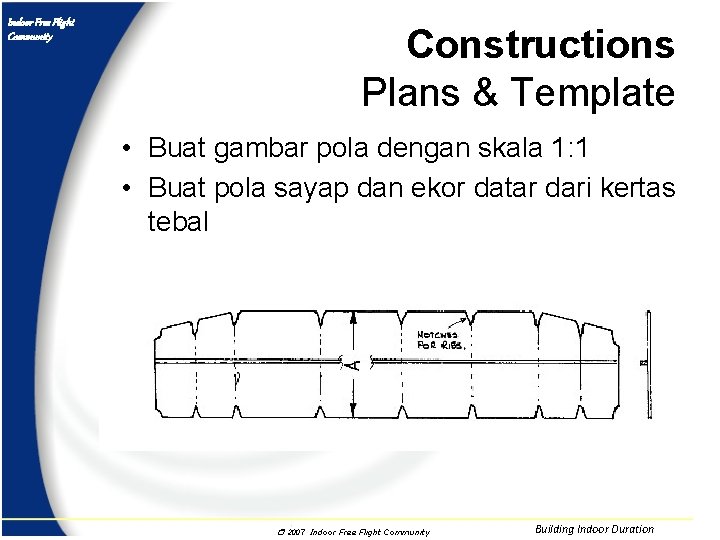

Indoor Free Flight Community Constructions Plans & Template • Buat gambar pola dengan skala 1: 1 • Buat pola sayap dan ekor datar dari kertas tebal r 2007 Indoor Free Flight Community Building Indoor Duration

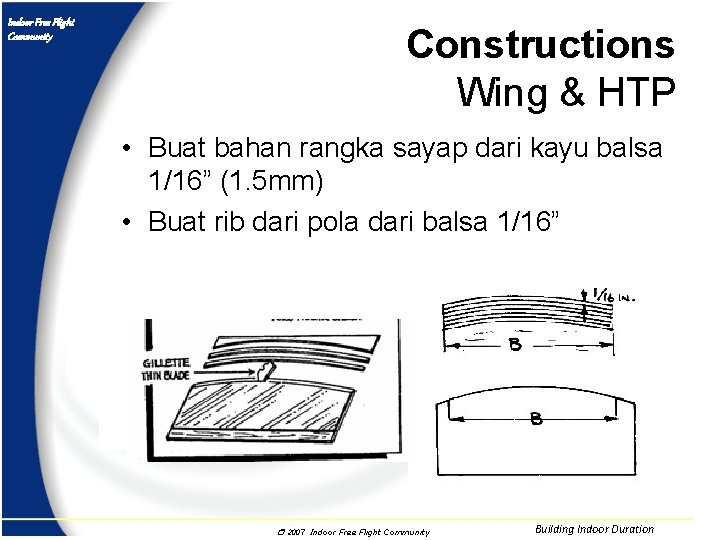

Indoor Free Flight Community Constructions Wing & HTP • Buat bahan rangka sayap dari kayu balsa 1/16” (1. 5 mm) • Buat rib dari pola dari balsa 1/16” r 2007 Indoor Free Flight Community Building Indoor Duration

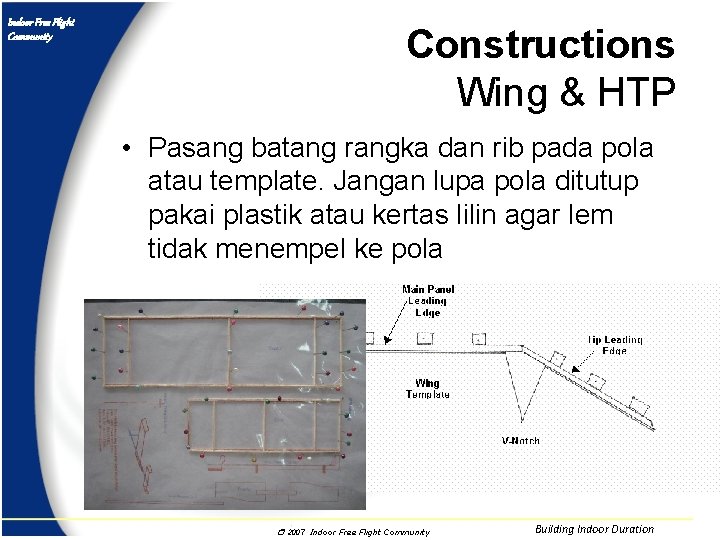

Indoor Free Flight Community Constructions Wing & HTP • Pasang batang rangka dan rib pada pola atau template. Jangan lupa pola ditutup pakai plastik atau kertas lilin agar lem tidak menempel ke pola r 2007 Indoor Free Flight Community Building Indoor Duration

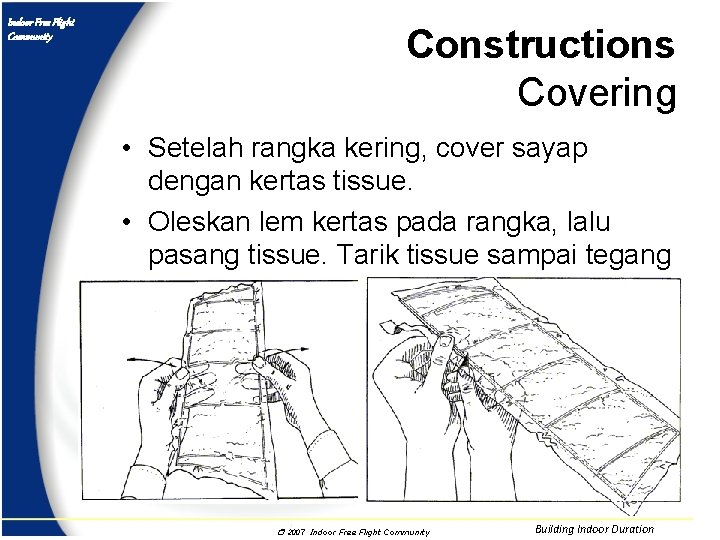

Indoor Free Flight Community Constructions Covering • Setelah rangka kering, cover sayap dengan kertas tissue. • Oleskan lem kertas pada rangka, lalu pasang tissue. Tarik tissue sampai tegang r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Constructions Dihedral • Buat dihedral setelah sayap dicover. • Takik pakai cutter & patahkan. Setelah pada posisi yang benar tetaskan power glue. r 2007 Indoor Free Flight Community Building Indoor Duration

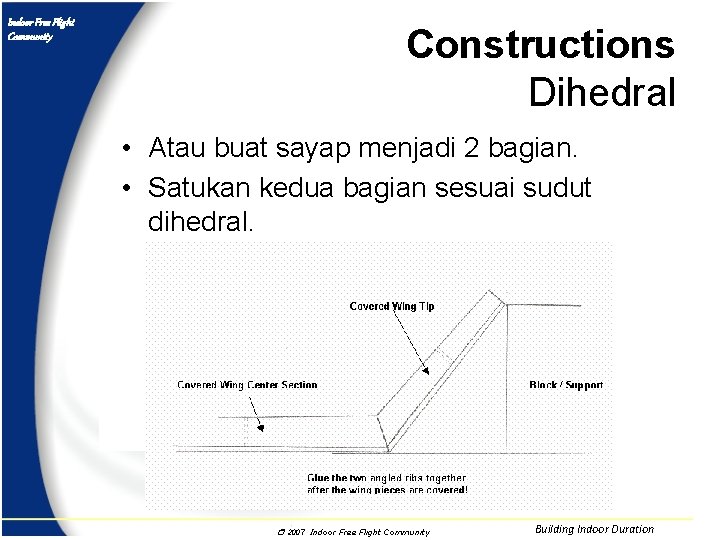

Indoor Free Flight Community Constructions Dihedral • Atau buat sayap menjadi 2 bagian. • Satukan kedua bagian sesuai sudut dihedral. r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Constructions Shaft, Hook, & Bearing • Buat poros propeller, kait belakang, dan bearing dari kawat piano. • Bearing dapat juga mengunakan plastik cutton but. r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Constructions Motor stick • Potong motor stick dari balsa 1/8” (3 mm) sesuai ukuran • Untuk memperoleh kekuatan maksimum, potong motor stick sesuai arah serat kayu r 2007 Indoor Free Flight Community Building Indoor Duration

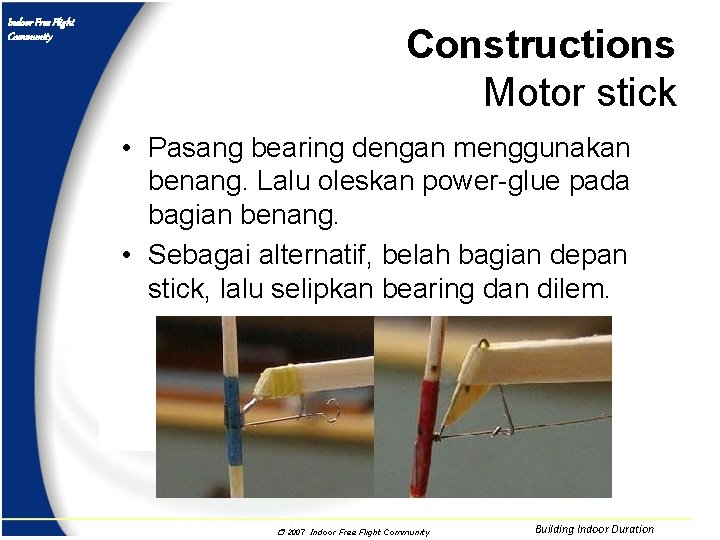

Indoor Free Flight Community Constructions Motor stick • Pasang bearing dengan menggunakan benang. Lalu oleskan power-glue pada bagian benang. • Sebagai alternatif, belah bagian depan stick, lalu selipkan bearing dan dilem. r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Constructions Propeller • Siapkan balsa tebal 1/32” atau paling tipis yang tersedia. Amplas setipis mungkin yang mampu dilakukan. • Potong sesuai pola bilah propeller • Basahi dengan air, lalu tempel ke pipa diameter ~ 4” dengan posisi miring 15 -20 o r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Constructions Propeller • Siapkan spar pemegang bilah propeller sesuai dengan ukuran. • Pasang bilah sehingga menghasilkan propeller pitch 1. 5 – 2 kali diameter. r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Constructions Propeller • Siapkan pemegang bilah propeller. Buat dudukan sehingga saat propeller terpasang, menghasilkan pitch sesuai yang diinginkan. • Pasang bilah propeller ke propeller hub. r 2007 Indoor Free Flight Community Building Indoor Duration

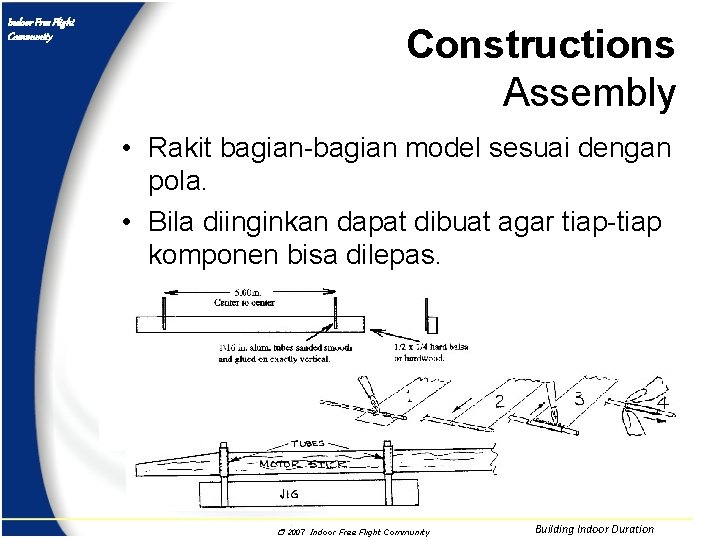

Indoor Free Flight Community Constructions Assembly • Rakit bagian-bagian model sesuai dengan pola. • Bila diinginkan dapat dibuat agar tiap-tiap komponen bisa dilepas. r 2007 Indoor Free Flight Community Building Indoor Duration

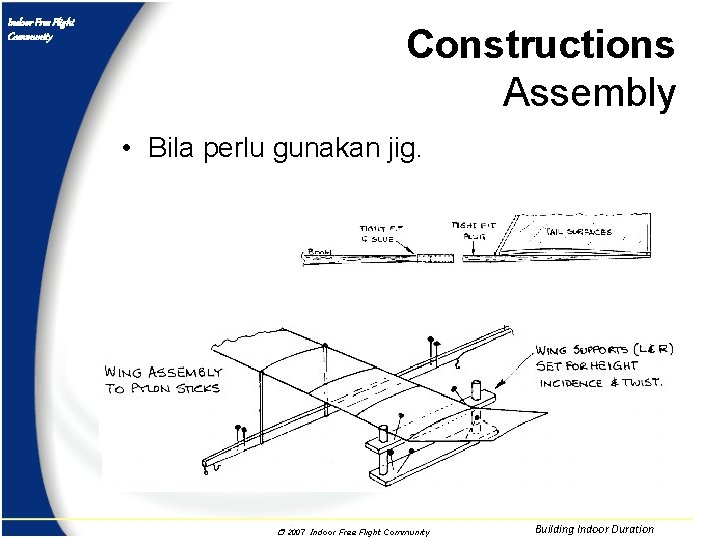

Indoor Free Flight Community Constructions Assembly • Bila perlu gunakan jig. r 2007 Indoor Free Flight Community Building Indoor Duration

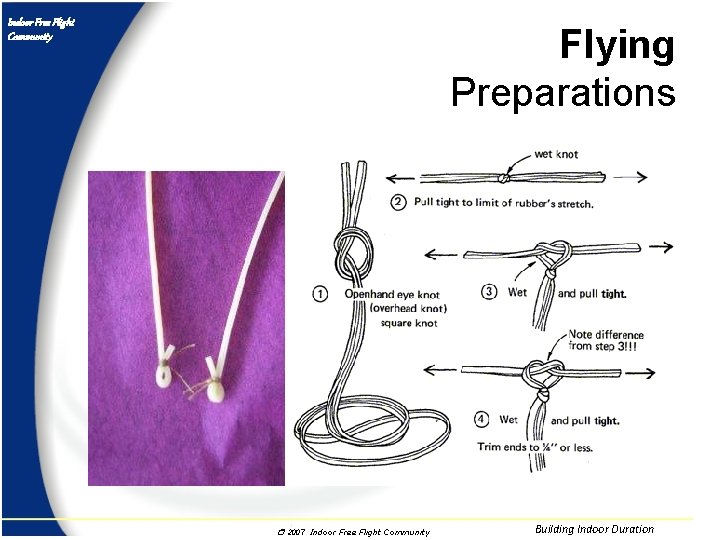

Indoor Free Flight Community Flying Preparations • Siapkan model dalam kondisi sudah dirakit. • Pilih karet dengan ukuran yang sesuai. • Bila memungkinkan, pergunakan alat bantu pemutar karet dan torsi meter. r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Flying Preparations r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Flying Trimming 10 LANGKAH TRIMMING 1. Tentukan posisi titik berat (Center of Gravity / CG). 2. Timbang model tanpa propeller dan karet untuk menentukan letak CG. 3. Lepaskan model agar melayang (gliding). 4. Atur sudut dan posisi ekor datar agar diperoleh gliding yang baik. 5. Periksa kestabilan pesawat dengan sedikit menukik dan menanjak. 6. Bila perlu atur kembali posisi CG agar lebih stabil. 7. Beri tanda lokasi CG yang baru (bila dirubah pada langkah 6). 8. Pasang propeller dan karet, kemudian kembalikan CG pada posisi seperti langkah 7. 9. Test terbang dengan tenaga karet secukupnya. 10. Atur sikap dan pola terbang dengan mengubah arah thrust. r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Flying Trimming r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Flying Rubber characteristics • Contoh karet 3/32”; 2 strand; 16. 4” Descend phase Cruise phase r 2007 Indoor Free Flight Community Climb phase Building Indoor Duration
Indoor Free Flight Community Flying Rubber winding r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Flying Rubber winding Torque meter r 2007 Indoor Free Flight Community Building Indoor Duration

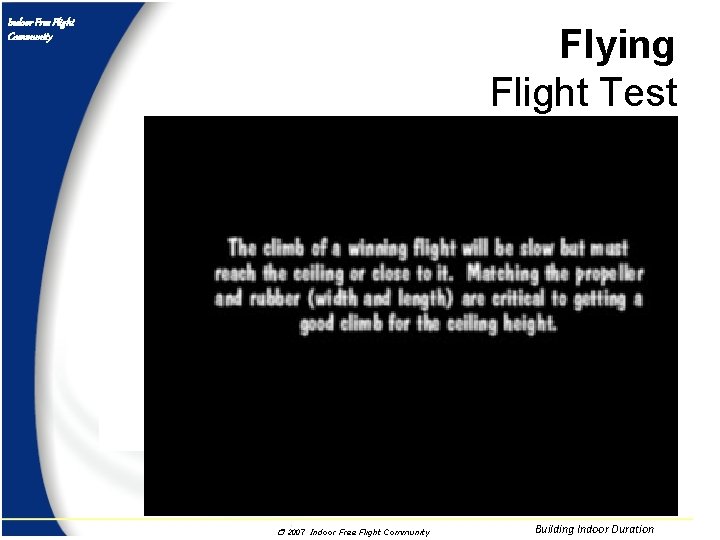

Indoor Free Flight Community Flying Flight Test r 2007 Indoor Free Flight Community Building Indoor Duration
Indoor Free Flight Community Flying Flight Test r 2007 Indoor Free Flight Community Building Indoor Duration

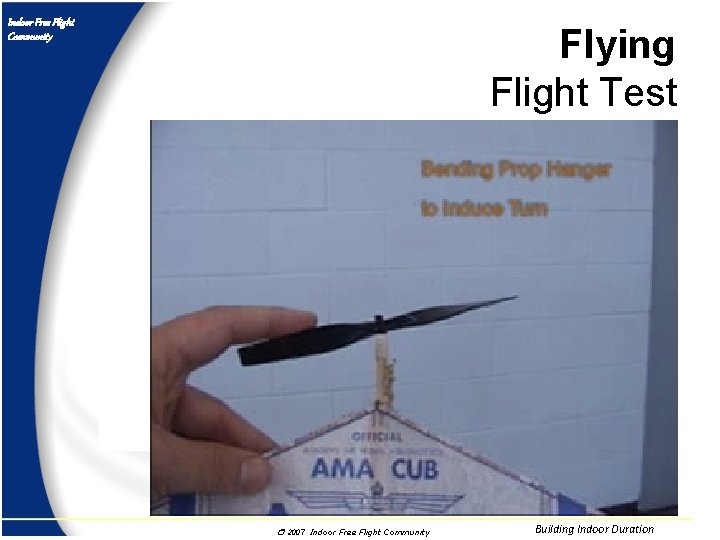

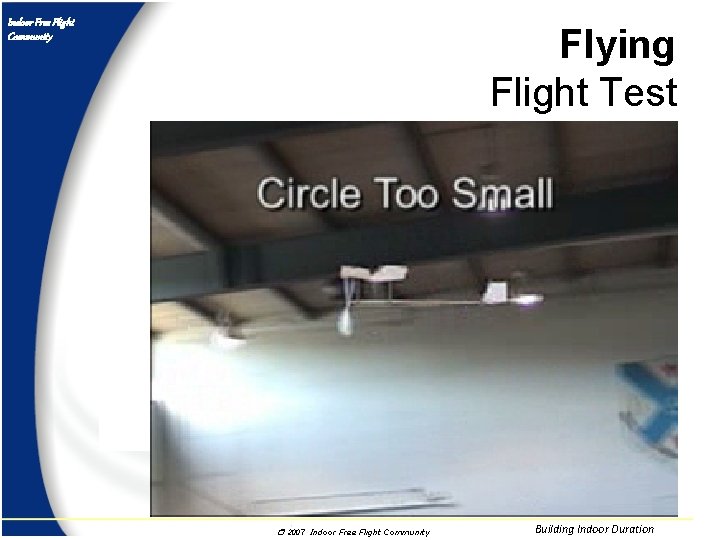

Indoor Free Flight Community Flying Flight Test r 2007 Indoor Free Flight Community Building Indoor Duration
