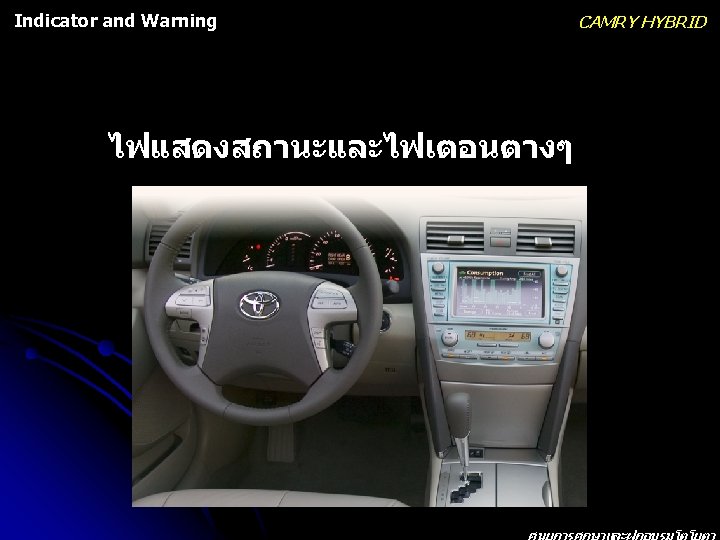

Indicator and Warning l CAMRY HYBRID Combination Meter

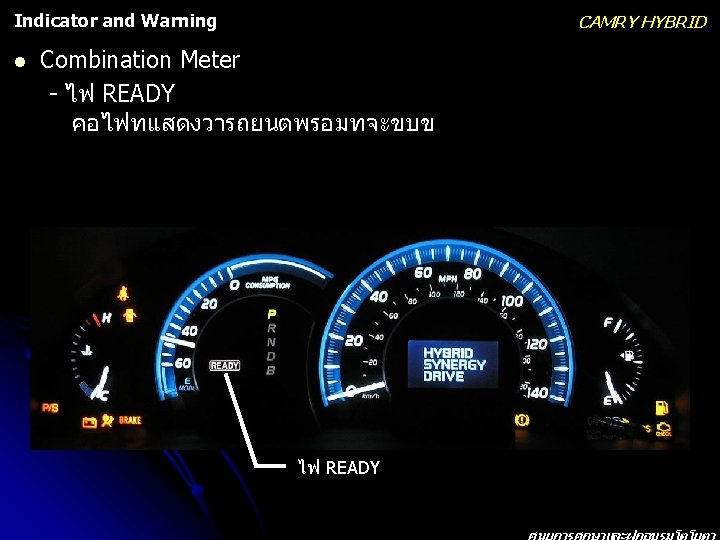

Indicator and Warning l CAMRY HYBRID Combination Meter - ไฟ READY คอไฟทแสดงวารถยนตพรอมทจะขบข ไฟ READY

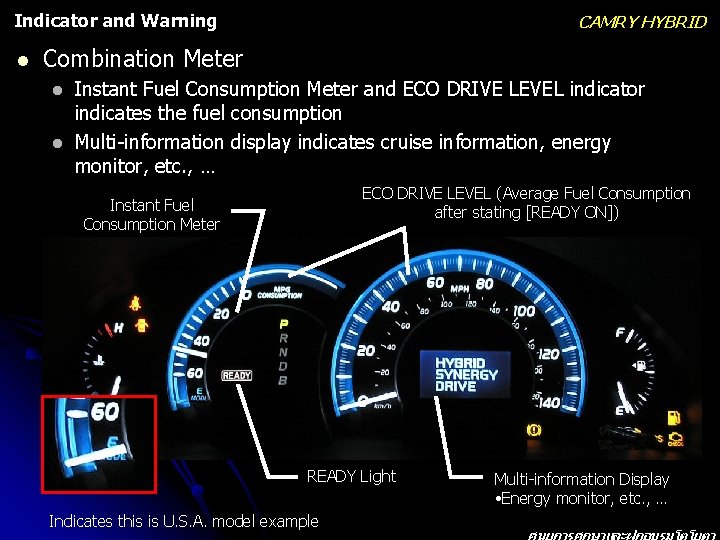

Indicator and Warning l CAMRY HYBRID Combination Meter l l Instant Fuel Consumption Meter and ECO DRIVE LEVEL indicator indicates the fuel consumption Multi-information display indicates cruise information, energy monitor, etc. , … ECO DRIVE LEVEL (Average Fuel Consumption after stating [READY ON]) Instant Fuel Consumption Meter READY Light Indicates this is U. S. A. model example Multi-information Display • Energy monitor, etc. , …

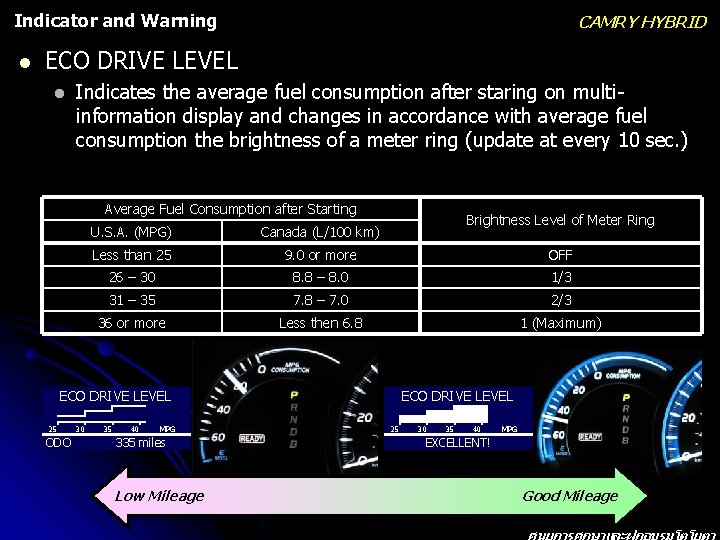

Indicator and Warning l CAMRY HYBRID ECO DRIVE LEVEL l Indicates the average fuel consumption after staring on multiinformation display and changes in accordance with average fuel consumption the brightness of a meter ring (update at every 10 sec. ) Average Fuel Consumption after Starting Brightness Level of Meter Ring U. S. A. (MPG) Canada (L/100 km) Less than 25 9. 0 or more OFF 26 – 30 8. 8 – 8. 0 1/3 31 – 35 7. 8 – 7. 0 2/3 36 or more Less then 6. 8 1 (Maximum) ECO DRIVE LEVEL 25 ODO 30 35 40 MPG 335 miles Low Mileage ECO DRIVE LEVEL 25 30 35 40 MPG EXCELLENT! Good Mileage

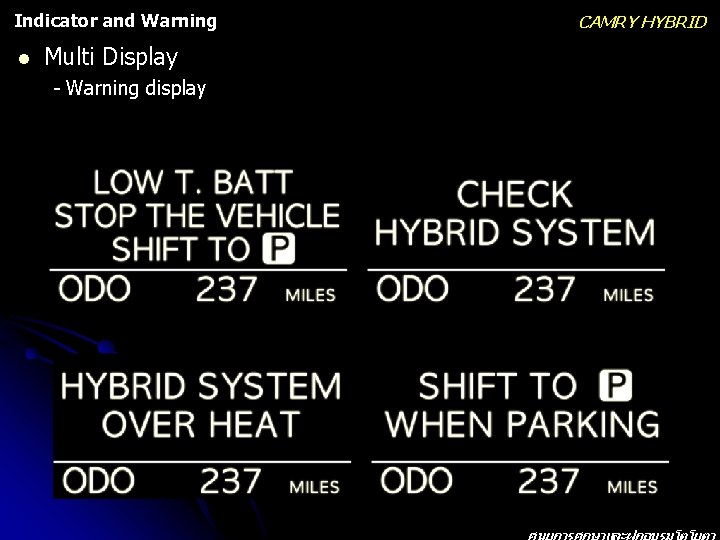

Indicator and Warning l Multi Display - Warning display CAMRY HYBRID

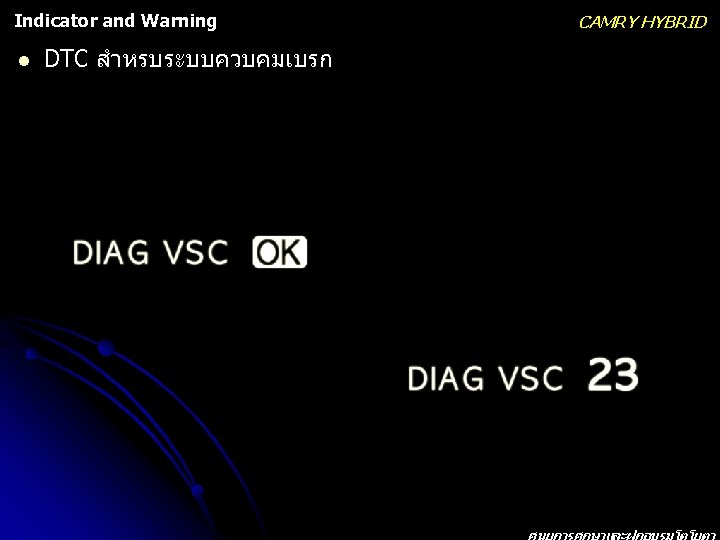

Indicator and Warning l DTC สำหรบระบบควบคมเบรก CAMRY HYBRID
