Indication Workshop 2013 Indication Goals PAX 2 Series
- Slides: 31
Indication Workshop 2013

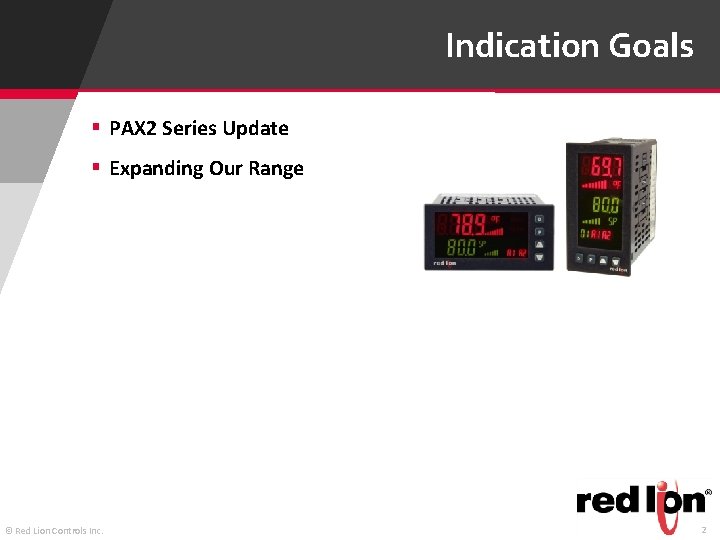

Indication Goals § PAX 2 Series Update § Expanding Our Range © Red Lion Controls Inc. 2
PAX 2 Series © Red Lion Controls Inc. 3
PAX 2 Series § UL Listed – – © Red Lion Controls Inc. PAX 2 A PAX 2 D PAX 2 S PAX 2 C 4
Update on Flex. Bus © Red Lion Controls Inc. 5
Expanding Our Range © Red Lion Controls Inc. 6
The Brand Is Ours © Red Lion Controls Inc. 7
Panel Meter Numbers § Digital Meters § Analog Meters § Signal Conditioners § Sensors § Accessories § ? ? ? © Red Lion Controls Inc. 8
Panel Meter Numbers § Digital Meters § Analog Meters § Signal Conditioners § Sensors § Accessories § PID Controllers © Red Lion Controls Inc. 9
Our Current Products © Red Lion Controls Inc. 10

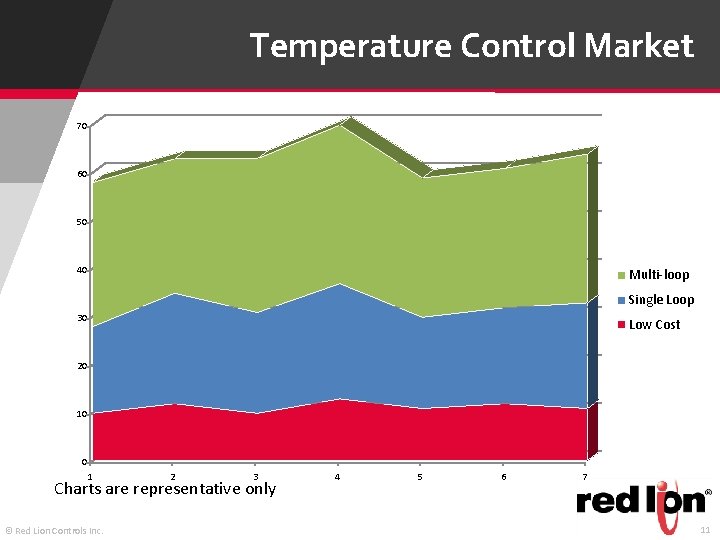

Temperature Control Market 70 60 50 40 Multi-loop Single Loop 30 Low Cost 20 10 0 1 2 3 Charts are representative only © Red Lion Controls Inc. 4 5 6 7 11
What’s Missing? 70 60 50 Multi-loop 40 Single Loop 30 Low Cost 20 10 0 1 2 3 4 5 6 7 Charts are representative only © Red Lion Controls Inc. 12
Introducing PXU Series Our New Low Cost Controllers § 1/16, 1/8 and 1/4 DIN Models © Red Lion Controls Inc. 13
PXU Features Our New Low Cost Controllers § Full PID Control § Universal Input - TC, RTD, 0 – 10 VDC, and 0 -20 m. A (0 -50 m. A) § On demand auto-tuning § PC or front panel programming § 1 Inch shorter depth § Initial offering AC powered § Custom overlay capability § UL Listed, 61010 -1, Process Control Equipment © Red Lion Controls Inc. 14
Most Important § Look and feel, both product and programming © Red Lion Controls Inc. 15
Programming Loops § Red Lion Programming © Red Lion Controls Inc. 16
RAM LTE for remote access Graphite HMI with local I/O 105 TX for local network Dedicated PID controller with display Laptop for remote monitoring and control E 2 I/O for remote I/O © Red Lion Controls Inc. 17
Hands-on § Wiring the controller © Red Lion Controls Inc. 18
Let’s Try One § Installing the controller © Red Lion Controls Inc. 19
Programming Overview § Configuration Loop © Red Lion Controls Inc. 20
Module 1 – Input Parameters Parameter Display Input Type ty. PE tc -J Temperature Scale SCAL ˚F Decimal Resolution d. CPt 0 Digital Filtering FLtr 8 Input Filter Band b. ANd 1 © Red Lion Controls Inc. Selection 21
Module 1 – Input Parameters Parameter Display Shift/Offset SHFt 0 Display Value PT 1 d. SP 1 0. 0 Display Value PT 2 d. SP 2 100. 0 Setpoint Low Limit SPLO -148 Setpoint High Limit SPHI 2192 © Red Lion Controls Inc. Selection 22
Module 1 – Input Parameters Parameter Display Selection User Inputs USr 1 or USr 2 NONE Function Keys FIIn or F 2 In NONE Cold Junction © Red Lion Controls Inc. CJC ON 23
Additional Modules § Module 2 – Output Parameters § Module 3 – Lockout Parameters © Red Lion Controls Inc. 24
Additional Modules § Module 4 – Alarms Parameters § Module 9 – Factory Service Operations © Red Lion Controls Inc. 25
Serial Communication § Module 7 – Serial Communication Parameters Comms Type – Modbus RTU Baud Rate – 38. 4 K Address 247 © Red Lion Controls Inc. 26

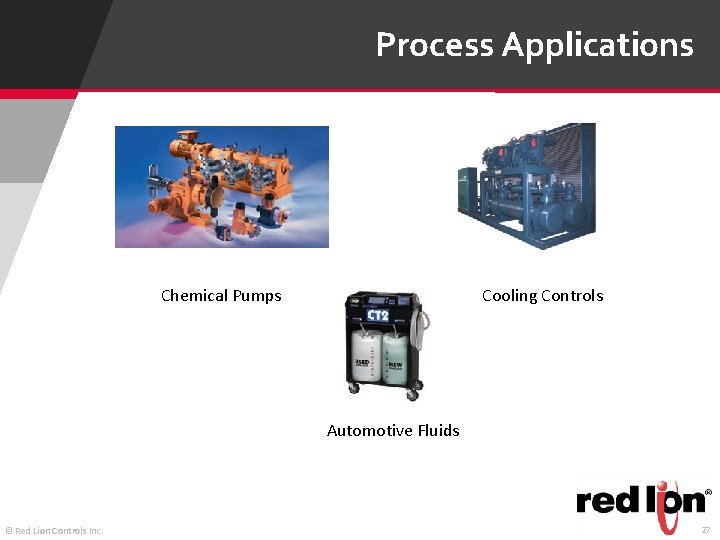

Process Applications Chemical Pumps Cooling Controls Automotive Fluids © Red Lion Controls Inc. 27
Temperature Applications Food Warmers Ovens and Smokers Fryers and Grills © Red Lion Controls Inc. 28
§ Still in operation and application to PID control © Red Lion Controls Inc. 29
Complete Offering 70 60 50 Multi-loop 40 Single Loop 30 Low Cost 20 10 0 1 2 3 4 5 6 7 Charts are representative only © Red Lion Controls Inc. 30
Thank You For more information 20 Willow Springs Circle | York, PA 17406 USA +1 (717) 767 -6511 | www. redlion. net | info@redlion. net
