IND 9 U and Over Drive Next Generation

IND 9 U and Over. Drive® Next Generation Unattended Prelaunch

Agenda § Project Goals § Product Offerings - IND 9 US Udrive-780 IND 9 UO Peripherals Over. Drive Unattended Software § Product Beta Testing - Software Additions § Release Status - Product Literature Ordering Availability § Coming Soon! - Over. Drive Video Server § Q&A 1 Internal usage only

Project Goals § #1 Goal: Create a tiered product offering, allowing for more flexible system configurations, thereby capturing higher value for many applications. § #2 Goal: Replace obsolete JAGXTREME terminal. § #3 Goal: Improve truck driver interface (better keyboard response and improved display). § #4 Goal: Reduce the complexity of installation and maintenance. § #5 Goal: Improve system reliability. § #6 Goal: Add selective features that will help grow sales. 2 Internal usage only

Agenda § Project Goals § Product Offerings - IND 9 US Udrive-780 IND 9 UO Peripherals Over. Drive Unattended Software § Product Beta Testing - Software Additions § Release Status - Product Literature Ordering Availability § Coming Soon! - Over. Drive Video Server § Q&A 3 Internal usage only

IND 9 U § IND 9 US for Stand-alone Operation - IND 780 based Uses TE Udrive-780 application software Standard IND 780 with color display for outdoor use § IND 9 UO Basic and Advanced for Interface to Over. Drive® - IND 135/IND 560 based (IND 780 for multiple scale platforms if terminal is in scale house) Standard 240 x 128 graphic transflective LCD display with international character capability Serial Device Server for serial device interface to Over. Drive PC ARM 100 I/O Over. Drive controls I/O and manages data string from reader § Both variants use common hardware 4 Internal usage only

IND 9 US (Standalone) § UWT type solution using the IND 780 with color display for outdoor use as the base hardware § IND 780 drives peripherals and I/O § Uses ‘Udrive-780’ Task Expert application, built off of the existing Drive-780 application program § Uses similar hardware components as IND 9 UO, except for lower cost/smaller printer (60 mm wide paper capacity) 5 Internal usage only

Udrive-780 Unattended Application § IND 780 Task. Expert application available in IND 9 US configurations to provide single scale, one-pass or two-pass weighing with database capabilities and traffic control. § Designed after the Drive-780 and Axle-780 applications with common functionality in both setup and operation § Provides a number of features not previously available in the Jag. Basic VSU software - Temporary ID/Tare storage with Auto-Assign ID function Totalization in tables Programmable function keys Additional templates and reports 6 Internal usage only

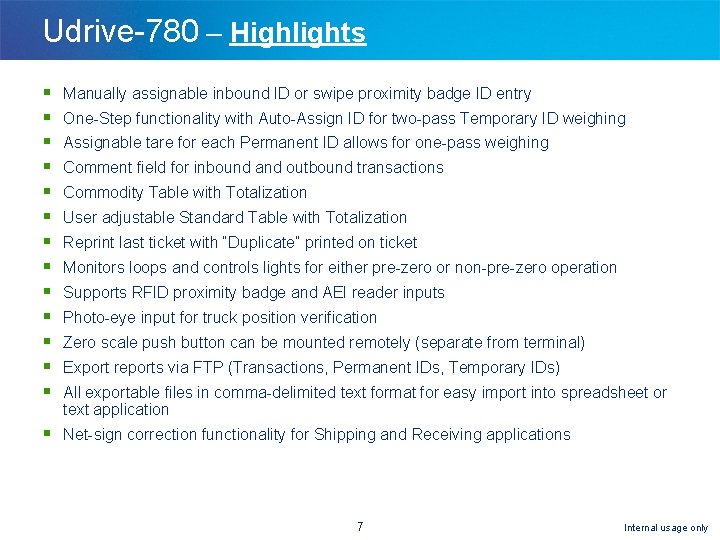

Udrive-780 – Highlights § § § § Manually assignable inbound ID or swipe proximity badge ID entry One-Step functionality with Auto-Assign ID for two-pass Temporary ID weighing Assignable tare for each Permanent ID allows for one-pass weighing Comment field for inbound and outbound transactions Commodity Table with Totalization User adjustable Standard Table with Totalization Reprint last ticket with “Duplicate” printed on ticket Monitors loops and controls lights for either pre-zero or non-pre-zero operation Supports RFID proximity badge and AEI reader inputs Photo-eye input for truck position verification Zero scale push button can be mounted remotely (separate from terminal) Export reports via FTP (Transactions, Permanent IDs, Temporary IDs) All exportable files in comma-delimited text format for easy import into spreadsheet or text application § Net-sign correction functionality for Shipping and Receiving applications 7 Internal usage only

IND 9 UO (Over. Drive) Basic § Over. Drive drives peripherals and I/O § Fiberglass enclosure § Std. Hardware - IND 135/IND 560 scale terminal 8 line alpha display Serial Device Server Printer Server/Switch for E-net and Printing Stainless Numeric 30 -key Keyboard § Optional Peripherals: - ARM 100 4 In/6 Out (max 2) Prox. Reader Printer w/ 112 mm wide paper capacity Wired Intercom Wireless communication kit (Not all peripheral options can fit in fiberglass enclosure) 8 Internal usage only

IND 9 UO (Over. Drive) Advanced § Larger Stainless Enclosure § Additional Optional Peripherals - Credit Card Reader Smart. Pass AVI Reader interface Full QWERTY 65 -key keyboard Vo. IP (Voice Over IP) communications Traffic Loop Interface (2 loops) § Terminal options inside enclosure: IND 135, IND 560, IND 780 § Remote Printer Box Option: driver gets ticket off scale so next truck can drive on. § Future options: - Touchscreen driven as Over. Drive Client running on Brick PC inside controller. 8 Availability TBD. Development required for new hardware. 9 Internal usage only

Printers § Entry-Level: Hengstler C-56 - Direct thermal printing at 203 dpi - Fujitsu print head - 60 mm paper width - 4” roll paper capacity - Tear bar instead of cutter mechanism - Mounts to inside of enclosure door § Up-level: Star Micronics TUP 900 - Direct thermal printing at 203 dpi - 80 mm to 112 mm adjustable paper width - 7½” roll paper capacity - Improved loading vs. Epson - Optional paper handling features - Factory installed in enclosure 10 Internal usage only

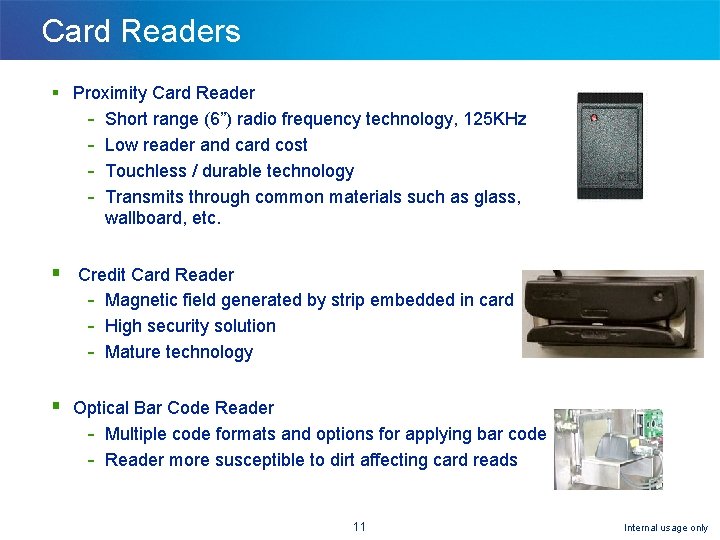

Card Readers § Proximity Card Reader - Short range (6”) radio frequency technology, 125 KHz - Low reader and card cost - Touchless / durable technology - Transmits through common materials such as glass, wallboard, etc. § Credit Card Reader - Magnetic field generated by strip embedded in card - High security solution - Mature technology § Optical Bar Code Reader - Multiple code formats and options for applying bar code - Reader more susceptible to dirt affecting card reads 11 Internal usage only

AVI (Automatic Vehicle Identification) § Smart. Pass® Readers and Tags available from MTWT § Used in place of badge reader to identify vehicles, using 915 Mhz RFID technology § Pole or wall mounting, either before or at scale, possible to mount to IND 9 U pole § Interfaces to serial port or serial server in IND 9 U § Udrive-780 software and Over. Drive will support AVI Readers § Selection of reader based on distance from truck to reader, and speed of truck § Tag orders placed with “order sheet” stating customer tag information, ie. starting #, pre-fix § 50 piece minimum tag order 12 Internal usage only

Wireless Ethernet and Wireless Serial Kits 13 Internal usage only

Over. Drive Unattended Software § Transforms the standard components within the IND 9 UO into an efficient and robust unattended vehicle weighing solution by providing complete business and logic control! - Complete architecture redesign that focuses on Speed, Reliability and Performance § New and improved user interface provides for a Quick-and-Easy configuration and start-up! - In-sync “factory” defaults eliminate the burden and time consuming process of configuring serial devices and communication protocols - Significantly reduces the complexity of the installation and on-going support 14 Internal usage only

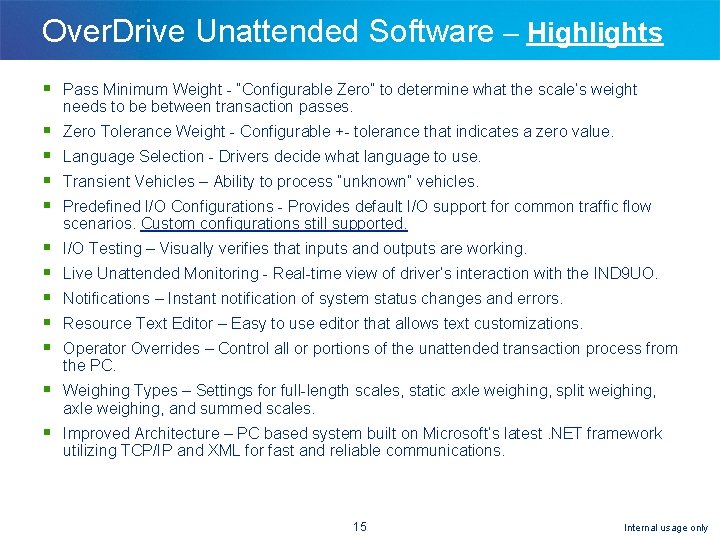

Over. Drive Unattended Software – Highlights § Pass Minimum Weight - “Configurable Zero” to determine what the scale’s weight needs to be between transaction passes. § § Zero Tolerance Weight - Configurable +- tolerance that indicates a zero value. § § § I/O Testing – Visually verifies that inputs and outputs are working. Language Selection - Drivers decide what language to use. Transient Vehicles – Ability to process “unknown” vehicles. Predefined I/O Configurations - Provides default I/O support for common traffic flow scenarios. Custom configurations still supported. Live Unattended Monitoring - Real-time view of driver’s interaction with the IND 9 UO. Notifications – Instant notification of system status changes and errors. Resource Text Editor – Easy to use editor that allows text customizations. Operator Overrides – Control all or portions of the unattended transaction process from the PC. § Weighing Types – Settings for full-length scales, static axle weighing, split weighing, axle weighing, and summed scales. § Improved Architecture – PC based system built on Microsoft’s latest. NET framework utilizing TCP/IP and XML for fast and reliable communications. 15 Internal usage only

Agenda § Project Goals § Product Offerings - IND 9 US Udrive-780 IND 9 UO Peripherals Over. Drive Unattended Software § Product Beta Testing - Software Additions § Release Status - Product Literature Ordering and Availability § Coming Soon! - Over. Drive Video Server § Q&A 16 Internal usage only

Product Beta Testing – IND 9 US § MT-NA - Shipped IND 9 US with Udrive-780 on 10/27 to Smurfitt Recycling in Tampa, FL Installation scheduled for week of 11/10 § MT-AUS (September 08 – Present) - TE Application 2 units installed in Western Australia, 50 vehicle transactions to date 1 unit installed in Tasmania, 30 vehicles to date 1 unit installed in Queensland, 30 vehicles to date All positive feedback so far 17 Internal usage only

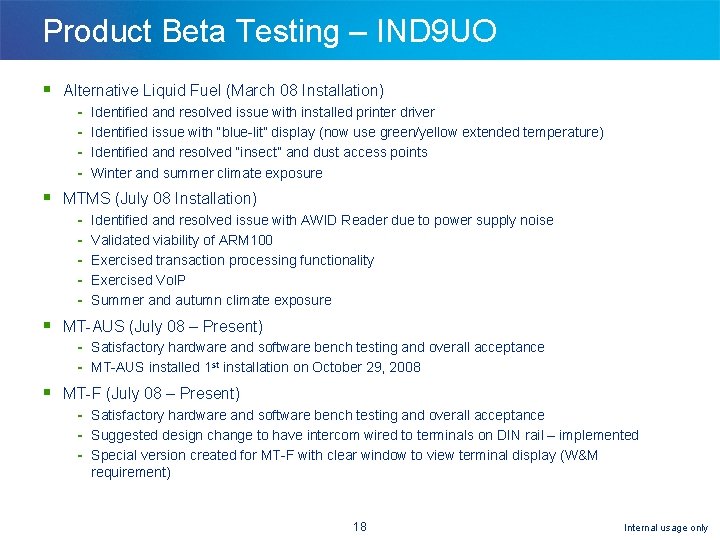

Product Beta Testing – IND 9 UO § Alternative Liquid Fuel (March 08 Installation) - Identified and resolved issue with installed printer driver Identified issue with “blue-lit” display (now use green/yellow extended temperature) Identified and resolved “insect” and dust access points Winter and summer climate exposure § MTMS (July 08 Installation) - Identified and resolved issue with AWID Reader due to power supply noise Validated viability of ARM 100 Exercised transaction processing functionality Exercised Vo. IP Summer and autumn climate exposure § MT-AUS (July 08 – Present) - Satisfactory hardware and software bench testing and overall acceptance MT-AUS installed 1 st installation on October 29, 2008 § MT-F (July 08 – Present) - Satisfactory hardware and software bench testing and overall acceptance Suggested design change to have intercom wired to terminals on DIN rail – implemented Special version created for MT-F with clear window to view terminal display (W&M requirement) 18 Internal usage only

Product Beta Testing – Software Additions § Operator Override - Allows you to take control and assist the driver with data entry and/or selection Allows you to complete unattended Transactions “manually” § Override Outputs - Allows you to take control of the outputs connected to the IND 9 UO § Disable Driver Input when not OK to Weigh - Prevents unwanted data input § Show Weight on Display - Allows you to control when the weight is displayed to the driver 19 Internal usage only

Product Beta Testing – Software Additions § Static Axle Weights - Allows a driver to capture axle weights on a full length scale Full length weight used for all calculations 20 Internal usage only

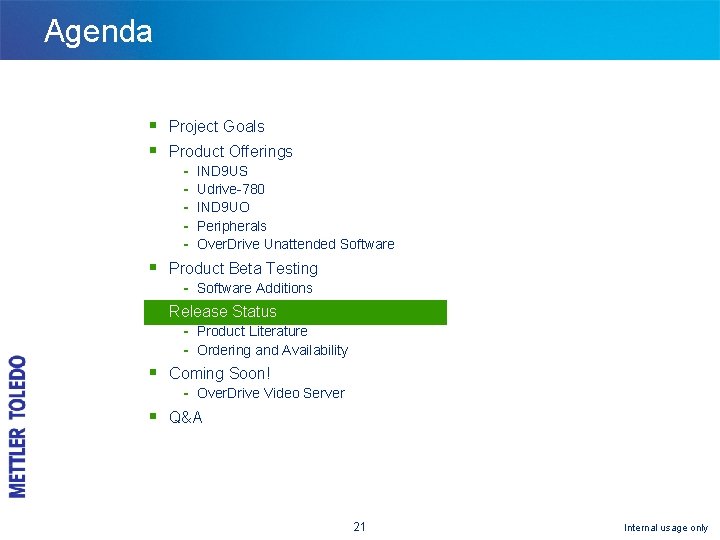

Agenda § Project Goals § Product Offerings - IND 9 US Udrive-780 IND 9 UO Peripherals Over. Drive Unattended Software § Product Beta Testing - Software Additions § Release Status - Product Literature Ordering and Availability § Coming Soon! - Over. Drive Video Server § Q&A 21 Internal usage only

IND 9 U Release Status § Literature - IND 9 U Installation Manual (Complete) - UDrive-780 Technical Manual (Complete) - IND 9 U Unattended Terminal Databrief (Complete) - Udrive-780 Unattended Software Databrief (Under Review) § Approvals - IND 9 UO/Over. Drive testing at NMi (In process) - IND 9 UO/S hardware submitted to UL (In process) - CE Declaration (Follows UL) § Translations - English only at this time - French, Spanish (Pending) § MT. com - New Web page (Complete) 22 Internal usage only

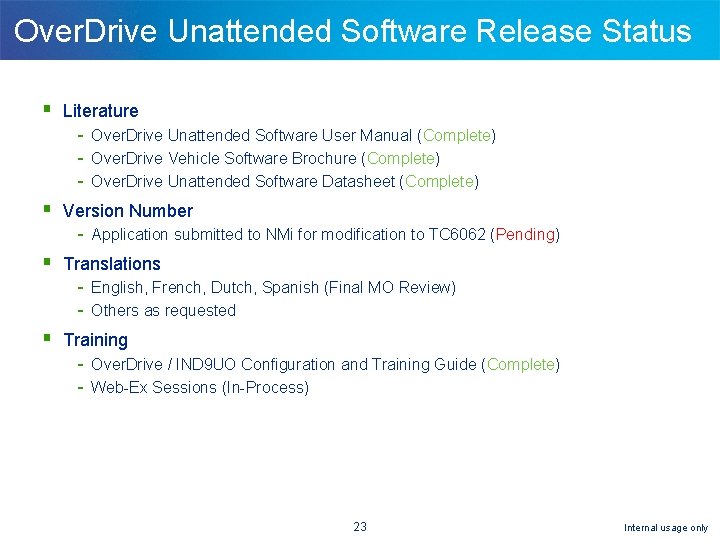

Over. Drive Unattended Software Release Status § Literature - Over. Drive Unattended Software User Manual (Complete) Over. Drive Vehicle Software Brochure (Complete) Over. Drive Unattended Software Datasheet (Complete) § Version Number - Application submitted to NMi for modification to TC 6062 (Pending) § Translations - English, French, Dutch, Spanish (Final MO Review) Others as requested § Training - Over. Drive / IND 9 UO Configuration and Training Guide (Complete) Web-Ex Sessions (In-Process) 23 Internal usage only

Ordering and Availability § IND 9 U Configurator § IND 9 U Spare parts will be available at MTAM § Over. Drive Modules (currently no changes) - OD 101 BASE 000 OD 101 CLNT 000 OD 100 UNAT 000 OD 100 INVC 000 Over. Drive Base Module Over. Drive Client Module Over. Drive Unattended Module Over. Drive Invoice Module § Availability Date – January, 2009 § UADT/UWT last time orders accepted by December 15 for delivery by end of year 24 Internal usage only

Agenda § Project Goals § Product Offerings - IND 9 US Udrive-780 IND 9 UO Peripherals Over. Drive Unattended Software § Product Beta Testing - Software Additions § Release Status - Product Literature Ordering and Availability § Coming Soon! - Over. Drive Video Server § Q&A 25 Internal usage only

Coming Soon! § Over. Drive Video Server - Standalone application interfaced to Over. Drive through TCP/IP Supports up-to four cameras per scale Live video and recording Event driven and manual image capture and storage Images linked to Transaction for easy Retrieval and Reporting! New Add-on Module for Unattended! 26 Internal usage only

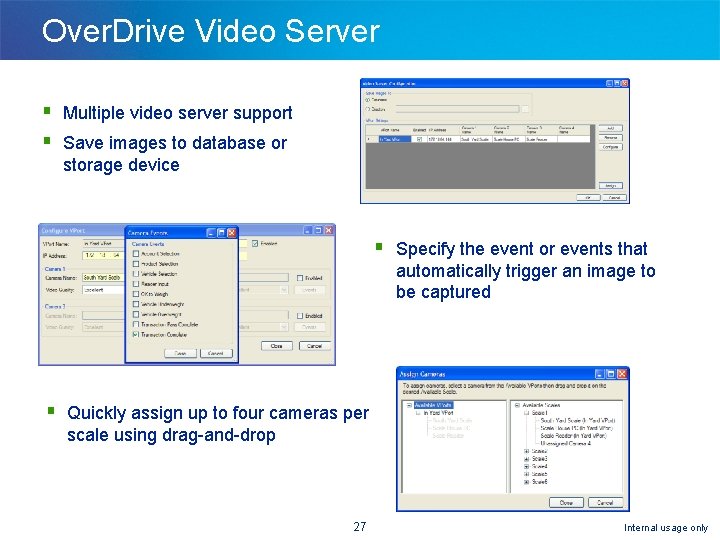

Over. Drive Video Server § Multiple video server support § Save images to database or storage device § Specify the event or events that automatically trigger an image to be captured § Quickly assign up to four cameras per scale using drag-and-drop 27 Internal usage only

Over. Drive Video Server § View and record live video from up to four cameras per scale 28 Internal usage only

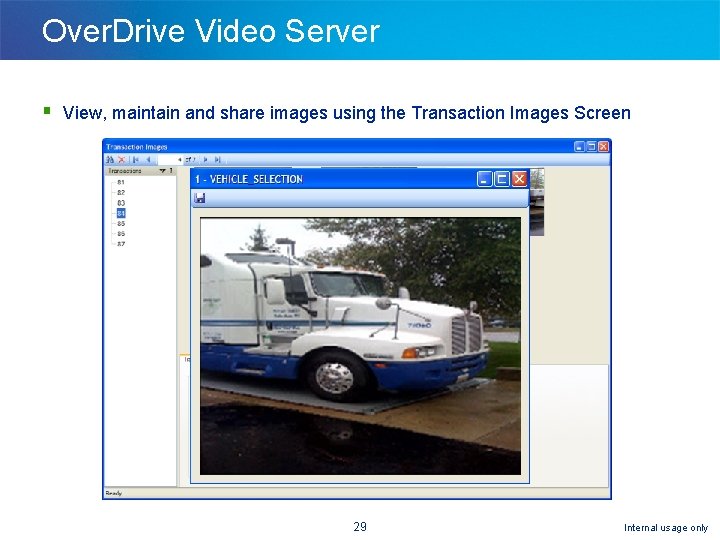

Over. Drive Video Server § View, maintain and share images using the Transaction Images Screen 29 Internal usage only

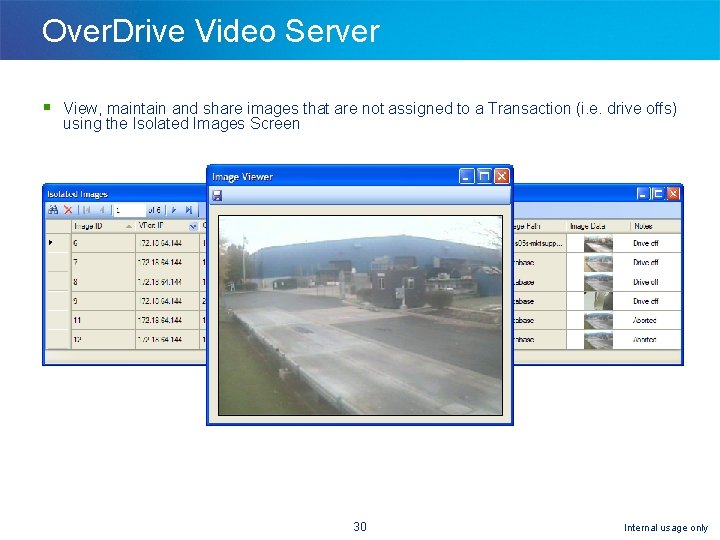

Over. Drive Video Server § View, maintain and share images that are not assigned to a Transaction (i. e. drive offs) using the Isolated Images Screen 30 Internal usage only

Over. Drive Video Server § Enhance your reports and tickets by easily adding transaction images! 31 Internal usage only

Agenda § Project Goals § Product Offerings - IND 9 US Udrive-780 IND 9 UO Peripherals Over. Drive Unattended Software § Product Beta Testing - Software Additions § Release Status - Product Literature Ordering and Availability § Coming Soon! - Over. Drive Video Server § Q&A 32 Internal usage only
