Incremental Methods for Machine Learning Problems Aristidis Likas

Incremental Methods for Machine Learning Problems Aristidis Likas Department of Computer Science University of Ioannina e-mail: arly@cs. uoi. gr http: //www. cs. uoi. gr/~arly

Outline • • Machine Learning: Data Modeling + Optimization The incremental machine learning framework Global k-means (PR, IEEE TNN) Greedy EM (NPL 2002, Bioinformatics) Incremental Bayesian GMM learning (IEEE TNN) Dip-Means Incremental Bayesian Supervised learning (IEEE TNN) Current research problems – Matlab code available for all methods

Machine Learning Problems • Unsupervised Learning – Clustering – Density estimation – Dimensionality Reduction • Supervised Learning – Classification – Regression Also considered as Data mining or Pattern Recognition problems

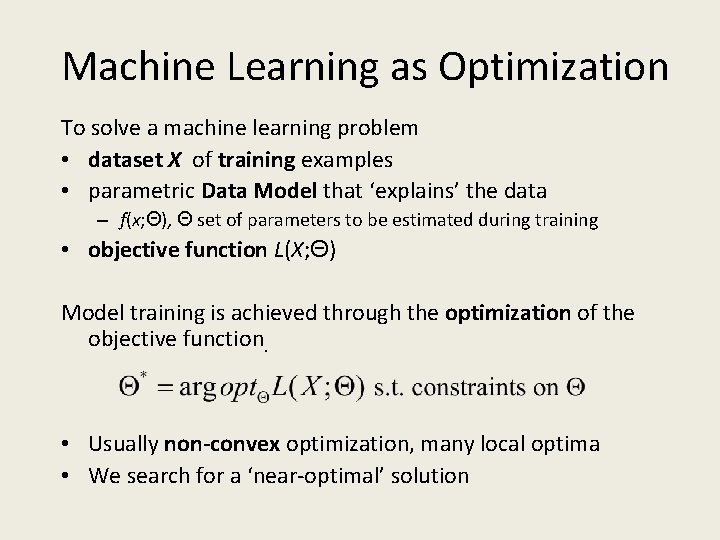

Machine Learning as Optimization To solve a machine learning problem • dataset X of training examples • parametric Data Model that ‘explains’ the data – f(x; Θ), Θ set of parameters to be estimated during training • objective function L(X; Θ) Model training is achieved through the optimization of the objective function. • Usually non-convex optimization, many local optima • We search for a ‘near-optimal’ solution

Machine Learning as Optimization • Local search algorithms (gradient descent, BFGS, EM, k-means) • Performance depends on the initialization of parameters. • Typical solution: multiple (random) restarts – multiple local search runs from (random) initializations – Keep the solution of the best run • Weakenesses: – – poor solutions for large models How many runs? How to initialize? non-determinism: non-repeatability, difficulty in comparing different methods. • An alternative approach (in some cases): – incremental model training

Building Blocks formulation • Many popular Data Models can be written as a combination (or simply as a set) of “Building Blocks” – Number of BBs = model order • The combination function may also include parameters (w 1, …, w. M) • Set of model parameters: • Examples – – k-means Clustering: Β=cluster centers, L=clustering error Mixture Models: B=component densities, L=Likelihood FF Neural Networks: B=sigmoidal or RBF hidden units, L=LS error Kernel Models: B=basis functions (kernels) , L=loss functions

Building Blocks • In some models building blocks are fixed a priori. – Only optimization w. r. t to the combination weights wi is required (convex problem in many cases, eg SVM). • In the general case all the BB parameters θi should be learnt. • Non-convex optimization problem – many local optima – local search methods – dependence on initialization of ΘM • Resort to incremental training

Incremental training • The incremental (greedy) approach can offer a simple and effective solution to the random restarts problem in training ML models. • Incremental methods are based on the following assumption: – We can obtain a ‘near-optimal’ model with k BBs by exploiting a ‘near-optimal’ model with (k-1) BBs. • Method: Starting with k=1 BB, incremental methods sequentially add one BB at each step until M BBs have been added.

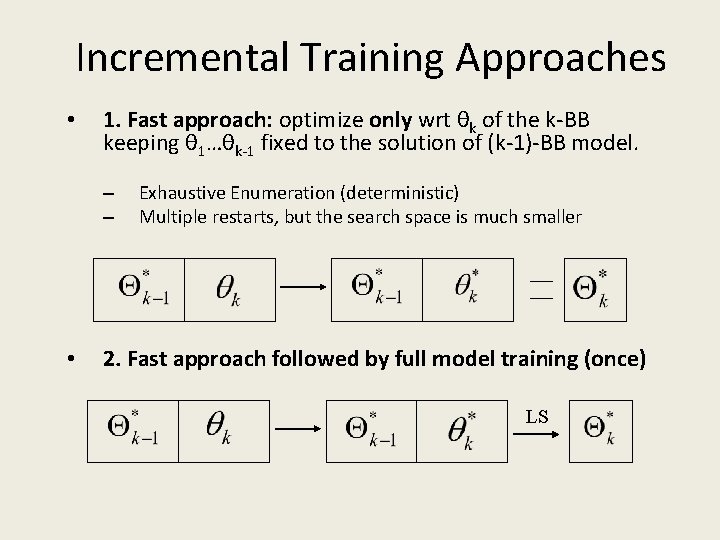

Incremental Training Approaches • 1. Fast approach: optimize only wrt θk of the k-ΒΒ keeping θ 1…θk-1 fixed to the solution of (k-1)-BB model. – – • Exhaustive Enumeration (deterministic) Multiple restarts, but the search space is much smaller 2. Fast approach followed by full model training (once) LS

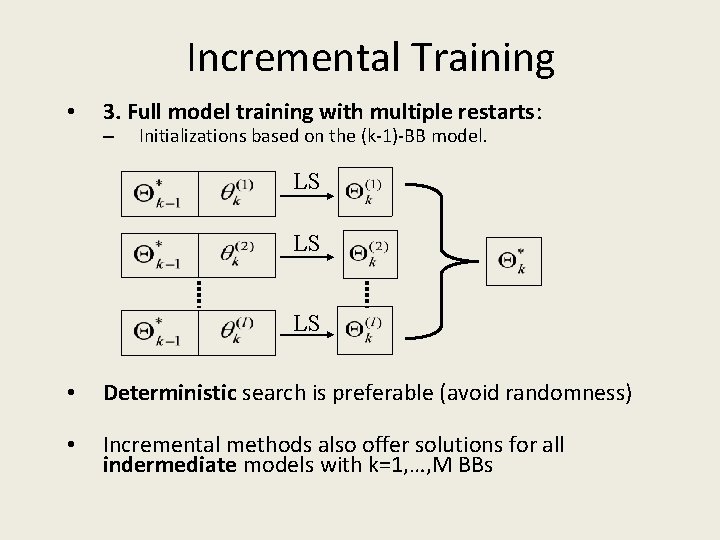

Incremental Training • 3. Full model training with multiple restarts: – Initializations based on the (k-1)-BB model. LS LS LS • Deterministic search is preferable (avoid randomness) • Incremental methods also offer solutions for all indermediate models with k=1, …, M BBs

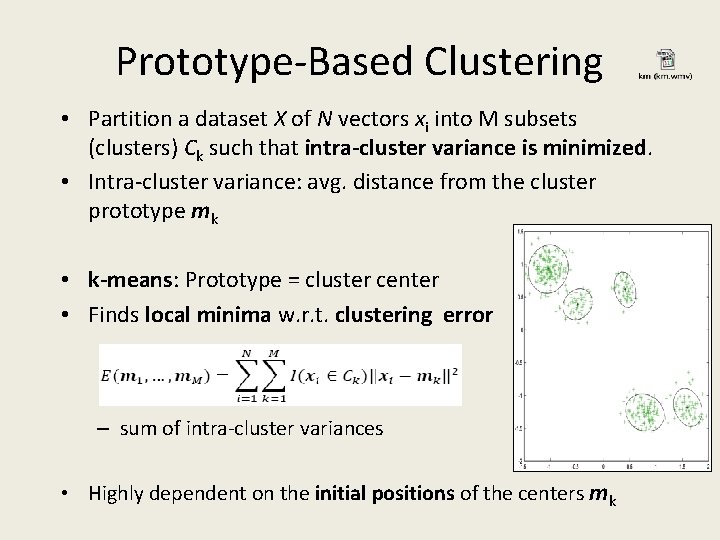

Prototype-Based Clustering • Partition a dataset X of N vectors xi into M subsets (clusters) Ck such that intra-cluster variance is minimized. • Intra-cluster variance: avg. distance from the cluster prototype mk • k-means: Prototype = cluster center • Finds local minima w. r. t. clustering error – sum of intra-cluster variances • Highly dependent on the initial positions of the centers mk

Global k-means • Incremental, deterministic clustering algorithm that runs k -Means several times • Finds near-optimal solutions wrt clustering error • Idea: a near-optimal solution for k clusters can be obtained by running k-means from an initial state – the k-1 centers are initialized from a near-optimal solution of the (k-1) -clustering problem – the k-th center is initialized at some data point xn (which? ) • Consider all possible initializations (one for each xn)

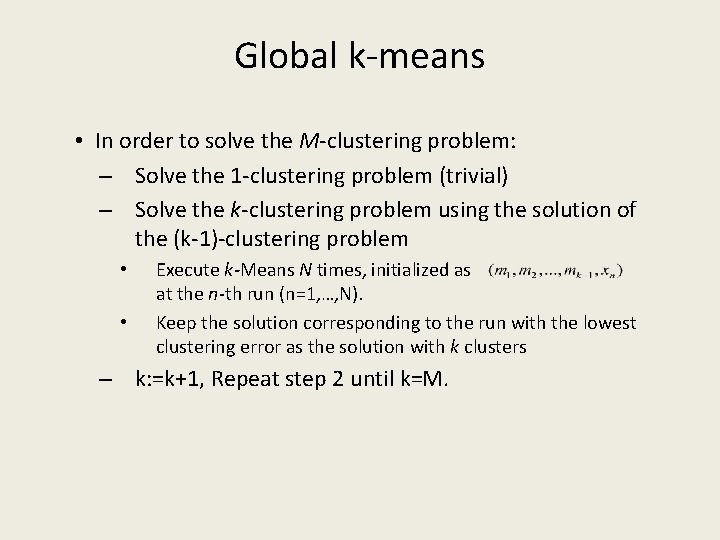

Global k-means • In order to solve the M-clustering problem: – Solve the 1 -clustering problem (trivial) – Solve the k-clustering problem using the solution of the (k-1)-clustering problem • • Execute k-Means N times, initialized as at the n-th run (n=1, …, N). Keep the solution corresponding to the run with the lowest clustering error as the solution with k clusters – k: =k+1, Repeat step 2 until k=M.

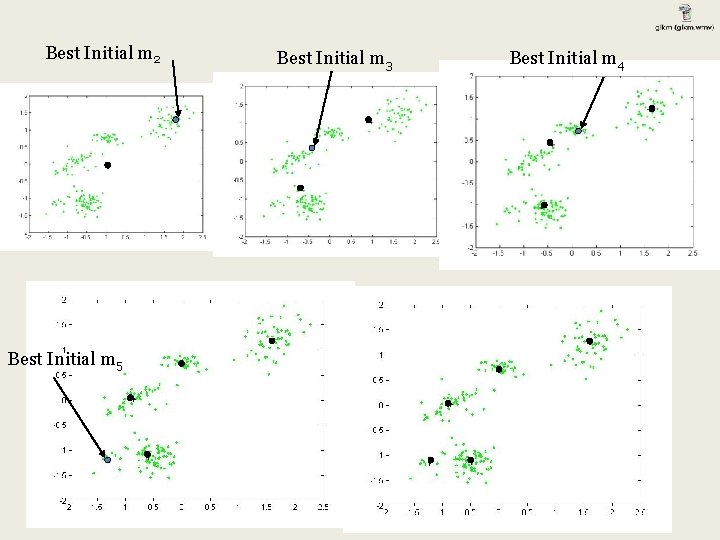

Best Initial m 2 Best Initial m 5 Best Initial m 3 Best Initial m 4

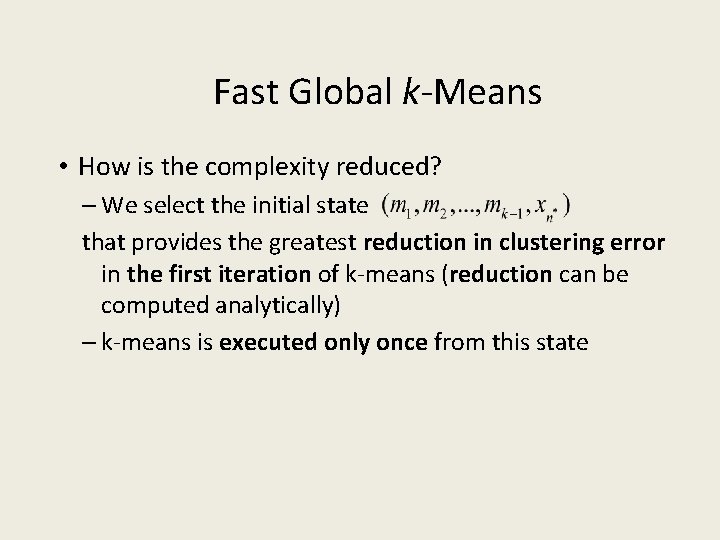

Fast Global k-Means • How is the complexity reduced? – We select the initial state that provides the greatest reduction in clustering error in the first iteration of k-means (reduction can be computed analytically) – k-means is executed only once from this state

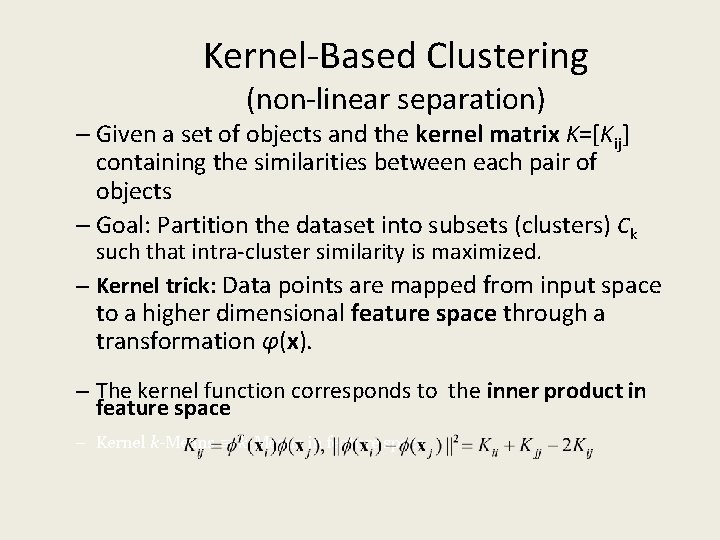

Kernel-Based Clustering (non-linear separation) – Given a set of objects and the kernel matrix K=[Kij] containing the similarities between each pair of objects – Goal: Partition the dataset into subsets (clusters) Ck such that intra-cluster similarity is maximized. – Kernel trick: Data points are mapped from input space to a higher dimensional feature space through a transformation φ(x). – The kernel function corresponds to the inner product in feature space – Kernel k-Means ≡ k-Means in feature space

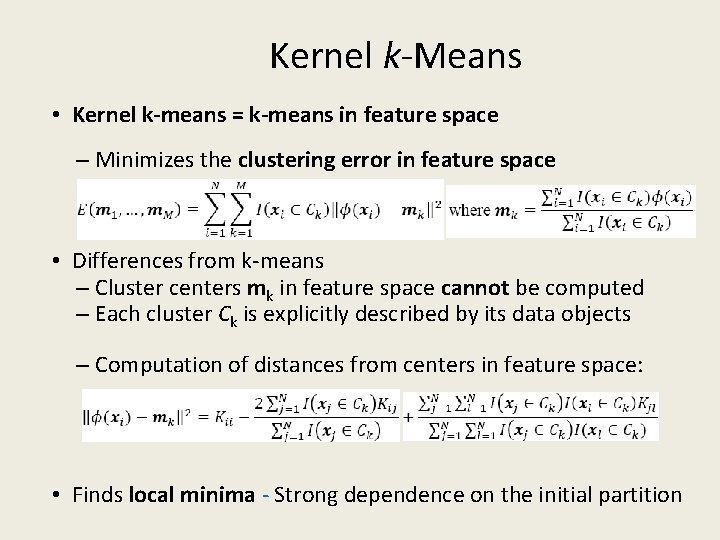

Kernel k-Means • Kernel k-means = k-means in feature space – Minimizes the clustering error in feature space • Differences from k-means – Cluster centers mk in feature space cannot be computed – Each cluster Ck is explicitly described by its data objects – Computation of distances from centers in feature space: • Finds local minima - Strong dependence on the initial partition

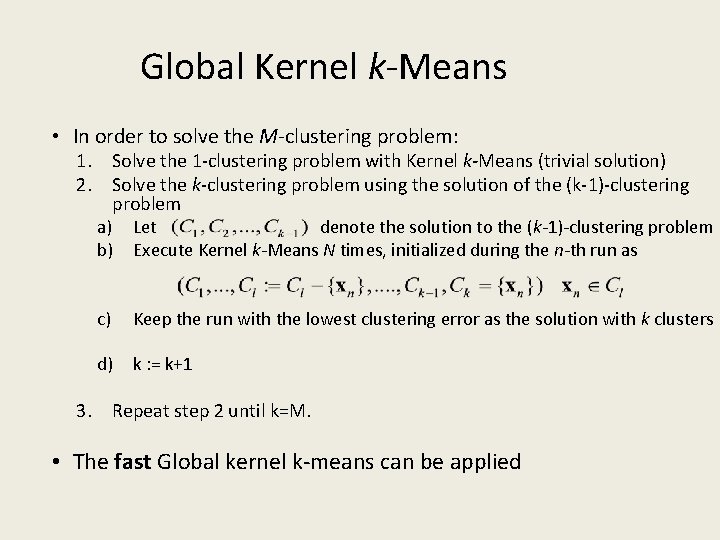

Global Kernel k-Means • In order to solve the M-clustering problem: 1. Solve the 1 -clustering problem with Kernel k-Means (trivial solution) 2. Solve the k-clustering problem using the solution of the (k-1)-clustering problem a) Let denote the solution to the (k-1)-clustering problem b) Execute Kernel k-Means N times, initialized during the n-th run as c) Keep the run with the lowest clustering error as the solution with k clusters d) k : = k+1 3. Repeat step 2 until k=M. • The fast Global kernel k-means can be applied

Best Initial C 2 Empty circles: optimal initialization of the cluster to be added Best Initial C 4 Best Initial C 3

Global Kernel k-means - Applications • MRI image segmentation • Key frame extraction - shot clustering

Mixture Models • Probability density estimation: estimate the density function model f(x) that generated a given dataset X={x 1, …, x. N} • Mixture Models – M pdf components φj(x), – mixing weights: π1, π2, …, πM (priors) • Gaussian Mixture Model (GMM): φj = N(μj, Σj)

GMM (graphical model) πj Hidden variable observation

GMM examples GMMs be used for density estimation (like histograms) or clustering 23 Cluster memberhsip probability

Mixture Model training • Given a dataset X={x 1, …, x. N} and a GMM f (x; Θ) • Likelihood: • GMM training: log-likelihood maximization • Expectation-maximization (EM) algorithm – Applicable when posterior P(Z|X) can be computed

EM for Mixture Models • E-step: compute expectation of hidden variables given the observations: • M-step: maximize expected complete likelihood

EM for GMM (M-step) Mean Covariance Mixing weights

EM Local Maxima

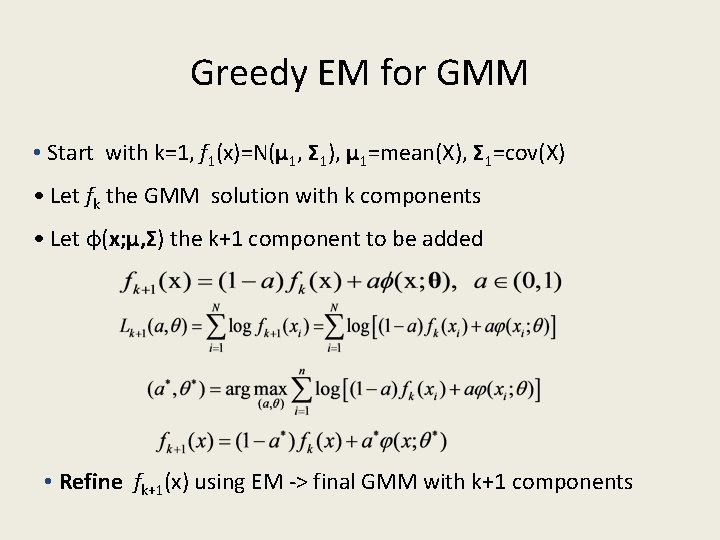

Greedy EM for GMM • Start with k=1, f 1(x)=N(μ 1, Σ 1), μ 1=mean(X), Σ 1=cov(X) • Let fk the GMM solution with k components • Let φ(x; μ, Σ) the k+1 component to be added • Refine fk+1(x) using EM -> final GMM with k+1 components

Greedy EM for GMM • Σ=σΙ, • Given θ=(μ, σ), α* can be computed analytically - Remark: the new component should be placed in a data region - Deterministic approach

Greedy-EM applications • Image modeling for content-based retrieval and relevance feedback • Motif discovery in sequences (discrete data, mixture of multinomials) • Times series clustering (mixture of regression models)

Bayesian GMM Typical approach: Priors on all GMM parameters

Bayesian GMM training • Parameters Θ become (hidden) RVs: H={Z, Θ} • Objective: Compute Posteriors P(Z|X), P(Θ|X) (intractable) • Approximations • Sampling (RJMCMC) • MAP approach • Variational approach • MAP approximation • mode of the posterior P(Θ|Χ) (MAP-EM) • compute P(Z|X, ΘMAP)

Variational Inference (no parameters) • Computes approximation q(H) of the true posterior P(H|X) • For any pdf q(H): • Variational Bound (F) maximization • Mean field approximation • System of equations

Variational Inference (with parameters) • X data, H hidden RVs, Θ parameters • For any pdf q(H; Θ): • Maximization of Variational Bound F • Variational EM • VE-Step: • VM-Step:

Bayesian GMM training • Bayesian GMMs • mean field variational approximation • tackles the covariance singularity problem • requires to specify the parameters of the priors • Estimating the number of components: • Start with a large number of components • Let the training process prune redundant components (πj=0) • Dirichlet prior on πj prevents component prunning

Bayesian GMM without prior on π • Mixing weights πj are parameters (remove Dirichlet prior) • Training using Variational EM Method (C-B) • Start with a large number of components • Perform variational maximization of the marginal likelihood • Prunning of redundant components (πj=0) • Only components that fit well to the data are finally retained

Bayesian GMM (C-B) • C-B method: Results depend on • the number of initial components • initialization of components • specification of the scale matrix V of the Wishart prior p(T)

Incremental Bayesian GMM • Solution: incremental training using component splitting • Local scale matrix V: based on the variance of the component to be splitted • Modification of the Bayesian GMM is needed • Divide the components as ‘fixed’ or ‘free’ • Prior on the weights of ‘fixed’ components (retained) • No prior on the weights of ‘free’ components (may be eliminated) • Prunning restricted among ‘free’ components

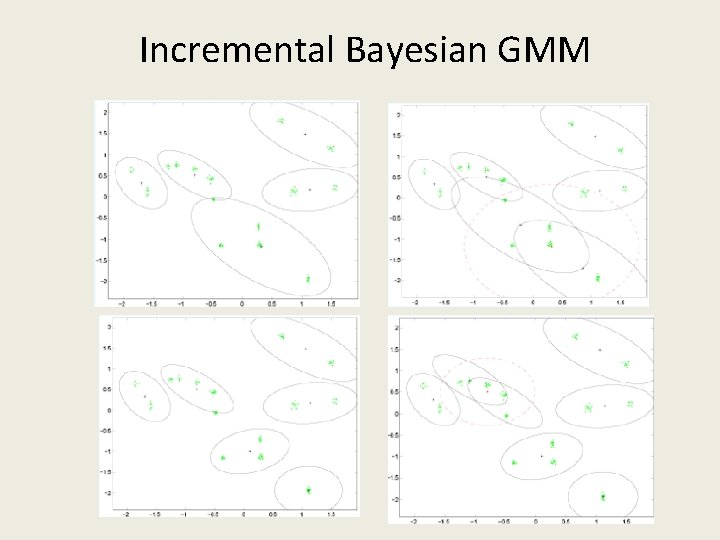

Incremental Bayesian GMM

Incremental Bayesian GMM • Start with k=1 component. • At each step: • select a component j • split component j in two subcomponents • set the scale matrix V analogous to Σj • apply Variational EM considering the two subcomponents as free and the rest components as fixed • either the two components will be retained and adjusted • or one of them will be eliminated and the other one will recover the original component (before split) • until all components have been tested for split unsuccessfully

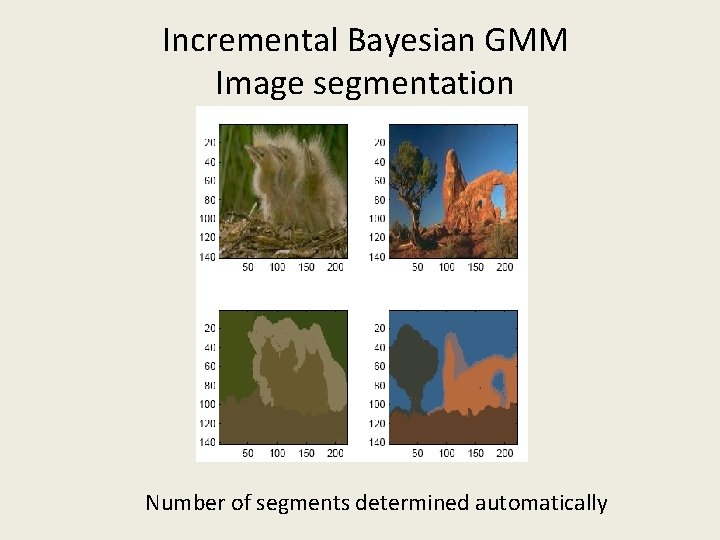

Incremental Bayesian GMM Image segmentation Number of segments determined automatically

Incremental Bayesian GMM Image segmentation Number of segments determined automatically

Relevance Vector Machine • RVM model (Tipping 2001) – φi(x)=K(x, xi) (same kernel function ‘centered’ on training example xi) • Fixed pool of N basis functions – Initially M=N basis functions: – Bayesian inference with sparse prior on w prune redundant basis functions – Οnly few basis functions are retained (relevance vectors)

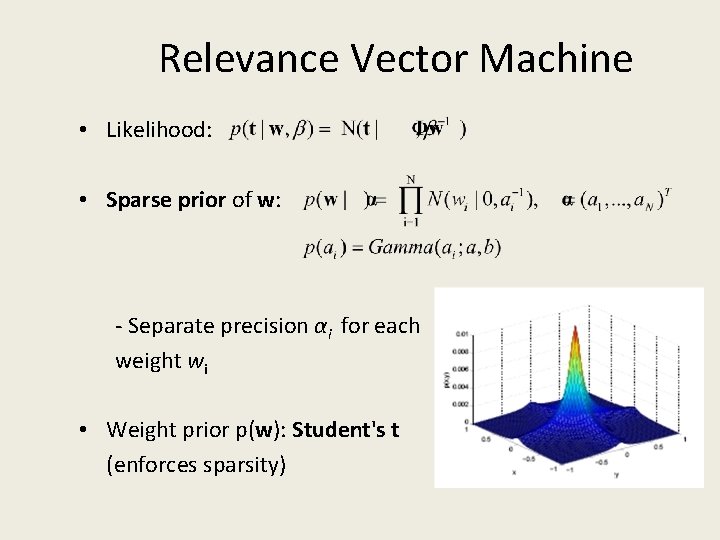

Relevance Vector Machine • Likelihood: • Sparse prior of w: - Separate precision αi for each weight wi • Weight prior p(w): Student's t (enforces sparsity)

RVM Training • Maximize Marginal Likelihood • Use Expectation Maximization (EM) Algorithm: – E-step: – M-step: • Sparsity: Most

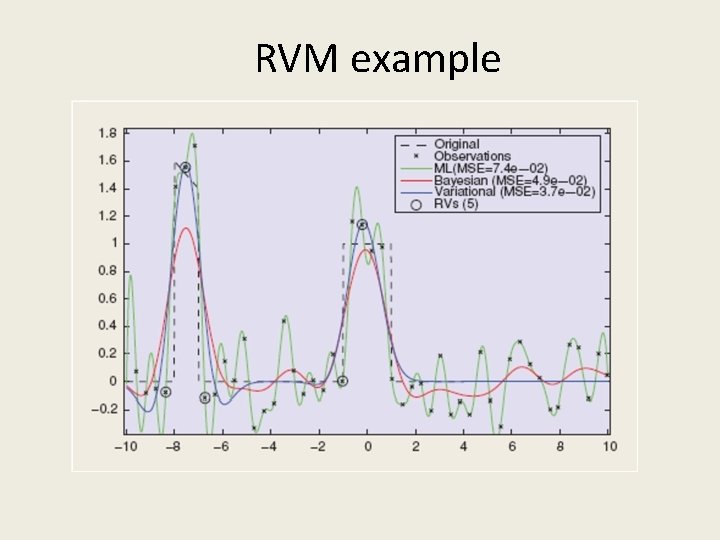

RVM example

RVM Incremental Training • Incrementally add basis functions starting with empty model (Faul & Tipping 2003) Optimization w. r. t a single parameter αi • Estimation of optimal αi analytical: •

RVM Incremental Training • At each iteration of the training algorithm – Compute optimal αi for all Ν basis functions – Select the best basis function φi(x) from the pool of N candidates – Perform one of the following: • Add this basis function to the current model • Update αi (if it is included in the model) • Remove this basis function (if it is included in the model and αi =∞)

RVM Limitations • How to specify kernel parameter? (e. g. scale of RBF kernel) – Typical solution: Cross-validation • Computationally expensive • Cannot be used when many parameters must be adjusted • How to model non-stationary functions? – RVM uses the same kernel for whole input space

Adaptive RVM with Kernel Learning (a. RVM) • Assume different parameters θi for each φ(x; θi) • RBF kernel: center mi and scale hi are parameters • Generally mi different from training points xn • Employ incremental RVM training • Typical incremental RVM: select from a fixed set of N basis functions the best basis function to add • a. RVM: select the basis function φ(x; θi) to add by optimizing marginal likelihood sl(αi, θi) w. r. t (αi, θi)

Sparsity Controlling Prior • a. RVM model is more flexible than typical RVM • Employ a “stronger” prior on weights to enforce sparsity • “Sparsity controlling prior” [Schmolck & Everson 2007] – c= 0, typical RVM – c=log(N) (typical value in experiments) • Prior can be written as: • Likelihood is modified due to the new prior

Learning αi, θi • Maximize w. r. t to αi, θi • Alternate maximization steps • Optimal αi (for fixed θi) : – for c=0 we obtain the incremental RVM update

Learning αi, θi • Maximize w. r. t to θi (αi fixed) – Use quasi-Newton BFGS method (analytical derivatives) – Perform multiple restarts from several initial values of θi and keep solution with best likelihood sl

a. RVM Learning Algorithm Start from an empty model. At each iteration: 1. Optimize the parameters (αi, θi) of a new basis function φ(x; θi) and add it to the model 2. Train the current model: 1. Update parameters (θi) of all current basis functions (BFGS updates) 2. Update parameters αi and β (noise precision) 3. Delete redundant basis functions (αi>1012) 3. Repeat steps 1 -2 until convergence The method can be used with any differential form of basis function φ(x; θi)

a. RVM Example (RBF kernel) • Demos • Tables

a. RVM Example (RBF kernel) • Demos • Tables

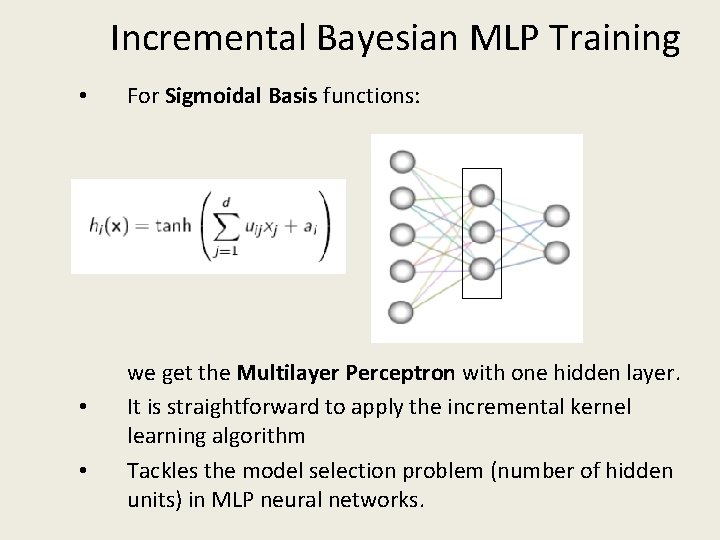

Incremental Bayesian MLP Training • • • For Sigmoidal Basis functions: we get the Multilayer Perceptron with one hidden layer. It is straightforward to apply the incremental kernel learning algorithm Tackles the model selection problem (number of hidden units) in MLP neural networks.

Incremental Learning: Current Research • • The dynamic nature of incremental training methods makes them particularly suitable for machine learning using stream data. Sparse & high dimensional data: text clustering Multiview-clustering • • Theoretical support for the successful empirical performance. Submodular cost function (www. submodularity. org) • – – • The addition of a building block in a model M provides greater cost improvement than adding the same building block in a larger model M’ that includes M. For submodular functions the simple greedy heuristic performs ‘surprinsingly’ well (better than 0. 65* maximum). Challenge: prove that machine learning objective functions are (approximately) submodular (proved for k-medoids, feature selection, dictionary learning).

Thank you Collaborators N. Vlassis (Global k-means, Greedy EM) G. Tzortzis (Global kernel k-means) C. Constantinopoulos (Bayesian GMM) A. Kalogeratos (Dip-means) D. Tzikas, N. Galatsanos (a. RVM) Matlab code available for all methods
