Incremental Garbage Collection Baker’s Incremental Copying Collector Nels Beckman nbeckman@scs. cmu. edu
Background • Two forms of memory: – From Space: Contains the ‘white’ colored objects. – To Space: Contains the ‘black’ and ‘grey’ colored objects.
When it’s ‘time to garbage collect’ • Move the objects referenced by the roots into the ‘to space’ • These roots include registers, global variables, stack, and instruction pointer Root From Space Root To Space
When it’s ‘time to garbage collect’ • Move the objects referenced by the roots into the ‘to space’ • These roots include registers, global variables, stack, and instruction pointer Root To Space From Space (Forwarding pointers)
Until All Garbage is Collected • Mutator and Garbage Collector threads alternate

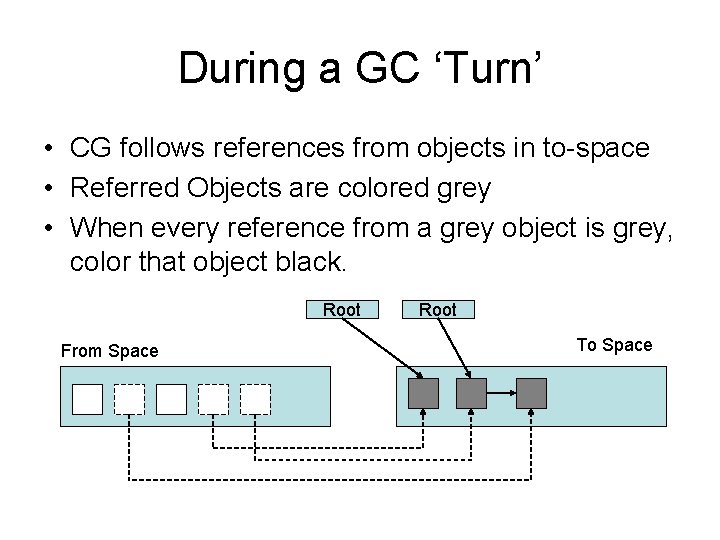

During a GC ‘Turn’ • CG follows references from objects in to-space • Referred Objects are colored grey • When every reference from a grey object is grey, color that object black. Root From Space Root To Space
During a GC ‘Turn’ • CG follows references from objects in to-space • Referred Objects are colored grey • When every reference from a grey object is grey, color that object black. Root From Space Root To Space
During a Mutator ‘Turn’ • If mutator tries to get a reference to a ‘white’ object, that object is copied to the ‘from space. ’ • This way, the mutator never has a reference to a white object. Root From Space Root To Space
During a Mutator ‘Turn’ • If mutator tries to get a reference to a ‘white’ object, that object is copied to the ‘from space. ’ • This way, the mutator never has a reference to a white object. Root From Space Root To Space

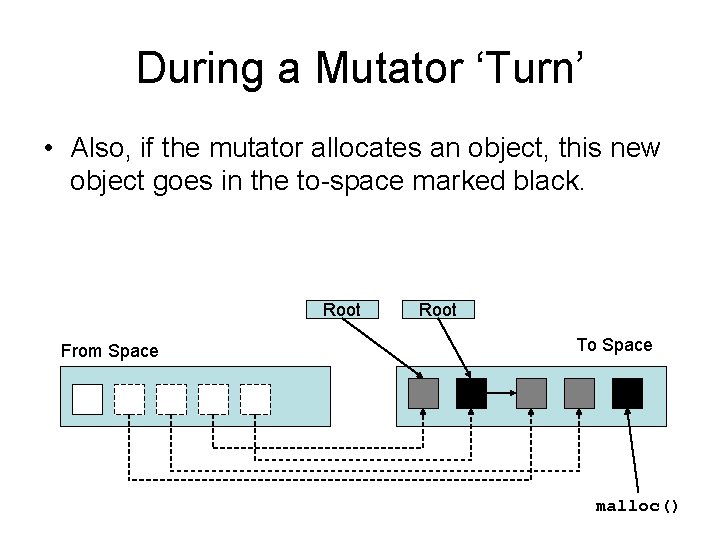

During a Mutator ‘Turn’ • Also, if the mutator allocates an object, this new object goes in the to-space marked black. Root From Space Root To Space malloc()
Afterwards… • When all objects in the to-space are ‘black’, ‘white’ objects can be reclaimed. Root From Space Root To Space
Summary • Baker’s incremental copying algorithm can be used for real-time garbage collection, because GC and mutator threads are intertwined (This algorithm uses a read barrier). • Caveats: – If mutator tries to reference many white objects in a row, performance slows because of all the copying. – Garbage Collection must finish before tospace is filled with newly allocated objects.
