Inconsistencies between monthly mean longwave cloud forcing and dynamical fields from reanalyses Richard Allan ESSC, Reading University Mark Ringer Hadley Centre, Met Office

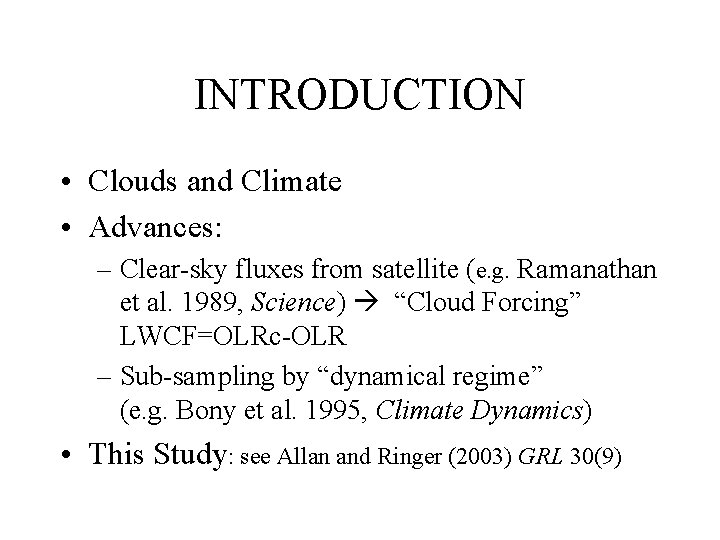

INTRODUCTION • Clouds and Climate • Advances: – Clear-sky fluxes from satellite (e. g. Ramanathan et al. 1989, Science) “Cloud Forcing” LWCF=OLRc-OLR – Sub-sampling by “dynamical regime” (e. g. Bony et al. 1995, Climate Dynamics) • This Study: see Allan and Ringer (2003) GRL 30(9)

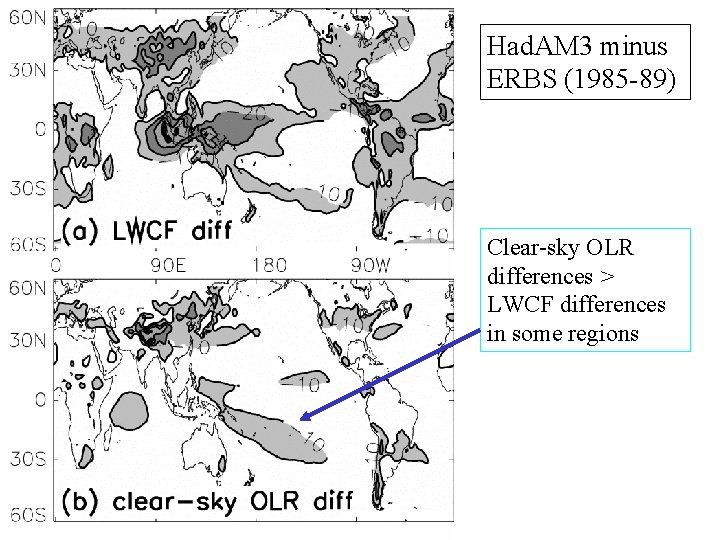

Had. AM 3 minus ERBS (1985 -89) Clear-sky OLR differences > LWCF differences in some regions
Illustration of clear-sky sampling bias using Had. AM 3 3 -hourly data

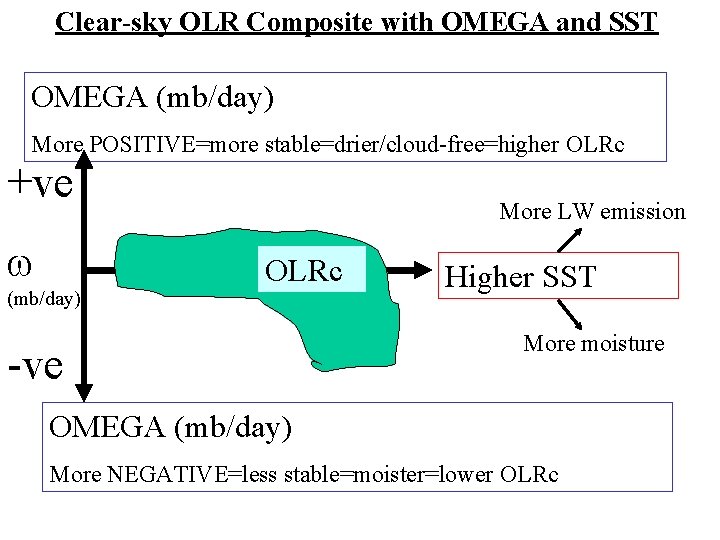

Clear-sky OLR Composite with OMEGA and SST OMEGA (mb/day) More POSITIVE=more stable=drier/cloud-free=higher OLRc +ve w (mb/day) More LW emission OLRc -ve Higher SST More moisture OMEGA (mb/day) More NEGATIVE=less stable=moister=lower OLRc

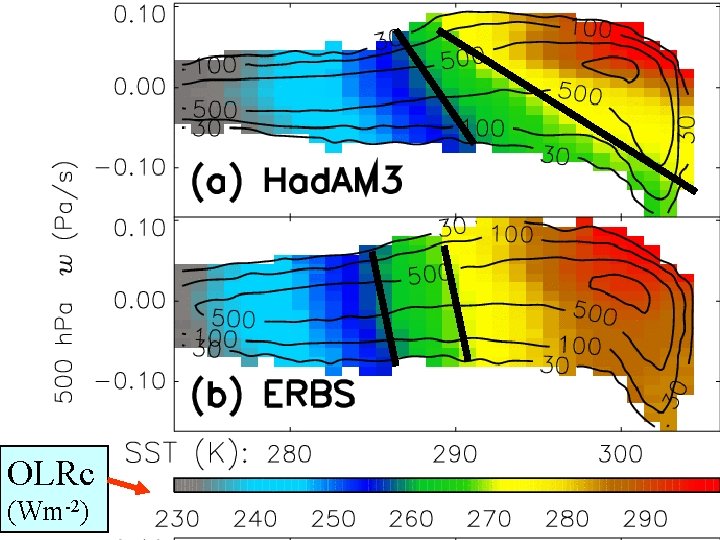

OLRc (Wm-2)
DOLRc (Wm-2)
Using ERA-40 Daily data to illustrate clear-sky sampling bias of CERES data
Using ERA 40 clearsky OLR to evaluate dynamical regimes ERA 40 -CERES similar ERA 40 < CERES ERA 40 minus CERES clear-sky OLR (January-August 1998)

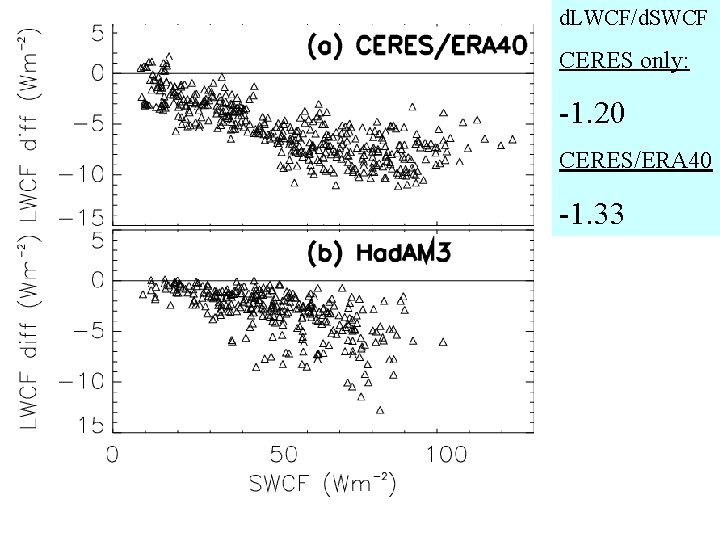

d. LWCF/d. SWCF CERES only: -1. 20 CERES/ERA 40 -1. 33
CONCLUSIONS • Model Evaluation using satellite data – Sub-sampling of dynamical regimes – Clear-sky radiation • Clear-sky radiation measurements preferentially sample more stable, drier atmospheric profiles • Subsampling by vertical motion exagerates clearsky sampling bias (~15 Wm-2) • Use of reanalysis data (ERA 40) may improve interpretation of cloud radiative effect • Satellite LWCF may overestimate degree of cancellation between LWCF and SWCF
