Incident Mapping Suite IMS Map 360 by Micro

Incident Mapping Suite – IMS Map 360 by Micro. Survey with Laser Technology Mapping Systems 1 Confidential – Internal Use Only

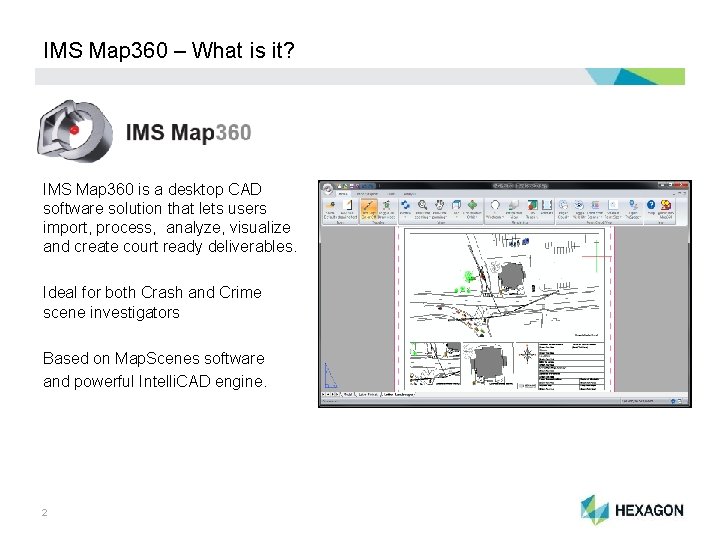

IMS Map 360 – What is it? IMS Map 360 is a desktop CAD software solution that lets users import, process, analyze, visualize and create court ready deliverables. Ideal for both Crash and Crime scene investigators Based on Map. Scenes software and powerful Intelli. CAD engine. 2

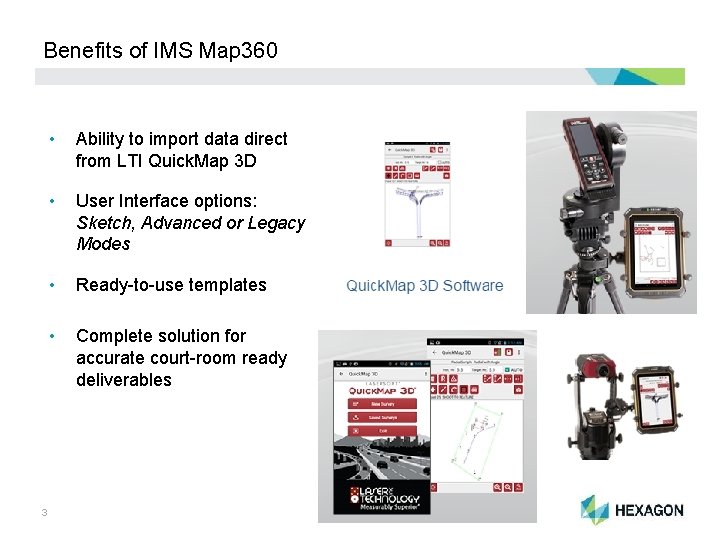

Benefits of IMS Map 360 3 • Ability to import data direct from LTI Quick. Map 3 D • User Interface options: Sketch, Advanced or Legacy Modes • Ready-to-use templates • Complete solution for accurate court-room ready deliverables

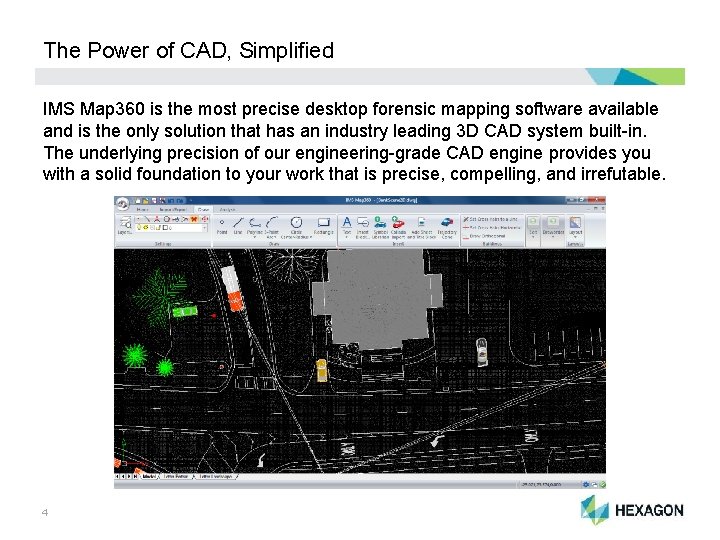

The Power of CAD, Simplified IMS Map 360 is the most precise desktop forensic mapping software available and is the only solution that has an industry leading 3 D CAD system built-in. The underlying precision of our engineering-grade CAD engine provides you with a solid foundation to your work that is precise, compelling, and irrefutable. 4

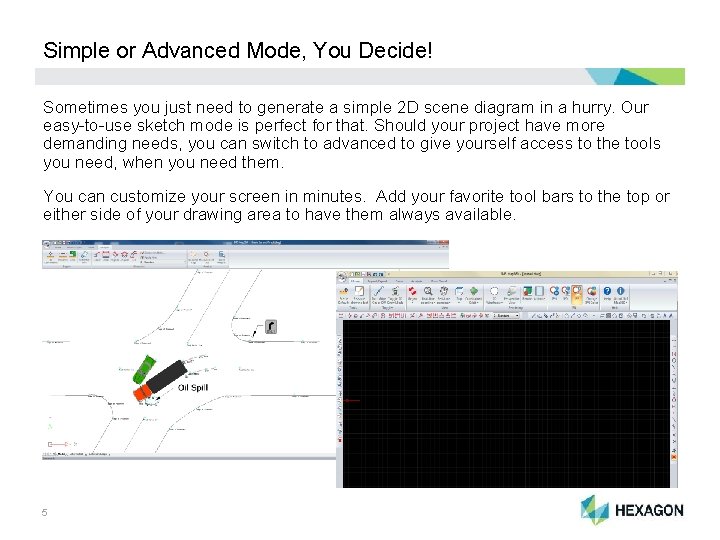

Simple or Advanced Mode, You Decide! Sometimes you just need to generate a simple 2 D scene diagram in a hurry. Our easy-to-use sketch mode is perfect for that. Should your project have more demanding needs, you can switch to advanced to give yourself access to the tools you need, when you need them. You can customize your screen in minutes. Add your favorite tool bars to the top or either side of your drawing area to have them always available. 5

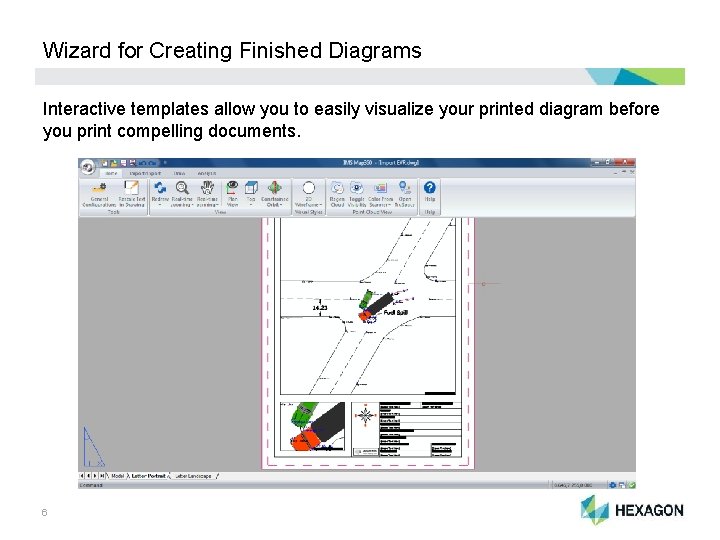

Wizard for Creating Finished Diagrams Interactive templates allow you to easily visualize your printed diagram before you print compelling documents. 6

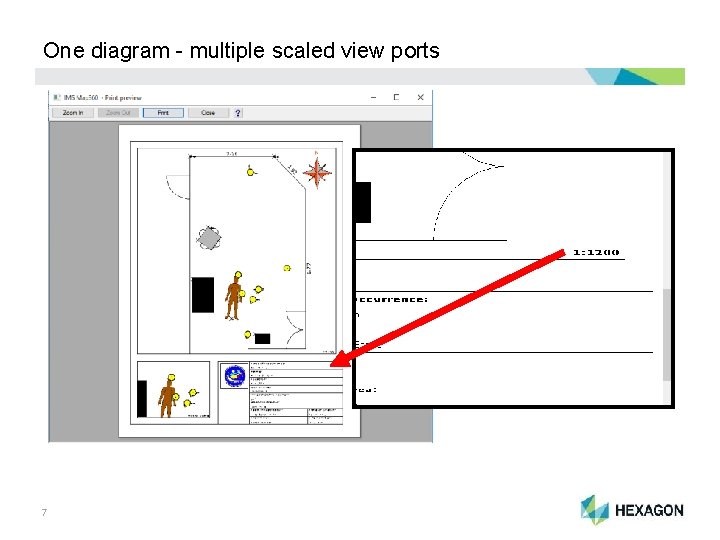

One diagram - multiple scaled view ports 7

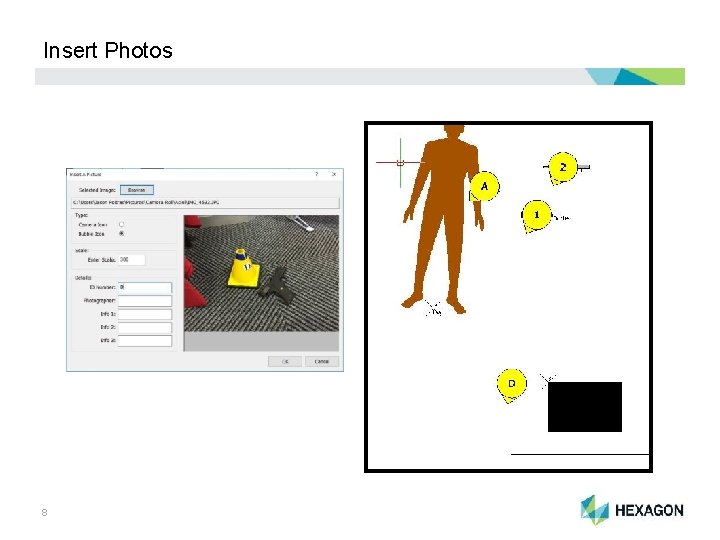

Insert Photos 8

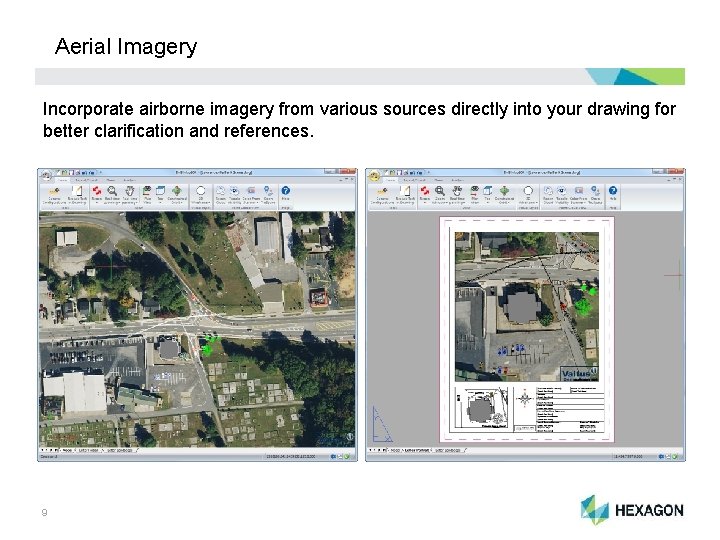

Aerial Imagery Incorporate airborne imagery from various sources directly into your drawing for better clarification and references. 9

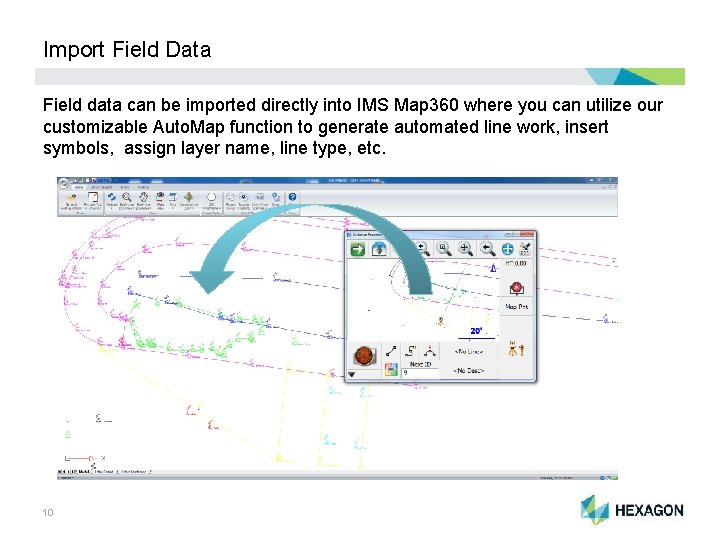

Import Field Data Field data can be imported directly into IMS Map 360 where you can utilize our customizable Auto. Map function to generate automated line work, insert symbols, assign layer name, line type, etc. 10

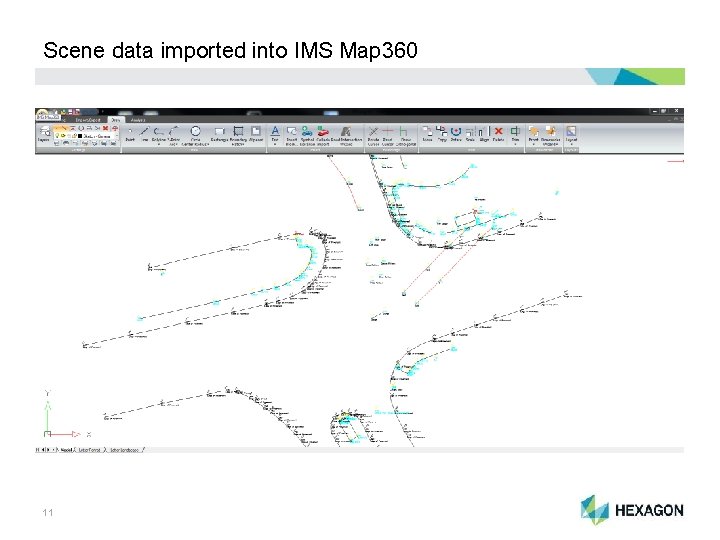

Scene data imported into IMS Map 360 Total Station Import Example 11

Align, Scale and Edit Symbols 12

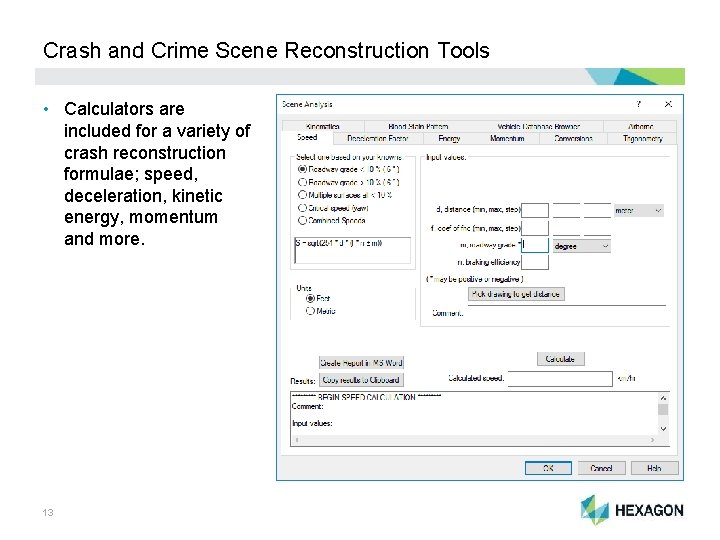

Crash and Crime Scene Reconstruction Tools • Calculators are included for a variety of crash reconstruction formulae; speed, deceleration, kinetic energy, momentum and more. 13

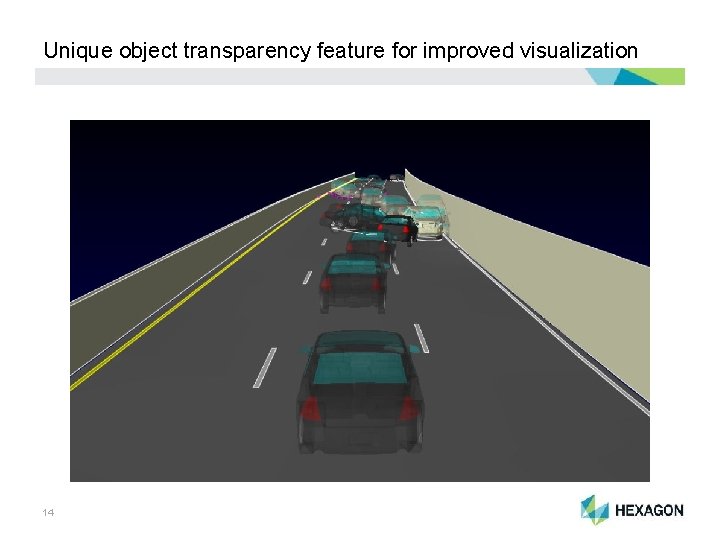

Unique object transparency feature for improved visualization 14

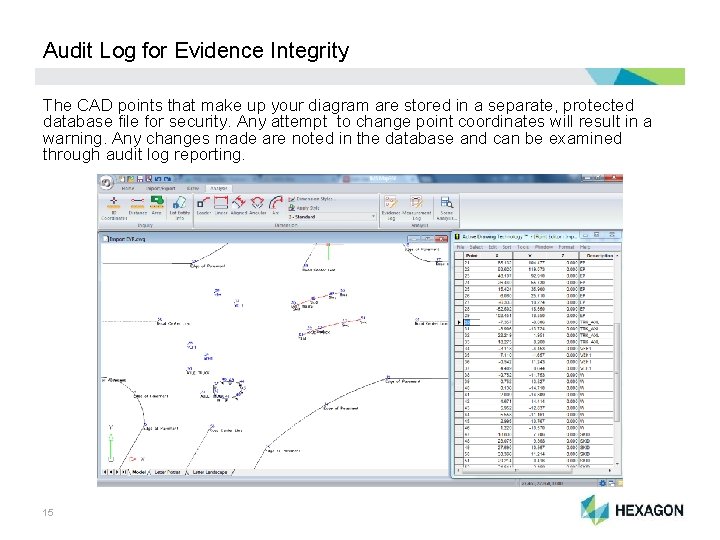

Audit Log for Evidence Integrity The CAD points that make up your diagram are stored in a separate, protected database file for security. Any attempt to change point coordinates will result in a warning. Any changes made are noted in the database and can be examined through audit log reporting. 15

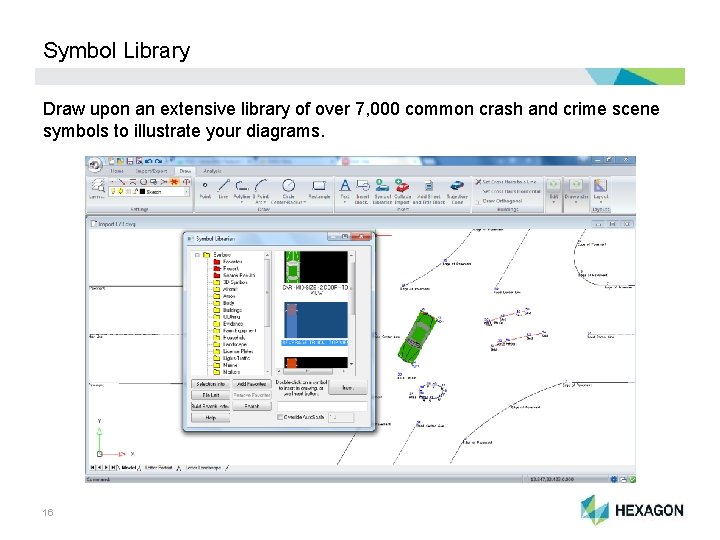

Symbol Library Draw upon an extensive library of over 7, 000 common crash and crime scene symbols to illustrate your diagrams. 16

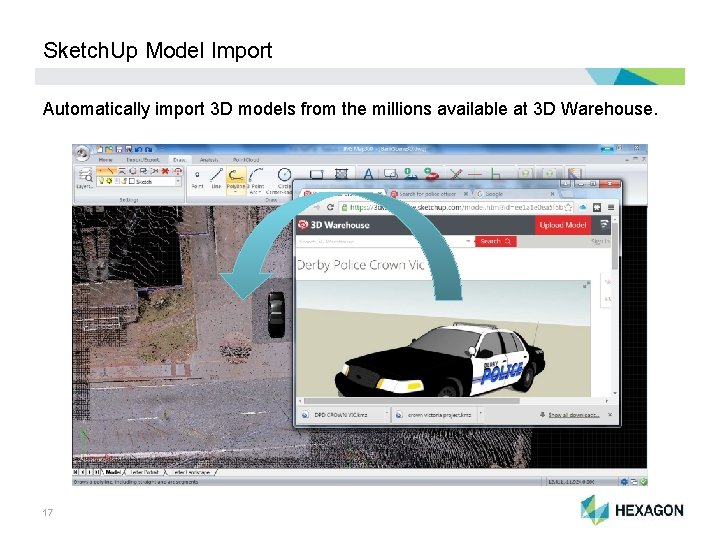

Sketch. Up Model Import Automatically import 3 D models from the millions available at 3 D Warehouse. 17

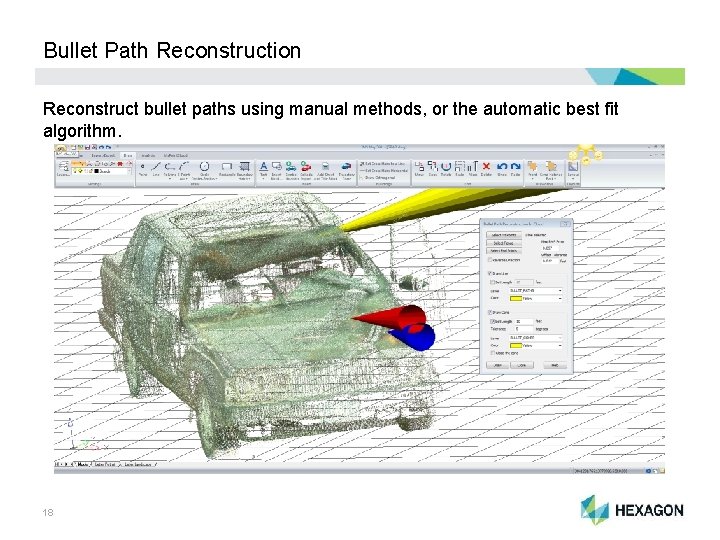

Bullet Path Reconstruction Reconstruct bullet paths using manual methods, or the automatic best fit algorithm. 18

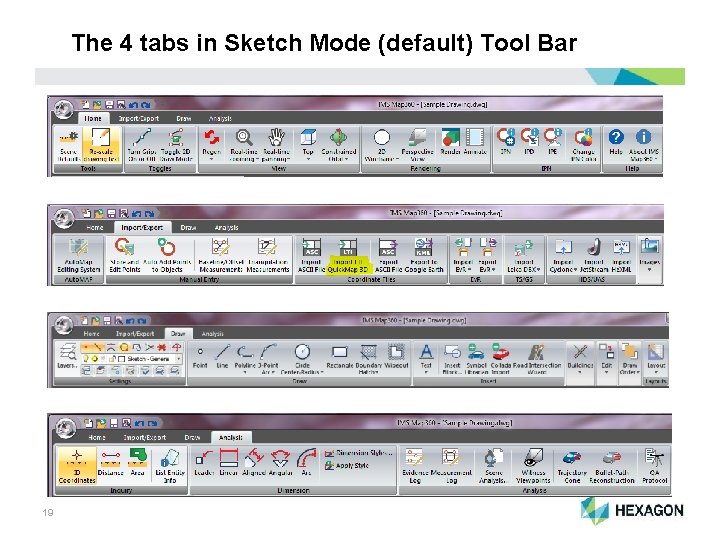

The 4 tabs in Sketch Mode (default) Tool Bar 19 Simple Sketch

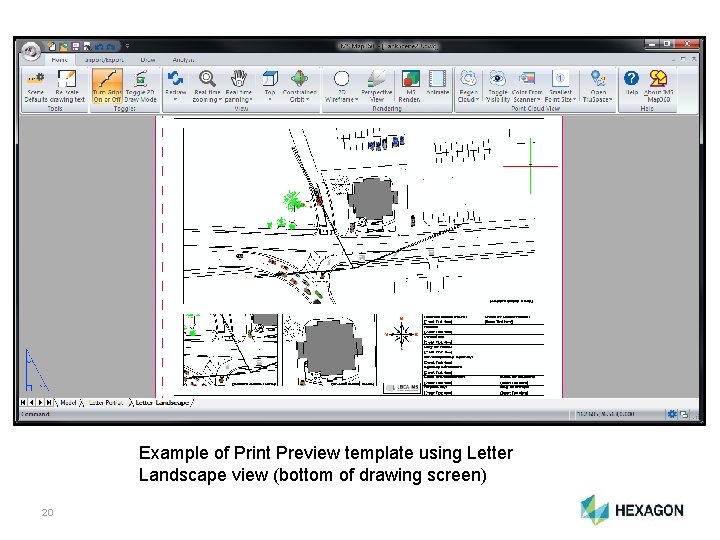

Example of Print Preview template using Letter Finished Exhibit Landscape view (bottom of drawing screen) 20

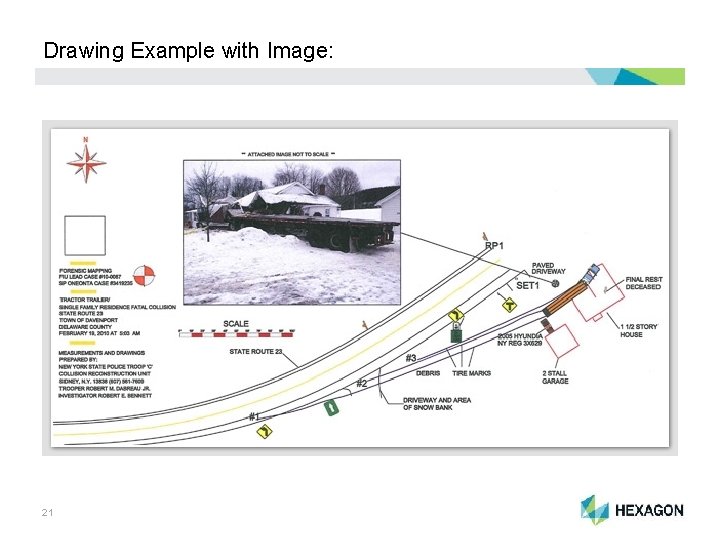

Drawing Example with Image: 21

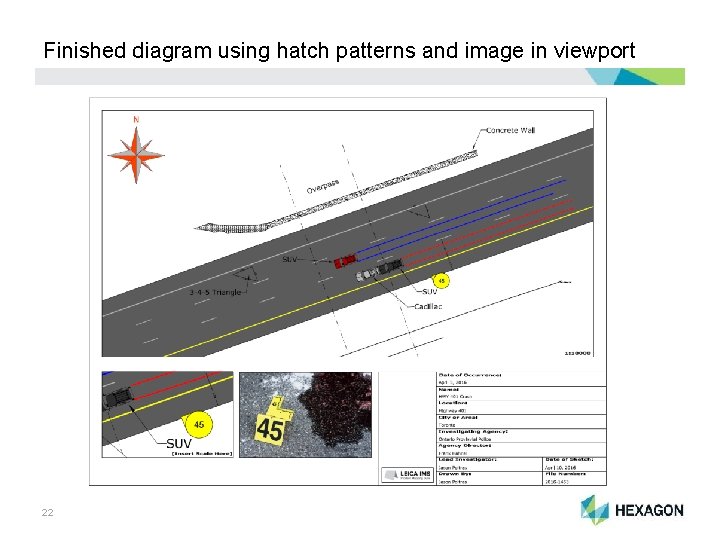

Finished diagram using hatch patterns and image in viewport 22

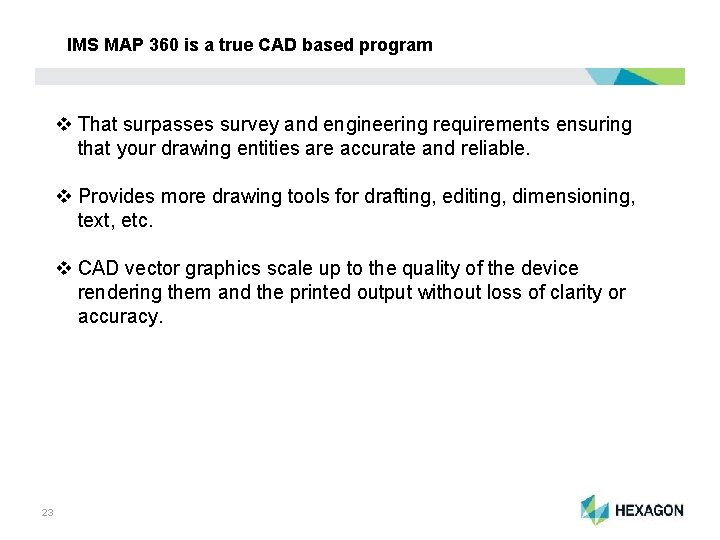

IMS MAP 360 is a true CAD based program v That surpasses survey and engineering requirements ensuring that your drawing entities are accurate and reliable. v Provides more drawing tools for drafting, editing, dimensioning, text, etc. v CAD vector graphics scale up to the quality of the device rendering them and the printed output without loss of clarity or accuracy. 23

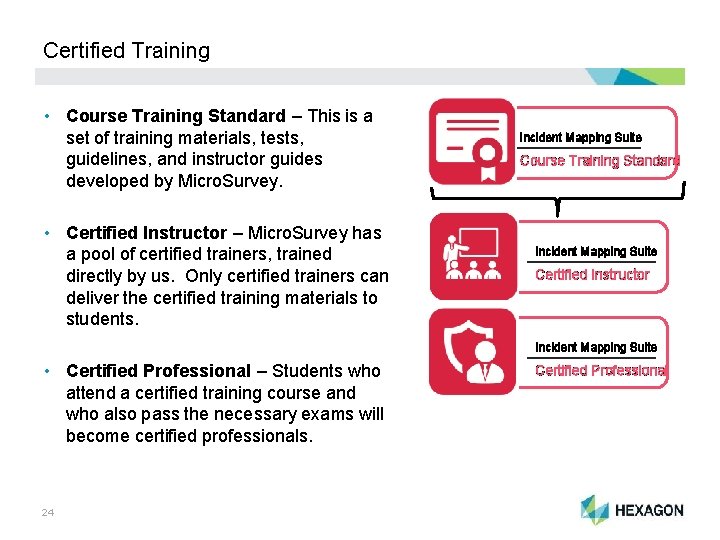

Certified Training • Course Training Standard – This is a set of training materials, tests, guidelines, and instructor guides developed by Micro. Survey. • Certified Instructor – Micro. Survey has a pool of certified trainers, trained directly by us. Only certified trainers can deliver the certified training materials to students. Incident Mapping Suite Course Training Standard Incident Mapping Suite Certified Instructor Incident Mapping Suite • Certified Professional – Students who attend a certified training course and who also pass the necessary exams will become certified professionals. 24 Certified Professional

30 -DAY DEMO Contact your LTI Rep for more information 25
