In vitro antigen antibody reactions Dr Mohammad Odibate

In vitro antigen antibody reactions Dr. Mohammad Odibate

Antigen-Antibody interactions HBV Anti-HBs. Ag What are the Lab methods used to detect the presence of viral antigens and their specific antibodies? HBs. Ag

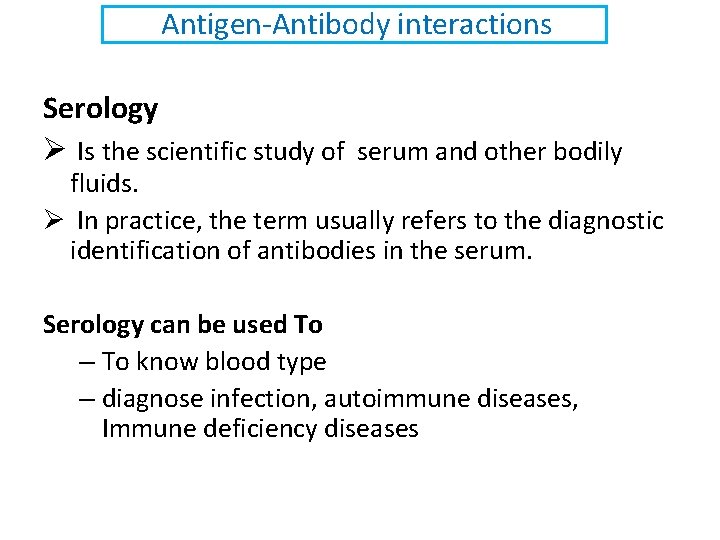

Antigen-Antibody interactions Serology Ø Is the scientific study of serum and other bodily fluids. Ø In practice, the term usually refers to the diagnostic identification of antibodies in the serum. Serology can be used To – To know blood type – diagnose infection, autoimmune diseases, Immune deficiency diseases

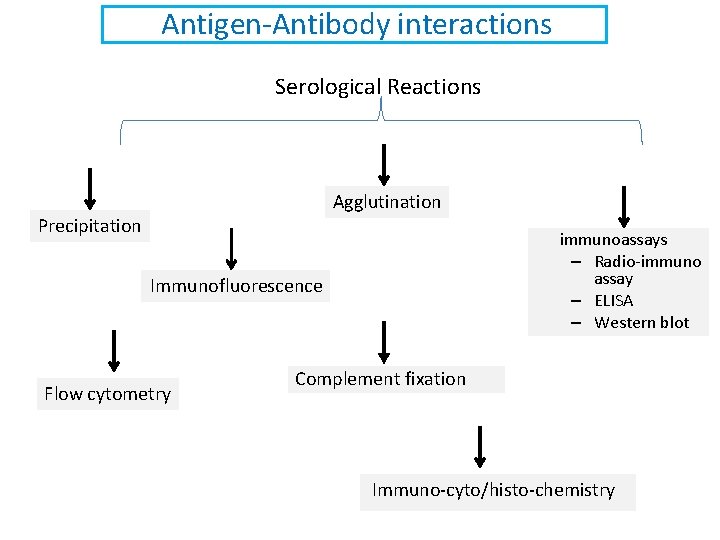

Antigen-Antibody interactions Serological Reactions Agglutination Precipitation immunoassays – Radio-immuno assay – ELISA – Western blot Immunofluorescence Flow cytometry Complement fixation Immuno-cyto/histo-chemistry

Antigen-Antibody interactions Ag-Ab interaction – union between different complexes the result depend on nature of both Ag and Ab • Precipitation if the antigen is soluble and Ab mostly is Ig. G • Agglutination; if the antigen is insoluble and Ab mostly is Ig. M and Ig. A • Complement fixation if the antigen unites Ab in the presence of complement

Antigen-Antibody interactions Precipitation Reactions Soluble antigen + specific antibody = Insoluble Precipitate of Ag-Ab complex Amount of precipitate Influenced by • Maximum precipitation occurs when Ags & Abs at optimal or equivalent proportions • Precipitation occur when a lattice (line) formed

Antigen-Antibody interactions Types of Precipitation In solution In gel

Antigen-Antibody interactions In solution Soluble antigens Specific antibodies Types of Precipitation Visible precipitation ring

Antigen-Antibody interactions In solution Types of Precipitation • • fluid with unknown antigen is layered over known antibody if the corresponding antigen is present then line appear in between the 2 layers Identification of H. influenza b and N. meningiditis in cerebrospinal fluids

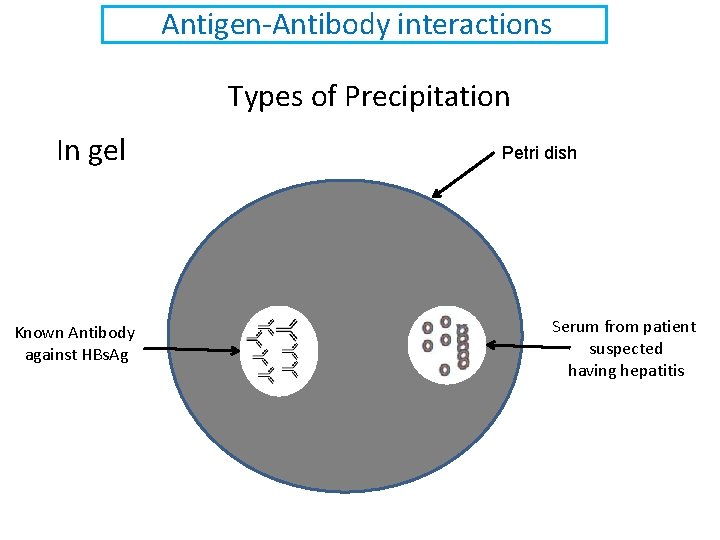

Antigen-Antibody interactions Types of Precipitation In gel Known Antibody against HBs. Ag Petri dish Serum from patient suspected having hepatitis

Antigen-Antibody interactions Types of Precipitation In gel Known Antibody against HBs. Ag Petri dish Serum from patient suspected having hepatitis Precipitation line

Example Precipitation in gel Patient A Patient D Patient B Known Antibody against HBs. Ag Patient E Patient C Patient F + + + Precipitation in gel • Called Immunodiffusion • Advantages of precipitation in gel ü Reaction visible as a distinct stable band. üCan be stained & preserved üNumber of different Ags can be observed in one gel

Antigen-Antibody interactions Types of Precipitation In gel Single radial immunodiffusion Anti-HBs. Ag antibodies Already incorporated In gel Petri dish Serum from patient suspected having hepatitis

Antigen-Antibody interactions Types of Precipitation In gel Single radial immunodiffusion precipitation ring

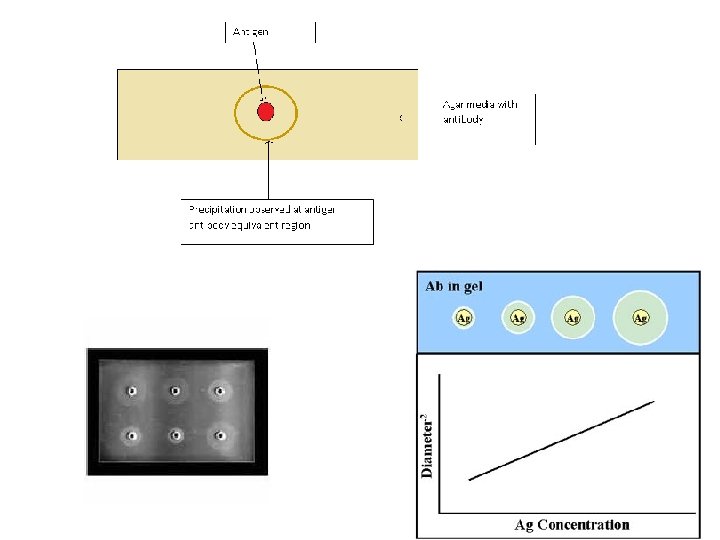

Antigen-Antibody interactions Types of Precipitation In gel Single radial immunodiffusion Single diffusion in two dimensions (Radial immunodiffusion) - Ab incorporated in agar gel - Ag. added to wells in agar. - Ag. diffuses radially from the well - Forms precipitation ring around antigen

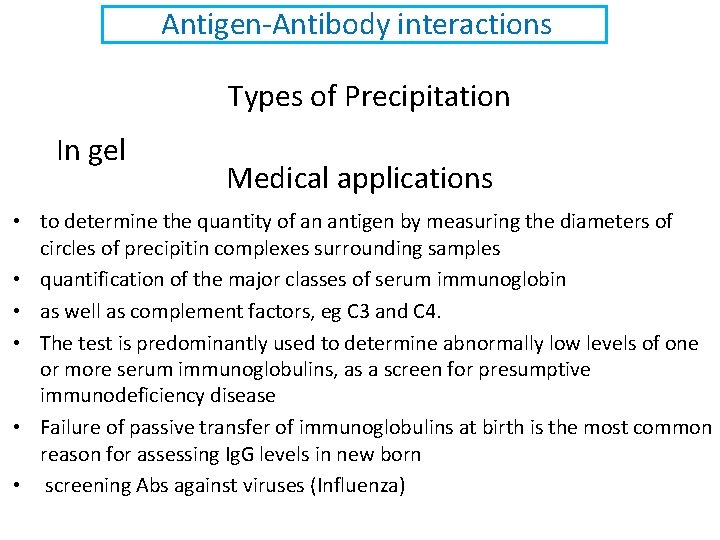

Antigen-Antibody interactions Types of Precipitation In gel Medical applications • to determine the quantity of an antigen by measuring the diameters of circles of precipitin complexes surrounding samples • quantification of the major classes of serum immunoglobin • as well as complement factors, eg C 3 and C 4. • The test is predominantly used to determine abnormally low levels of one or more serum immunoglobulins, as a screen for presumptive immunodeficiency disease • Failure of passive transfer of immunoglobulins at birth is the most common reason for assessing Ig. G levels in new born • screening Abs against viruses (Influenza)

Antigen-Antibody interactions Agglutination reactions Particulate Ag + its Antibody = clumping/ agglutinated Agglutination is more sensitive than precipitation for the detection of antibodies.

Antigen-Antibody interactions Agglutination reactions Qualitative agglutination test Quantitative agglutination

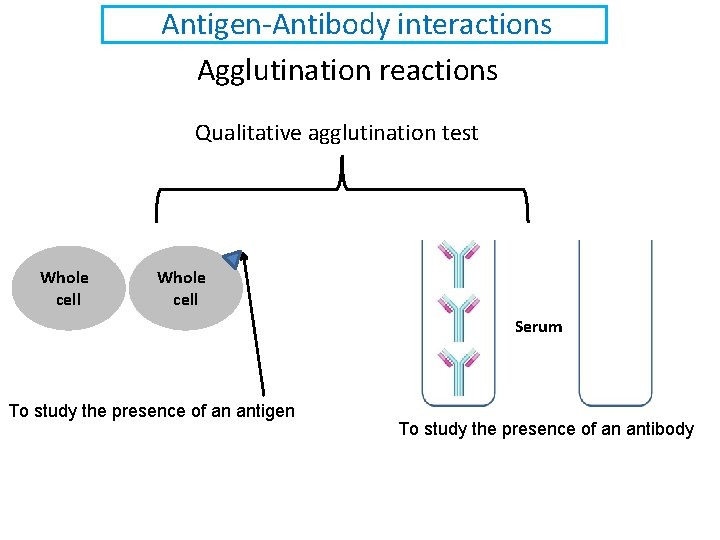

Antigen-Antibody interactions Agglutination reactions Qualitative agglutination test Whole cell Serum To study the presence of an antigen To study the presence of an antibody

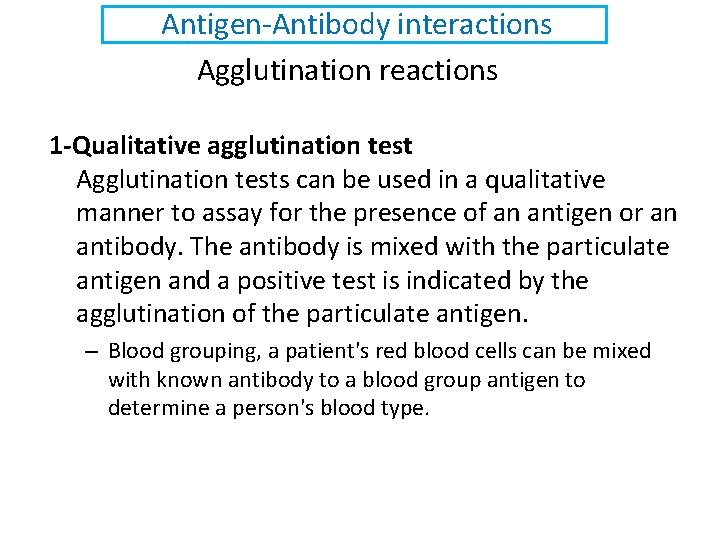

Antigen-Antibody interactions Agglutination reactions 1 -Qualitative agglutination test Agglutination tests can be used in a qualitative manner to assay for the presence of an antigen or an antibody. The antibody is mixed with the particulate antigen and a positive test is indicated by the agglutination of the particulate antigen. – Blood grouping, a patient's red blood cells can be mixed with known antibody to a blood group antigen to determine a person's blood type.

Antigen-Antibody interactions Agglutination reactions application 1. Slide Agglutination ; Blood grouping & Cross matching. Smooth suspension of blood on 3 slides + drop of antibody (anti-A, anti B and anti RH on each slide. Clumping of blood means it has that antibody specific antigen

Antigen-Antibody interactions Agglutination reactions 2 -Quantitative agglutination test (on tube) Agglutination tests can also be used to measure the level of antibodies to particulate antigens. In this test, serial dilutions are made of a antibody sample (patient serum) and then a fixed number of particulate antigen is added. Then the maximum dilution that gives agglutination is determined. The maximum dilution that gives visible agglutination is called the titer. The results are reported as the reciprocal of the maximal dilution that gives visible agglutination. • Diagnosis of: Typhoid, Brucellosis

Antibody Titer

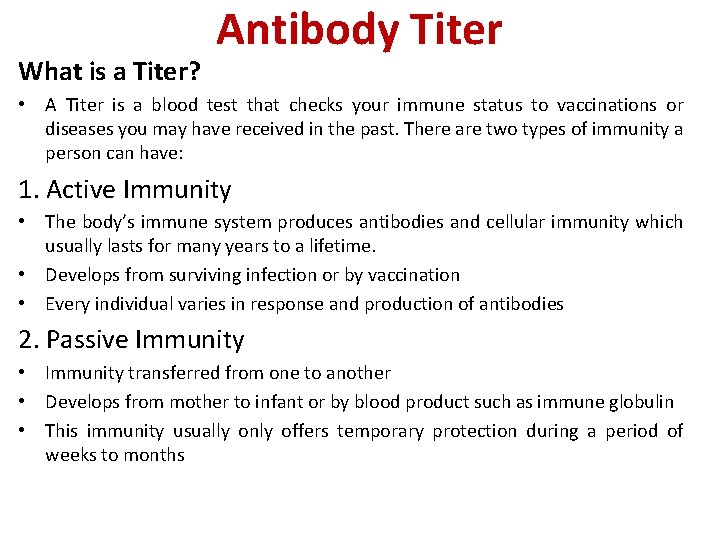

What is a Titer? Antibody Titer • A Titer is a blood test that checks your immune status to vaccinations or diseases you may have received in the past. There are two types of immunity a person can have: 1. Active Immunity • The body’s immune system produces antibodies and cellular immunity which usually lasts for many years to a lifetime. • Develops from surviving infection or by vaccination • Every individual varies in response and production of antibodies 2. Passive Immunity • Immunity transferred from one to another • Develops from mother to infant or by blood product such as immune globulin • This immunity usually only offers temporary protection during a period of weeks to months

Antibody Titer When do we use antibody titer? • To monitor the immune status against certain infection and ; • To reduce the costs of vaccination people who are already immune to certain pathogen

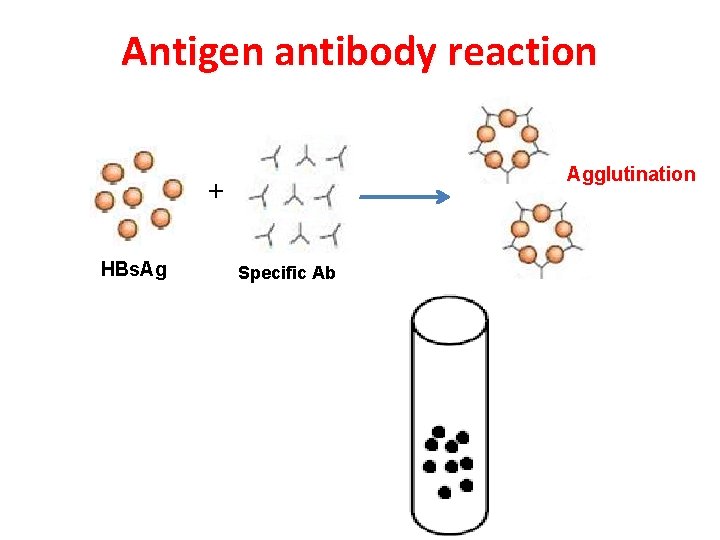

Antigen antibody reaction Agglutination + HBs. Ag Specific Ab

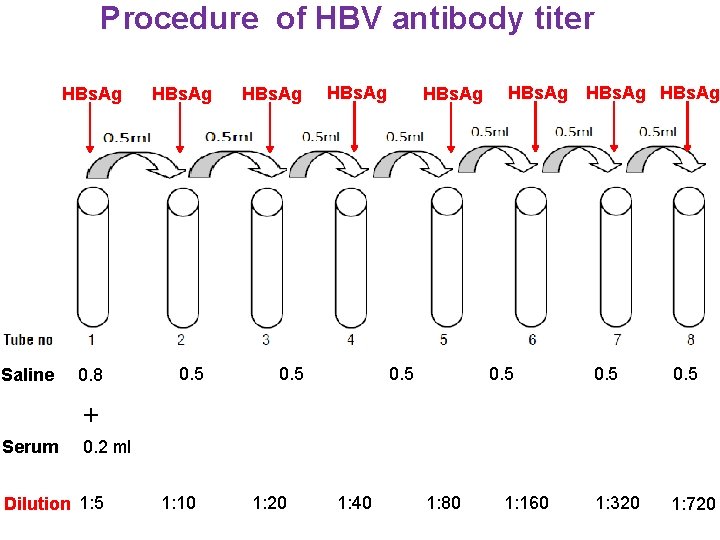

Procedure of HBV antibody titer HBs. Ag Saline 0. 8 HBs. Ag 0. 5 HBs. Ag 0. 5 1: 320 1: 720 + Serum 0. 2 ml Dilution 1: 5 1: 10 1: 20 1: 40 1: 80 1: 160

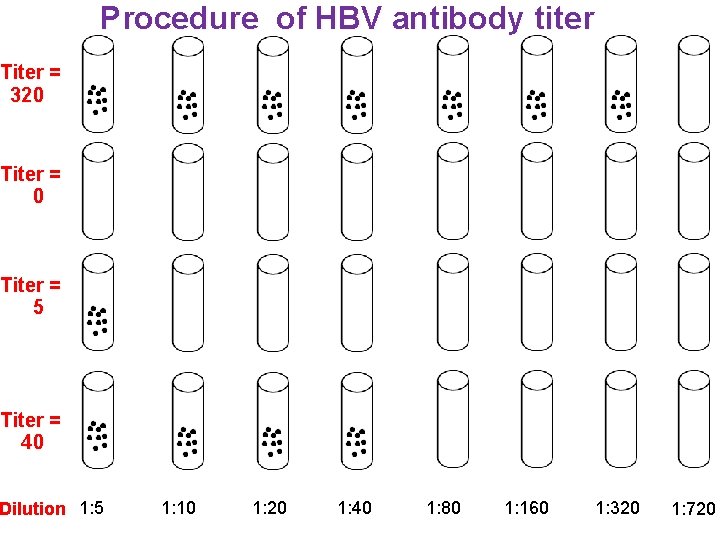

Procedure of HBV antibody titer Titer = 320 Titer = 5 Titer = 40 Dilution 1: 5 1: 10 1: 20 1: 40 1: 80 1: 160 1: 320 1: 720

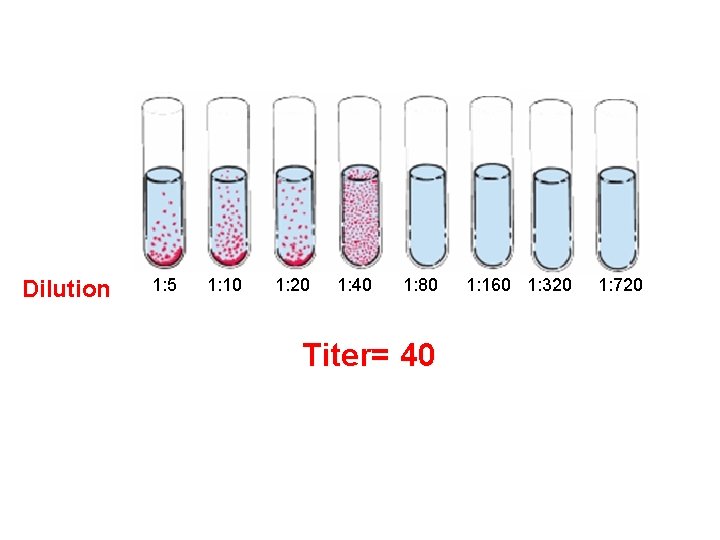

Dilution 1: 5 1: 10 1: 20 1: 40 1: 80 Titer= 40 1: 160 1: 320 1: 720

Titer = 0 Titer = 5 Titer = 10 Titer = 320

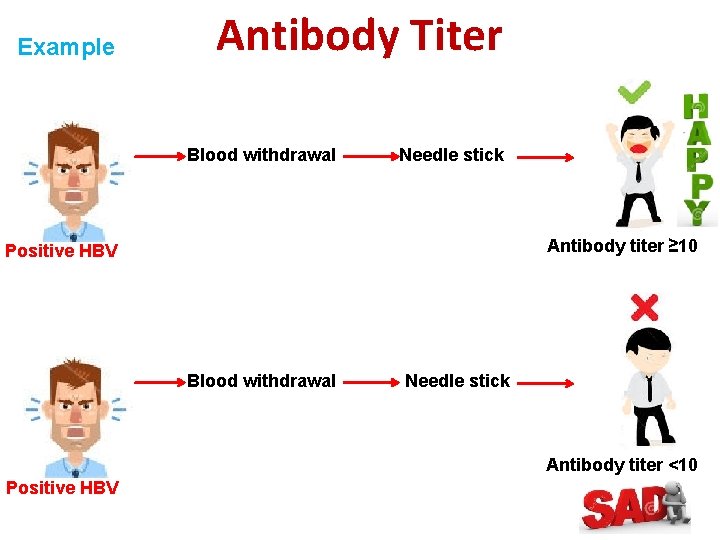

Example Antibody Titer Blood withdrawal Needle stick Antibody titer ≥ 10 Positive HBV Blood withdrawal Needle stick Antibody titer <10 Positive HBV

Antigen-Antibody interactions Titer Diagnostic Applications • • • An antibody titer is a laboratory test that detects and measures the amount of specific antibodies in the blood. It can indicate if a person has or recently had an infection such as viral hepatitis. Because vaccines stimulate antibody production against specific diseases, an antibody titer can indicate one's need for a booster shot or whether a recent immunization produced enough of an immune response to provide adequate disease protection. Sometimes the test is used to diagnose autoimmune diseases, conditions in which one's immune system produces antibodies to the body's own tissues. Antibodies can also detect small amounts of drugs, toxins and hormones.
