In the name of God! Dysrhythmia Provided by: Naser Parizad, Ph. D. in nursing education.

ECG interpretation • Heart rate • Rhythm o NSR o Dysrhythmias

Heart Rate measurements

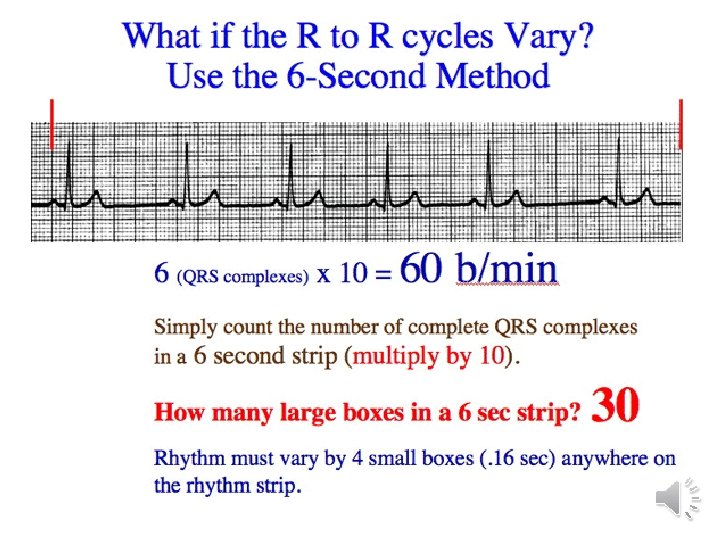

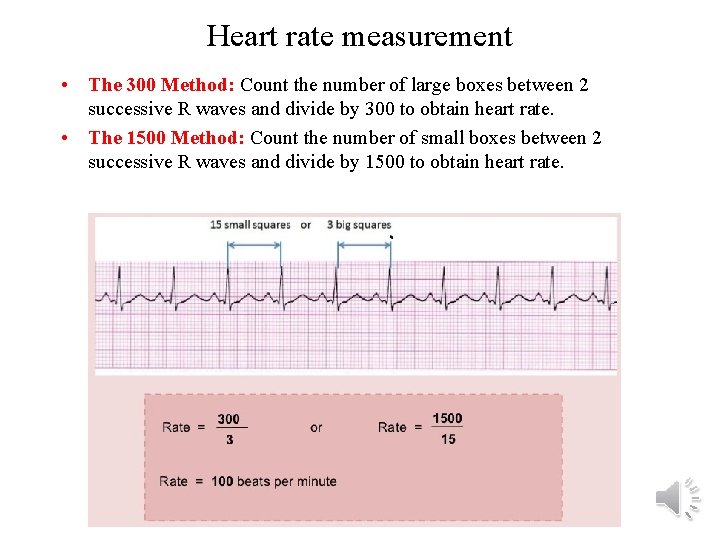

Heart rate measurement • The 300 Method: Count the number of large boxes between 2 successive R waves and divide by 300 to obtain heart rate. • The 1500 Method: Count the number of small boxes between 2 successive R waves and divide by 1500 to obtain heart rate.

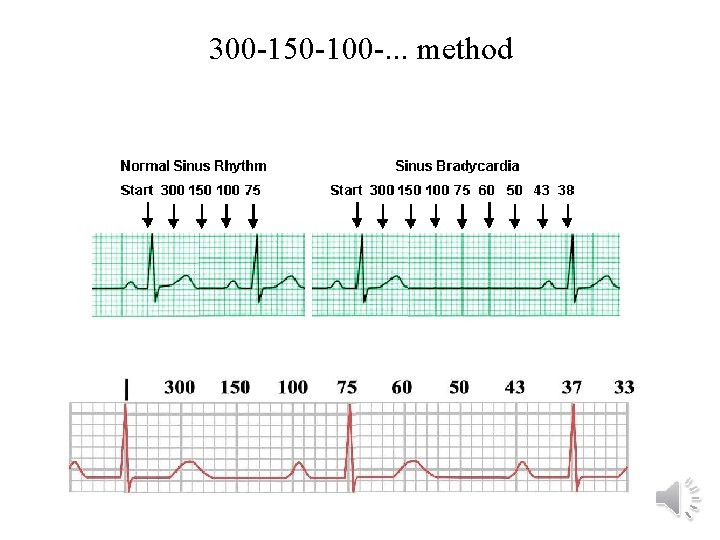

300 -150 -100 -. . . method

Normal H. R. 60 -100 bpm Bradycardia less than 60 bpm Tachycardia more than 100 bpm

Heart Rhythm

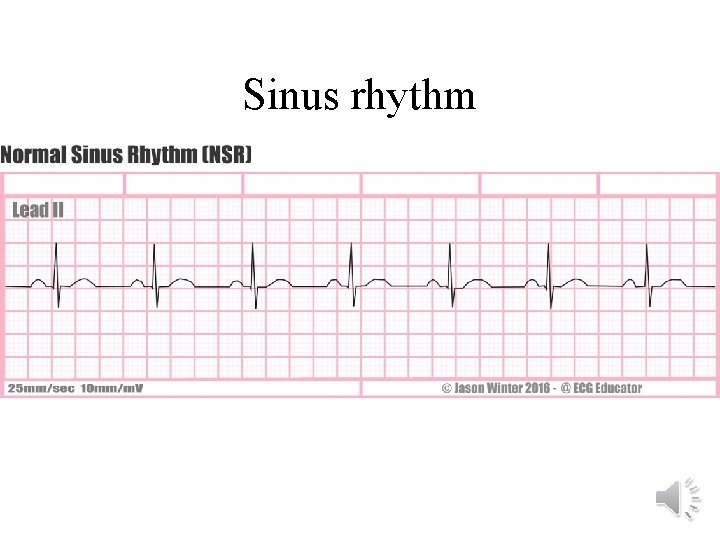

Sinus rhythm

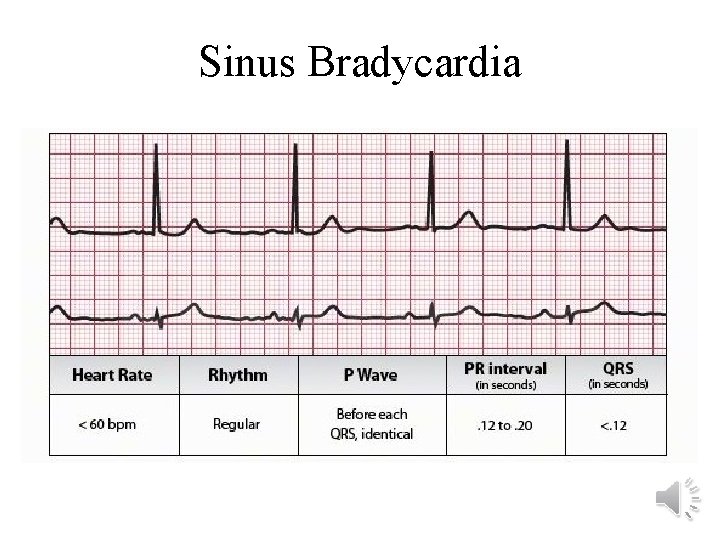

Sinus Bradycardia

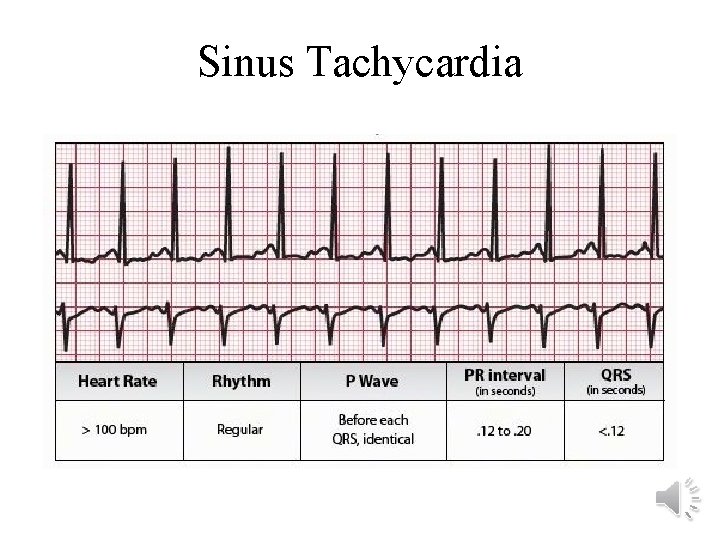

Sinus Tachycardia

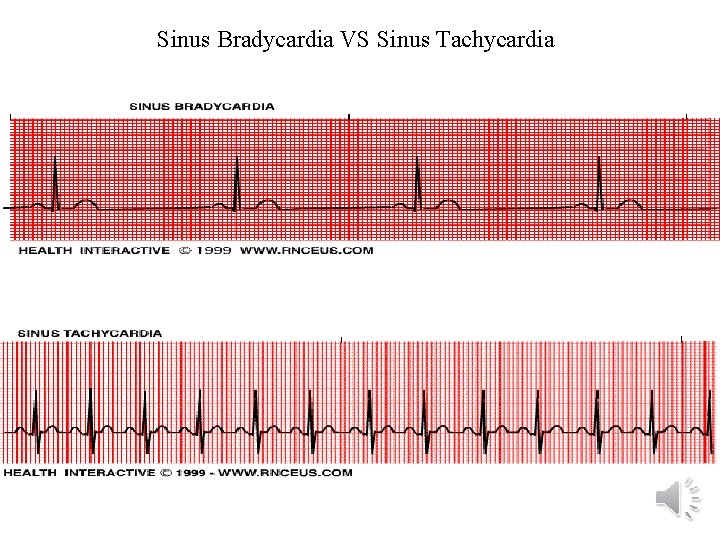

Sinus Bradycardia VS Sinus Tachycardia

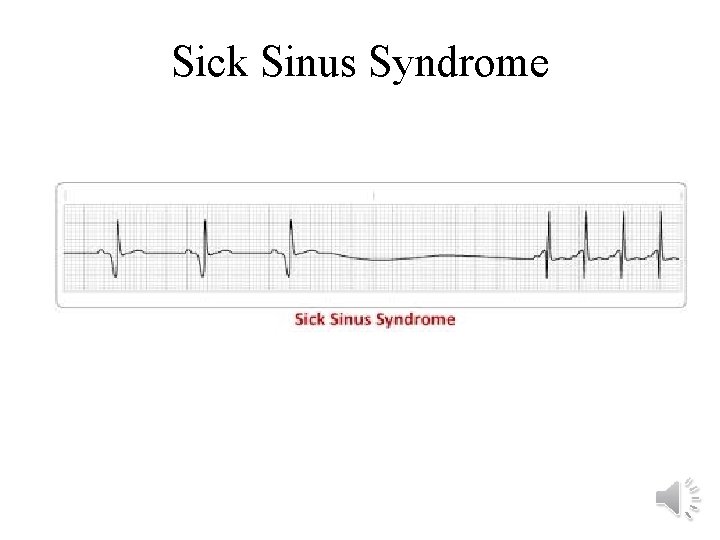

Sick Sinus Syndrome

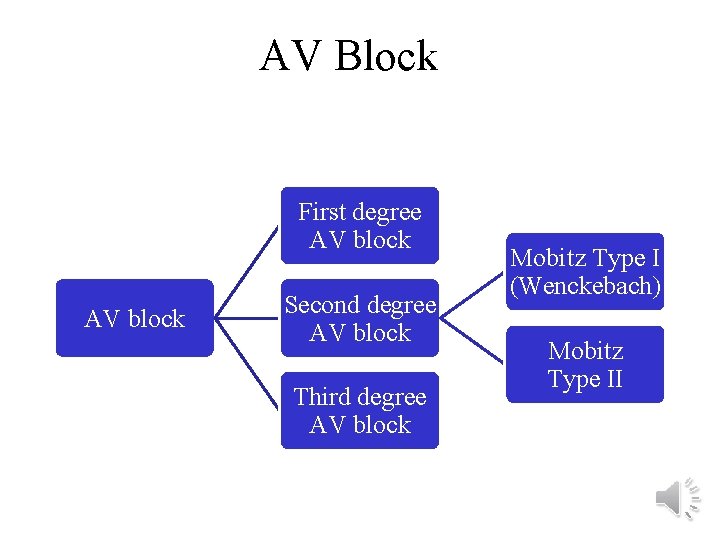

AV Block First degree AV block Second degree AV block Third degree AV block Mobitz Type I (Wenckebach) Mobitz Type II

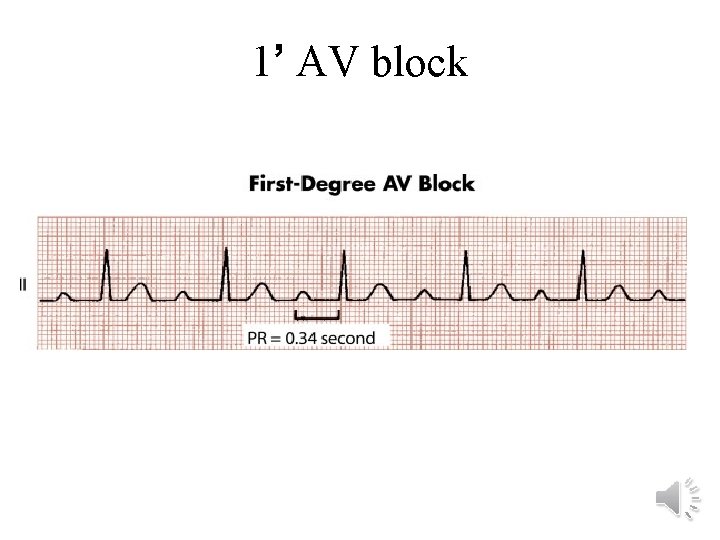

1’ AV block

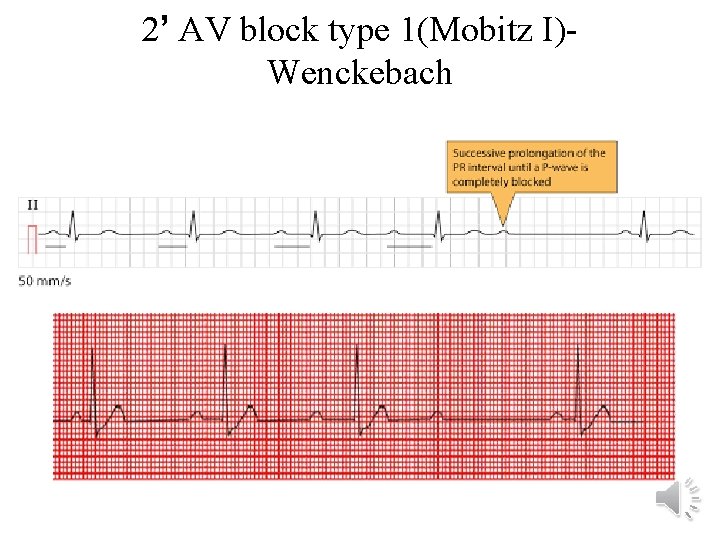

2’ AV block type 1(Mobitz I)Wenckebach

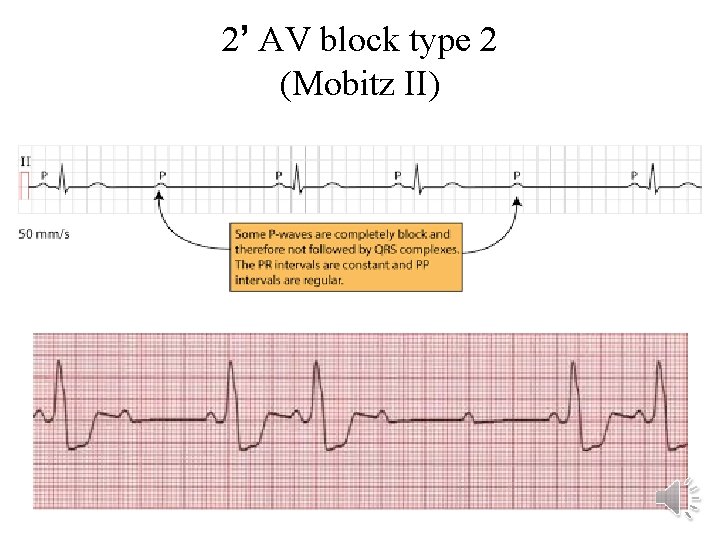

2’ AV block type 2 (Mobitz II)

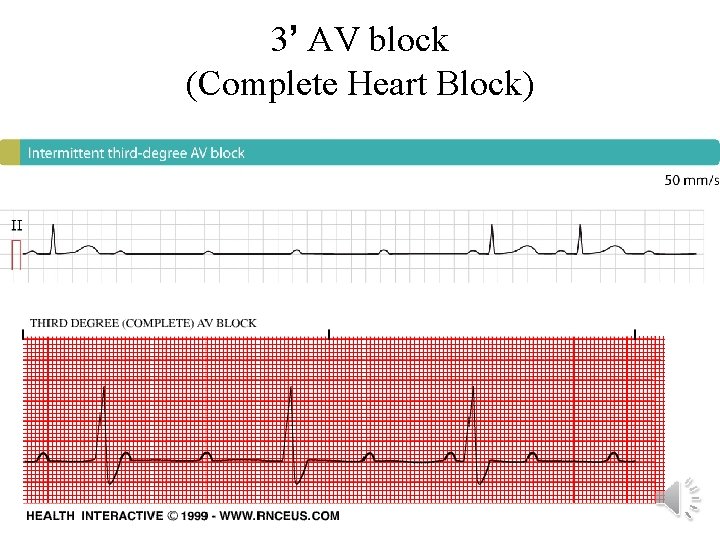

3’ AV block (Complete Heart Block)

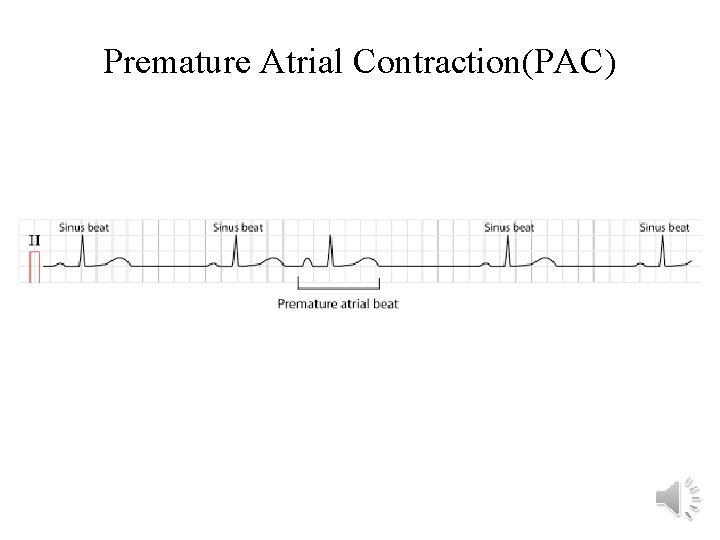

Premature Atrial Contraction(PAC)

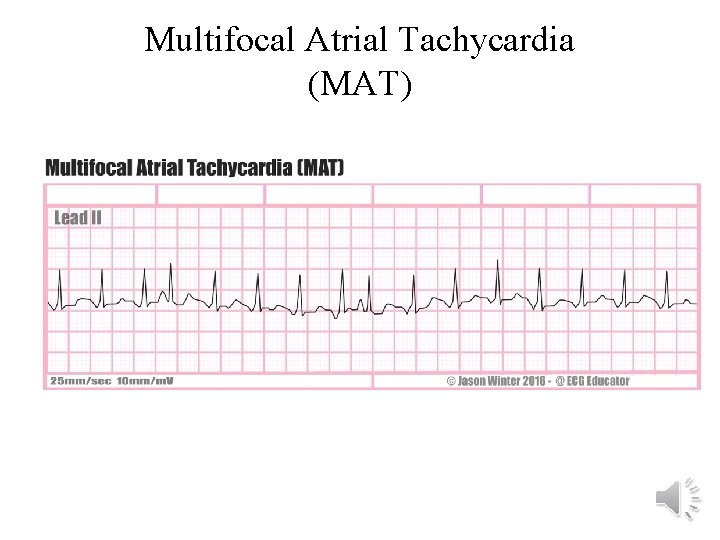

Multifocal Atrial Tachycardia (MAT)

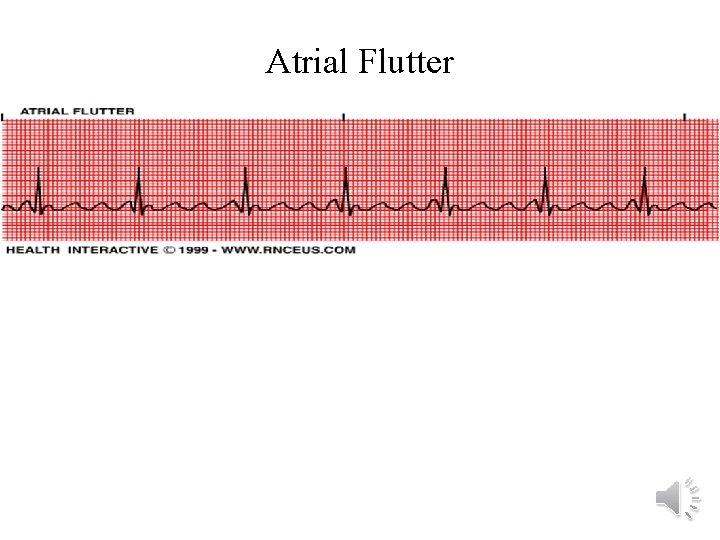

Atrial Flutter

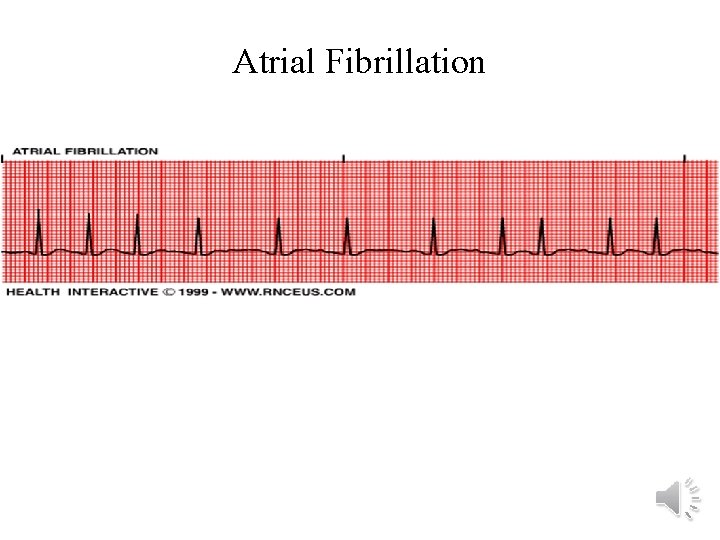

Atrial Fibrillation

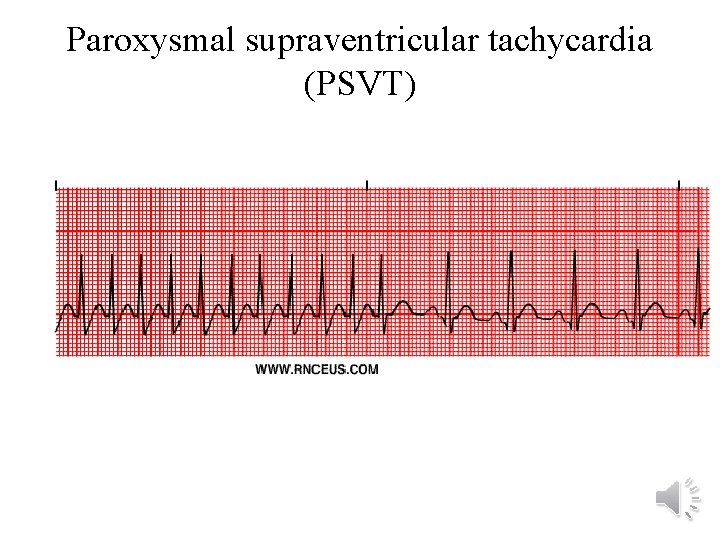

Paroxysmal supraventricular tachycardia (PSVT)

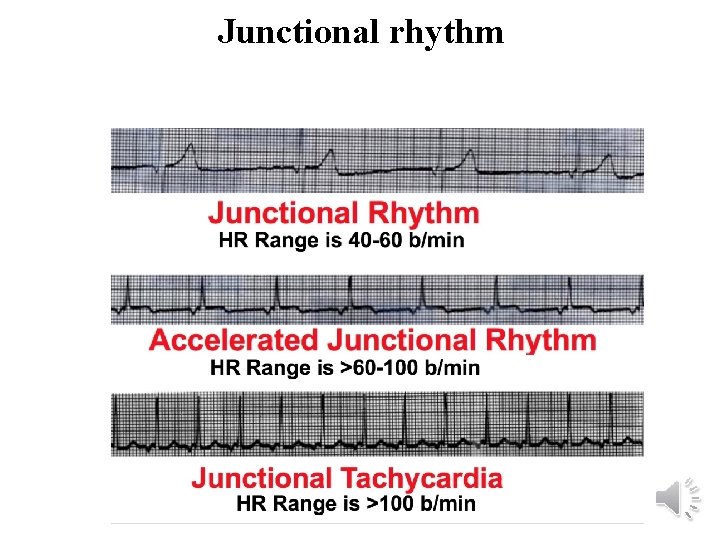

Junctional rhythm

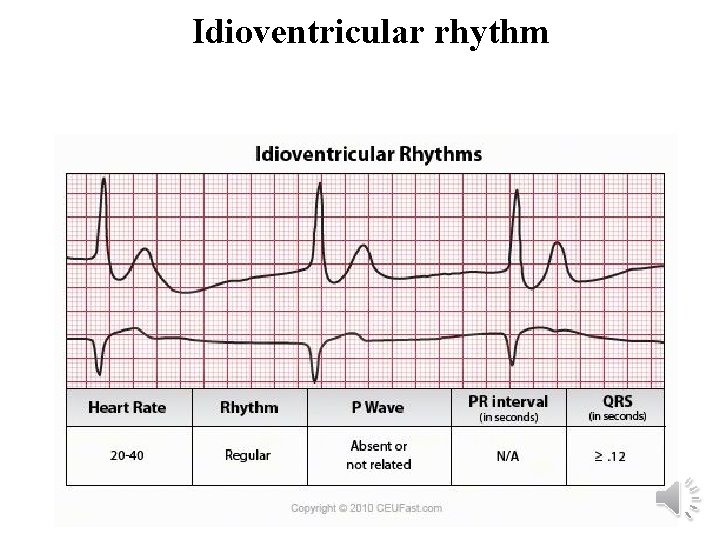

Idioventricular rhythm

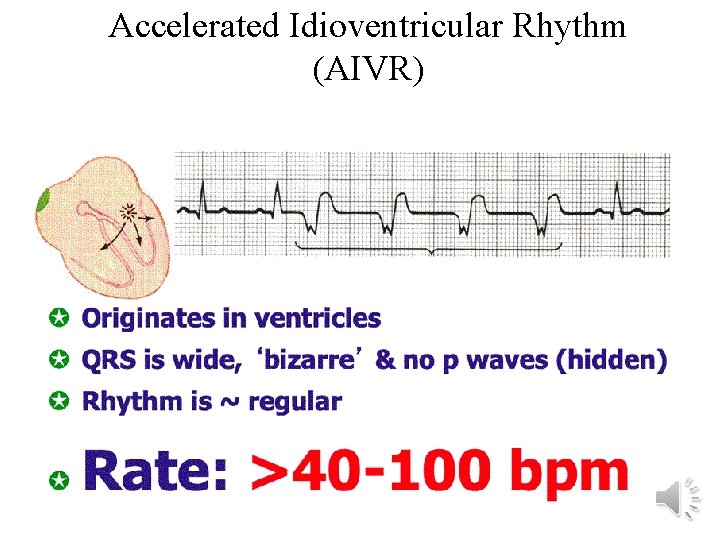

Accelerated Idioventricular Rhythm (AIVR)

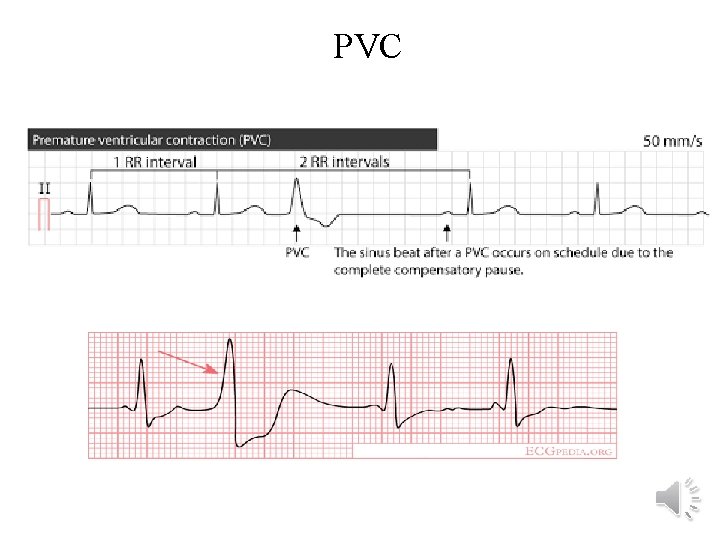

PVC

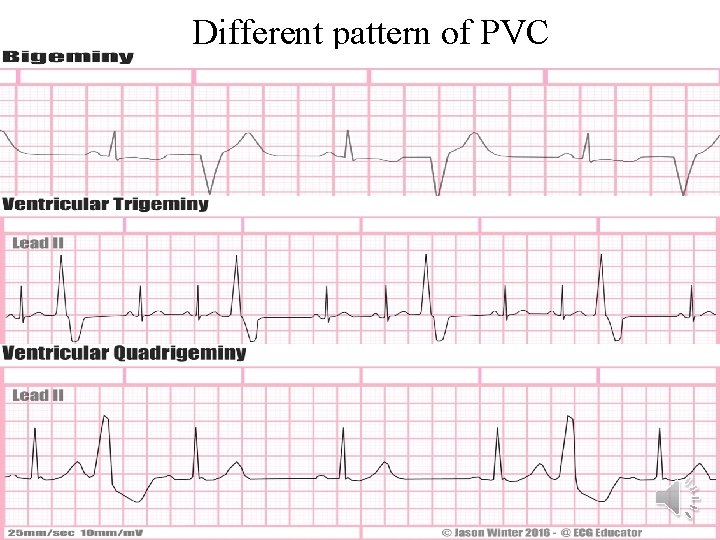

Different pattern of PVC

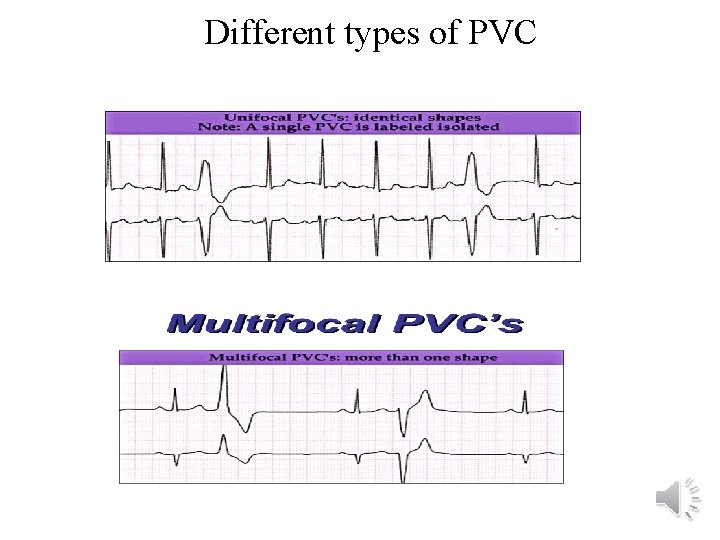

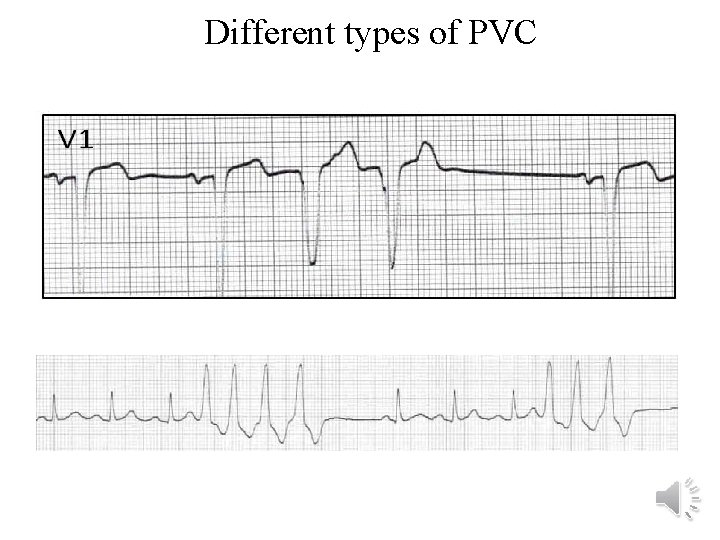

Different types of PVC

Different types of PVC

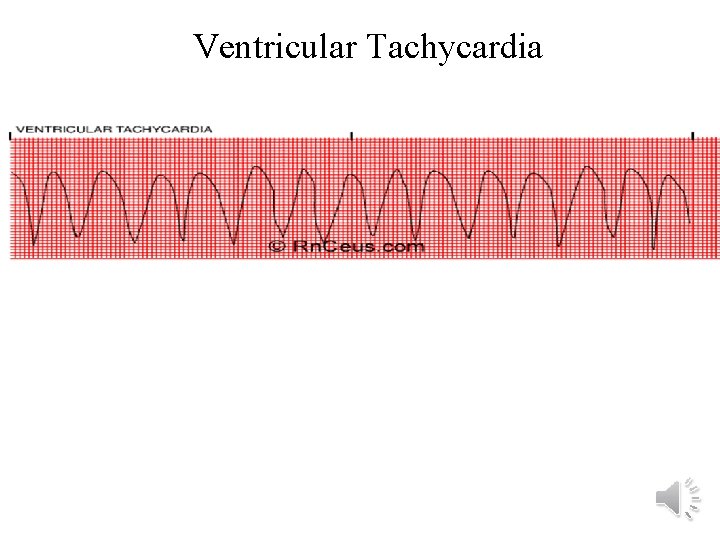

Ventricular Tachycardia

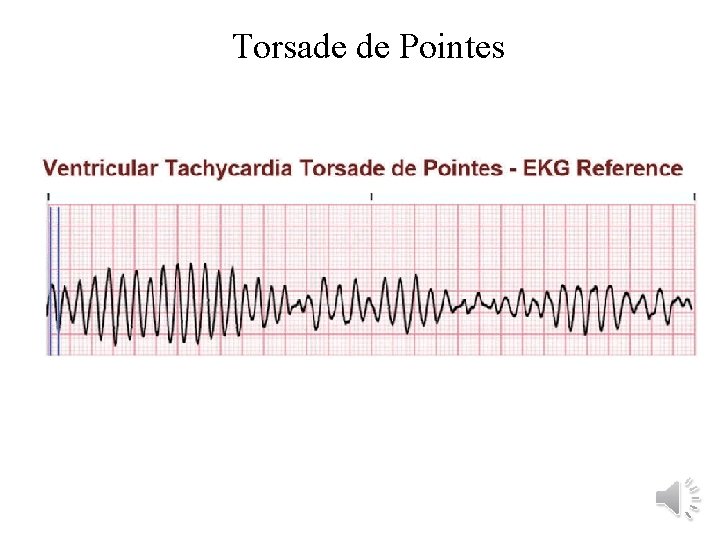

Torsade de Pointes

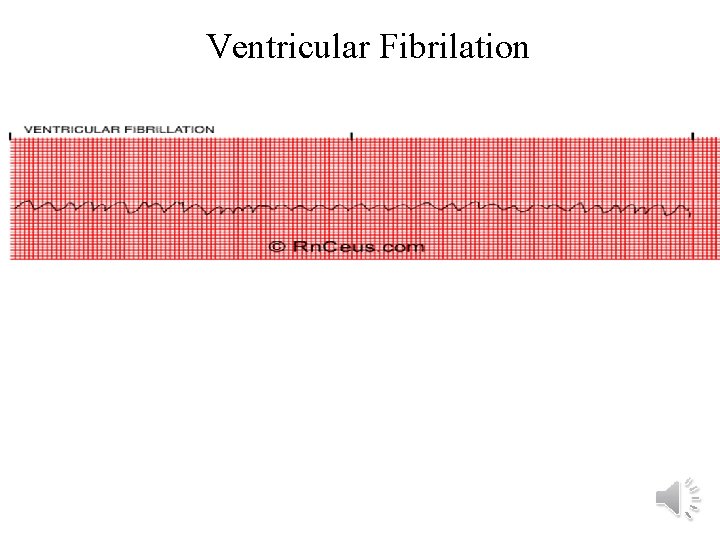

Ventricular Fibrilation

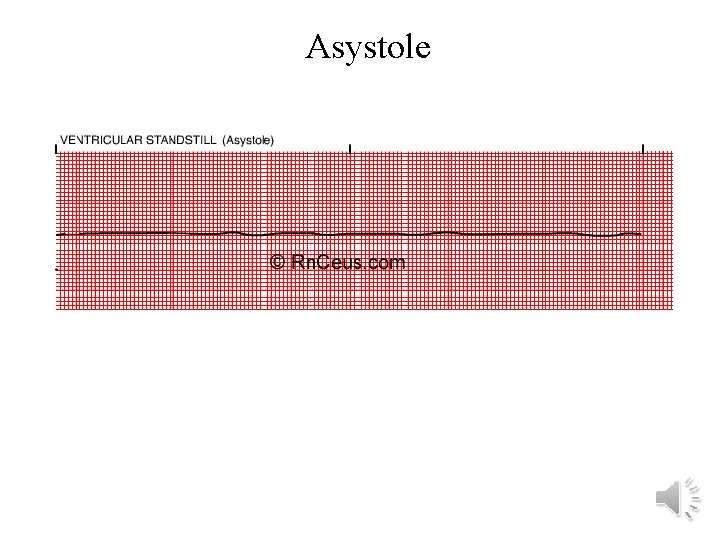

Asystole

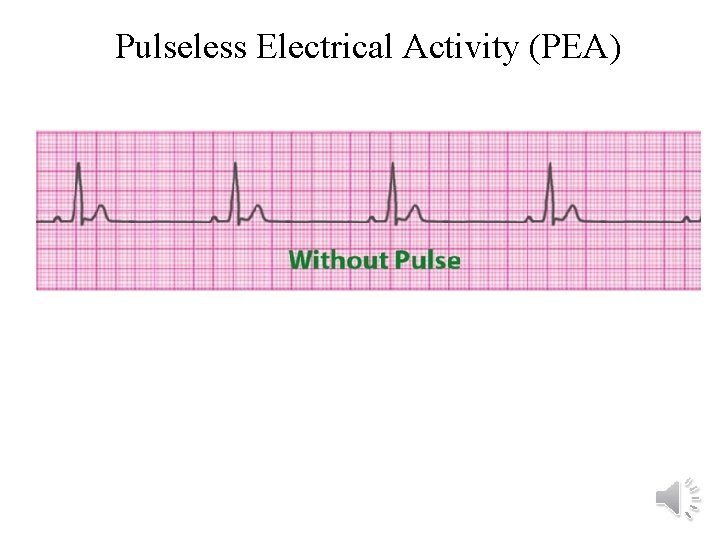

Pulseless Electrical Activity (PEA)
