Improving Strategic Play in Shogi by Using Move Sequence Trees Reijer Grimbergen Department of Informatics Yamagata University 2007/11/11 GPW 2007 1
Outline Opening play in Shogi The problems of hill-climbing Move sequence trees Extracting move sequences Using move sequence trees Preliminary results Conclusions and future work 2007/11/11 GPW 2007 2
Opening play in shogi The weak point of shogi programs is opening play “Endgame: 6 -dan, opening: 1 -kyu” Shogi programs cannot handle long term strategy Strategic knowledge cannot be obtained by search alone Example: building a castle formation can take more than 10 moves by one player 2007/11/11 GPW 2007 3
Opening play in shogi 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 6 9 0 0 0 1 0 0 0 0 0 2 0 0 0 0 9 0 0 0 玉(美濃囲い) 2007/11/11 金(美濃囲い) GPW 2007 銀(美濃囲い) 4

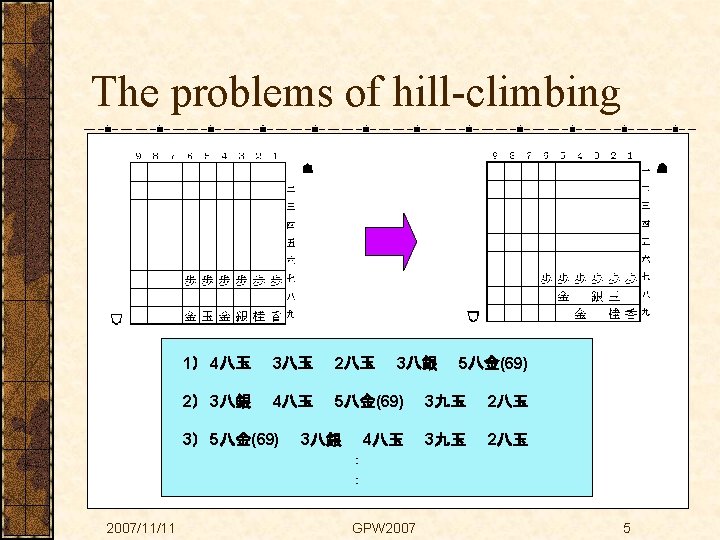

The problems of hill-climbing 6七金(58) 6八金(58) 2007/11/11 6七金(68) GPW 2007 6

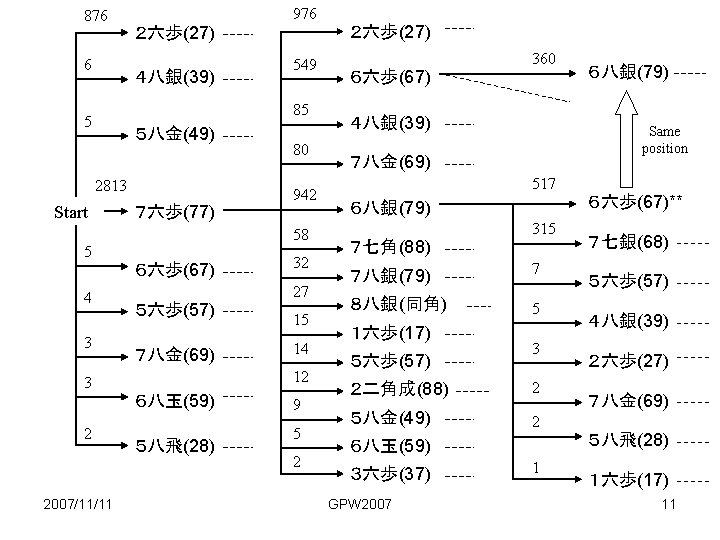

Move sequence trees Information about move order is needed to solve the problems of hill-climbing Move sequence trees For each opening strategy, collect information about common move orders Save this data in move sequence trees Use move sequence trees to guide the search 2007/11/11 GPW 2007 7
Extracting move sequences Move sequence extraction 1. Collect games with a specific opening strategy 2. Collecting move frequency data 3. Generate a move sequence tree 2007/11/11 GPW 2007 8
Collecting games Find all games with a finished castle In the Shogi Club 24 database (240, 000 games) Personal professional game database (5, 000 games) Yagura Sente: 2548 games (SC 24: 1815, Pro: 733) Gote: 2036 games (SC 24: 1520, Pro: 516) 2007/11/11 GPW 2007 9
Collecting move frequency data Yagura for sente 1288 different moves in the first 50 moves of the game Only 153 moves were played in 1% of the games or more Move Fr (%) 7六歩(77) 100 6八銀(79) 78 4六歩(47) 32 9六歩(97) 20 6六歩(67) 99 7七銀(68) 78 3五歩(36) 29 7五歩(同) 16 5八金(49) 99 1六歩(17) 72 6八玉(59) 27 6五歩(66) 15 7八金(69) 98 6九玉(59) 71 1五歩(16) 26 4七銀(48) 13 6七金(58) 97 8八玉(79) 71 2四歩(25) 24 5五歩(同) 12 5六歩(57) 91 7九玉(69) 69 5七銀(48) 24 8六銀(77) 11 4八銀(39) 89 2五歩(26) 60 3八飛(28) 23 7七銀(88) 11 2六歩(27) 89 6八角(79) 47 4六銀(37) 23 5五歩(56) 10 3六歩(37) 84 3七銀(48) 45 7八玉(68) 21 5八飛(28) 10 7九角(88) 83 3七桂(29) 38 8八玉(78) 21 2007/11/11 GPW 2007 10
Using move sequence trees Step 1: Select a move sequence tree Not all move sequence trees can be loaded at the same time Use move frequencies to find the best match Step 2: Access the move sequence tree during the search Use a pointer to the move sequence tree Award an evaluation bonus for each move that follows the move sequence tree 2007/11/11 GPW 2007 12
Preliminary results Version Won Lost WP Yagura MST OTO MST 25 23 27 46% 20 21 MST 50 27 23 54% 32 20 MST 75 28 22 56% 27 15 MST 100 25 25 50% 23 15 2007/11/11 GPW 2007 13
Conclusions and future work Conclusions Using move sequence trees may be an improvement of hill-climbing methods It seems unlikely that move sequence trees are the best solution Future work Generate move sequence trees for all opening strategies Bonus values should be based on move frequency Move sequence tree selection should be based on partial hashcodes 2007/11/11 GPW 2007 14
