Improved Speaker Adaptation Using Speaker Dependent Feature Projections
- Slides: 16
Improved Speaker Adaptation Using Speaker Dependent Feature Projections Spyros Matsoukas and Richard Schwartz Sep. 5, 2003 Martigny, Switzerland 1

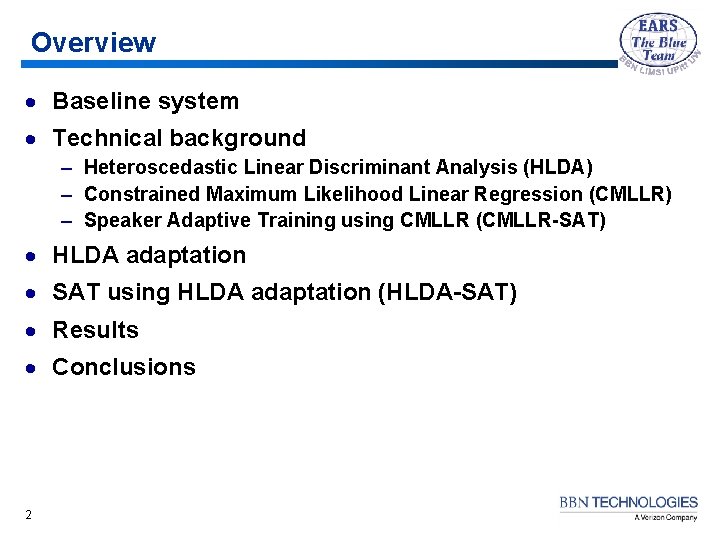

Overview · Baseline system · Technical background – Heteroscedastic Linear Discriminant Analysis (HLDA) – Constrained Maximum Likelihood Linear Regression (CMLLR) – Speaker Adaptive Training using CMLLR (CMLLR-SAT) · HLDA adaptation · SAT using HLDA adaptation (HLDA-SAT) · Results · Conclusions 2

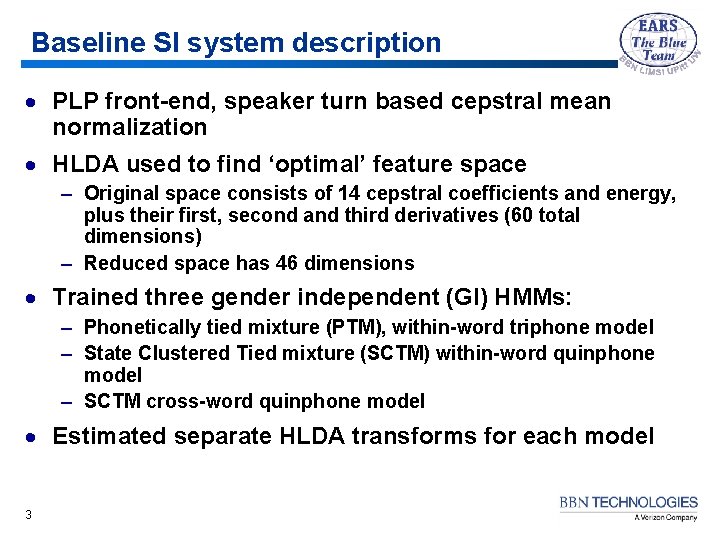

Baseline SI system description · PLP front-end, speaker turn based cepstral mean normalization · HLDA used to find ‘optimal’ feature space – Original space consists of 14 cepstral coefficients and energy, plus their first, second and third derivatives (60 total dimensions) – Reduced space has 46 dimensions · Trained three gender independent (GI) HMMs: – Phonetically tied mixture (PTM), within-word triphone model – State Clustered Tied mixture (SCTM) within-word quinphone model – SCTM cross-word quinphone model · Estimated separate HLDA transforms for each model 3
HLDA · HLDA is being adopted by many state of the art systems – Like LDA, its goal is to find a feature subspace where it is easier to discriminate among a given set of classes – Unlike LDA, it does not assume that the class Gaussian distributions have equal covariance matrix – Formulated within the ML framework · Many choices available for the definition of the classes – Phonemes, tied states, mixture components · Used the SCTM codebook clusters (HMM tied-states) as the classes in this work 4

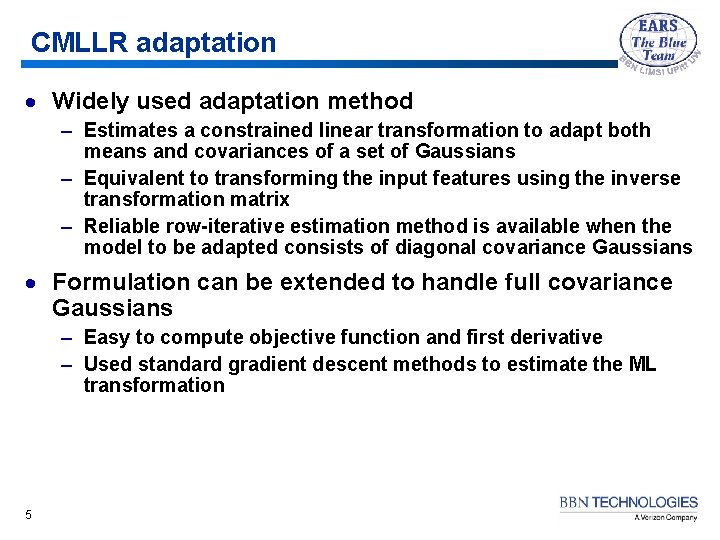

CMLLR adaptation · Widely used adaptation method – Estimates a constrained linear transformation to adapt both means and covariances of a set of Gaussians – Equivalent to transforming the input features using the inverse transformation matrix – Reliable row-iterative estimation method is available when the model to be adapted consists of diagonal covariance Gaussians · Formulation can be extended to handle full covariance Gaussians – Easy to compute objective function and first derivative – Used standard gradient descent methods to estimate the ML transformation 5
Speaker Adaptive Training (SAT) · SAT brings speaker awareness to acoustic model reestimation – Extends set of model parameters by including speaker dependent transformations – Reduces inter-speaker variability, resulting in more compact acoustic models – Improves performance on test data, after speaker adaptation · Multiple flavors of SAT – MLLR-based, with transforms applied to model parameters • Complicated update equations, hard to integrate with MMI – CMLLR-based, with transforms applied to features • Transparently integrates with regular SI reestimation methods (ML, MMI, etc. ) 6
CMLLR-SAT 7
HLDA adaptation · Possible mismatch between training and testing acoustic conditions might reduce the effectiveness of HLDA · HLDA adaptation alleviates this problem by transforming the test features such that their statistics look more similar to training – Uses CMLLR in the full space, based on the single Gaussian per tied state HMM – The CMLLR transform is then combined with the global HLDA matrix in order to form speaker dependent projections – Most effective when applied to both training and testing 8
HLDA-SAT 9
Experimental Setup · Trained gender-independent (GI), band-independent (BI) models on 145 hours of Broadcast News (BN) data, using ML – 6, 300 tied states – 25. 6 Gaussians per state · Trigram language model (LM), trained on 600 M words – 13 M bigrams, 43 M trigrams · Tested on h 4 e 97 and h 4 d 03 test sets – Automatic segmentation and speaker clustering – Two decoding passes • Unadapted pass, generating hypotheses for adaptation • Adapted pass, using SI or SAT adapted models 10
Results-I · Effect of HLDA adaptation using SI models HLDA CMLLR adaptation MLLR h 4 e 97 h 4 d 03 17. 6 18. 6 15. 6 16. 5 15. 4 15. 7 14. 4 15. 3 · Significant gain from HLDA adaptation, even on top of CMLLR and MLLR 11
Results-II · Effect of HLDA adaptation using SAT models Model HLDA adaptation CMLLR h 4 e 97 h 4 d 03 SI 15. 4 15. 7 CMLLR-SAT 14. 8 15. 2 CMLLR-SAT 14. 4 15. 2 HLDA-SAT 13. 6 14. 6 · 0. 6 -0. 8% absolute gain from HLDA-SAT compared to CMLLR-SAT 12
Understanding the improvements · HLDA-SAT extends CMLLR-SAT in two ways – Uses a single Gaussian per state (1 gps) model to estimate transforms in full space – Updates HLDA in transformed space · Which of the two has the largest effect in recognition accuracy? – 1 gps model allows to estimate CMLLR transforms that move the speakers closer to the canonical model – Reestimating HLDA in the transformed space results in significantly higher objective function value · Tried two variations of HLDA-SAT, in which the SI HLDA is used – HLDA-SAT 1: using 1 gps-based CMLLR in reduced space – HLDA-SAT 2: using 1 gps-based CMLLR in full space 13
Results-III · Effects of HLDA update and full space transforms Model h 4 e 97 h 4 d 03 CMLLR-SAT 14. 4 15. 2 HLDA-SAT 1 14. 6 HLDA-SAT 2 14. 0 14. 9 HLDA-SAT 13. 6 14. 6 · Most of the improvement from HLDA-SAT is due to using a 1 gps model. The rest is due to updating the HLDA projection in the transformed space 14
HLDA-SAT on CTS data · Applied HLDA-SAT to English and Mandarin CTS with mixed results – 0. 7% gain on Mandarin CTS – 0. 1% gain on English CTS · Suspect problem with English CTS run, need more debugging to determine the cause of the poor performance 15

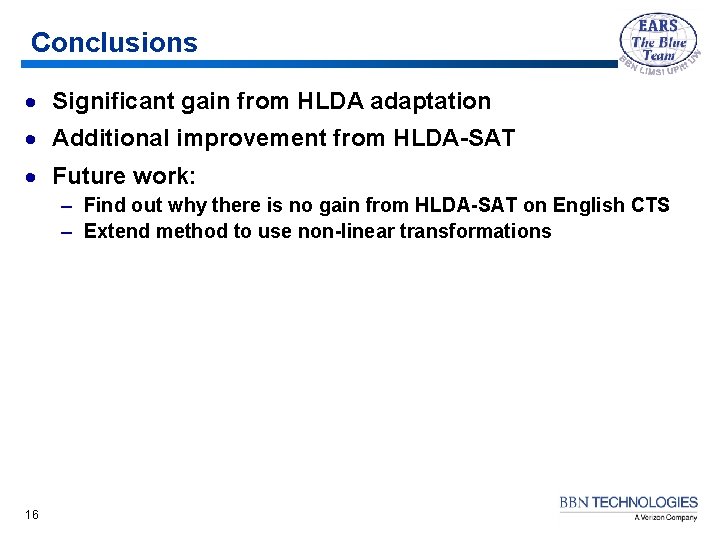

Conclusions · Significant gain from HLDA adaptation · Additional improvement from HLDA-SAT · Future work: – Find out why there is no gain from HLDA-SAT on English CTS – Extend method to use non-linear transformations 16
