Implementing Versioned Editing in Arc. GIS SDE
What is Versioned Editing?
Versioned Editing Workflow that manages concurrent multiuser editors on a single Arc. SDE data source Versions represent states or views of the geodatabase Edits are maintained in delta tables until compression
Comparing Past and Present Before: Have single editor in each file geodatabase Notify editors when to disconnect from database Copy edits from the file geodatabases to a staging file geodatabase, then push those to SDE Repeat process for each database After: Multiple editors in same source Run maintenance when all users disconnected
Benefits of Versioned Editing Eliminating dataset duplicates Faster processing times for dataset edits Version control Collaboration
Implementation
The To-Do List Register data as versioned Create versions and grant privileges Provide training to editors
Built Environment Version Tree Default QAQC Named Version
Other Version Trees Edit Default Directly Default User Default 2 -Level Named Version
Workflows
Lessons Learned
Tips Reconcile edits before beginning an edit session Database administration Everyone has to be out of database in order to perform full compression Checking the process_information table was cumbersome (fixed in 10. 1) Need elevated permissions to disconnect users
Troubleshooting Resolving conflicts Do not reach full compression Locks on the database Deleting tables from the back end Transaction logs become full
The Road Ahead Implement versioned editing to more SDE databases Need a more automated QA process Work on automating maintenance scripts as scheduled tasks
Tools

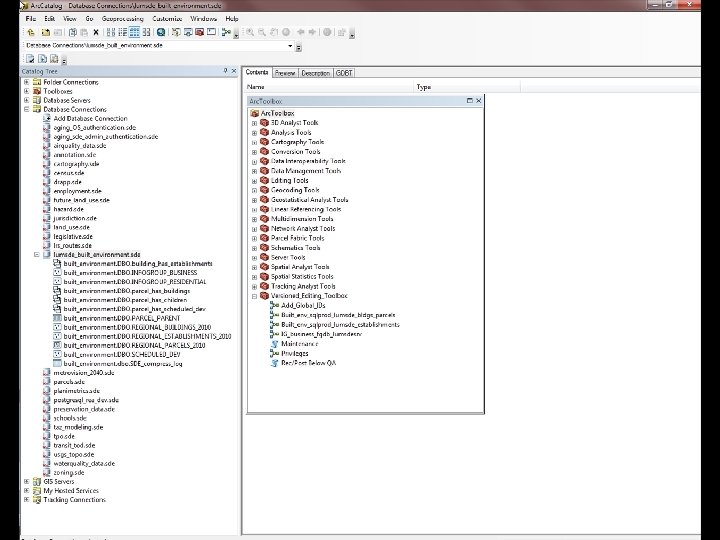

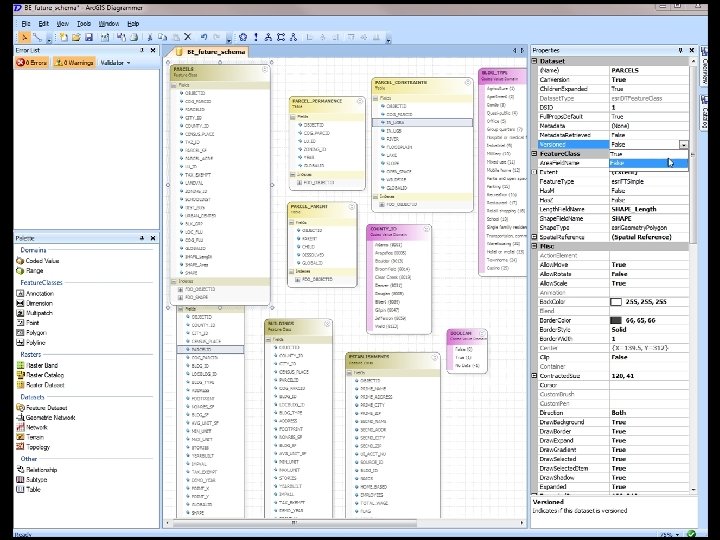

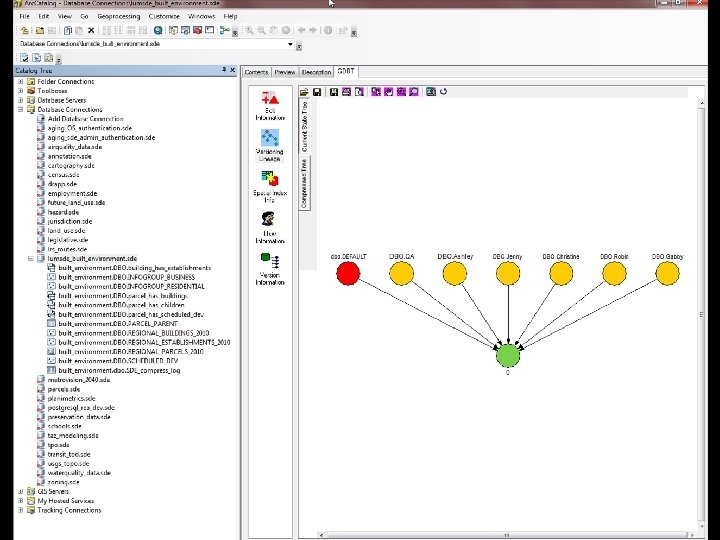

Tools Administration tools in Arc. GIS Python scripts Arc. GIS Diagrammer GDBT for 10. 0/10. 1 Troubleshoot, monitor, and investigate databases Show Edits Since Reconcile Tool Generates feature class of all edits between versions Edit tracking tool
Questions?
