Implementing and Using GIS in Water Distribution Systems

Implementing and Using GIS in Water Distribution Systems Jason Britton GIS/Contract Coordinator Madison County Water Department

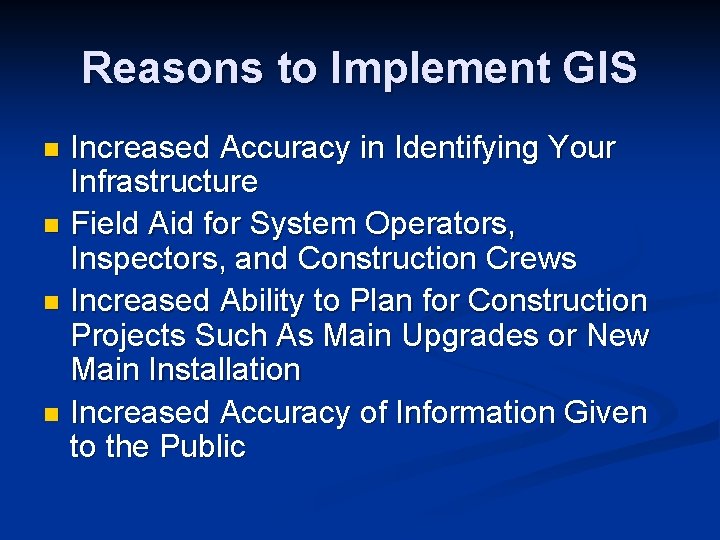

Reasons to Implement GIS Increased Accuracy in Identifying Your Infrastructure n Field Aid for System Operators, Inspectors, and Construction Crews n Increased Ability to Plan for Construction Projects Such As Main Upgrades or New Main Installation n Increased Accuracy of Information Given to the Public n

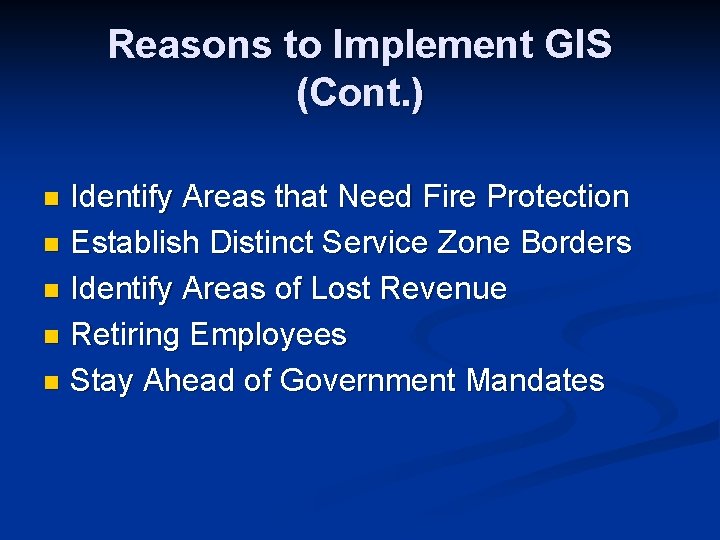

Reasons to Implement GIS (Cont. ) Identify Areas that Need Fire Protection n Establish Distinct Service Zone Borders n Identify Areas of Lost Revenue n Retiring Employees n Stay Ahead of Government Mandates n

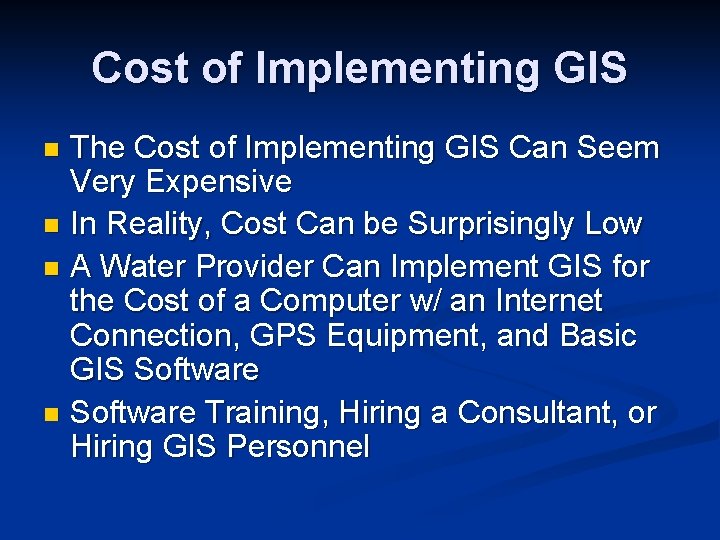

Cost of Implementing GIS The Cost of Implementing GIS Can Seem Very Expensive n In Reality, Cost Can be Surprisingly Low n A Water Provider Can Implement GIS for the Cost of a Computer w/ an Internet Connection, GPS Equipment, and Basic GIS Software n Software Training, Hiring a Consultant, or Hiring GIS Personnel n

GIS Implementation n n n Identify Your GIS Priorities Coordinate With Other County Entities Look Online for Free GIS Data Start with the Basics – Big Pieces of Infrastructure to Smaller Ones Rely on Your Fellow Employees for Help Be Dedicated to the Process Realize a GIS is Always a Work in Progress

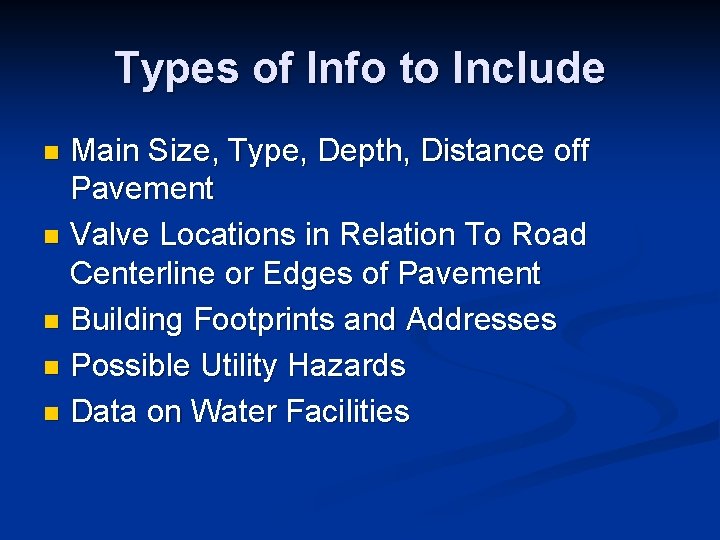

Types of Info to Include Main Size, Type, Depth, Distance off Pavement n Valve Locations in Relation To Road Centerline or Edges of Pavement n Building Footprints and Addresses n Possible Utility Hazards n Data on Water Facilities n

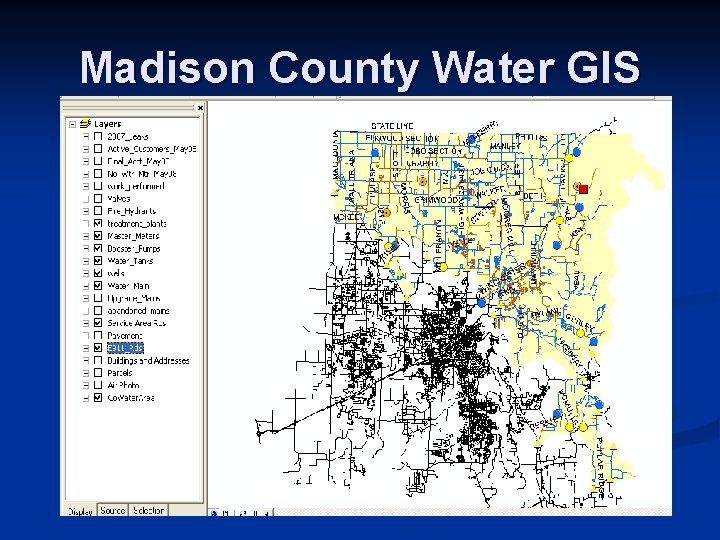

Madison County Water GIS

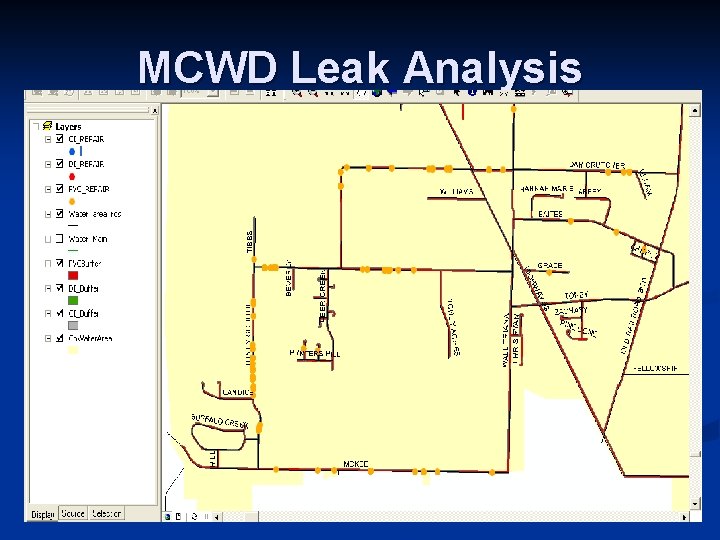

MCWD Leak Analysis

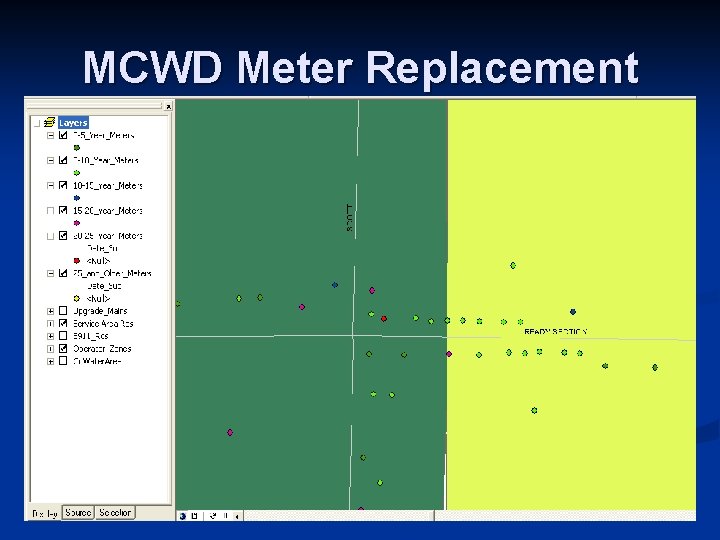

MCWD Meter Replacement

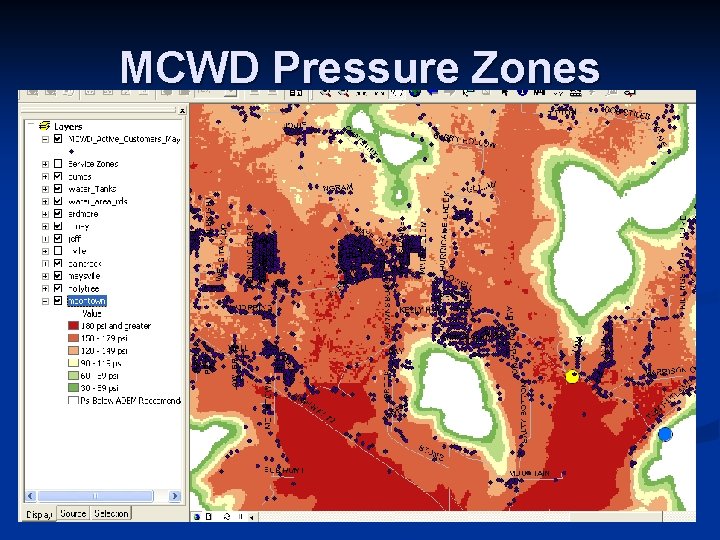

MCWD Pressure Zones
