Impedance Tests Conventional Transmission Line Model Impedance Tests
- Slides: 53
Impedance Tests Conventional Transmission Line Model
Impedance Tests Maxwell Equations J. C. Maxwell 1831– 1879 O. Heaviside 1850– 1925

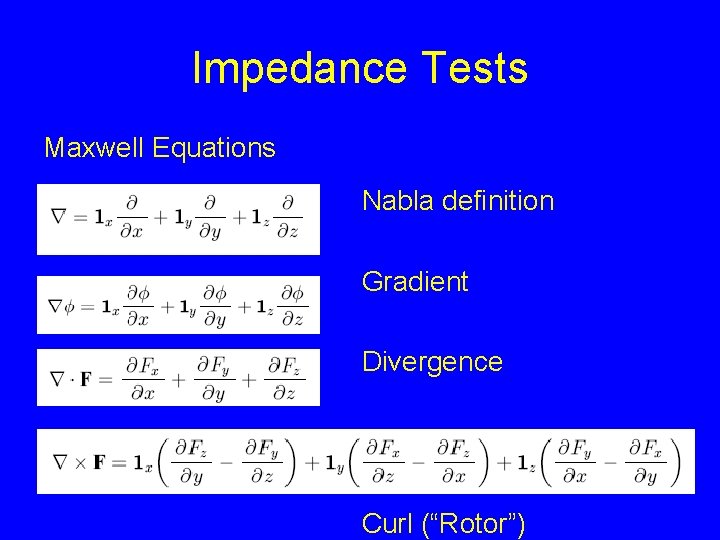

Impedance Tests Maxwell Equations Nabla definition Gradient Divergence Curl (“Rotor”)
Impedance Tests Maxwell Equations: Gradient

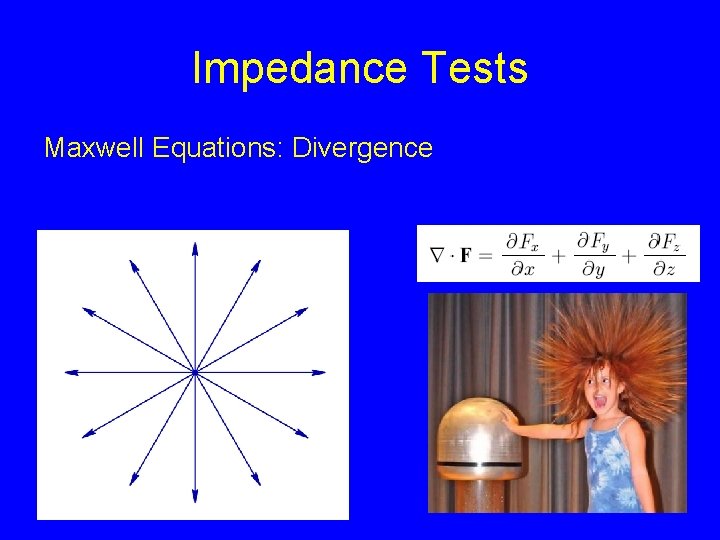

Impedance Tests Maxwell Equations: Divergence
Impedance Tests Maxwell Equations: Curl (“Rotor”)
Impedance Tests Maxwell Equations: Additional Equations
Impedance Tests Maxwell Equations: Generalization Problem
Impedance Tests Maxwell Equations: Constitutive Equations
Impedance Tests The Telegraph: first idea 1753; Morse 1837 Heaviside, 1880
Impedance Tests Transmission Line: Ordinary Discrete Circuit Making Zin = Z 0 and solving for Z 0 gives:
Impedance Tests Transmission Line Model
Impedance Tests Transmission Line: Distributed Circuit Model
Impedance Tests Characteristic Impedance Low R and G Approximation
Impedance Tests Coax Cable Z from geometry
Impedance Tests Characteristic Impedance In Free Space: Propagation Velocity
Impedance Tests Time Delay: td = x/v
Impedance Tests The Heaviside Method of Pulse Generation: What is the pulse amplitude and duration?
Impedance Tests
Impedance Tests
Impedance Tests Poynting Vector J. H. Poynting 1852– 1914
Impedance Tests Right Hand Rule
Impedance Tests Transmission Line: “Electrostatic” Fill-up
Impedance Tests Transmission Line: Open End Fill-up from 50 Ohm
Impedance Tests Transmission Line: Applying Power - 1
Impedance Tests Transmission Line: Applying Power - 2
Impedance Tests Transmission Line: Applying Power – 3
Impedance Tests Transmission Line: Applying Power – 4
Impedance Tests Transmission Line: Applying Power – 5
Impedance Tests Transmission Line: Applying Power – 6
Impedance Tests Transmission Line: Applying Power – 7
Impedance Tests Superposition of Forward and Reflected Waves
Impedance Tests Reflections: Ideal Case, Soft to Hard Medium
Impedance Tests Reflections: Ideal Case, Hard to Soft Medium
Impedance Tests Reflections: Real Case, Soft to Hard Medium
Impedance Tests Reflections: Real Case, Hard to Soft Medium
Impedance Tests Reflections
Impedance Tests Reflections
Impedance Tests Reflections
Impedance Tests Reflections
Impedance of Various Cross-Sections Impedance Tests Petal Low-Mass Tapes
Impedance Tests Petal Low-Mass Tapes
Impedance Tests Test Structures
Impedance Tests Bit Error Rate Tests: LVDS Driver
Impedance Tests Bit Error Rate Tests: LVDS Receiver
Impedance Tests LVDS Driver Output Stage Equivalent Schematics
Impedance Tests Test Circuit Schematics
Impedance Tests Test Circuit: Minimizing Scope Probe Ground Area
Impedance Tests Simulation
Impedance Tests Differential Line Imedance Variable Load Termination
Impedance Tests Differential Line Signals
Impedance Tests Differential Line Signals The test method clearly reveals errors.
Impedance Tests Influence of the serial R
