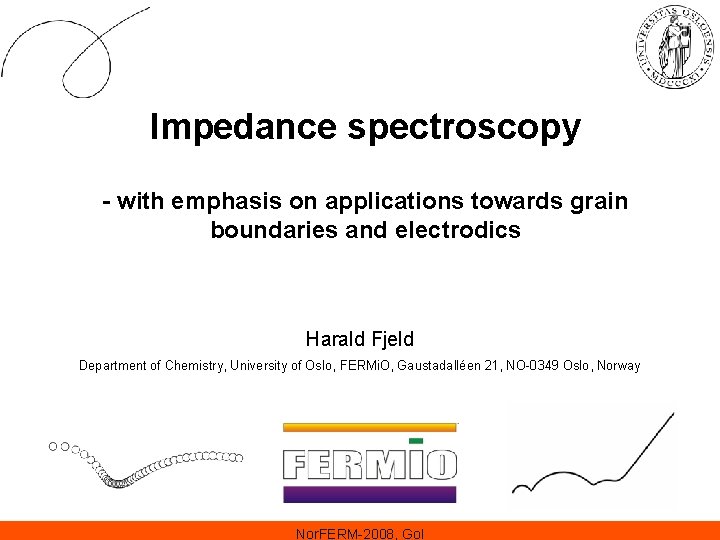

Impedance spectroscopy - with emphasis on applications towards grain boundaries and electrodics Harald Fjeld Department of Chemistry, University of Oslo, FERMi. O, Gaustadalléen 21, NO-0349 Oslo, Norway Nor. FERM-2008, Gol

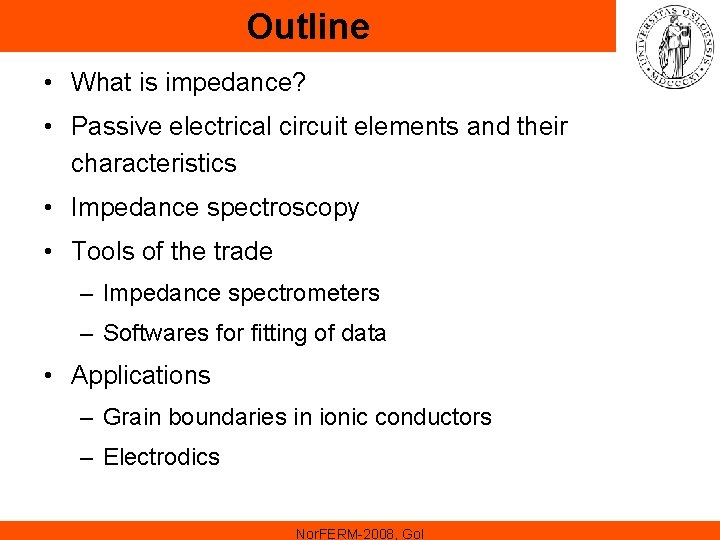

Outline • What is impedance? • Passive electrical circuit elements and their characteristics • Impedance spectroscopy • Tools of the trade – Impedance spectrometers – Softwares for fitting of data • Applications – Grain boundaries in ionic conductors – Electrodics Nor. FERM-2008, Gol

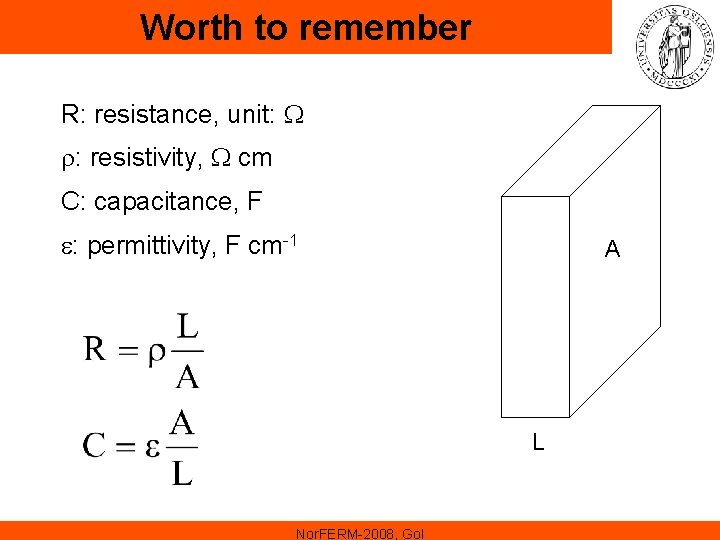

Worth to remember R: resistance, unit: W r: resistivity, W cm C: capacitance, F e: permittivity, F cm-1 A L Nor. FERM-2008, Gol

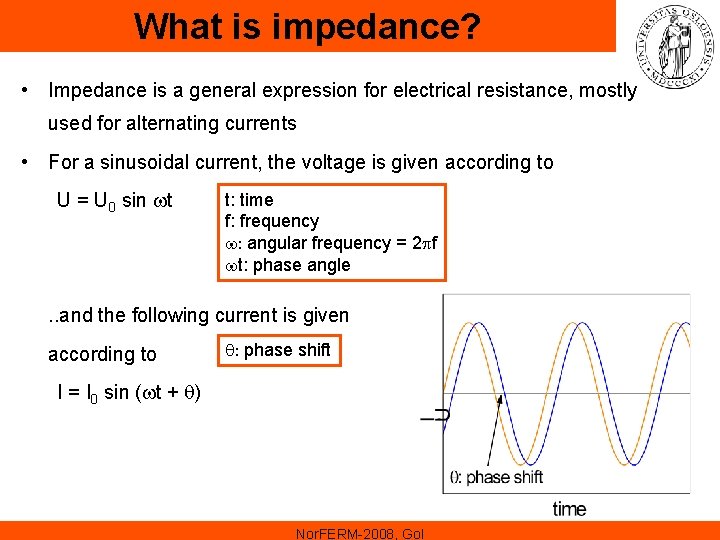

What is impedance? • Impedance is a general expression for electrical resistance, mostly used for alternating currents • For a sinusoidal current, the voltage is given according to U = U 0 sin wt t: time f: frequency w: angular frequency = 2 pf wt: phase angle . . and the following current is given according to q: phase shift I = I 0 sin (wt + q) Nor. FERM-2008, Gol

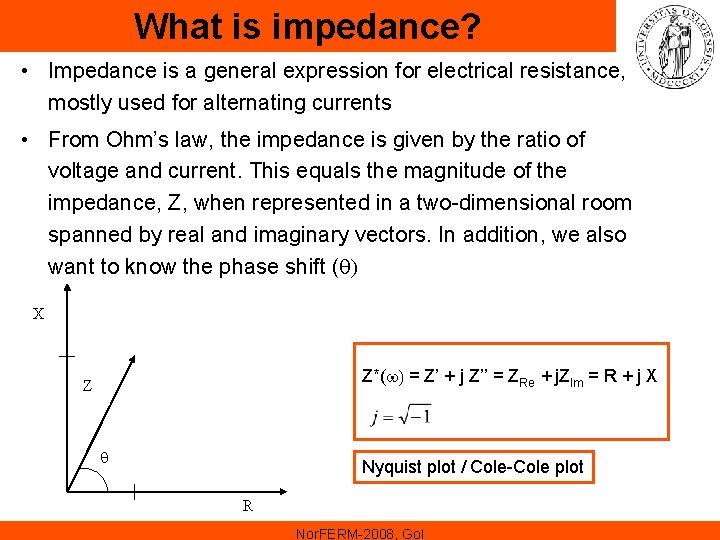

What is impedance? • Impedance is a general expression for electrical resistance, mostly used for alternating currents • From Ohm’s law, the impedance is given by the ratio of voltage and current. This equals the magnitude of the impedance, Z, when represented in a two-dimensional room spanned by real and imaginary vectors. In addition, we also want to know the phase shift (q) X Z*(w) = Z’ + j Z’’ = ZRe + j. ZIm = R + j X Z q Nyquist plot / Cole-Cole plot R Nor. FERM-2008, Gol

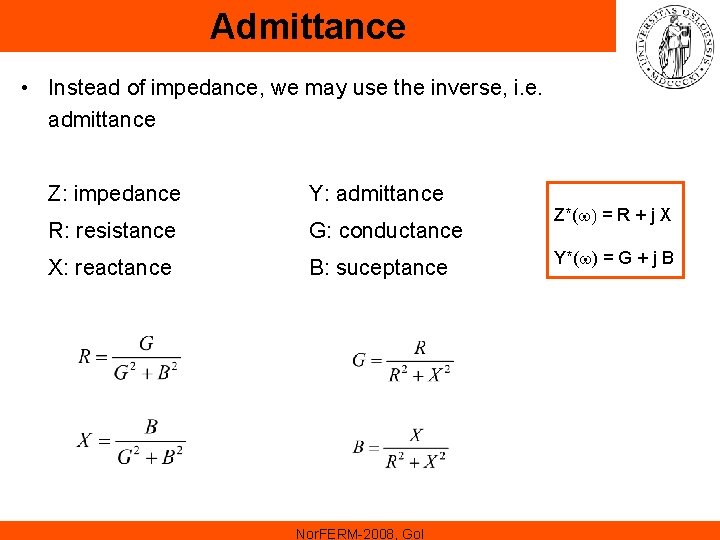

Admittance • Instead of impedance, we may use the inverse, i. e. admittance Z: impedance Y: admittance R: resistance G: conductance X: reactance B: suceptance Nor. FERM-2008, Gol Z*(w) = R + j X Y*(w) = G + j B

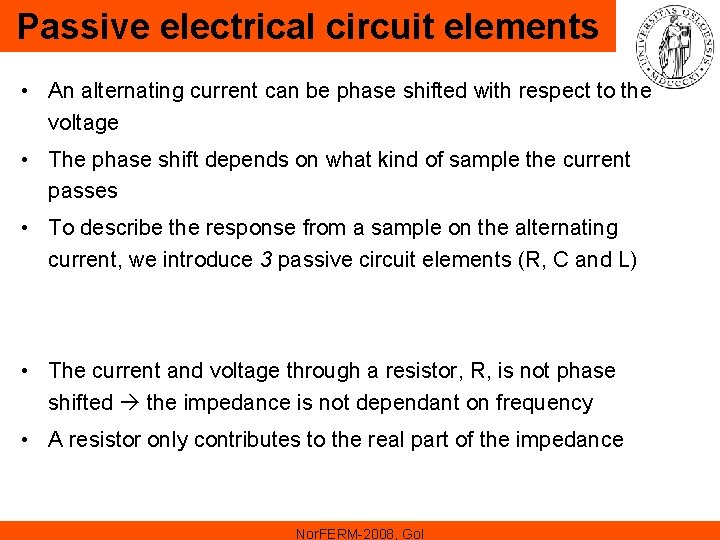

Passive electrical circuit elements • An alternating current can be phase shifted with respect to the voltage • The phase shift depends on what kind of sample the current passes • To describe the response from a sample on the alternating current, we introduce 3 passive circuit elements (R, C and L) • The current and voltage through a resistor, R, is not phase shifted the impedance is not dependant on frequency • A resistor only contributes to the real part of the impedance Nor. FERM-2008, Gol

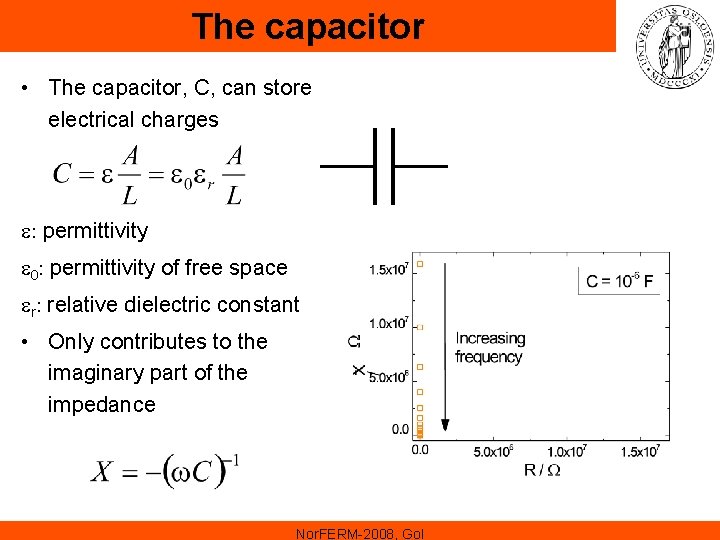

The capacitor • The capacitor, C, can store electrical charges e: permittivity e 0: permittivity of free space er: relative dielectric constant • Only contributes to the imaginary part of the impedance Nor. FERM-2008, Gol

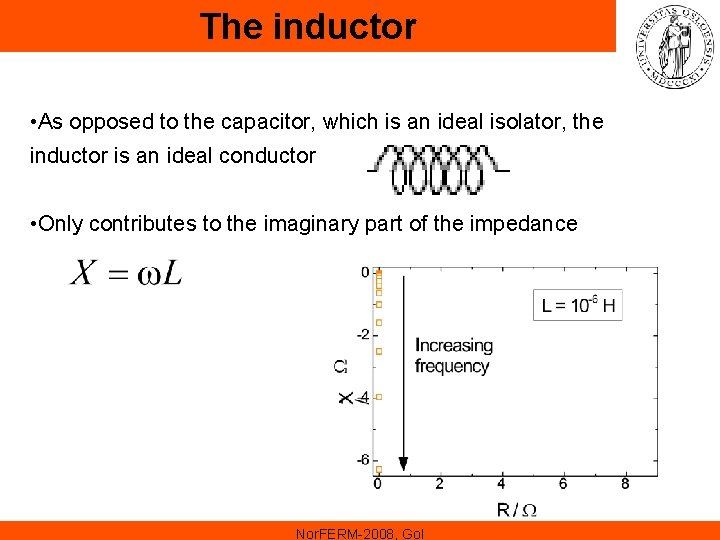

The inductor • As opposed to the capacitor, which is an ideal isolator, the inductor is an ideal conductor • Only contributes to the imaginary part of the impedance Nor. FERM-2008, Gol

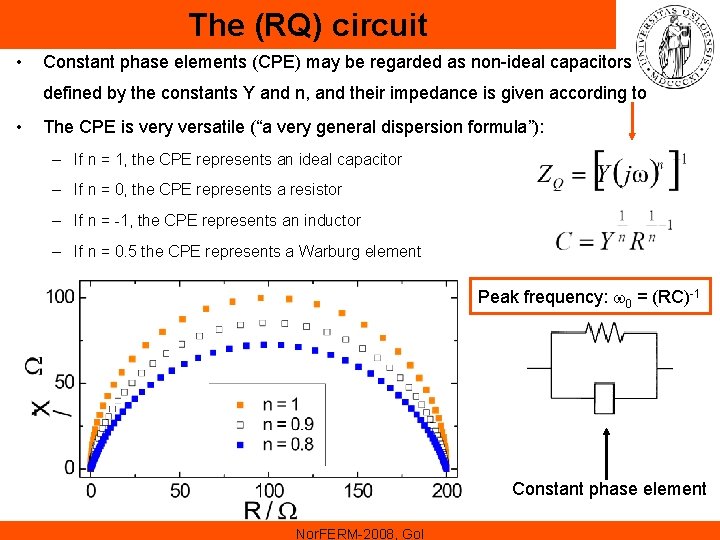

The (RQ) circuit • Constant phase elements (CPE) may be regarded as non-ideal capacitors defined by the constants Y and n, and their impedance is given according to • The CPE is very versatile (“a very general dispersion formula”): – If n = 1, the CPE represents an ideal capacitor – If n = 0, the CPE represents a resistor – If n = -1, the CPE represents an inductor – If n = 0. 5 the CPE represents a Warburg element Peak frequency: w 0 = (RC)-1 Constant phase element Nor. FERM-2008, Gol

Impedance spectroscopy in solid state ionics • What: A technique for studying the conductivity of ionic conductors, mixed conductors, electrode kinetics and related phenomena Features: • Eliminates the need for non-blocking electrodes • The impedance due to grain interiors, grain boundaries and different electrode properties can be measured independently How: • A small AC voltage (e. g. 10 m. V – 1 V) is imposed on the sample over a wide range of frequencies (e. g. 1 MHz – 0. 1 Hz), and the complex impedance is measured Nor. FERM-2008, Gol

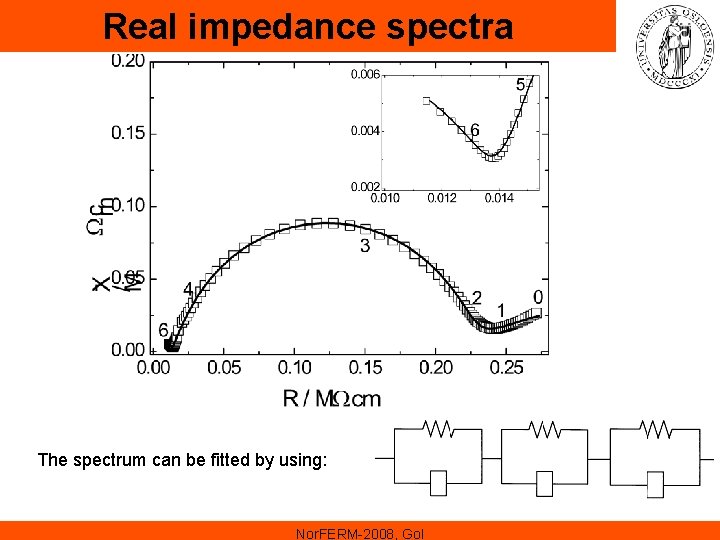

Real impedance spectra The spectrum can be fitted by using: Nor. FERM-2008, Gol

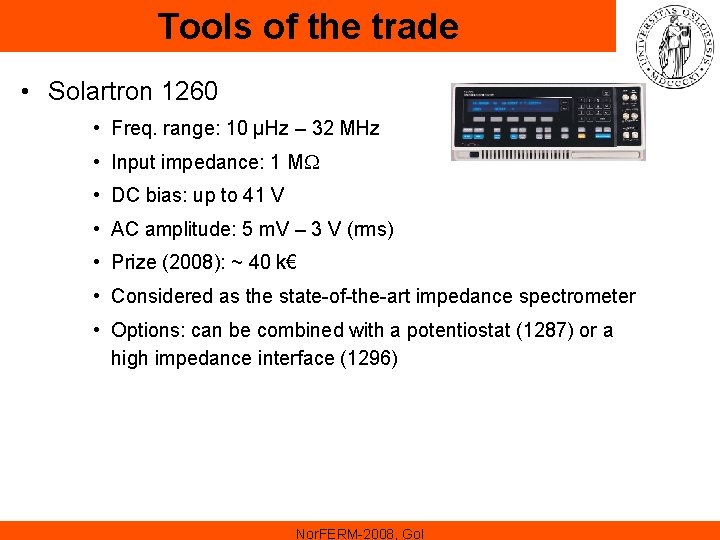

Tools of the trade • Solartron 1260 • Freq. range: 10 µHz – 32 MHz • Input impedance: 1 MW • DC bias: up to 41 V • AC amplitude: 5 m. V – 3 V (rms) • Prize (2008): ~ 40 k€ • Considered as the state-of-the-art impedance spectrometer • Options: can be combined with a potentiostat (1287) or a high impedance interface (1296) Nor. FERM-2008, Gol

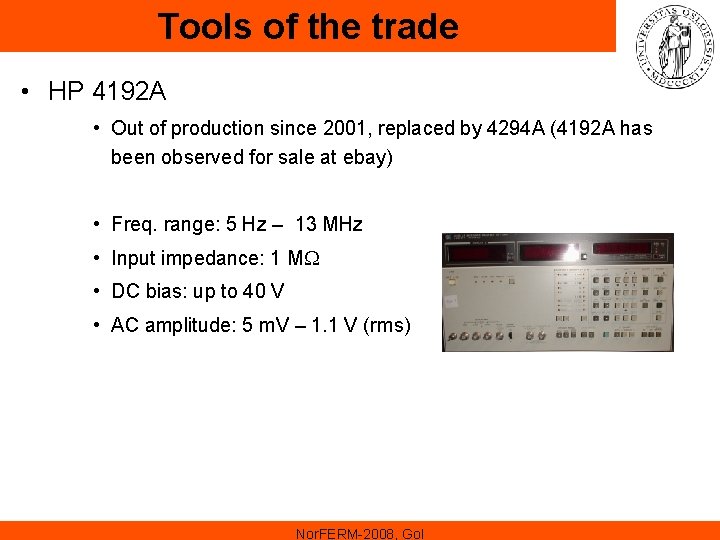

Tools of the trade • HP 4192 A • Out of production since 2001, replaced by 4294 A (4192 A has been observed for sale at ebay) • Freq. range: 5 Hz – 13 MHz • Input impedance: 1 MW • DC bias: up to 40 V • AC amplitude: 5 m. V – 1. 1 V (rms) Nor. FERM-2008, Gol

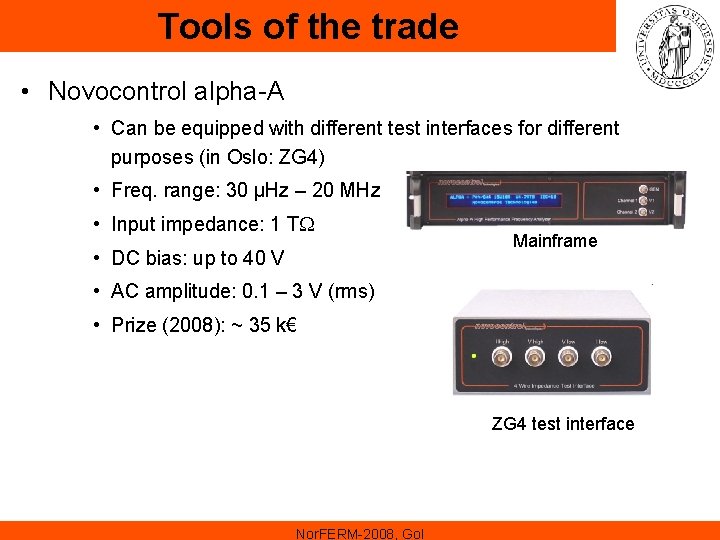

Tools of the trade • Novocontrol alpha-A • Can be equipped with different test interfaces for different purposes (in Oslo: ZG 4) • Freq. range: 30 µHz – 20 MHz • Input impedance: 1 TW • DC bias: up to 40 V Mainframe • AC amplitude: 0. 1 – 3 V (rms) • Prize (2008): ~ 35 k€ ZG 4 test interface Nor. FERM-2008, Gol

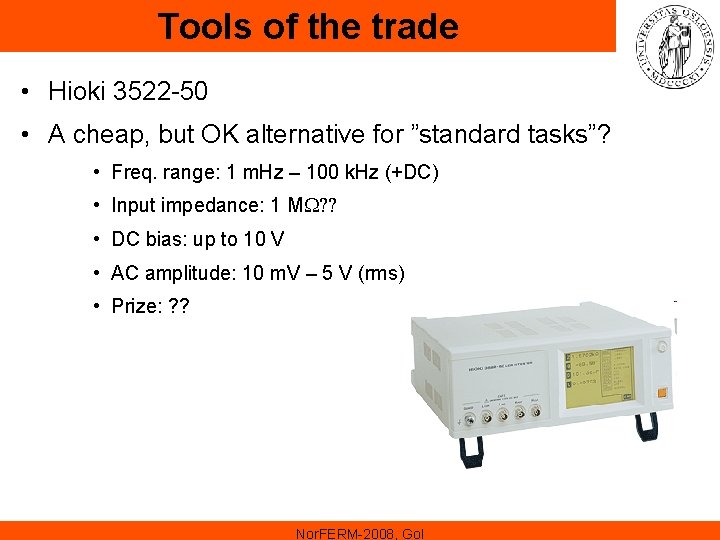

Tools of the trade • Hioki 3522 -50 • A cheap, but OK alternative for ”standard tasks”? • Freq. range: 1 m. Hz – 100 k. Hz (+DC) • Input impedance: 1 MW? ? • DC bias: up to 10 V • AC amplitude: 10 m. V – 5 V (rms) • Prize: ? ? Nor. FERM-2008, Gol

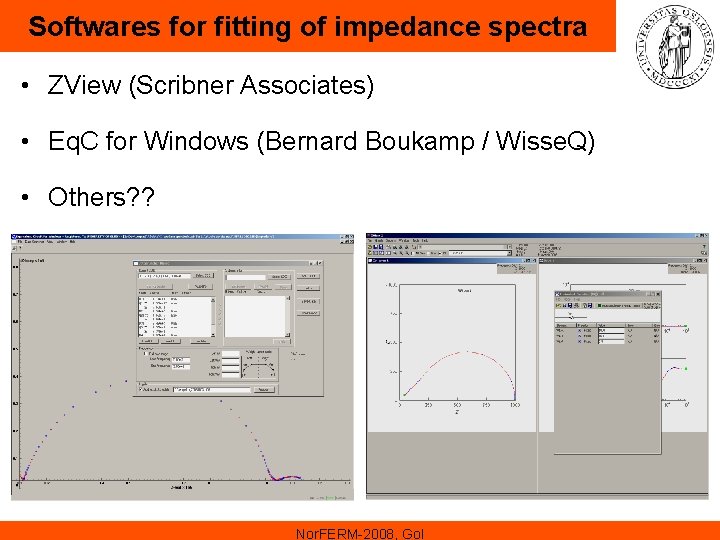

Softwares for fitting of impedance spectra • ZView (Scribner Associates) • Eq. C for Windows (Bernard Boukamp / Wisse. Q) • Others? ? Nor. FERM-2008, Gol

Grain boundaries in ionic conductors Nor. FERM-2008, Gol

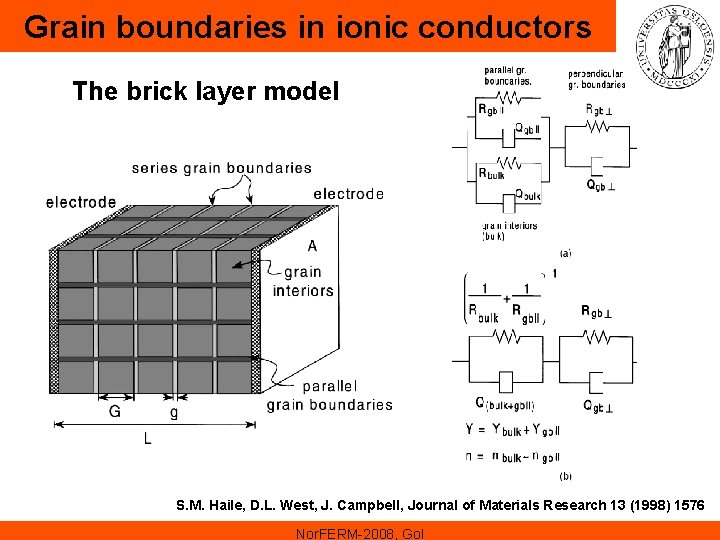

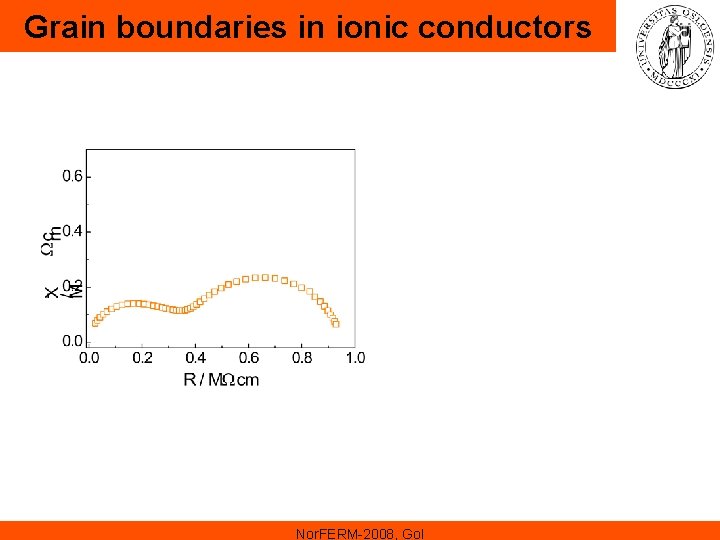

Grain boundaries in ionic conductors The brick layer model S. M. Haile, D. L. West, J. Campbell, Journal of Materials Research 13 (1998) 1576 Nor. FERM-2008, Gol

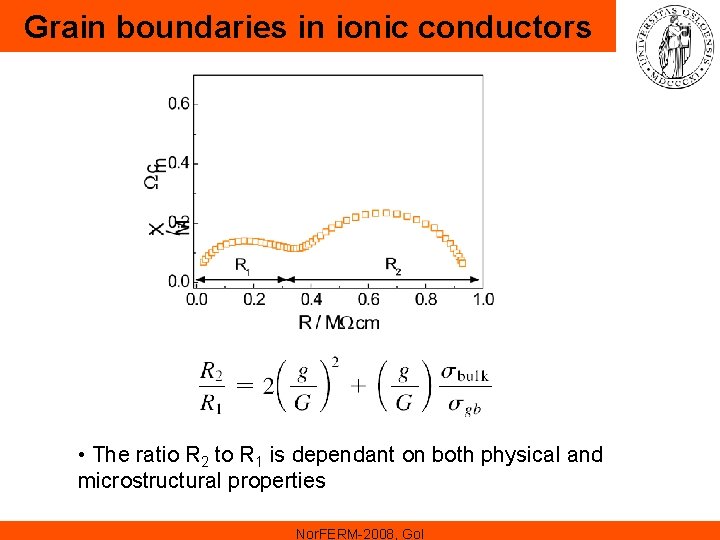

Grain boundaries in ionic conductors • The ratio R 2 to R 1 is dependant on both physical and microstructural properties Nor. FERM-2008, Gol

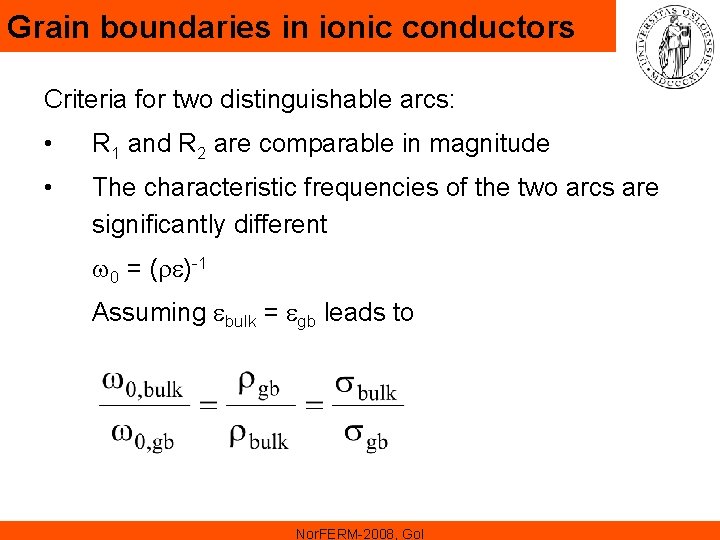

Grain boundaries in ionic conductors Criteria for two distinguishable arcs: • R 1 and R 2 are comparable in magnitude • The characteristic frequencies of the two arcs are significantly different w 0 = (re)-1 Assuming ebulk = egb leads to Nor. FERM-2008, Gol

Grain boundaries in ionic conductors • Assuming a sample with ”normal” microstructure (G >> g) • In the case of two semi-circles: sbulk > sgb – Transport in grains is preferred, but the perpendicular grain boundaries are unavoidable Nor. FERM-2008, Gol

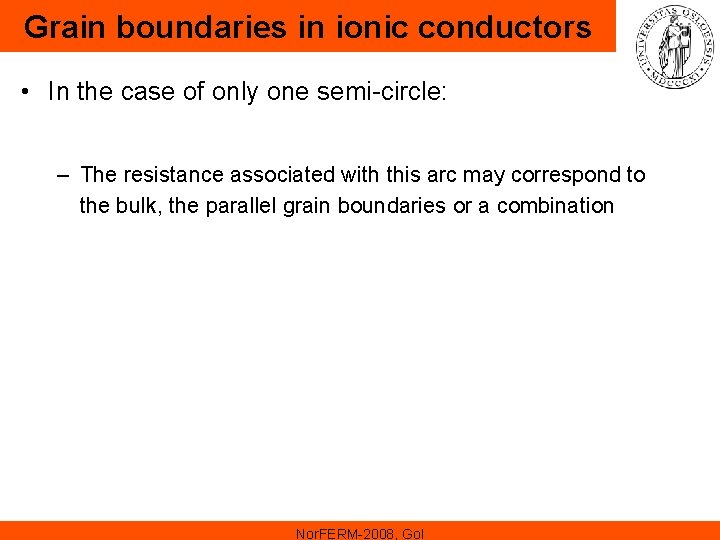

Grain boundaries in ionic conductors • In the case of only one semi-circle: – The resistance associated with this arc may correspond to the bulk, the parallel grain boundaries or a combination Nor. FERM-2008, Gol

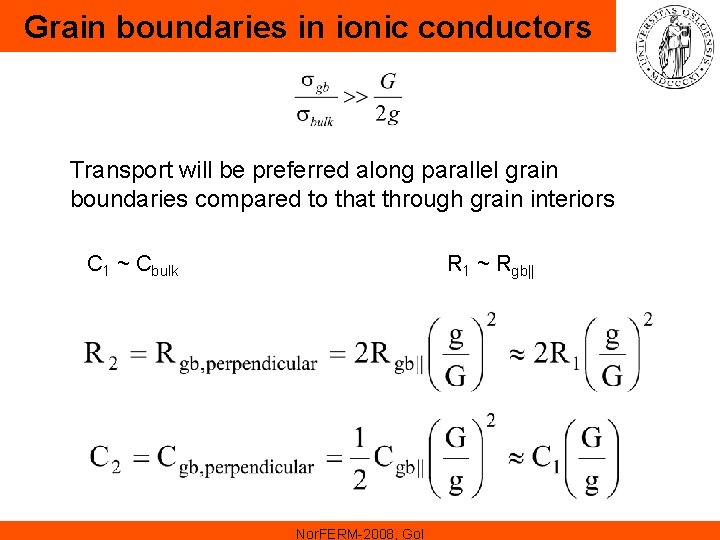

Grain boundaries in ionic conductors Transport will be preferred along parallel grain boundaries compared to that through grain interiors C 1 ~ Cbulk R 1 ~ Rgb|| Nor. FERM-2008, Gol

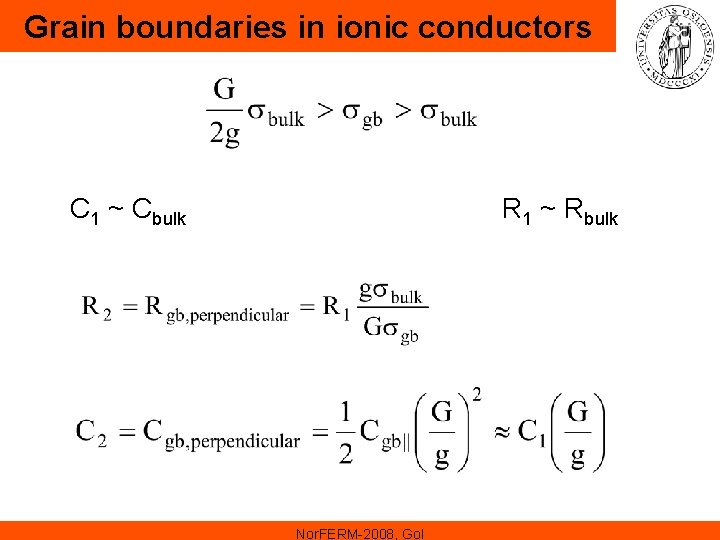

Grain boundaries in ionic conductors C 1 ~ Cbulk R 1 ~ Rbulk Nor. FERM-2008, Gol

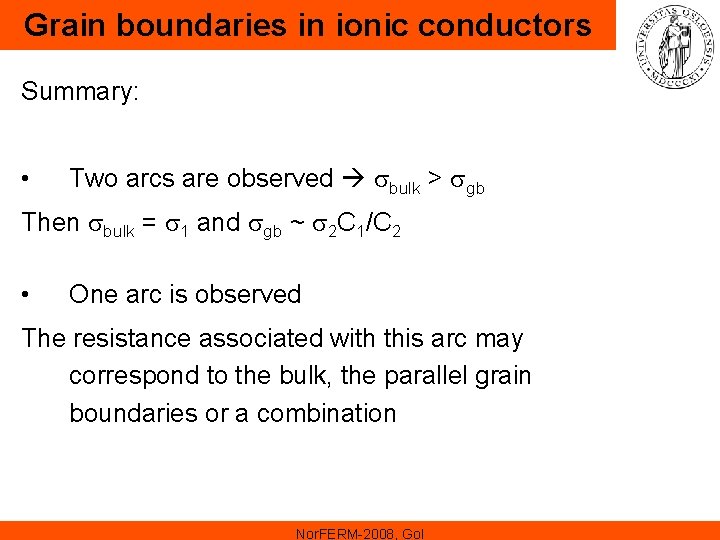

Grain boundaries in ionic conductors Summary: • Two arcs are observed sbulk > sgb Then sbulk = s 1 and sgb ~ s 2 C 1/C 2 • One arc is observed The resistance associated with this arc may correspond to the bulk, the parallel grain boundaries or a combination Nor. FERM-2008, Gol

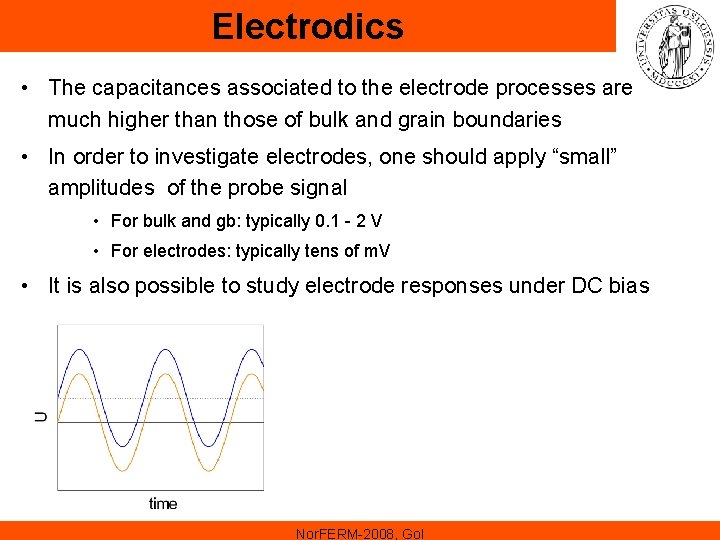

Electrodics • The capacitances associated to the electrode processes are much higher than those of bulk and grain boundaries • In order to investigate electrodes, one should apply “small” amplitudes of the probe signal • For bulk and gb: typically 0. 1 - 2 V • For electrodes: typically tens of m. V • It is also possible to study electrode responses under DC bias Nor. FERM-2008, Gol

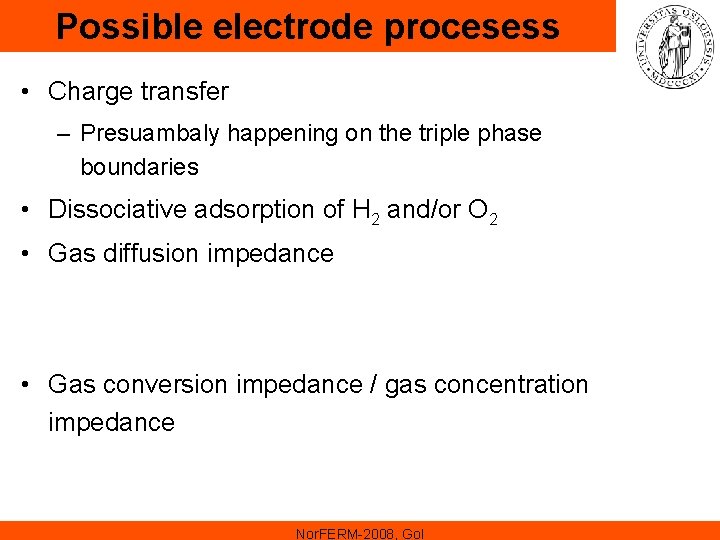

Possible electrode procesess • Charge transfer – Presuambaly happening on the triple phase boundaries • Dissociative adsorption of H 2 and/or O 2 • Gas diffusion impedance • Gas conversion impedance / gas concentration impedance Nor. FERM-2008, Gol

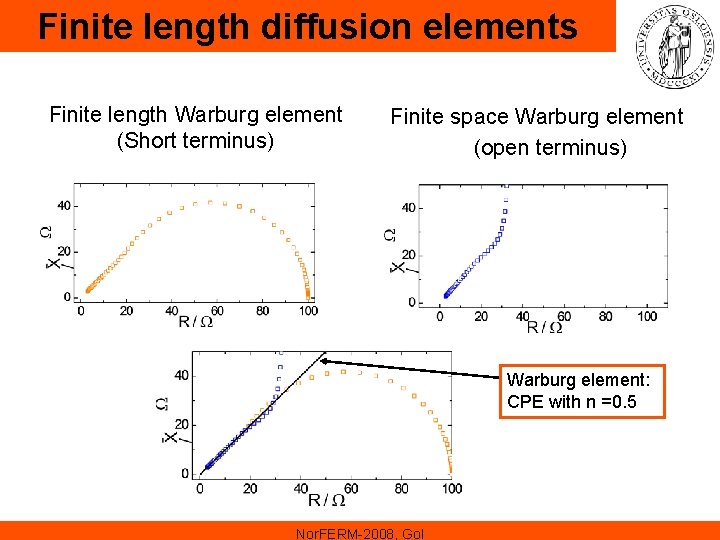

Finite length diffusion elements Finite length Warburg element (Short terminus) Finite space Warburg element (open terminus) Warburg element: CPE with n =0. 5 Nor. FERM-2008, Gol

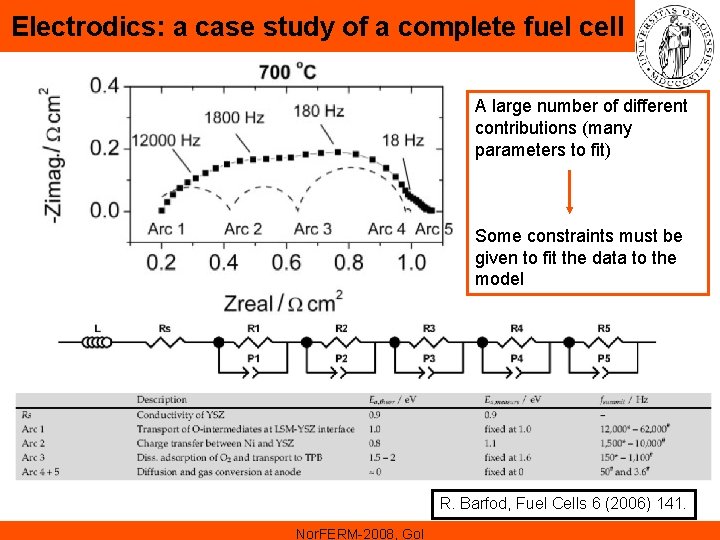

Electrodics: a case study of a complete fuel cell A large number of different contributions (many parameters to fit) Some constraints must be given to fit the data to the model R. Barfod, Fuel Cells 6 (2006) 141. Nor. FERM-2008, Gol

Limitations of impedance spectroscopy • Many parameters to fit: sufficient amount of data is necessary • Overlapping processes in the frequency-plane may not be separated • In theory, an indefinite number of equivalent circuits can be used to explain a recorded spectrum Nor. FERM-2008, Gol

Literature and acknowledgments The impedance course at Risø is acknowledged for inspiration R. Barfod, A. Hagen, S. Ramousse, P. V. Hendriksen, M. Mogensen, Fuel Cells 6 (2006) 141. S. M. Haile, D. L. West, J. Campbell, Journal of Materials Research 13 (1998) 1576 Nor. FERM-2008, Gol
