Impact Crater Lab Impact Crater Lab 1 Place

Impact Crater Lab

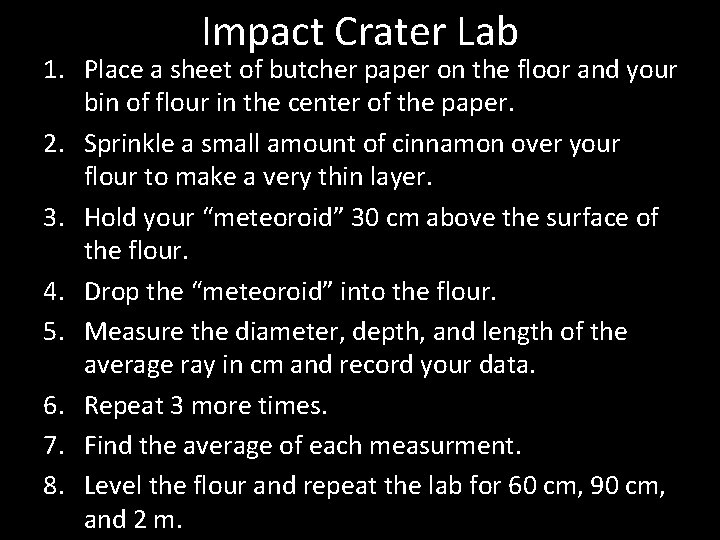

Impact Crater Lab 1. Place a sheet of butcher paper on the floor and your bin of flour in the center of the paper. 2. Sprinkle a small amount of cinnamon over your flour to make a very thin layer. 3. Hold your “meteoroid” 30 cm above the surface of the flour. 4. Drop the “meteoroid” into the flour. 5. Measure the diameter, depth, and length of the average ray in cm and record your data. 6. Repeat 3 more times. 7. Find the average of each measurment. 8. Level the flour and repeat the lab for 60 cm, 90 cm, and 2 m.

Warnings! 1. Do not make a mess. Be responsible. 2. Do not throw your meteoroid. Gravity is the only force that should accelerate the meteoroid. 3. Use only a small amount of cinnamon between different height trials. Do not redo the cinnamon between trials for the same height. 4. Any horseplay will result in removal from the lab.

Impact Crater Lab 1. Place a sheet of butcher paper on the floor and your bin of flour in the center of the paper. 2. Sprinkle a small amount of cinnamon over your flour to make a very thin layer. 3. Hold your “meteoroid” 30 cm above the surface of the flour. 4. Drop the “meteoroid” into the flour. 5. Measure the diameter, depth, and length of the average ray in cm and record your data. 6. Repeat 3 more times. 7. Find the average of each measurment. 8. Level the flour and repeat the lab for 60 cm, 90 cm, and 2 m.

Impact Craters

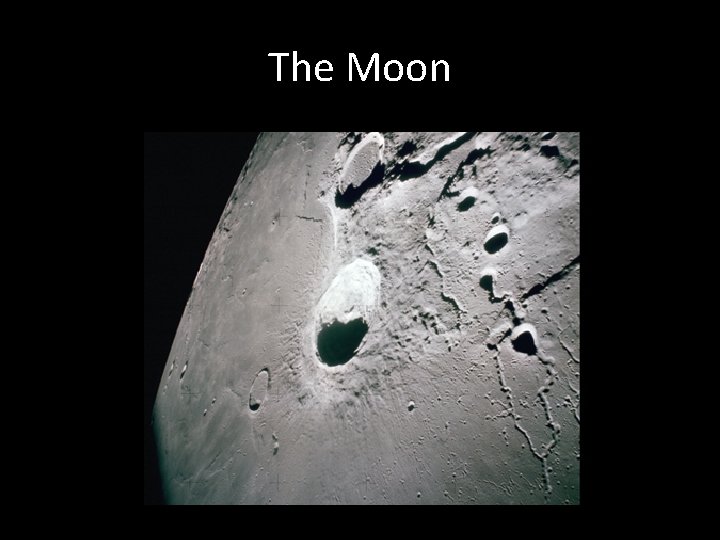

The Moon

Slow Motion Milk Drop Experiment http: //www. youtube. com/watch? v=86 z. Iq. I 3 SVIY&feature=related http: //www. youtube. com/watch? v=6 KKNnj. Fp. Gto&feature=r elated

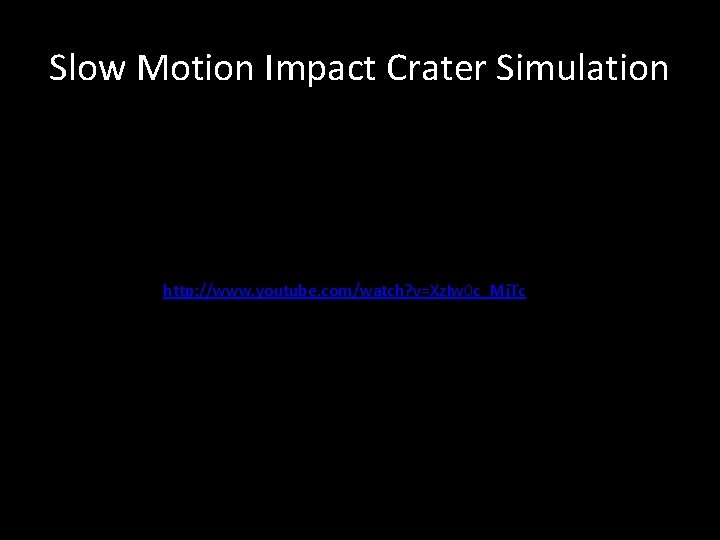

Slow Motion Impact Crater Simulation http: //www. youtube. com/watch? v=Xz. Iw 0 c_Mj. Tc

Aristarchus Crater on Moon

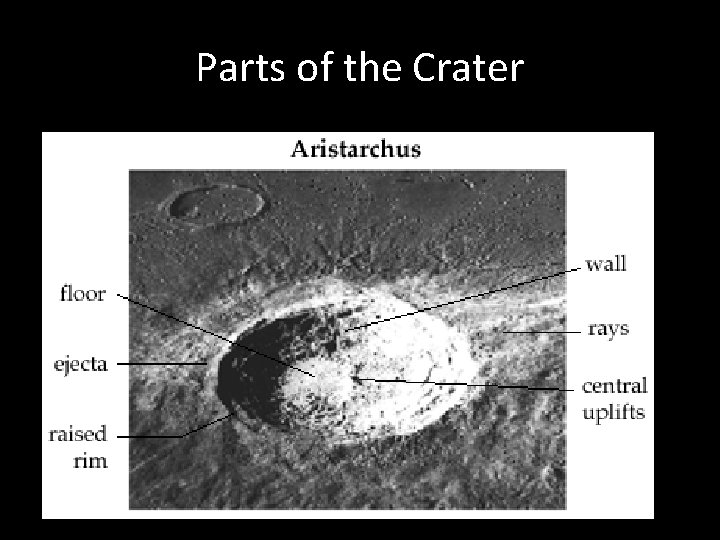

Parts of the Crater

Impact Crater Vocabulary • Floor: The bowl shaped or flat area • Central Uplift: Mountains formed due to the increase and rapid decrease in pressure during an impact • Wall: steep sides of the crater area • Raised Rim: Rock thrown out of the crater and deposited in a ring-shaped pile at the crater's edge during an impact • Ejecta: blanket of material surrounding the crater that is thrown out during the impact • Rays: The bright streaks starting from a crater and extending away for great distances
