IMMUNOGLOBULIN STRUCTURE AND FUNCTION March 19 2009 10

IMMUNOGLOBULIN STRUCTURE AND FUNCTION March 19, 2009 10: 00 -11: 00

IMMUNOGLOBULIN AND HUMORAL IMMUNITY Two functions: 1)m. Ig Is the B cell antigen recognition receptor 2) secreted Ig is the effector protein for adaptive humoral immune responses

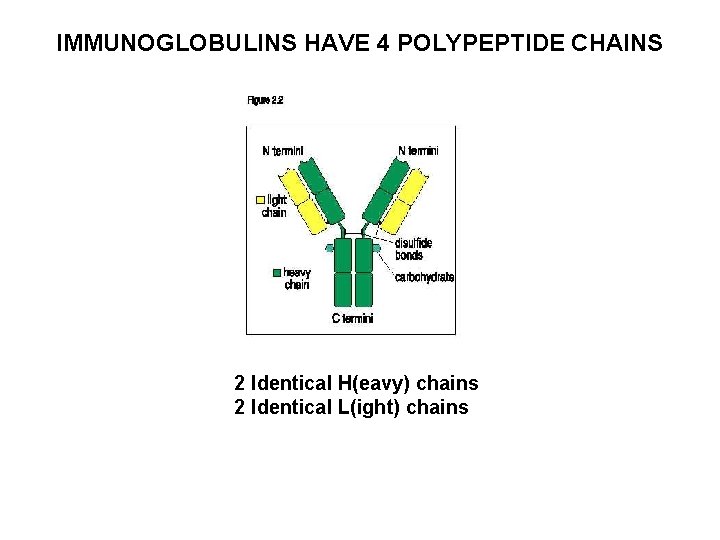

IMMUNOGLOBULINS HAVE 4 POLYPEPTIDE CHAINS 2 Identical H(eavy) chains 2 Identical L(ight) chains

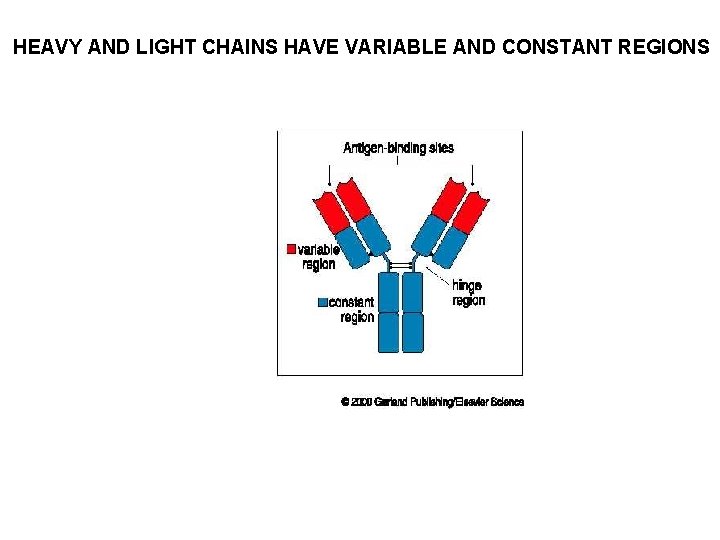

HEAVY AND LIGHT CHAINS HAVE VARIABLE AND CONSTANT REGIONS

ANTIBODY MOLECULES HAVE GLOBULAR REGIONS The globular regions are separated by a “flexible” hinge The globular regions contain globular domains

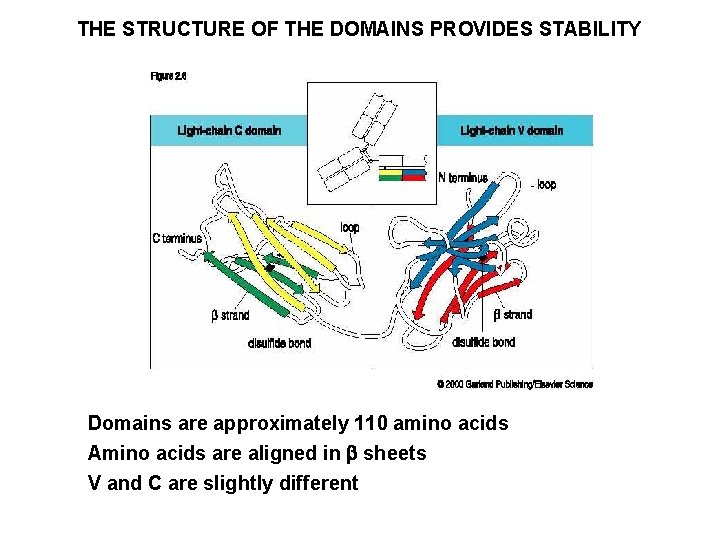

THE STRUCTURE OF THE DOMAINS PROVIDES STABILITY Domains are approximately 110 amino acids Amino acids are aligned in b sheets V and C are slightly different

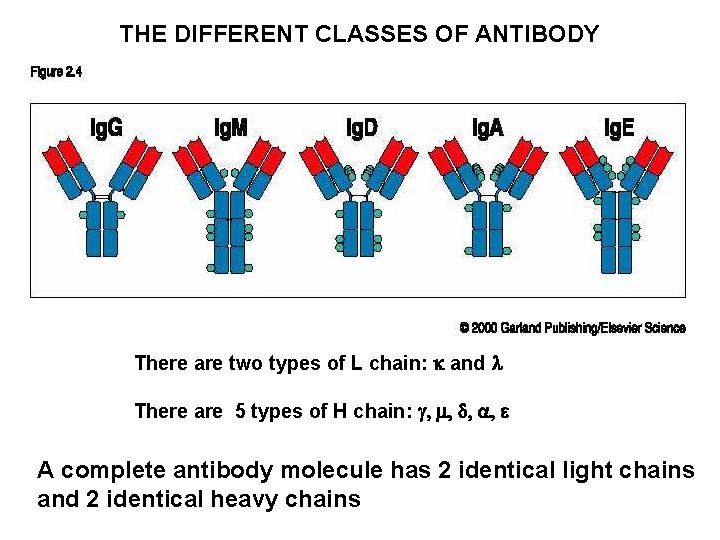

THE DIFFERENT CLASSES OF ANTIBODY There are two types of L chain: k and l There are 5 types of H chain: g, m, d, a, e A complete antibody molecule has 2 identical light chains and 2 identical heavy chains

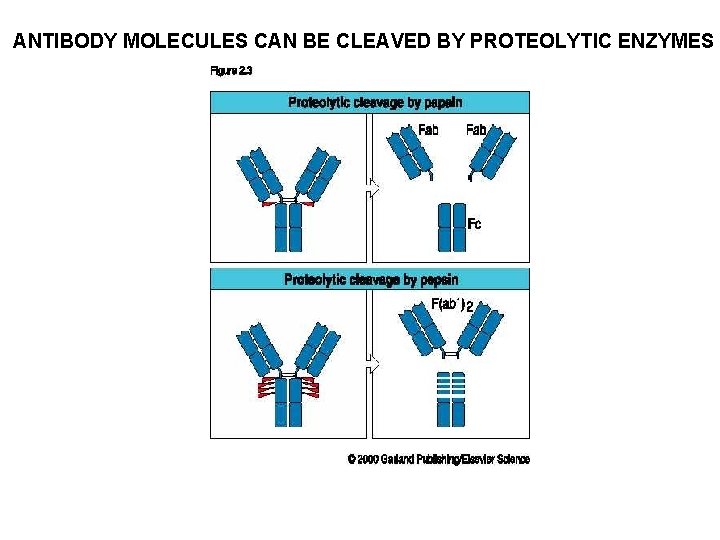

ANTIBODY MOLECULES CAN BE CLEAVED BY PROTEOLYTIC ENZYMES

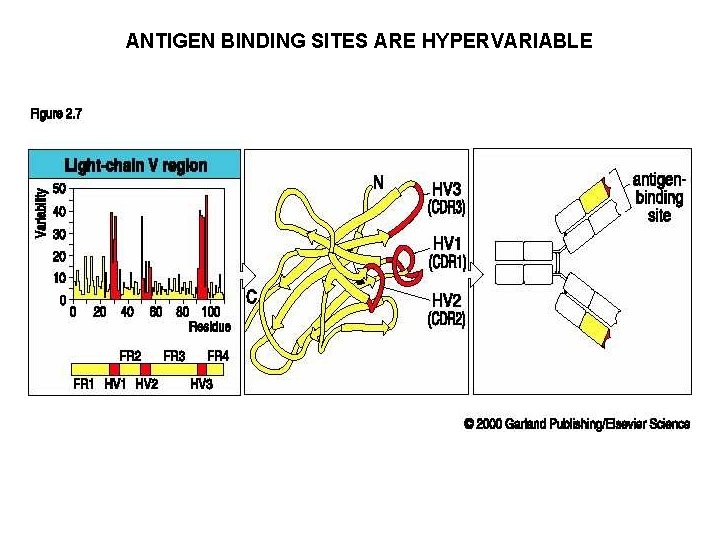

ANTIGEN BINDING SITES ARE HYPERVARIABLE

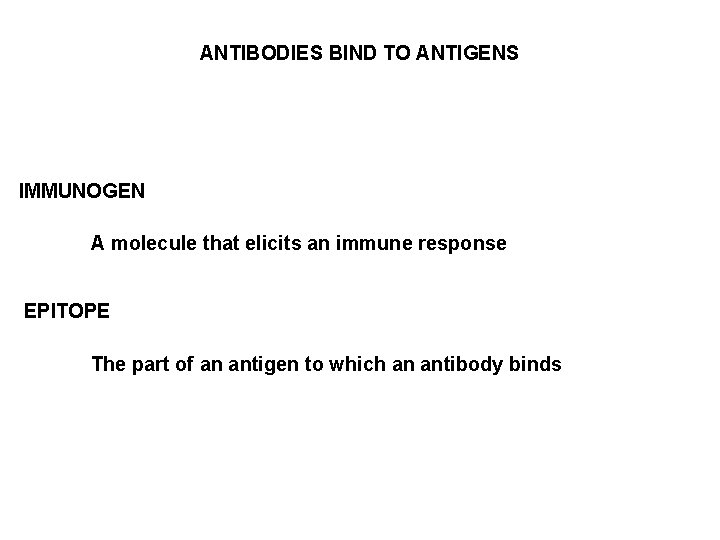

ANTIBODIES BIND TO ANTIGENS IMMUNOGEN A molecule that elicits an immune response EPITOPE The part of an antigen to which an antibody binds

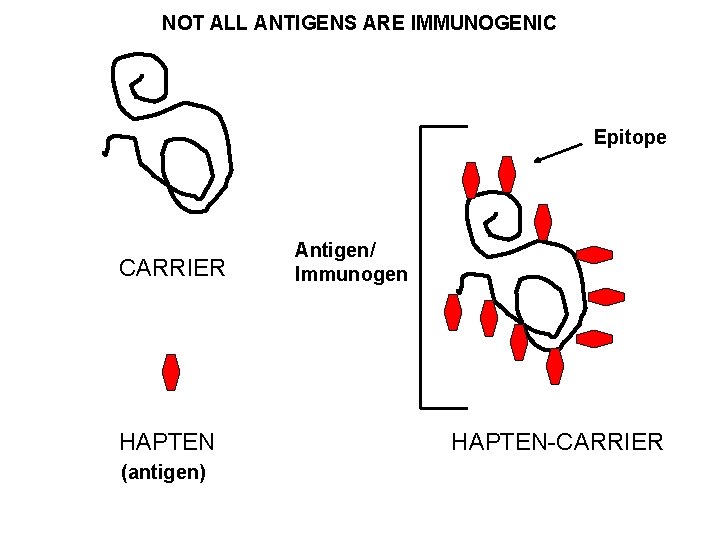

NOT ALL ANTIGENS ARE IMMUNOGENIC Epitope CARRIER HAPTEN (antigen) Antigen/ Immunogen HAPTEN-CARRIER

AN ANTIBODY BINDS EPITOPES ON A VIRAL PARTICLE

TWO TYPES OF EPITOPE

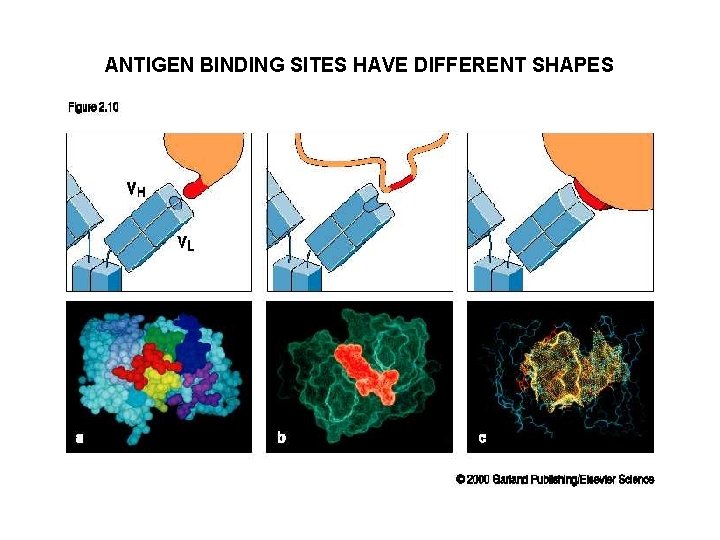

ANTIGEN BINDING SITES HAVE DIFFERENT SHAPES

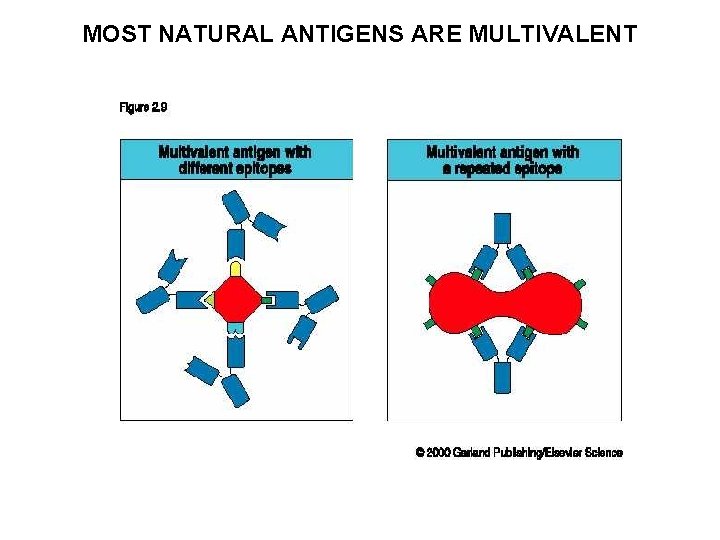

MOST NATURAL ANTIGENS ARE MULTIVALENT

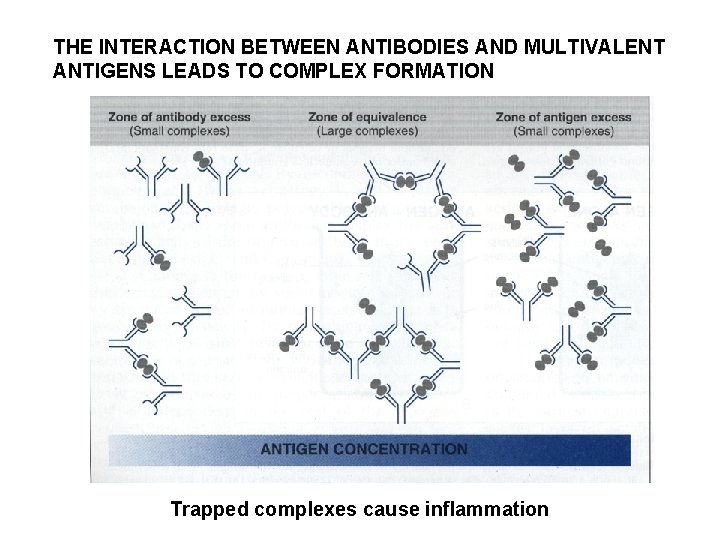

THE INTERACTION BETWEEN ANTIBODIES AND MULTIVALENT ANTIGENS LEADS TO COMPLEX FORMATION Trapped complexes cause inflammation

ANTIBODIES ARE CLINICAL TOOLS

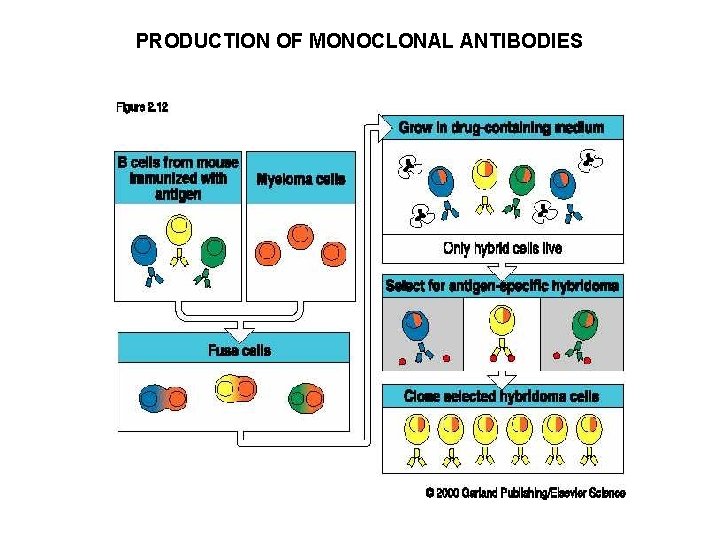

PRODUCTION OF MONOCLONAL ANTIBODIES

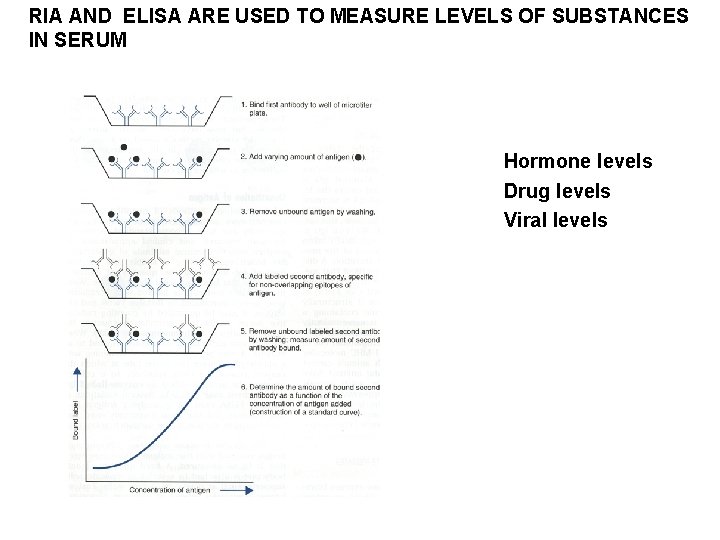

RIA AND ELISA ARE USED TO MEASURE LEVELS OF SUBSTANCES IN SERUM Hormone levels Drug levels Viral levels

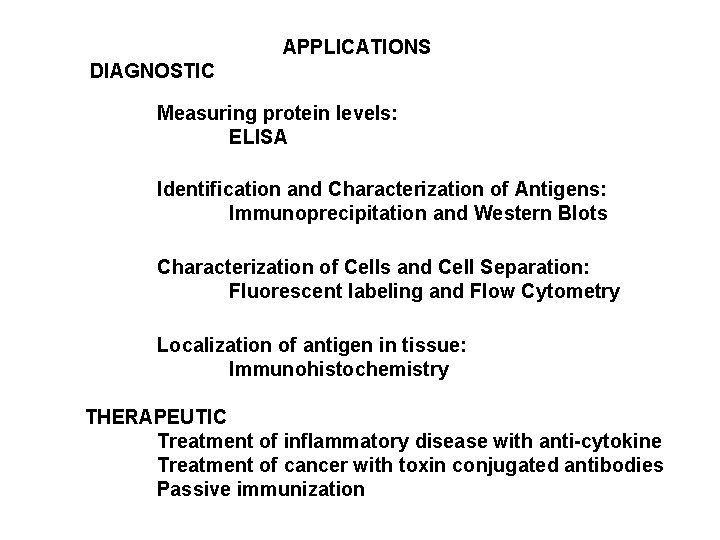

APPLICATIONS DIAGNOSTIC Measuring protein levels: ELISA Identification and Characterization of Antigens: Immunoprecipitation and Western Blots Characterization of Cells and Cell Separation: Fluorescent labeling and Flow Cytometry Localization of antigen in tissue: Immunohistochemistry THERAPEUTIC Treatment of inflammatory disease with anti-cytokine Treatment of cancer with toxin conjugated antibodies Passive immunization

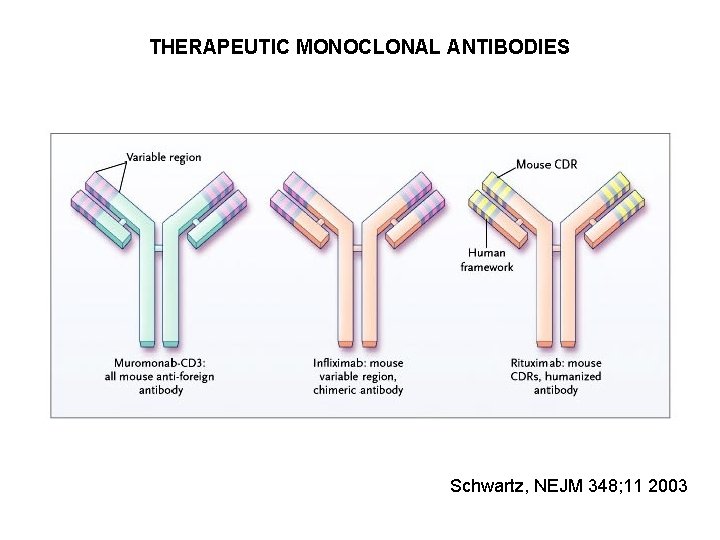

THERAPEUTIC MONOCLONAL ANTIBODIES Schwartz, NEJM 348; 11 2003
