IMDG code International Maritime Dangerous Goods Code Objectives
IMDG code International Maritime Dangerous Goods Code

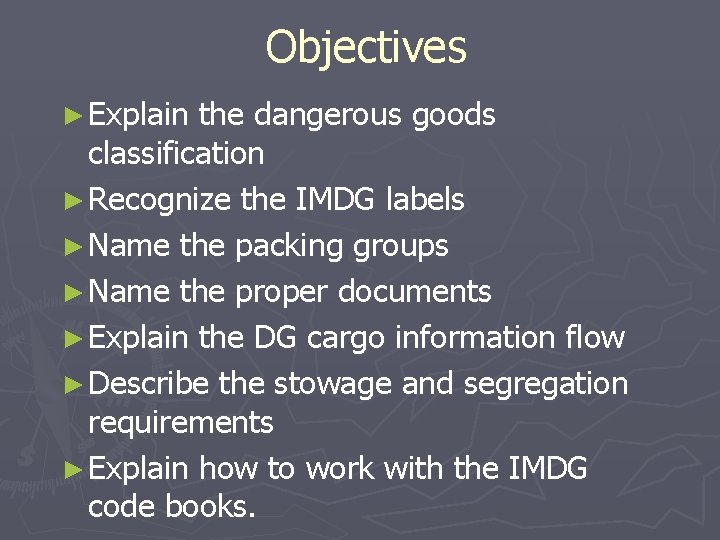

Objectives ► Explain the dangerous goods classification ► Recognize the IMDG labels ► Name the packing groups ► Name the proper documents ► Explain the DG cargo information flow ► Describe the stowage and segregation requirements ► Explain how to work with the IMDG code books.
Hazardous Cargoes ► Petroleum products ► Chemicals( industrial, pharmaceutical, agricultural ) ► Minerals ► Animal products ► Plant products ► Radioactive materials

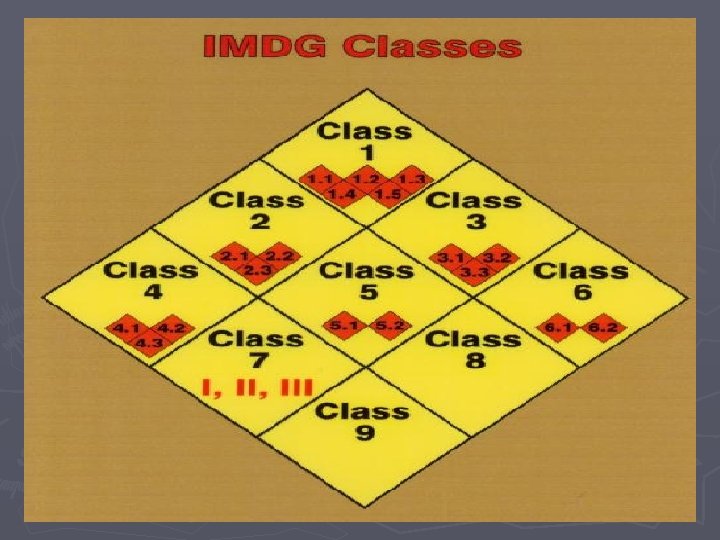

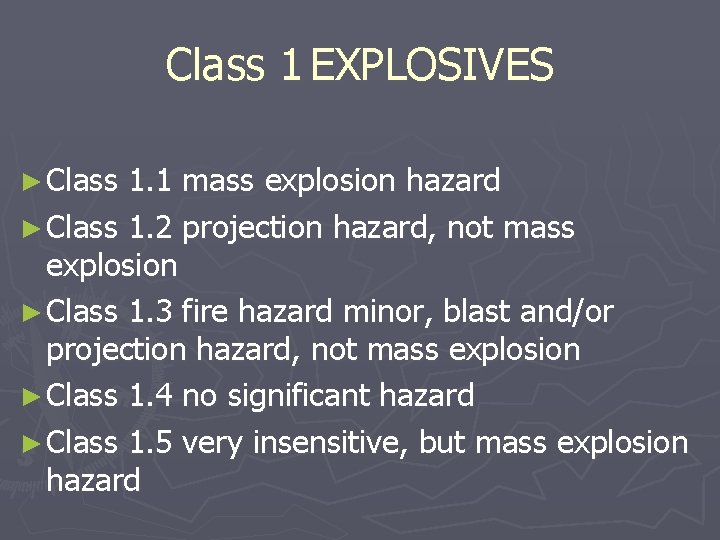

Class 1 EXPLOSIVES ► Class 1. 1 mass explosion hazard ► Class 1. 2 projection hazard, not mass explosion ► Class 1. 3 fire hazard minor, blast and/or projection hazard, not mass explosion ► Class 1. 4 no significant hazard ► Class 1. 5 very insensitive, but mass explosion hazard

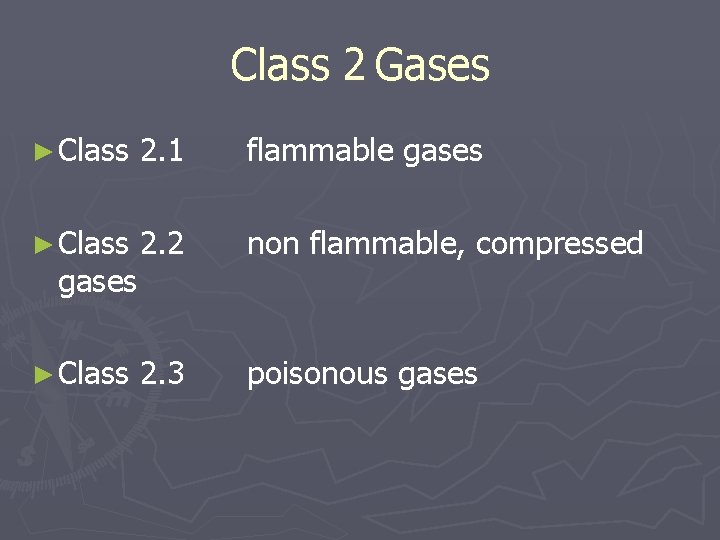

Class 2 Gases ► Class 2. 1 flammable gases ► Class 2. 2 non flammable, compressed ► Class 2. 3 poisonous gases
Class 3 Flammable liquids ► Class 3. 1 Flashpoint below -18 o. C ► Class 3. 2 Flashpoint in range -18 o. C to < 23 o. C ► Class 3. 3 Flashpoint in range 23 o. C to 61 o. C

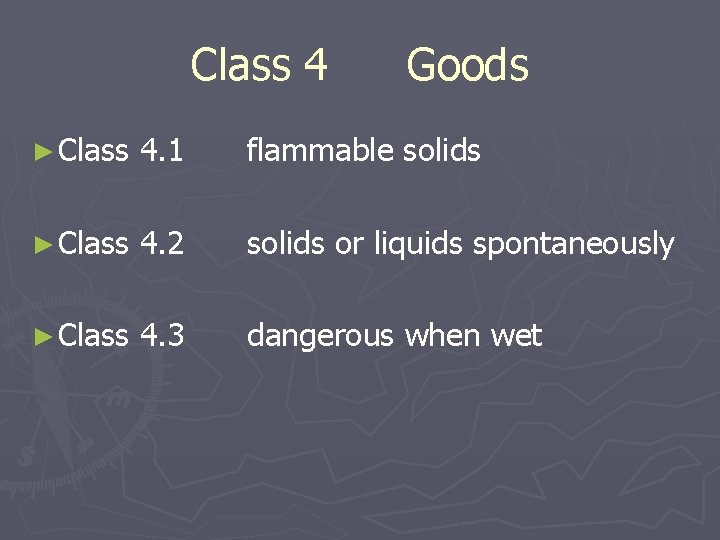

Class 4 Goods ► Class 4. 1 flammable solids ► Class 4. 2 solids or liquids spontaneously ► Class 4. 3 dangerous when wet

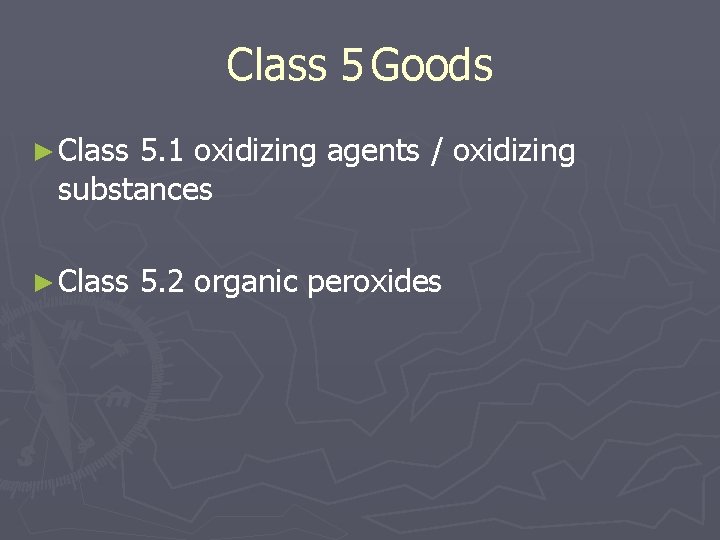

Class 5 Goods ► Class 5. 1 oxidizing agents / oxidizing substances ► Class 5. 2 organic peroxides

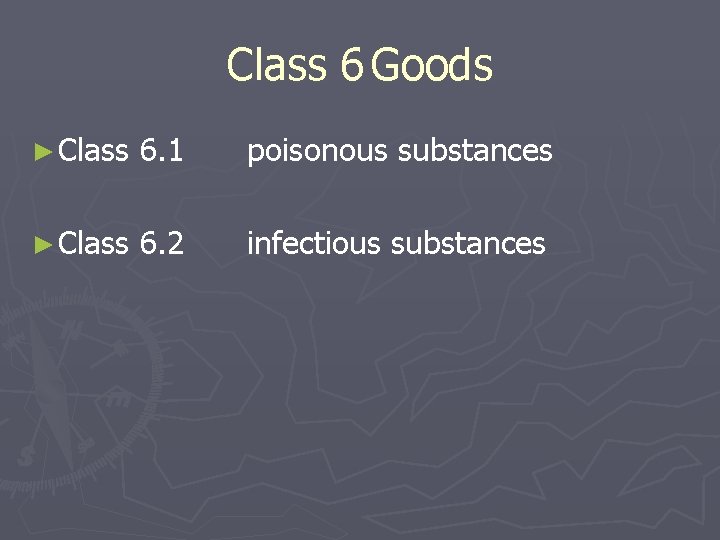

Class 6 Goods ► Class 6. 1 poisonous substances ► Class 6. 2 infectious substances
Class 7 Goods RADIOACTIVE MATERIALS

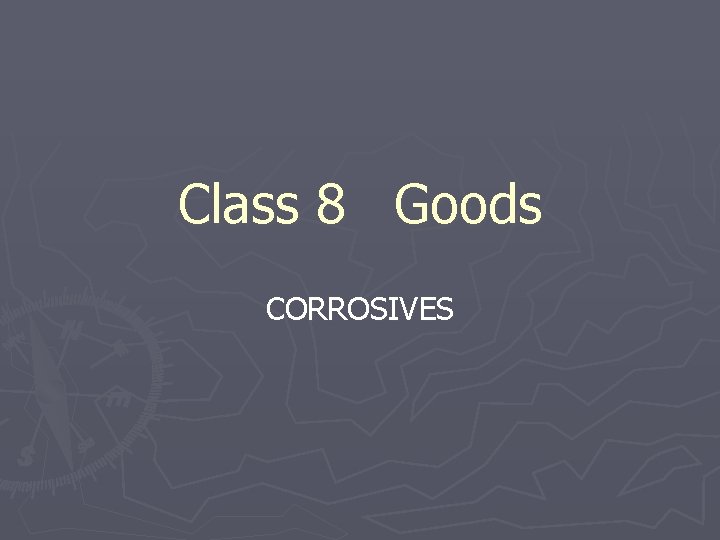

Class 8 Goods CORROSIVES
Class 9 Goods MISCELLANEOUS
Product Containment ► 1 ► 2 ► 3 ► 4 ► 5 Conventional packages Intermediate bulk containers ( IBC ) Portable tanks and road tank vehicles Bulk packaging and portable tanks for solid dangerous goods Limited quantities
Un 2823
DG declaration
DG note
DG packing certificate

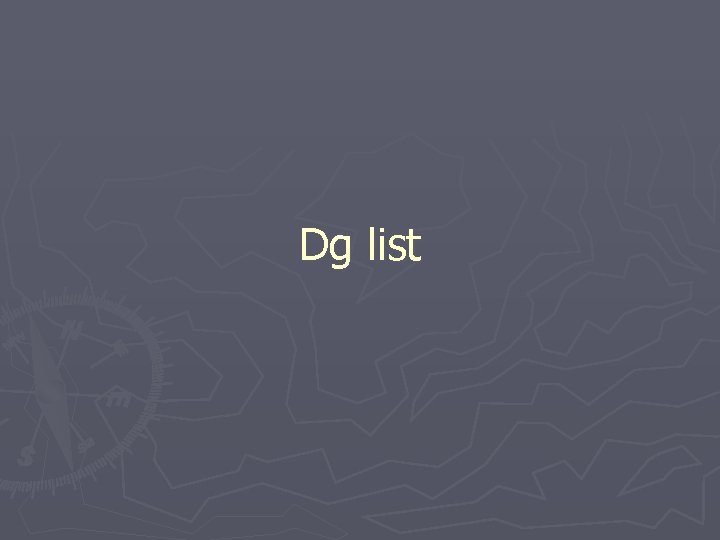

Dg list
Need for Advance Cargo Information ► 1 For checking cargo on arrival ► 2 For planning storage ► 3 for confirming stowage ► 4 For special treatment

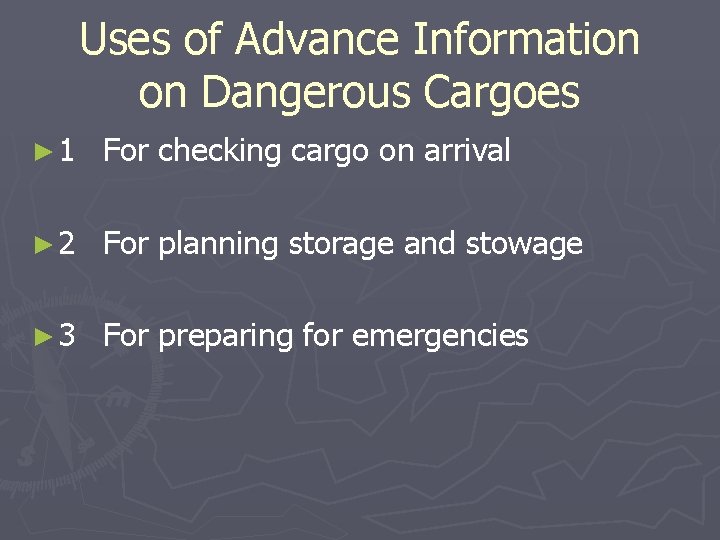

Uses of Advance Information on Dangerous Cargoes ► 1 For checking cargo on arrival ► 2 For planning storage and stowage ► 3 For preparing for emergencies
Inspection resluts

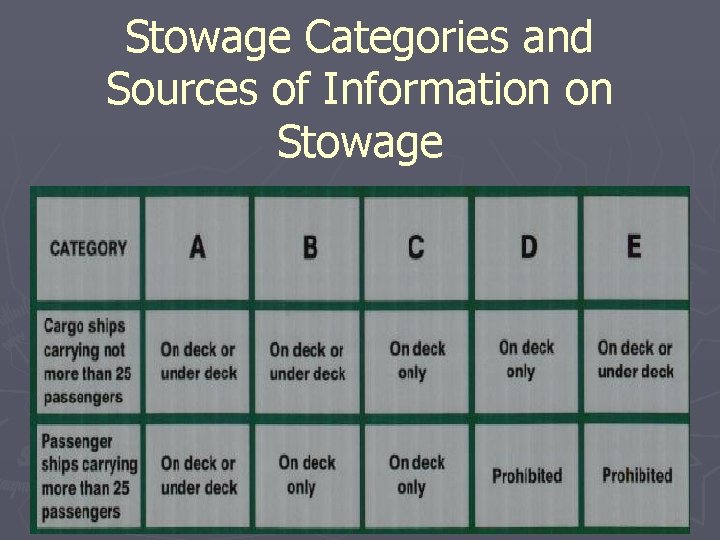

Stowage Categories and Sources of Information on Stowage

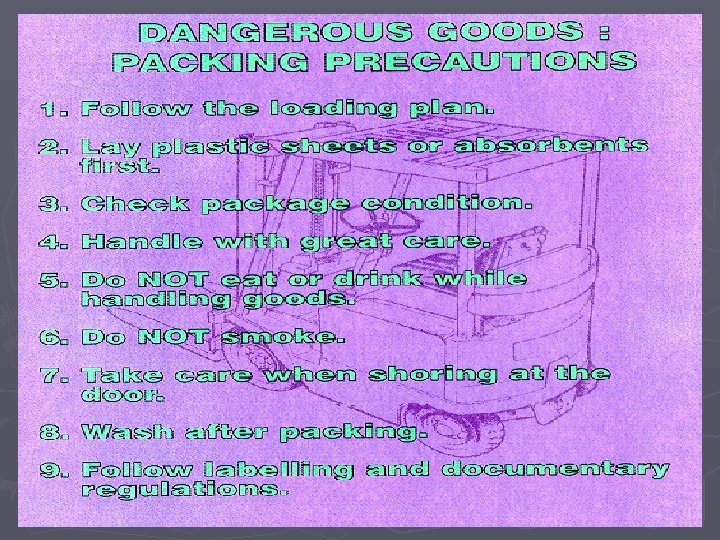

Accident Prevention ► 1 ► 2 ► 3 ► 4 ► 5 ► 6 Obey all safety rules and regulations No smoking Do not eat or drink when handling DG Take particular care when handling DG Check DG is storage Keep the DG information system up to date

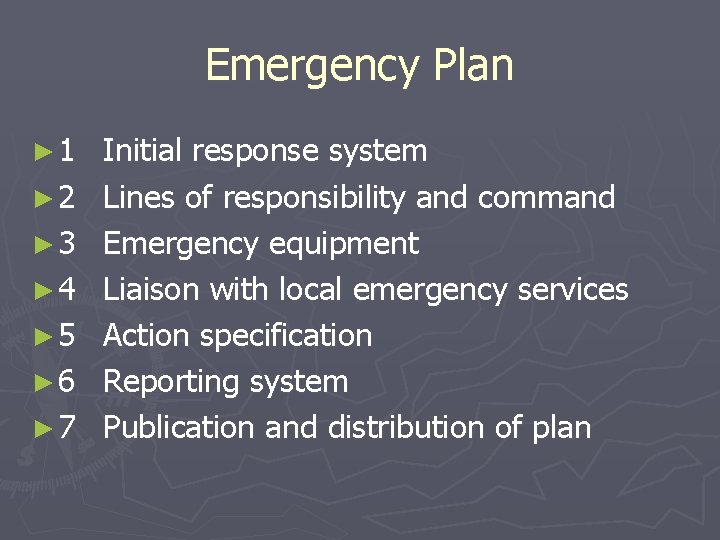

Emergency Plan ► 1 ► 2 ► 3 ► 4 ► 5 ► 6 ► 7 Initial response system Lines of responsibility and command Emergency equipment Liaison with local emergency services Action specification Reporting system Publication and distribution of plan

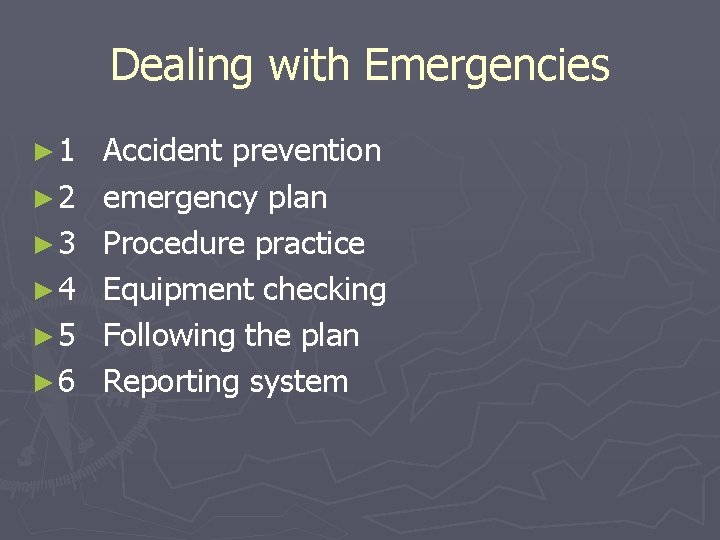

Dealing with Emergencies ► 1 ► 2 ► 3 ► 4 ► 5 ► 6 Accident prevention emergency plan Procedure practice Equipment checking Following the plan Reporting system
EMS
MFAG
