Image segmentation by histogram thresholding using hierarchical cluster

Image segmentation by histogram thresholding using hierarchical cluster analysis Source: Pattern Recognition Letters, VOL. 27, Issue 13, October 2006 Authors: Agus Zainal Arifin, Akira Asano Speaker: Pei-Yen Pai Date: 2007. 05. 10

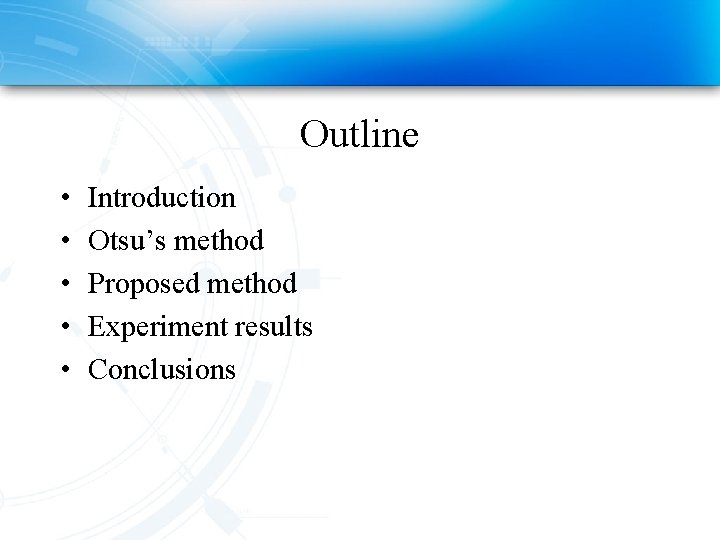

Outline • • • Introduction Otsu’s method Proposed method Experiment results Conclusions

Introduction Th 1 Th 2 • Image segmentation – thresholding Original image Thresholded image Contour image

Otsu’s method • The most common used thresholding method. • Simplicity and efficiency. • Maximize between-class variance or Minimize within-class variance. Pci: The probability of i-th class. Mci: The mean of i-th class. M: The mean of image.

Drawback of Otsu’s method Th 1 Original image Th 2 Thresholded image Contour image

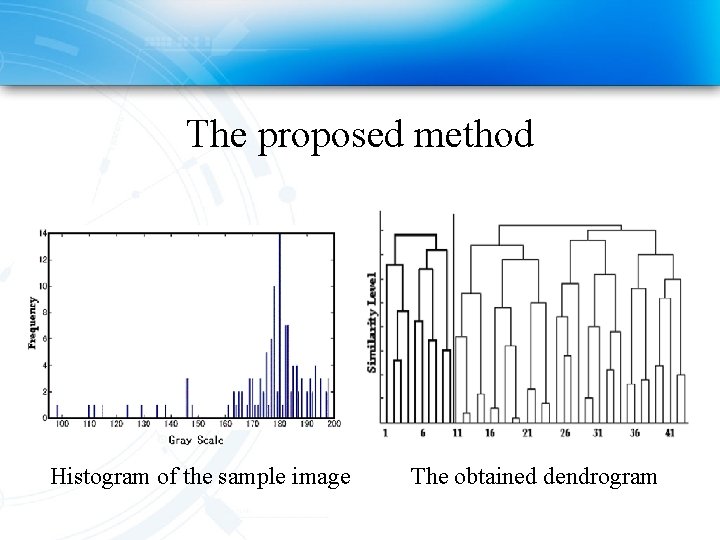

The proposed method Histogram of the sample image The obtained dendrogram

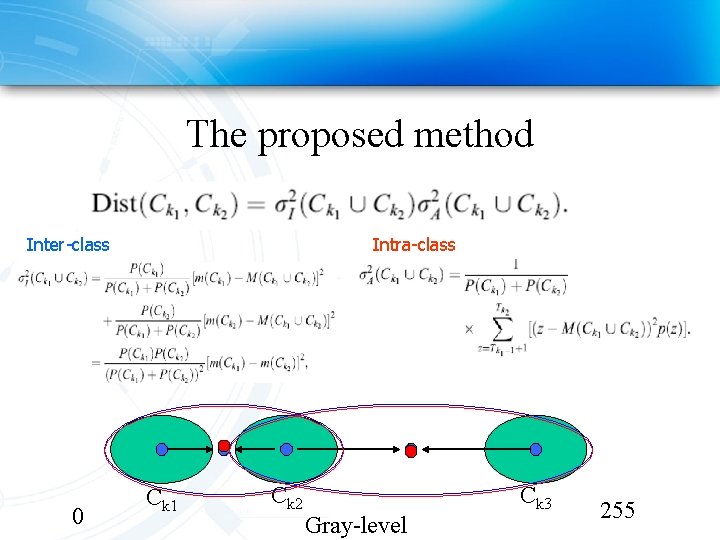

The proposed method Inter-class 0 Intra-class Ck 1 Ck 2 Gray-level Ck 3 255

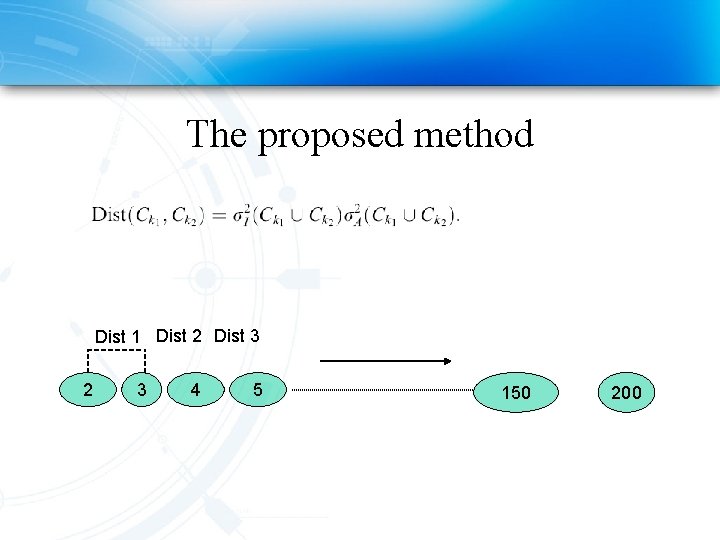

The proposed method Dist 1 Dist 2 Dist 3 2 3 4 5 150 200

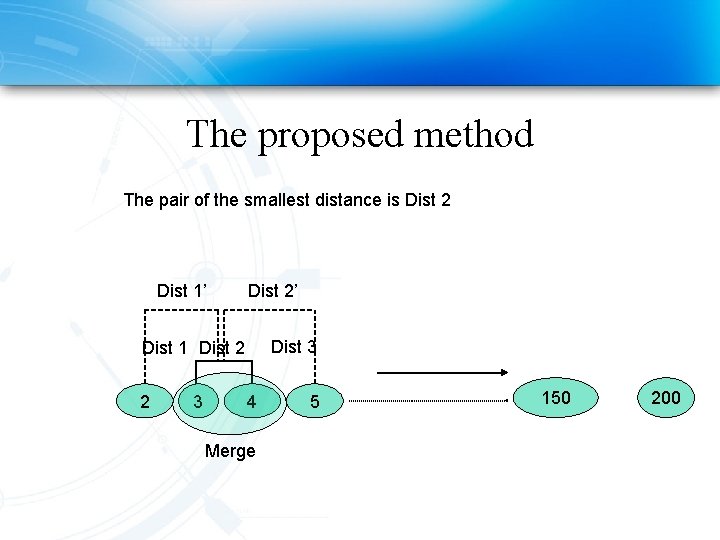

The proposed method The pair of the smallest distance is Dist 2 Dist 1’ Dist 2’ Dist 3 Dist 1 Dist 2 2 3 4 Merge 5 150 200

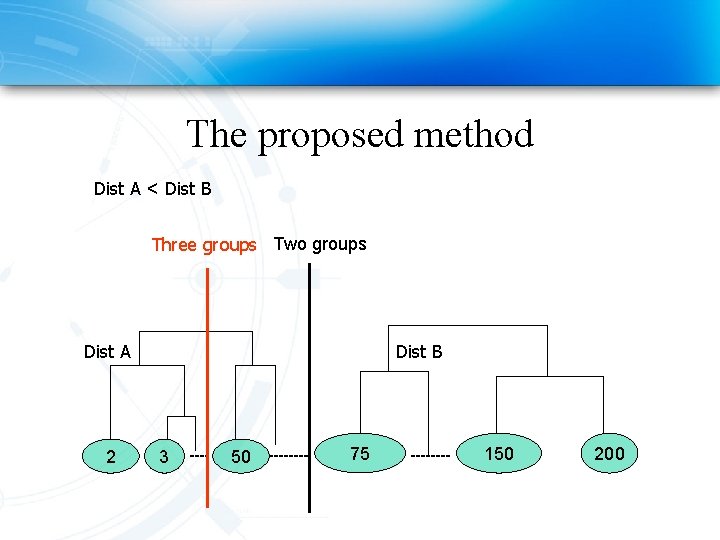

The proposed method Dist A < Dist B Three groups Two groups Dist A 2 Dist B 3 50 75 150 200

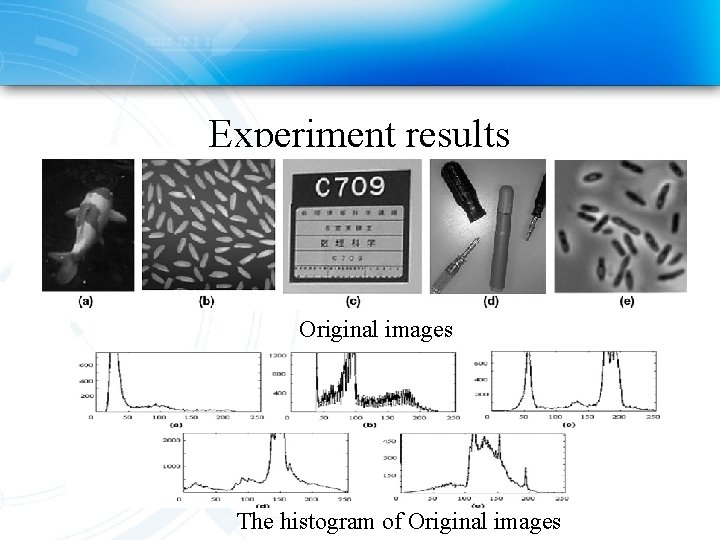

Experiment results Original images The histogram of Original images

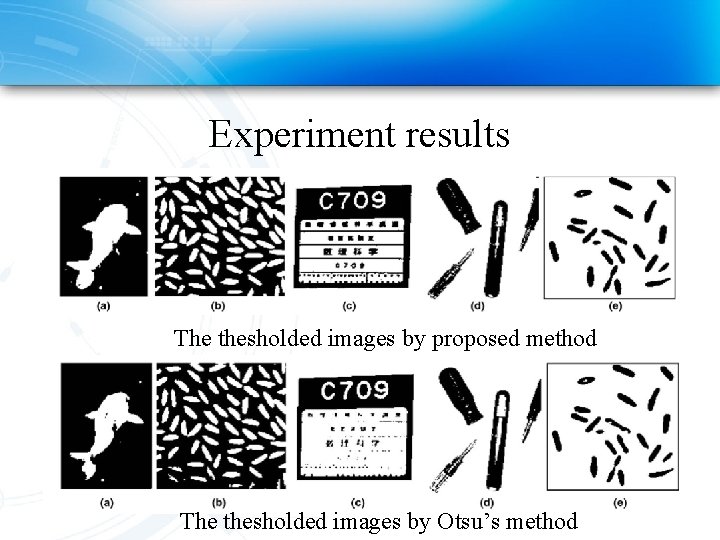

Experiment results The thesholded images by proposed method The thesholded images by Otsu’s method

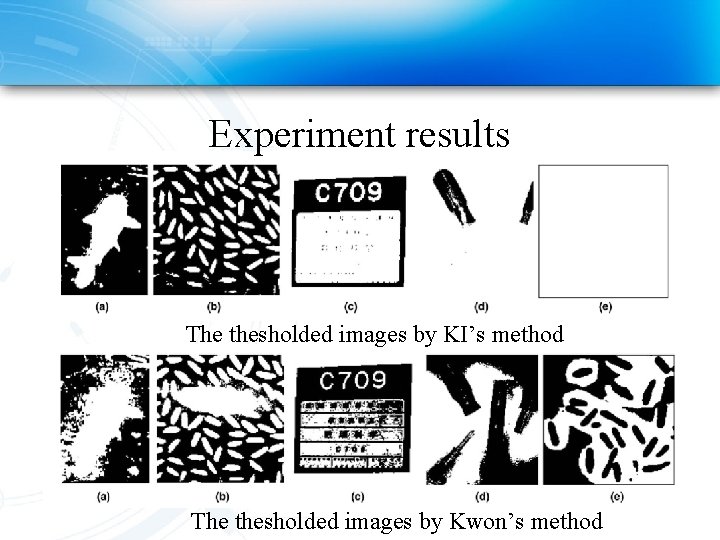

Experiment results The thesholded images by KI’s method The thesholded images by Kwon’s method

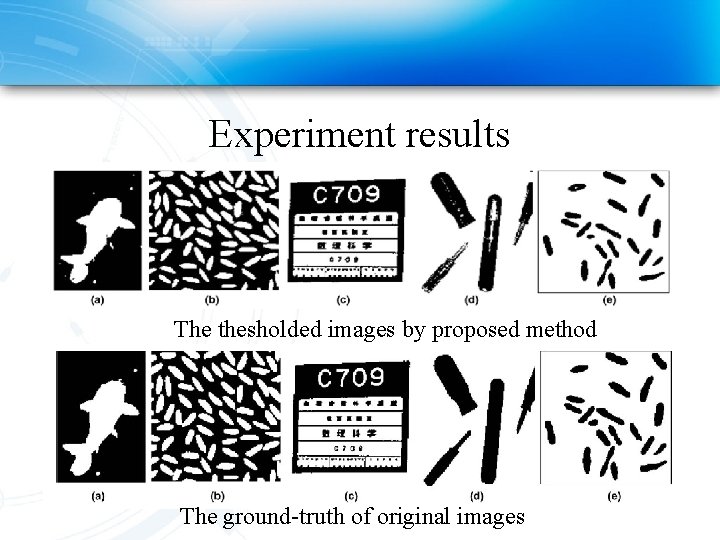

Experiment results The thesholded images by proposed method The ground-truth of original images

Experiment results

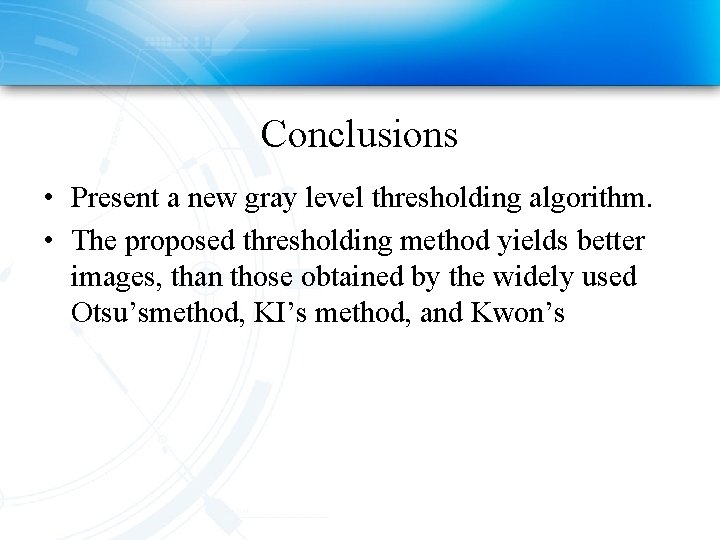

Conclusions • Present a new gray level thresholding algorithm. • The proposed thresholding method yields better images, than those obtained by the widely used Otsu’smethod, KI’s method, and Kwon’s
