WHY YOU SEE WHAT YOU SEE… • The films or images have different levels

WHY YOU SEE WHAT YOU SEE… • The films or images have different levels of density – different shades of gray • X-rays show different features of the body in various shades of gray. • The gray is darkest in those areas that do not absorb Xrays well – and allow it to pass through • The images are lighter in dense areas (like bones) that absorb more of the X-rays. 2

IMAGE PRODUCTION 1. Primary Beam– The beam of photons, B 4 it interacts with

IMAGE PRODUCTION 1. Primary Beam– The beam of photons, B 4 it interacts with the pt’s body. 2. Remnant (exit) Beam-The resulting beam that is able to exit from the patient. 3. Scatter Radiation– Radiation that interacts with matter & only continues in a different direction – not useful for image production. 4. Attenuated Beam– Primary radiation that is changed (partially absorbed) as it travels through the pt. 3

IMAGE QUALITY AND ARTIFACTS Density Contrast Detail Distortion Artifacts 4

IMAGE QUALITY AND ARTIFACTS Density Contrast Detail Distortion Artifacts 4

IMAGE QUALITY AND ARTIFACTS Pho tog rap hic Density Contrast Qua lity Distortion Detail

IMAGE QUALITY AND ARTIFACTS Pho tog rap hic Density Contrast Qua lity Distortion Detail Artifacts 5

IMAGE QUALITY AND ARTIFACTS G eom etri Density c. Q uali Contrast ty Detail

IMAGE QUALITY AND ARTIFACTS G eom etri Density c. Q uali Contrast ty Detail Distortion Artifacts 6

DENSITY THE OVERALL DARKENING OF THE IMAGE 7

DENSITY THE OVERALL DARKENING OF THE IMAGE 7

DENSITY (OPTICAL DENSITY, IMAGE DENSITY) Prime Controlling Factor • m. As Influencing Factors •

DENSITY (OPTICAL DENSITY, IMAGE DENSITY) Prime Controlling Factor • m. As Influencing Factors • • • k. Vp SID Beam Filtration Beam restriction Body part thickness grids 8

10 m. A 1000 m. A 9

10 m. A 1000 m. A 9

10

10

DENSITY (OPTICAL DENSITY, IMAGE DENSITY) Prime Controlling Factor • m. As Influencing Factors •

DENSITY (OPTICAL DENSITY, IMAGE DENSITY) Prime Controlling Factor • m. As Influencing Factors • • • k. Vp SID Beam Filtration Beam restriction Body part thickness grids 11

 KVP MORE ENERGY = MORE PHOTONS PASSING THOUGH TISSUE & STRIKING THE IMAGE

KVP MORE ENERGY = MORE PHOTONS PASSING THOUGH TISSUE & STRIKING THE IMAGE á 15% k. Vp = doubling of exposure to the film 15% k. Vp = halving of exposure to the film 15% rule will also change the contrast of the image because k. V is the primary method of changing image contrast. Remember : 15% change ( ) KVP has the same effect as doubling or ½ the MAS on density 12

This is an actual arm tatoo. Now that’s dedication ! I a n w

This is an actual arm tatoo. Now that’s dedication ! I a n w v e r s e s q u a r e I a n w v v e e r r s s e e s q u a r e 13

COLLIMATORS Always collimate smaller than the image receptor 14

COLLIMATORS Always collimate smaller than the image receptor 14

3 DIFFERENT BODY HABITUS HYPERSTHENIC HYPOSTHENIC 15

3 DIFFERENT BODY HABITUS HYPERSTHENIC HYPOSTHENIC 15

GOAL: PRODUCING OPTIMAL RADIOGRAPHS DENSITY Too dark Too light 16

GOAL: PRODUCING OPTIMAL RADIOGRAPHS DENSITY Too dark Too light 16

CONTRAST THE RANGE OF DARK, LIGHTS, GRAYS IN THE IMAGE 17

CONTRAST THE RANGE OF DARK, LIGHTS, GRAYS IN THE IMAGE 17

RADIOGRAPHIC CONTRAST Primary controlling factor • k. Vp Influencing Factors • • • Subject

RADIOGRAPHIC CONTRAST Primary controlling factor • k. Vp Influencing Factors • • • Subject contrast m. As SID Filtration Beam restriction grids 18

Patient Interactions CASCADE 19

Patient Interactions CASCADE 19

Patient Interactions COMPTON SCATTERING 1. Outer shell electron in body 2. Interacts with x-ray

Patient Interactions COMPTON SCATTERING 1. Outer shell electron in body 2. Interacts with x-ray photon from the tube 3. Moderate energy electron 20

SCALE OF CONTRAST? WHICH ONE IS “BETTER” HOW DOES THE KVP AFFECT THESE IMAGES?

SCALE OF CONTRAST? WHICH ONE IS “BETTER” HOW DOES THE KVP AFFECT THESE IMAGES? 21

RADIOGRAPHIC CONTRAST • Subject Contrast • • • Tissue thickness Tissue density Tissue type

RADIOGRAPHIC CONTRAST • Subject Contrast • • • Tissue thickness Tissue density Tissue type (atomic #) Contrast agents Scatter radiation 22

10 m. A 1000 m. A 23

10 m. A 1000 m. A 23

This is an actual arm tatoo. Now that’s dedication ! I a n w

This is an actual arm tatoo. Now that’s dedication ! I a n w v e r s e s q u a r e I a n w v v e e r r s s e e s q u a r e 24

RADIOGRAPHIC CONTRAST Primary controlling factor • k. Vp Influencing Factors • • • Subject

RADIOGRAPHIC CONTRAST Primary controlling factor • k. Vp Influencing Factors • • • Subject contrast m. As SID Filtration Beam restriction grids 25

EFFECTS OF COLLIMATION (BEAM RESTRICTION) ON SCATTER 26

EFFECTS OF COLLIMATION (BEAM RESTRICTION) ON SCATTER 26

GRIDS • A device with lead strips that is placed between the patient and

GRIDS • A device with lead strips that is placed between the patient and the cassette • Used on larger body parts to reduce the number of scattering photons from reaching the image 27

GRIDS 28

GRIDS 28

GRIDS ABSORB SCATTER – PREVENTS IT FROM REACHING THE IMAGE 29

GRIDS ABSORB SCATTER – PREVENTS IT FROM REACHING THE IMAGE 29

GRID NO GRID CONTROLS CONTRAST 30

GRID NO GRID CONTROLS CONTRAST 30

DETAIL RESOLUTION, ABILITY TO DISTINGUISH SHAPES 31

DETAIL RESOLUTION, ABILITY TO DISTINGUISH SHAPES 31

DETAIL Factors that affect detail • Image sharpness • Spatial resolution • Motion •

DETAIL Factors that affect detail • Image sharpness • Spatial resolution • Motion • Smallest separation of • SID two lines or edges • Focal spot size • Measured by lp/mm • OID • Image receptor type 32

RECORDED DETAIL • The degree of sharpness in an object’s borders and structural details.

RECORDED DETAIL • The degree of sharpness in an object’s borders and structural details. • How “clear” the object looks on the radiograph 33

RESOLUTION TEST TOOLS LINE PAIRS/ MM Depicts how well you can see the differences

RESOLUTION TEST TOOLS LINE PAIRS/ MM Depicts how well you can see the differences in structures More lines=more detail 34

35

35

MOTION • Can be voluntary or involuntary • Best controlled by short exposure times

MOTION • Can be voluntary or involuntary • Best controlled by short exposure times • Use of careful instructions to the pt. • Suspension of pt. respiration • Immobilization devices 36

Blurring of image due to patient movement during exposure. 37

Blurring of image due to patient movement during exposure. 37

38

38

SID • Shine a flashlight on a 3 -D object, shadow borders will appear

SID • Shine a flashlight on a 3 -D object, shadow borders will appear “fuzzy” -On a radiograph called penumbra • Penumbra (fuzziness) obscures true border • Farther the flashlight from object = sharper borders. Same with radiography. 39

40

40

OID OBJECT TO IMAGE DISTANCE • The closer the object to the film, the

OID OBJECT TO IMAGE DISTANCE • The closer the object to the film, the sharper the detail. • OID , penumbra , sharpness • Structures located deep in the body, radiographer must know how to position to get the object closest to the film. 41

42

42

The position of the structure in the body will influence how magnified it will

The position of the structure in the body will influence how magnified it will be seen on the image The farther away – the more magnified 43

DISTORTION THE IMAGING OF THE TRUE SHAPE AND SIZE OF THE OBJECT 44

DISTORTION THE IMAGING OF THE TRUE SHAPE AND SIZE OF THE OBJECT 44

DISTORTION FACTOR INFLUENCING DISTORTION • Misrepresentation of the size or shape of an object

DISTORTION FACTOR INFLUENCING DISTORTION • Misrepresentation of the size or shape of an object • Two types: • Size Distortion • magnification • Shape distortion • • SID OID Beam Angulation Body Part-Beam alignment • Foreshortening • elongation 45

46

46

40” SID VS 72” SID WHICH ONE IS WHICH? 47

40” SID VS 72” SID WHICH ONE IS WHICH? 47

Which one was taken at 72”? 48

Which one was taken at 72”? 48

Minimal magnification small OID 49

Minimal magnification small OID 49

50

50

SIZE DISTORTION & OID • If source is kept constant, OID will affect magnification

SIZE DISTORTION & OID • If source is kept constant, OID will affect magnification • As OID , magnification • The farther the object is from the film, the more magnification 51

DISTORTION FACTOR INFLUENCING DISTORTION • Misrepresentation of the size or shape of an object

DISTORTION FACTOR INFLUENCING DISTORTION • Misrepresentation of the size or shape of an object • Two types: • Size Distortion • magnification • Shape distortion • • SID OID Beam Angulation Body Part-Beam alignment • Foreshortening • elongation 52

DISTORTION FACTOR INFLUENCING DISTORTION • Misrepresentation of the size or shape of an object

DISTORTION FACTOR INFLUENCING DISTORTION • Misrepresentation of the size or shape of an object • Two types: • Size Distortion • magnification • Shape distortion • • SID OID Beam Angulation Body Part-Beam alignment • Foreshortening • elongation 53

A = TRUE SHAPE B & C = SHAPE DISTORTION (ELONGATION OF PART) 54

A = TRUE SHAPE B & C = SHAPE DISTORTION (ELONGATION OF PART) 54

D & E = SHAPE DISTORTION (FORESHORTENING OF PART) 55

D & E = SHAPE DISTORTION (FORESHORTENING OF PART) 55

IMAGE DISTORTION • When the part to be imaged – does not lay FLAT

IMAGE DISTORTION • When the part to be imaged – does not lay FLAT with the IR (cassette) • If the Central Ray is not perpendicular to the IR • CR should be at right angle with the cassette 56

57

57

58

58

ELONGATION FORESHORTENED NORMAL 59

ELONGATION FORESHORTENED NORMAL 59

Which in normal? 60

Which in normal? 60

ARTIFACTS THINGS ON THE IMAGE THAT DISTRACT 61

ARTIFACTS THINGS ON THE IMAGE THAT DISTRACT 61

ARTIFACTS: AN UNWANTED DENSITY ON THE FILM http: //www. xray 2000. co. uk/ 62

ARTIFACTS: AN UNWANTED DENSITY ON THE FILM http: //www. xray 2000. co. uk/ 62

ARTIFACTS TYPES • Processing Artifacts • Exposure Artifacts • Handling and Storage Artifacts 63

ARTIFACTS TYPES • Processing Artifacts • Exposure Artifacts • Handling and Storage Artifacts 63

PROCESSING ARTIFACTS • • • Emulsion pickoff Chemical fog Guide-shoe marks Water marks Chemical

PROCESSING ARTIFACTS • • • Emulsion pickoff Chemical fog Guide-shoe marks Water marks Chemical spots Guide-shoe & roller scratches 64

Developer spots 65

Developer spots 65

Water mark 66

Water mark 66

Discolored film due to FIXER RETENTION Chemicals not washed off – over time will

Discolored film due to FIXER RETENTION Chemicals not washed off – over time will turn film brown 67

68

68

EXPOSURE ARTIFACTS • • Motion Improper patient position Wrong screen-film match Poor film/screen contact

EXPOSURE ARTIFACTS • • Motion Improper patient position Wrong screen-film match Poor film/screen contact Double exposure Warped cassette Improper grid position Patient artifacts 69

ARTIFACT 70

ARTIFACT 70

71

71

HANDLING & STORAGE ARTIFACTS • • • Light fog Radiation fog Static Kink marks

HANDLING & STORAGE ARTIFACTS • • • Light fog Radiation fog Static Kink marks Scratches Dirty cassettes 72

73

73

74

74

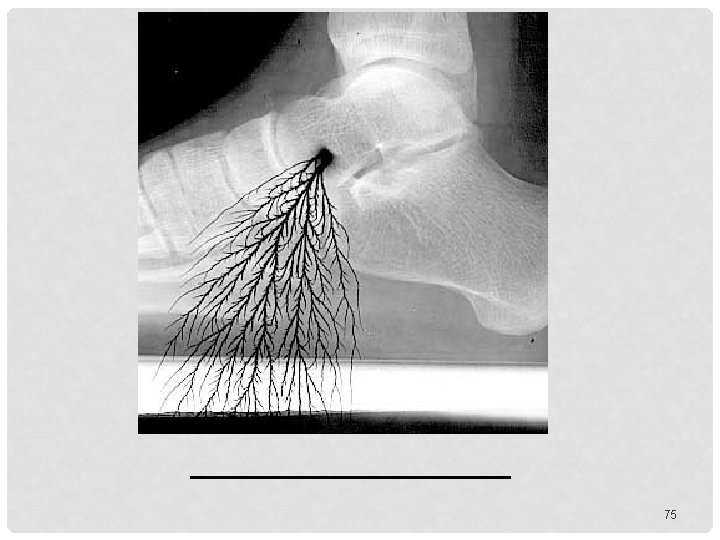

76

76

77

77

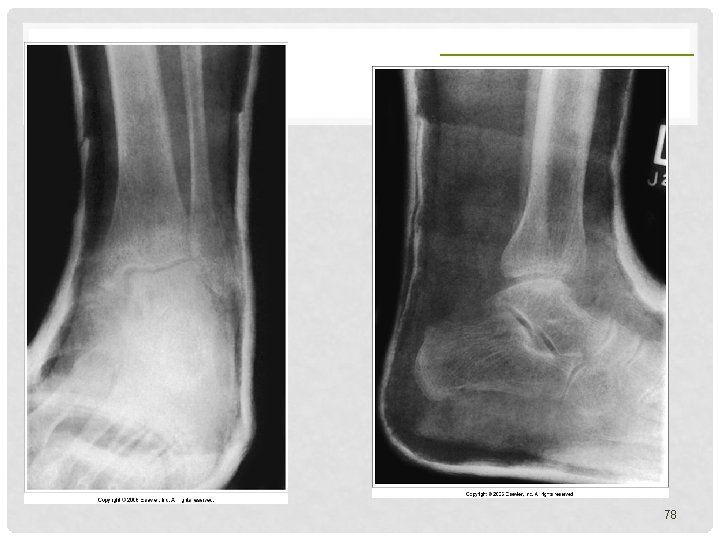

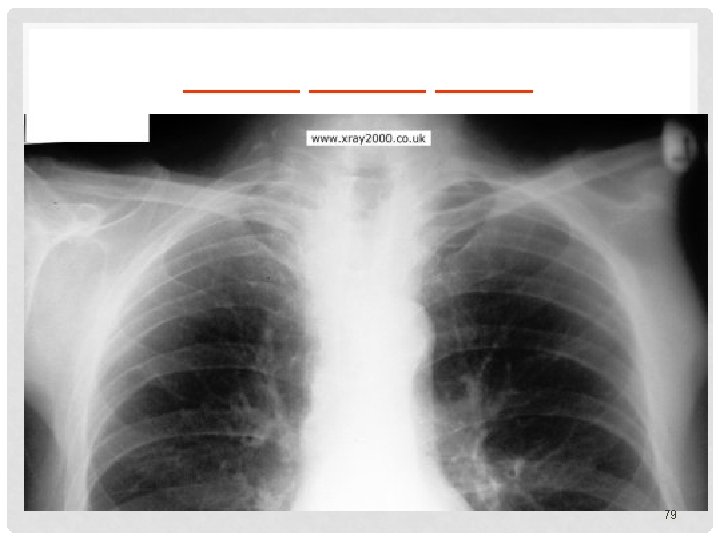

PATIENT ______ 80

PATIENT ______ 80

81

81

DOUBLE EXPOSURE CHILD 82

DOUBLE EXPOSURE CHILD 82

POOR SCREEN CONTACT 83

POOR SCREEN CONTACT 83

DOUBLE EXPOSURE 84

DOUBLE EXPOSURE 84

EX TR A S HA E ND T O F S 85

EX TR A S HA E ND T O F S 85

86

86

87

87

2 chest tubes in the patient 88

2 chest tubes in the patient 88

Patient Swallowed Batteries 89

Patient Swallowed Batteries 89

90

90

PATHOLOGY NOT ARTIFACT 91

PATHOLOGY NOT ARTIFACT 91

NAME & CAUSE OF THIS? 92

NAME & CAUSE OF THIS? 92

Digital image Mis. Registration error 93

Digital image Mis. Registration error 93

GRID ARTIFACT 94

GRID ARTIFACT 94

The type of shield that is attached to the side of the collimator on

The type of shield that is attached to the side of the collimator on a radiographic tube is : A. B. C. D. flat contact Detachable Shaped shield shadow REVIEW QUESTION REVIEW RADIATION BIOLOGY 95

On what date were x-rays discovered? A. January 4, 1886 B. November 8, 1895

On what date were x-rays discovered? A. January 4, 1886 B. November 8, 1895 C. October 9, 1898 D. November 18, 1808 REVIEW QUESTION REVIEW THE HISTORY OF X-RAYS 96

What agency regulates the quality of care provided to patients and the way the

What agency regulates the quality of care provided to patients and the way the organization is supervised and operated for the purposes of providing continuous quality care? A. JRCERT B. ARRT C. JCAHO D. AHRA REVIEW QUESTION REVIEW THE REGULATORY BODIES 97

Which organization provides a C. R. T. in general Radiography and Fluoroscopy? A. Joint

Which organization provides a C. R. T. in general Radiography and Fluoroscopy? A. Joint Commission on Accreditation of Health Care Organizations B. California Department of Public Health- Radiologic Health Branch C. American registry of Radiologic Technologists D. Joint Review Committee on Education in Diagnostic Medical Sonography REVIEW QUESTION REVIEW REGULATORY BODIES 98

The collimator controls the: A. Target material B. Amount of x-rays produced C. Type

The collimator controls the: A. Target material B. Amount of x-rays produced C. Type of x-rays produced D. Size of the x-ray field REVIEW QUESTIONS REVIEW X-RAY EQUIPMENT 99

During x-ray production when an electron is knocked out of its shell by a

During x-ray production when an electron is knocked out of its shell by a projectile electron. An electron from an outer shell fills the vacancy, what is produced? A. B. C. D. radio waves scatter radiation characteristic radiation brem’s radiation REVIEW X-RAY PRODUCTION 100

Thermionic emission at the filament releases: A. protons B. photons C. electrons D. neutrons

Thermionic emission at the filament releases: A. protons B. photons C. electrons D. neutrons REVIEW QUESTION REVIEW X-RAY PRODUCTION 101

This interaction an incoming photon enters with an energy, changes directions, and exits with

This interaction an incoming photon enters with an energy, changes directions, and exits with the same amount of energy. A. B. C. D. Heat Brems Compton Coherent REVIEW QUESTION REVIEW PATIENT INTERACTIONS 102

All the following are radiation protection devices EXCEPT: A. B. C. D. lead apron

All the following are radiation protection devices EXCEPT: A. B. C. D. lead apron contact shield film badge collimators REVIEW QUESTION REVIEW RADIATION BIOLOGY 103

What is the most radiosensitive component of the cell? A. B. C. D. protein

What is the most radiosensitive component of the cell? A. B. C. D. protein cytoplasm nucleus mitochondria REVIEW QUESTION REVIEW RADIATION BIOLOGY 104
