Image Enhancement and Restoration In Frequency Domain Filtering

Image Enhancement and Restoration In Frequency Domain

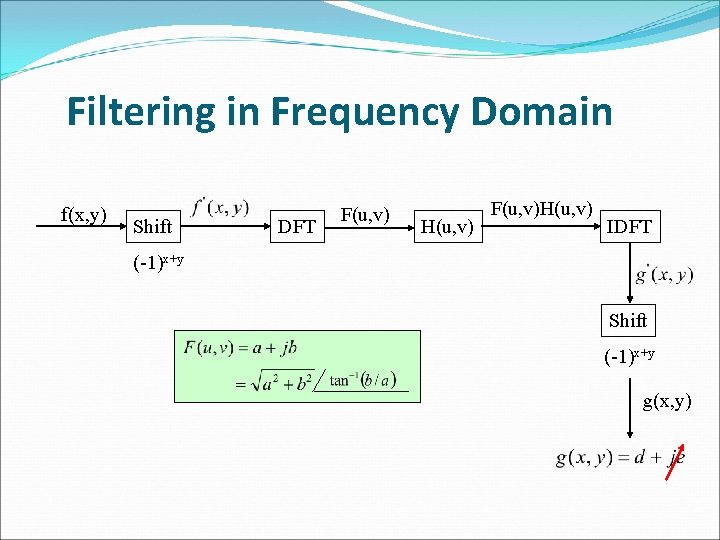

Filtering in Frequency Domain f(x, y) Shift DFT F(u, v) H(u, v) F(u, v)H(u, v) IDFT (-1)x+y Shift (-1)x+y g(x, y)

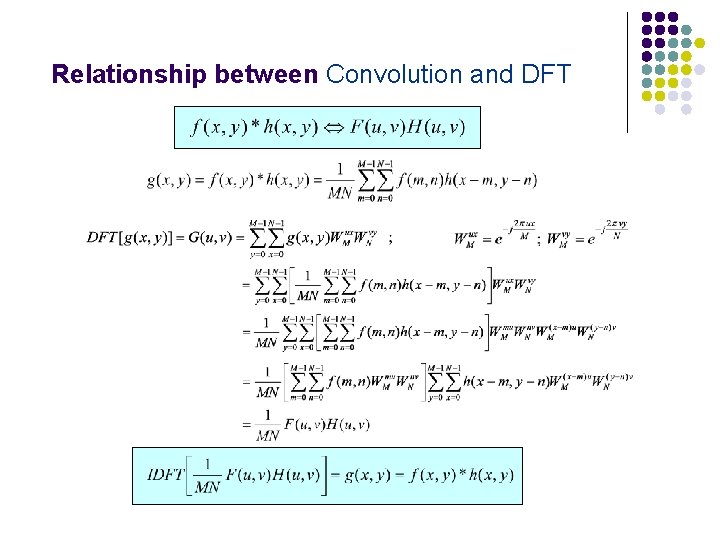

Relationship between Convolution and DFT

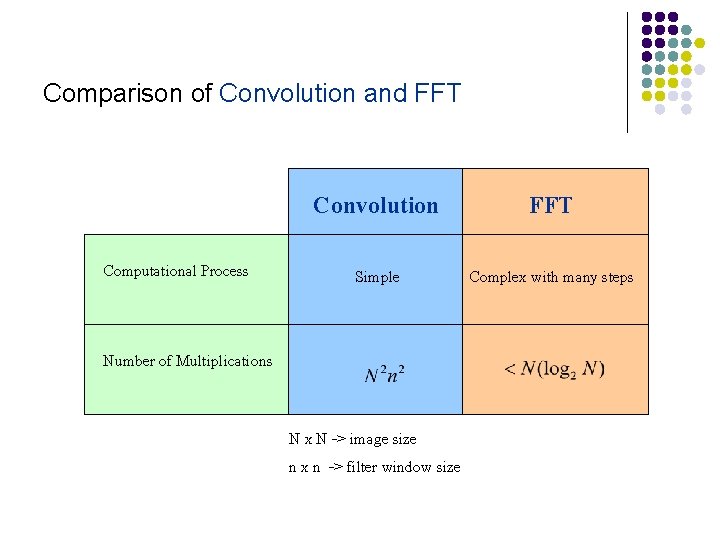

Comparison of Convolution and FFT Computational Process Convolution FFT Simple Complex with many steps Number of Multiplications N x N -> image size n x n -> filter window size

Number of Multiplication (FFT vs Convolution)

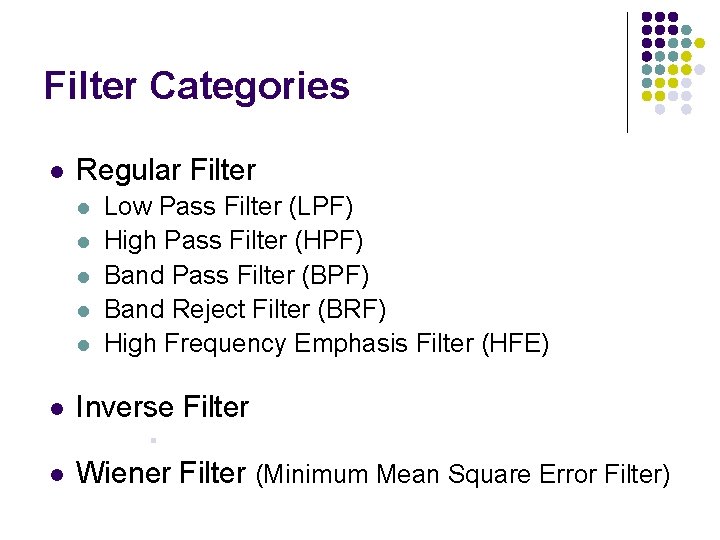

Filter Categories l Regular Filter l l l Low Pass Filter (LPF) High Pass Filter (HPF) Band Pass Filter (BPF) Band Reject Filter (BRF) High Frequency Emphasis Filter (HFE) Inverse Filter § l Wiener Filter (Minimum Mean Square Error Filter)

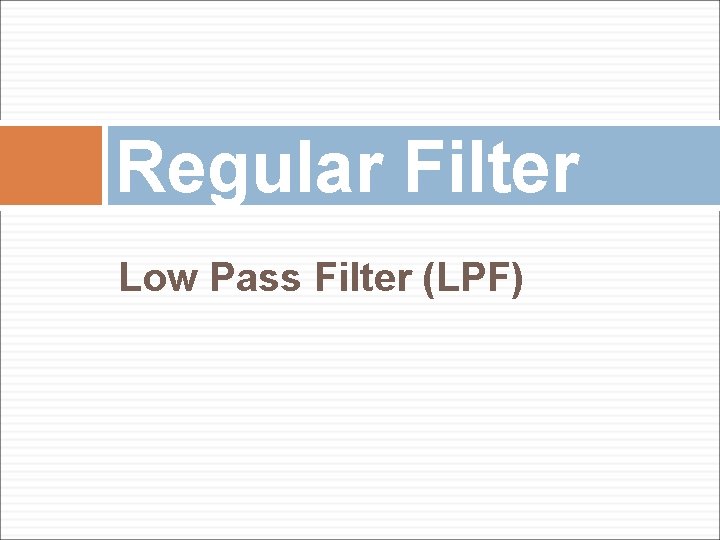

Regular Filter Low Pass Filter (LPF)

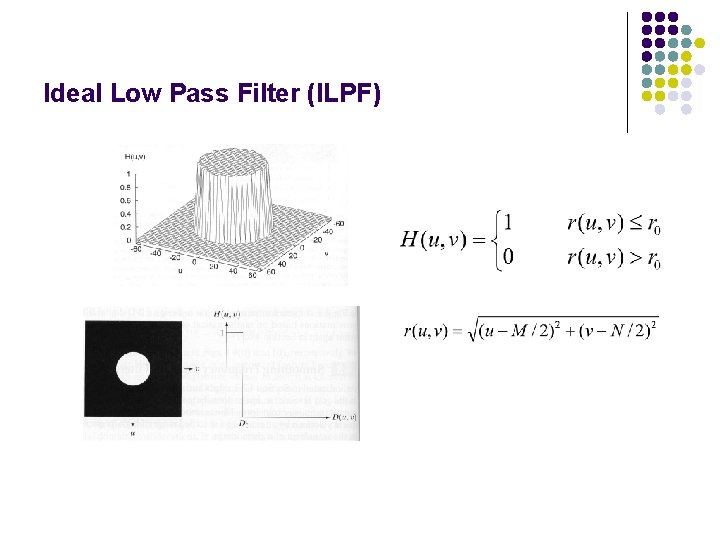

Ideal Low Pass Filter (ILPF)

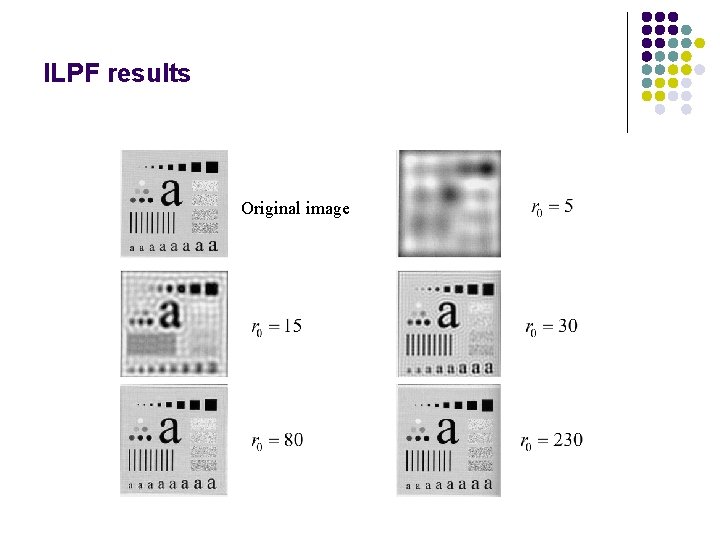

ILPF results Original image

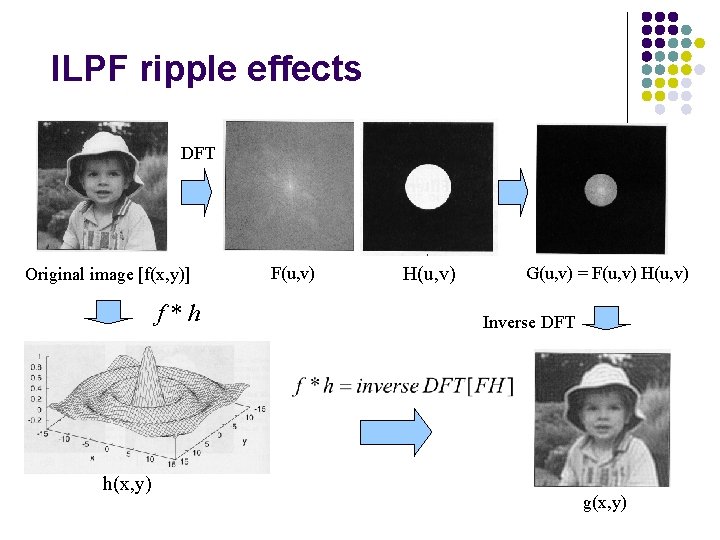

ILPF ripple effects DFT Original image [f(x, y)] f*h h(x, y) F(u, v) H(u, v) G(u, v) = F(u, v) H(u, v) Inverse DFT g(x, y)

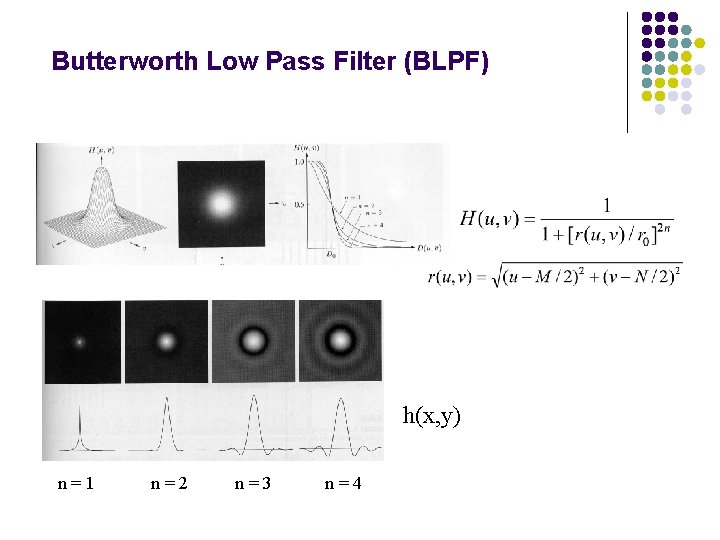

Butterworth Low Pass Filter (BLPF) h(x, y) n=1 n=2 n=3 n=4

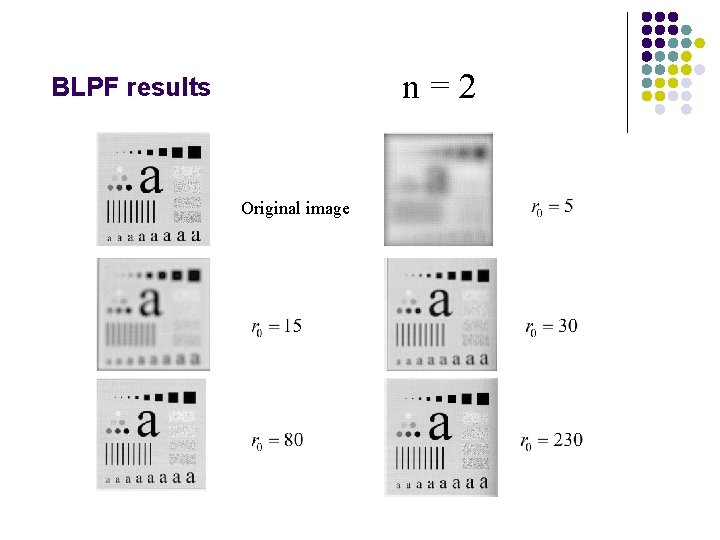

n=2 BLPF results Original image

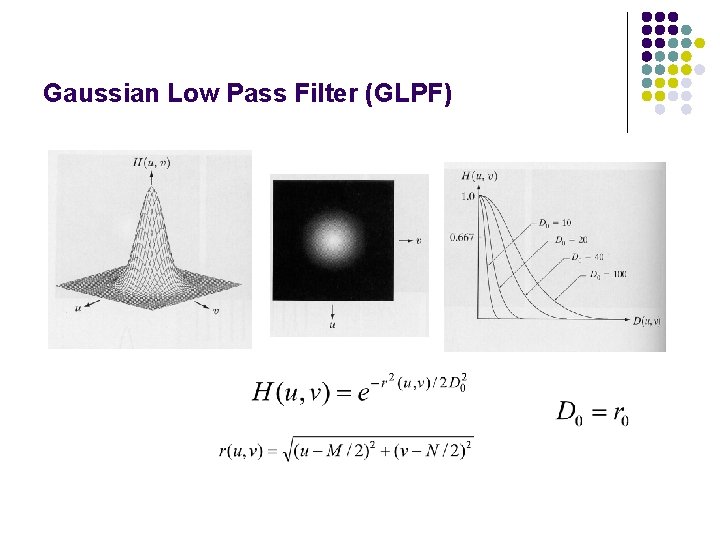

Gaussian Low Pass Filter (GLPF)

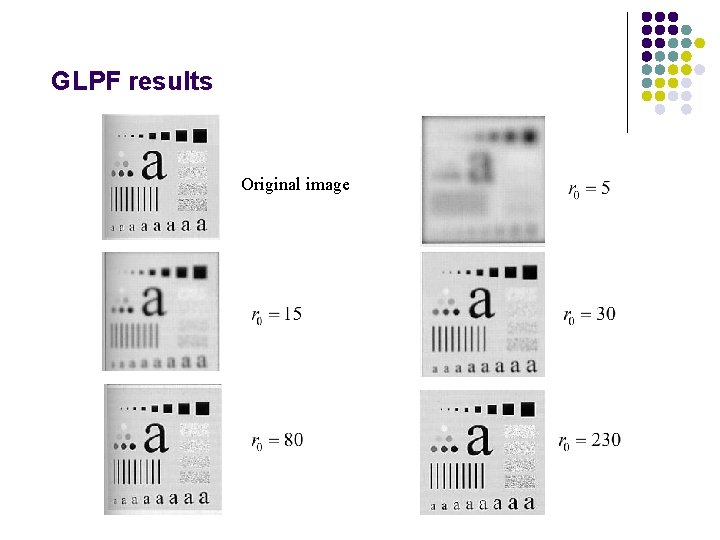

GLPF results Original image

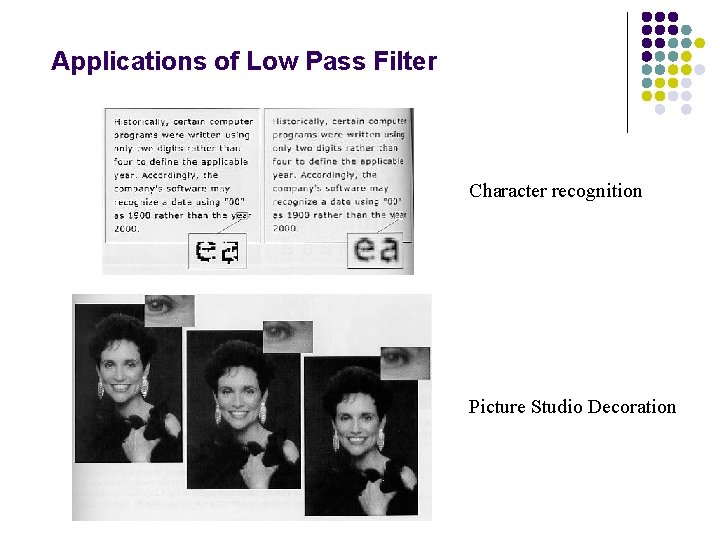

Applications of Low Pass Filter Character recognition Picture Studio Decoration

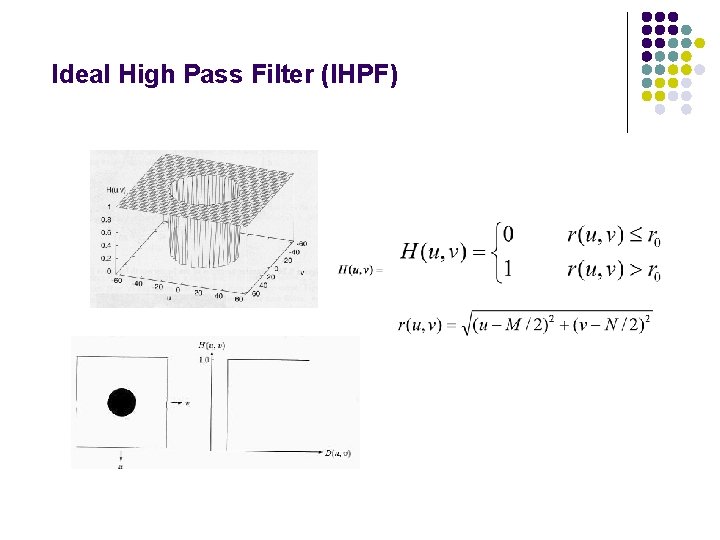

Ideal High Pass Filter (IHPF)

IHPF results

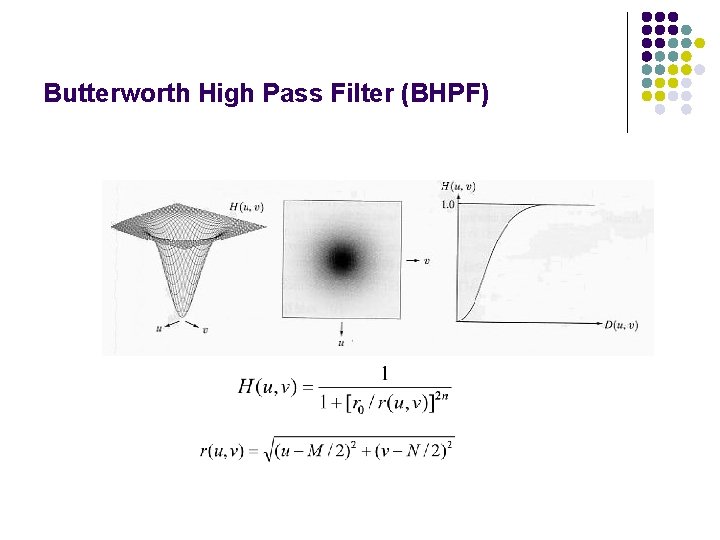

Butterworth High Pass Filter (BHPF)

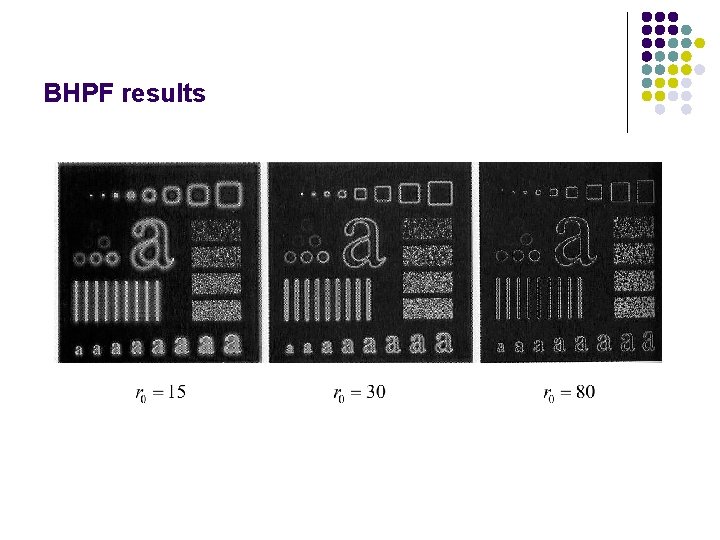

BHPF results

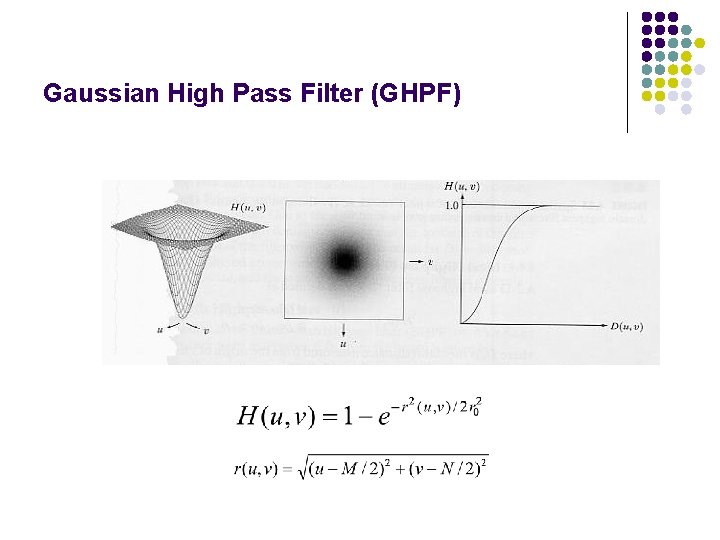

Gaussian High Pass Filter (GHPF)

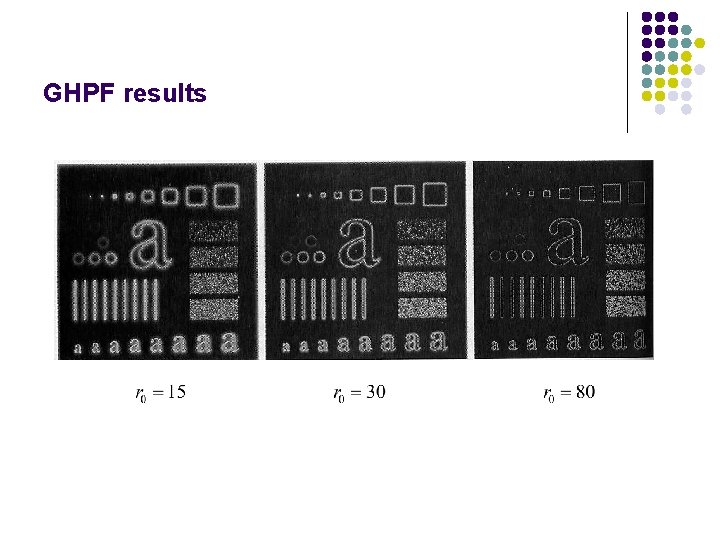

GHPF results

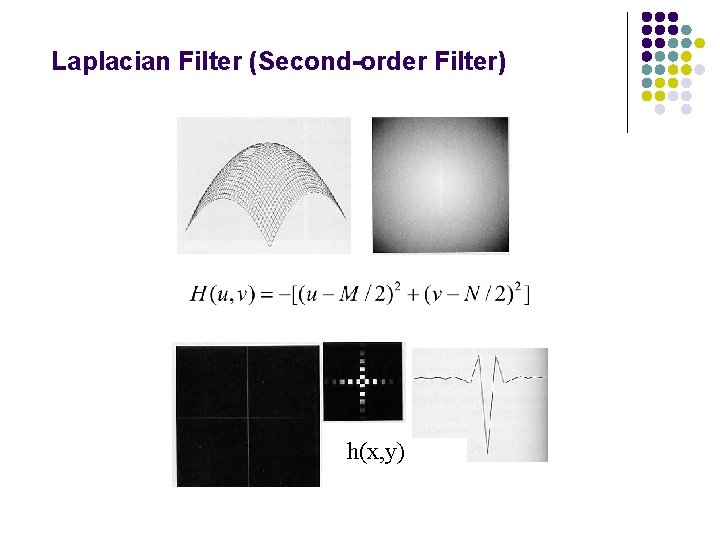

Laplacian Filter (Second-order Filter) h(x, y)

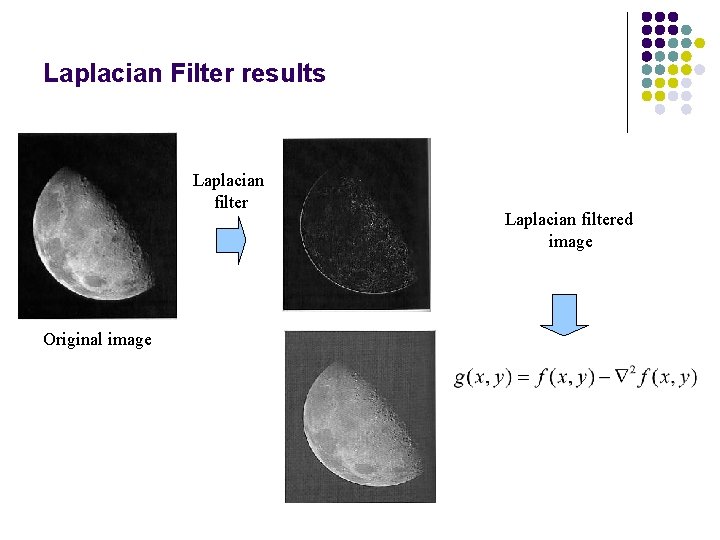

Laplacian Filter results Laplacian filter Original image Laplacian filtered image

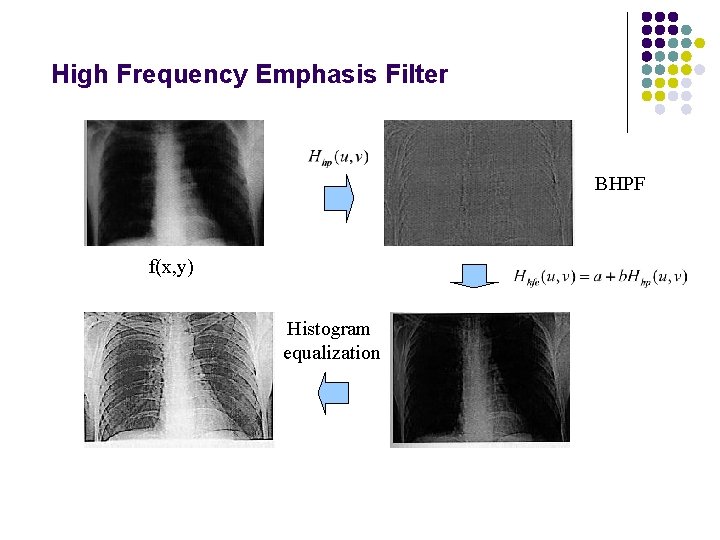

High Frequency Emphasis Filter BHPF f(x, y) Histogram equalization

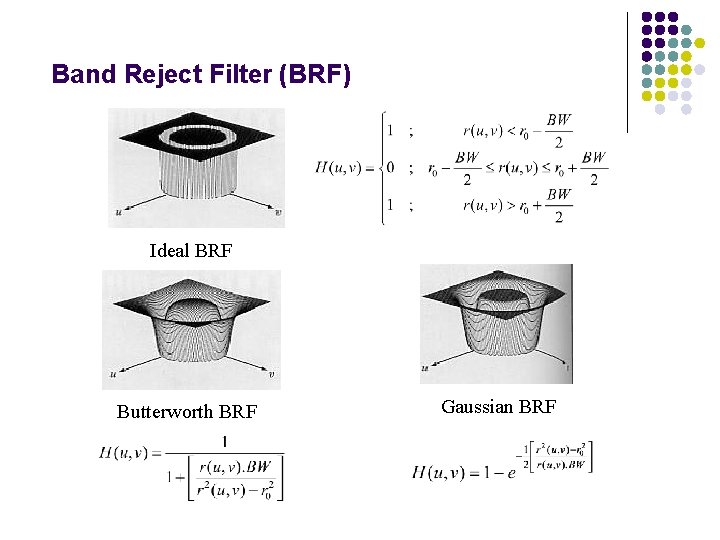

Band Reject Filter (BRF) Ideal BRF Butterworth BRF Gaussian BRF

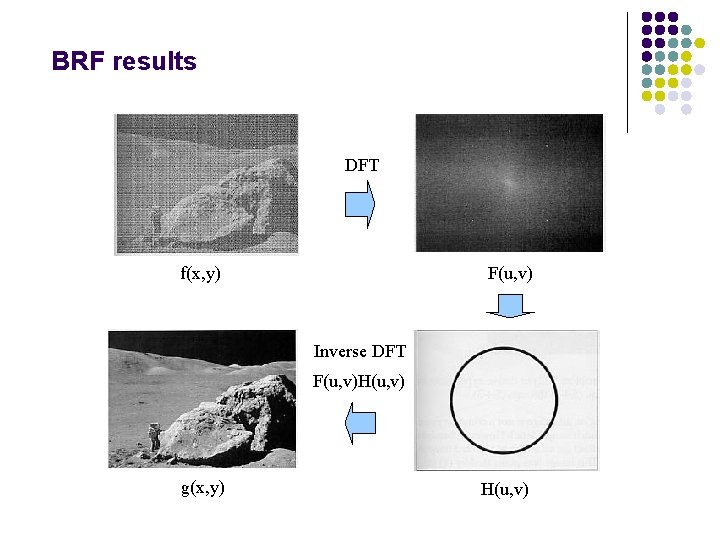

BRF results DFT f(x, y) F(u, v) Inverse DFT F(u, v)H(u, v) g(x, y) H(u, v)

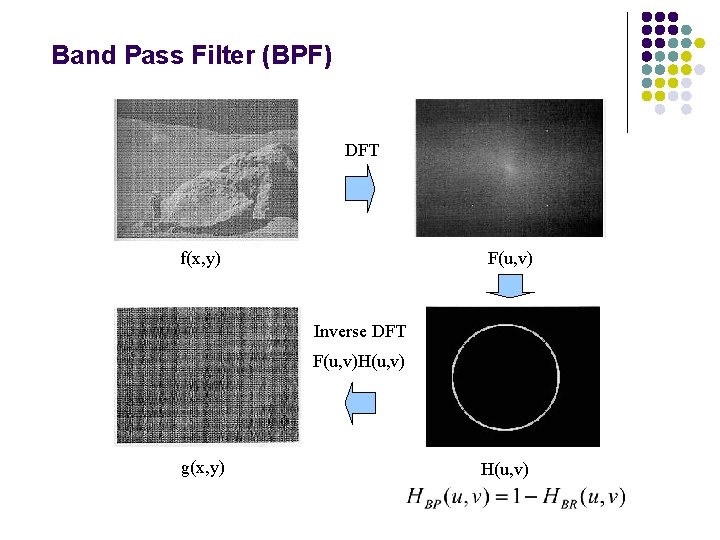

Band Pass Filter (BPF) DFT F(u, v) f(x, y) Inverse DFT F(u, v)H(u, v) g(x, y) H(u, v)

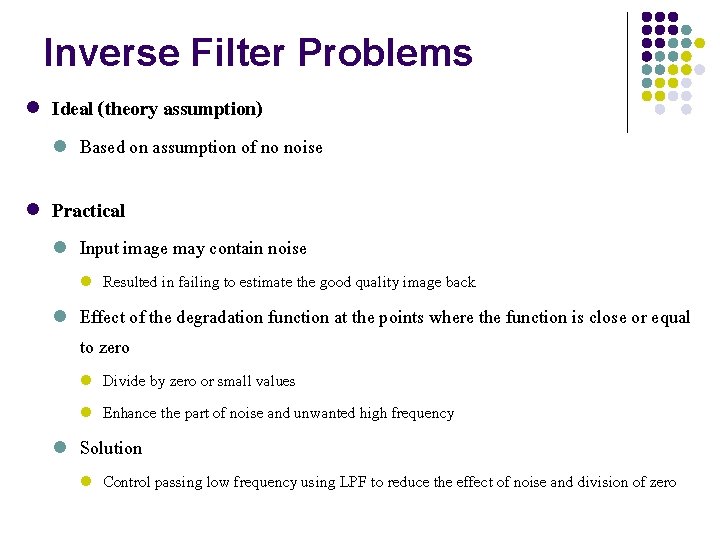

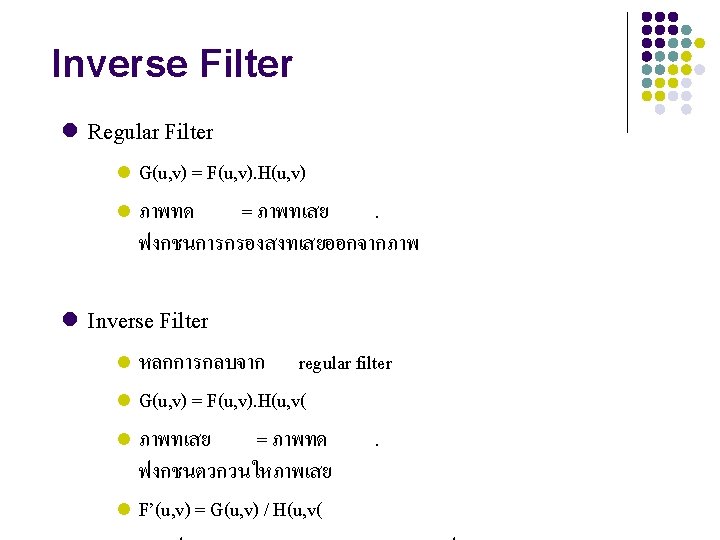

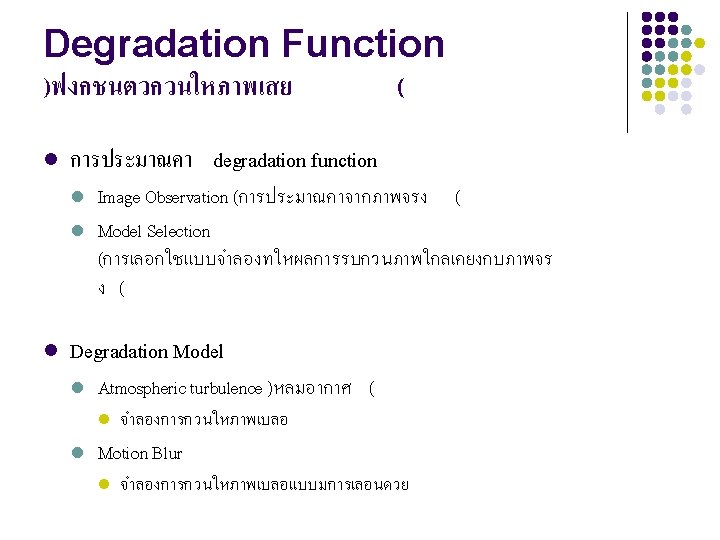

Inverse Filter Problems l Ideal (theory assumption) l Based on assumption of no noise l Practical l Input image may contain noise l l Effect of the degradation function at the points where the function is close or equal to zero l l l Resulted in failing to estimate the good quality image back Divide by zero or small values Enhance the part of noise and unwanted high frequency Solution l Control passing low frequency using LPF to reduce the effect of noise and division of zero

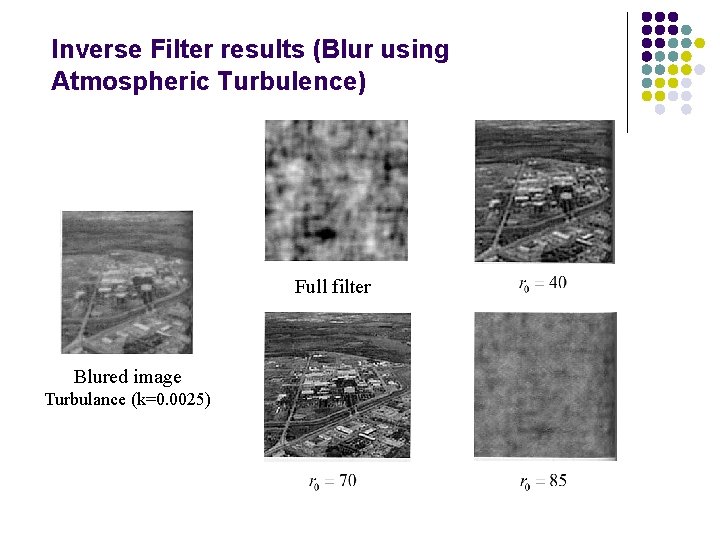

Inverse Filter results (Blur using Atmospheric Turbulence) Full filter Blured image Turbulance (k=0. 0025)

Wiener Filter (MMSE filter) l Using Minimum Mean Square Error l Sometimes called least square filter Wiener filter Blured image Turbulance (k=0. 0025) Wiener filter result

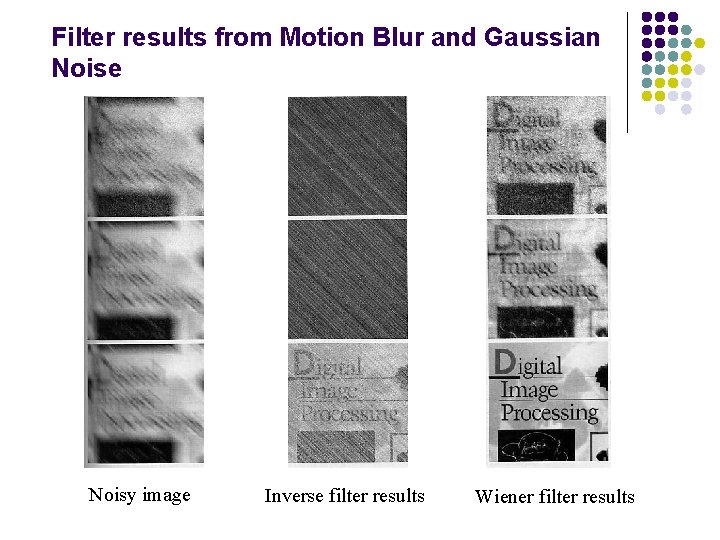

Filter results from Motion Blur and Gaussian Noise Noisy image Inverse filter results Wiener filter results
