ILS JIN WOO LEE What is ILS Instrument

ILS JIN WOO LEE

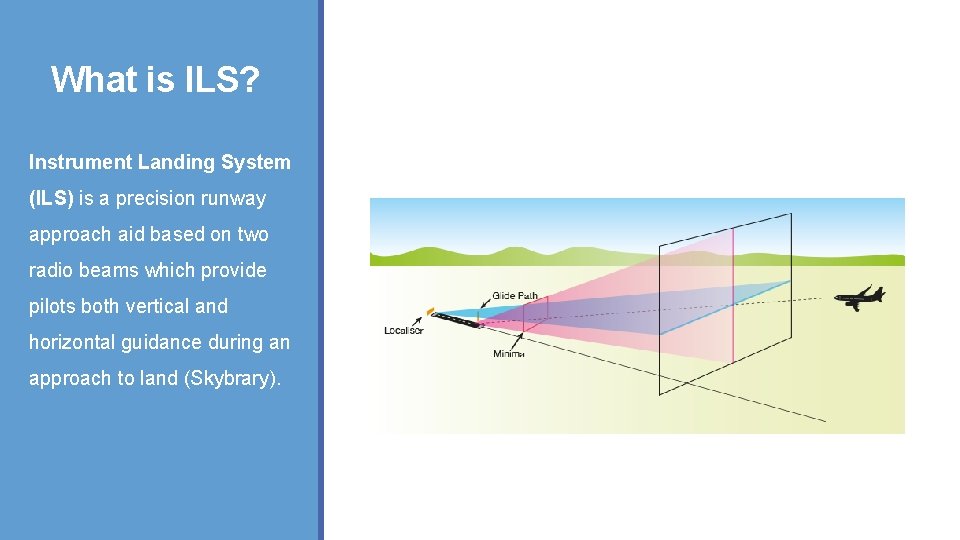

What is ILS? Instrument Landing System (ILS) is a precision runway approach aid based on two radio beams which provide pilots both vertical and horizontal guidance during an approach to land (Skybrary).

ALS Glide Slope Localizer Facilities for ILS

ALS Approach Lighting Systems (ALS) provide the basic means to transition from instrument flight to visual flight for landing (FAA).

Glide Slope The Glide Slope is radiated via an antenna array located in the general area of the approach runway, a vertical tower about 20' tall (Avionicslist).

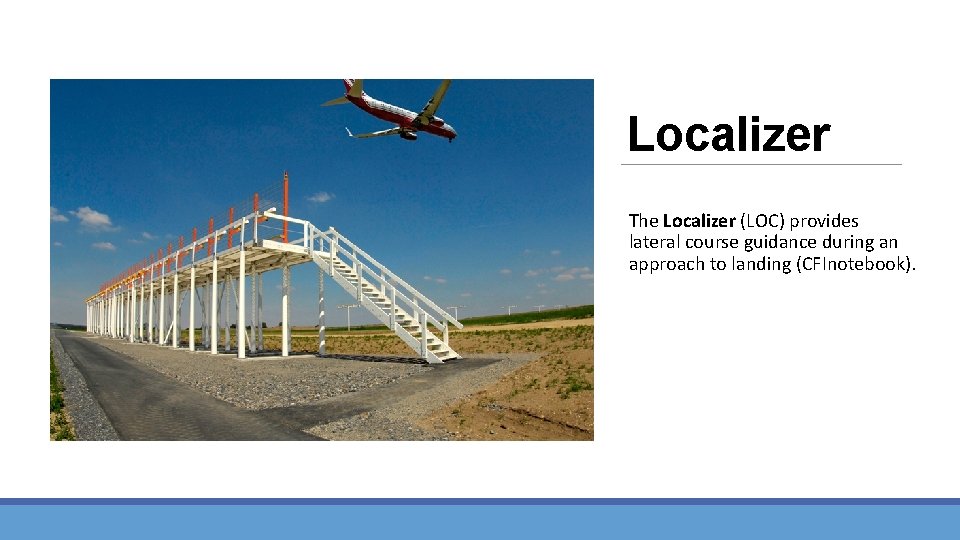

Localizer The Localizer (LOC) provides lateral course guidance during an approach to landing (CFInotebook).

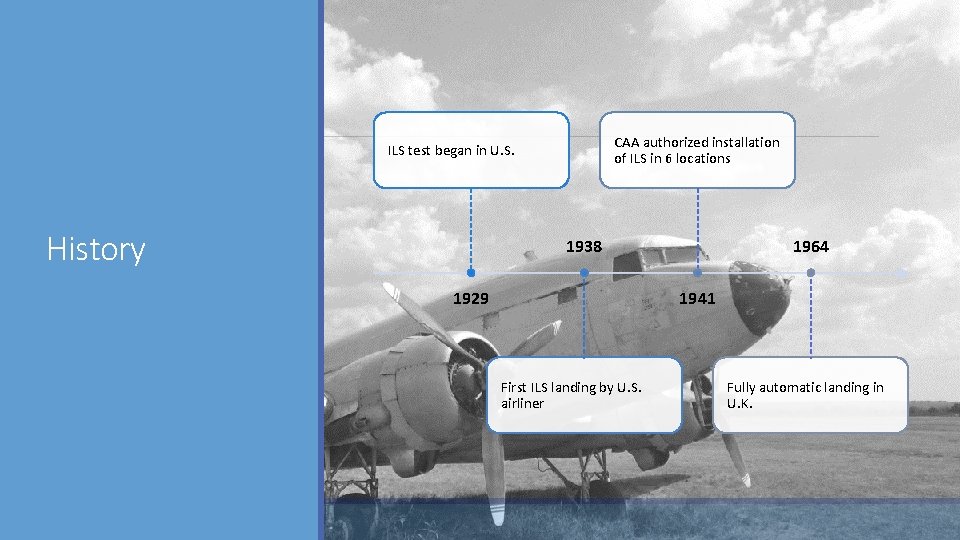

CAA authorized installation of ILS in 6 locations ILS test began in U. S. History 1938 1929 1964 1941 First ILS landing by U. S. airliner Fully automatic landing in U. K.

1 CAT I 2 CAT II 3 4 5 CAT IIIa CAT IIIb CAT IIIc Category of ILS

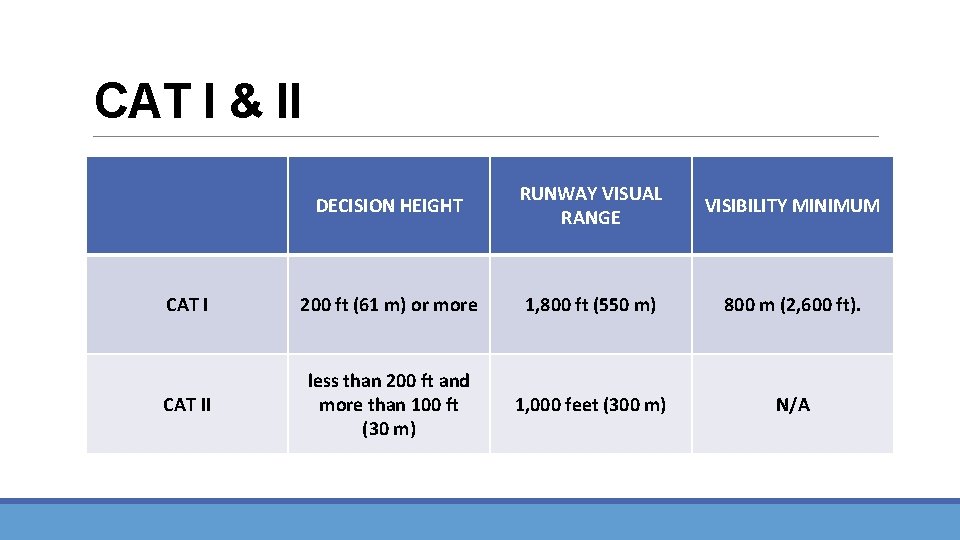

CAT I & II DECISION HEIGHT RUNWAY VISUAL RANGE VISIBILITY MINIMUM CAT I 200 ft (61 m) or more 1, 800 ft (550 m) 800 m (2, 600 ft). CAT II less than 200 ft and more than 100 ft (30 m) 1, 000 feet (300 m) N/A

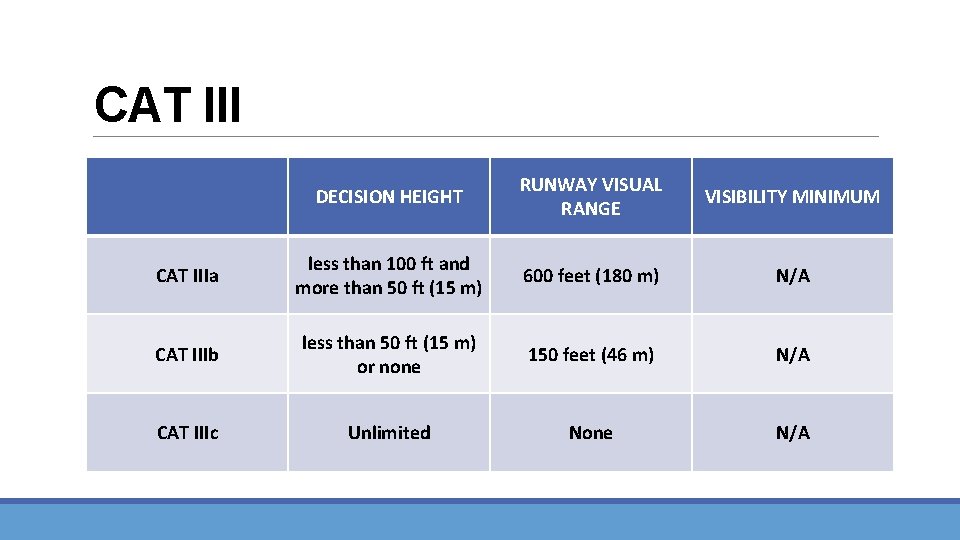

CAT III DECISION HEIGHT RUNWAY VISUAL RANGE VISIBILITY MINIMUM CAT IIIa less than 100 ft and more than 50 ft (15 m) 600 feet (180 m) N/A CAT IIIb less than 50 ft (15 m) or none 150 feet (46 m) N/A CAT IIIc Unlimited None N/A
