ILC Dover Powder Transfer The DOVERPAC QUICKVIEWPORT is
- Slides: 5
ILC Dover Powder Transfer The DOVERPAC® QUICKVIEWPORT™ is used with the DOVERPAC® Powder Transfer System. JM Canty, Inc. · Buffalo, New York · Phone: (716) 625 -4227 | JM Canty, Ltd. · Dublin, Ireland · Phone: +353 (1) 882 -9621
The DOVERPAC® charging system is used to contain active pharmaceutical ingredients and other hazardous compounds to provide a safe and effective transfer of powders. The system includes a flexible Armor. Flex® liner for containing powders, clamps, and a glove bag for operating the QUICKPORT™. The QUICKPORT™ includes an adapter plate that allows for attachment of the glove bag and the clean in place system. It also includes an internal o-ring that seals the Dover. Pac® insertion tube. JM Canty, Inc. · Buffalo, New York · Phone: (716) 625 -4227 | JM Canty, Ltd. · Dublin, Ireland · Phone: +353 (1) 882 -9621
The DOVERPAC® charging system is lowered into place where it is clamped to the glove bag and the glove bag is clamped to the QUICKPORT™. Once the DOVERPAC® is in place the FUSEVIEW™ can be swung out of place and insertion tube can be inserted through the QUICKPORT™. JM Canty, Inc. · Buffalo, New York · Phone: (716) 625 -4227 | JM Canty, Ltd. · Dublin, Ireland · Phone: +353 (1) 882 -9621
The DOVERPAC® system can now charge the vessel. JM Canty, Inc. · Buffalo, New York · Phone: (716) 625 -4227 | JM Canty, Ltd. · Dublin, Ireland · Phone: +353 (1) 882 -9621

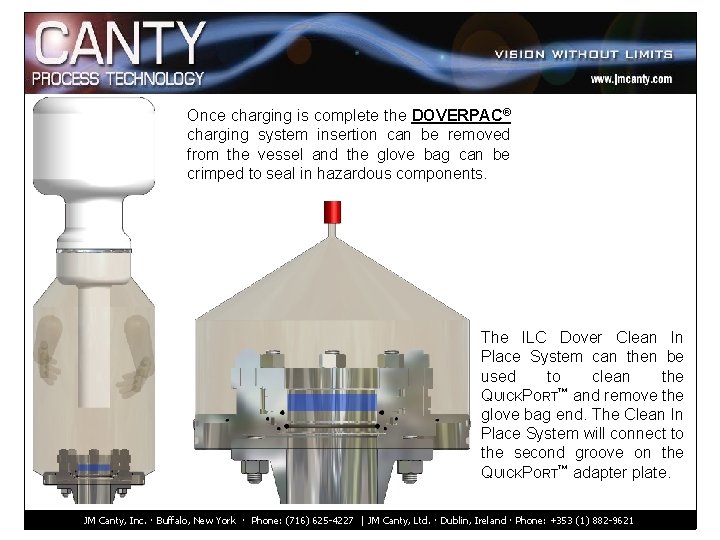

Once charging is complete the DOVERPAC® charging system insertion can be removed from the vessel and the glove bag can be crimped to seal in hazardous components. The ILC Dover Clean In Place System can then be used to clean the ™ QUICKPORT and remove the glove bag end. The Clean In Place System will connect to the second groove on the QUICKPORT™ adapter plate. JM Canty, Inc. · Buffalo, New York · Phone: (716) 625 -4227 | JM Canty, Ltd. · Dublin, Ireland · Phone: +353 (1) 882 -9621
