ILC Detector Overview International Large Detector ILD Silicon
- Slides: 52
(ILC) Detector Overview International Large Detector (ILD) Silicon Detector (Si. D) 末原 大幹 (九州大学) Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 1

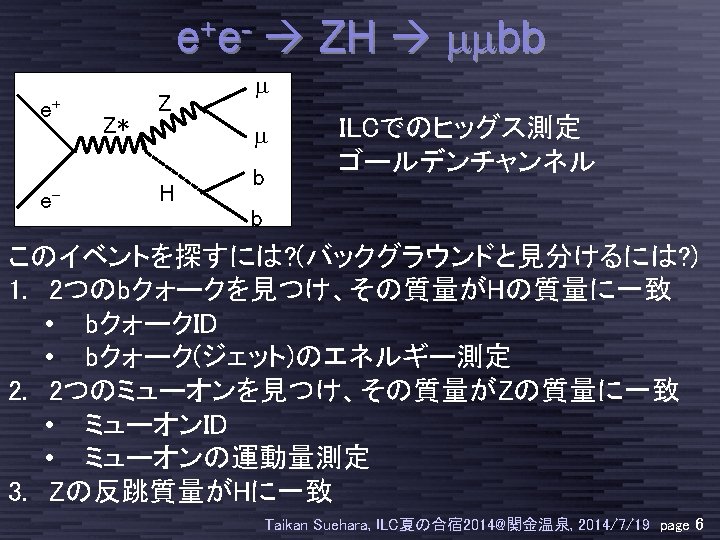

example: ZH mmbb Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 5

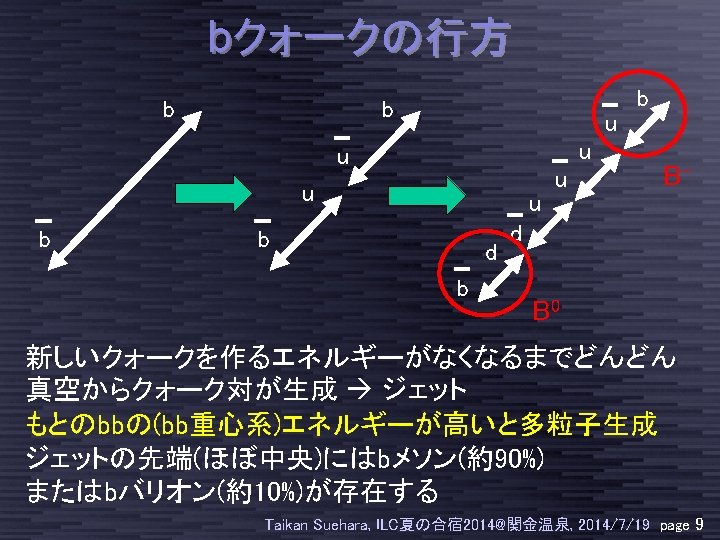

ジェット生成 Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 10
bハドロンの寿命 Particle Data Group http: //pdg. lbl. gov/ t ~ 1. 5 picosecond, ct ~ 450 mm Lorentz boostを含まずに 450 mmくらい飛ぶ Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 11

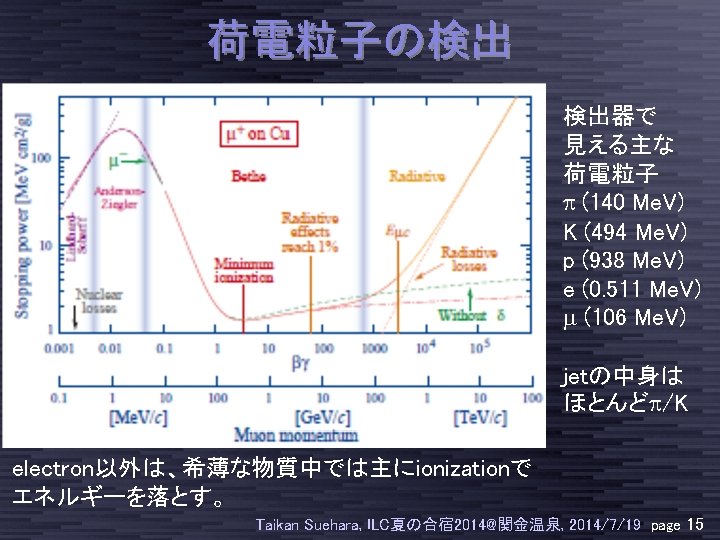

ionization charged particle gas detector e+e- pair sensor layer 粒子のエネルギーと物質量で 生成するpairの数は決まる pairの時間・空間情報を再構成するのが測定器 Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 16
ガス増幅 MWPC GEM (MPGD) Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 24
vertex finding 1. 各trackを測定誤差を 入れてtube状に表現 2. すべてのtube対の交点 を探索 3. よい「交点」を採用 4. 他のtrackもつけて再fitを 試す track Vertex-IP line q D IP Secondary vertex Single track vertex (nearest point) 1本しかなくても! Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 29
flavor taggingの方法 • vertexおよびその他の情報を組み合わせて 多変量解析(boosted decision tree) – Vertexの数 – Vertexの質量 – Vertexの位置 – Vertexのprobability – Trackのimpact parameter 400 mm 60 -300 mm ずれているtrack -> b/c クォーク Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 30

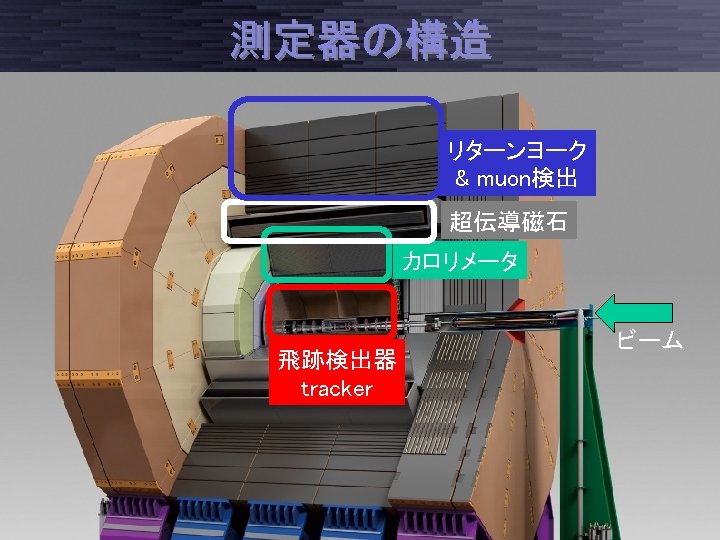

ILDのtracking detectors Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 31
ILD tracking performance(1) Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 32
ILD tracking performance(2) tt Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 33

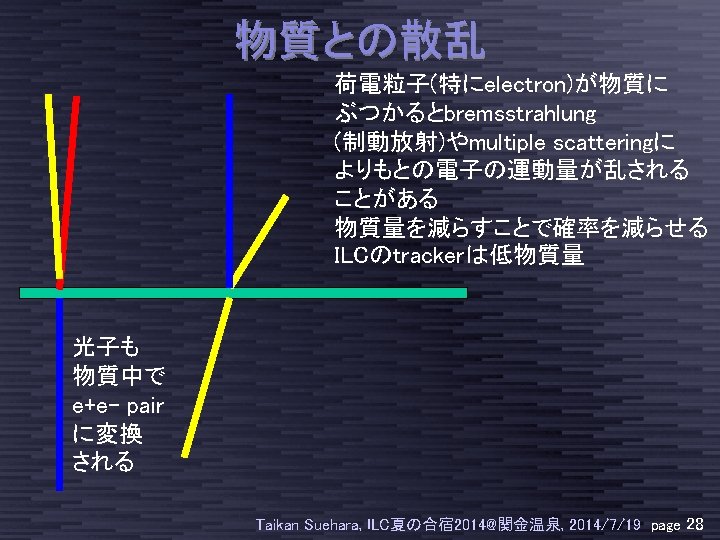

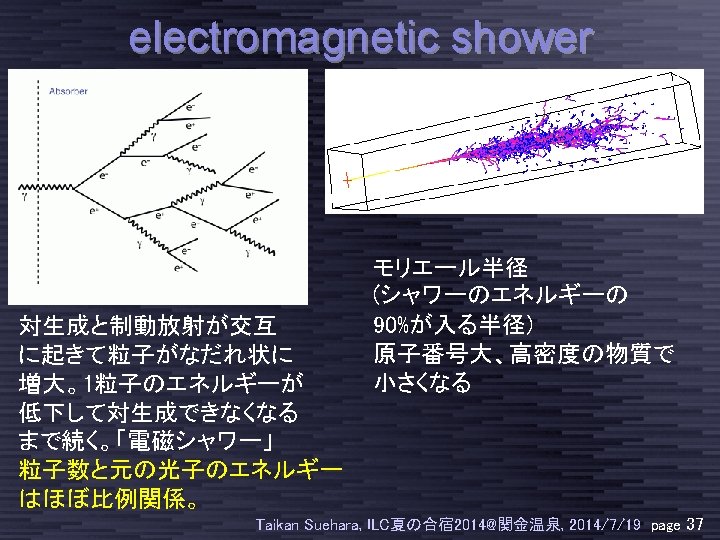

radiation length X 0 photonの対生成の平均自由行程の 7/9 electronのenergyがbremsstrahlungで平均1/eになる物質量 Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 36
Cs. I(Tl) Belle 鉛+シンチ CDF Taikan Suehara, ILC夏の合宿 2014@関金温泉, 2014/7/19 page 40
