ILC CFS Baseline Technical Review CONVENTIONAL ELECTRICAL TDR
ILC CFS Baseline Technical Review CONVENTIONAL ELECTRICAL TDR DESIGN Randy Wielgos March 22, 2012
Electrical System Design • Criteria uploaded to EDMS • Used Consultant for Concept Design & Independent Costing of specific WBS • Need to Adjust Cost/Design with Recent and Pending Changes for TDR • Electrical is Following behind Civil and Mechanical for Final Cost Estimates March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 2
Electrical Design and Cost Estimating Basis of Design Klystron Cluster Full Power Beam Operation Americas Region Standard Voltages Conventional Facilities Development of Loads Mechanical & Electrical Coordination Determination of Load Characteristics Engineering Drawings & Specifications for Estimating March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 3
SCOPE: • Conventional Electrical scope includes High Voltage and Low Voltage Electrical Transmission and Distribution on the surface and in the tunnel • Estimating and Costing Follows the RDR WBS system March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 4
Electrical System Diagram 345 k. V Supply 345 – 34. 5 k. V Transformers 345 – 69 k. V Transformers T T 69 k. V Switchgear 34. 5 k. V Switchgear Distribution T 69 – 34. 5 k. V Transformers 34. 5 k. V Switchgear Distribution March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 5
Electrical System Diagram March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 6
Electrical System Tunnel Distribution • Conventional Power Distribution for KCS • Each 35 k. V/480 V unit substation feeds nine 480 V panel boards • Distance between shafts is approximately 2. 1 km, and distance from the unit substation to the furthest panel board is approximately 1 km. • Distance between 480 V panel boards is approximately 232 m. March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 7
Electrical System Klystron Distribution • • Conventional Power Distribution for KCS Klystron RF Units are Grouped in Surface Buildings Each 35 k. V/480 V unit substation feeds 480 V MCC’s. Medium Voltage (MV) cables from the Central Region are connected to electrical substations at the surface of each shaft for local power distribution. March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 8
Electrical System Cryo Plant Distribution • Cryo Plants Located in Surface Buildings • Medium Voltage (MV) cables from the Central Region are connected to electrical substations at the surface of each shaft for local power distribution. • 35 k. V switchgear feeds Transformers and 480 V MCC’s. March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 9
Low Voltage Power Distribution at Shafts and Tunnels • 35 k. V Switchgear at each shaft will dual feed unit substations at the base and surface of each shaft with 34. 5 k. V/480 V transformers. • The unit substation will feed a main 480 V distribution panel which will subfeed 480 V panel boards in the tunnel or surface buildings. • 480 V to 120 V/208 V step-down transformers will connect to the 480 V panel boards locally for low voltage power needs. March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 10
Emergency/Standby Power Systems • Fire detection and alarm systems. • Exit sign illumination. • Emergency lighting. • Elevator car lighting. • Fire Command Station lighting. • Two-way fire department communication systems. • • Elevators, elevator equipment, and elevator machine room/controller cooling. • Air handling systems for the tunnels and elevator lobbies. • Lighting for HVAC mechanical equipment rooms. o Cranes, Sump/Lift Pumps. Ref: Hughes Associates - Life Safety/Fire Protection Code Analysis o Project Requirement March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 11
EMERGENCY POWER DISTRIBUTION March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 12
CHANGES TO DESIGN SINCE RDR March 22, 2012 Changes since RDR Estimated Electrical Cost Impact Single Tunnel KCS 3. 2 Km DR CR integration (e+ undulator) Reduced bunch/Low power VE (high RF water delta T) VE (removal of chilled water) Significant Minor Moderate Minor Americas Region Electrical ILC CFS Baseline Technical Review 13
Load Table progress – Basis for current Concept design March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 14
LOAD TABLES - Electrical March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 15
LOAD TABLES - Electrical March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 16
Electrical Cost Estimates Parsons • Bottoms Up Estimate • Mid 2011 Base Year • RAW Numbers – “Brick & Mortar” • KCS - Full Power Criteria Adjustments to be made for Final Estimate: Design Changes Add Systems for Complete WBS Baseline Reference Change March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 17

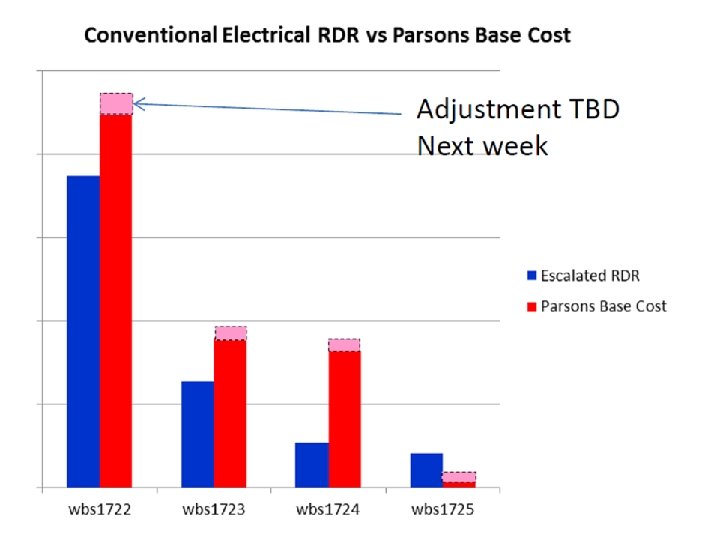

n on Ba s D sis esi g rs re nt Ba D sis esi gn Pa Cu r March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 18
ADJUSTMENT TO FINAL NUMBERS • • Separate cost by Area systems Add missing wbs Adjust IR water plant cost Adjust Ventilation cost Add laser rooms Add Fire suppression etc • Scale per new load/criteria • Adjust cost to low power PARSONS’s MECH COST EXCEL PARSONS’s ELEC COST EXCEL ADJUSTED MECH COST EXCEL ADJUSTED ELEC COST EXCEL CIVILCOST EXCEL OVERALL CFS COST EXCEL (AMERICAs) Add EDMS references Add other mandatory input Risk Basis (high & low %) March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review LINK or INPUT ? GERRY DUGAN’s EXCEL FILE (ICET CEM) 19
Electrical Load Distribution by Shaft PXA-0 PM-9 PM-7 PM-10 PMC-0 PMB-0 PM-8 PM+7 PM+8 PM+9 PM+10 PM-11 PM-12 PM+12 March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 20
March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 21
Questions? March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 23
Additional Information March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 24
March 22, 2012 Americas Region Electrical ILC CFS Baseline Technical Review 25
345 k. V/69 k. V/34. 5 k. V One Line Diagram Power System Configuration - KCS March 21, 2012 Americas Region Conventional Electrical System Design Summary 26
