IITBombayxs FDP 101 X Lab Activity on 07102018

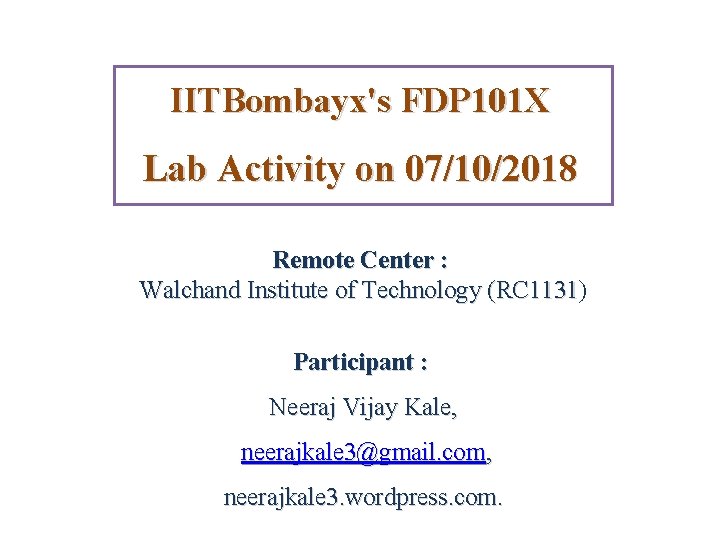

IITBombayx's FDP 101 X Lab Activity on 07/10/2018 Remote Center : Walchand Institute of Technology (RC 1131) (RC 1131 Participant : Neeraj Vijay Kale, neerajkale 3@gmail. com, neerajkale 3. wordpress. com.

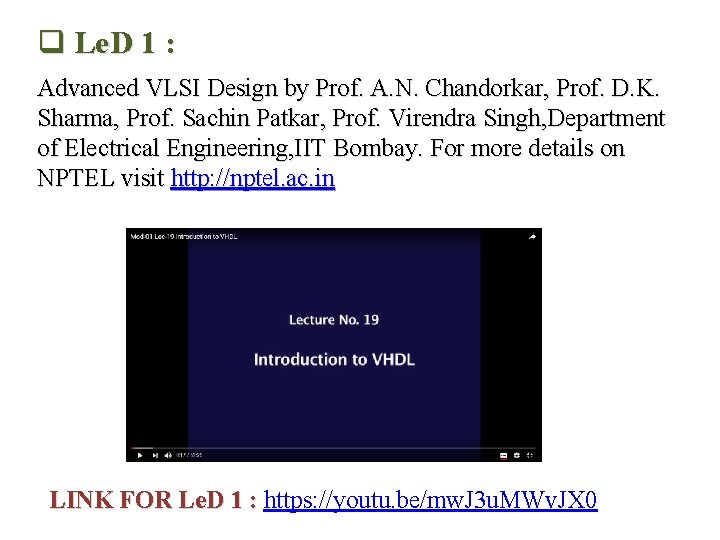

q Le. D 1 : Advanced VLSI Design by Prof. A. N. Chandorkar, Prof. D. K. Sharma, Prof. Sachin Patkar, Prof. Virendra Singh, Department of Electrical Engineering, IIT Bombay. For more details on NPTEL visit http: //nptel. ac. in LINK FOR Le. D 1 : https: //youtu. be/mw. J 3 u. MWv. JX 0

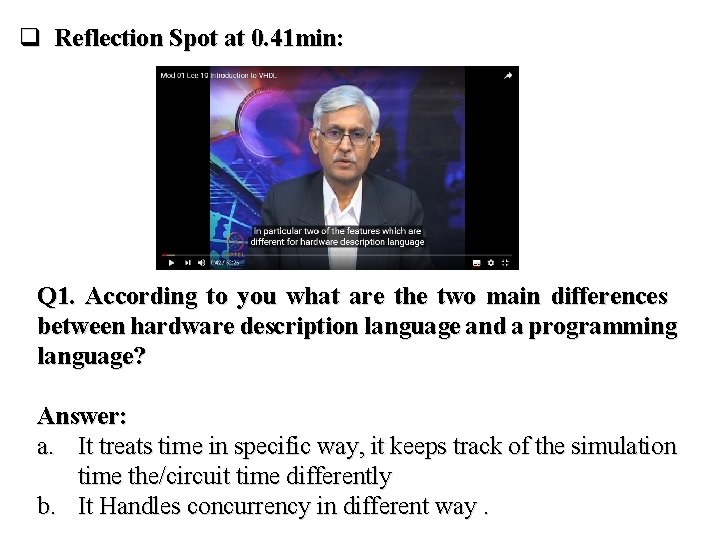

q Reflection Spot at 0. 41 min: Q 1. According to you what are the two main differences between hardware description language and a programming language? Answer: a. It treats time in specific way, it keeps track of the simulation time the/circuit time differently b. It Handles concurrency in different way.

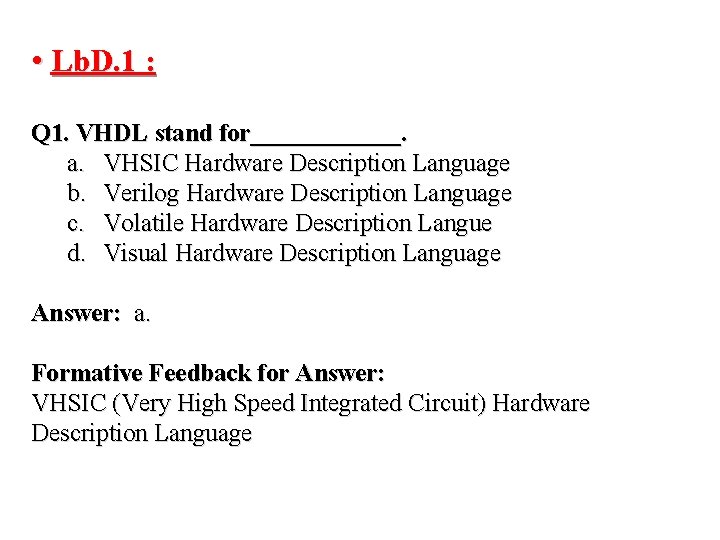

• Lb. D. 1 : Q 1. VHDL stand for______. a. VHSIC Hardware Description Language b. Verilog Hardware Description Language c. Volatile Hardware Description Langue d. Visual Hardware Description Language Answer: a. Formative Feedback for Answer: VHSIC (Very High Speed Integrated Circuit) Hardware Description Language

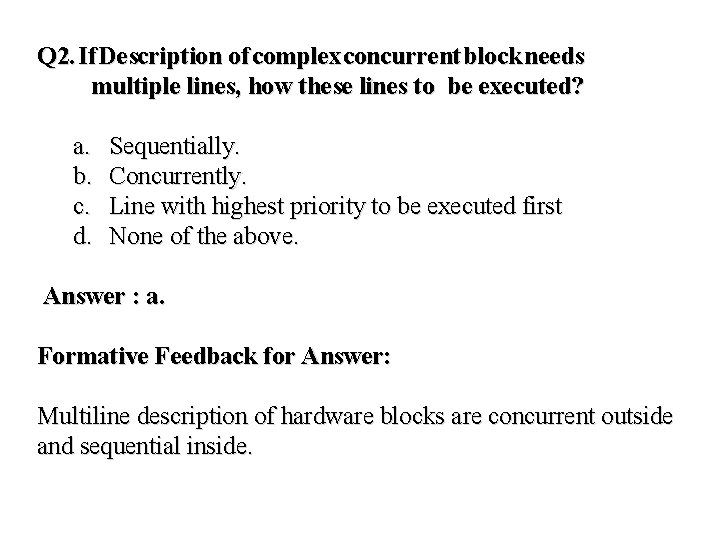

Q 2. If Description of complex concurrent block needs multiple lines, how these lines to be executed? a. b. c. d. Sequentially. Concurrently. Line with highest priority to be executed first None of the above. Answer : a. Formative Feedback for Answer: Multiline description of hardware blocks are concurrent outside and sequential inside.

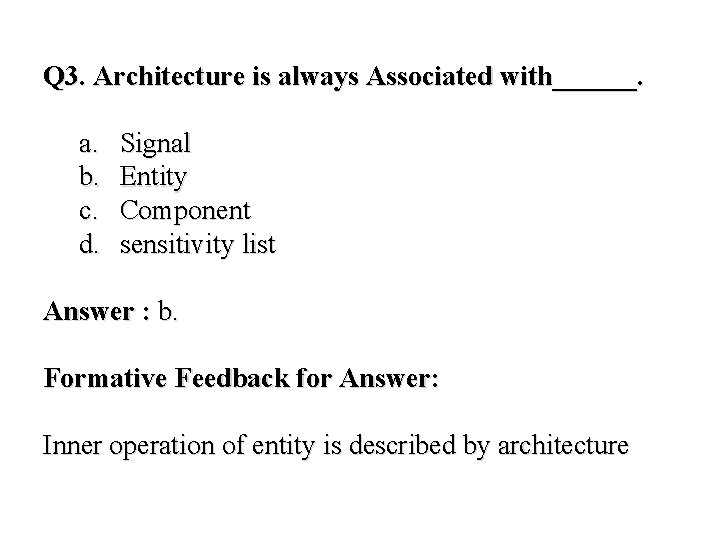

Q 3. Architecture is always Associated with______. a. b. c. d. Signal Entity Component sensitivity list Answer : b. Formative Feedback for Answer: Inner operation of entity is described by architecture
