3 IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 1. GENERAL CONSIDERATIONS IN LAYOUT DESIGN Main issues pcpandey@ee. iitb. ac. in • Component interconnections parasitics • Physical accessibility of components dissipation • Effects of • Power Subtopics 1. 1 Parasitic effects 1. 2 Supply conductors 1. 3 Component placement • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

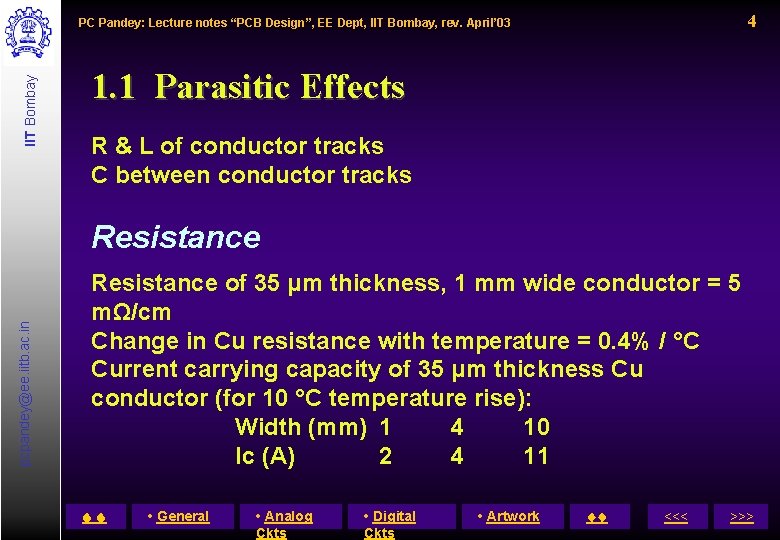

4 IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 1. 1 Parasitic Effects R & L of conductor tracks C between conductor tracks pcpandey@ee. iitb. ac. in Resistance of 35 μm thickness, 1 mm wide conductor = 5 mΩ/cm Change in Cu resistance with temperature = 0. 4% / °C Current carrying capacity of 35 μm thickness Cu conductor (for 10 °C temperature rise): Width (mm) 1 4 10 Ic (A) 2 4 11 • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

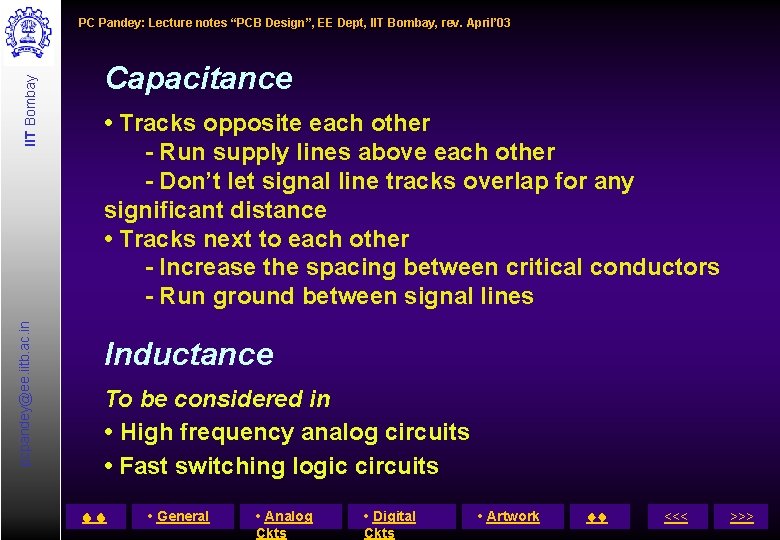

pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 Capacitance • Tracks opposite each other - Run supply lines above each other - Don’t let signal line tracks overlap for any significant distance • Tracks next to each other - Increase the spacing between critical conductors - Run ground between signal lines Inductance To be considered in • High frequency analog circuits • Fast switching logic circuits • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

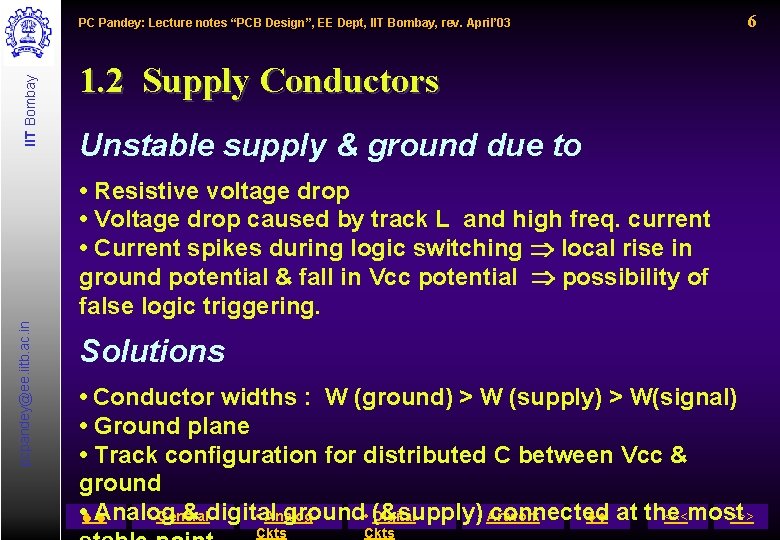

IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 6 1. 2 Supply Conductors Unstable supply & ground due to pcpandey@ee. iitb. ac. in • Resistive voltage drop • Voltage drop caused by track L and high freq. current • Current spikes during logic switching local rise in ground potential & fall in Vcc potential possibility of false logic triggering. Solutions • Conductor widths : W (ground) > W (supply) > W(signal) • Ground plane • Track configuration for distributed C between Vcc & ground • Analog & digital ground • (&supply) connected <<<most >>> • General • Analog Digital • Artwork at the Ckts

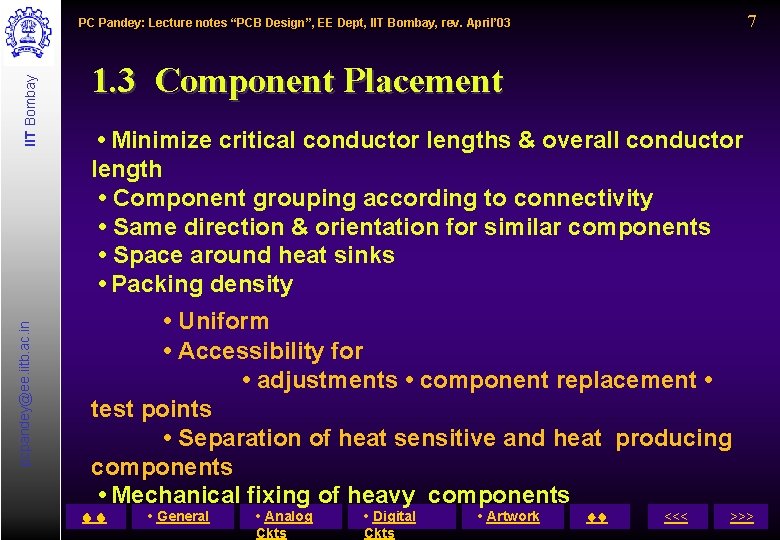

7 pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 1. 3 Component Placement • Minimize critical conductor lengths & overall conductor length • Component grouping according to connectivity • Same direction & orientation for similar components • Space around heat sinks • Packing density • Uniform • Accessibility for • adjustments • component replacement • test points • Separation of heat sensitive and heat producing components • Mechanical fixing of heavy components • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

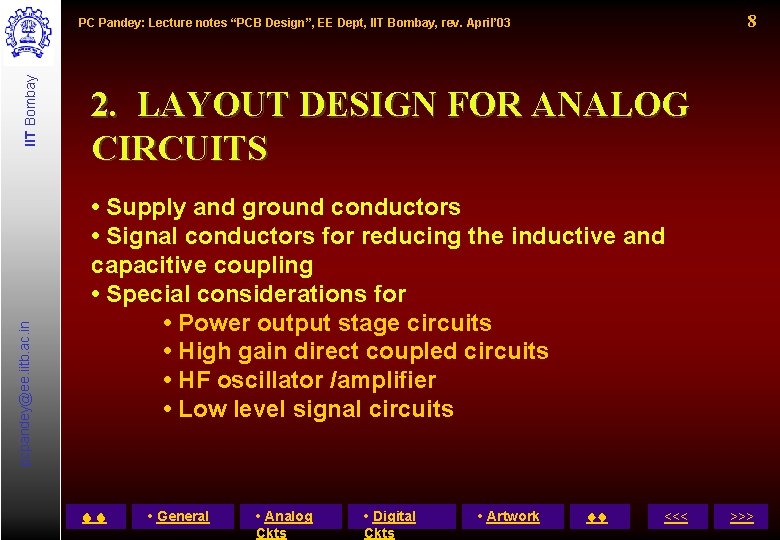

8 pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 2. LAYOUT DESIGN FOR ANALOG CIRCUITS • Supply and ground conductors • Signal conductors for reducing the inductive and capacitive coupling • Special considerations for • Power output stage circuits • High gain direct coupled circuits • HF oscillator /amplifier • Low level signal circuits • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 2. 1 Ground & Supply Lines • Separate GND (& Vcc) lines for analog & digital circuits • Independent ground for reference voltage circuits • Connect different ground conductors at most stable reference point • Supply lines with sufficient width and high capacitive coupling to GND (use decoupling capacitors) • Supply line should first connect to high current drain ckt blocks • Supply line independent for voltage references • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 2. 2 HF Oscillator / Amplifier • Decoupling capacitor between Vcc & GND Capacitive load on o/p • Reduce capacitive coupling between output & input lines • Vcc decoupling for large BW ckts. (even for LF operation) • Separation between signal & GND to reduce capacitive loading • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

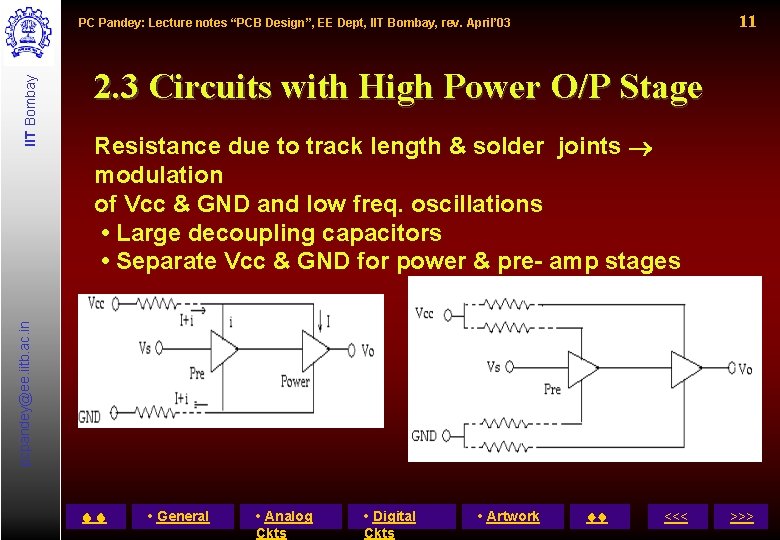

11 2. 3 Circuits with High Power O/P Stage Resistance due to track length & solder joints modulation of Vcc & GND and low freq. oscillations • Large decoupling capacitors • Separate Vcc & GND for power & pre- amp stages pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

12 IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 2. 4 High Gain DC Amplifier Solder joints thermocouple jn Temp gradients diff. noisy voltages pcpandey@ee. iitb. ac. in • Temp. gradients to be avoided • Enclosure for stopping free movement of surrounding air • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 2. 5 Low Level Signal Circuits A) High impedance circuits - Capacitive coupling pcpandey@ee. iitb. ac. in B) Low impedance circuits - Inductive coupling • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

14 pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 High -Z circuits If R » 1∕ jw(Cxy+Cy) then coupled Vy = Va × [Cxy/(Cy+Cxy)] • Increase separation between low level high Z line and high level line (decrease Cxy) • Put a ground line between the two (guard line) Example: Guard for signal leakage • General • Analog from FET output to input • Digital Ckts • Artwork <<< >>>

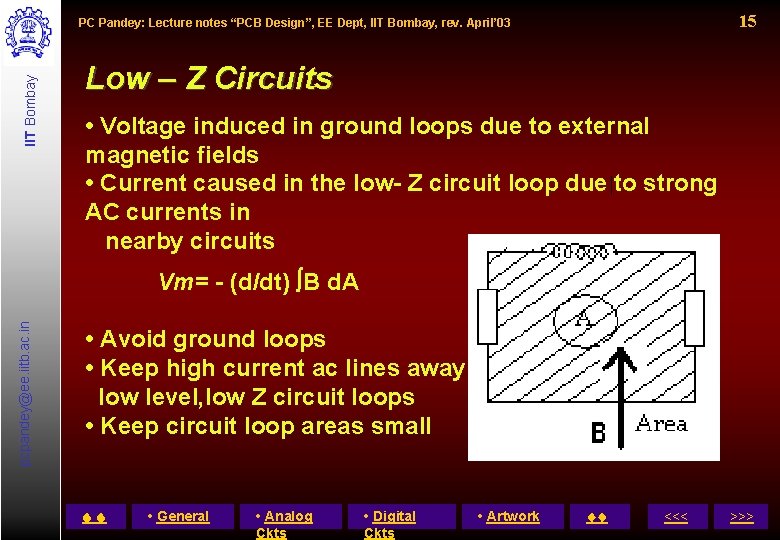

15 IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 Low – Z Circuits • Voltage induced in ground loops due to external magnetic fields • Current caused in the low- Z circuit loop due to strong AC currents in nearby circuits pcpandey@ee. iitb. ac. in Vm= - (d/dt) B d. A • Avoid ground loops • Keep high current ac lines away from low level, low Z circuit loops • Keep circuit loop areas small • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

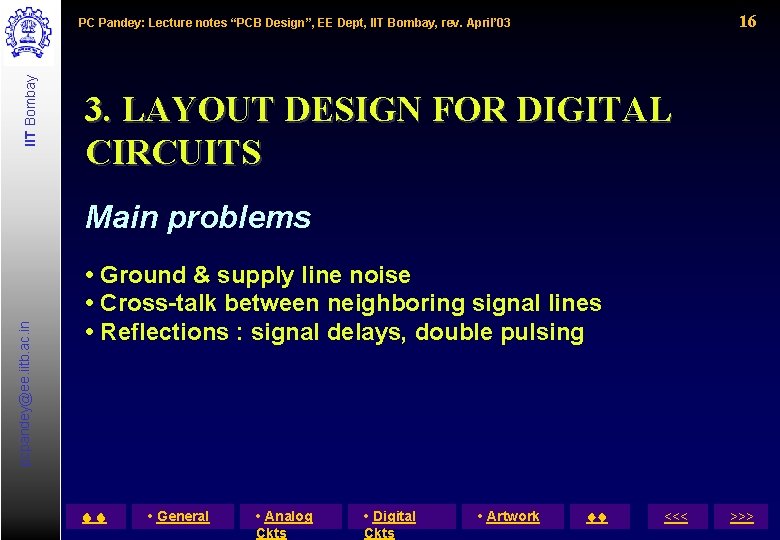

16 IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 3. LAYOUT DESIGN FOR DIGITAL CIRCUITS pcpandey@ee. iitb. ac. in Main problems • Ground & supply line noise • Cross-talk between neighboring signal lines • Reflections : signal delays, double pulsing • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

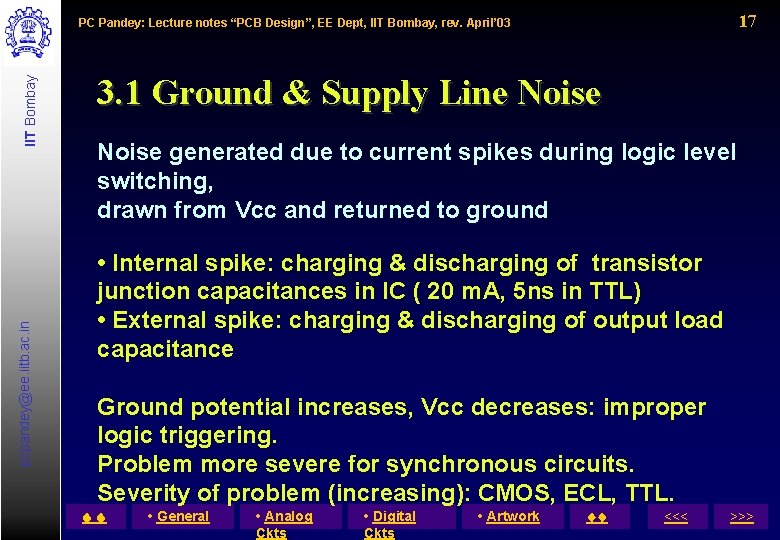

17 pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 3. 1 Ground & Supply Line Noise generated due to current spikes during logic level switching, drawn from Vcc and returned to ground • Internal spike: charging & discharging of transistor junction capacitances in IC ( 20 m. A, 5 ns in TTL) • External spike: charging & discharging of output load capacitance Ground potential increases, Vcc decreases: improper logic triggering. Problem more severe for synchronous circuits. Severity of problem (increasing): CMOS, ECL, TTL. • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 Solution for ground & supply noise • Decoupling C between Vcc & ground for every 2 to 3 IC’s : ceramic, low L cap. of 10 nf for TTL & 0. 5 n. F for ECL & • Stabilizes Vcc-GND (helps against internal spikes • Not much help for external spikes • Low wave impedance between supply lines (20 ohms): 5 to 10 mm wide lines opposite each other as power tr • Ground plane : large Cu area for ground to stabilize it against external spikes • Closely knit grid of ground conductors (will form ground loops, not to be used for analog circ • Twist Vcc & GND line between PCBs • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

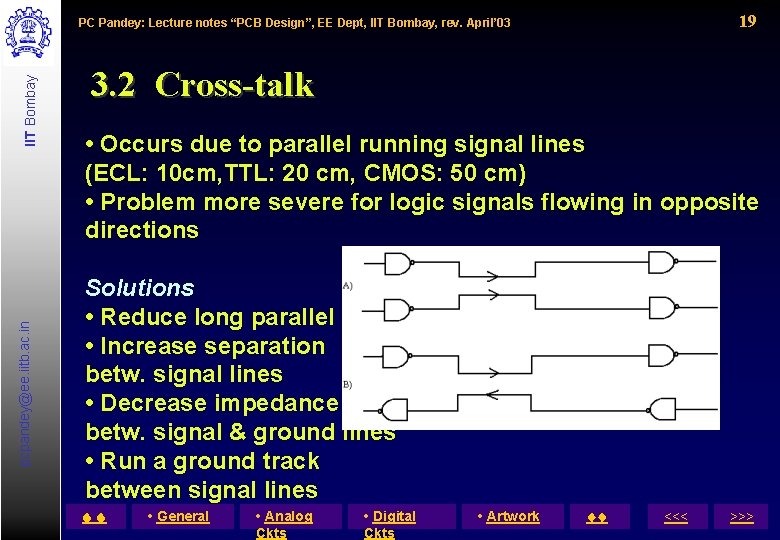

19 pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 3. 2 Cross-talk • Occurs due to parallel running signal lines (ECL: 10 cm, TTL: 20 cm, CMOS: 50 cm) • Problem more severe for logic signals flowing in opposite directions Solutions • Reduce long parallel paths • Increase separation betw. signal lines • Decrease impedance betw. signal & ground lines • Run a ground track between signal lines • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

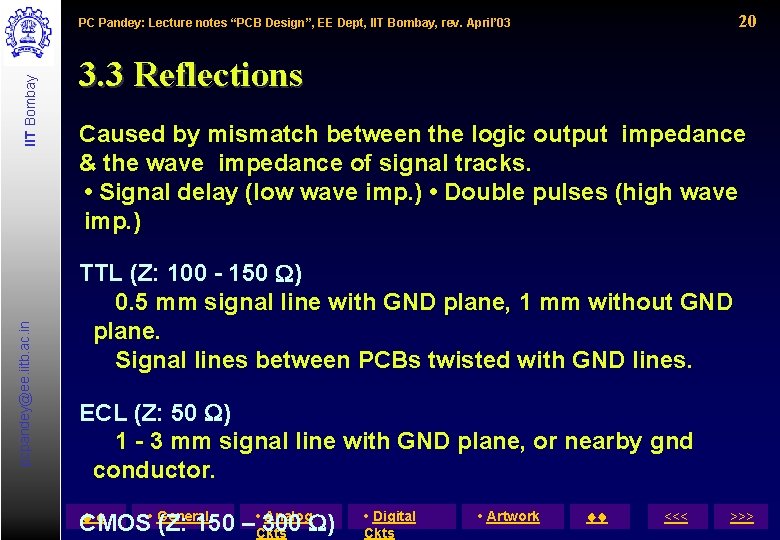

20 pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 3. 3 Reflections Caused by mismatch between the logic output impedance & the wave impedance of signal tracks. • Signal delay (low wave imp. ) • Double pulses (high wave imp. ) TTL (Z: 100 - 150 ) 0. 5 mm signal line with GND plane, 1 mm without GND plane. Signal lines between PCBs twisted with GND lines. ECL (Z: 50 ) 1 - 3 mm signal line with GND plane, or nearby gnd conductor. • General Analog CMOS (Z: 150 – • Ckts 300 ) • Digital Ckts • Artwork <<< >>>

IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 Summary of Layout Design Considerations (for 1. 6 mm thickness, double sided boards) Logic Family: Signal–GND Zw ( ) Signal line width (mm) pcpandey@ee. iitb. ac. in Vcc -GND Zw ( ) Vcc line (mm) GND line (mm) • General • Analog Ckts TTL 100 - 150 CMOS 150 - 300 ECL 50 - 100 0. 5 with gnd 1, < 5 no gnd 1 - 3 with gnd 0. 5, no gnd < 10 < 20 5 Very broad (plane /grid) 2 to 3 Broad (plane/grid) 2 5 • Digital Ckts • Artwork <<< >>>

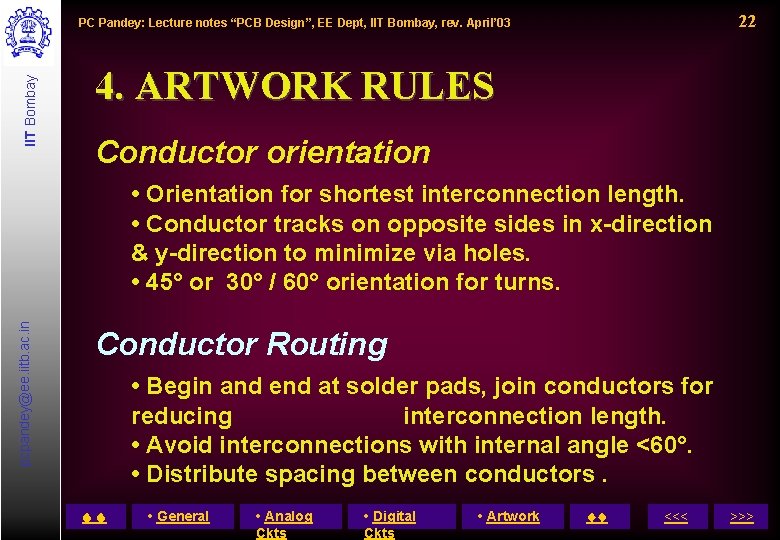

22 IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 4. ARTWORK RULES Conductor orientation pcpandey@ee. iitb. ac. in • Orientation for shortest interconnection length. • Conductor tracks on opposite sides in x-direction & y-direction to minimize via holes. • 45° or 30° / 60° orientation for turns. Conductor Routing • Begin and end at solder pads, join conductors for reducing interconnection length. • Avoid interconnections with internal angle <60°. • Distribute spacing between conductors. • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

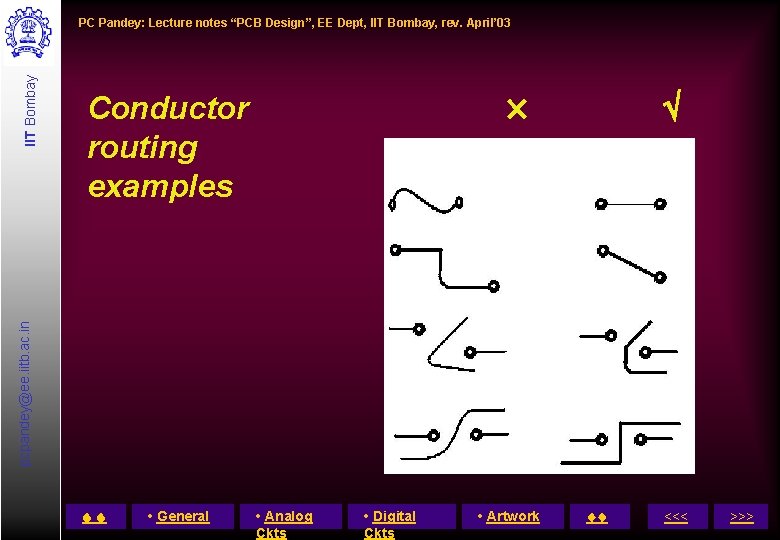

Conductor routing examples pcpandey@ee. iitb. ac. in IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 • General • Analog Ckts • Digital Ckts • Artwork <<< >>>

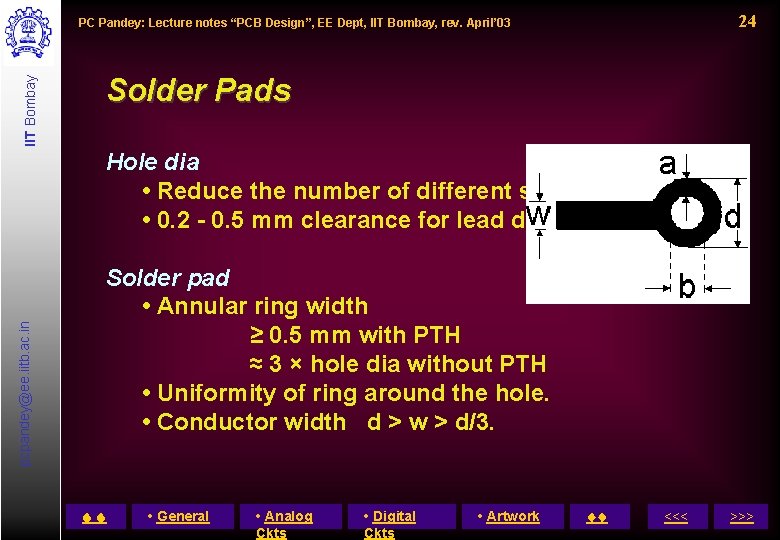

24 IIT Bombay PC Pandey: Lecture notes “PCB Design”, EE Dept, IIT Bombay, rev. April’ 03 Solder Pads pcpandey@ee. iitb. ac. in Hole dia • Reduce the number of different sizes. • 0. 2 - 0. 5 mm clearance for lead dia. Solder pad • Annular ring width ≥ 0. 5 mm with PTH ≈ 3 × hole dia without PTH • Uniformity of ring around the hole. • Conductor width d > w > d/3. • General • Analog Ckts • Digital Ckts • Artwork <<< >>>
