IIT Bombay Data Structures and Algorithms Prof. Ajit A. Diwan Prof. Ganesh Ramakrishnan Prof. Deepak B. Phatak Department of Computer Science and Engineering IIT Bombay Session: Stacks using STL Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 1

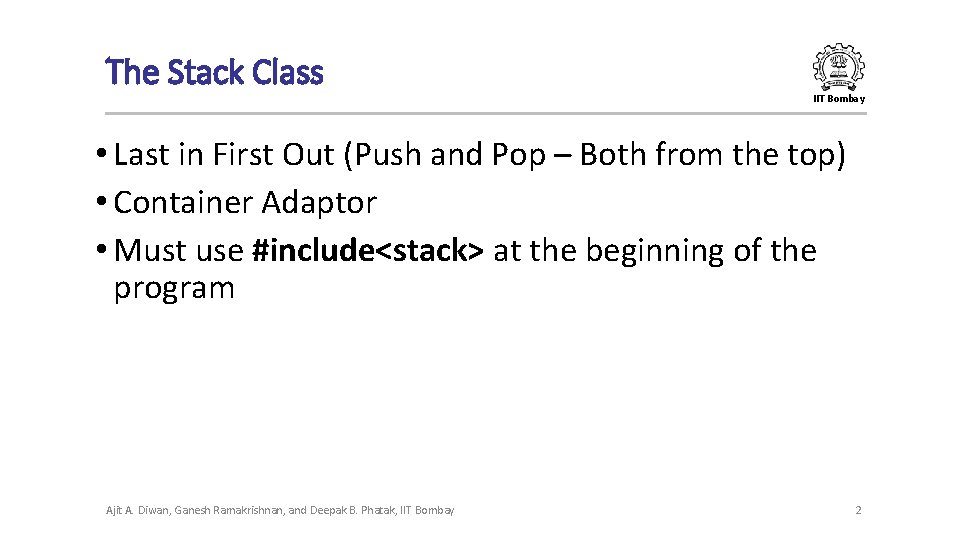

The Stack Class IIT Bombay • Last in First Out (Push and Pop – Both from the top) • Container Adaptor • Must use #include<stack> at the beginning of the program Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 2

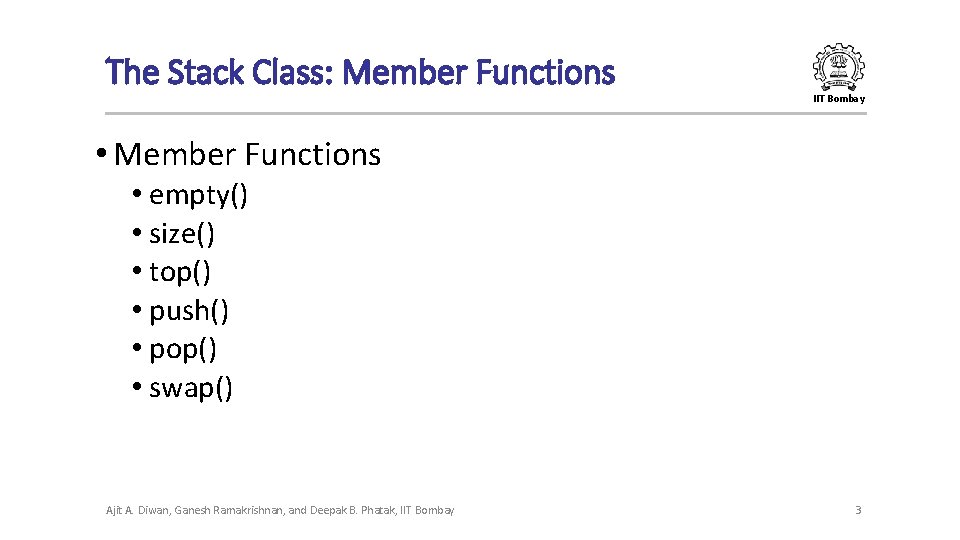

The Stack Class: Member Functions IIT Bombay • Member Functions • empty() • size() • top() • push() • pop() • swap() Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 3

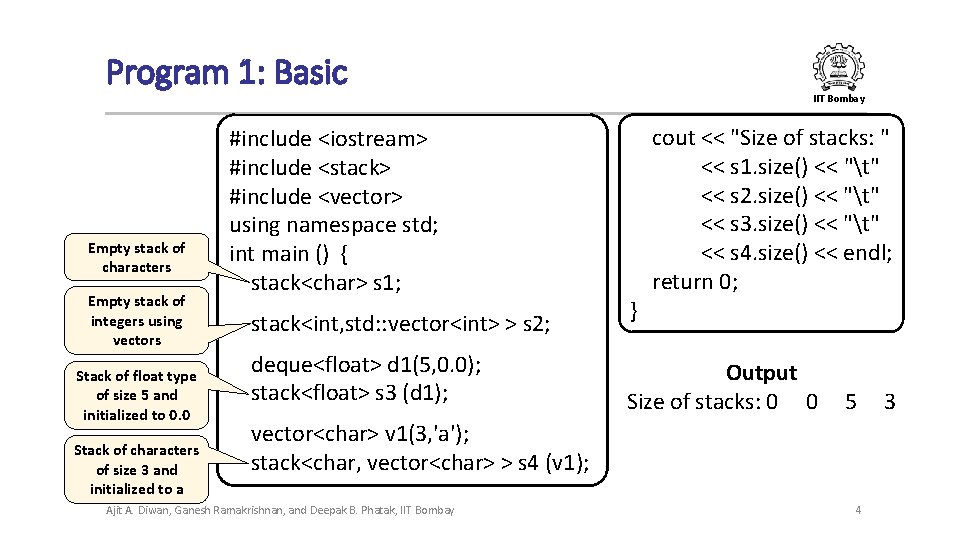

Program 1: Basic IIT Bombay Empty stack of characters Empty stack of integers using vectors Stack of float type of size 5 and initialized to 0. 0 Stack of characters of size 3 and initialized to a #include <iostream> #include <stack> #include <vector> using namespace std; int main () { stack<char> s 1; stack<int, std: : vector<int> > s 2; deque<float> d 1(5, 0. 0); stack<float> s 3 (d 1); } cout << "Size of stacks: " << s 1. size() << "t" << s 2. size() << "t" << s 3. size() << "t" << s 4. size() << endl; return 0; Output Size of stacks: 0 0 5 vector<char> v 1(3, 'a'); stack<char, vector<char> > s 4 (v 1); Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 4 3

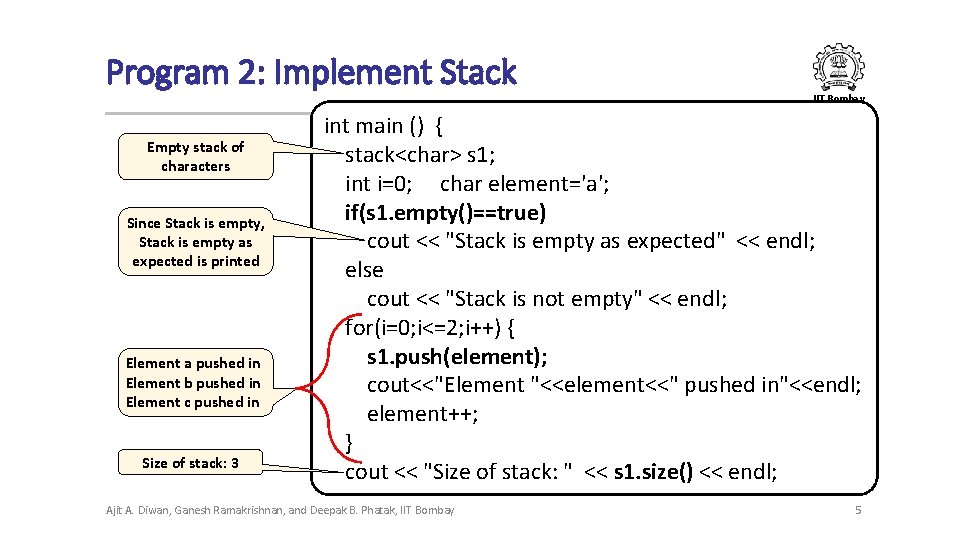

Program 2: Implement Stack IIT Bombay Empty stack of characters Since Stack is empty, Stack is empty as expected is printed Element a pushed in Element b pushed in Element c pushed in Size of stack: 3 int main () { stack<char> s 1; int i=0; char element='a'; if(s 1. empty()==true) cout << "Stack is empty as expected" << endl; else cout << "Stack is not empty" << endl; for(i=0; i<=2; i++) { s 1. push(element); cout<<"Element "<<element<<" pushed in"<<endl; element++; } cout << "Size of stack: " << s 1. size() << endl; Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 5

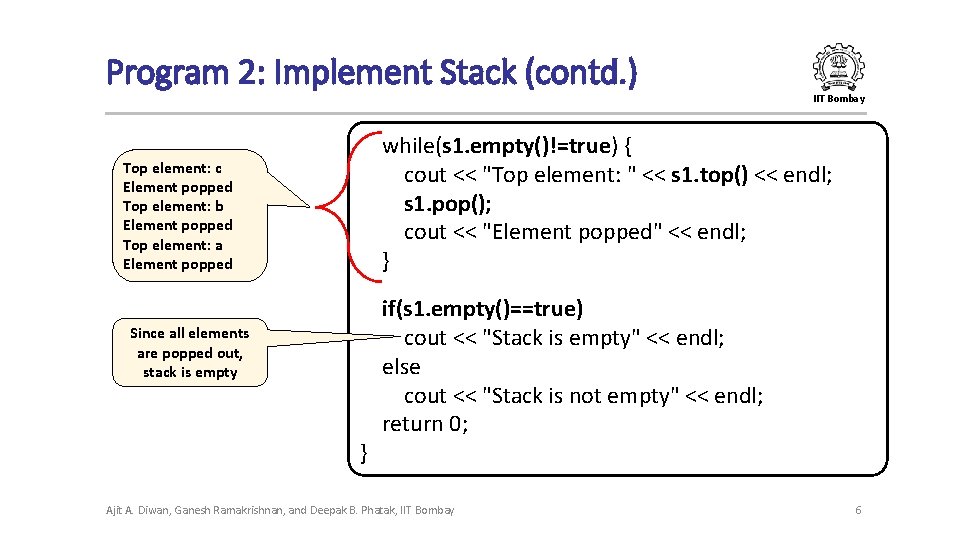

Program 2: Implement Stack (contd. ) IIT Bombay while(s 1. empty()!=true) { cout << "Top element: " << s 1. top() << endl; s 1. pop(); cout << "Element popped" << endl; } Top element: c Element popped Top element: b Element popped Top element: a Element popped Since all elements are popped out, stack is empty } if(s 1. empty()==true) cout << "Stack is empty" << endl; else cout << "Stack is not empty" << endl; return 0; Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 6

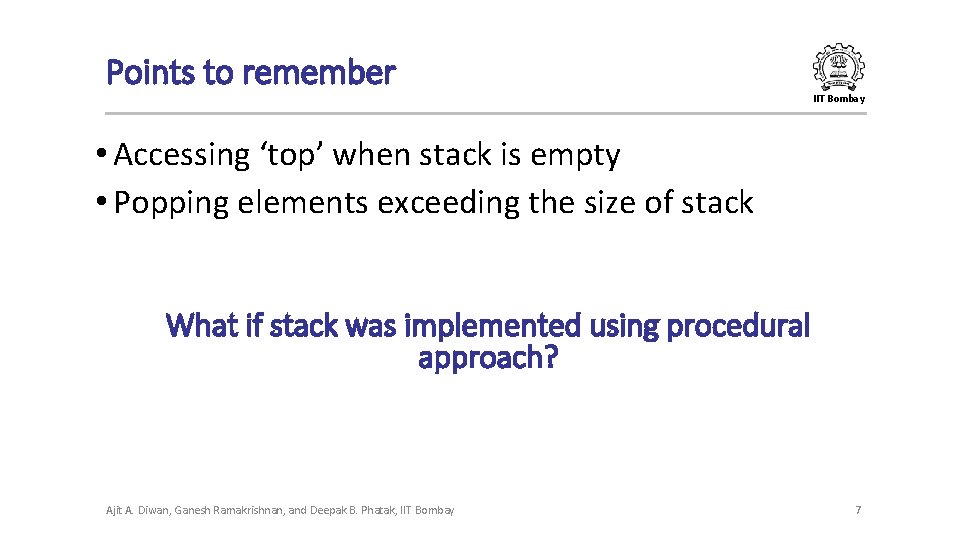

Points to remember IIT Bombay • Accessing ‘top’ when stack is empty • Popping elements exceeding the size of stack What if stack was implemented using procedural approach? Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 7

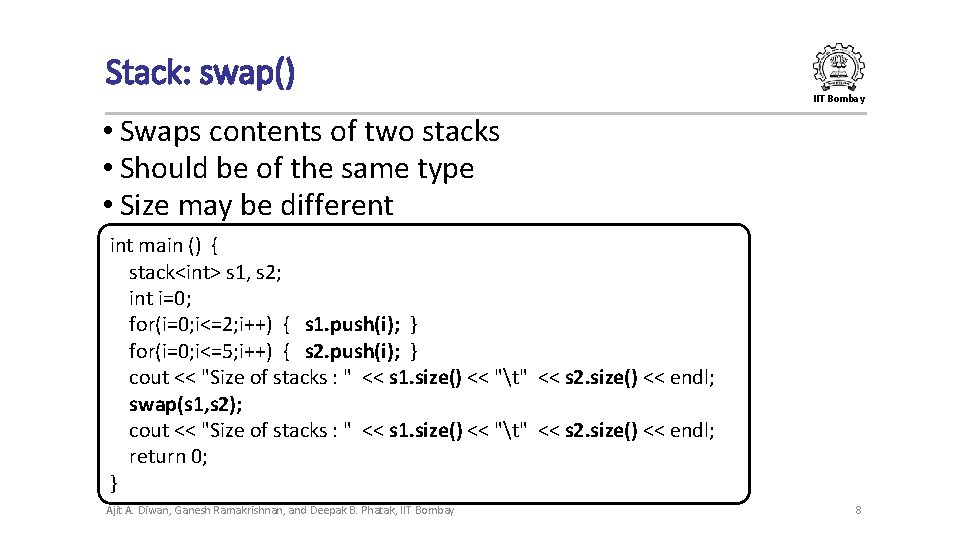

Stack: swap() IIT Bombay • Swaps contents of two stacks • Should be of the same type • Size may be different int main () { stack<int> s 1, s 2; int i=0; for(i=0; i<=2; i++) { s 1. push(i); } for(i=0; i<=5; i++) { s 2. push(i); } cout << "Size of stacks : " << s 1. size() << "t" << s 2. size() << endl; swap(s 1, s 2); cout << "Size of stacks : " << s 1. size() << "t" << s 2. size() << endl; return 0; } Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 8

IIT Bombay Thank you Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 9
