IIT Bombay Data Structures and Algorithms Prof. Ajit A. Diwan Prof. Ganesh Ramakrishnan Prof. Deepak B. Phatak Department of Computer Science and Engineering IIT Bombay Session: Application of Stacks and Evaluation of Expressions Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 1

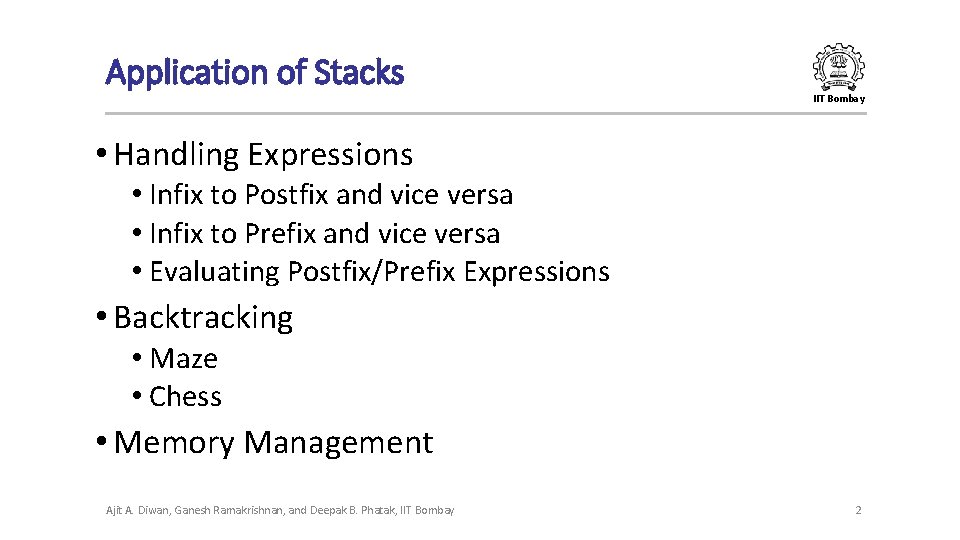

Application of Stacks IIT Bombay • Handling Expressions • Infix to Postfix and vice versa • Infix to Prefix and vice versa • Evaluating Postfix/Prefix Expressions • Backtracking • Maze • Chess • Memory Management Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 2

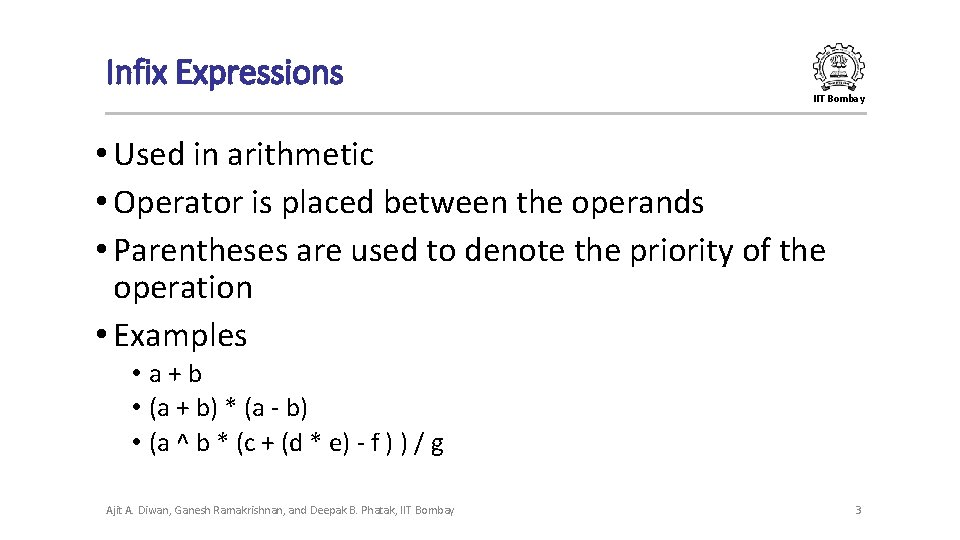

Infix Expressions IIT Bombay • Used in arithmetic • Operator is placed between the operands • Parentheses are used to denote the priority of the operation • Examples • a+b • (a + b) * (a - b) • (a ^ b * (c + (d * e) - f ) ) / g Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 3

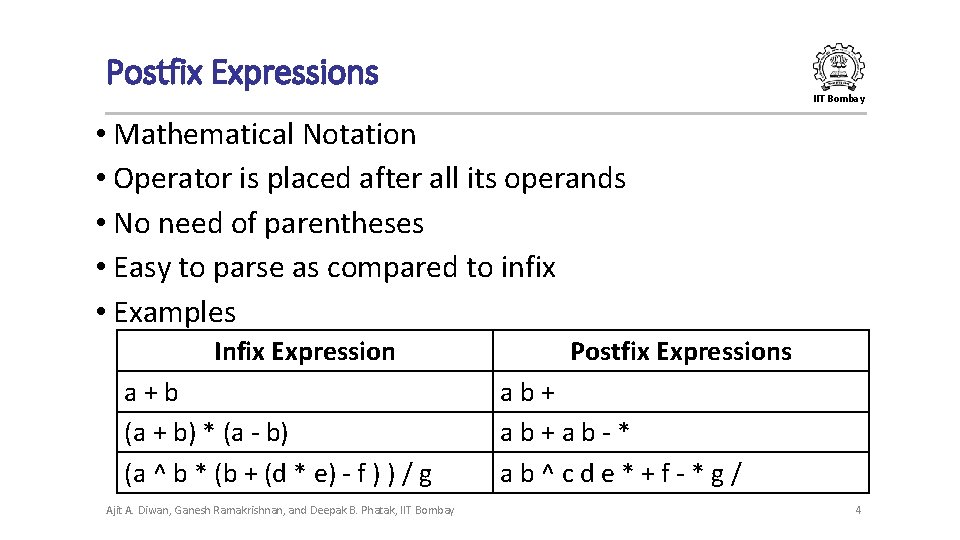

Postfix Expressions IIT Bombay • Mathematical Notation • Operator is placed after all its operands • No need of parentheses • Easy to parse as compared to infix • Examples Infix Expression a+b (a + b) * (a - b) (a ^ b * (b + (d * e) - f ) ) / g Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay Postfix Expressions ab+ab-* ab^cde*+f-*g/ 4

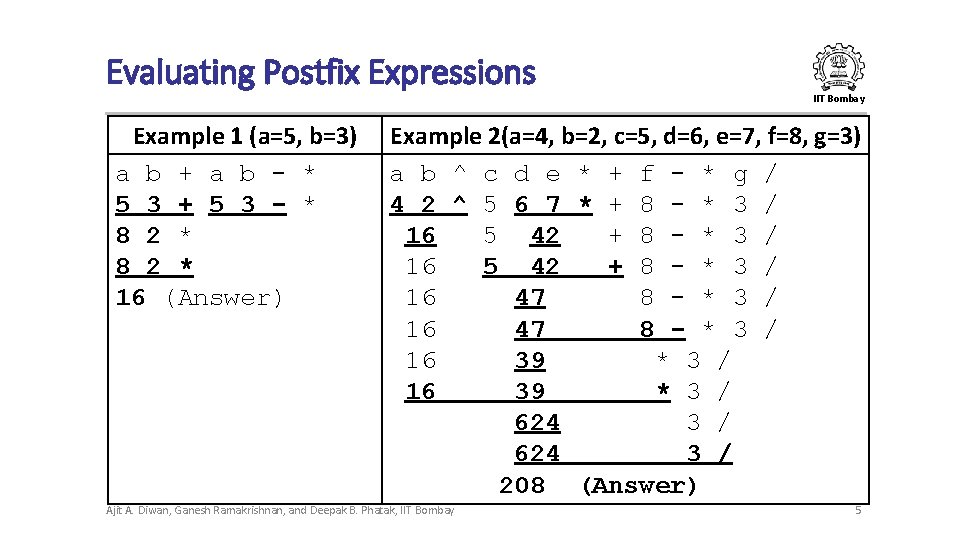

Evaluating Postfix Expressions IIT Bombay Example 1 (a=5, b=3) a b + a b - * 5 3 + 5 3 - * 8 2 * 16 (Answer) Example 2(a=4, b=2, c=5, d=6, e=7, f=8, g=3) a b ^ c d e * + f - * g / 4 2 ^ 5 6 7 * + 8 - * 3 / 16 5 42 + 8 - * 3 / 16 47 8 - * 3 / 16 39 * 3 / 624 3 / 208 (Answer) Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 5

Prefix Expressions IIT Bombay • Mathematical Notation • Operator is placed before all its operands • No need of parentheses • Easy to parse as compared to infix • Examples Infix Expression a+b (a + b) * (a - b) (a ^ b * (c + (d * e) - f ) ) / g Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay Prefix Expressions +ab *+ab-ab /*^ab-+*decfg 6

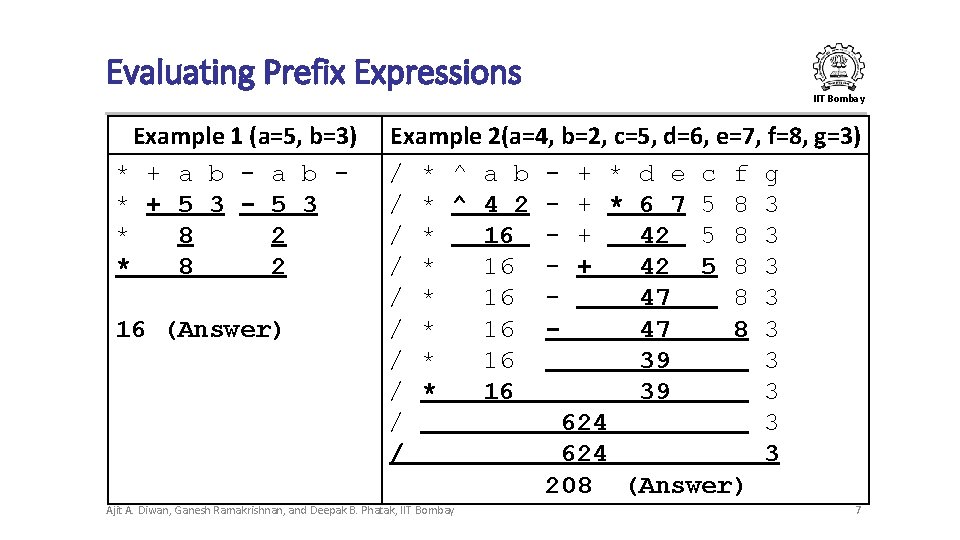

Evaluating Prefix Expressions IIT Bombay Example 1 (a=5, b=3) * + a b - a b * + 5 3 - 5 3 * 8 2 16 (Answer) Example 2(a=4, b=2, c=5, d=6, e=7, f=8, g=3) / * ^ a b - + * d e c f g / * ^ 4 2 - + * 6 7 5 8 3 / * 16 - + 42 5 8 3 / * 16 47 8 3 / * 16 39 3 / 624 3 208 (Answer) Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 7

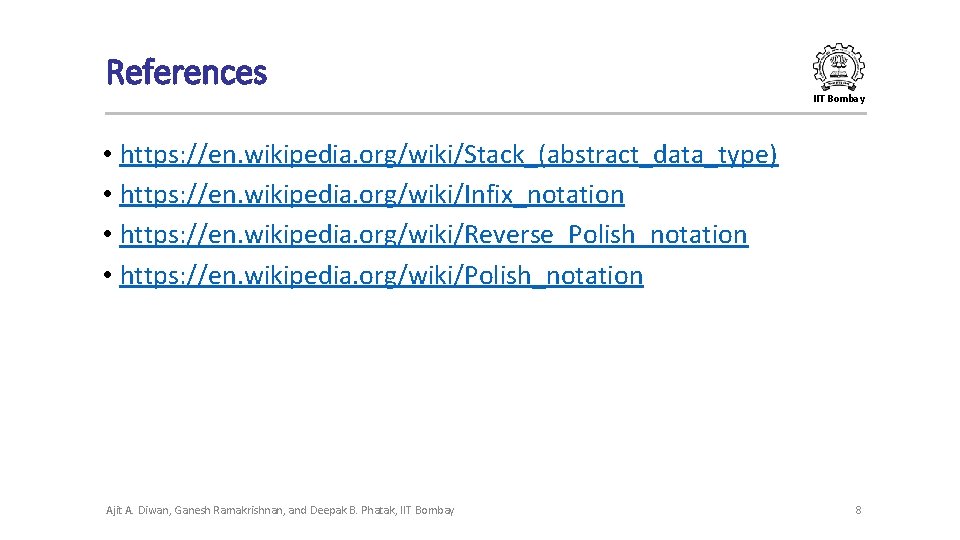

References IIT Bombay • https: //en. wikipedia. org/wiki/Stack_(abstract_data_type) • https: //en. wikipedia. org/wiki/Infix_notation • https: //en. wikipedia. org/wiki/Reverse_Polish_notation • https: //en. wikipedia. org/wiki/Polish_notation Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 8

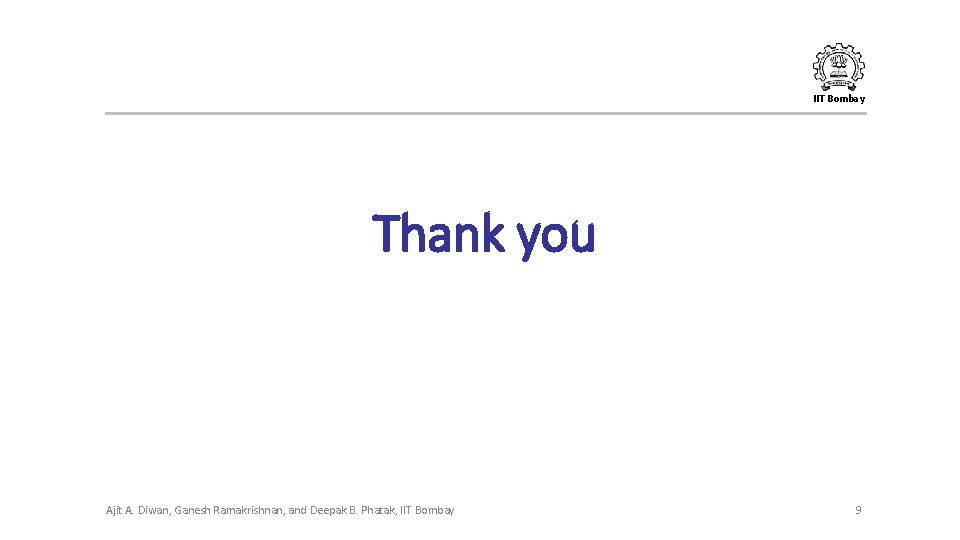

IIT Bombay Thank you Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 9
