IIT Bombay Data Structures and Algorithms Prof. Ajit A. Diwan Prof. Ganesh Ramakrishnan Prof. Deepak B. Phatak Department of Computer Science and Engineering IIT Bombay Session: Postfix Evaluation Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 1

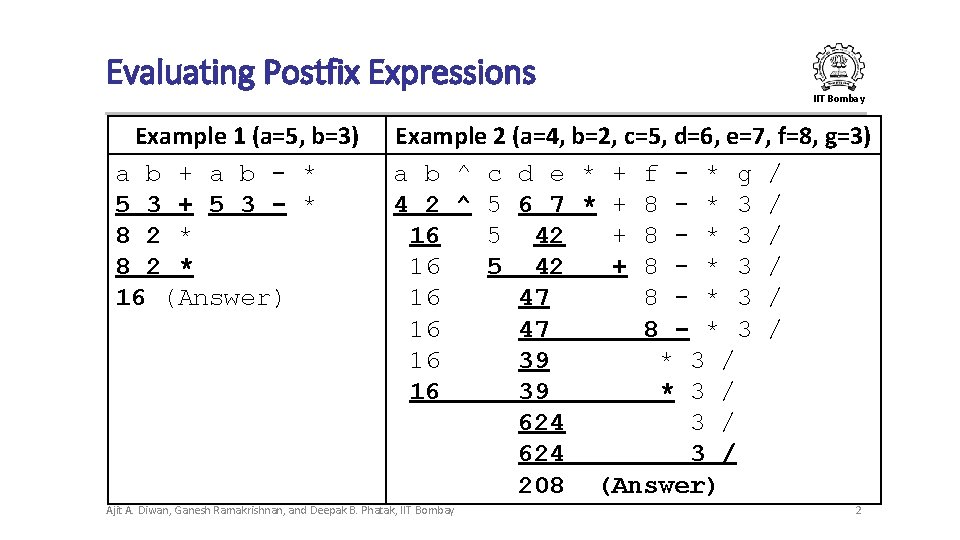

Evaluating Postfix Expressions IIT Bombay Example 1 (a=5, b=3) a b + a b - * 5 3 + 5 3 - * 8 2 * 16 (Answer) Example 2 (a=4, b=2, c=5, d=6, e=7, f=8, g=3) a b ^ c d e * + f - * g / 4 2 ^ 5 6 7 * + 8 - * 3 / 16 5 42 + 8 - * 3 / 16 47 8 - * 3 / 16 39 * 3 / 624 3 / 208 (Answer) Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 2

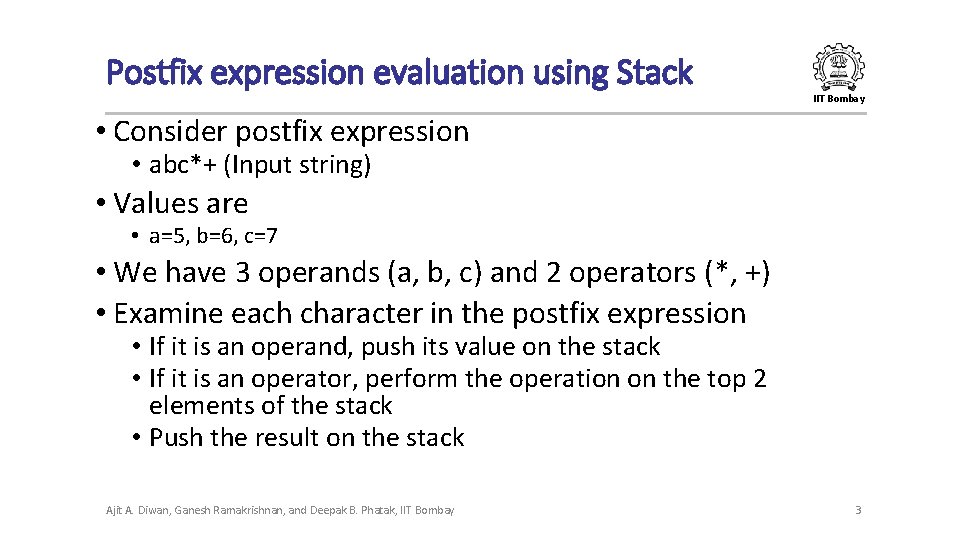

Postfix expression evaluation using Stack IIT Bombay • Consider postfix expression • abc*+ (Input string) • Values are • a=5, b=6, c=7 • We have 3 operands (a, b, c) and 2 operators (*, +) • Examine each character in the postfix expression • If it is an operand, push its value on the stack • If it is an operator, perform the operation on the top 2 elements of the stack • Push the result on the stack Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 3

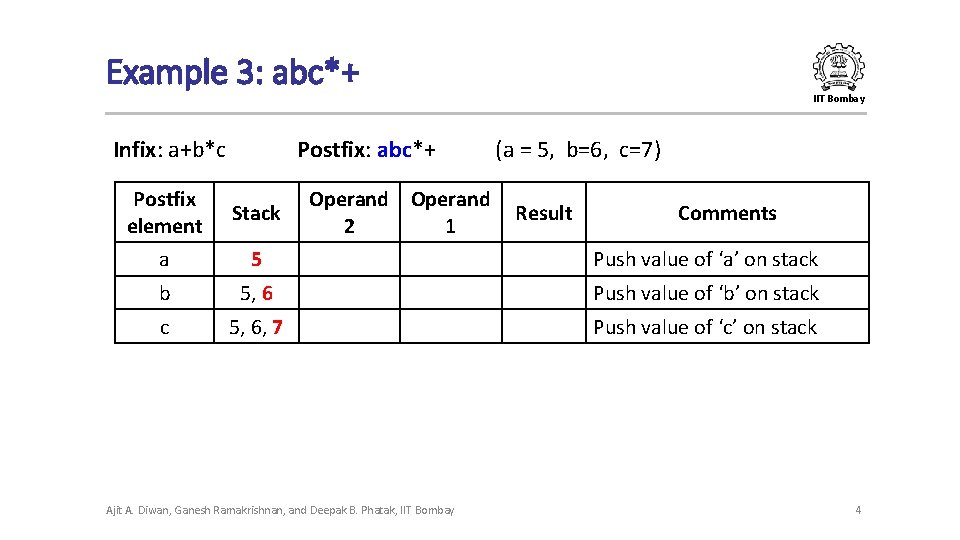

Example 3: abc*+ IIT Bombay Infix: a+b*c Postfix: abc*+ Operand 2 1 (a = 5, b=6, c=7) Postfix element Stack a 5 Push value of ‘a’ on stack b 5, 6 Push value of ‘b’ on stack c 5, 6, 7 Push value of ‘c’ on stack Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay Result Comments 4

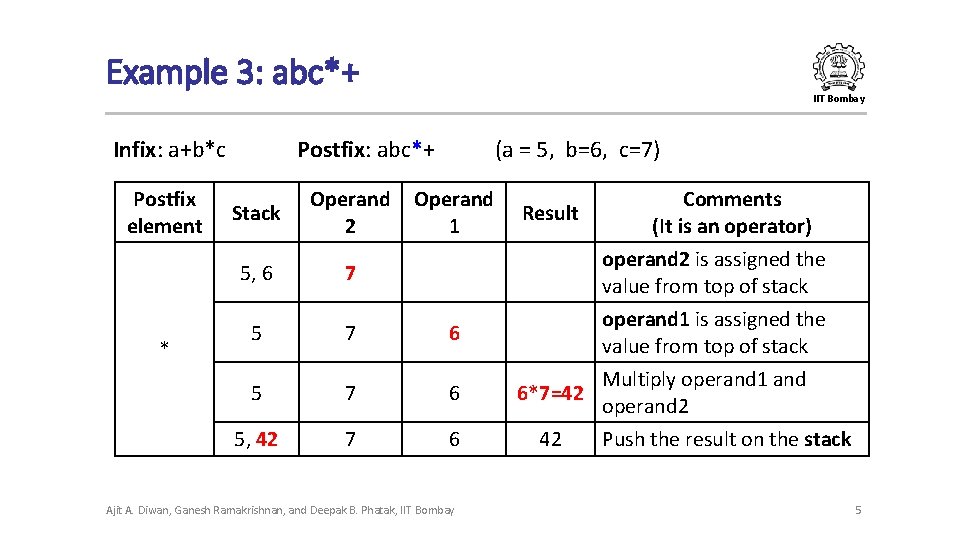

Example 3: abc*+ IIT Bombay Infix: a+b*c Postfix element * Postfix: abc*+ (a = 5, b=6, c=7) Stack Operand 2 Operand 1 5, 6 7 5 7 6 6*7=42 5, 42 7 6 42 Result Comments (It is an operator) operand 2 is assigned the value from top of stack Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay operand 1 is assigned the value from top of stack Multiply operand 1 and operand 2 Push the result on the stack 5

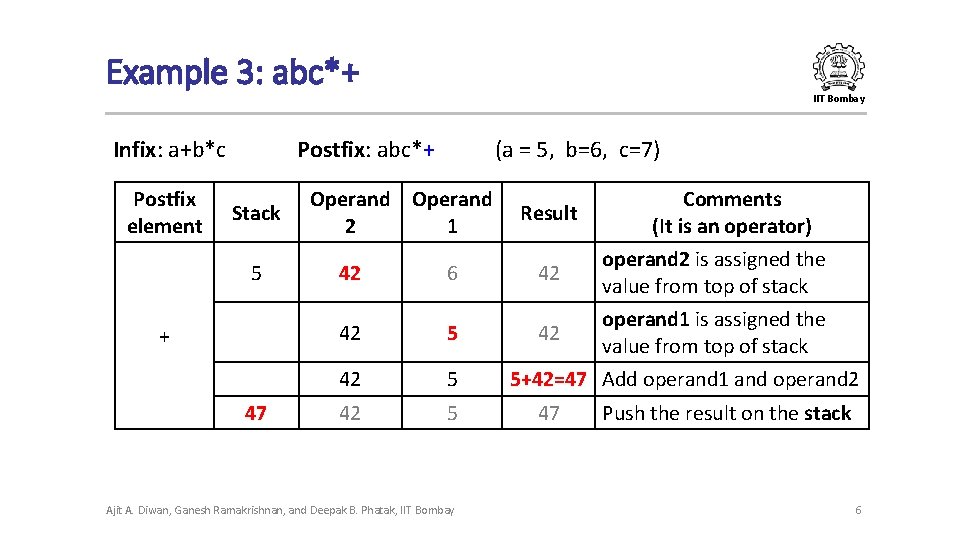

Example 3: abc*+ IIT Bombay Infix: a+b*c Postfix element Postfix: abc*+ Stack 5 + 47 (a = 5, b=6, c=7) Operand 2 1 Result Comments (It is an operator) 42 6 42 operand 2 is assigned the value from top of stack 42 5 42 operand 1 is assigned the value from top of stack 42 5 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 5+42=47 Add operand 1 and operand 2 47 Push the result on the stack 6

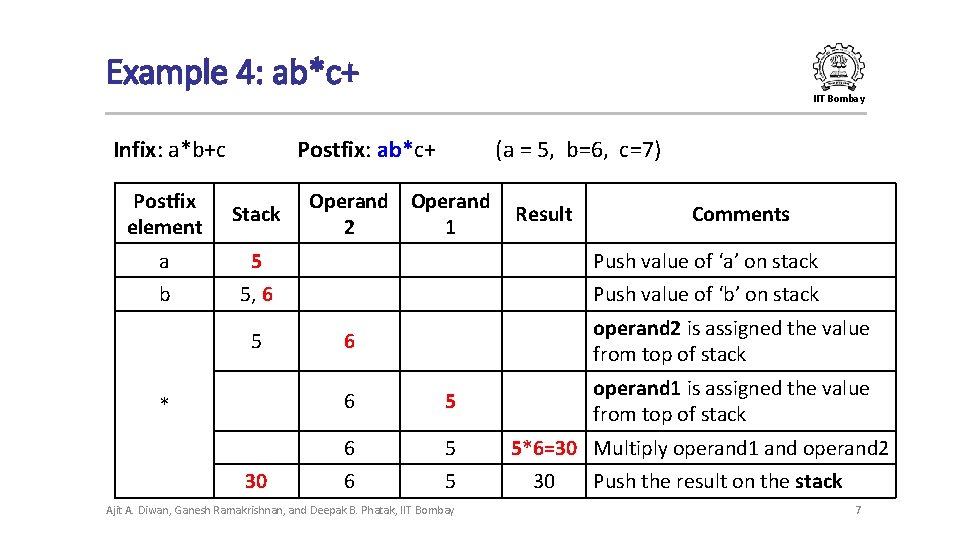

Example 4: ab*c+ IIT Bombay Infix: a*b+c Postfix: ab*c+ (a = 5, b=6, c=7) Postfix element Stack a 5 Push value of ‘a’ on stack b 5, 6 Push value of ‘b’ on stack 5 * 30 Operand 2 1 Result Comments 6 operand 2 is assigned the value from top of stack 6 5 operand 1 is assigned the value from top of stack 6 5 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 5*6=30 Multiply operand 1 and operand 2 30 Push the result on the stack 7

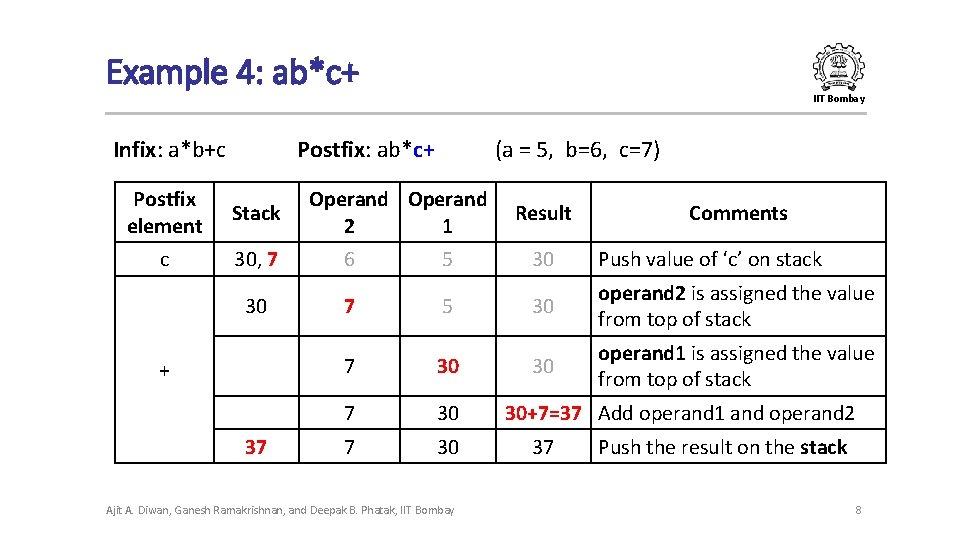

Example 4: ab*c+ IIT Bombay Infix: a*b+c Postfix: ab*c+ (a = 5, b=6, c=7) Postfix element Stack c 30, 7 6 5 30 Push value of ‘c’ on stack 30 7 5 30 operand 2 is assigned the value from top of stack 7 30 30 operand 1 is assigned the value from top of stack 7 30 + 37 Operand 2 1 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay Result Comments 30+7=37 Add operand 1 and operand 2 37 Push the result on the stack 8

Example 5: ab^cde*f-+* IIT Bombay Infix: (a^b*(c+(d*e-f))) Postfix: ab^cde*f-+* (a=4, b=2, c=6, d=7, e=8, f=9) Postfix element Stack a 4 b 4, 2 ^ Operand 2 Operand 1 Result 2 4 4^2=16 16 c 16, 6 d 16, 6, 7 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 9

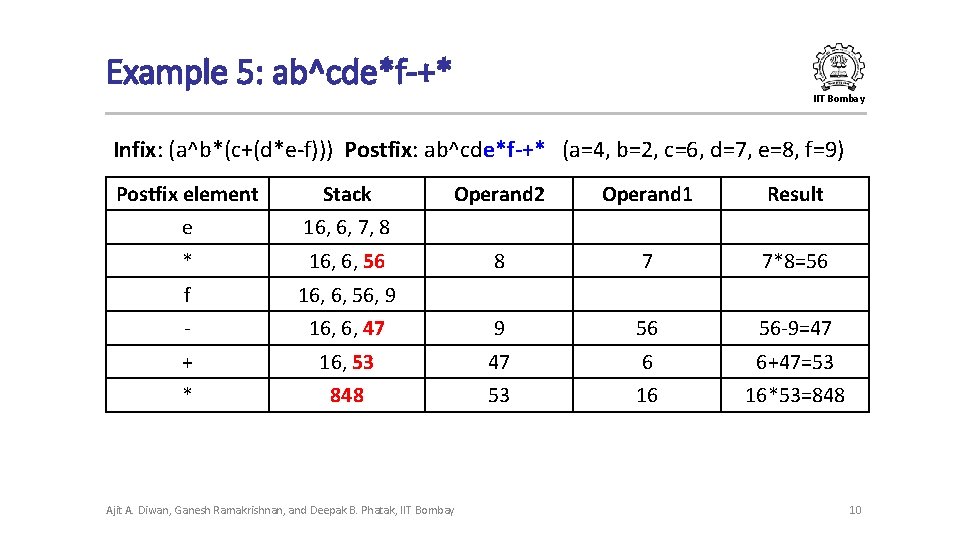

Example 5: ab^cde*f-+* IIT Bombay Infix: (a^b*(c+(d*e-f))) Postfix: ab^cde*f-+* (a=4, b=2, c=6, d=7, e=8, f=9) Postfix element Stack Operand 2 Operand 1 Result e 16, 6, 7, 8 * 16, 6, 56 8 7 7*8=56 f 16, 6, 56, 9 - 16, 6, 47 9 56 56 -9=47 + 16, 53 47 6 6+47=53 * 848 53 16 16*53=848 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 10
