IGZO TFT IGZO TFT 1 IGZO TFT Ar

  • Slides: 15
Download presentation

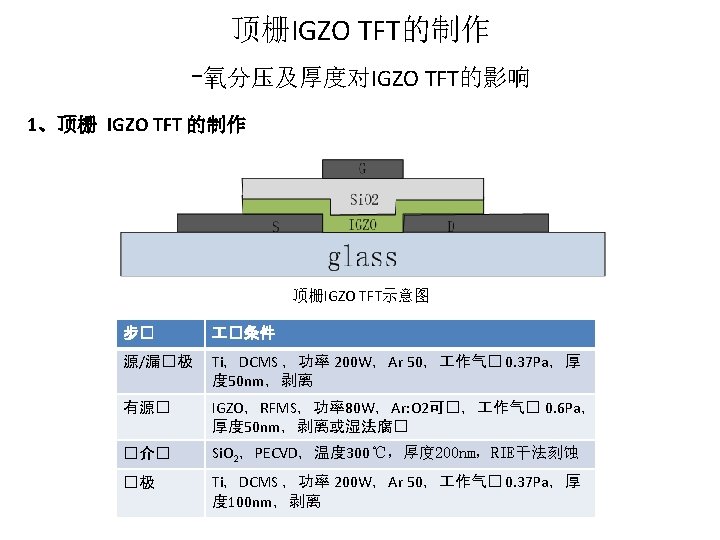

顶栅IGZO TFT的制作 -氧分压及厚度对IGZO TFT的影响 1、顶栅 IGZO TFT 的制作 Ar: O 2 On-Off ratio 49:

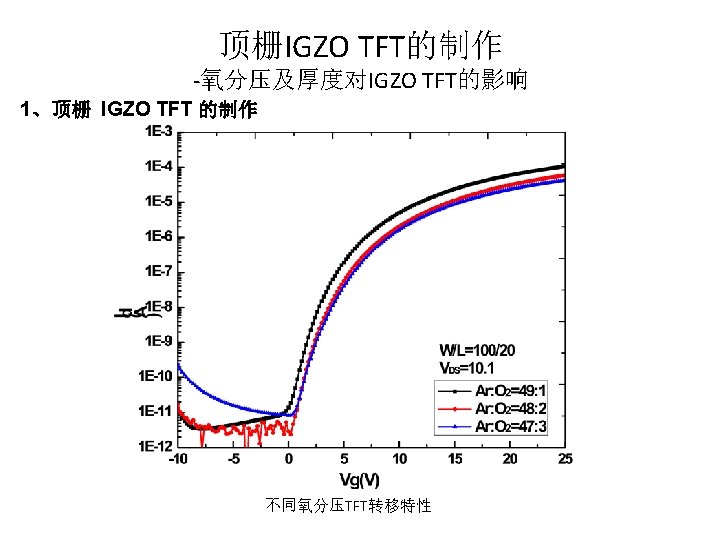

顶栅IGZO TFT的制作 -氧分压及厚度对IGZO TFT的影响 1、顶栅 IGZO TFT 的制作 Ar: O 2 On-Off ratio 49: 1 3. 8 11. 1 0. 78 48: 2 4. 8 7. 7 0. 65 47: 3 5. 2 3. 3 0. 83 不同氧分压TFT 电学性能

顶栅IGZO TFT的制作 -氧分压及厚度对IGZO TFT的影响 3、IGZO 厚度对TFT电学性能的影响 IGZO 厚度 100 nm 50 nm 20 nm

顶栅IGZO TFT的制作 -氧分压及厚度对IGZO TFT的影响 3、IGZO 厚度对TFT电学性能的影响 IGZO 厚度 100 nm 50 nm 20 nm 10 nm On-Off ratio
