Igor Luk’yanchuk, Yakov Kopelevich Dirac Fermions in Graphite and Graphene: Implications to QHE - Phys. Rev. Lett. 93, 166402 (2004) - Phys. Rev. Lett. 97, 256801 (2006)

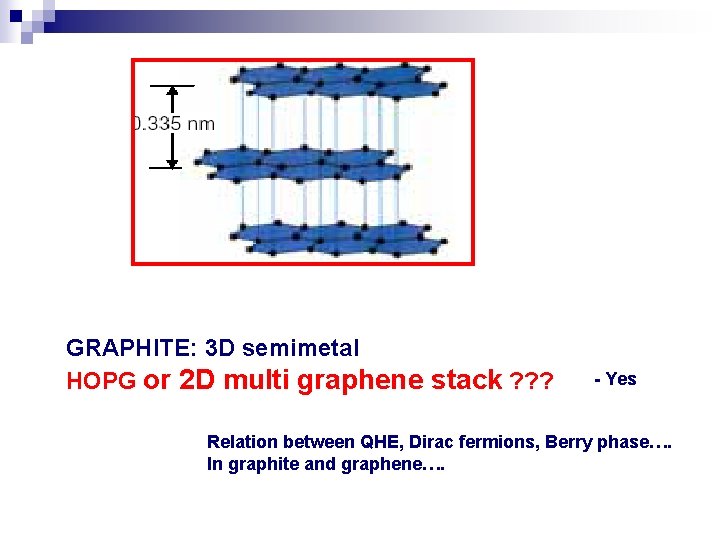

GRAPHITE: 3 D semimetal HOPG or 2 D multi graphene stack ? ? ? - Yes Relation between QHE, Dirac fermions, Berry phase…. In graphite and graphene….

Our statement: Graphite = stack of graphene monolayers EXPERIMENTAL BACKGROUND: Y. Kopelevich 2001 -2005

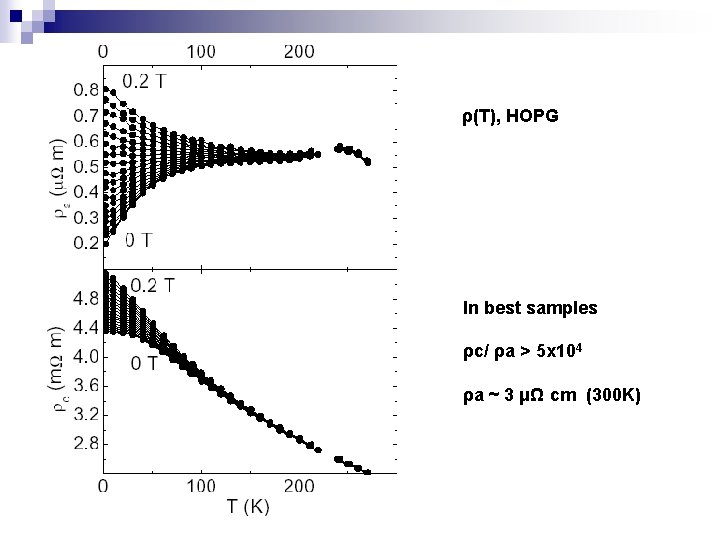

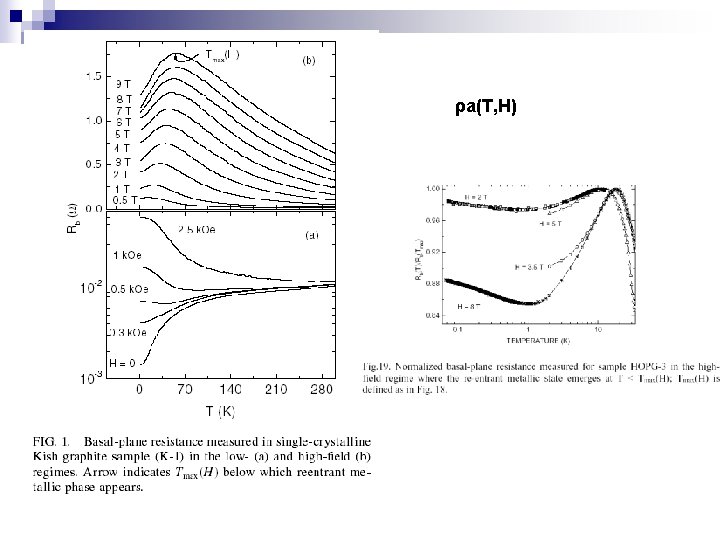

ρ(T), HOPG In best samples ρc/ ρa > 5 x 104 ρa ~ 3 μΩ cm (300 K)

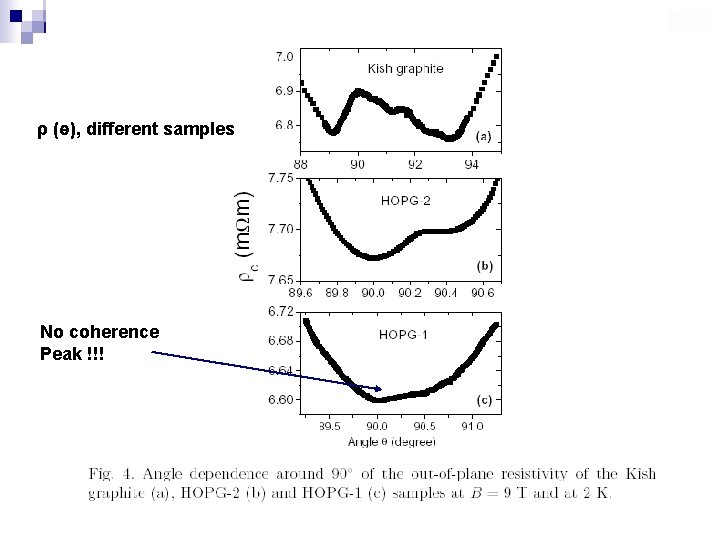

ρ (ө), different samples No coherence Peak !!!

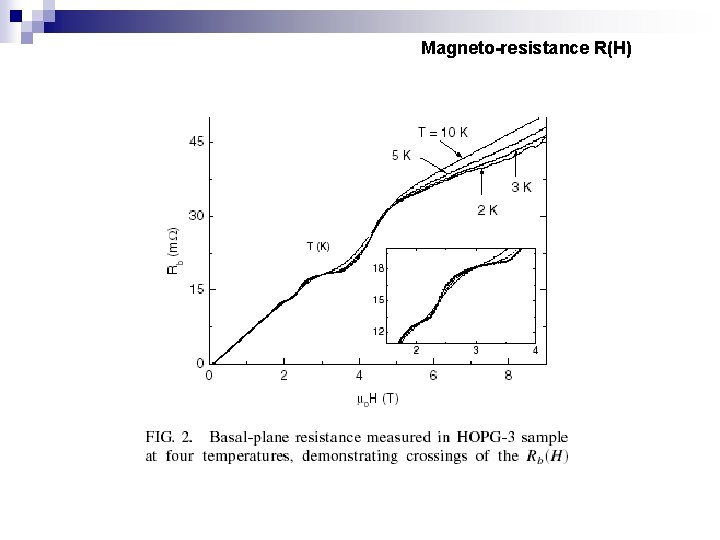

Magneto-resistance R(H)

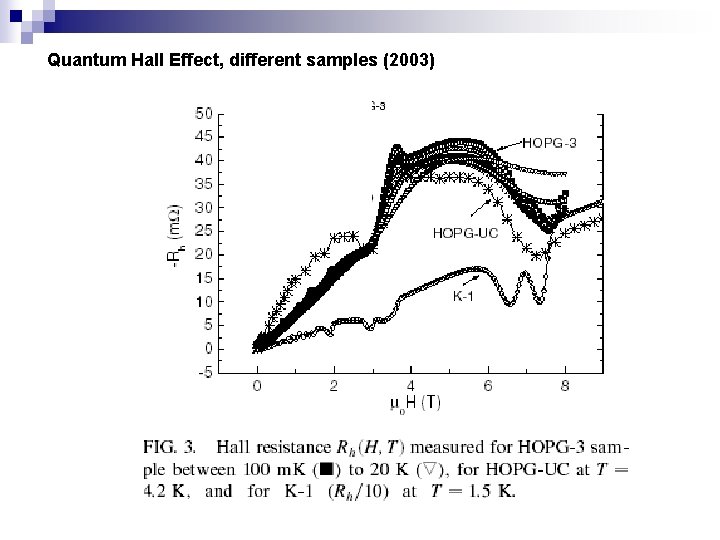

Quantum Hall Effect, different samples (2003)

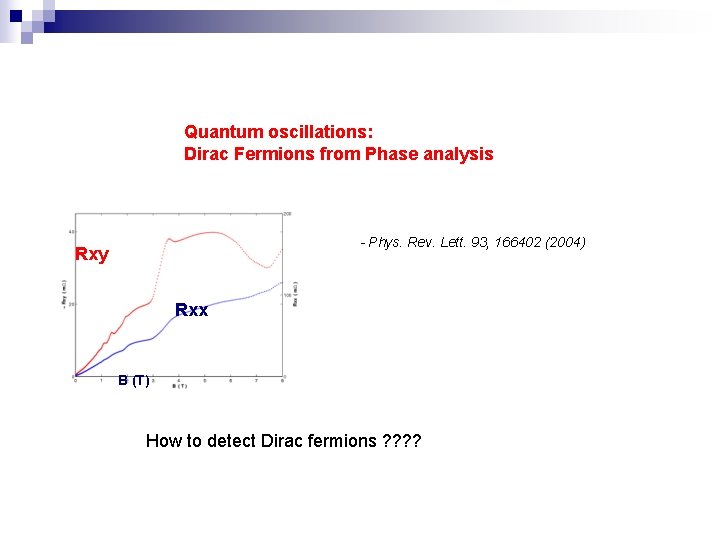

Quantum oscillations: Dirac Fermions from Phase analysis - Phys. Rev. Lett. 93, 166402 (2004) Rxy Rxx B (T) How to detect Dirac fermions ? ?

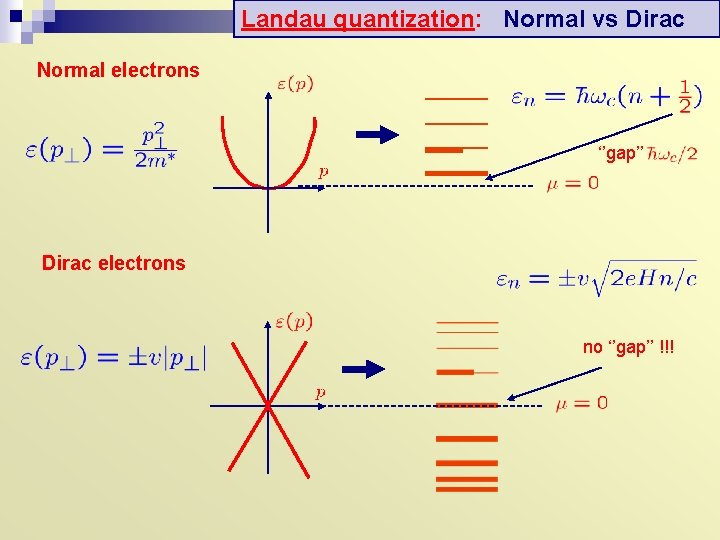

Landau quantization: Normal vs Dirac Normal electrons ‘’gap’’ Dirac electrons no ‘’gap’’ !!!

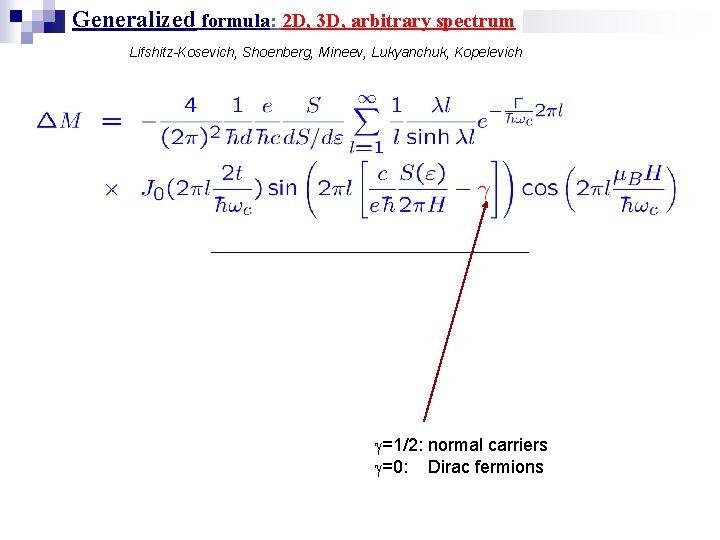

Generalized formula: 2 D, 3 D, arbitrary spectrum Lifshitz-Kosevich, Shoenberg, Mineev, Lukyanchuk, Kopelevich =1/2: normal carriers =0: Dirac fermions

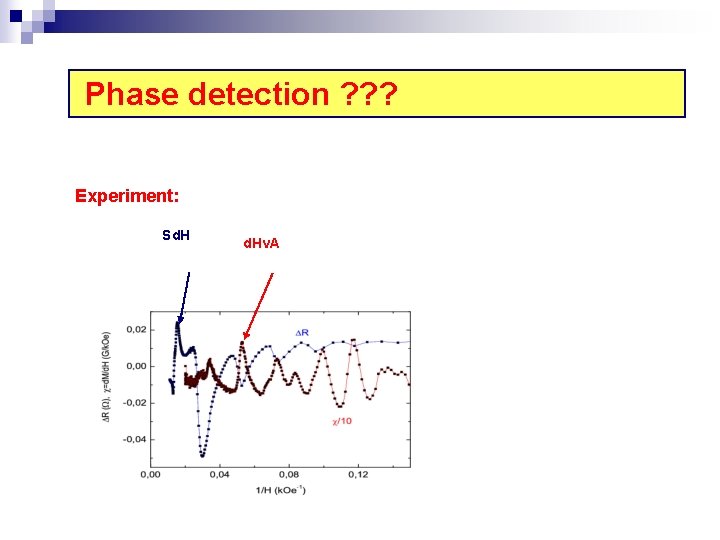

Phase detection ? ? ? Experiment: Sd. Hv. A

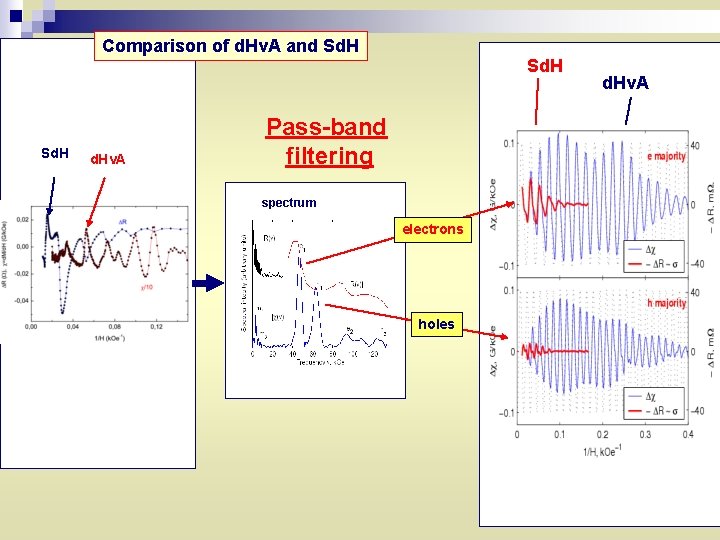

Comparison of d. Hv. A and Sd. Hv. A Sd. H Pass-band filtering spectrum electrons holes d. Hv. A

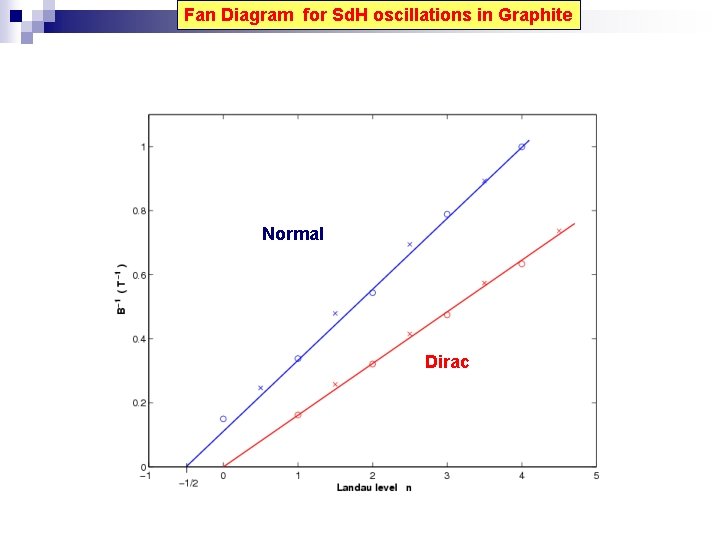

Fan Diagram for Sd. H oscillations in Graphite Normal Dirac

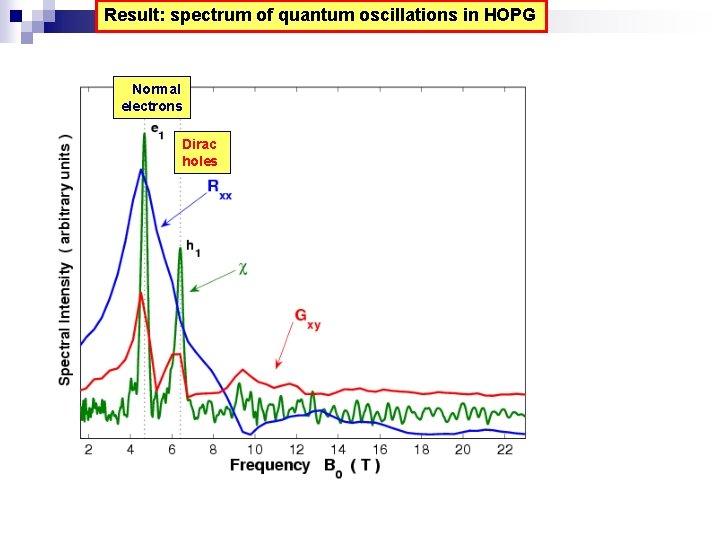

Result: spectrum of quantum oscillations in HOPG Normal electrons Dirac holes

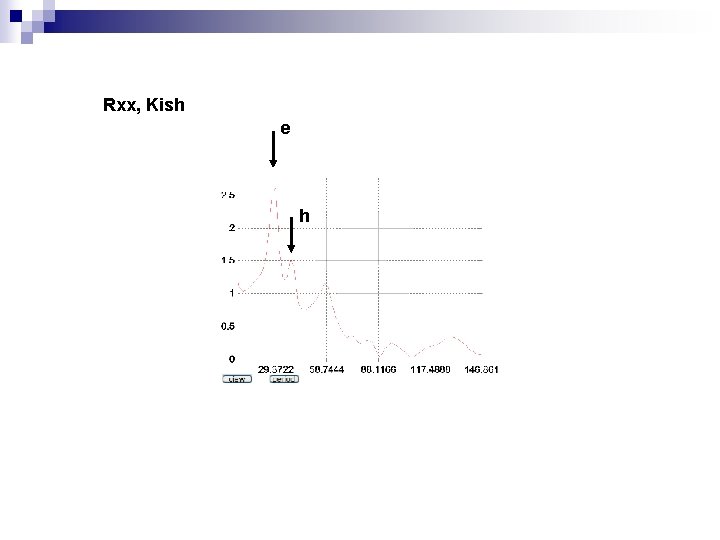

Rxx, Kish e h

Analysis of QHE in graphite

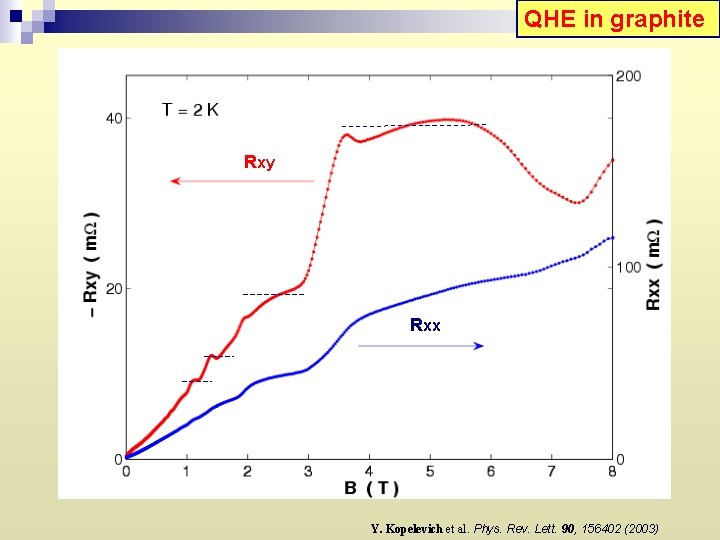

QHE in graphite Rxy Rxx Y. Kopelevich et al. Phys. Rev. Lett. 90, 156402 (2003)

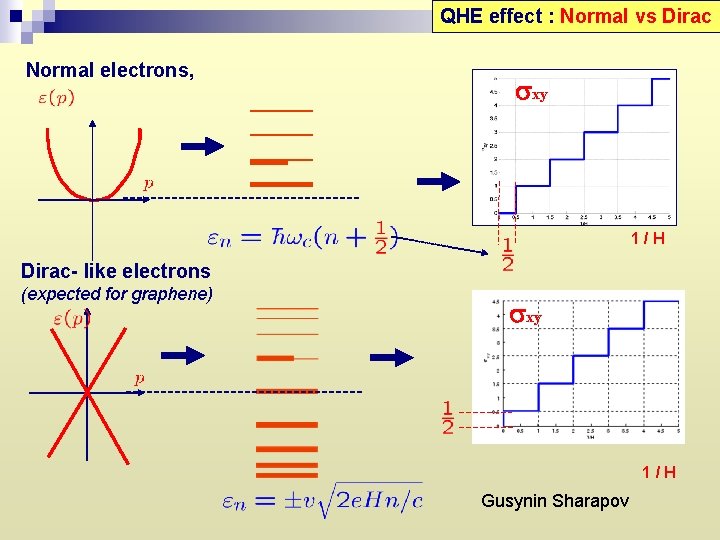

QHE effect : Normal vs Dirac Normal electrons, sxy 1/H Dirac- like electrons (expected for graphene) sxy 1/H Gusynin Sharapov

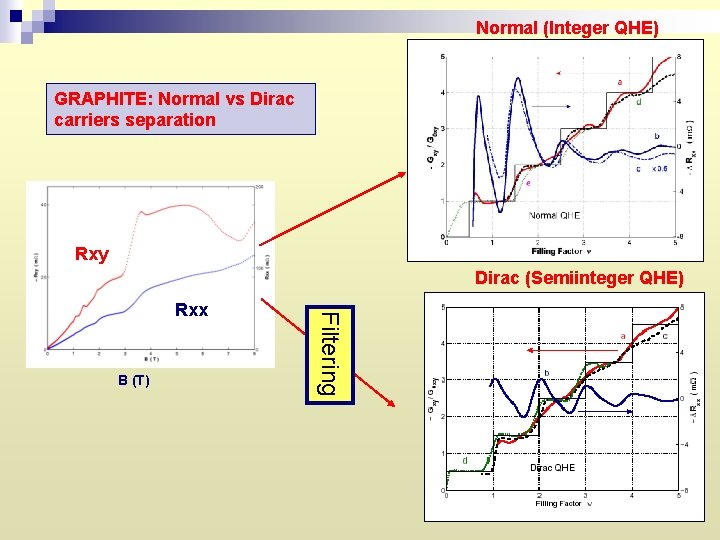

Normal (Integer QHE) GRAPHITE: Normal vs Dirac carriers separation Rxy Dirac (Semiinteger QHE) B (T) Filtering Rxx

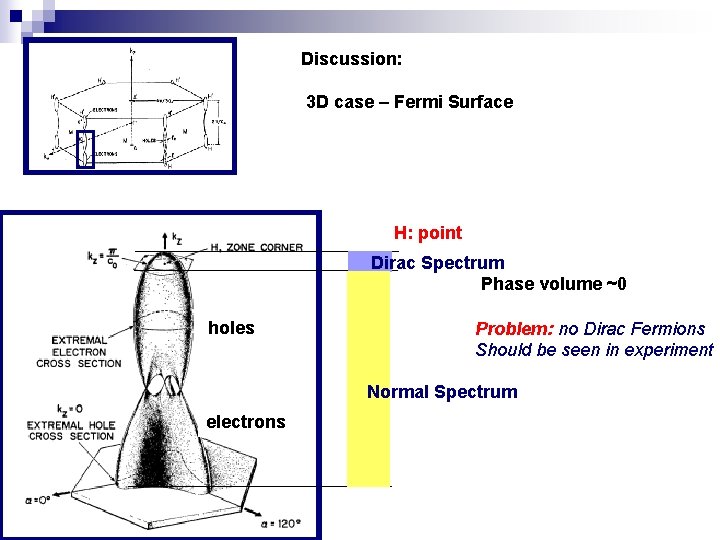

Discussion: 3 D case – Fermi Surface H: point Dirac Spectrum Phase volume ~0 holes Problem: no Dirac Fermions Should be seen in experiment Normal Spectrum electrons

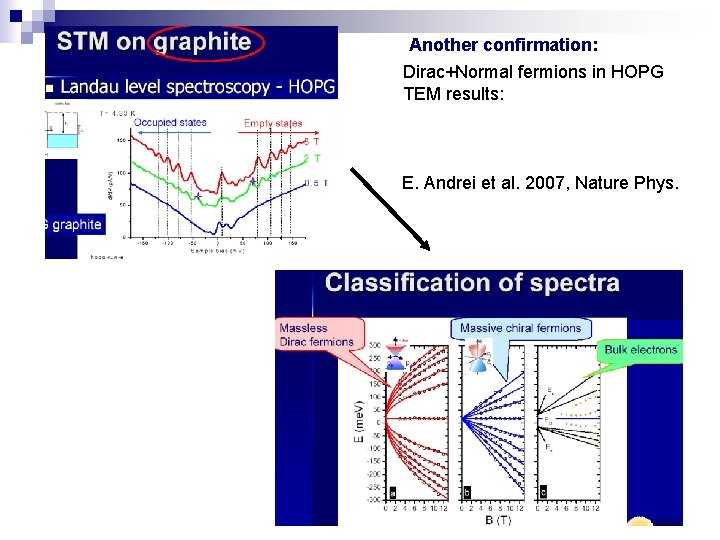

Another confirmation: Dirac+Normal fermions in HOPG TEM results: E. Andrei et al. 2007, Nature Phys.

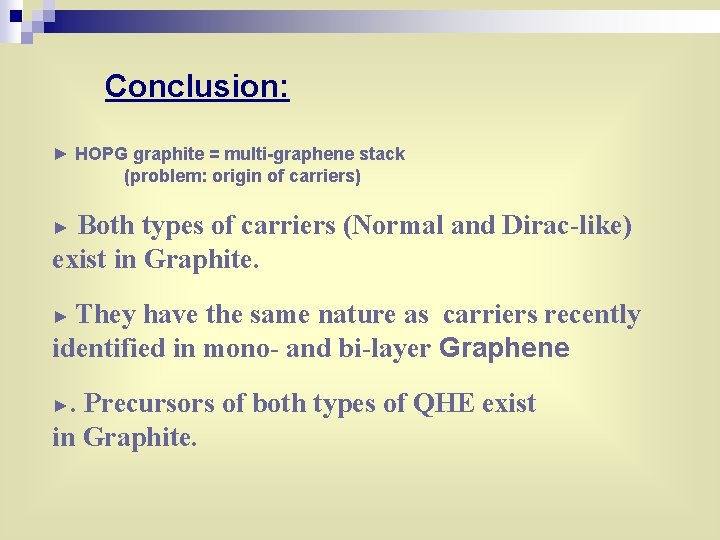

Conclusion: ► HOPG graphite = multi-graphene stack (problem: origin of carriers) Both types of carriers (Normal and Dirac-like) exist in Graphite. ► ► They have the same nature as carriers recently identified in mono- and bi-layer Graphene ►. Precursors of both types of QHE exist in Graphite.
