IfElse Statements Blocks A Block is a set

If/Else Statements

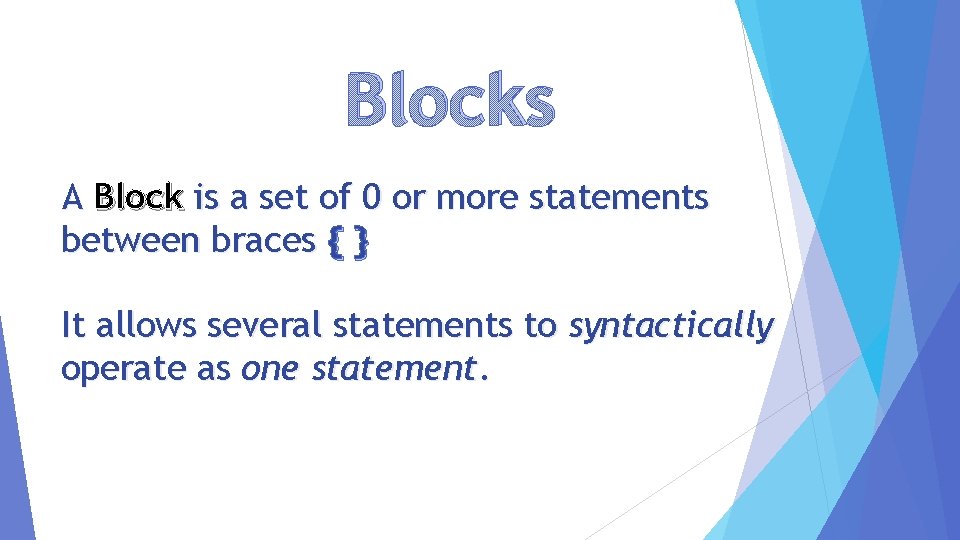

Blocks A Block is a set of 0 or more statements between braces { } It allows several statements to syntactically operate as one statement.

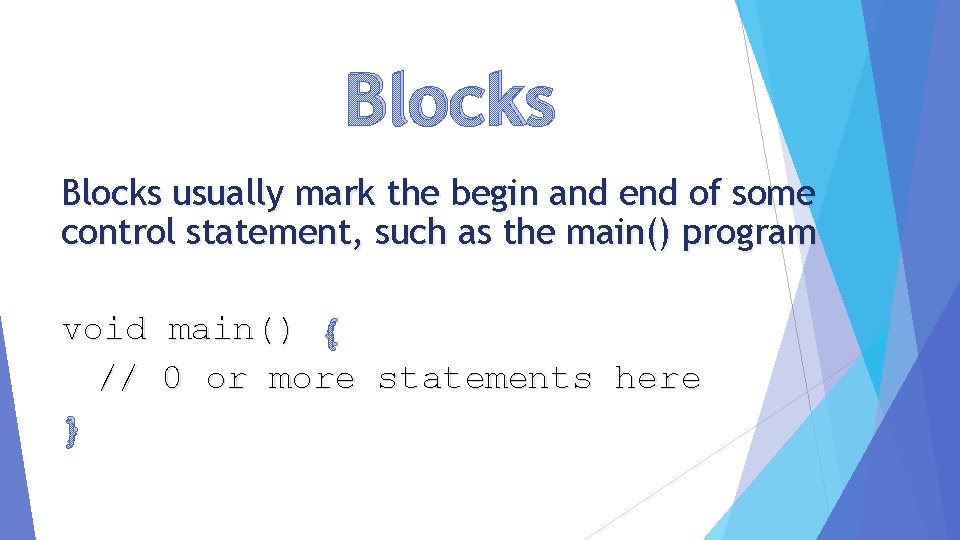

Blocks usually mark the begin and end of some control statement, such as the main() program void // } main() { 0 or more statements here

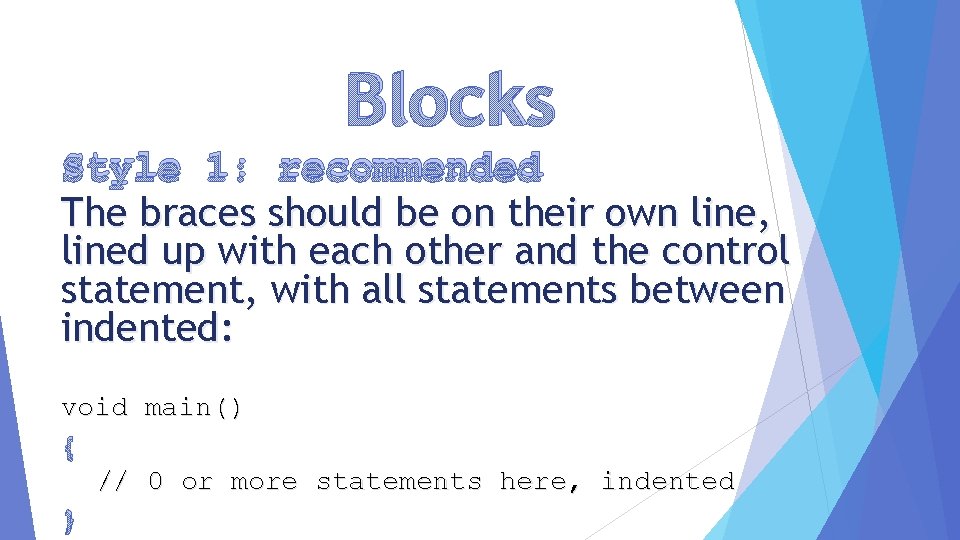

Blocks Style 1: recommended The braces should be on their own line, lined up with each other and the control statement, with all statements between indented: void main() { // 0 or more statements here, indented }

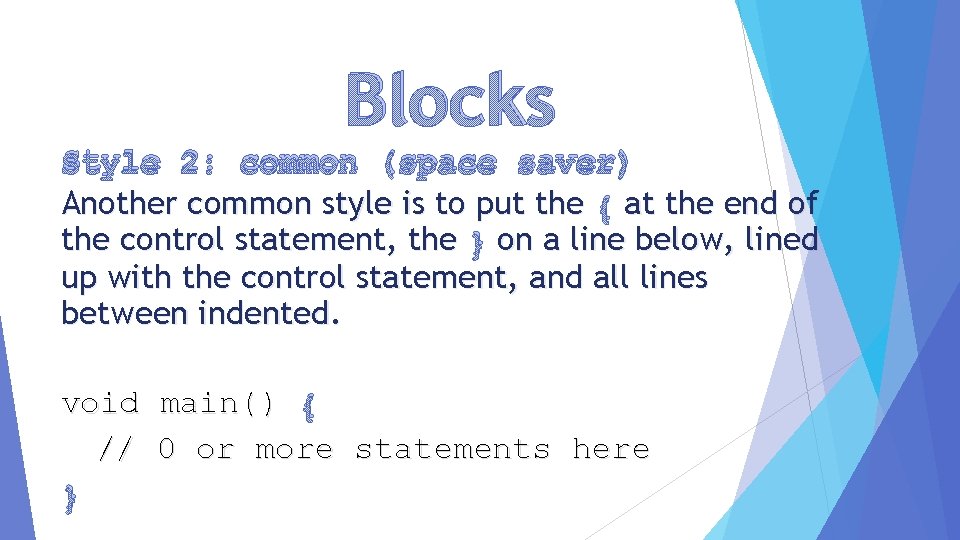

Blocks Style 2: common (space saver) Another common style is to put the { at the end of the control statement, the } on a line below, lined up with the control statement, and all lines between indented. void main() { // 0 or more statements here }

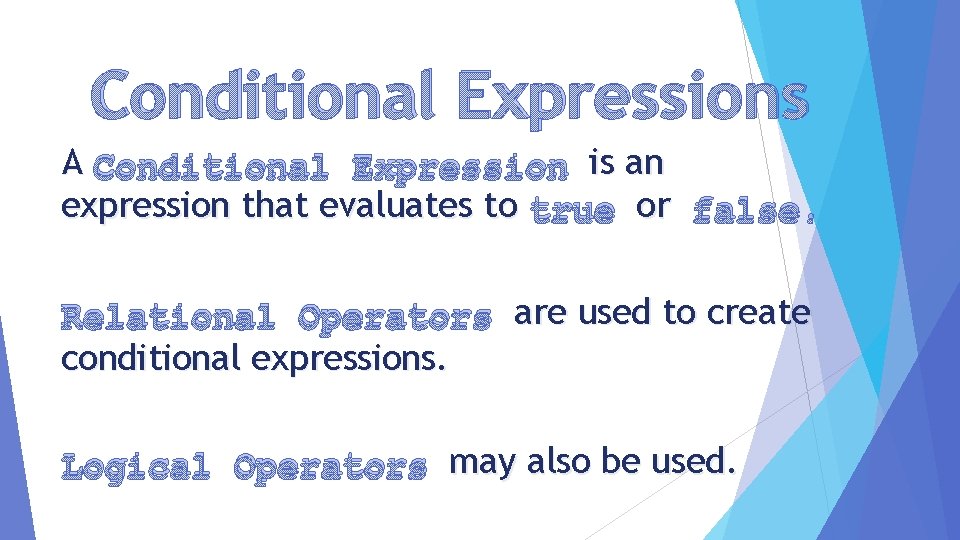

Conditional Expressions A Conditional Expression is an expression that evaluates to true or false. Relational Operators are used to create conditional expressions. Logical Operators may also be used.

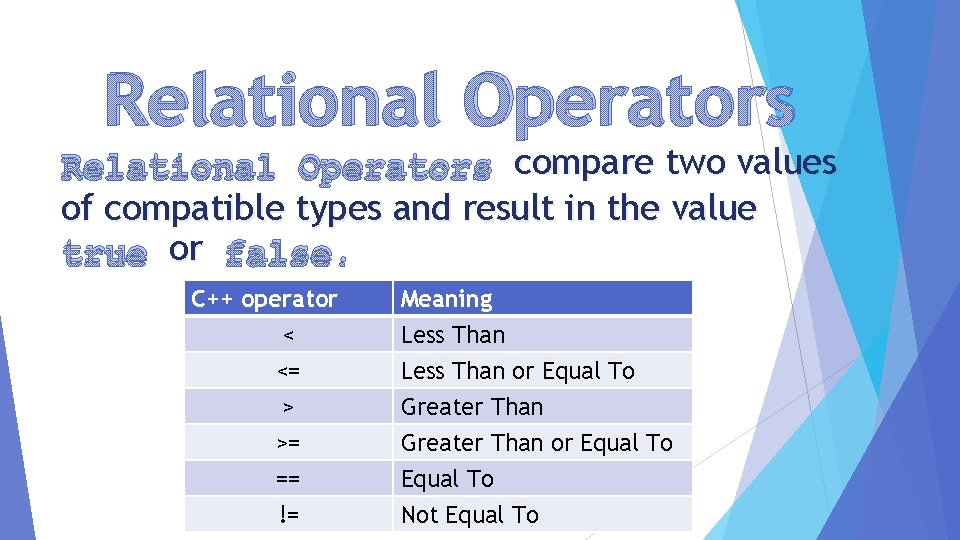

Relational Operators compare two values of compatible types and result in the value true or false. C++ operator < <= > >= == != Meaning Less Than or Equal To Greater Than or Equal To Not Equal To

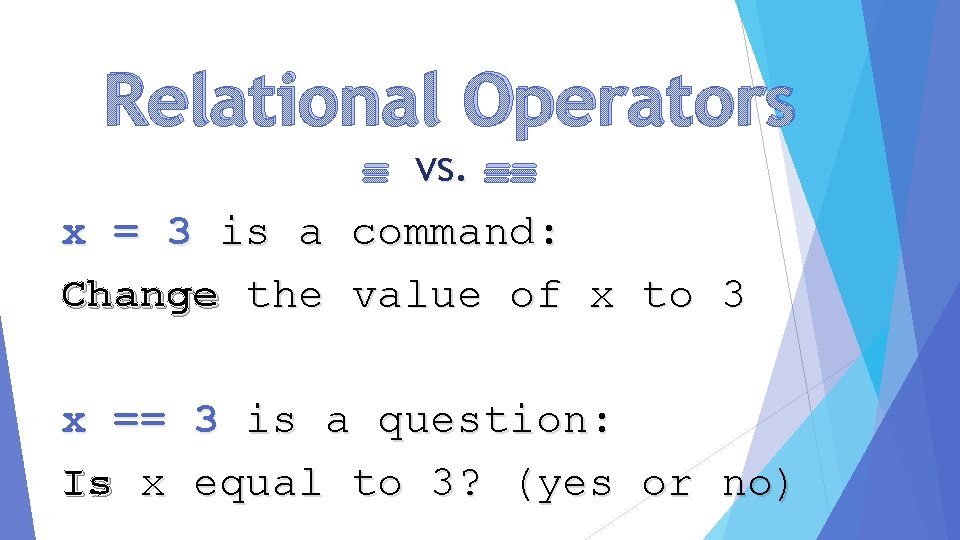

Relational Operators x = 3 is a Change the = vs. == command: value of x to 3 x == 3 is a question: Is x equal to 3? (yes or no)

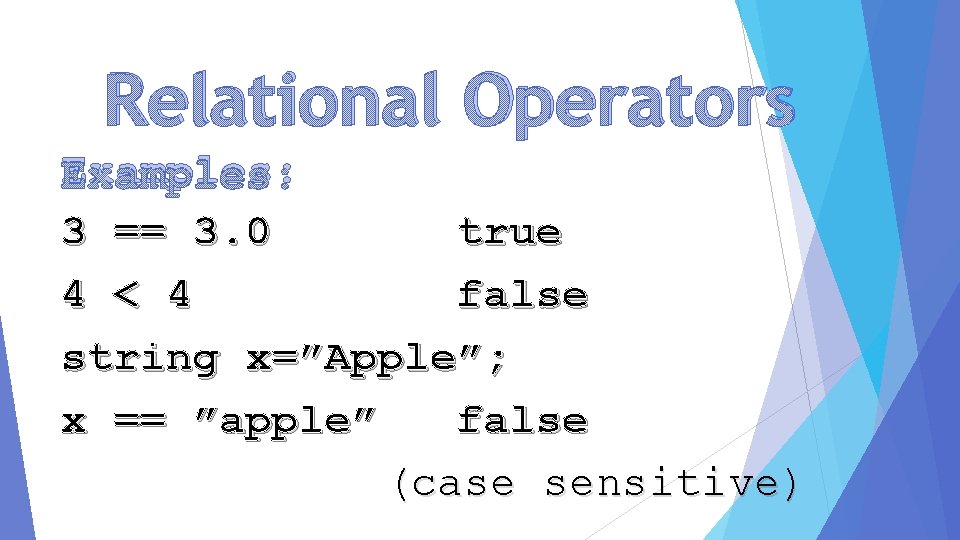

Relational Operators Examples: 3 == 3. 0 true 4 < 4 false string x=”Apple”; x == ”apple” false (case sensitive)

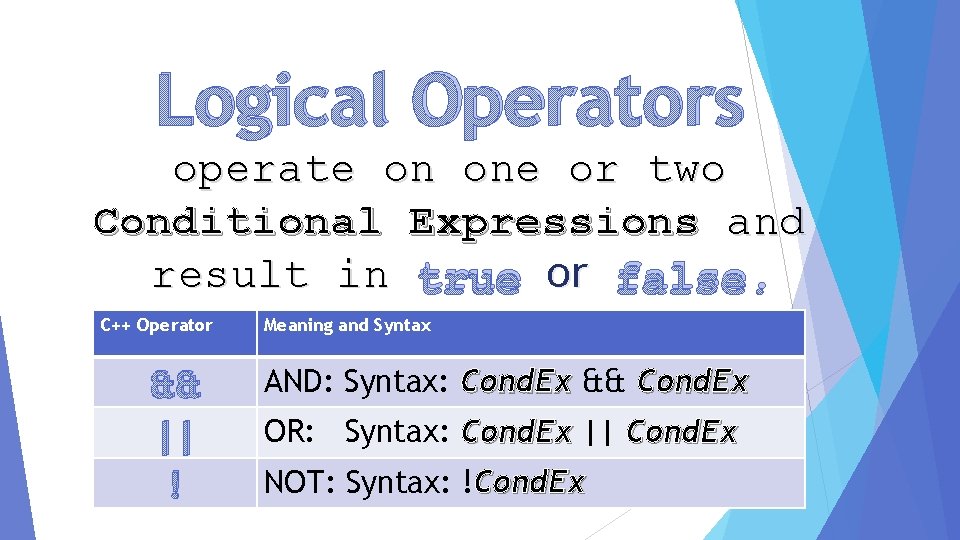

Logical Operators operate on one or two Conditional Expressions and result in true or false. C++ Operator && || ! Meaning and Syntax AND: Syntax: Cond. Ex && Cond. Ex OR: Syntax: Cond. Ex || Cond. Ex NOT: Syntax: !Cond. Ex

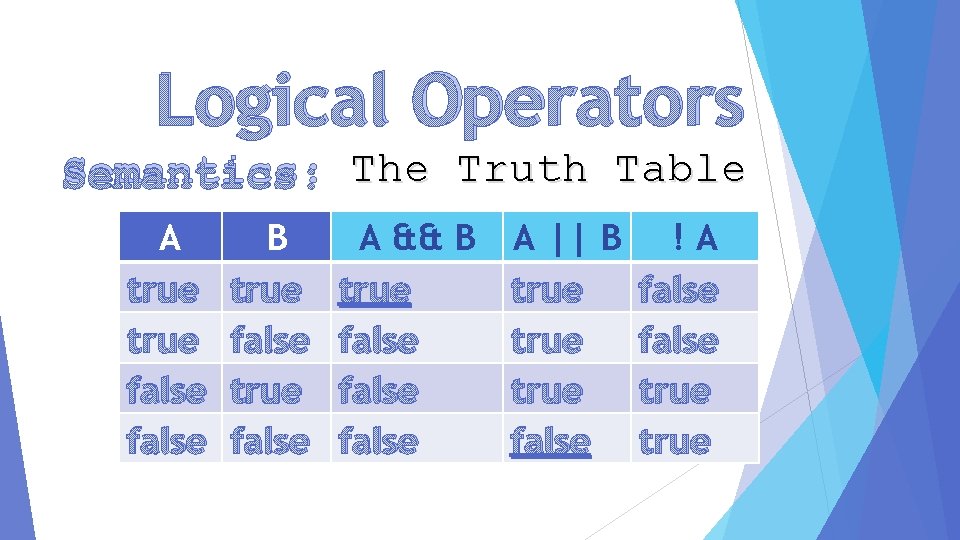

Logical Operators Semantics: The Truth Table A true false B true false A && B true false A || B true false !A false true

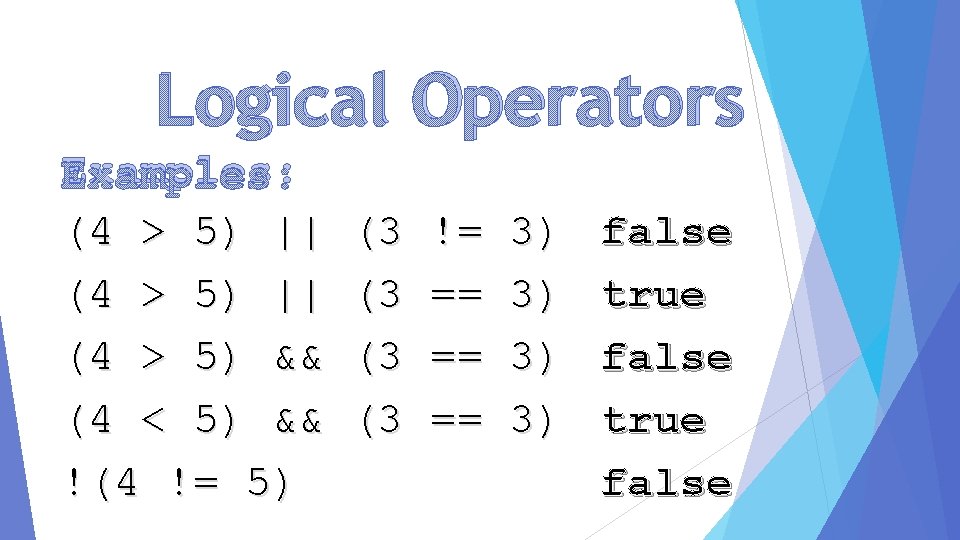

Logical Operators Examples: (4 > 5) || (4 > 5) && (4 < 5) && !(4 != 5) (3 (3 != == == == 3) 3) false true false

if/else statements are used to determine whether or not certain actions are carried out. They work the same as in Matlab, Python and other languages; the syntax is slightly different.

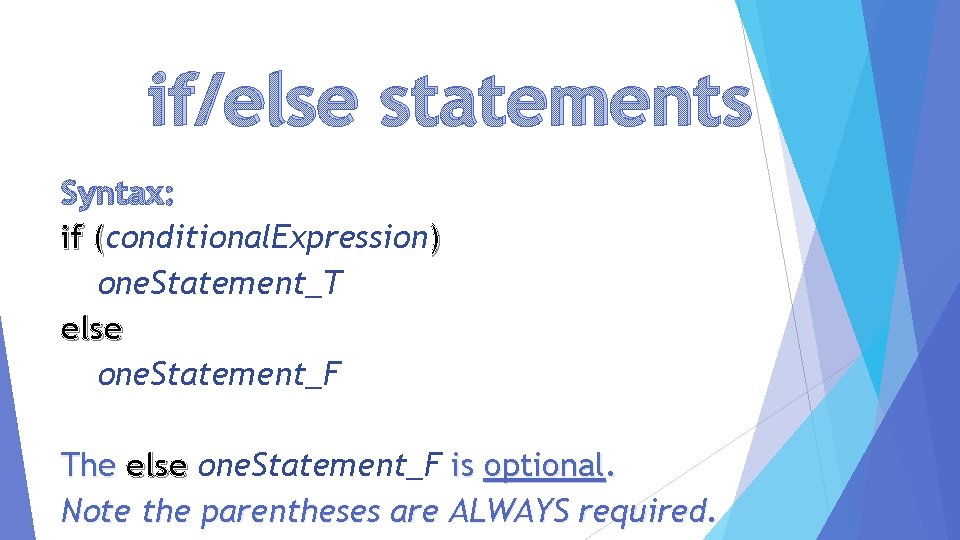

if/else statements Syntax: if (conditional. Expression ) ( one. Statement_T else one. Statement_F The else one. Statement_F is optional. Note the parentheses are ALWAYS required.

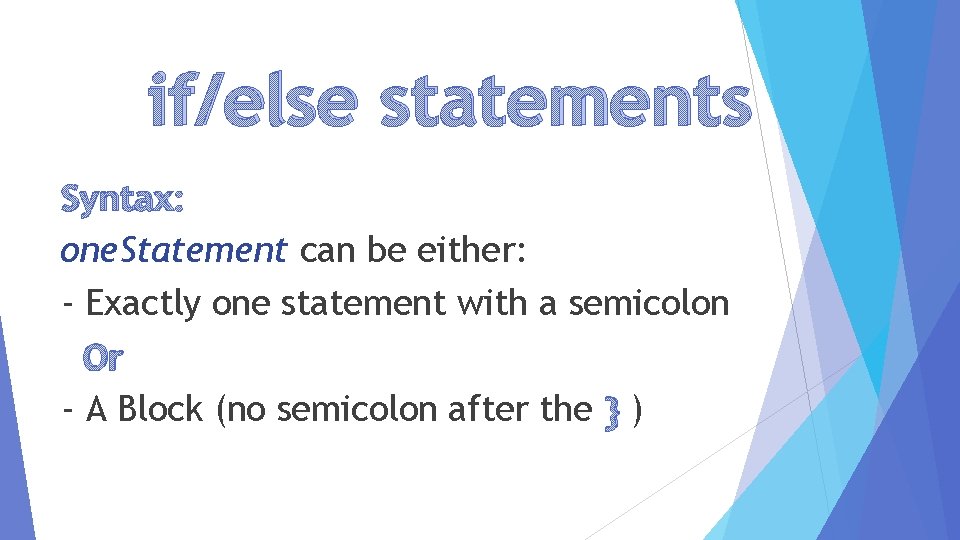

if/else statements Syntax: one. Statement can be either: - Exactly one statement with a semicolon Or - A Block (no semicolon after the } )

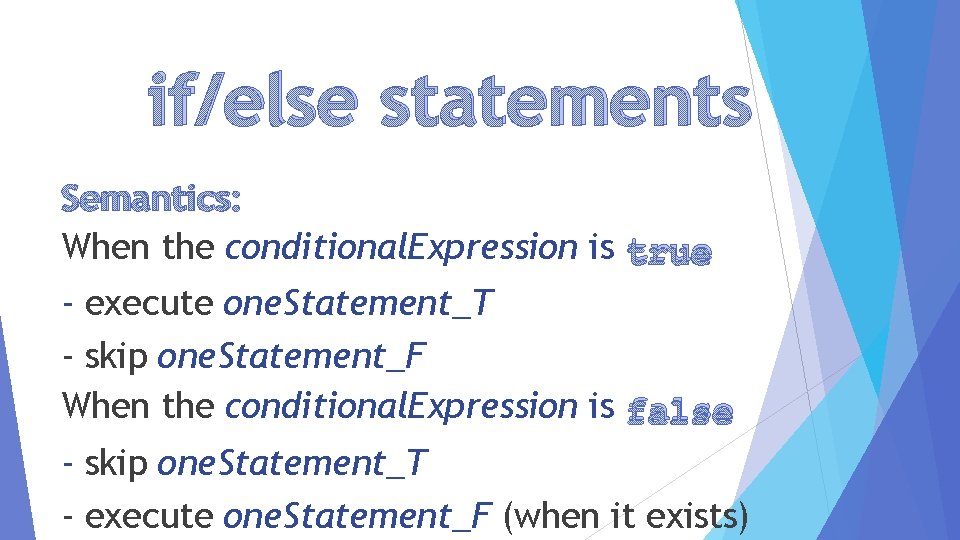

if/else statements Semantics: When the conditional. Expression is true - execute one. Statement_T - skip one. Statement_F When the conditional. Expression is false - skip one. Statement_T - execute one. Statement_F (when it exists)

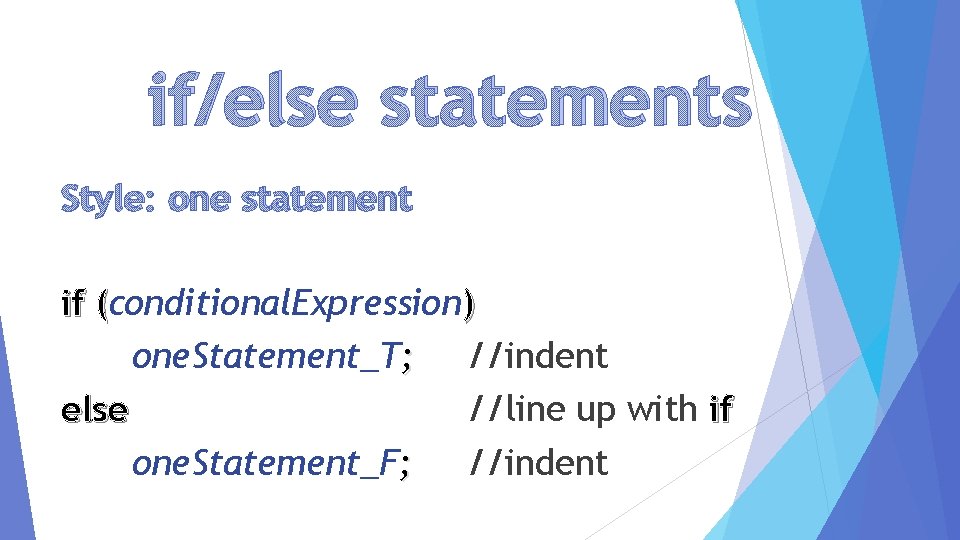

if/else statements Style: one statement if (conditional. Expression) one. Statement_T; //indent else //line up with if one. Statement_F; //indent

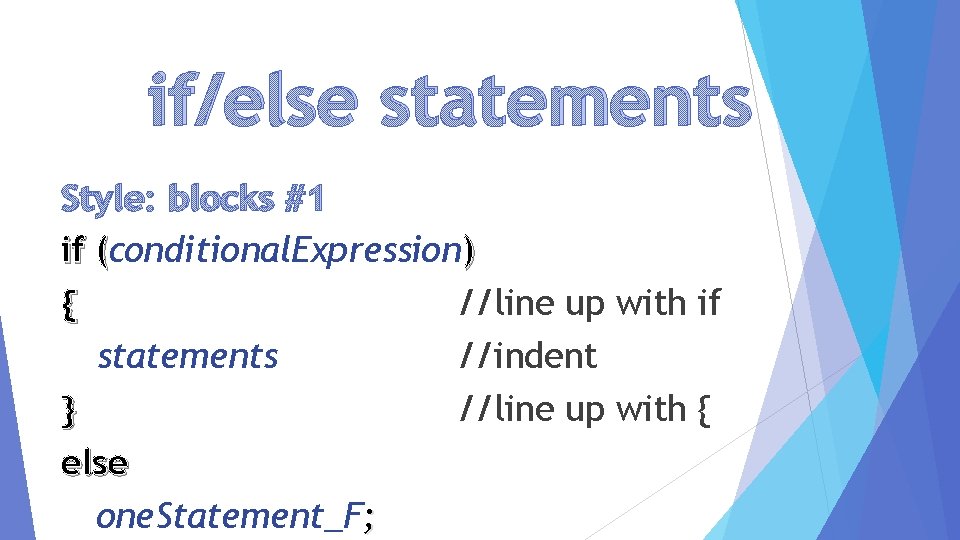

if/else statements Style: blocks #1 if (conditional. Expression) { //line up with if statements //indent } //line up with { else one. Statement_F;

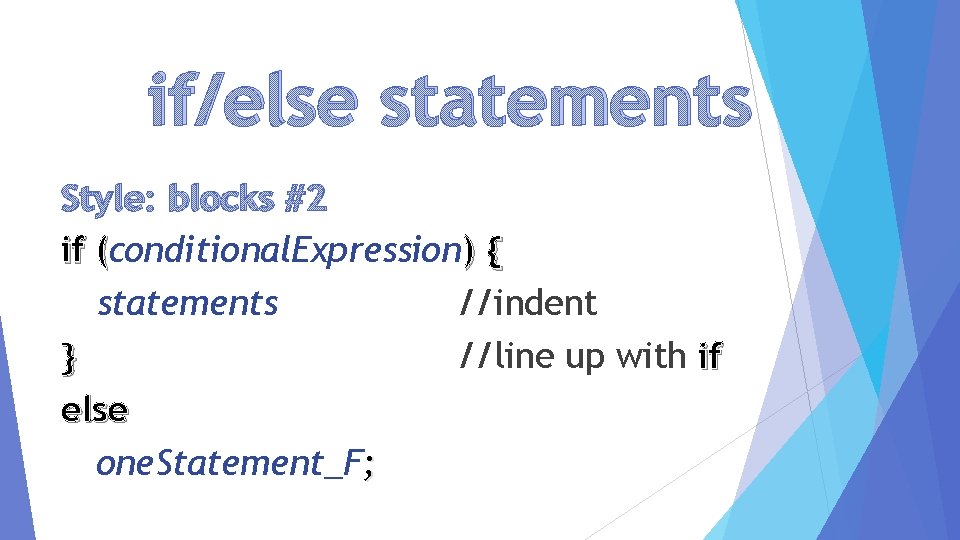

if/else statements Style: blocks #2 if (conditional. Expression) { statements //indent } //line up with if else one. Statement_F;

if/else statements Style: blocks #2 if (conditional. Expression) { statements //indent } //line up with if else one. Statement_F;

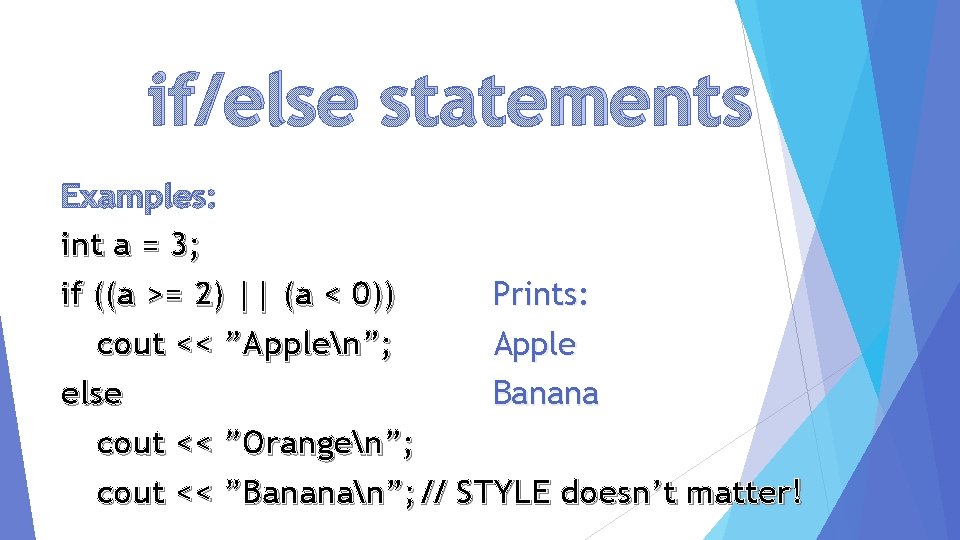

if/else statements Examples: int a = 3; if ((a >= 2) || (a < 0)) cout << ”Applen”; Prints: Apple else cout << ”Orangen”; Banana cout << ”Bananan”; // STYLE doesn’t matter!

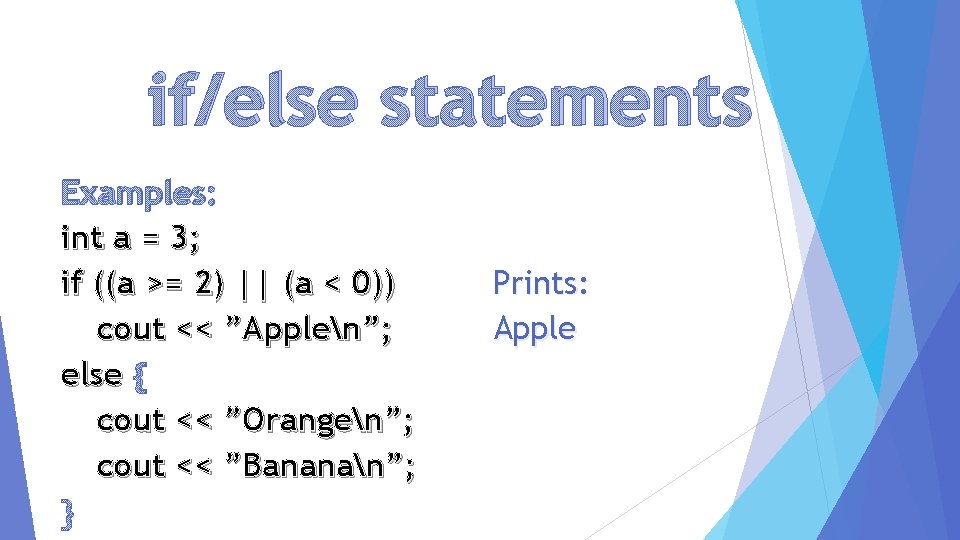

if/else statements Examples: int a = 3; if ((a >= 2) || (a < 0)) cout << ”Applen”; else { cout << ”Orangen”; cout << ”Bananan”; } Prints: Apple

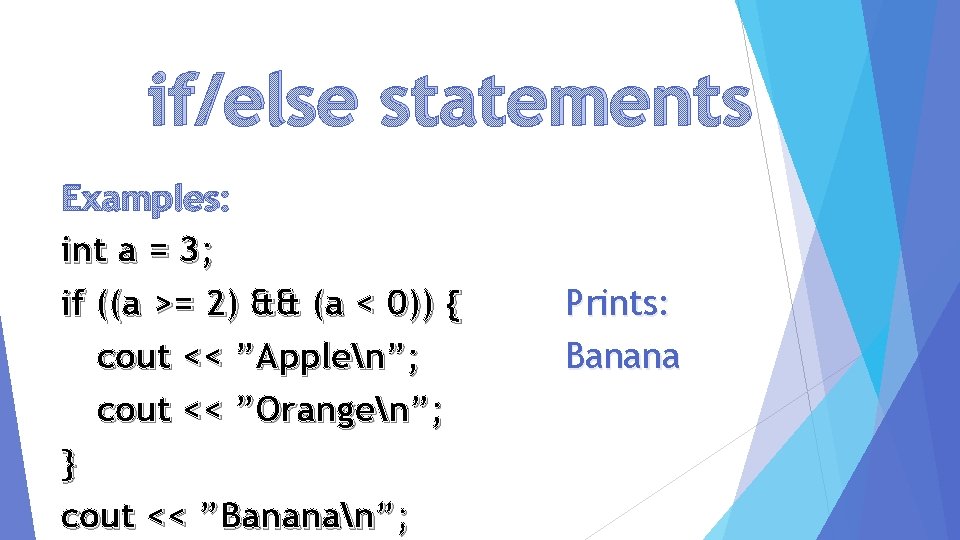

if/else statements Examples: int a = 3; if ((a >= 2) && (a < 0)) { cout << ”Applen”; cout << ”Orangen”; } cout << ”Bananan”; Prints: Banana

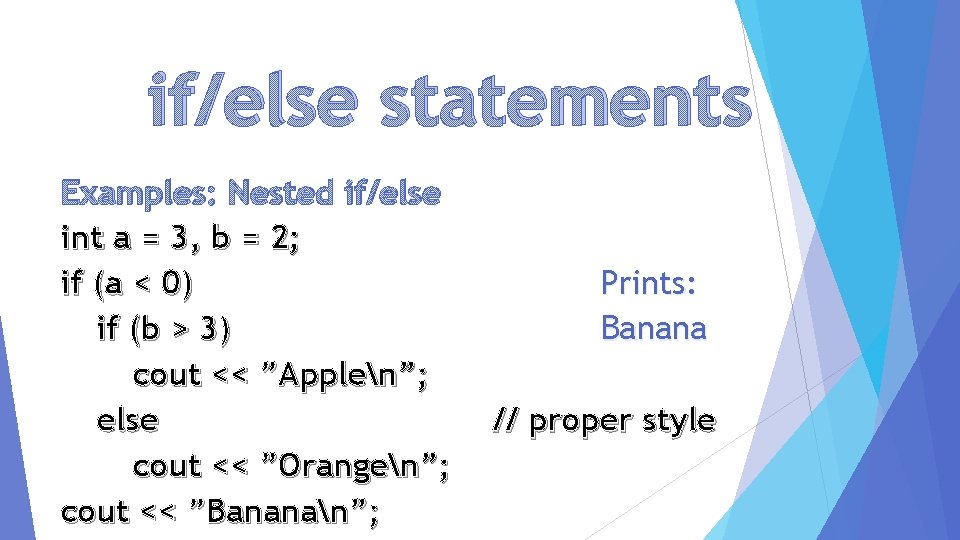

if/else statements Examples: Nested if/else int a = 3, b = 2; if (a < 0) if (b > 3) cout << ”Applen”; else cout << ”Orangen”; cout << ”Bananan”; Prints: Banana // proper style

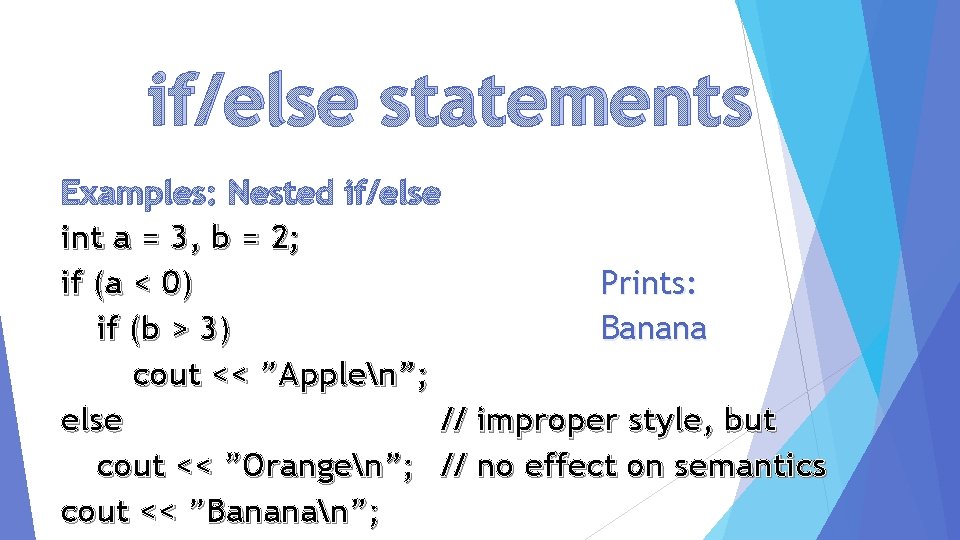

if/else statements Examples: Nested if/else int a = 3, b = 2; if (a < 0) Prints: if (b > 3) Banana cout << ”Applen”; else // improper style, but cout << ”Orangen”; // no effect on semantics cout << ”Bananan”;

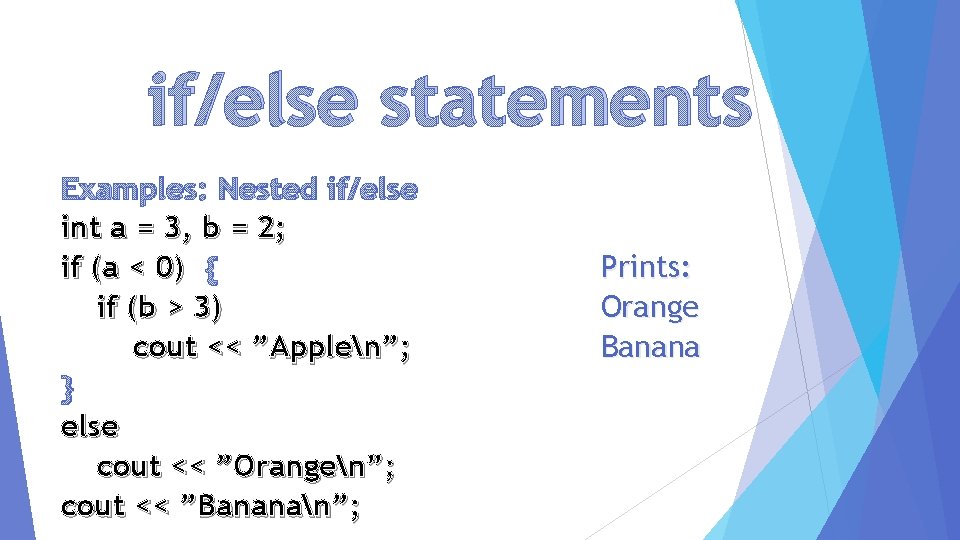

if/else statements Examples: Nested if/else int a = 3, b = 2; if (a < 0) { if (b > 3) cout << ”Applen”; } else cout << ”Orangen”; cout << ”Bananan”; Prints: Orange Banana

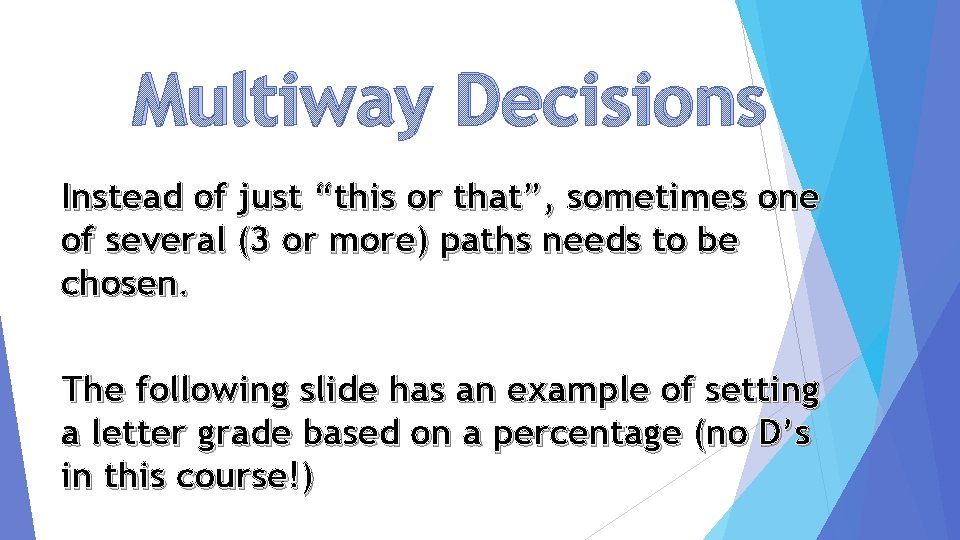

Multiway Decisions Instead of just “this or that”, sometimes one of several (3 or more) paths needs to be chosen. The following slide has an example of setting a letter grade based on a percentage (no D’s in this course!)

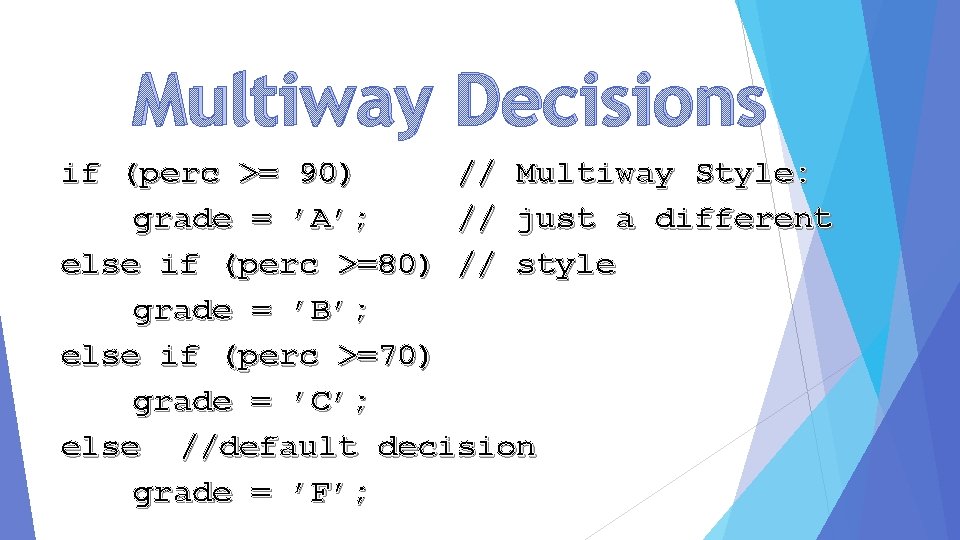

Multiway Decisions if (perc >= 90) // Multiway Style: grade = ’A’; // just a different else if (perc >=80) // style grade = ’B’; else if (perc >=70) grade = ’C’; else //default decision grade = ’F’;

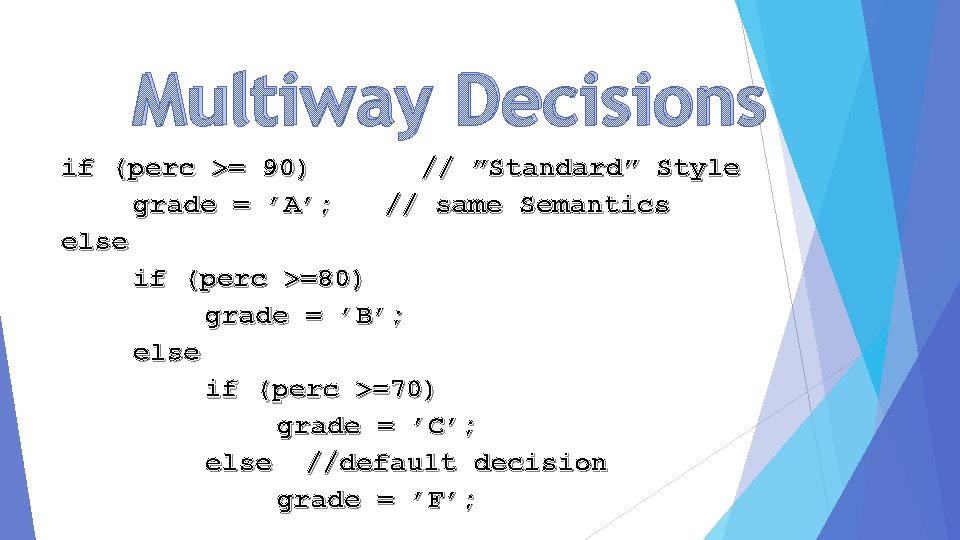

Multiway Decisions if (perc >= 90) // ”Standard” Style grade = ’A’; // same Semantics else if (perc >=80) grade = ’B’; else if (perc >=70) grade = ’C’; else //default decision grade = ’F’;

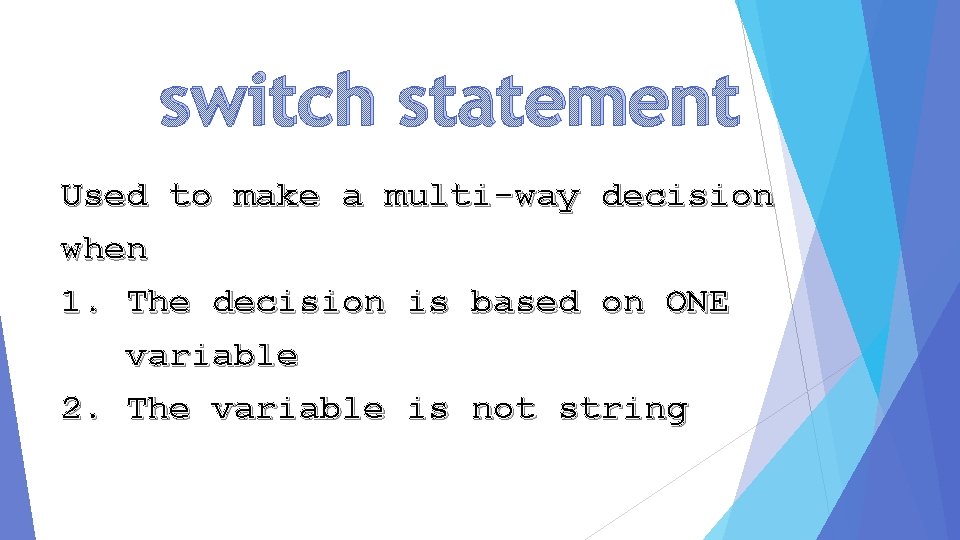

switch statement Used to make a multi-way decision when 1. The decision is based on ONE variable 2. The variable is not string

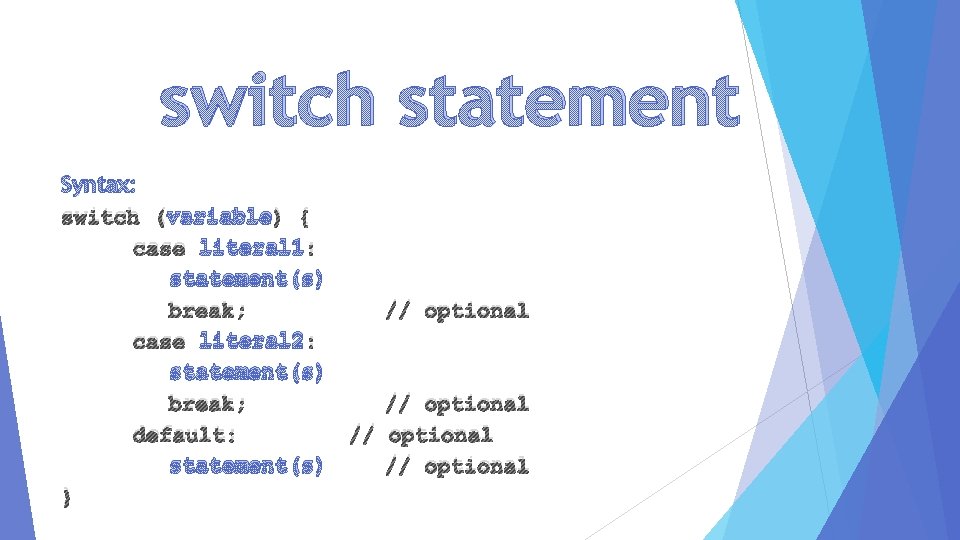

switch statement Syntax: switch (variable) { case literal 1: statement(s) break; // optional case literal 2: statement(s) break; // optional default: // optional statement(s) // optional }

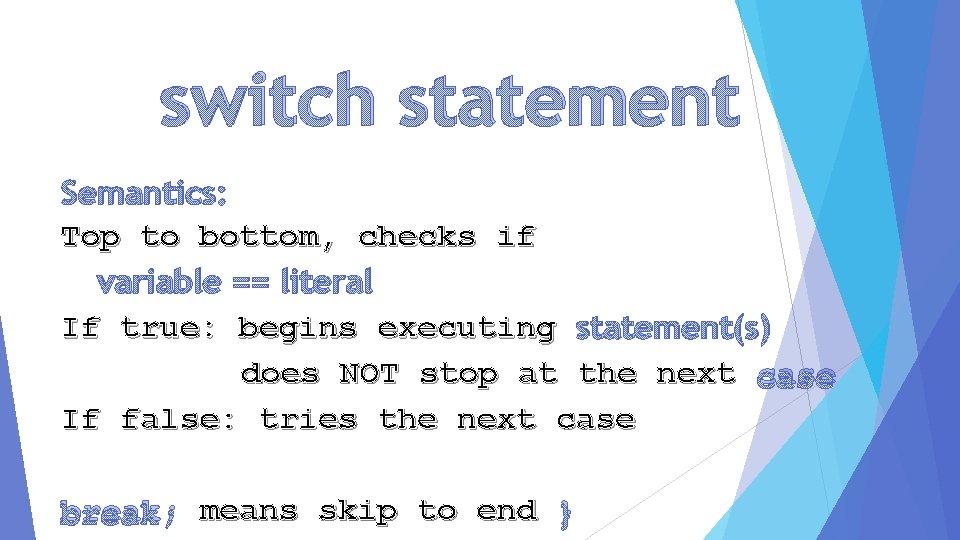

switch statement Semantics: Top to bottom, checks if variable == literal If true: begins executing statement(s) does NOT stop at the next case If false: tries the next case break; means skip to end }

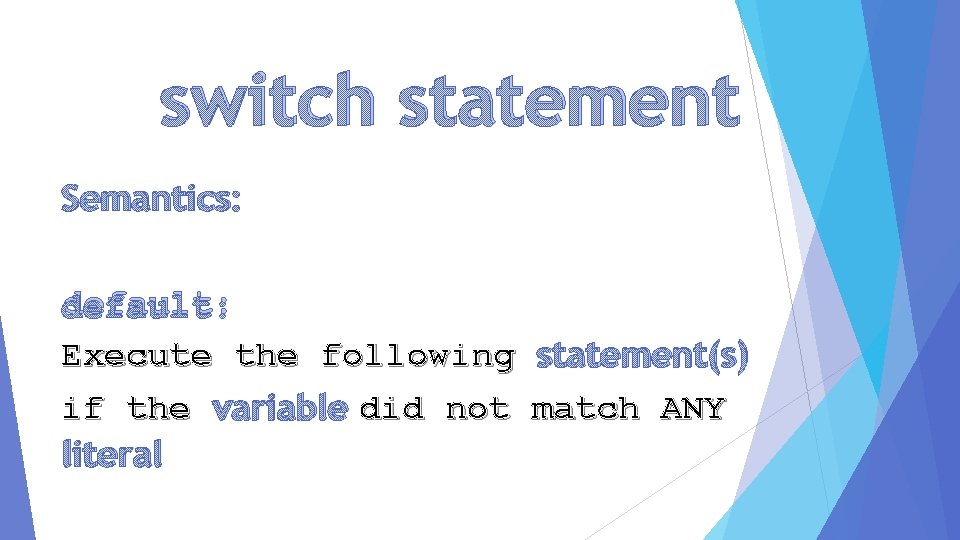

switch statement Semantics: default: Execute the following statement(s) if the variable did not match ANY literal

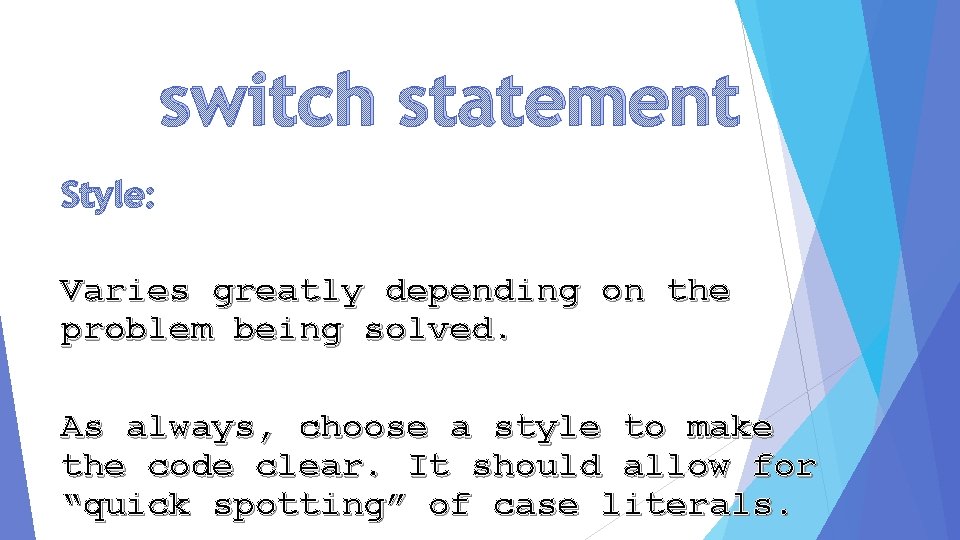

switch statement Style: Varies greatly depending on the problem being solved. As always, choose a style to make the code clear. It should allow for “quick spotting” of case literals.

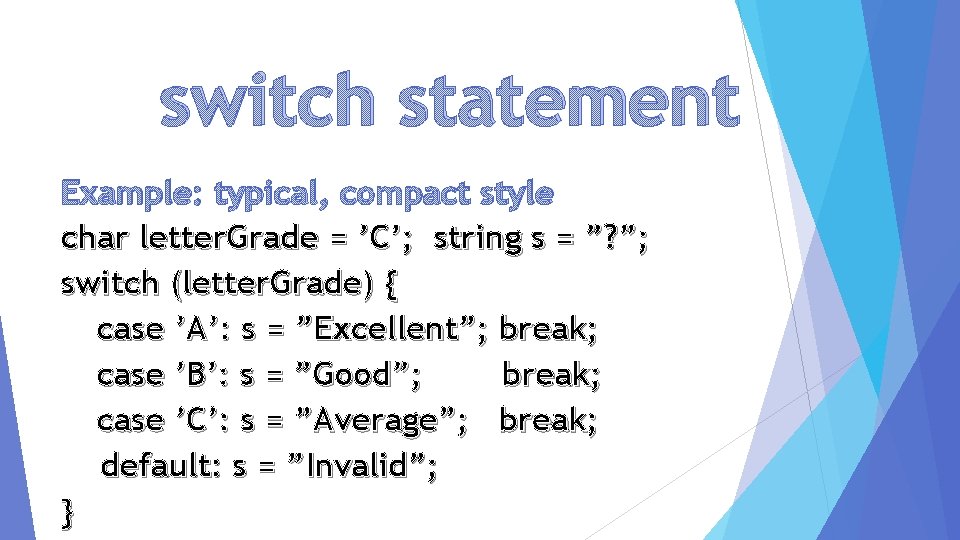

switch statement Example: typical, compact style char letter. Grade = ’C’; string s = ”? ”; switch (letter. Grade) { case ’A’: s = ”Excellent”; break; case ’B’: s = ”Good”; break; case ’C’: s = ”Average”; break; default: s = ”Invalid”; }

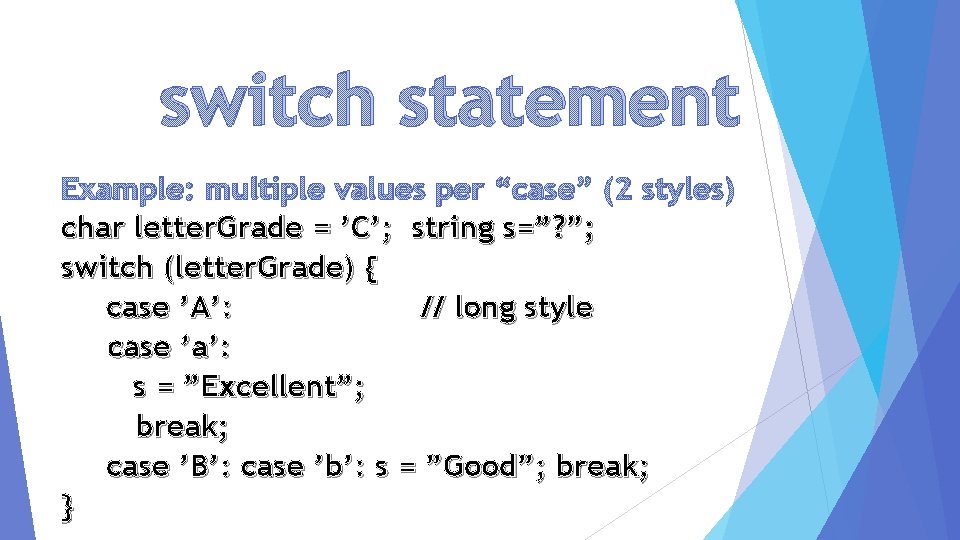

switch statement Example: multiple values per “case” (2 styles) char letter. Grade = ’C’; string s=”? ”; switch (letter. Grade) { case ’A’: // long style case ’a’: s = ”Excellent”; break; case ’B’: case ’b’: s = ”Good”; break; }

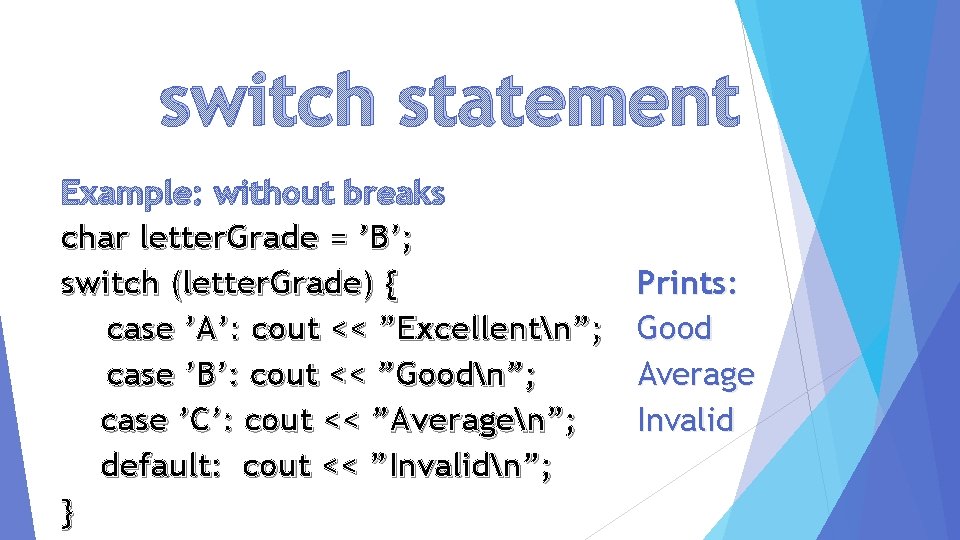

switch statement Example: without breaks char letter. Grade = ’B’; switch (letter. Grade) { case ’A’: cout << ”Excellentn”; case ’B’: cout << ”Goodn”; case ’C’: cout << ”Averagen”; default: cout << ”Invalidn”; } Prints: Good Average Invalid

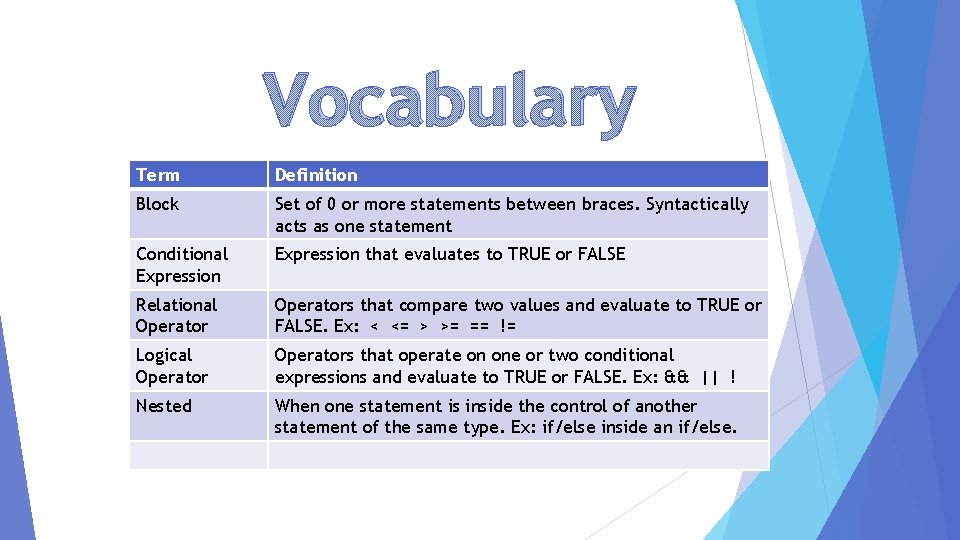

Vocabulary Term Definition Block Set of 0 or more statements between braces. Syntactically acts as one statement Conditional Expression that evaluates to TRUE or FALSE Relational Operators that compare two values and evaluate to TRUE or FALSE. Ex: < <= > >= == != Logical Operators that operate on one or two conditional expressions and evaluate to TRUE or FALSE. Ex: && || ! Nested When one statement is inside the control of another statement of the same type. Ex: if/else inside an if/else.
