IEEE IFEC 2019 Workshop on APEC 2019 March 17, 2019 Anaheim, CA 1
Agenda Time Event 08: 00 -08: 30 Registration 08: 30 -08: 40 Welcome from PELS President Frede Blaabjerg 08: 40 -08: 50 Welcome from IAS President Georges Zissis 08: 50 -09: 00 Welcome from IFEC Past Chairs Jason Lai 09: 00 -09: 10 Welcome from PSMA President Michael Hayes 09: 10 -09: 20 Introduction of IFEC 2019 Kyle Hanson 09: 20 -09: 30 Introduction of IFEC 2020 H Wang 09: 30 -09: 45 Break 09: 45 -12: 05 Presentation Session I 12: 05 -13: 00 Lunch 13: 00 -14: 40 Presentation Session II 14: 40 -14: 55 Break 14: 55 -16: 35 Presentation Session III 16: 35 -17: 00 Team 1 ~ Team 7 Team 8~ Team 12 Team 13 ~ Team 17 Judge Panel Briefing and Closing Remark 2
Welcome speech Frede Blaabjerg IEEE PELS President 3

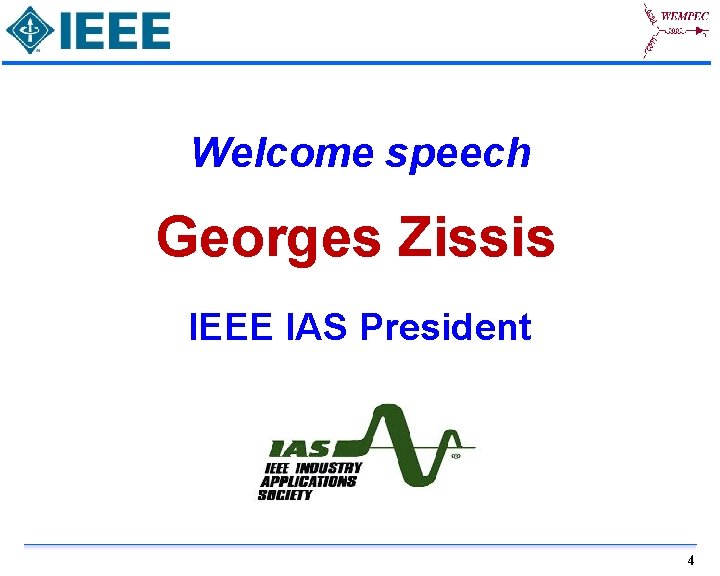

Welcome speech Georges Zissis IEEE IAS President 4

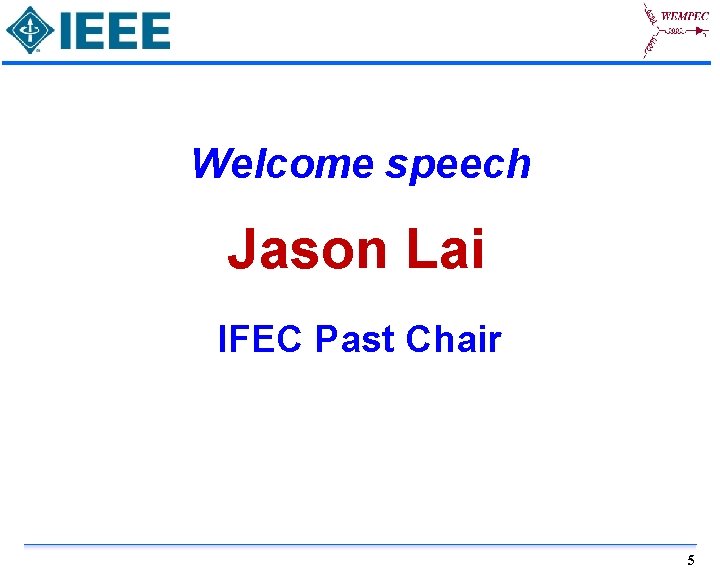

Welcome speech Jason Lai IFEC Past Chair 5

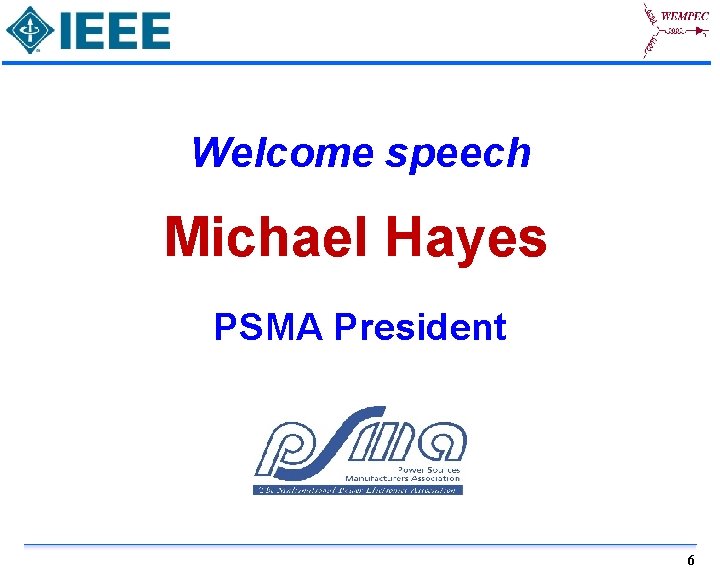

Welcome speech Michael Hayes PSMA President 6
IEEE IFEC 2019 Workshop on APEC 2019 General Chair Giri Venkataramanan, UW - Madison Technical Chair Kyle Hanson, UW – Madison Steering Committee Chair/Treasurer Qiang Li, Virginia Tech Ching-Jan Chen, National Taiwan University Bulent Sarlioglu, UW-Madison 7
First Round Results Teams accepted to participate APEC Workshop • Beijing Institute of Technology - BIT • Chonbuk National University - Zero Calorie • Delhi Technological University Abhyudaya • Khalifa University of Science and Technology - K-Bike • Kunming University of Science and Technology - KMUST • National Ilan University - ECIE • DHBW-Stuttgart - No. Rocket. Science • Tsinghua University - Thuedrive • Drexel University - Drexel University • Power Team • • Federal University of Campina Grande - Cariri Indians • • Gottfried Wilhelm Leibniz Universität • Hannover - Leibniz University Hannover IEEE IFEC Team • University of Belgrade - H-Bridges University of Michigan-Dearborn - UM -Dearborn Utah State University - Aggi-E-Bike Virginia Tech - Challenger Zhejiang University - Chariots Of Fire Our warm appreciation to the 10 Judges for their hard work! 8
Team Breakdown Brazil USA China UAE Taiwan Germany South Korea Serbia India 9
Background Hub Motor • Easier to retrofit a non-ebike • Not-ideal wheel weight distribution • Direct drive • Less chair wear Mid Drive • More torque • Better weight distribution • Can take advantage of the gear train • More easily integrated with pedal force feedback 10
Background World wide e-bike demand is increasing e. Bikes are a clean and efficient alternative mode of transportation. 11
UW - Madison ü Trek ü Pacific Cycles ü Saris ü Planet Bike 12
IFEC 2019 Challenge High Efficiency and Power Dense Bicycle Electric Drive Specifications: q Input: 48 VDC nominal 9 Ah Lead Acid Battery Pack, 20 A fuse q Output Load: 3 -phase 8 -pole BLDC Motor, 69 rpm/Vll, rms, 0 to 300 Hz, 20 A fuse 13
Test Configuration Arbitrary Waveform Generator Throttle Input Battery Simulator E-Bike Inverter Position Feedback E-Bike Motor M CC load Rectifier Mechanical Power E-Bike Motor 14
IFEC 2019 Requirements q Cable and connector integrity: 10 N pull test q Insulation Resistance: >500 kΩ @ 250 VDC q Power Up & E-Stop: 1) <1 m. A when E-Stop pressed 2) <50 m. A in quiescent state q Free Acceleration: Time to reach 2500 rpm (overspeed fault trip expected) q Full Load Test: Maintain highest possible speed for 2 min q Drive Cycle Performance Test: Cycle through 25 operating points in 10 min. Performance evaluated based energy consumed per distance traveled. 15
Drive Cycle Test Detail 12. 5 10 7. 5 5 2. 5 Throttle Command [V] 10 9 8 7 6 5 4 3 2 1 0 0 CC Dynamometer Load [A] 16
Field Test Final Competition Event • Field Test Race with actual e. Bike hardware • Top 5 teams will be invited to complete • 4 Person relay race • 400 m per lap • 1600 m total race length 17

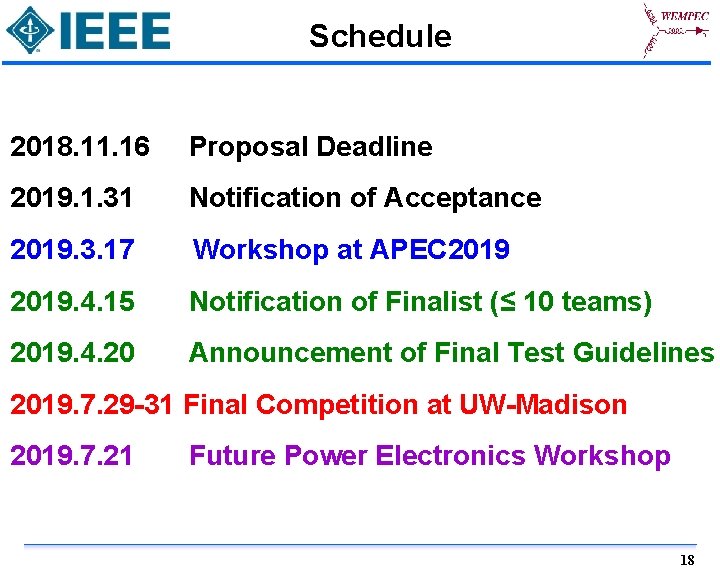

Schedule 2018. 11. 16 Proposal Deadline 2019. 1. 31 Notification of Acceptance 2019. 3. 17 Workshop at APEC 2019. 4. 15 Notification of Finalist (≤ 10 teams) 2019. 4. 20 Announcement of Final Test Guidelines 2019. 7. 29 -31 Final Competition at UW-Madison 2019. 7. 21 Future Power Electronics Workshop 18
Thanks and Welcome 19
