IEEE By Kustanto, S. T. , M. Eng Pertemuan ke 1 Pengantar WLAN by Kustanto 2/23/2021 1
Kepanjangan IEEE ? ? ? ? �Institute of Electrical and Electronics Engineers 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 2

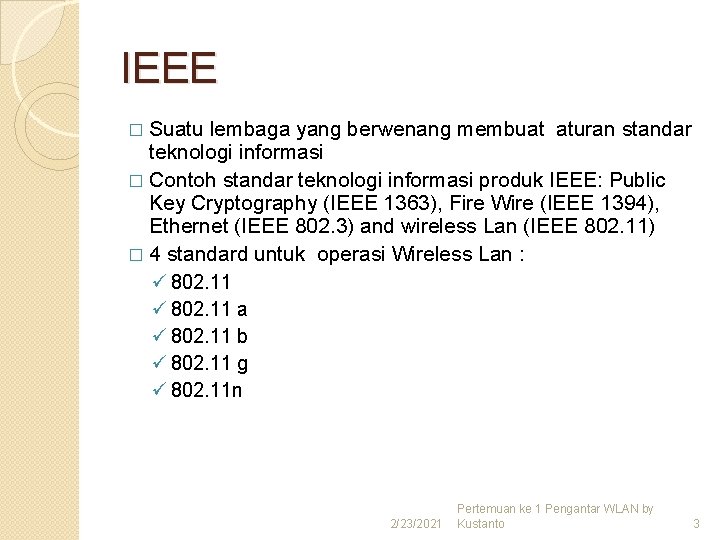

IEEE � Suatu lembaga yang berwenang membuat aturan standar teknologi informasi � Contoh standar teknologi informasi produk IEEE: Public Key Cryptography (IEEE 1363), Fire Wire (IEEE 1394), Ethernet (IEEE 802. 3) and wireless Lan (IEEE 802. 11) � 4 standard untuk operasi Wireless Lan : ü 802. 11 a ü 802. 11 b ü 802. 11 g ü 802. 11 n 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 3
Standar IEEE 802. x 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 4
Ruang Lingkup IEEE 802. 11 � 802. 11 a 5 GHz, 54 Mbps � 802. 11 b 2. 4 GHz, 11 Mbps � 802. 11 d Multiple regulator domains � 802. 11 e Quality of Service (Qo. S) � 802. 11 f Inter Access Pont Protocol (IAPP) � 802. 11 g 2. 4 GHz, 54 Mbps � 802. 11 h Dynamic Frequency Selection (DFS) and Transmit Power Control (TPC) � 802. 11 i Security 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 5
� 802. 11 j Japan 5 GHz Channels (4. 9 to 5. 1 GHz) � 802. 11 k Measurement � 802. 11 m Maintenance � 802. 11 n High Speed 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 6
Standarisasi WLAN � IEEE 802. 11 ◦ Kecepatan 1 dan 2 Mbps ◦ Frekwensi 2. 4 GHz � IEEE 802. 11 a ◦ Kecepatan 6, 9, 12, 18, 24, 36, 48, 54 Mbps ◦ Frekwensi 5 GHz � IEEE 802. 11 b ◦ Kecepatan 1, 2, 5. 5 dan 11 Mbps ◦ Frekwensi 2. 4 GHz � IEEE 802. 11 g ◦ Kecepatan max 54 Mbps ◦ Frekwensi 2. 4 GHz � IEEE 802. 11 n ◦ Kecepatan max 540 Mbps ◦ Frekwensi 2. 4 GHz 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 7
802. 11 - infrastructure network � Station (STA) 802. 11 LAN STA 1 802. x LAN ◦ terminal with access mechanisms to the wireless medium and radio contact to the access point � Basic Service Set (BSS) BSS 1 Portal Access Point Distribution System Access Point ESS ◦ group of stations using the same radio frequency � Access Point ◦ station integrated into the wireless LAN and the distribution system � Portal ◦ bridge to other (wired) networks BSS 2 � Distribution System STA 2 802. 11 LAN STA 3 ◦ interconnection network to form one logical network (EES: Extended Service Set) based on several BSS 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 8
Komponen Wi. Fi 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 9

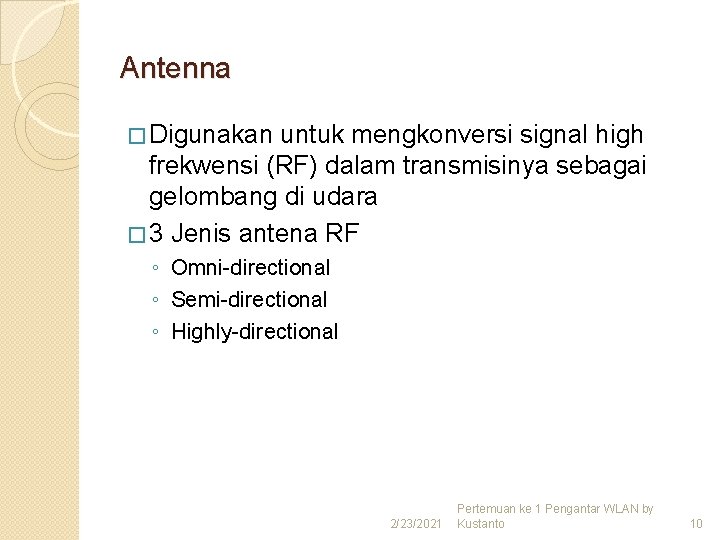

Antenna � Digunakan untuk mengkonversi signal high frekwensi (RF) dalam transmisinya sebagai gelombang di udara � 3 Jenis antena RF ◦ Omni-directional ◦ Semi-directional ◦ Highly-directional 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 10
Omni-directional (Dipole) Antennas Antena yang paling banyak digunakan oleh wireless � Disebut dipole karena meradiasikan energiny ke semua arah � 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 11
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 12

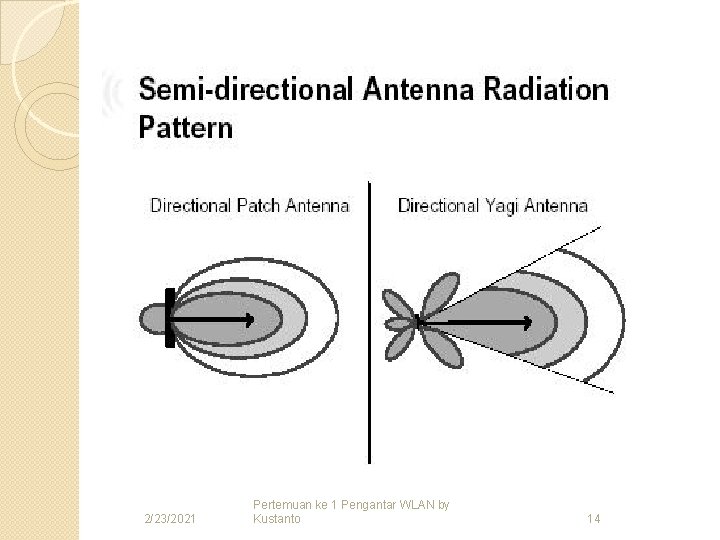

Semi-directional Antennas � Beberapa diantaranya adalah Patch, Pane dan Yagi � Semua antena pada umumnya flat dan dirancang ditempatkan di tembok � Radiasinya dalam bentuk hemispherical 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 13
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 14
Highly-directional Antennas � Memancarkan dalam arah (beam) yang paling sempit diantara tipe yang lain � Menghasilkan gain paling tinggi � Sangat ideal bagi situasi jarak jauh � Beberapa model yang direferensikan adalah parabolic dishes � Model yang lain adalah grid antenna untuk mengurasi kekuatan angin � Untuk point-to-point bisa mencapai jarak 42 km 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 15
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 16
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 17
Wireless LAN Accessories � RF Amplifiers � RF Attenuators � Lightning Arrestors � RF Connectors � RF Cables � RF Splitters 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 18
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 19
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 20
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 21
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 22
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 23
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 24
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 25

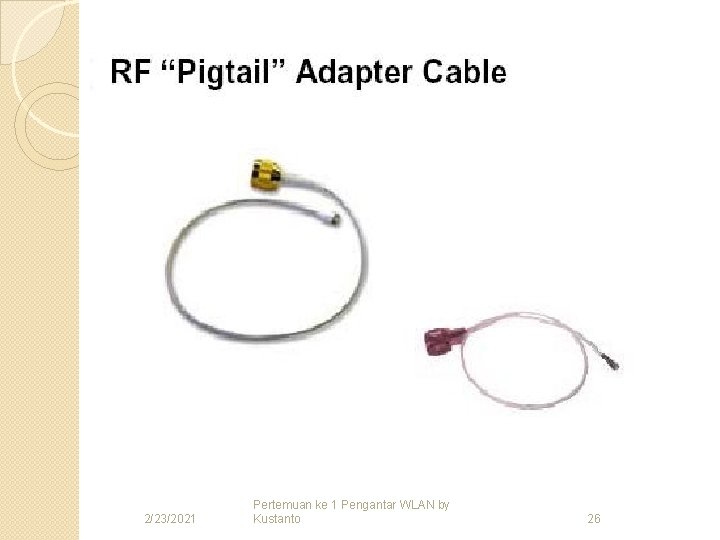

2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 26

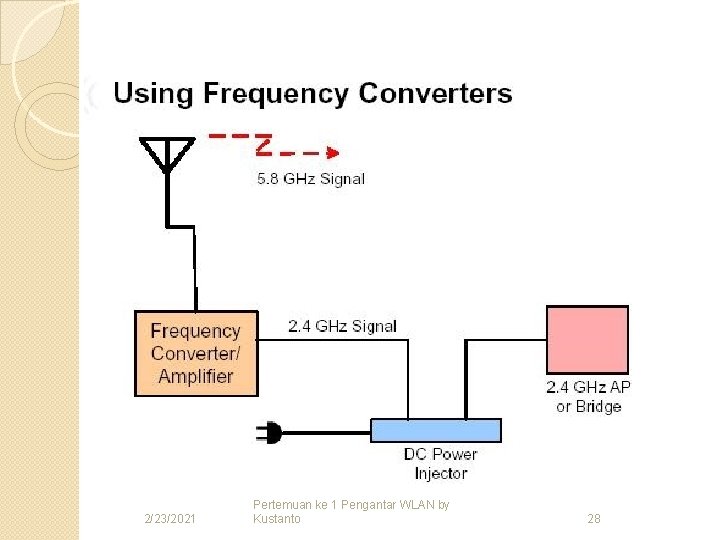

o Frequency converter digunakan untuk mengkonversi satu frekwensi ke frekwensi yang lain dengan tujuan menghilangkan sebuah frekwensi agar tidak menggangu frekwensi lain 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 27
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 28
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 29
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 30
o It’s used for testing cables and connectors 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 31
Channel Frekuensi �Tabel kanal Frekuensi IEEE 802. 11 b/g Channel Frekuensi 1 2412 MHz 8 2447 MHz 2 2417 MHz 9 2452 MHz 3 2422 MHz 10 2457 MHz 4 2427 MHz 11 2462 MHz 5 2432 MHz 12 2467 MHz 6 2437 MHz 13 2472 MHz 7 2442 MHz 14 2484 MHz 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 32
IP Address (5) q Kelas-kelas q Range § § IP Address Kelas-Kelas IP: Kelas A : 1. 0. 0. 0 Kelas B : 128. 0. 0. 0 Kelas C : 192. 0. 0. 0 Kelas D : 224. 0. 0. 0 s. d 126. 255 = 16. 777. 214 IP 191. 155. 255 = 65. 534 IP 223. 255 = 254 IP Pertemuan ke 1 Pengantar WLAN by 239. 255 2/23/2021 Kustanto 33
Sistem Wireless IP 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 34
Perbedaan Teknis IEEE 802. 11 dan IEEE 802. 16 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 35

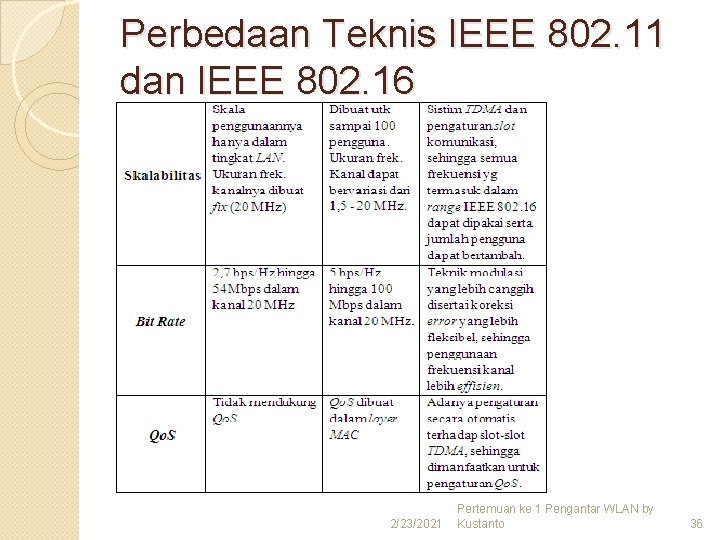

Perbedaan Teknis IEEE 802. 11 dan IEEE 802. 16 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 36
Varian standar IEEE 802. 16 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 37
Wi-Fi 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 38
Microwave 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 39
VSAT 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 40
VSAT 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 41
Contoh Topologi Jaringan 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 42
2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 43
ANY QUESTION 2/23/2021 Pertemuan ke 1 Pengantar WLAN by Kustanto 44
