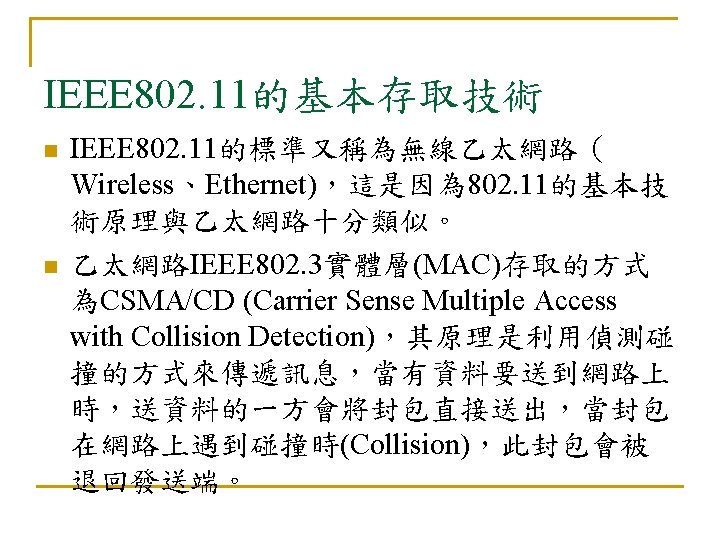

IEEE 802. 11 n 1997年美國電機電子協會 IEEE (institute of Electrical and Electronics Engineer)公告 IEEE 802. 11無線區域網路標準,在這個規範 中,共定義了三種不同的實體屆介面 (Medium Address Control; MAC): q q q 直接序列展頻(Direct Sequence Spread Spectrum ; DSSS) 跳頻展頻(Frequency Hopping Spread Spectrum; FHSS) 紅外線 (lnfrared) 技術

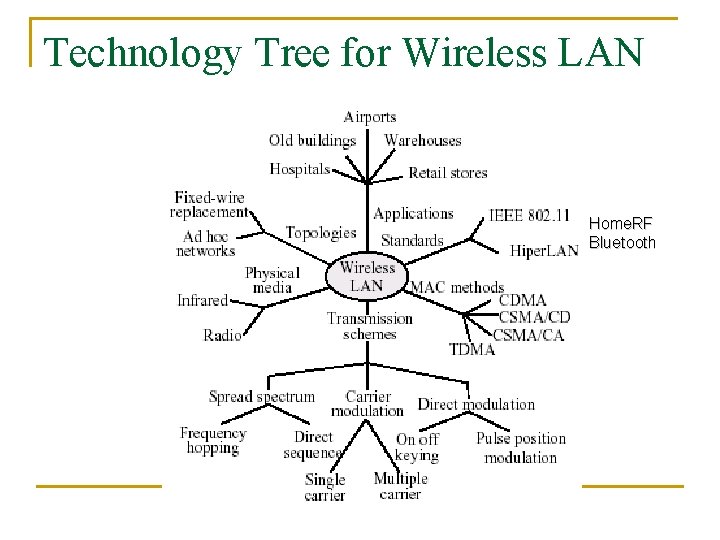

Technology Tree for Wireless LAN Home. RF Bluetooth
Commercial Products : WLAN Cards One piece n Two pieces n
Commercial Products : AP
OSI IEEE 802. 11
IEEE 802系列

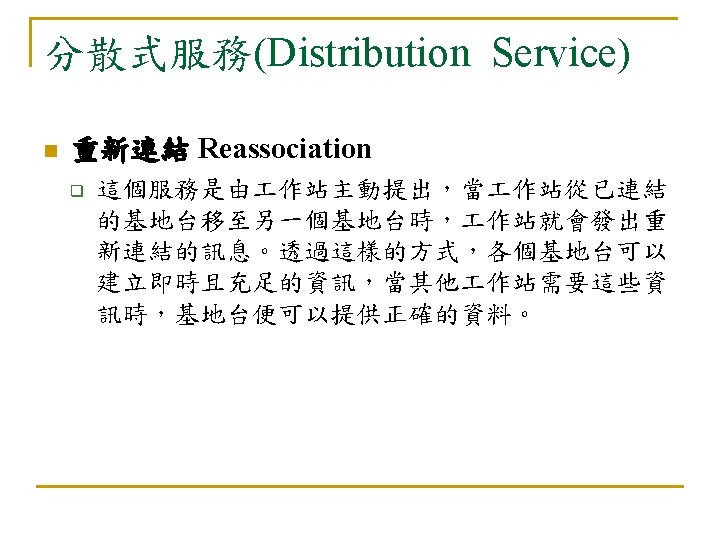

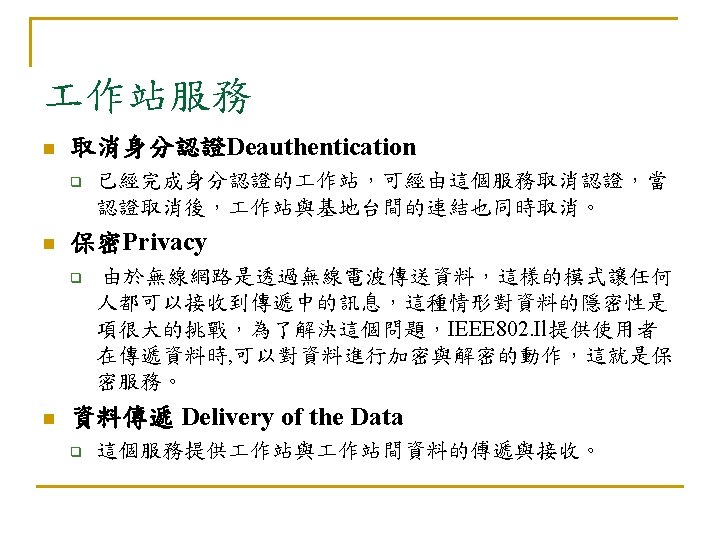

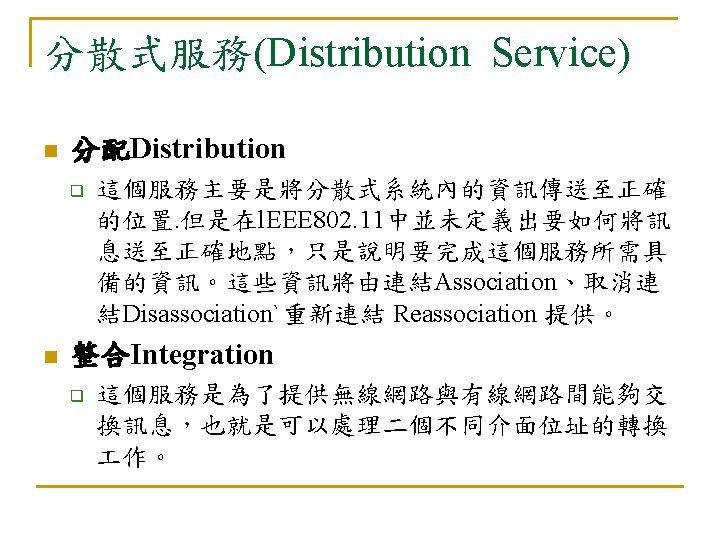

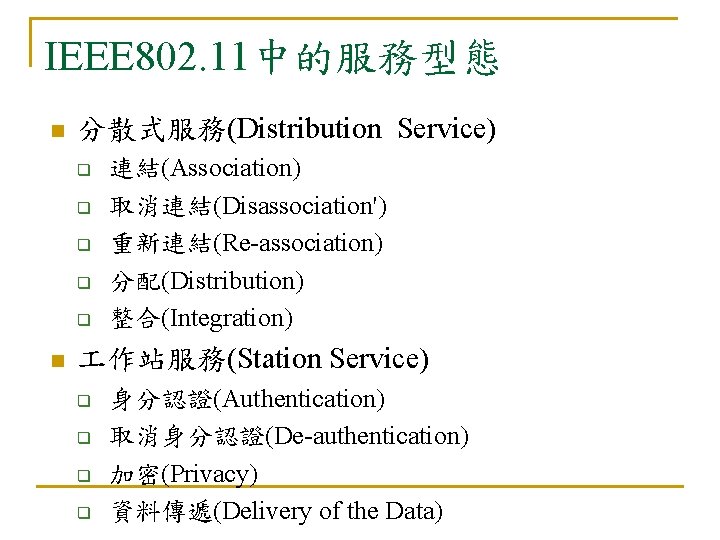

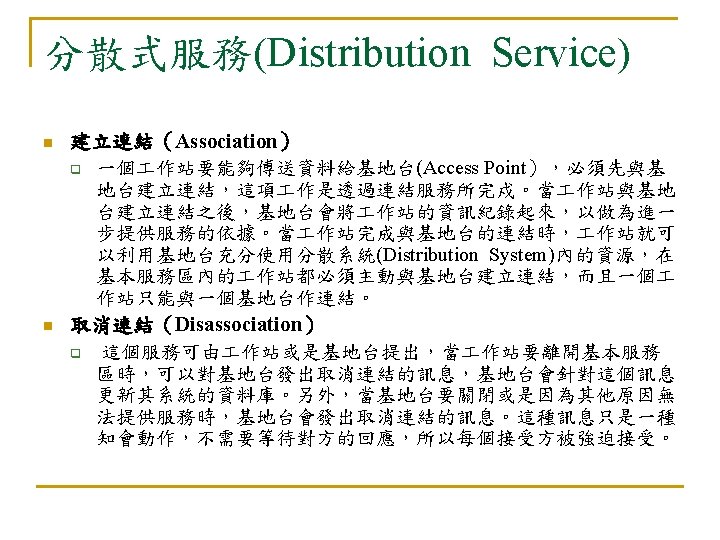

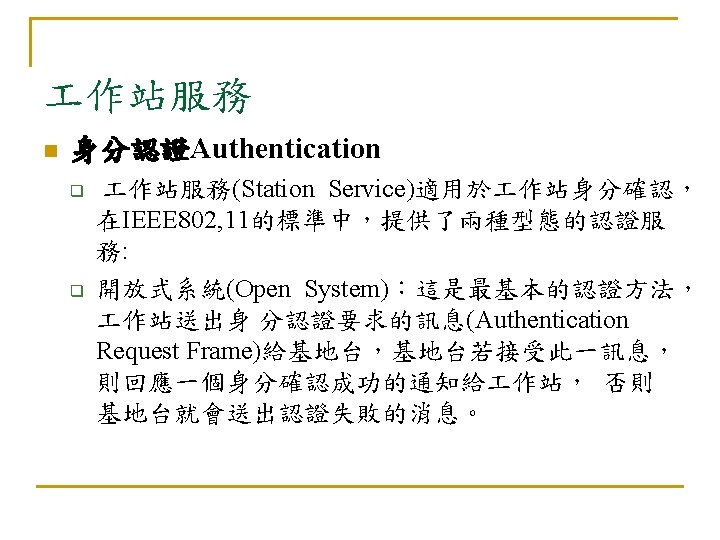

IEEE 802. 11中的服務型態 n 分散式服務(Distribution Service) q q q n 連結(Association) 取消連結(Disassociation') 重新連結(Re-association) 分配(Distribution) 整合(Integration) 作站服務(Station Service) q q 身分認證(Authentication) 取消身分認證(De-authentication) 加密(Privacy) 資料傳遞(Delivery of the Data)
IEEE 802. 11 的三種 作站(Mobile Host; MH)的移動模式: Station AH 2 Station AH 3 Ad Hoc Network n 不跨越基本服務區(Base Service Set)的移動No. Transition q q 靜止(STATIC) 移動但不超過服務區範圍 Station AH 1 Mobile Station : STA

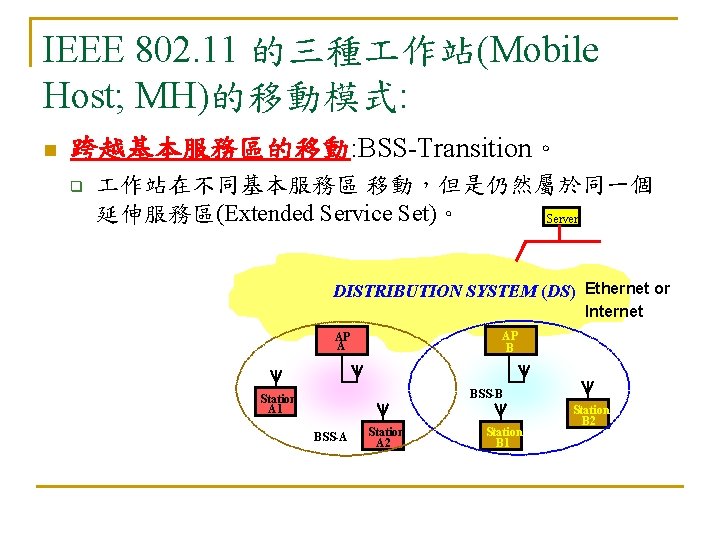

IEEE 802. 11 的三種 作站(Mobile Host; MH)的移動模式: n 跨越基本服務區的移動: BSS-Transition。 q 作站在不同基本服務區 移動,但是仍然屬於同一個 延伸服務區(Extended Service Set)。 Server DISTRIBUTION SYSTEM (DS) Ethernet or Internet AP B AP A BSS-B Station A 1 BSS-A Station A 2 Station B 1 Station B 2
n 跨越延伸服務區的移動:ESS-Transition q 作站在不同基本服務區 移動,而且這些基本 服務區分屬不同的延伸服務區。 Access Point B Station 2 Access Point A Station 6 Station 5 Access Point C Station 4 Reassocication Station 3 Station 7 Station 1
MAC Architecture Required for Contention Free Services MAC extension Point Coordination Function (PCF) Distributed Coordination Function (DCF) PHY Used for Contention Services and basis for PCF

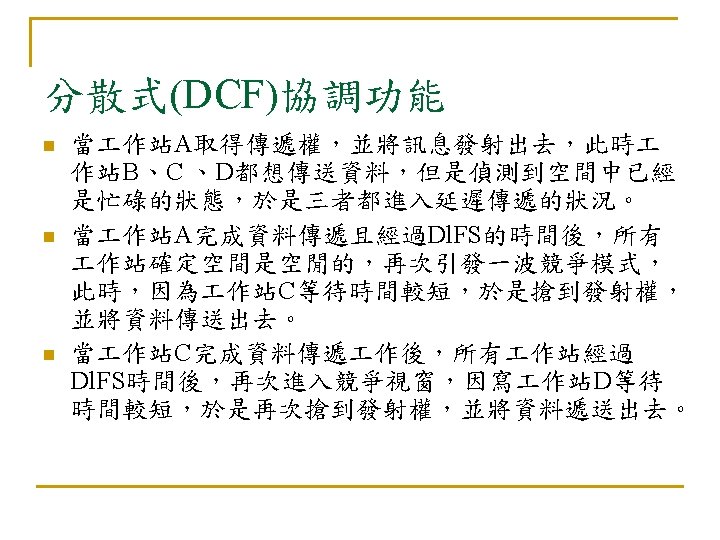

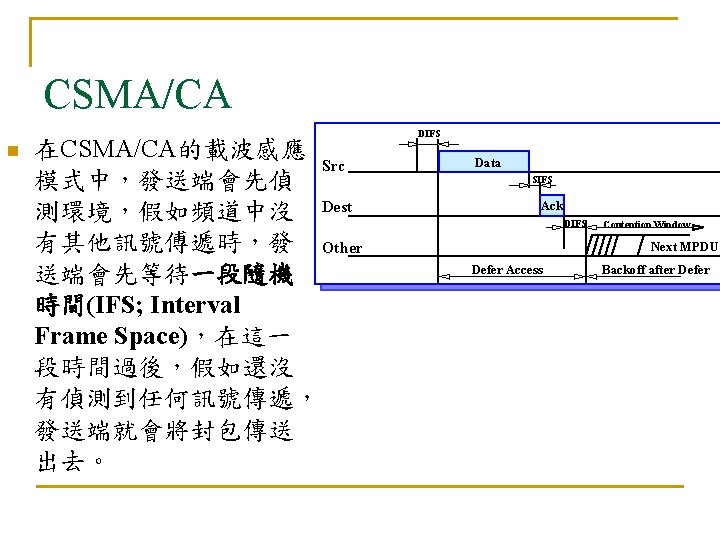

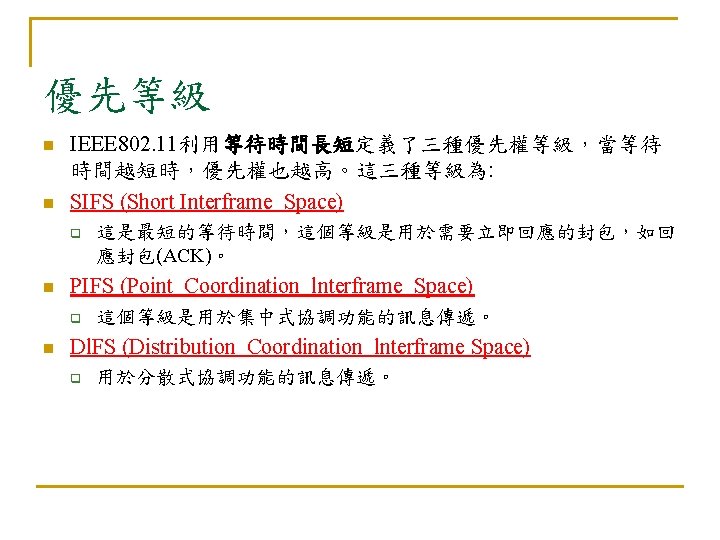

優先等級 Free access when medium is free longer than DIFS Contention Window PIFS DIFS Busy Medium SIFS Backoff-Window Next Frame Slot time Defer Access Select Slot and Decrement Backoff as long as medium is idle.
分散式協調功能 DIFS CWindow A Frame Backoff Frame B CWindow C Frame CWindow D E Frame CWindow = Contention Window = Backoff = Remaining Backoff

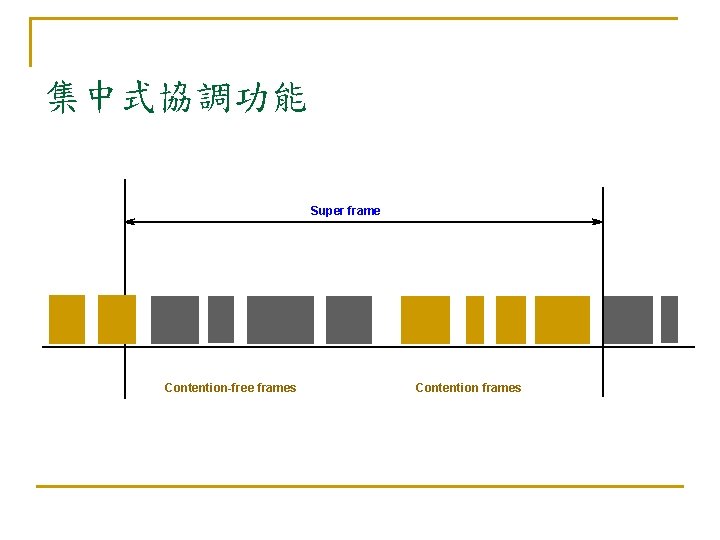

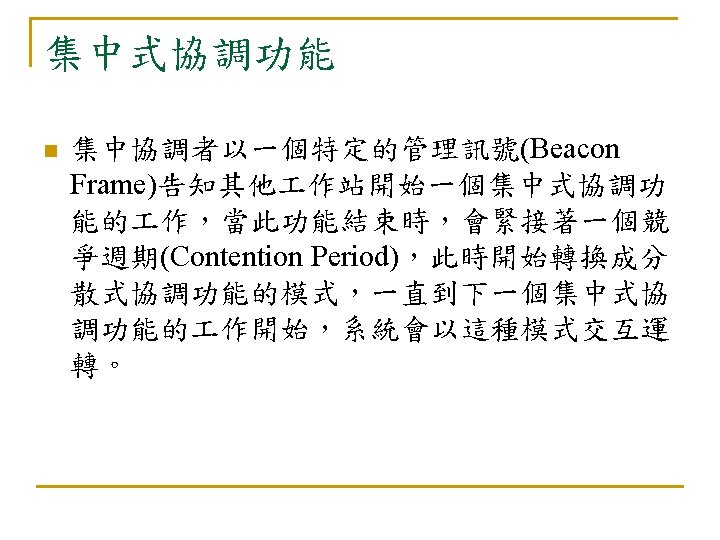

集中式協調功能 Super frame Contention-free frames Contention frames
集中式協調功能 CFP repetition interval Contention Free Burst PIFS Contention Period D 1 D 3 D 2 D 4 Busy Medium U 1 U 2 No Up U 4 CF_End Dx = AP-Frame Ux = Station-Frame SIFS Reset NAV Min Contention Period

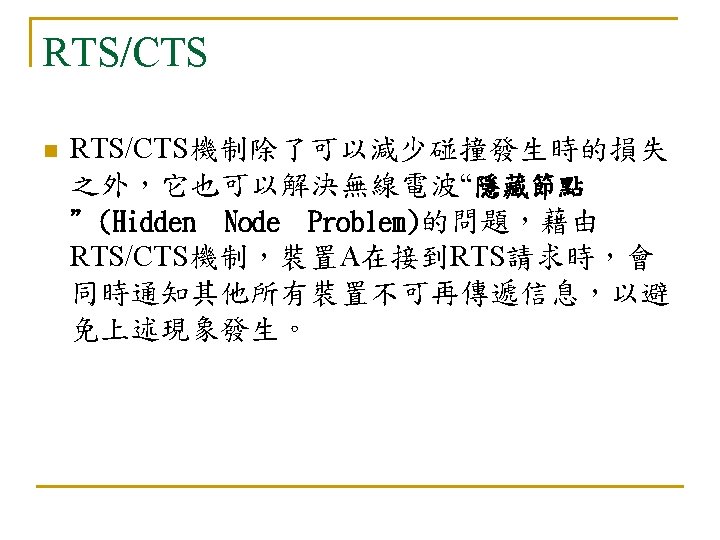

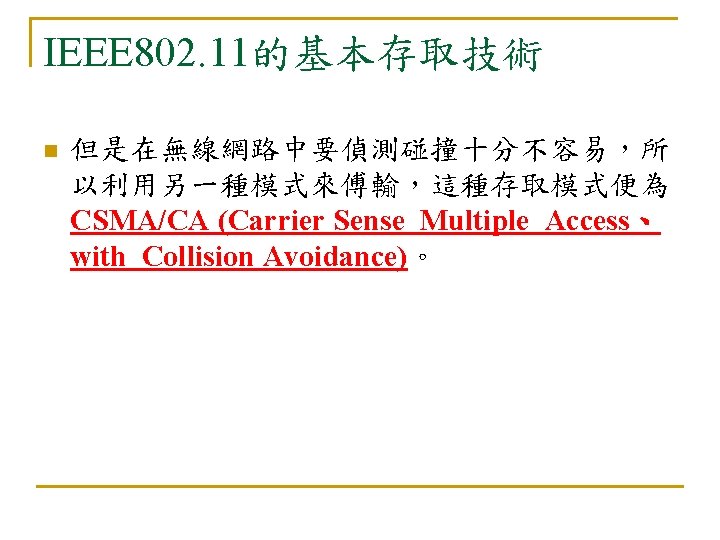

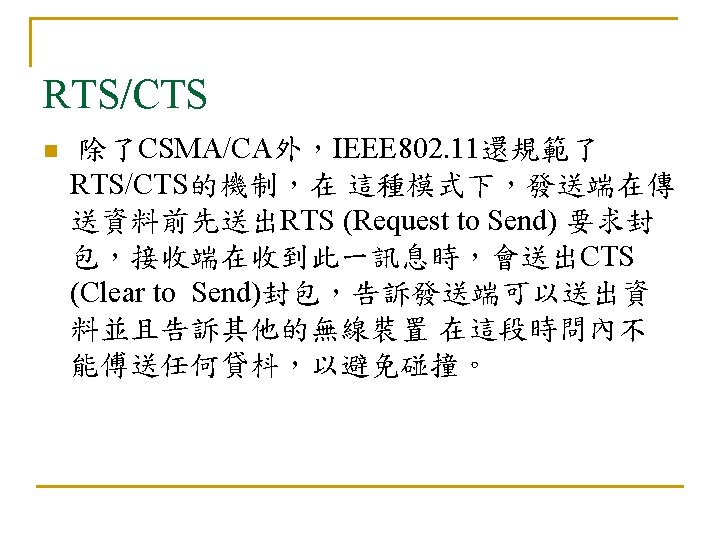

RTS/CTS Sender Receiver Optional RTS CTS Data ACK DIFS Src Dest Other RTS Data CTS Ack CW NAV (RTS) Next MPDU NAV (CTS) Defer Access Backoff after Defer

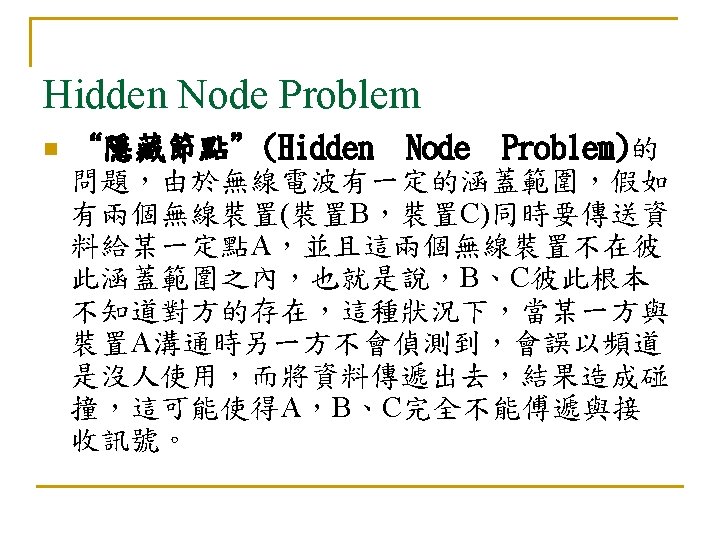

Example STA AP RTS-Range CTS-Range Data AP Ack STA Stations do not hear each other STA But they hear the AP.

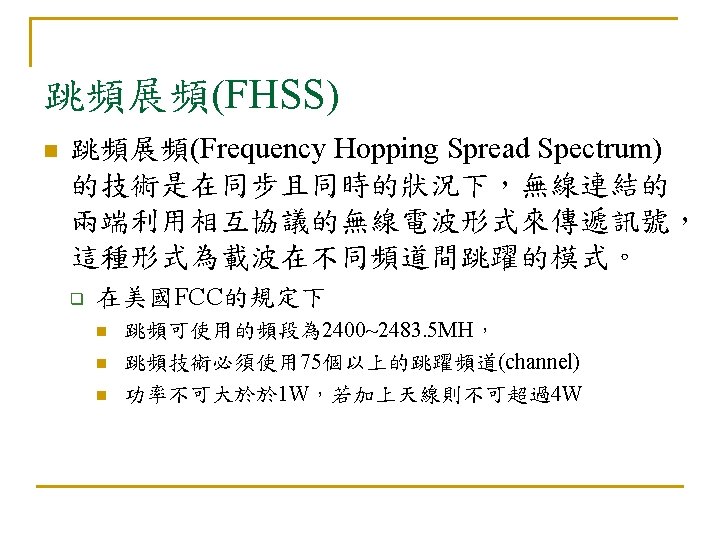

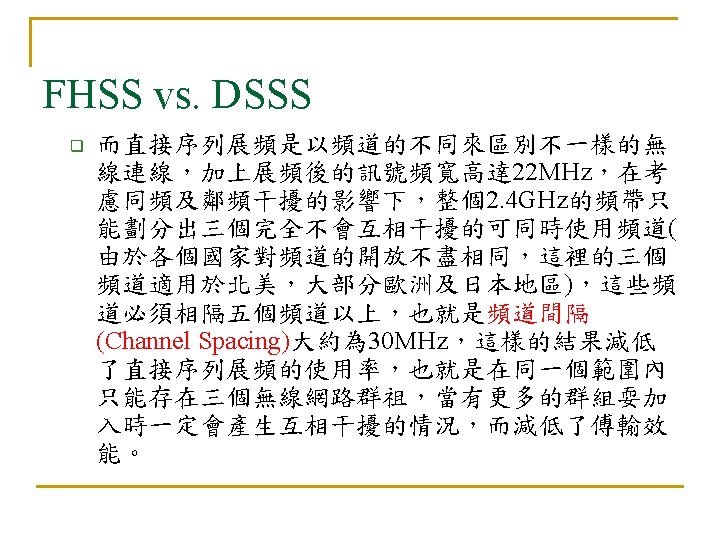

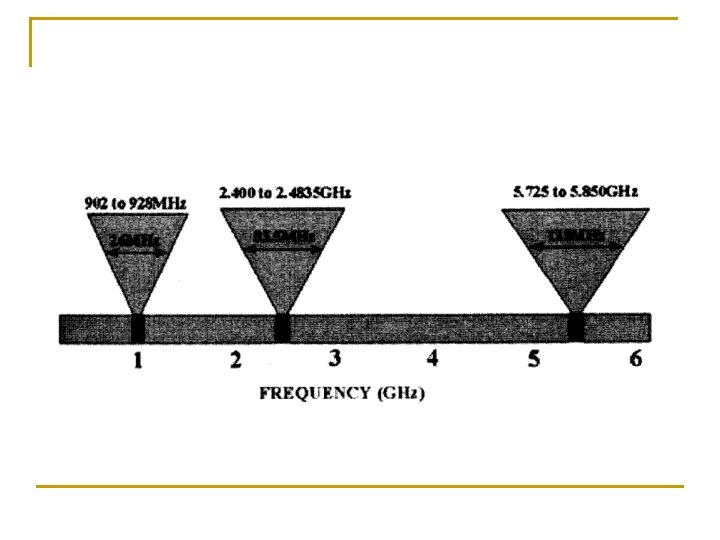

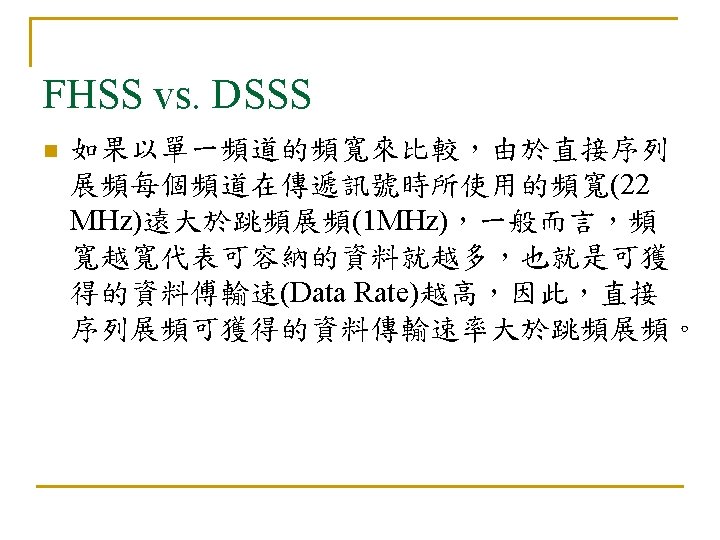

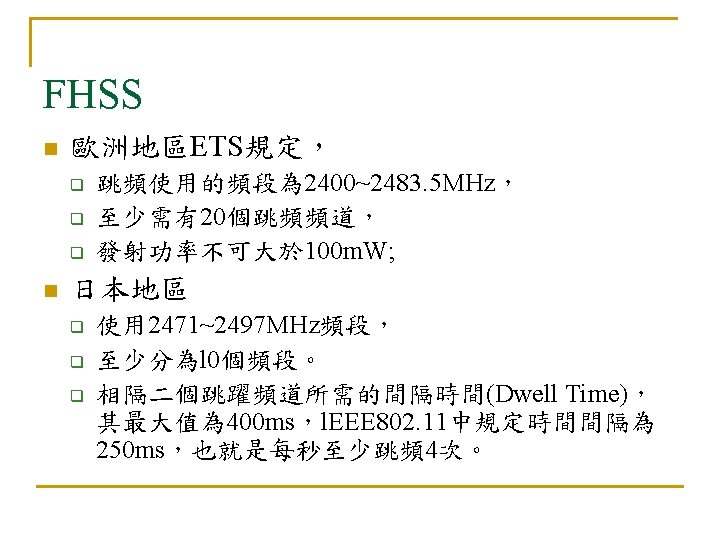

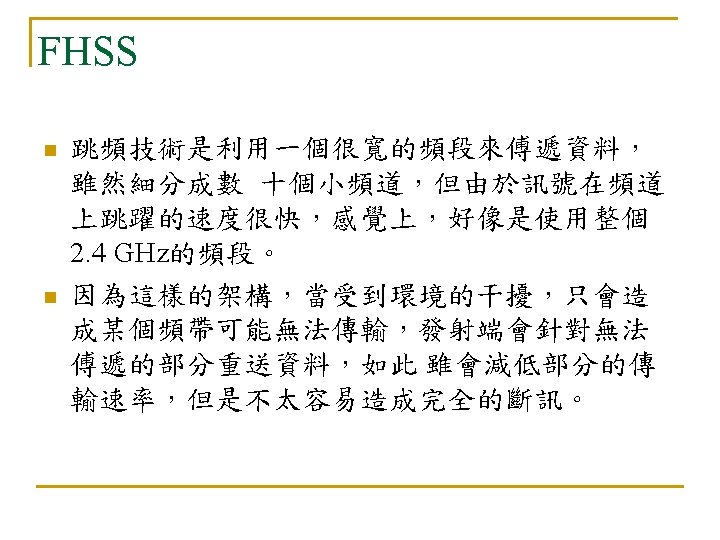

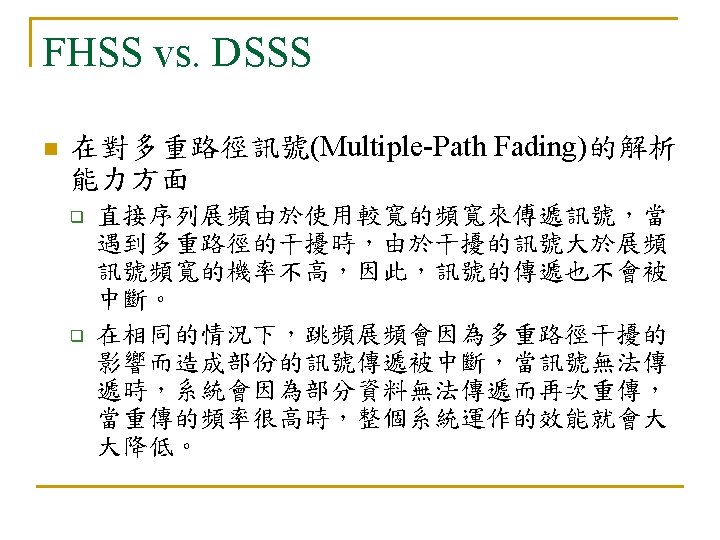

IEEE 802. 11的實體層定義 n IEEE 802. 11規範的無線技術包括: q q q n 直接序列展頻(Direct Sequence Spread Spectrum: DSSS) 跳頻展頻(Frequency Hopping Spread Spectrum: FHSS) 紅外線(Infrared)技術。 其中直接序列展頻以及跳頻展頻都是使用 2. 4 GHz的ISM (Industrial Scientific and Medical) Band的頻段,這個 ISM Band原本是規劃給 業、科學及醫療領域使用之免申請的 頻段,這個頻段包含了三個頻帶: 902~928 MHz、 2. 4000~2. 4835 GHz以及5. 725~5. 850 GHz。

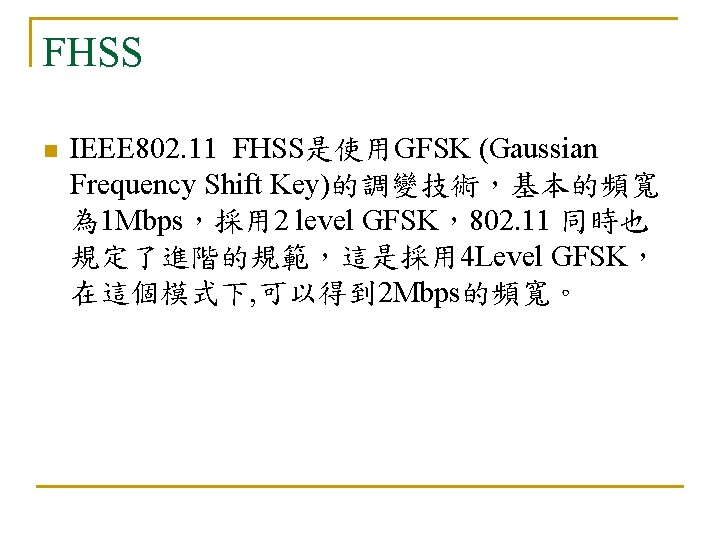

規範中定義的跳頻模式 n 北美、大部分的歐洲地區 q q q Set 1: 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 54, 57, 60, 63, 6 6, 69, 72, 75 Set 2: 1, 4, 7, 10, 13, 16, 19, 22, 25, 2 S, 31, 34, 37, 40, 43, 46, 49, 52, 56, 58, 61, 64, 67, 7 e, 73, 76 Set 3: 2, 5, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38, 41, 44, 47, 50, 53, 57, 59, 62, 65, 6 S, 71, 74, 77 西班牙 n q q q Set 1: 0, 3, 6, 9, 12, 15, 18, 21, 24 Set 2: 1, 4, 7, 10, 13, 16, 19, 22, 25 Sct 3: 2, 5, 8, 11, 14, 17, 20, 23, 26
跳頻模式 n 法國 q q q n Set 1: 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 Set 2: 1, 4, 7, 10 J 3, 16, 19, 22, 25, 28, 31 Set 3: 2, 5, 8, 11, 14, 17, 20, 23, 26, 29, 32 日本 q q q Set 1: 6, 9, 12, 15 Sct 2: 7, 10, 13, 16 Set 3: 8, 11, 14, 17

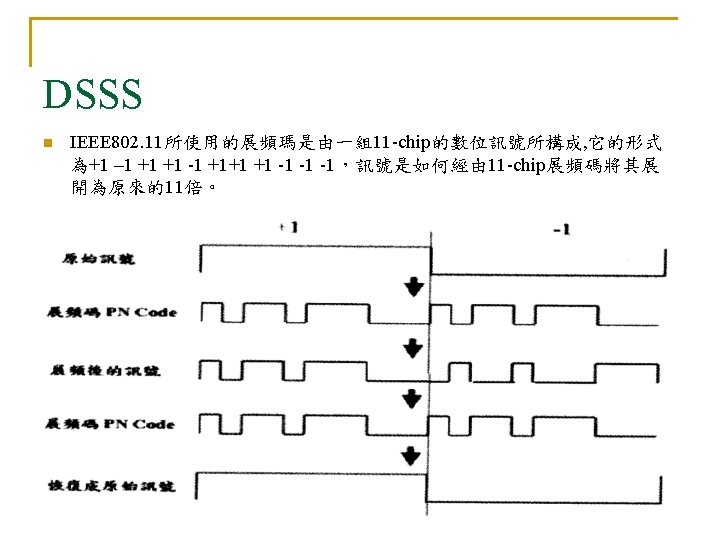

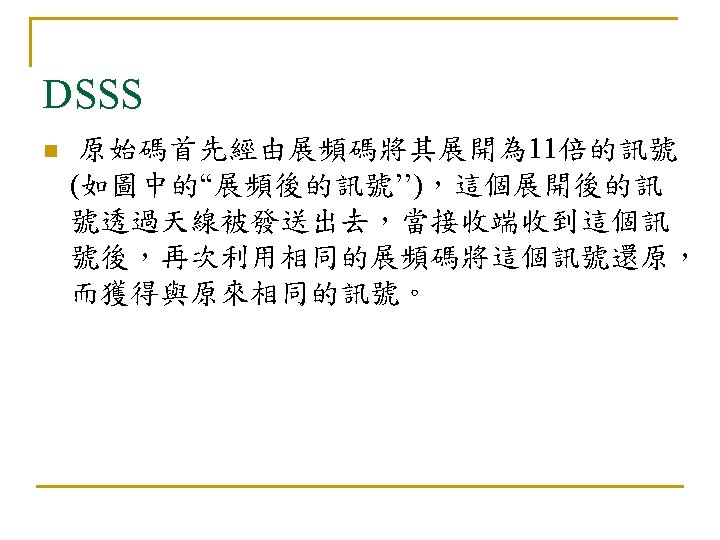

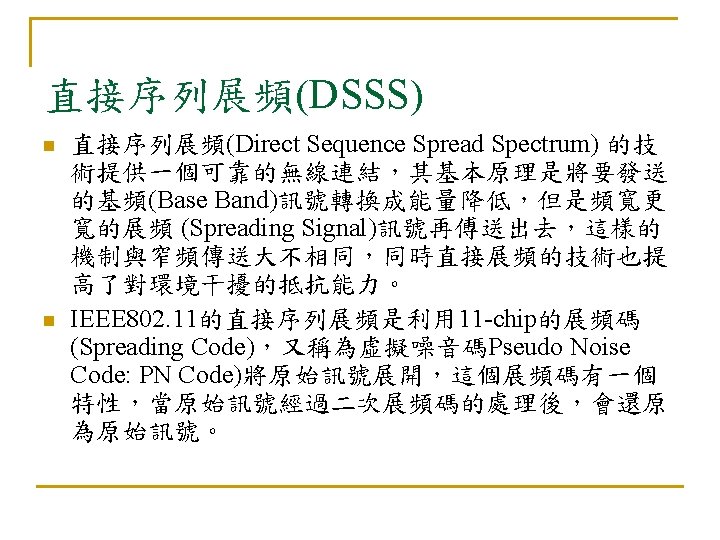

DSSS

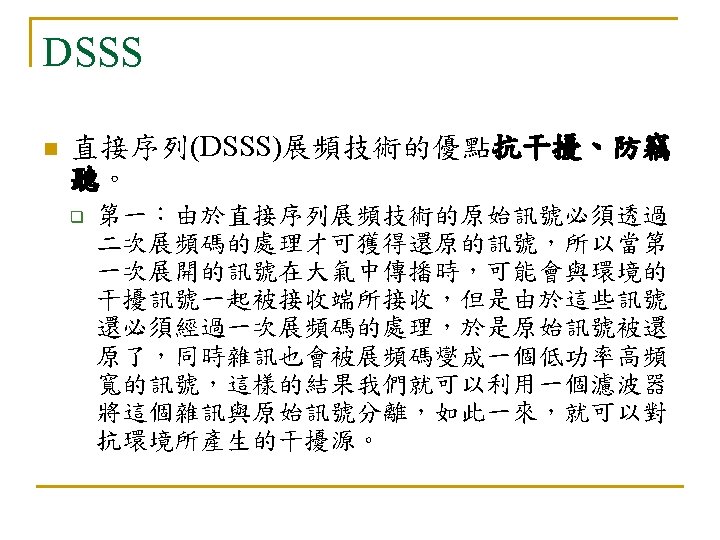

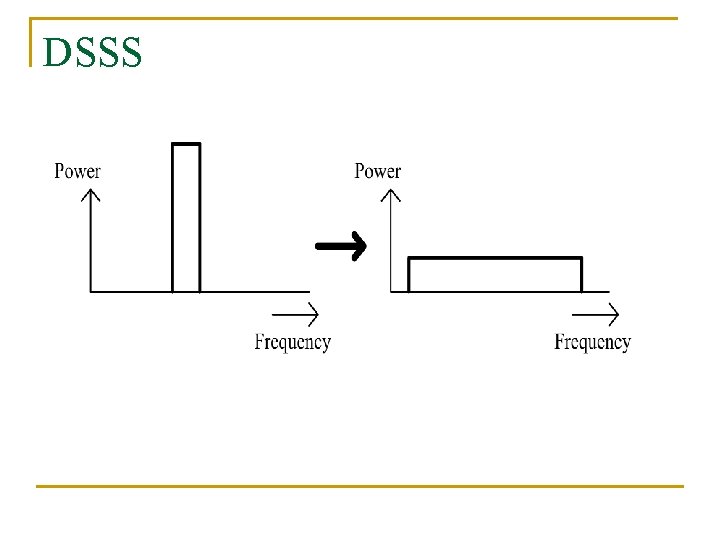

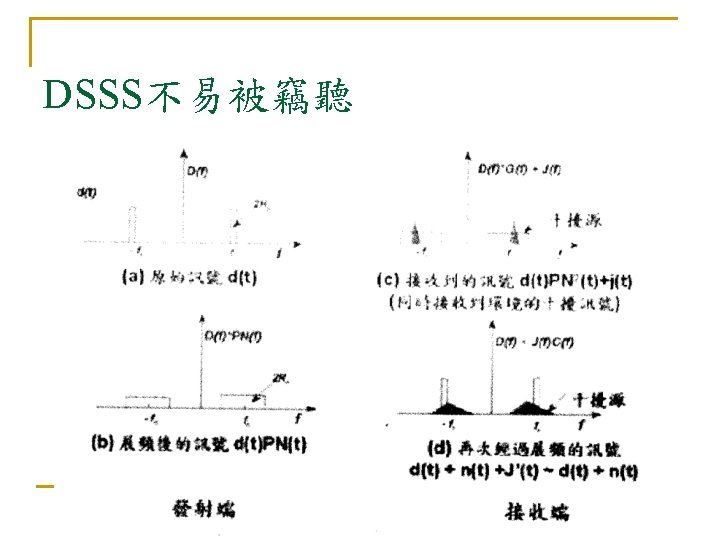

DSSS抗干擾 DBPSK DQPSK

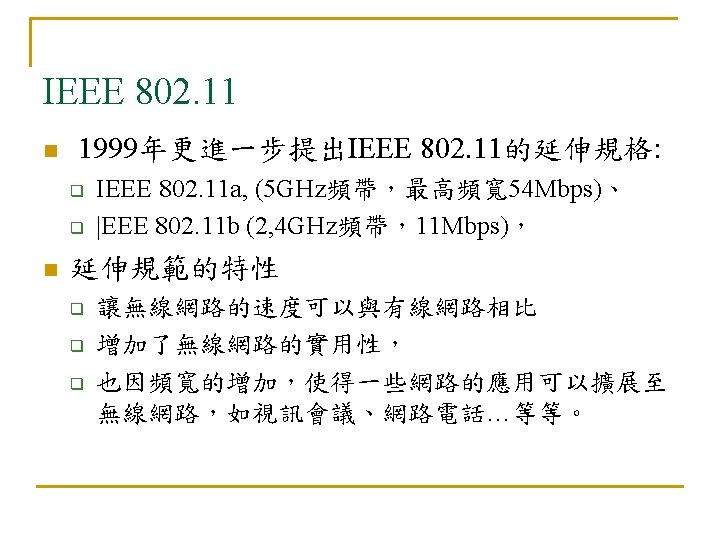

IEEE 802. 11 a n l. EEE 802. 11 a規範的實體眉是 利用 5. 0 GHz的UNII (Unlicensed National Information Infrastructure)頻 帶,可提供的資料傳輸頻寬 為 6 Mbps~54 Mbps,使用的調 變技術為OFDM (Orthogonal Frequency Division Multiplexing),這個規格與 ETSI 制定的Hl. PERLAN/2十 分類似。不同的傳輸速率是 應用不同的次調變技術而產生。

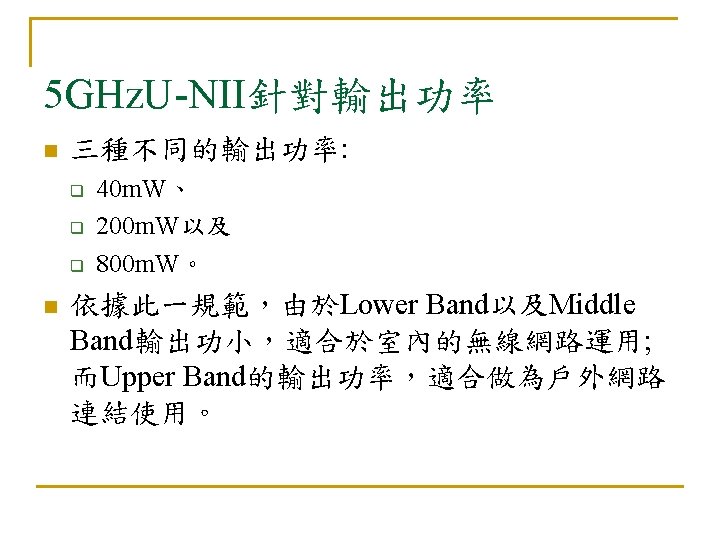

IEEE 802. 11 a n 在美國,5 GHz UNII頻帶被切分為三個頻寬為 100 MHz的頻段, q q 較低頻(Lower Band)的頻段為 5. 15~5. 25 GHz, 其次(Middle Band)為 5. 25~5. 35 GHz, 最高(Upper Band)的頻帶為 5. 725~5. 825 GHz。 其中Lower Band以及Middle Band分成 8個頻道群, Upper Band分為 4個頻道群。

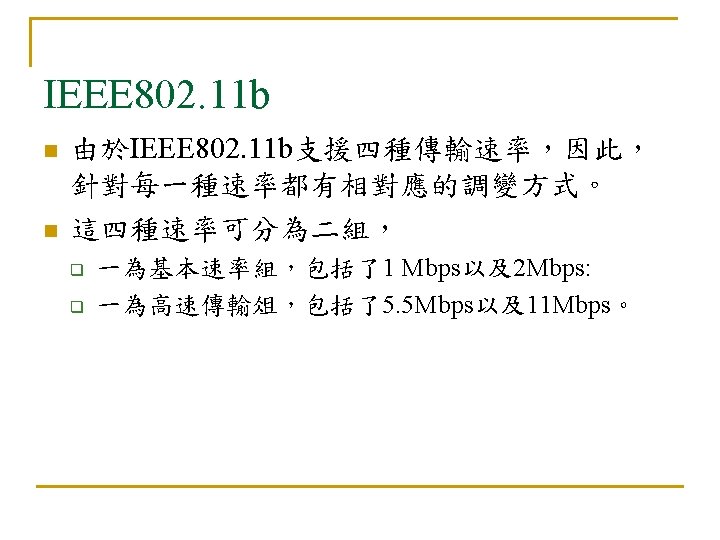

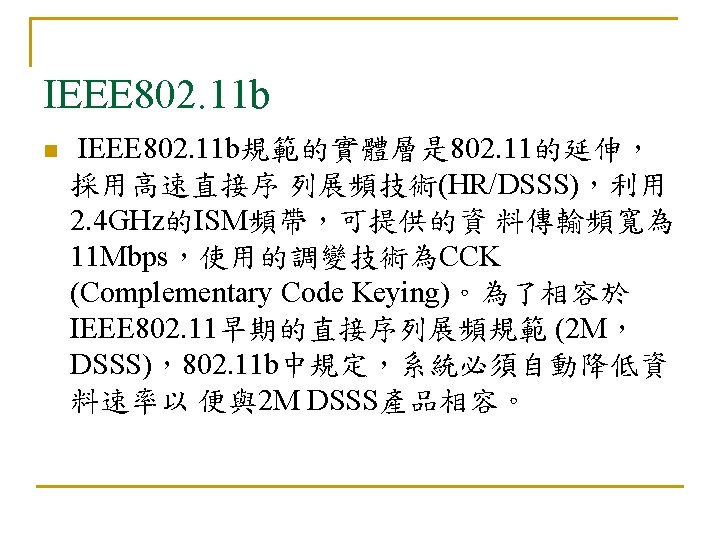

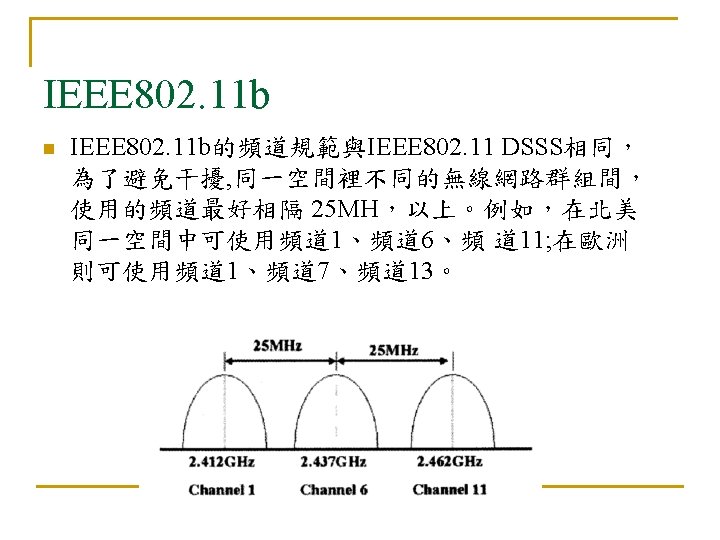

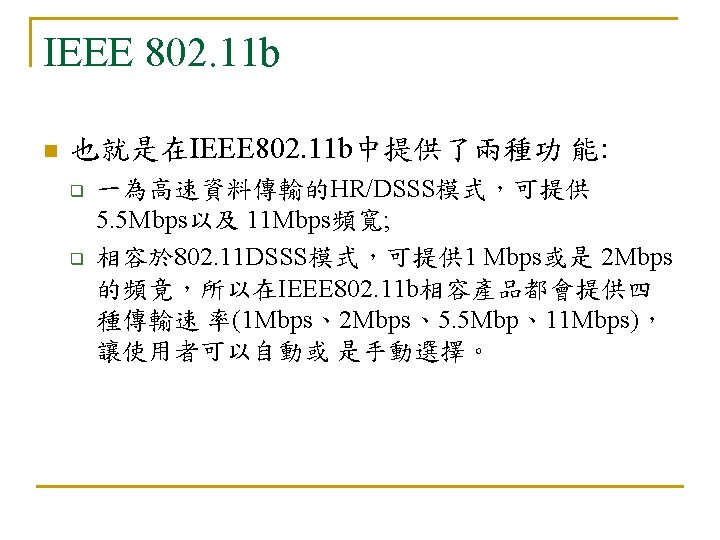

IEEE 802. 11 b n n 其中 1 Mbps的調變方式採用DBPSK (Differential Binary Phase Shift Keying),2 Mbps採用DQPSK(Differentia 1 Quadratic Phase Shift Keying),這兩者都採用 11 -chip的 展頻碼。 而高速傳輸的調變模式則採用CCK,同時亦規範了另 一個選擇性(Option) 調變模式PBCC (Packet Binary Convolution Coding),這個調變模式是為了相容 IEEE 802. 11 FHSS所規範,也就是IEEE 802. 11 b產品可 透過這個方式與IEEE 802. 11 FHSS產品互通,但是目前 大部分的IEEE 802. 11 b產品並不支援此項功能。
DBPSK Modulation
DQPSK Modulation
