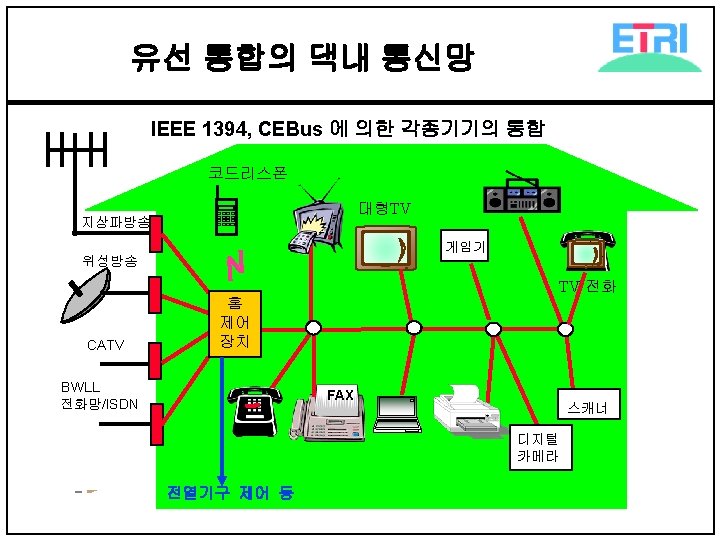

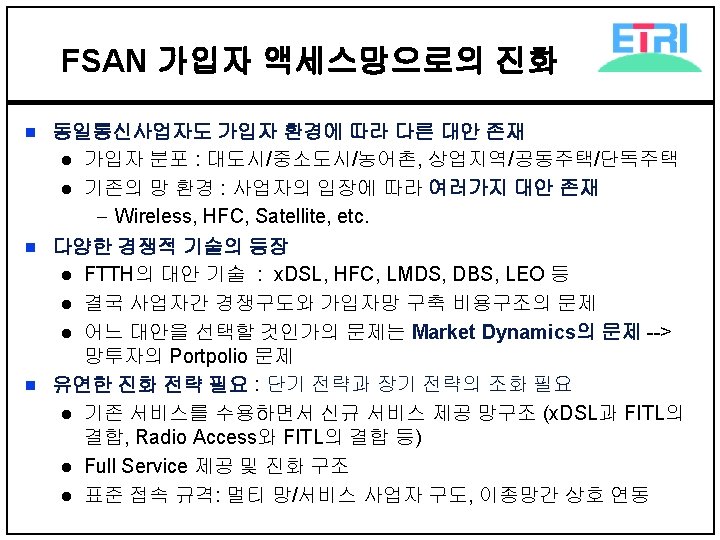

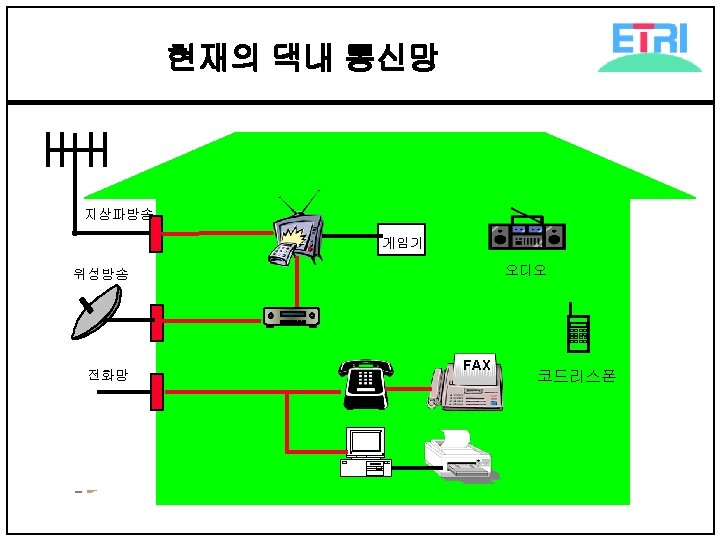

IEEE 1394 Protocol Stcaks Asynchronous Isochronous Management Layer
- Slides: 44

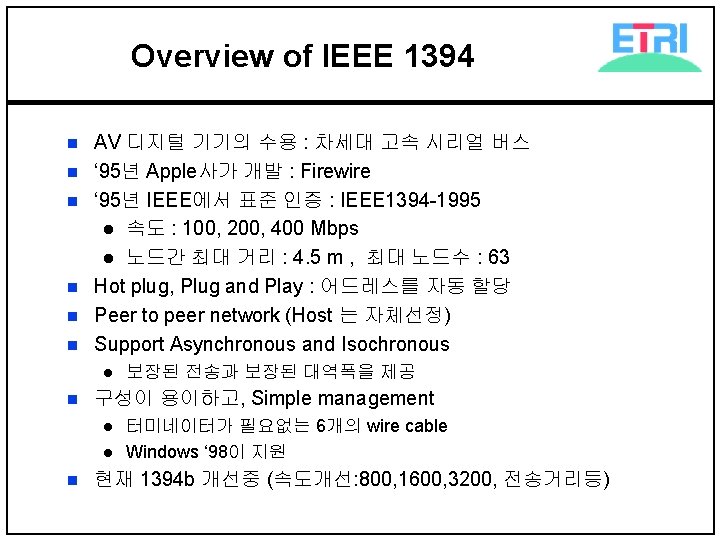

IEEE 1394 Protocol Stcaks 제어 Asynchronous 채널 Isochronous 채널 Management Layer Transaction Layer Mgmt. Layer - 버스 관리 - Isochronous 자원 관리 - 노드 제어 패킷 Link Layer 심볼 Physical Layer Firmware - 패킷송수신 - 전송제어절차 Physical Layer - 테이타 인코딩/디코딩 - 버스 중재 - 매체 접속 Hardware IP over 1394 : http: //www. ietf. org/html. charters/ip 1394 -charter. html VESA : http: //www. vesa. org 1394 TA : http: //www. 1394 ta. com

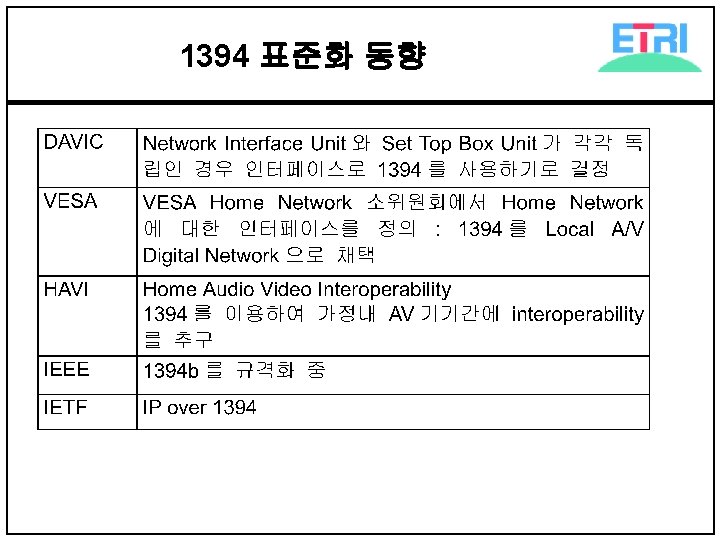

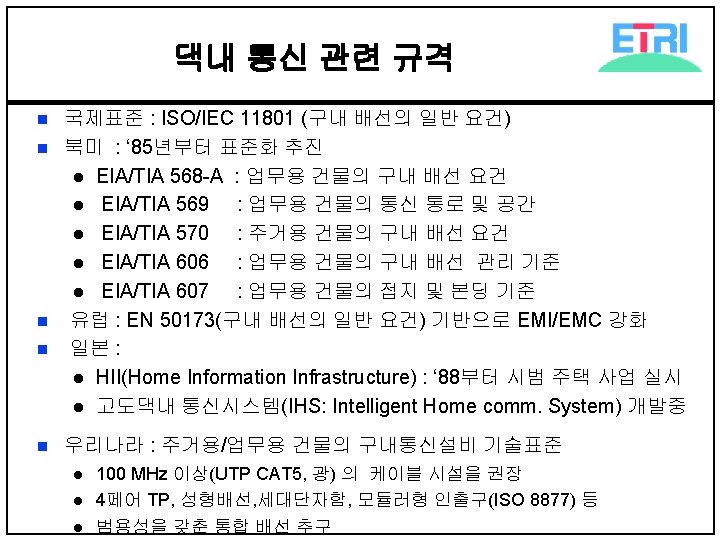

1394 Cable , Connector
Home. RF Vision
Home. RF Timeline TM g it n ee 1 s t. M RD M s ed t ec l Se ch AP n u a SW L 1997 SW AP 1998 Q 1 Q 2 . 0 1 R t s 1 t en n o p m o C t 1 s o Pr ts c u d 1999 2000 Q 3 Q 4 6/ s ar in m 24 Se 19 6/ . 0 R 1 /17 12 9 /2 23 10 9/ s. 9 ar R 0 in m Se rt. 19 Pa 9/. 7 R 0 . 5 R 0 rt. Pa 27 3/ /4. 1 h 3 R 0 nc u La

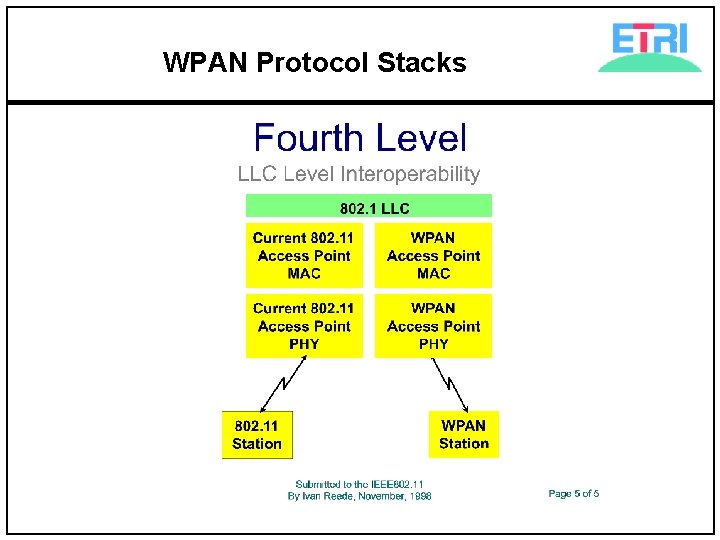

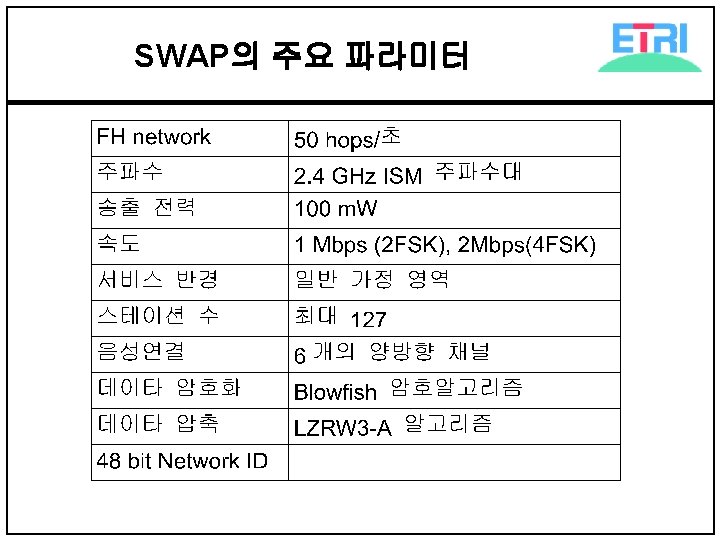

WPAN Protocol Stacks
WPAN Application Feature List Priority Consensus Strong Weak High Must haves low cost low power small size packet data < 1 Mbps range < 10 m active devices < 10 manual auth/auto attach coexistence with 802. 11 Warring camps topology active devices 10 - 128 coexisting PANs 4 -30 Low Nice to haves packet + isochronous encryption mobility < 10 mph gateway native IP Apathetic bickering inter-pan connectivity

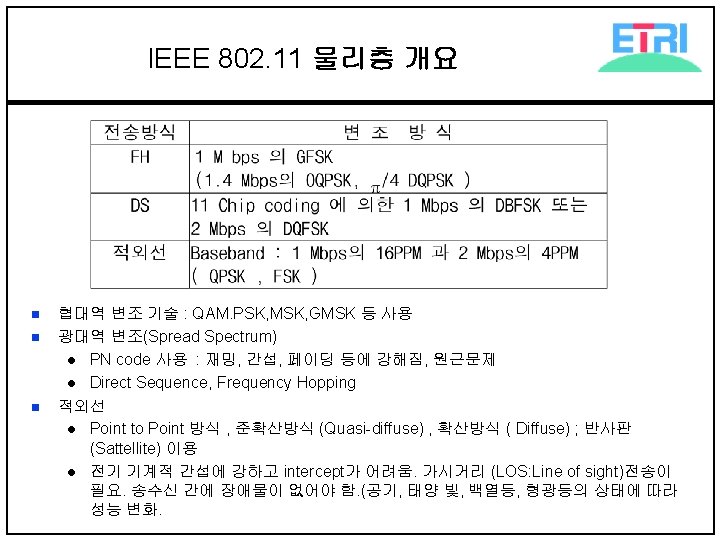

WPAN - 802. 11 MAC Lite MAC 2. 4 GHz radio Freq. Hopping Spread Spectrum 1 Mbit/s 2. 4 GHz radio Direct Sequence Spread Spectrum 2 Mbit/s 1 Mbit/s italic , 및줄 = optional Infra. Red Higher data rate extension in 2. 4 GHz 802. 11 b Higher data rate extension in 5 GHz 802. 11 a Lower data rate extension in 2. 4 GHz 802. 11 x 1 Mbit/s 2 Mbit/s 11 & 5. 5 Mbit/s 6 -1218. . . 54 Mbit/s <1 Mbit/s

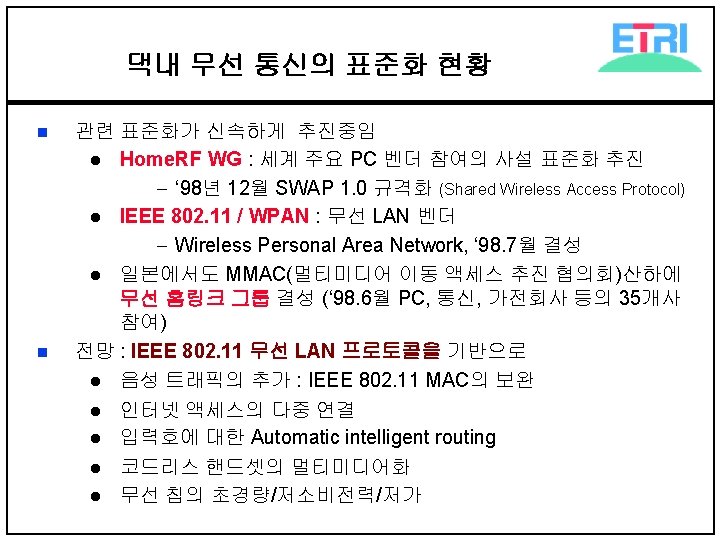

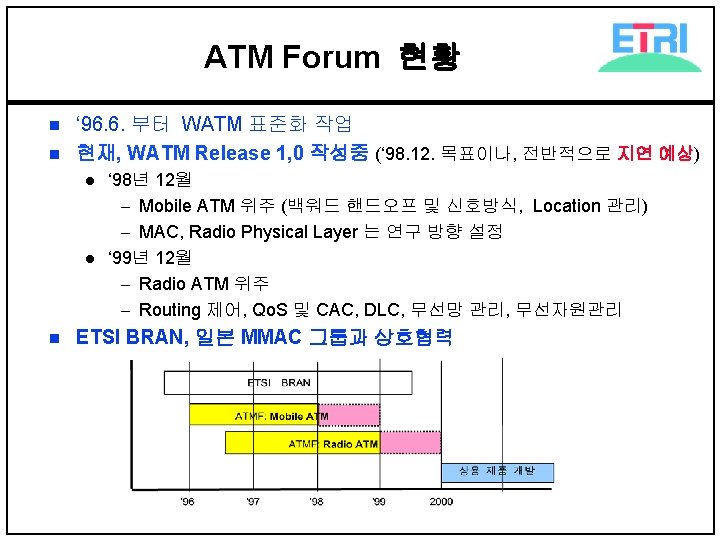

표준화 및 연구 개발 동향 n n n 국제 기관 l ATM Forum - Wireless ATM l ITU-T SG 11, SG 13, ITU-R SG 8, WARC l DAVIC 1. 1 : 디지털 MMDS, LMDS 규격 l IEEE 802. 11 TGa 유럽 , 일본 l ETSI BRAN - HIPERLAN in 5 /17 GHz l 일본 MMAC: 고속 무선 LAN 및 Ultra high speed wireless LAN l ACTS : MBS/SAMBA, WAND, MEDIAN 프로젝트 단체(미국 주도) l WINForum : FCC에 주파수 사용에 대한 건의 l WLI - Interoperability l WLNA - marketing alliance , WLRL - research alliance

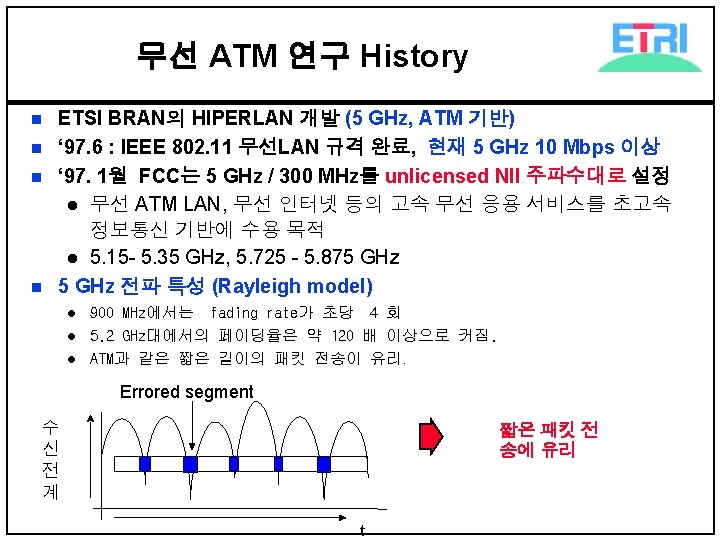

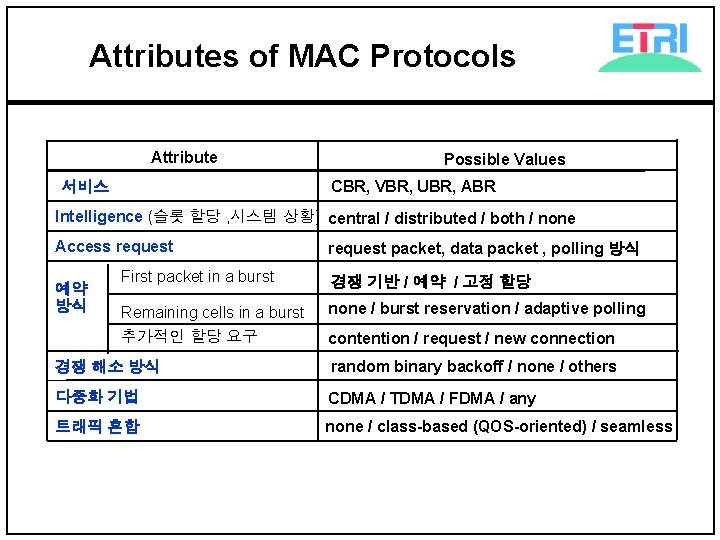

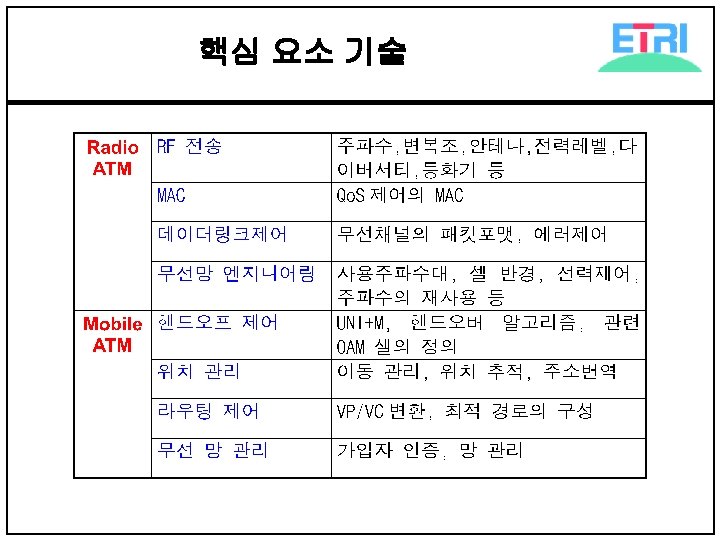

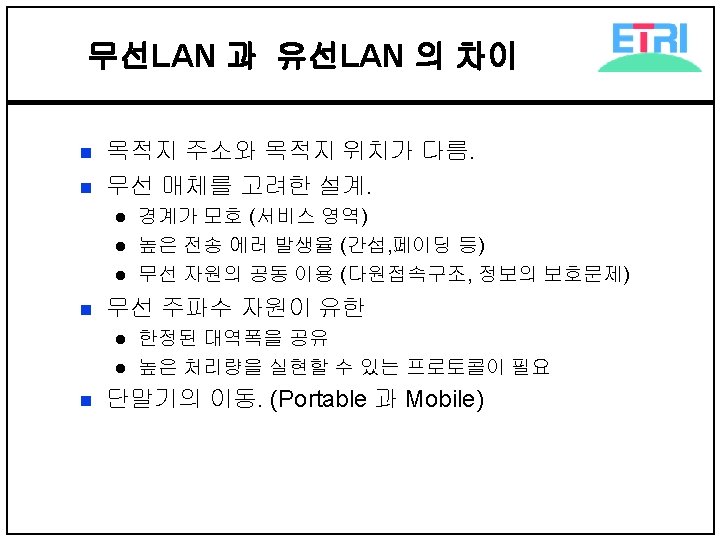

Attributes of MAC Protocols Attribute Possible Values CBR, VBR, UBR, ABR 서비스 Intelligence (슬롯 할당 , 시스템 상황) central / distributed / both / none Access request 예약 방식 request packet, data packet , polling 방식 First packet in a burst 경쟁 기반 / 예약 / 고정 할당 Remaining cells in a burst none / burst reservation / adaptive polling 추가적인 할당 요구 contention / request / new connection 경쟁 해소 방식 random binary backoff / none / others 다중화 기법 CDMA / TDMA / FDMA / any 트래픽 혼합 none / class-based (QOS-oriented) / seamless

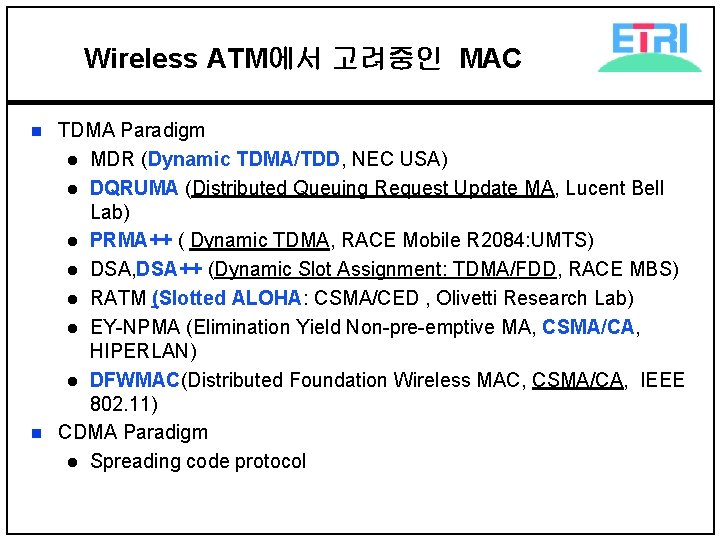

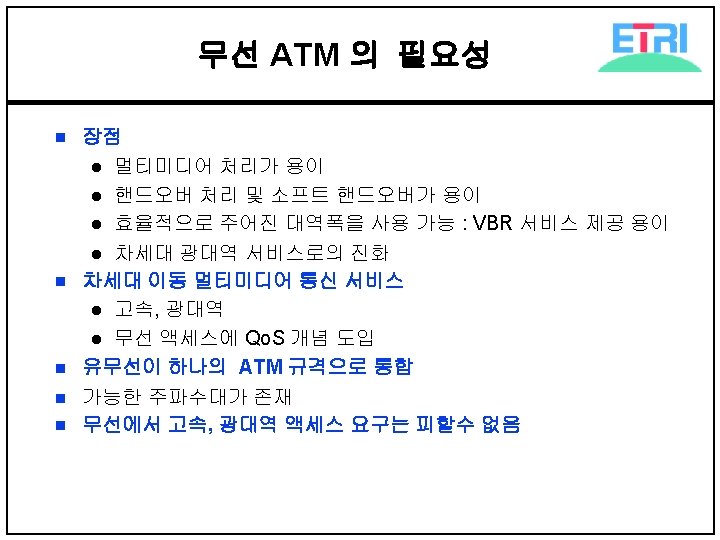

Wireless ATM에서 고려중인 MAC n n TDMA Paradigm l MDR (Dynamic TDMA/TDD, NEC USA) l DQRUMA (Distributed Queuing Request Update MA, Lucent Bell Lab) l PRMA++ ( Dynamic TDMA, RACE Mobile R 2084: UMTS) l DSA, DSA++ (Dynamic Slot Assignment: TDMA/FDD, RACE MBS) l RATM (Slotted ALOHA: CSMA/CED , Olivetti Research Lab) l EY-NPMA (Elimination Yield Non-pre-emptive MA, CSMA/CA, HIPERLAN) l DFWMAC(Distributed Foundation Wireless MAC, CSMA/CA, IEEE 802. 11) CDMA Paradigm l Spreading code protocol
DFWMAC - IEEE 802. 11 무선LAN의 MAC n n n Distributed Foundation Wireless MAC IEEE 802. 3의 CSMA/CD형의 분산형 액세스 프로토콜. 즉, 프레임 간격 제어방식의 CSMA/CA (Carrier Sense Multiple Access/ Collision Avoidance) Hidden terminal을 위하여 RTS/CTS 및 Network Allocation Vector(가상 carrier sense 기능)를 사용 분산 제어방식을 기 본으로 하며, 폴링에 의한 중앙 제어방식도 선택 사항으로 수용. 전력 제어 기능을 구비. ad Hoc 구성을 별도로 구분하지 않고 사용한다.
DFWMAC Coordination Function n n DCF와 PCF로 구성 DCF l Distributed Coordination Function 경쟁에 의해 무선 채널을 획득하 는 기능 l 비동기 데이타 통신용 l CSMA/CA, RTS/CTS등이 사용 PCF l n l Point Coordination Function l 시간 제한을 받는 동기 데이타 전 송에 사용 폴링(Polling)을 사용. l
Super Frame의 구성과 PCF 동작 예

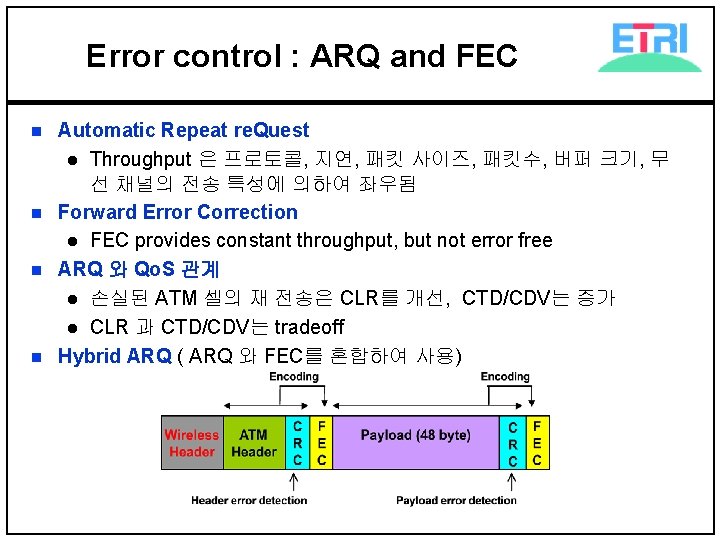

Error control : ARQ and FEC n n Automatic Repeat re. Quest l Throughput 은 프로토콜, 지연, 패킷 사이즈, 패킷수, 버퍼 크기, 무 선 채널의 전송 특성에 의하여 좌우됨 Forward Error Correction l FEC provides constant throughput, but not error free ARQ 와 Qo. S 관계 l 손실된 ATM 셀의 재 전송은 CLR를 개선, CTD/CDV는 증가 l CLR 과 CTD/CDV는 tradeoff Hybrid ARQ ( ARQ 와 FEC를 혼합하여 사용)
